120v 277v High bay iot tuya indoor ble zigbee presence light wifi pir motion sensors wireless smart outdoor
- Category: >>>
- Supplier: Ningbo Brilliant Electronics Co. Ltd.
Share on (1600415333484):
Product Overview
Description
Specifications
Power supply | 120/277VAC 50/60HZ |
Maximum load @-40°F~+167°F (40°C ~ +75°C) | Resistive/Tungsten -600W@120V Electronic Ballast-800W@120V/1200W@277V |
Dim control output | 0-10V, max. 25mA sinking current |
Protocol | Bluetooth Mesh |
Wireless frequency | 2.4GHz |
Max RF power | 8dBm |
Receive sensitivity | -92dBm |
Max communication distance (non-block) | 100 meters |

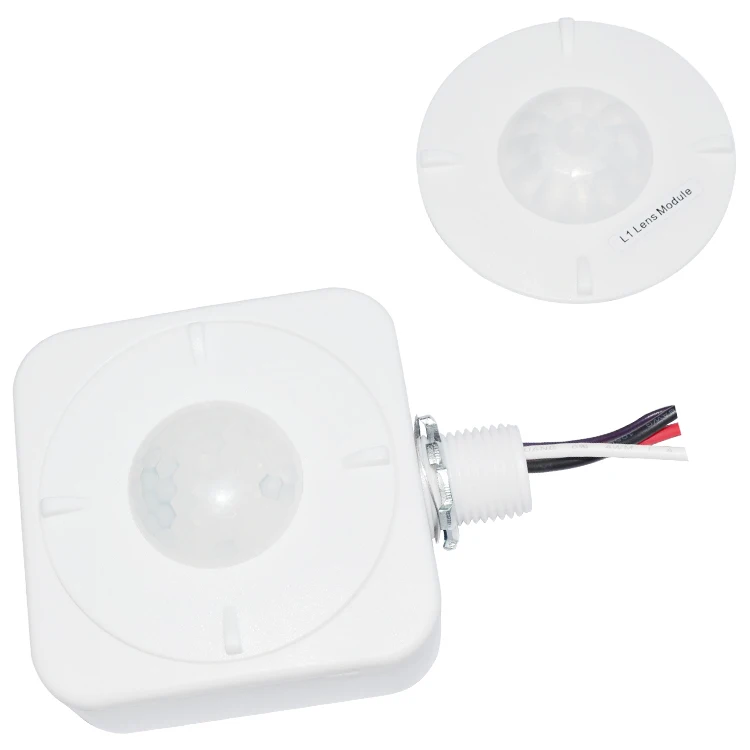

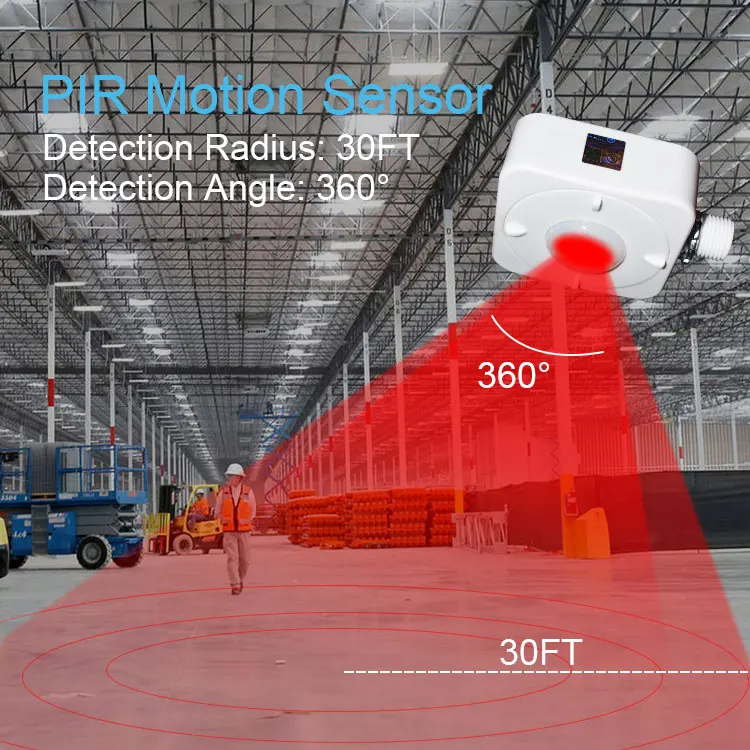

Len L1 | Max.dectection radius 30ft;Max. mounting height 25ft |
Len L2 | Max.dectection radius 30ft;Max. mounting height 40ft |
Time setting | 10sec.-15min.(adjustable) |
Light-control | 10-50Lux/disable (adjustable) |
Humidity | Max. 95% RH |
Temperature | -40°F~+167°F(-40°C~+75°C) |

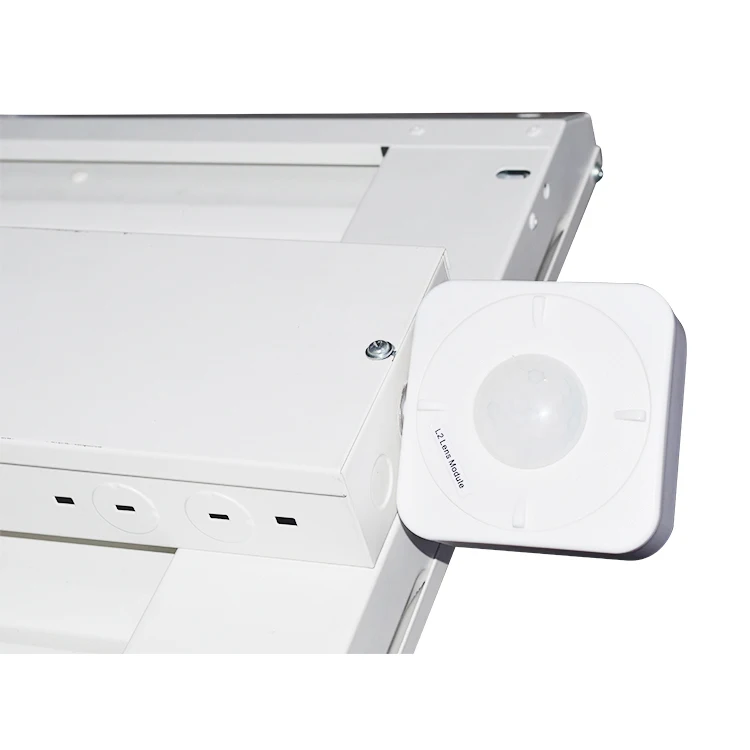

Product Image

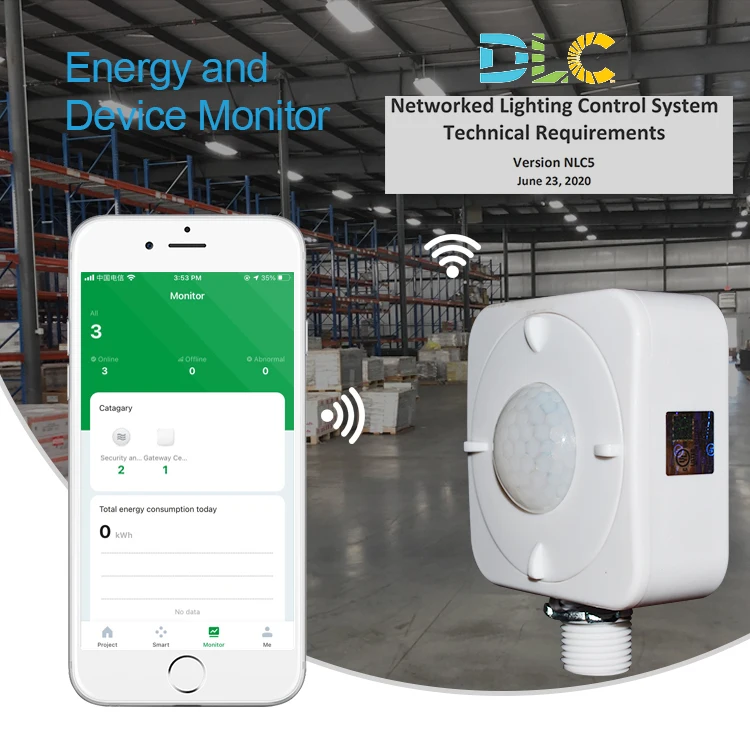

The Lighting Controls Bluetooth Fixture Controller & Sensor provides automated individual and group control of light fixtures using on board sensors and Bluetooth technology.

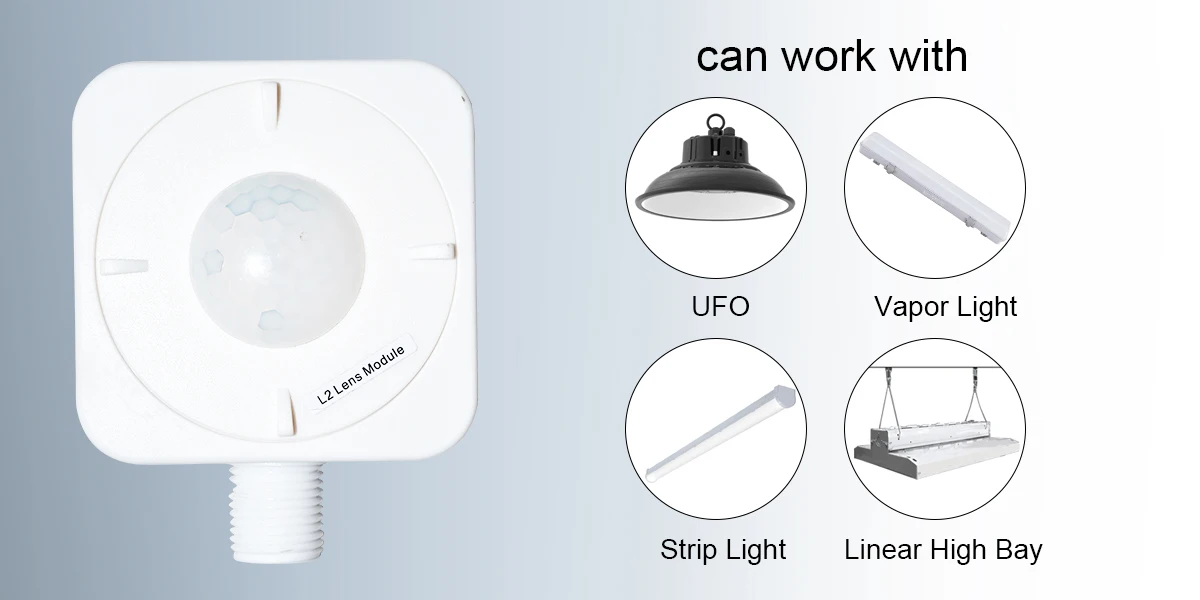

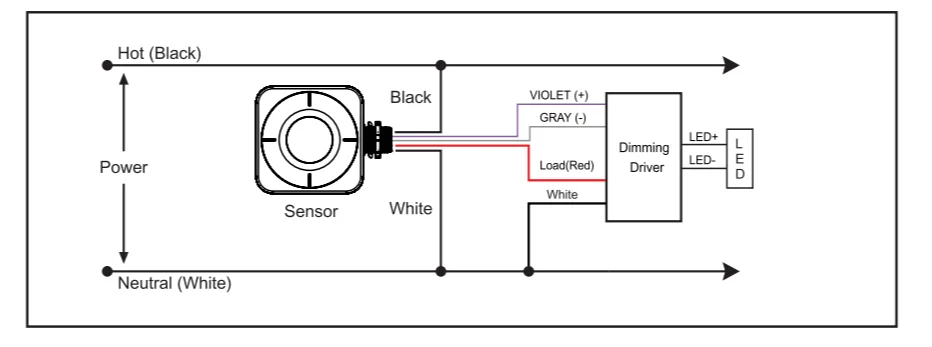

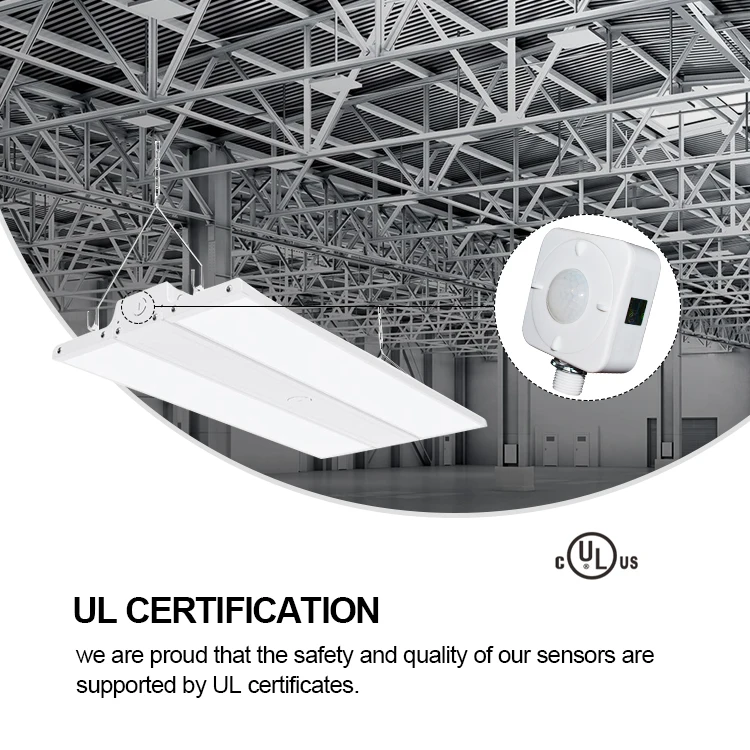

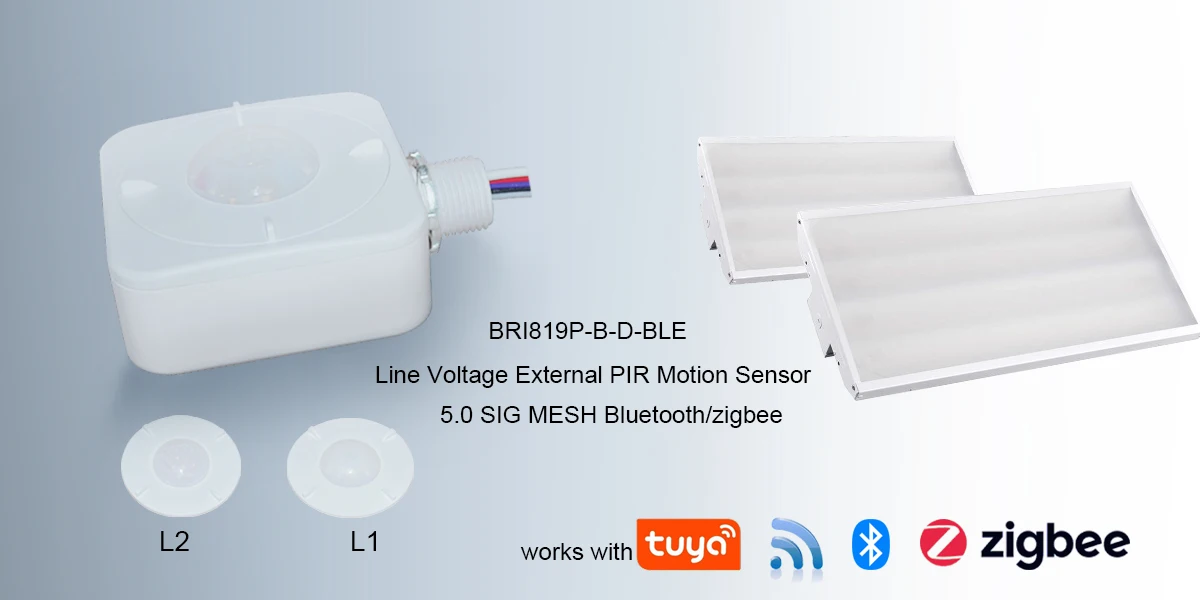

BRI819P-B-D-BLE is designed to mount to alight fixture and control one load in that fixture. They can be wired to control all ballasts in the fixture, or to control half of the ballasts, providing high/low lighting control.

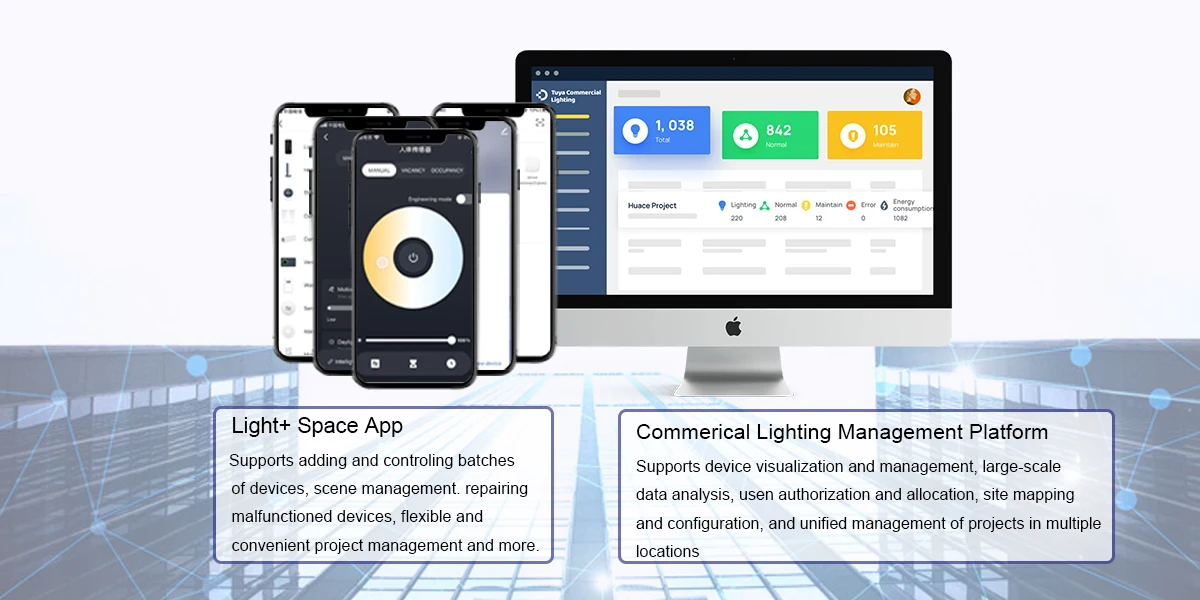

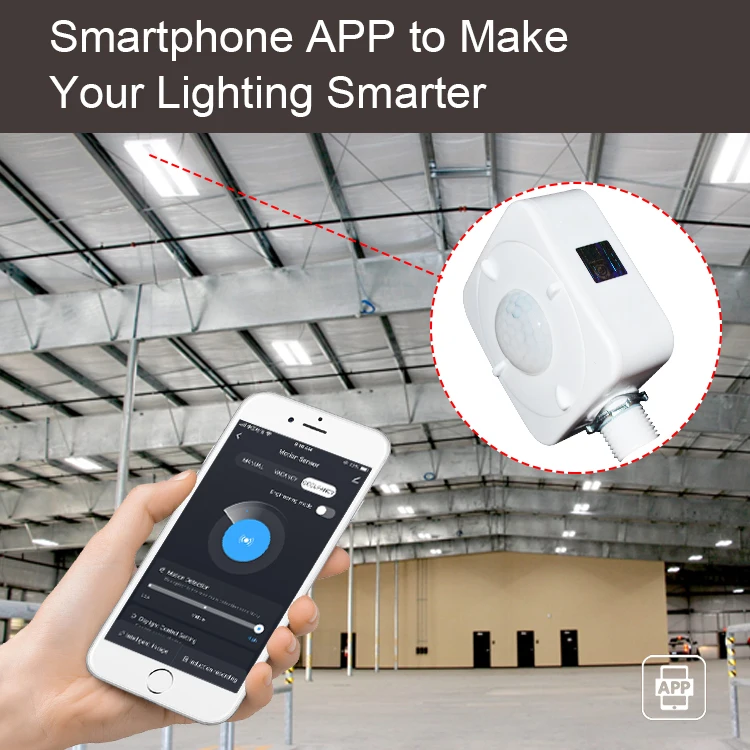

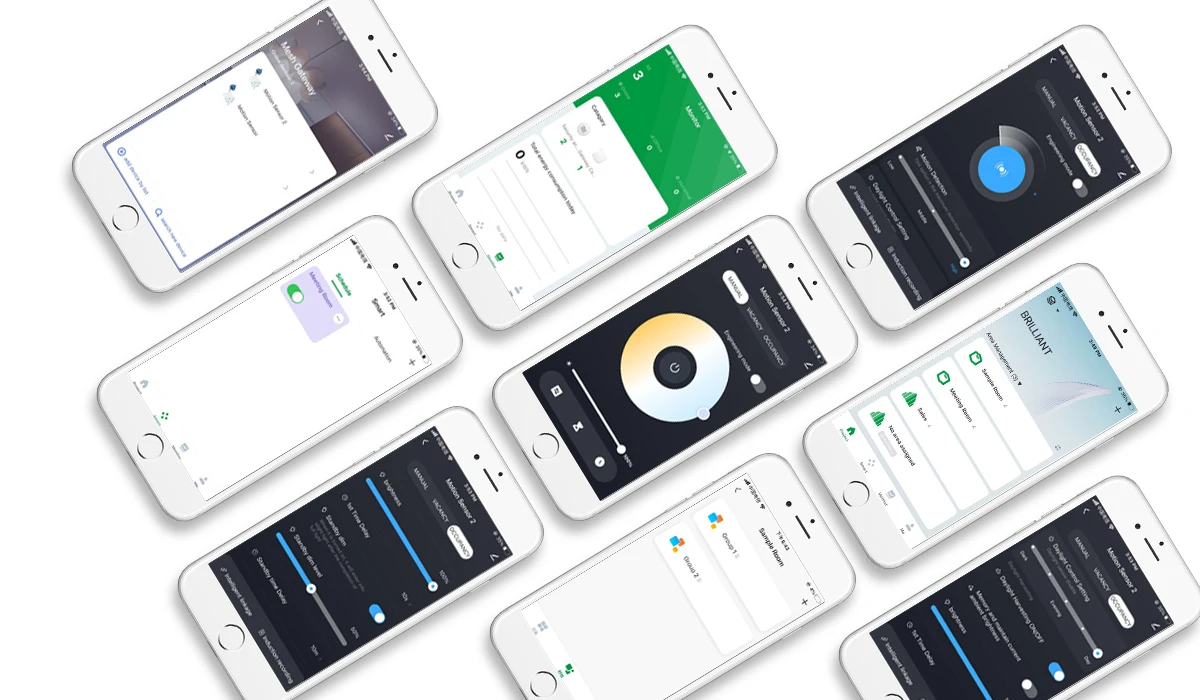

Configuration of the Lighting Controls Fixture Controller & Sensor is done conveniently with our free Smartphone App using Bluetooth protocol to communicate with the device.

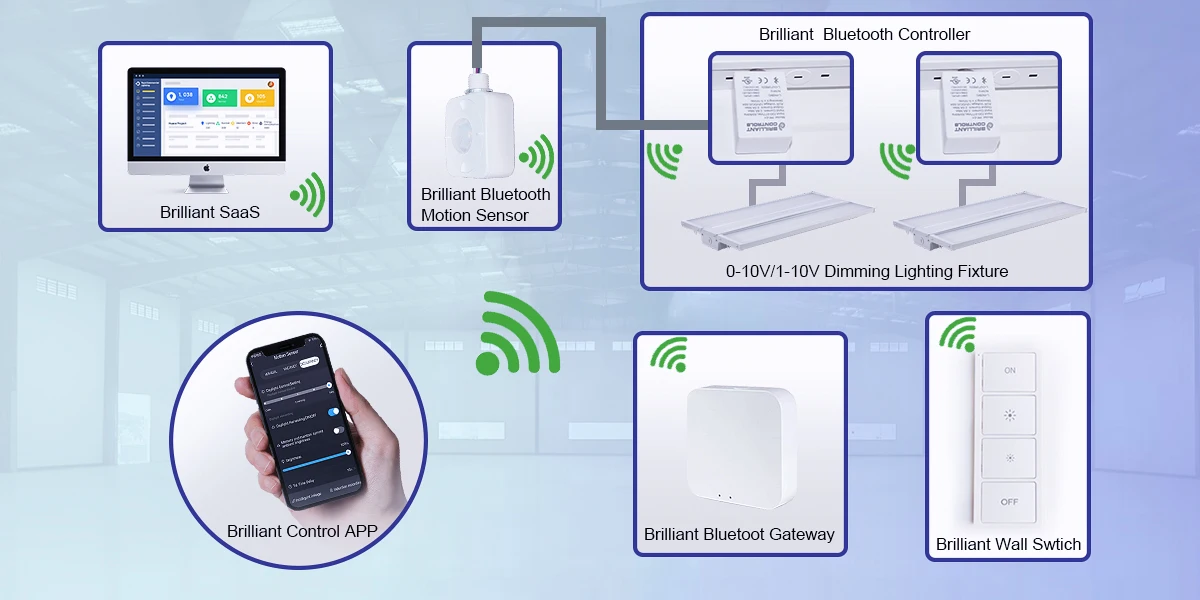

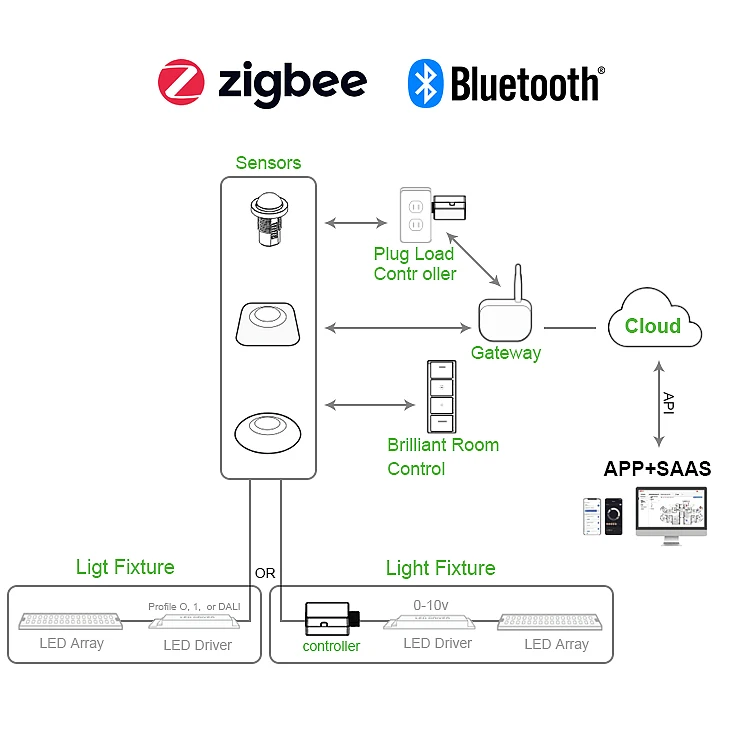

A Bluetooth mesh network is created between devices for control over a group of Lighting Controls Bluetooth Fixture Controller & Sensors.
BRI819P-B-D-BLE is designed to mount to alight fixture and control one load in that fixture. They can be wired to control all ballasts in the fixture, or to control half of the ballasts, providing high/low lighting control.
Configuration of the Lighting Controls Fixture Controller & Sensor is done conveniently with our free Smartphone App using Bluetooth protocol to communicate with the device.
A Bluetooth mesh network is created between devices for control over a group of Lighting Controls Bluetooth Fixture Controller & Sensors.
Bluetooth Function

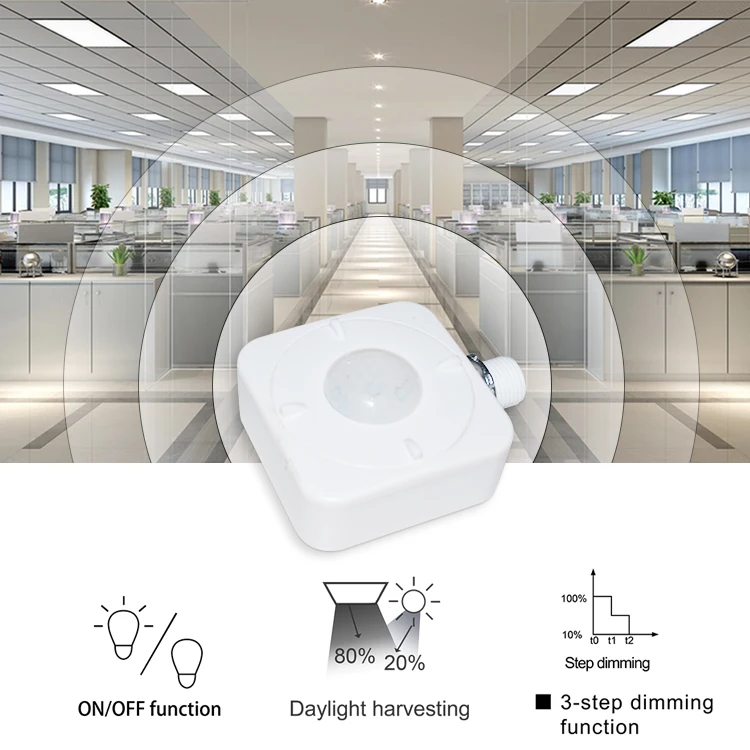

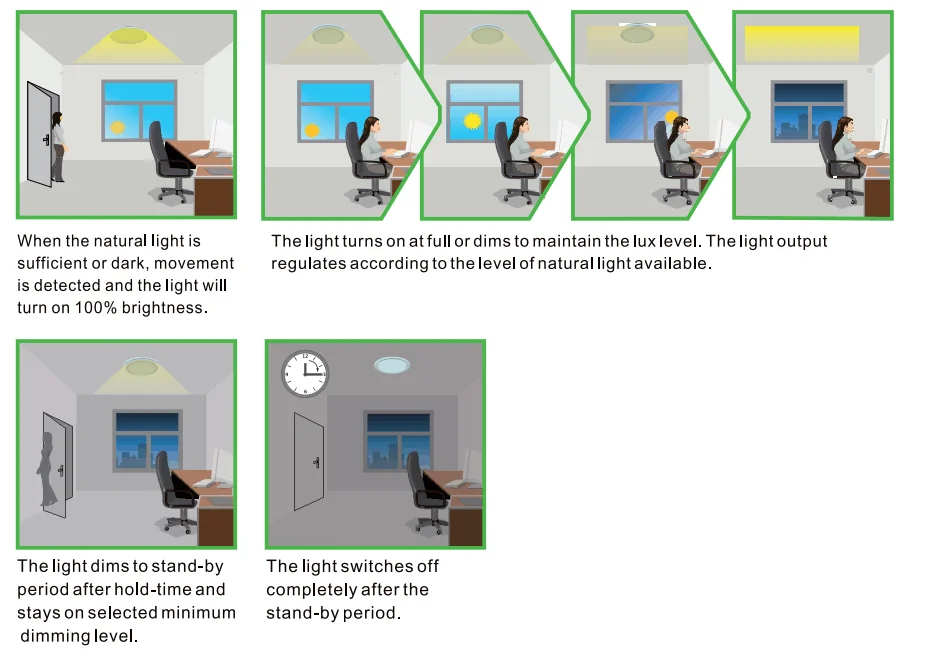

Daylight Harvesting Function
Products Description

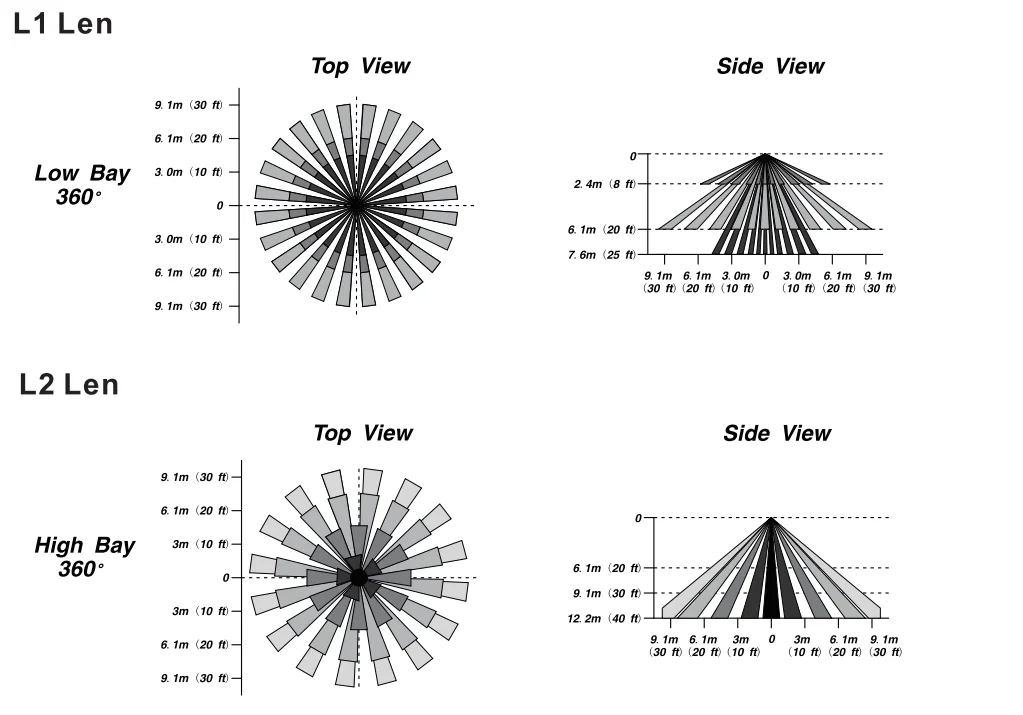

Coverage
