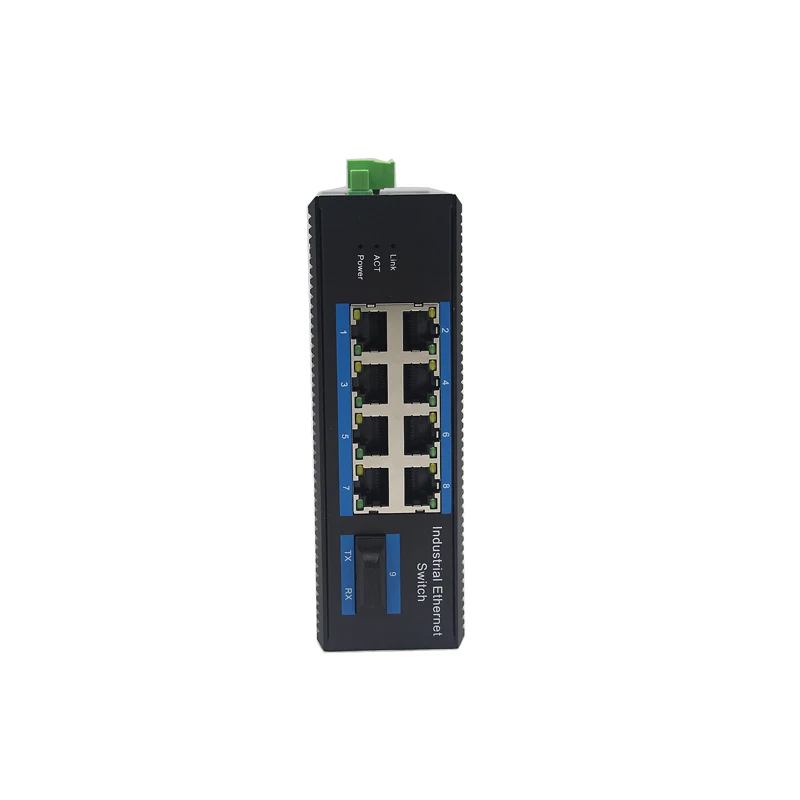

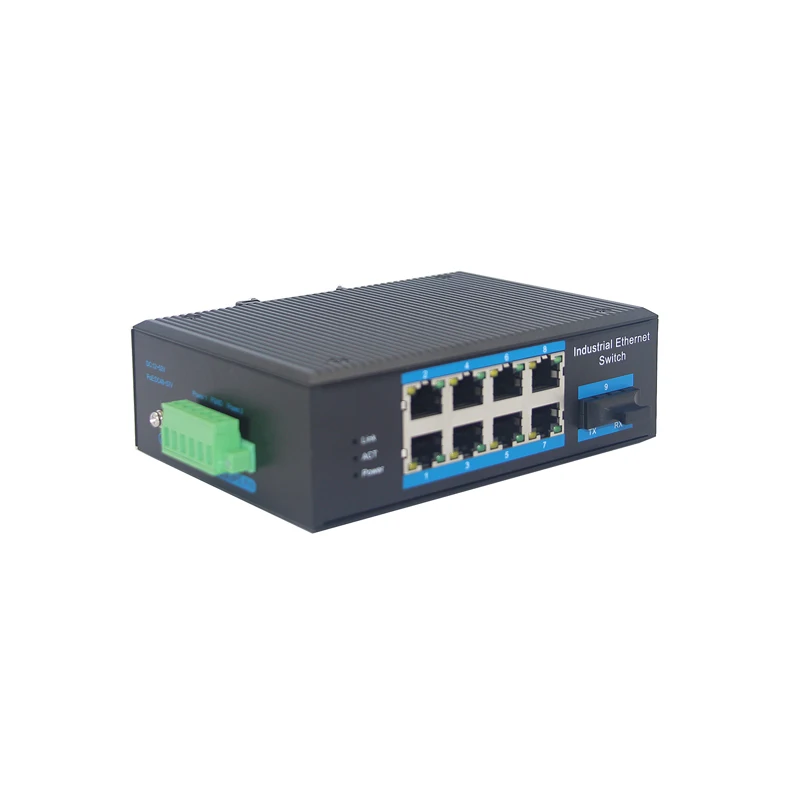

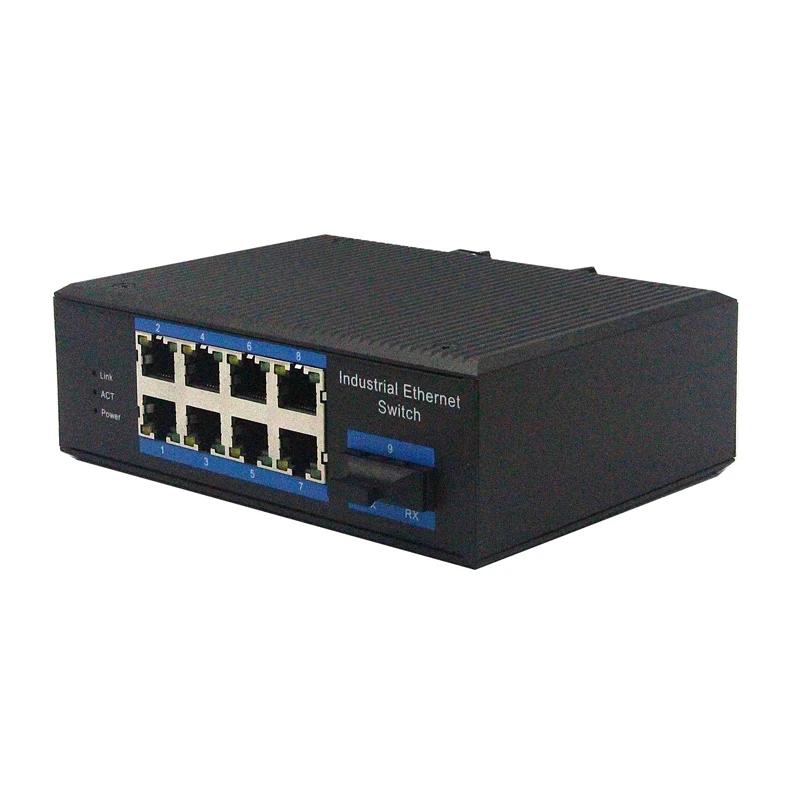

1 Light 8 Electricity Optical Port Industrial Ethernet Switch Industrial Switch Poe
- Category: >>>
- Supplier: Guangxi Nanning Deepen Communication Equipment Co. Ltd.
Share on (1600415342781):
Product Overview
Description
product description
The ZXR08F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Product Description
Specification
Model | ZXR001 |
item | value |
Products Status | Stock |
Ports | ≤ 8 |
Transmission Rate | 10/100Mbps |
Function | POE, Stackable |
Communication Mode | Full-Duplex & Half-Duplex |
Certification | FCC, ce, RoHS |
Model Number | ZXR08F |
Place of Origin | China |
Performance Specification | Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K |
10/100BASE-TX Port | 8 port RJ-45 auto-MDI / MDI-X |
Installation | DIN Rail |
Maximum Frame Size | 9000bytes packet size |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | |
LED Indicator | Power: Red Ethernet: Yellow POE: Green |
Power Input | 12 to 52V DC redundant power |

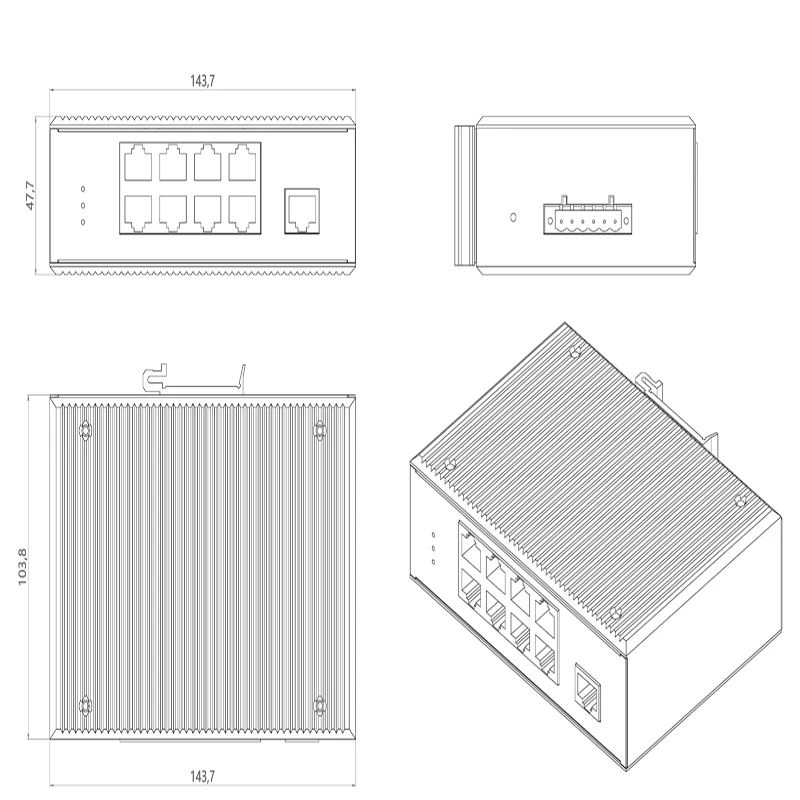

Dimensions (W x D x H) | 143.7 x 103 x 47.7 mm |
Product Weight: Packing Weight: | 0.52KG; 0.62KG |
Operating temperature | -40~85℃ |
Warranty | -40~85℃ |
Packing & Delivery
box
Company Profile
Founded in 2008, the company has 13 years of experience in design and development. Based on the production plant located in Shenzhen, the company has the capability of design, manufacturing, construction and technical consulting services for the whole optical communication industry chain from optical cable, optical terminals, switches, optical modules to routers. At the same time, from the perspective of customers, I have a deep understanding of customers' requirements for large, medium and small data center construction, and have rich experience in modular data center construction. In government departments, medical and health care, highways, schools and other fields have been successful cases of system construction.
FAQ
1. who are we?
We are based in Guangxi, China, start from 2008,sell to South Asia(15.00%),Africa(15.00%),Southeast Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),Southern Europe(5.00%),South America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Oceania(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical fiber communication equipment,Optical fiber cable,Fiber Optic Converter,optical transceiver,Network Switch
4. why should you buy from us not from other suppliers?
With 13 years of experience in design and development, the company is capable of design, manufacturing and technical consulting services for the whole industrial chain of optical communication from optical cable, optical terminal machine to router.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
We are based in Guangxi, China, start from 2008,sell to South Asia(15.00%),Africa(15.00%),Southeast Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),Southern Europe(5.00%),South America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Oceania(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical fiber communication equipment,Optical fiber cable,Fiber Optic Converter,optical transceiver,Network Switch
4. why should you buy from us not from other suppliers?
With 13 years of experience in design and development, the company is capable of design, manufacturing and technical consulting services for the whole industrial chain of optical communication from optical cable, optical terminal machine to router.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
