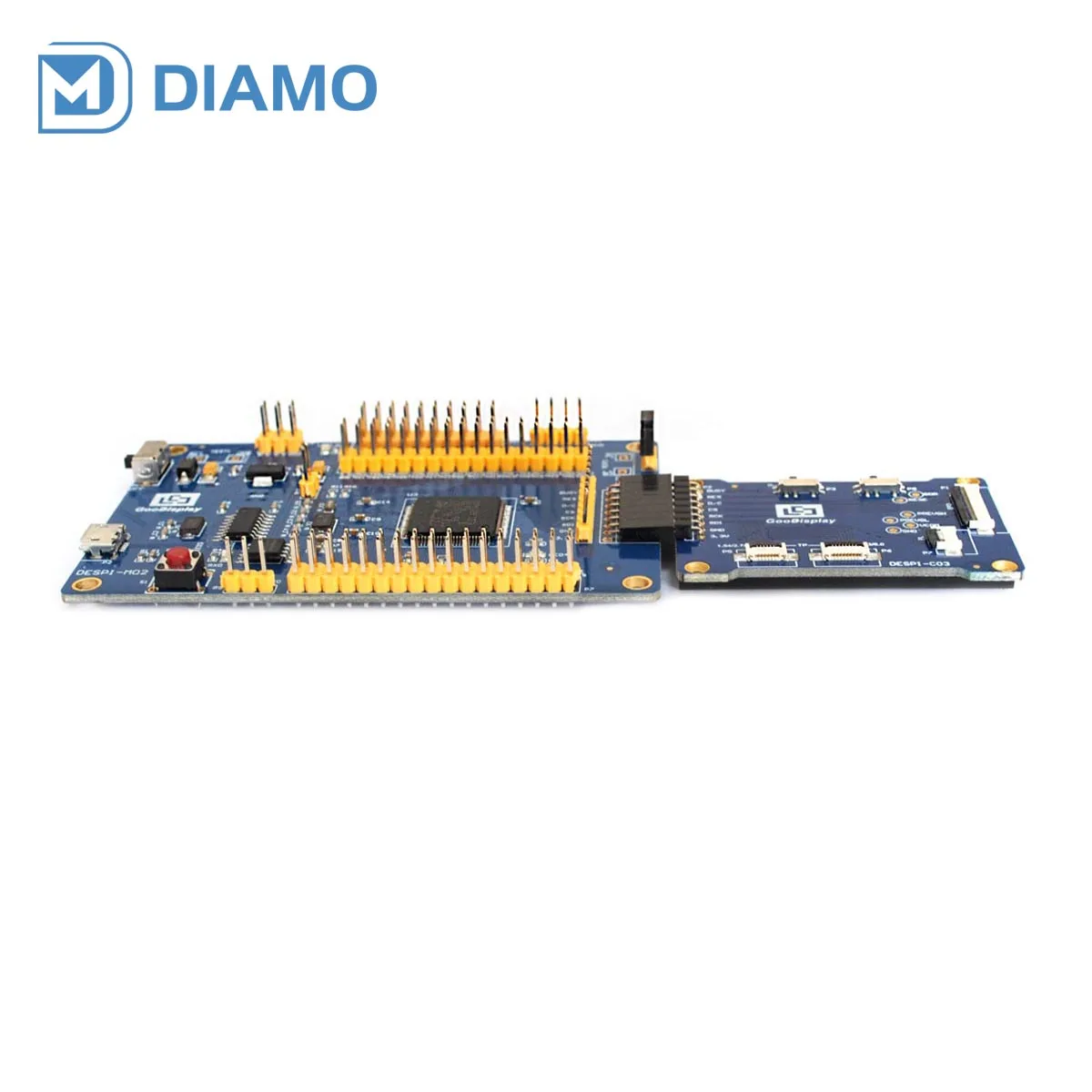

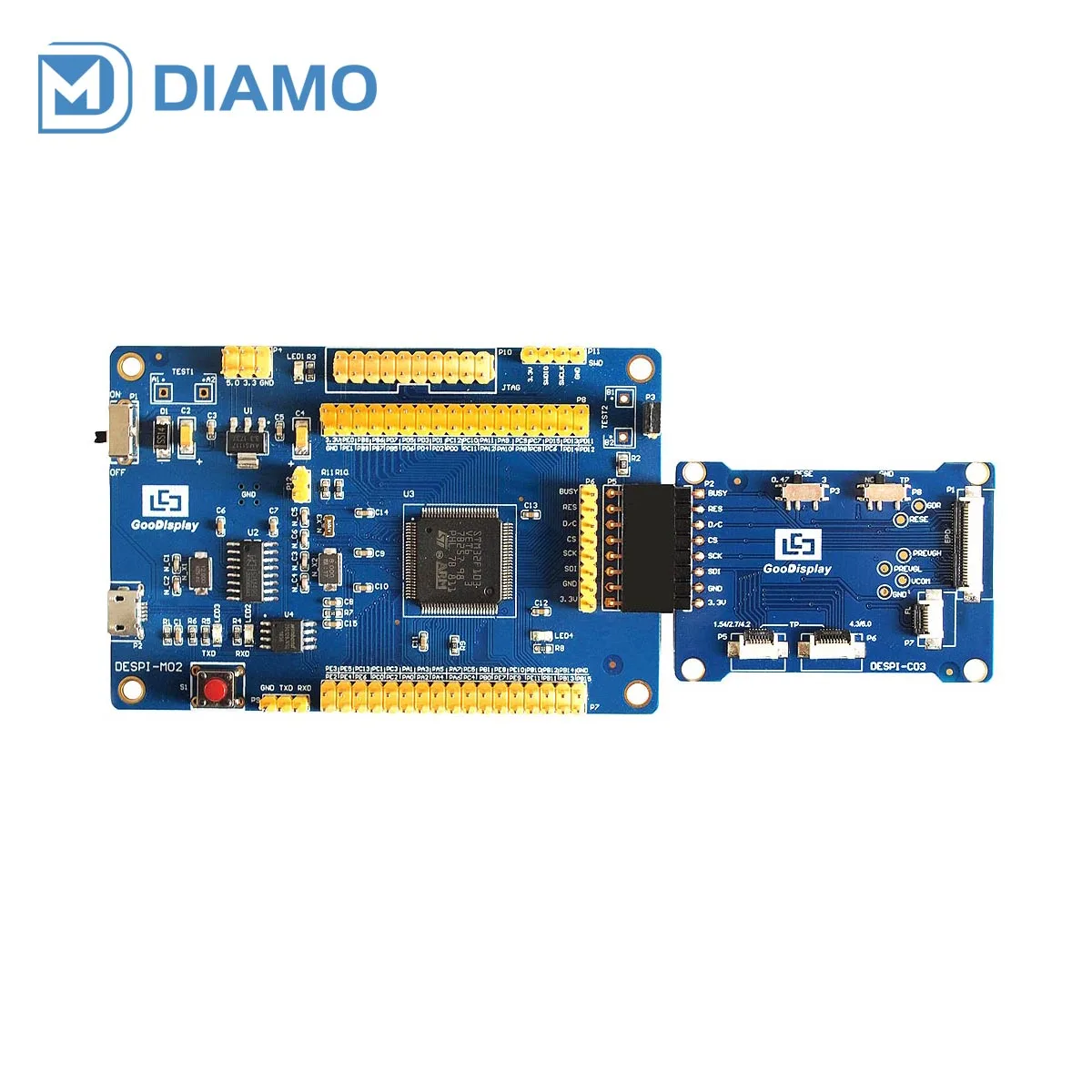

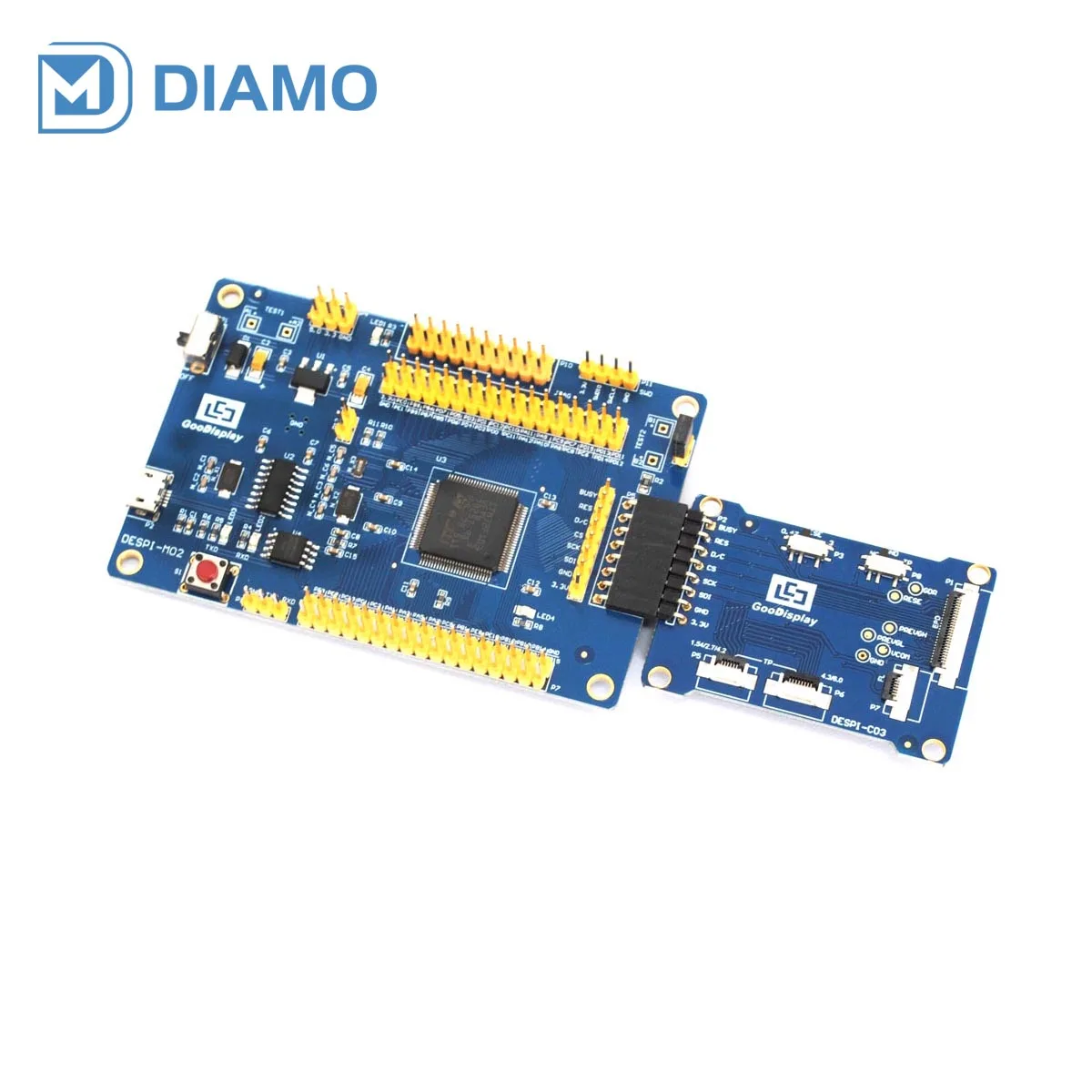

Raspberry Pi SPI interface demo kit drive board for e paper display touch screen STM32 DESPI V3.0
- Category: >>>
- Supplier: Dalian Diamo Electronic Technology Co. Ltd.
Share on (1600415468220):
Product Overview
Description
Product Overview
SPI & micro USB interface drive board for e-paper display raspberri pi DESPI-V3.0
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.And the connector board DESPI-C03 adds driving function for touch panel and frontlight.
PRODUCT SPECIFICATIONS
PART NUMBER | DESPI-V3.0 |
PLATFORM | STM32 |
FUNCTION | Drive E-paper Display |
Outside Dimension | 90x60mm (DESPI-M02) 52mmx36mm (DESPI-C03) |
Power Interface | USB Interface |
Power Input | DC5V |
Feature | Fully and Partial refresh |
Grey scale Level | Max 16 grey scale |
Operating Temp. | -20~70℃ |
Example Code | Available |
Main Function | EPD driving, touch panel driving and frontlight driving. |
Reserved Function | USB to serial port, indicator light, keys, current detection and so on. |
Drawing / Structure
PRODUCT CONFIGURATION

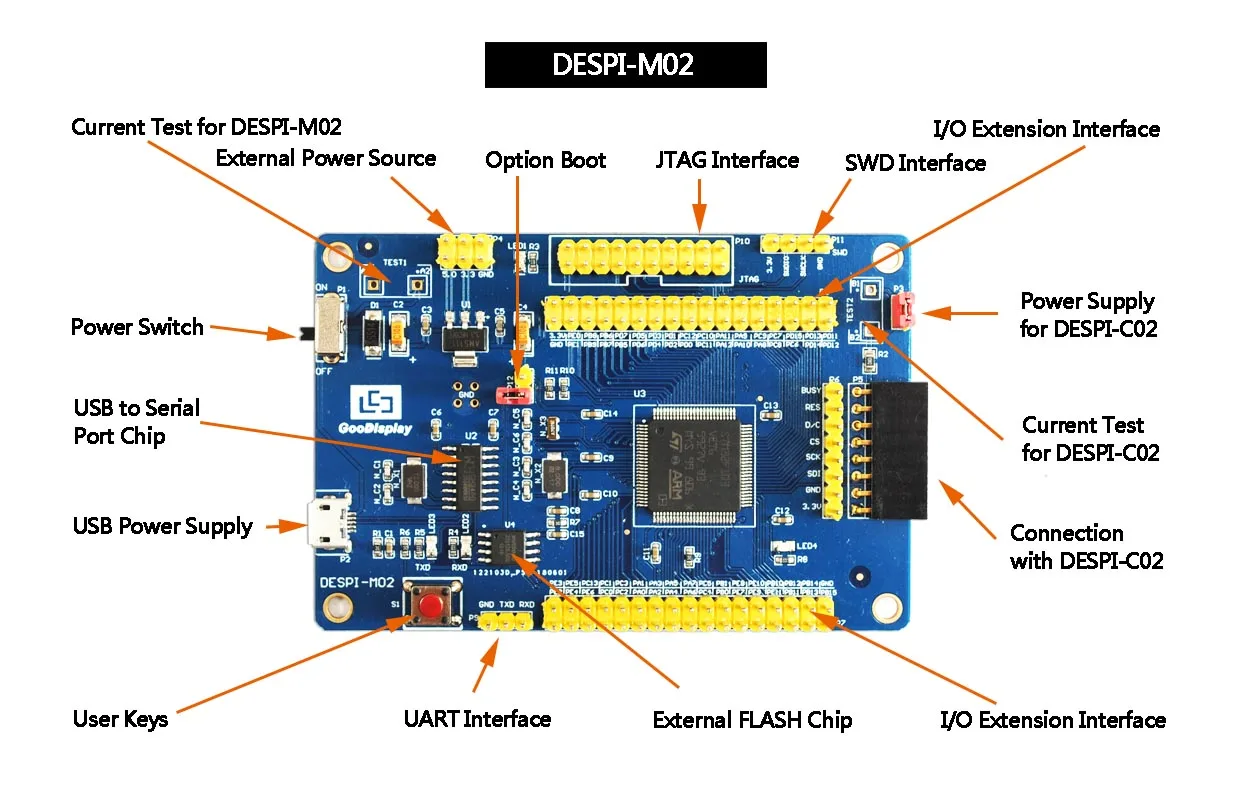

Main board DESPI-M02 * 1

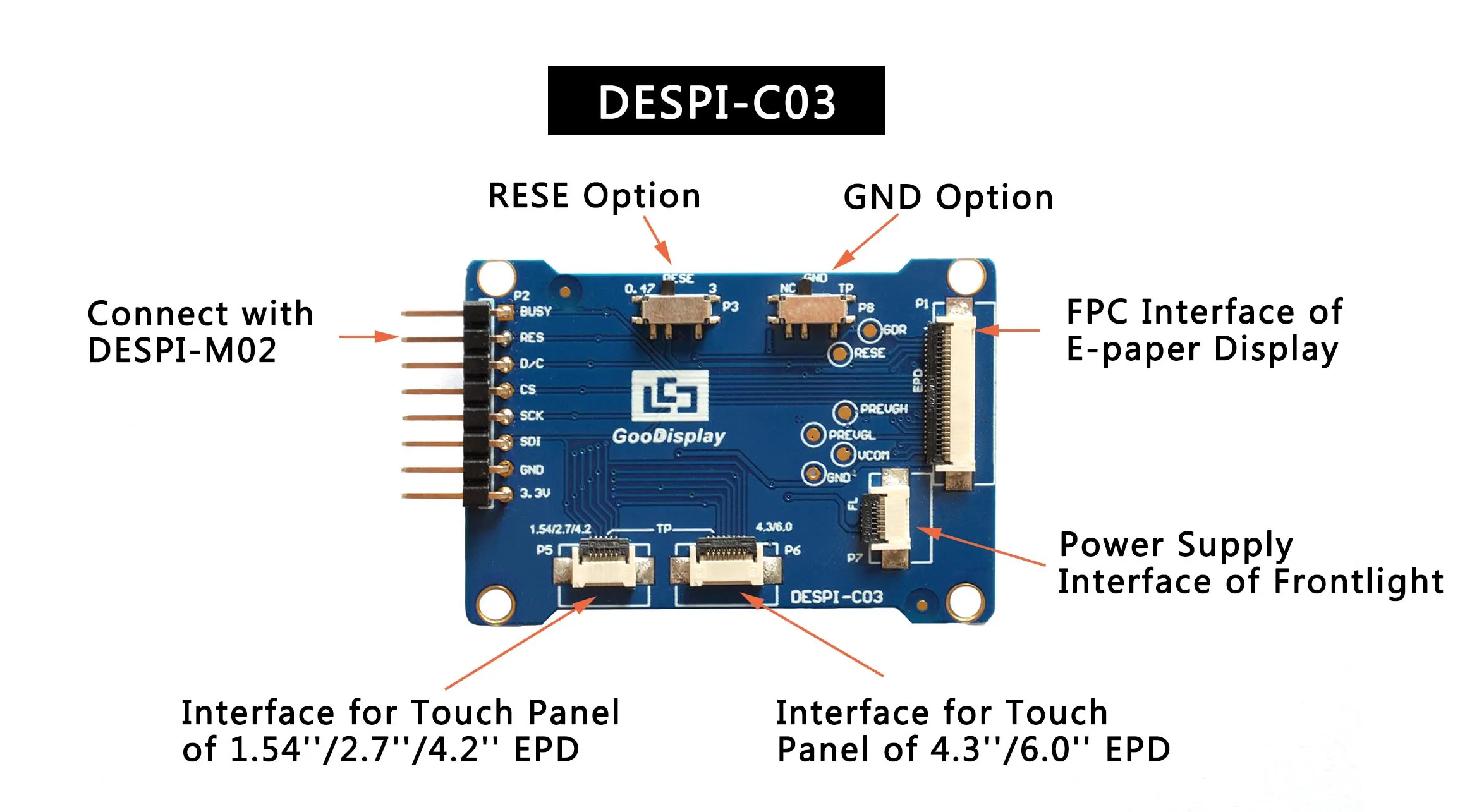

Connect board DESPI-C03 * 1
USB cable * 1
