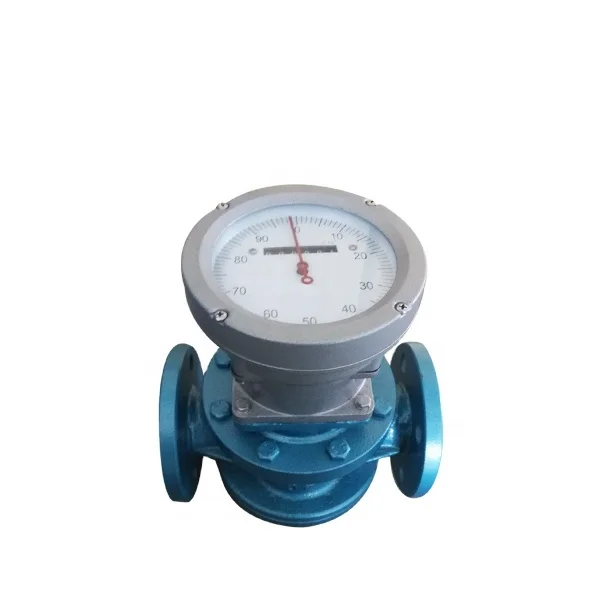

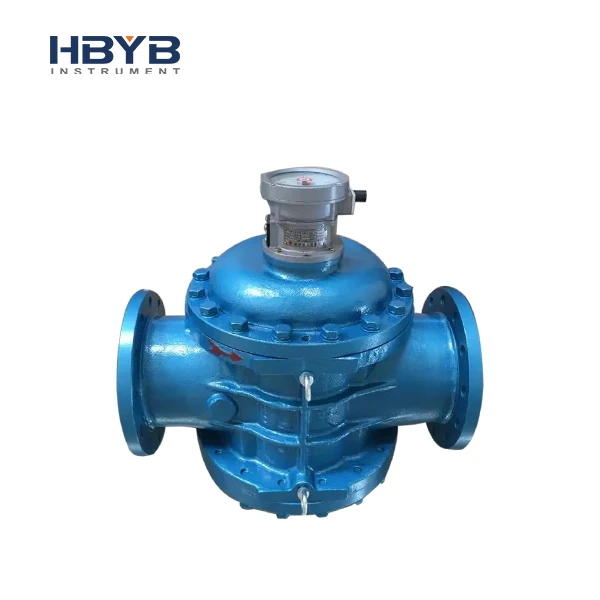

positive displacement flow meter oval gear rs485 lpg mechanical flowmeter ogm 25 high accuracy liquid lpg hot oil flow meter
- Category: Flow Meters >>>
- Supplier: Kaifeng,Huabang,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Diameter and flow fange of Oval meters for calss 0.2
DN(mm) | Viscosity mpa.s | ||||||
0.3-0.8 | 0.8-2 | 2-8 | 8-200 | ||||
10 | 0.2-0.4 | 0.15-0.5 | 0.1-0.5 | 0.08-0.5 | |||
15 | 0.75-1.5 | 0.5-1.5 | 0.3-1.5 | 0.25-1 | |||
20 | 1.5-3 | 1-3 | 0.6-3 | 0.5-3 | |||
25 | 3-6 | 2-6 | 1.2-6 | 1-6 | |||
40 | 7.5-15 | 5-15 | 3-15 | 2.5-15 | |||
50 | 12-24 | 8-24 | 4.8-24 | 4-24 | |||
65 | 20-40 | 15-40 | 8-40 | 6.5-40 | |||
80 | 30-60 | 20-60 | 12-60 | 10-60 | |||
100 | 50-100 | 34-100 | 20-100 | 16-100 | |||
150 | 95-190 | 64-190 | 38-190 | 32-190 | |||
200 | 170-340 | 120-340 | 68-340 | 56-340 | |||
NOTES：
1.The flow meter should be selected in accordance with the folw
range,but not in accordance with the pipe diameter.
2.If the temperature of the metered liquid is between 100-200℃.the max,flow
fate must subtract by 10%
3.While metered liquid is not petroleum roduct,if it visco-sity is equivalent
to that listed in thetable,the flow range is also equivalent to that listed above.
4.For chemical,high temperature,and high viscosity liquid,consult the
fatory.
5.While the metered media is of strong corrisive,the max,flow must reduce by
1/3.
range,but not in accordance with the pipe diameter.
2.If the temperature of the metered liquid is between 100-200℃.the max,flow
fate must subtract by 10%
3.While metered liquid is not petroleum roduct,if it visco-sity is equivalent
to that listed in thetable,the flow range is also equivalent to that listed above.
4.For chemical,high temperature,and high viscosity liquid,consult the
fatory.
5.While the metered media is of strong corrisive,the max,flow must reduce by
1/3.
Packing & Delivery
Transparent polybag, paper box or foam box, carton or pallet
