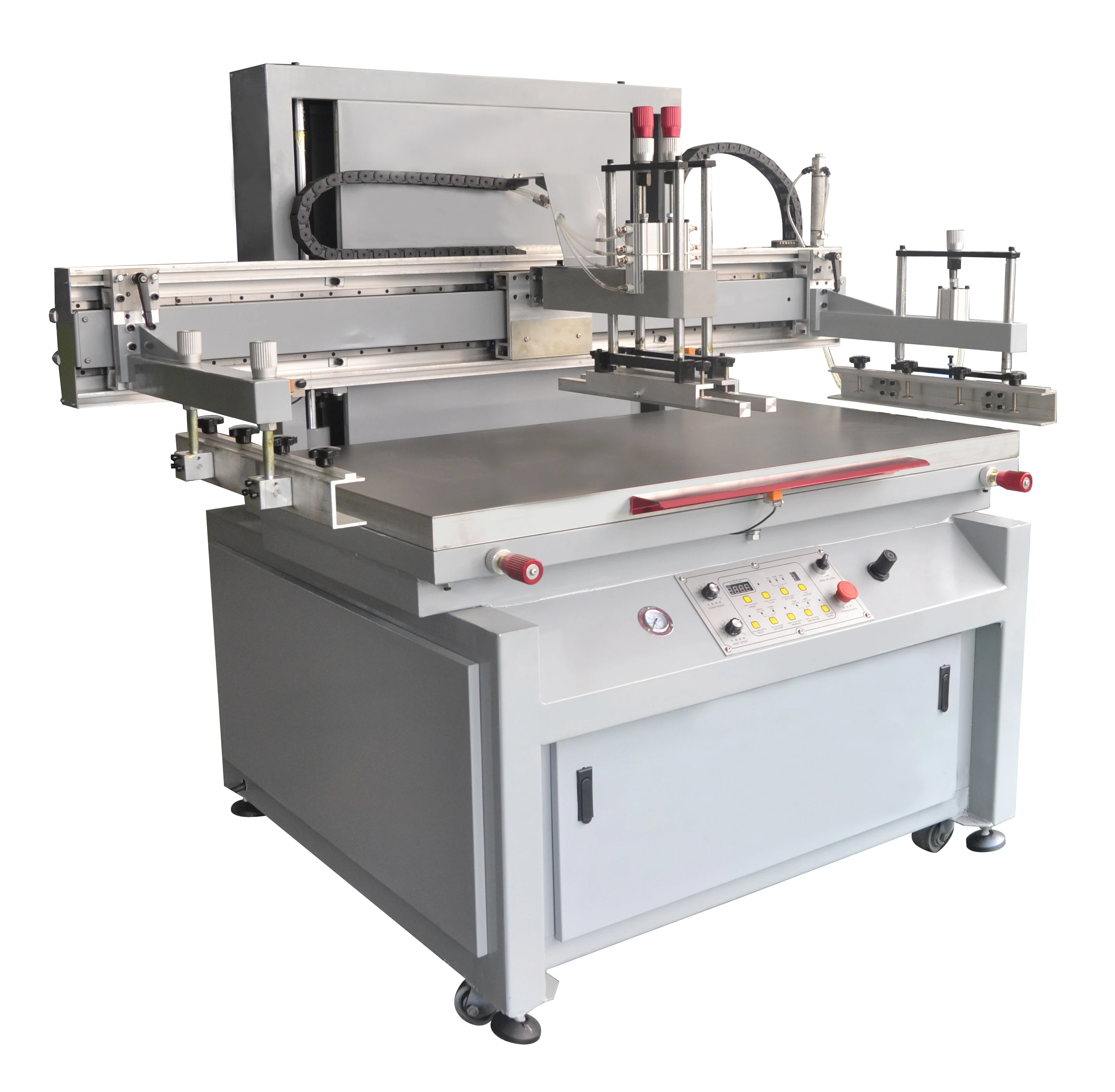

pizza boxes screen printer screen printing machine big manual curved surface screen printing machine for sale
- Category: >>>
- Supplier: Hangzhou Taoxing Printing Machinery Co. Ltd.
Share on (1600415579304):
Product Overview
Description
Product Description
Application for screen printing machine
Be applied to flat printing for glass, CD, nameplates, stickers, credit card, ceramic decal, wooden toys puzzles, PCB, SMT tin ointment, and membrane switch ,etc in electronic industry. It is also applicable to the flat printing such as golden and silver cardboard, metal sheet, and other products, which require highly in flat printing.
2. Adopt Famous brand Electronic parts to make sure the quality

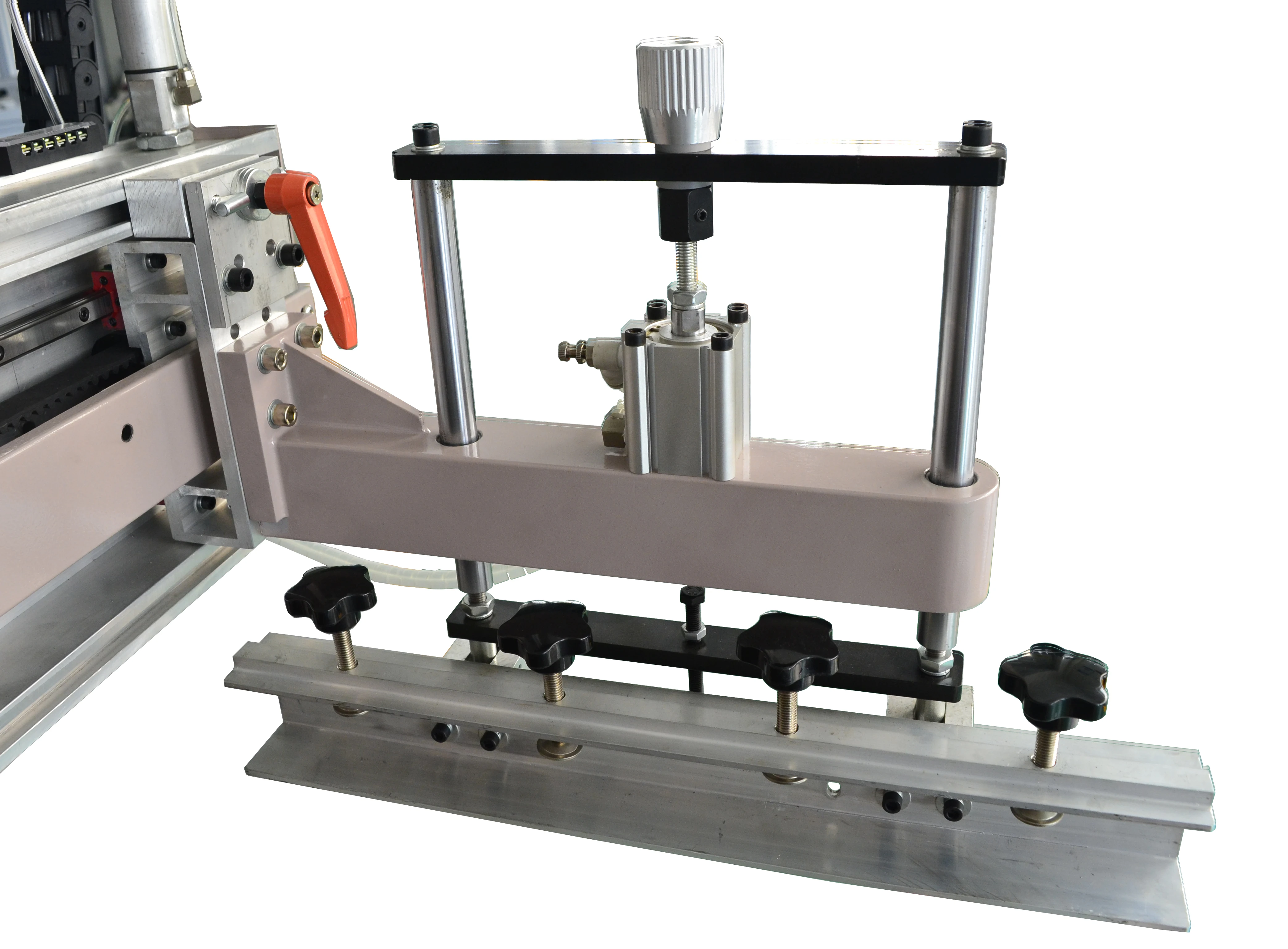

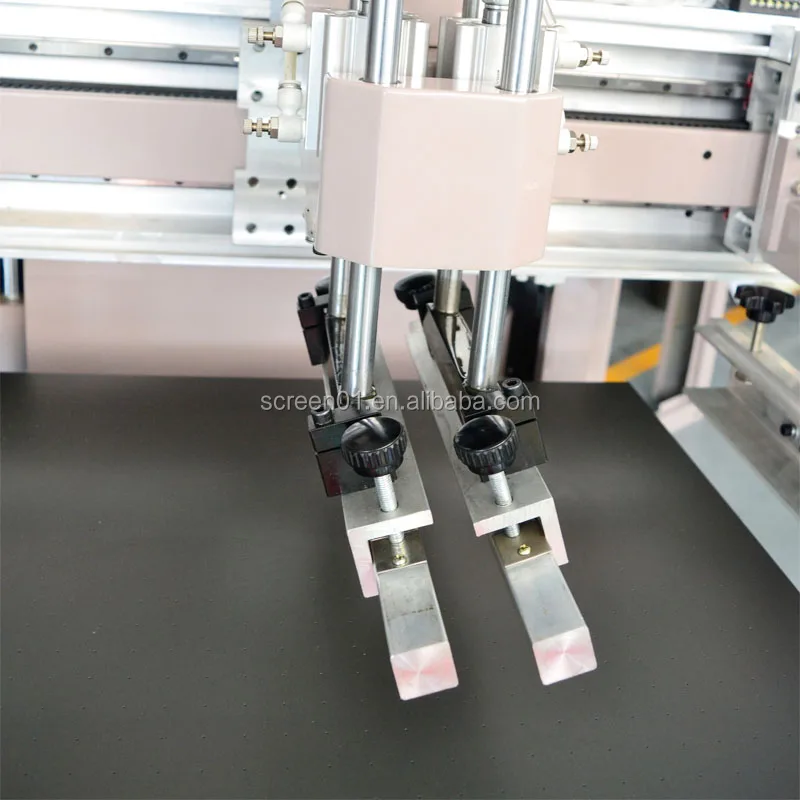

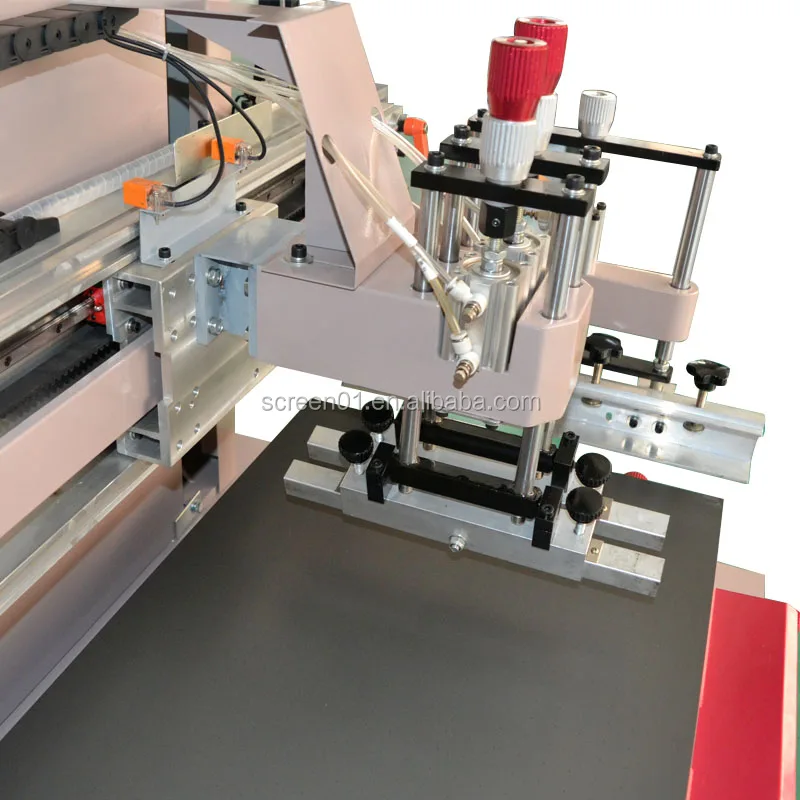

3. Printing scraper and reclaiming blade controlled by brand pneumatic component.
4. Moves up and down/left and right during printing, controlled by Taiwan ABBA Precision guide rod.
5. Left/right scratchers adopt HIWIN precision liner guide from Taiwan.

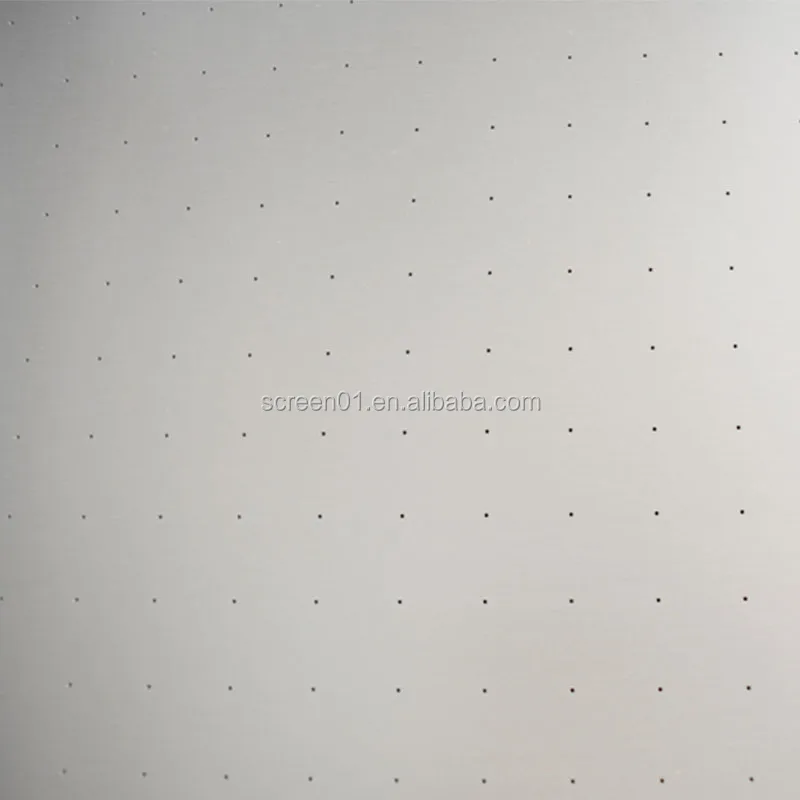

6. Printing plate adopts pneumatic stainless steel and suction system which is produced by Shanghai State-owned factory.
7.vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
8. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
9. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

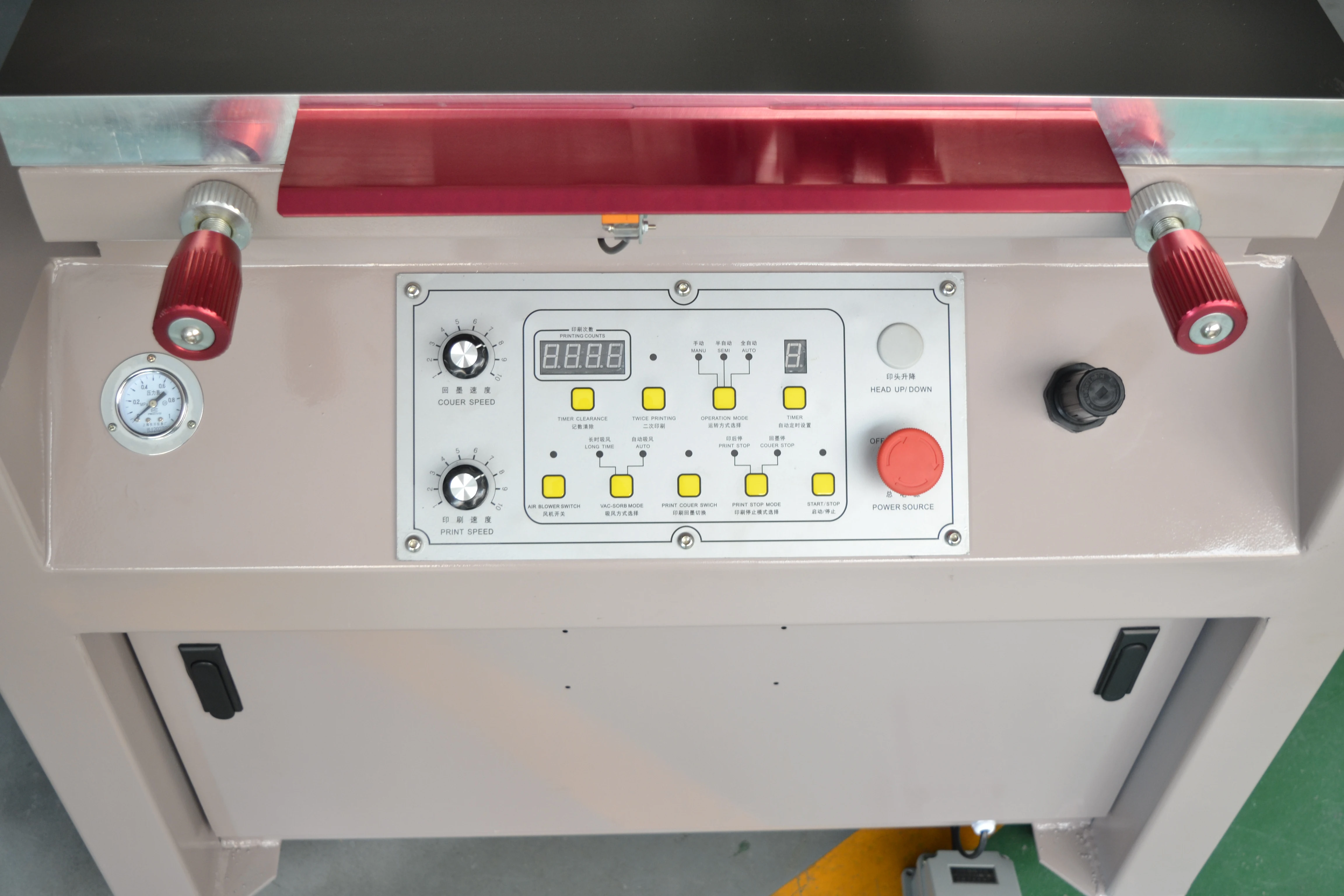

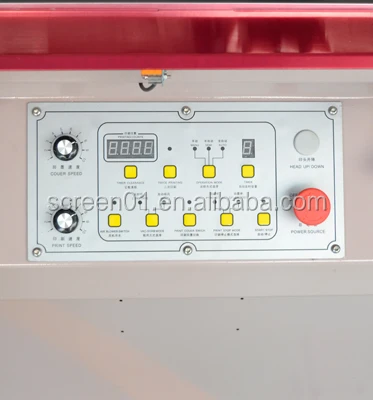

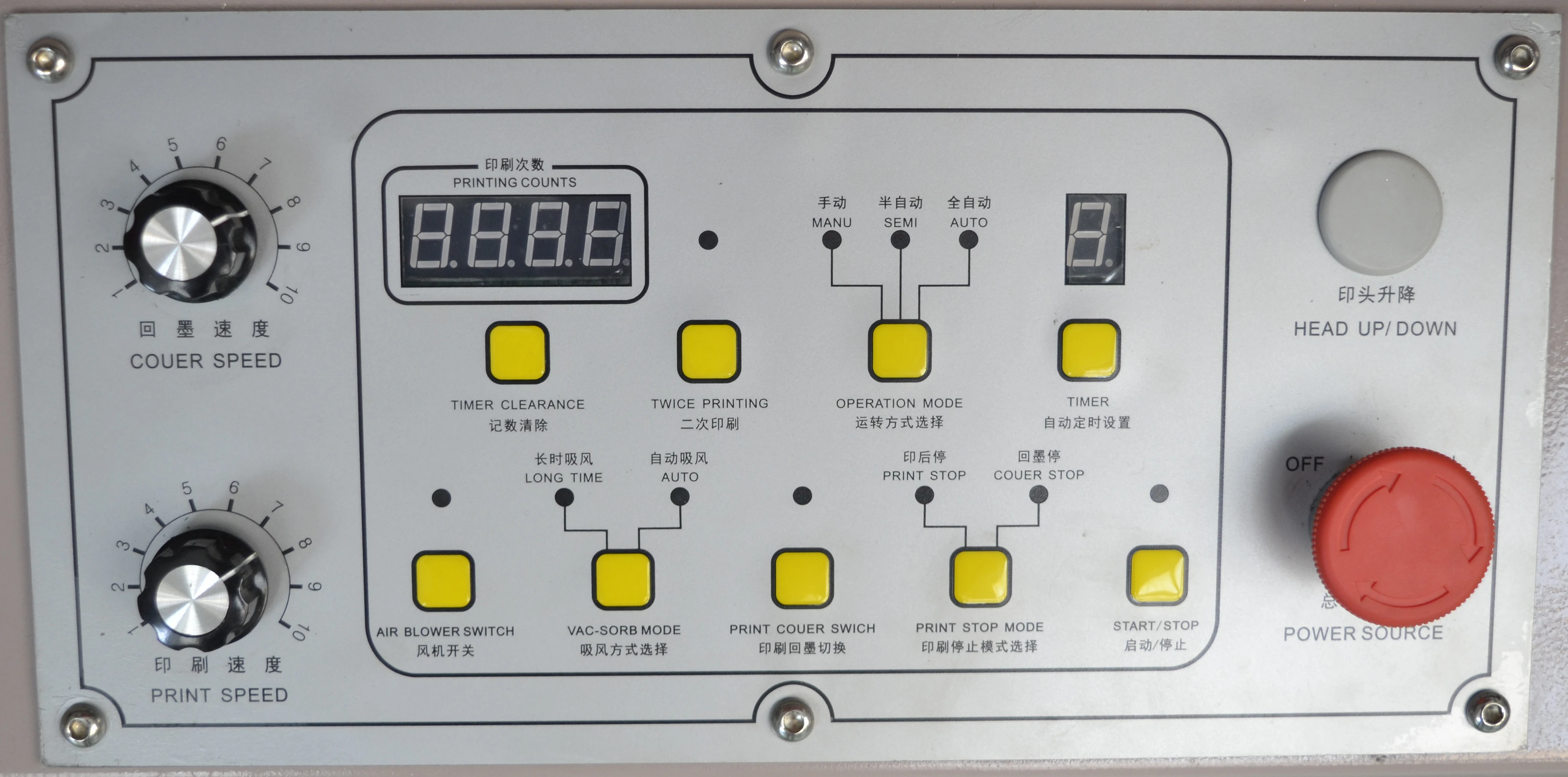

10. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
11. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

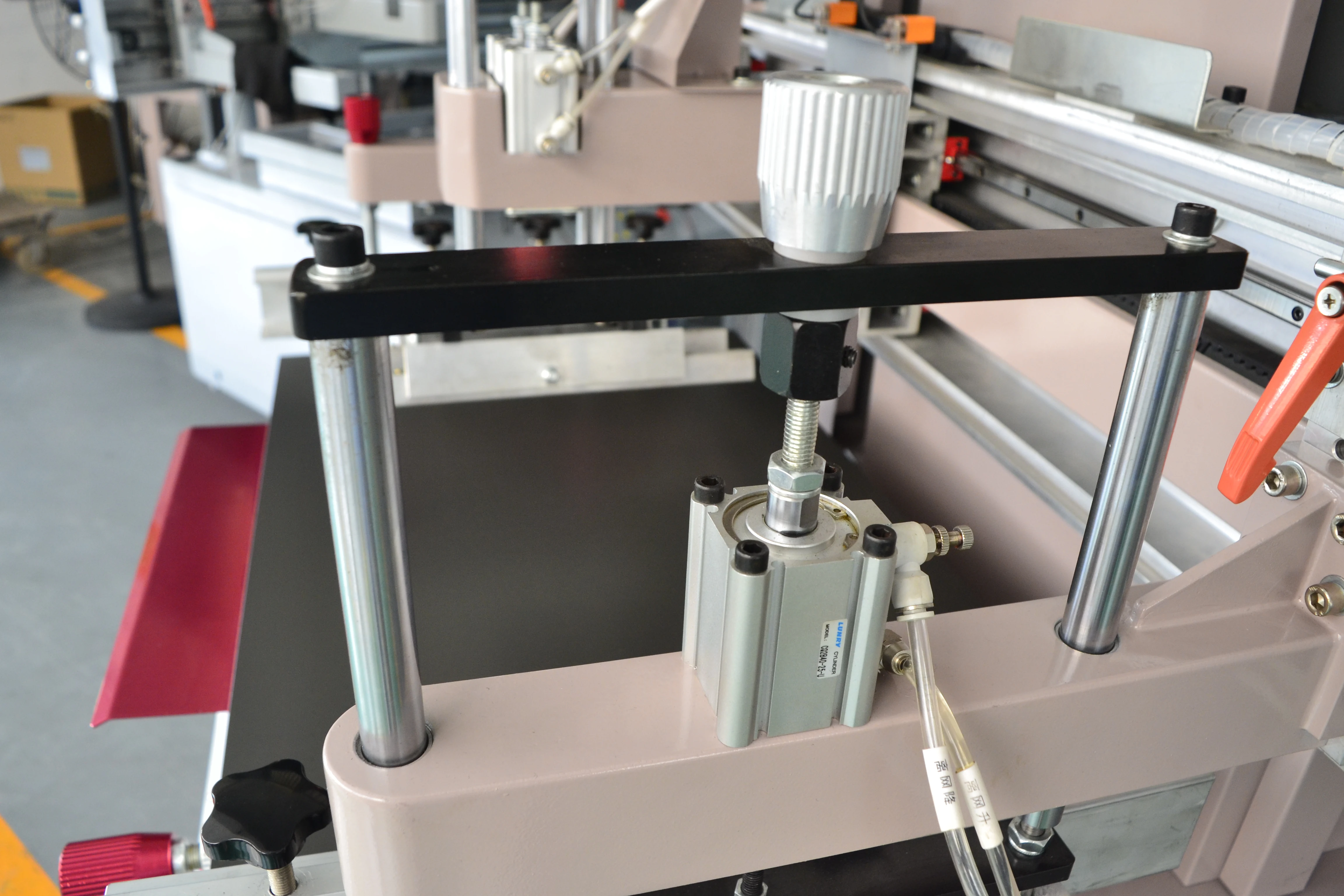

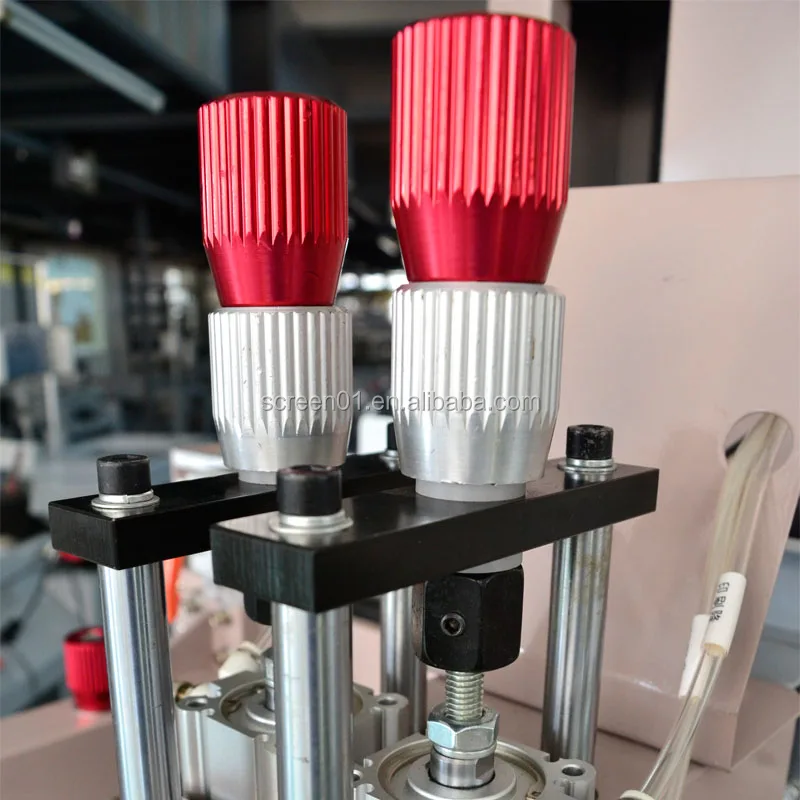

12. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

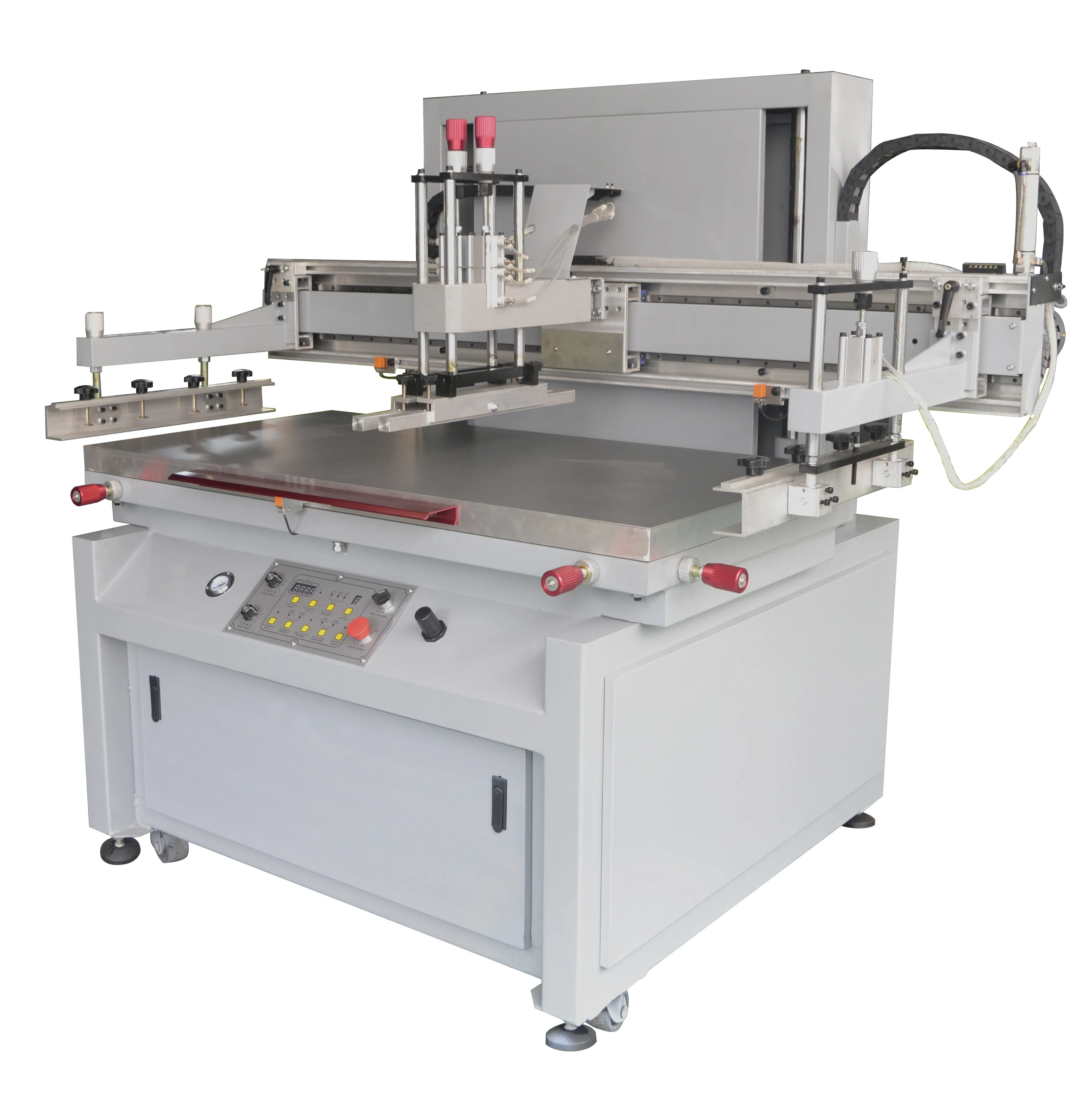

Model | TX-70100ST | Printing Thickness | ≤30 | |
max printing area | 700x1000mm | Air pressure | 4.0～6.0 kfg/c㎡ | |
size of printing table | 800x1200mm | Rated voltage/Power | 380V/50HZ /3.2KW | |
Max printing speed | 1000（PCS/H） | Dimention | 1700*1260*1600mm |
Model | Name | Printing Area | Platform Size | Unit |
TX-2030 | Table Flat Screen Printer | 200*300 | 220*320 | set |
TX-2030 | Vertical Flat No inspiratory Screen Printer | 150*250 | 200*300 | set |
TX-3040 | Vertical Flat No inspiratory Screen Printer | 250*350 | 250*350 | set |
TX-3040S | Vertical Flat inspiratory Screen Printer | 250*350 | 300*400 | set |
TX-2040 | Vertical Pneumatic Flat Screen Printer | 200*400 | 300*500 | set |
TX-3050 | Vertical Pneumatic Flat Screen Printer | 300*500 | 400*600 | set |
TX-4060 | Vertical Pneumatic Flat Screen Printer | 400*600 | 500*700 | set |
TX-4060 | Vertical Electric Flat Screen Printer | 400*600 | 500*700 | set |
TX-4080 | Vertical Electric Flat Screen Printer | 400*800 | 500*900 | set |
TX-40100 | Vertical Electric Flat Screen Printer | 400*1000 | 500*1100 | set |
TX-5080 | Vertical Electric Flat Screen Printer | 500*800 | 600*900 | set |
TX-50100 | Vertical Electric Flat Screen Printer | 500*1000 | 600*1100 | set |
TX-60100 | Vertical Electric Flat Screen Printer | 600*1000 | 700*1100 | set |
TX-60120 | Vertical Electric Flat Screen Printer | 600*1200 | 700*1300 | set |
TX-60140 | Vertical Electric Flat Screen Printer | 600*1400 | 700*1500 | set |
TX-70100 | Vertical Electric Flat Screen Printer | 700*1000 | 800*1200 | set |
TX-70140 | Vertical Electric Flat Screen Printer | 700*1400 | 800*1500 | set |
TX-70160 | Vertical Electric Flat Screen Printer | 700*1600 | 800*1700 | set |
TX-80120 | Vertical Electric Flat Screen Printer | 800*1200 | 900*1300 | set |
TX-80140 | Vertical Electric Flat Screen Printer | 800*1400 | 900*1500 | set |
TX-80160 | Vertical Electric Flat Screen Printer | 800*1600 | 900*1800 | set |
TX-80180 | Vertical Electric Flat Screen Printer | 800*1800 | 900*2000 | set |
TX-80220 | Vertical Electric Flat Screen Printer | 800*2200 | 900*2400 | set |
TX-80260 | Vertical Electric Flat Screen Printer | 800*2600 | 900*2800 | set |
TX-90140 | Vertical Electric Flat Screen Printer | 800*1400 | 900*1500 | set |
TX-90180 | Vertical Electric Flat Screen Printer | 900*1800 | 1000*2000 | set |

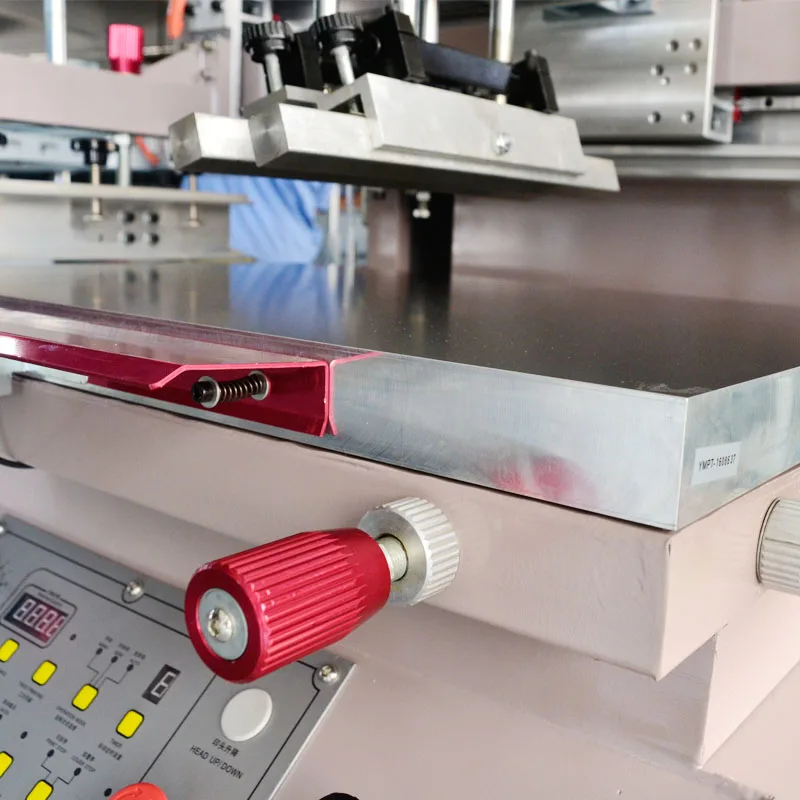

Machine Details
Packaging & logistics
Packing & Deliver |
1. Packing: Plywood Case for Each Machine |
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery) |
3.Delivery date：7-30 business days after received the payment. |
4. Delivery means: By sea from Shanghai or Ningbo Port |
Company Profile
Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.

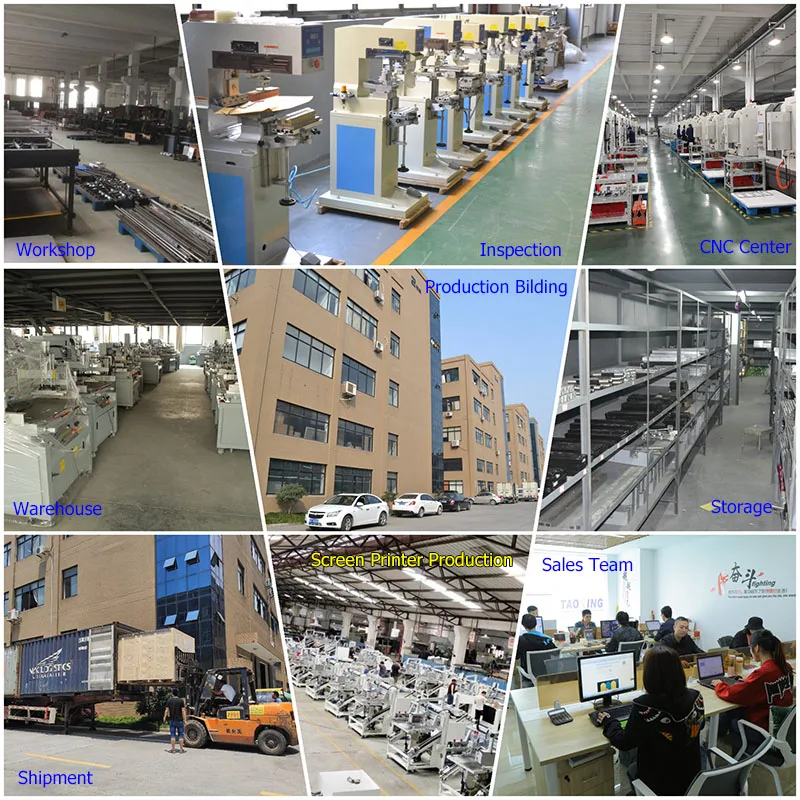

Factory information
