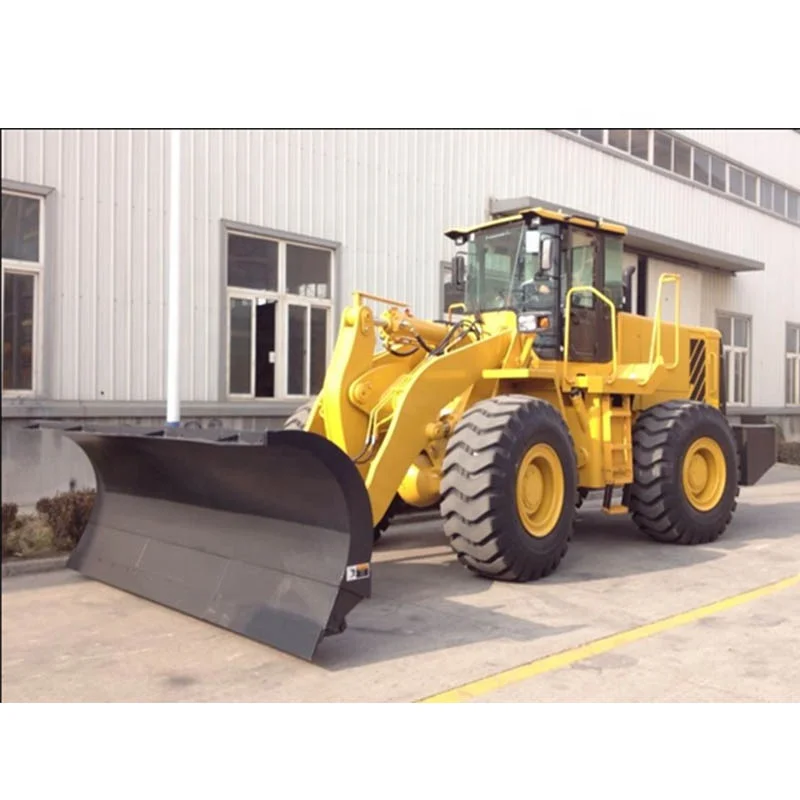

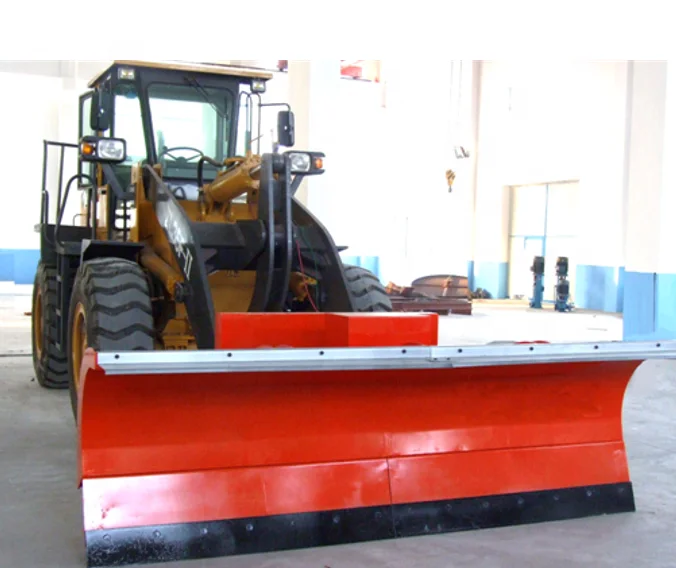

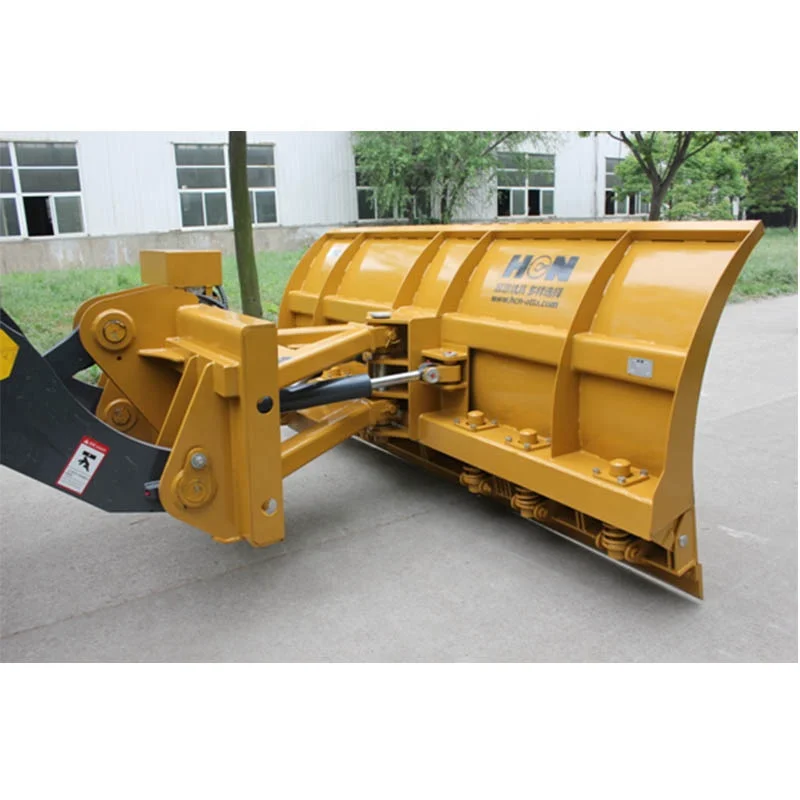

HCN BM18100 snow plow skid steer attachments snow blades

Product Overview

Description



 Product Description

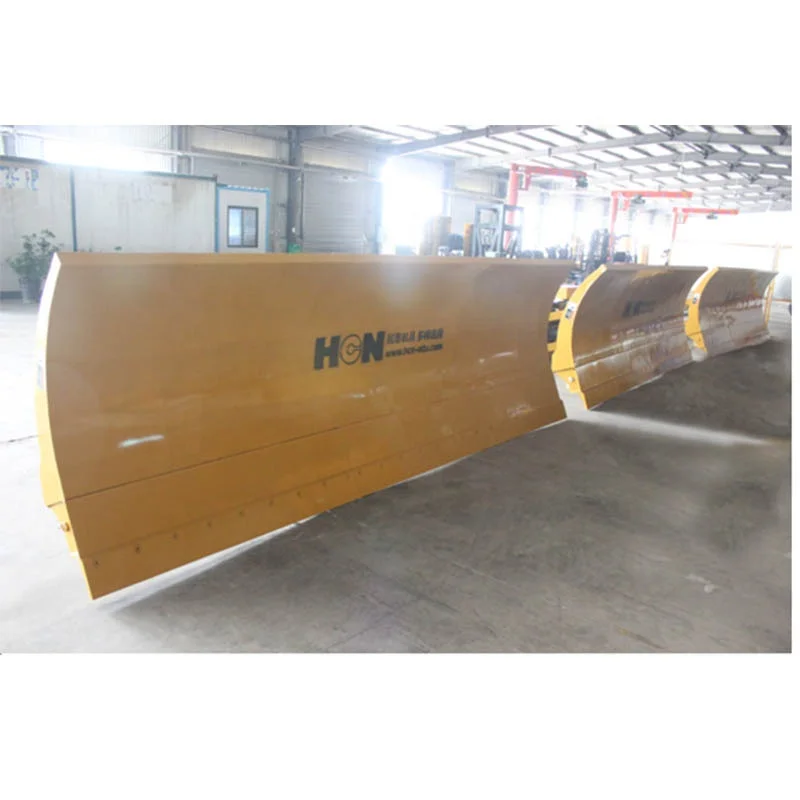

BM18-Snow Blade

This product can be independently driven by hydraulic power a working voltage of 24 v.

There are automatic obstacle avoidance,automatic reset function.

Reinforced design of steel structure,the bottom wear resistant material of the blade plate can be replaced.The blade board and push ski are connected by bolts,which is convenient for replacement and maintenance.

Product structure features:

automatic obstacle.

automatic reset function.

cutting force,high speed.

Hydraulic control left and right steering,steering Angle is ± 30°.

Specification

Model	BM18100	BM18120	BM18140	BM18160
Overall Width(mm)	2500	3000	3600	4100
Overall Length(mm)	1535	1535	1675	1675
Transport Height(mm)	1325	1325	1325	1325
Deflection angle(°)	±30	±30	±30	±30
Operating Width when rotaed to Angle(mm)	2165	2600	3117	3550
Against-Obtacle Height(mm)	280	310	310	310
Weight(kg)	1190	1325	1510	1605
Working Pressure(M pa)	20	20	20	20
Suitable Machine	2T Loader	3T Loader	3T,5T Loader	5T,7T Loader

Trade Market:

Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern

Europe,South America,North America.
