Product Overview
Description
CWT-MB307B 8AI 4-20mA/0-5V/0-10V Analog Input to RS485 RS232 Ethernet Modbus Rtu Tcp Io Acquisition Module

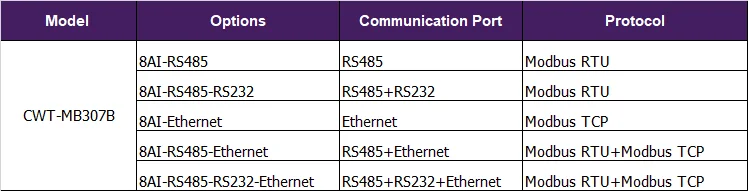

Options
System | |
Input type | 4~20mA,option: 0~20mA/0~5/1~5/0~10V |
Precision | 0.1%,16 bit |
Refresh rate | 0.01m |
System parameters | ||
CPU | 32-bit ATMEL ARM, 72MHZ | |
OS | GCOS,10ms scheduling mechanism | |
Power | 7-35VDC @2W, power supply reverse protection, isolation design | |

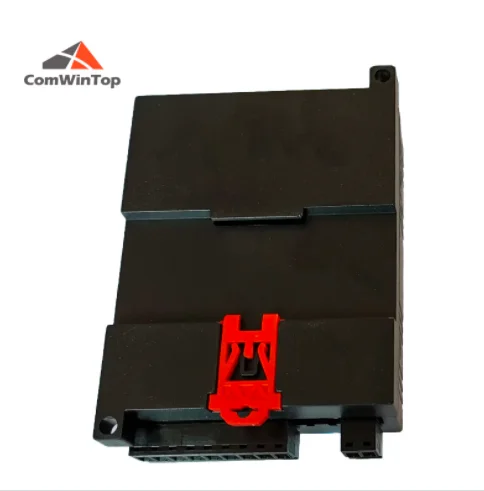

Installation | DIN rail mounting or screw fixing | |
Working Environment | -40℃~85℃,5%~95%RH(non-condensing) | |
Protection | IP20 | |
Watchdog | 1.5m guard | |
Series port parameters | ||
Port type | 1RS485 & 1RS232 | |
Protection | DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection | |
Baud rate | 1200~115200,default 9600 | |
Parity | Even, Odd, None | |
start bit | 1 bit | |
data bits | 8 bit | |
Stopbits | 1,2bits | |
Protocol | MODBUS RTU | |
default | 9600.N.8.1,slave id is 1 | |
Ethernet | ||
Port type | RJ45 | |
Communicate protocol | MODBUS TCP,MODBUS UDP | |
Communicate rate | 1000 times/s | |
bandwidth | 10M/100Mbps | |
IP address | 192.168.1.75 | |
Port | 502 | |
Size

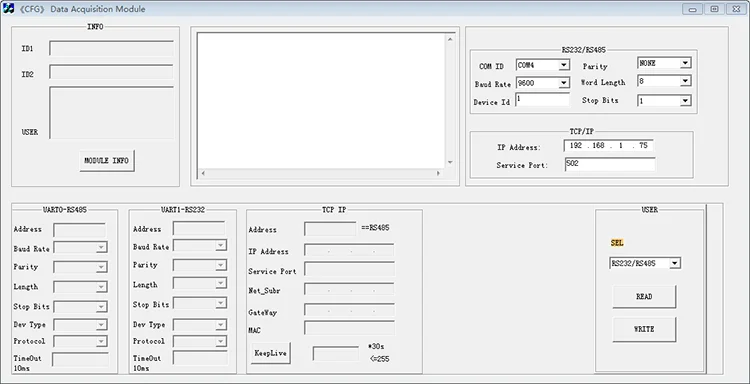

Config tool
