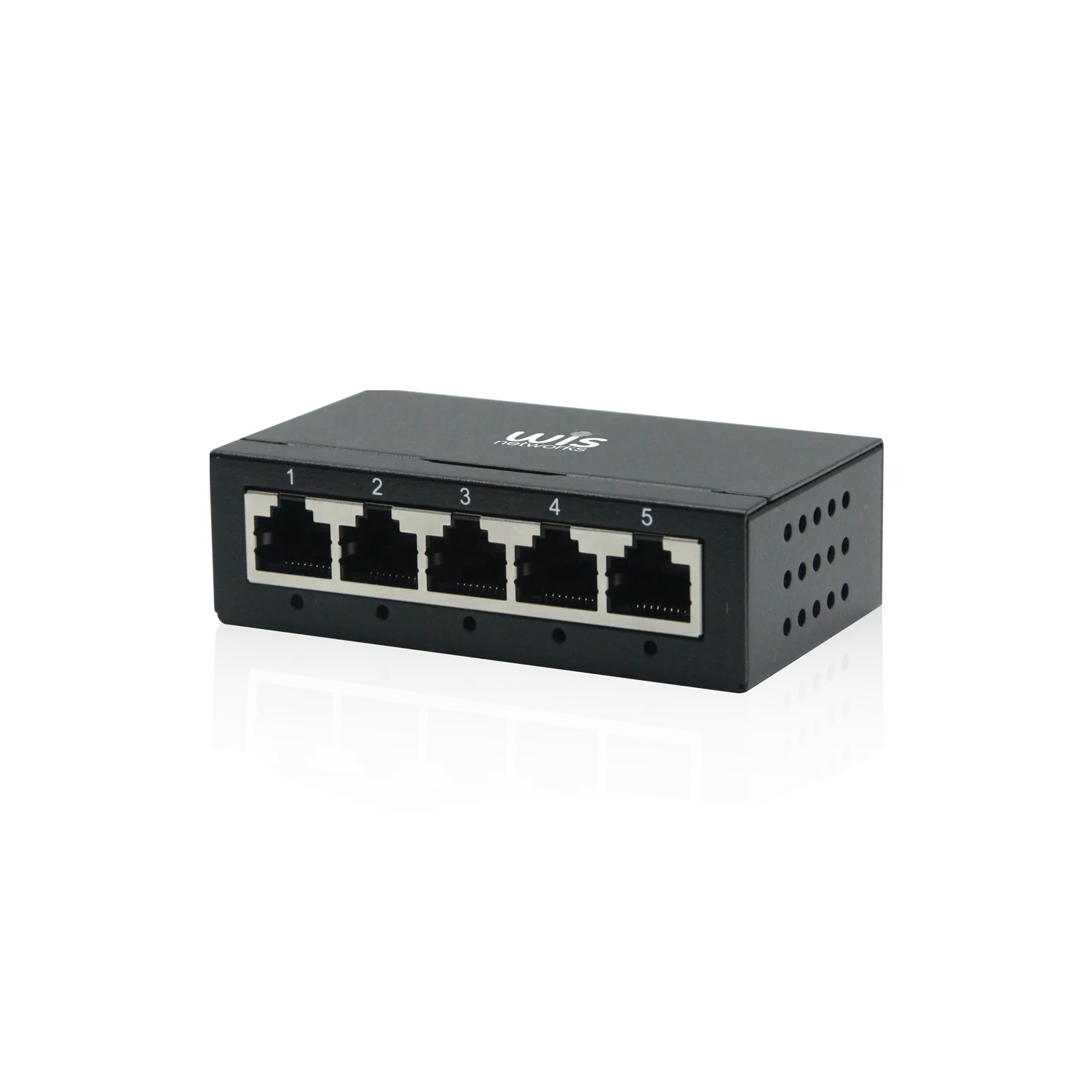

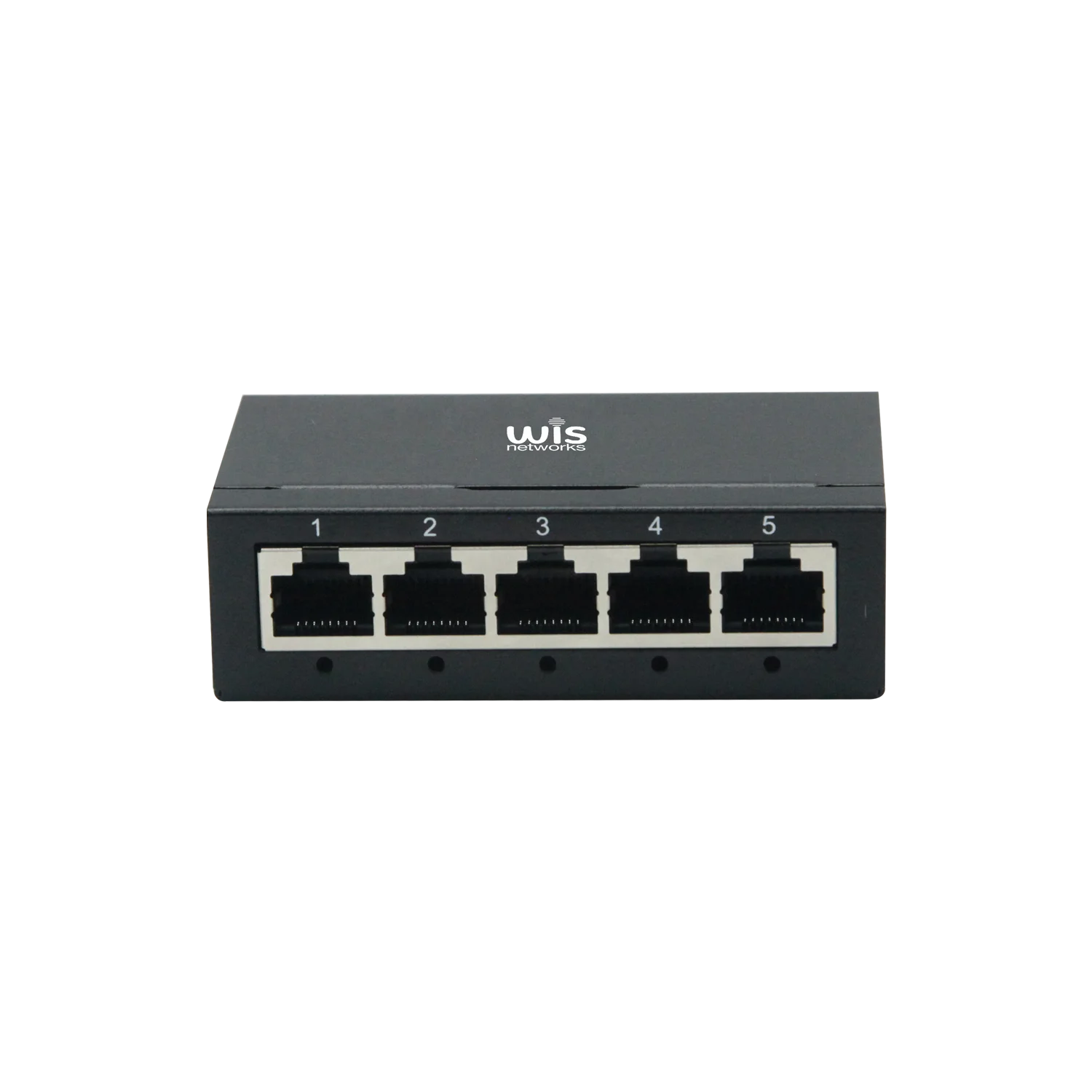

5 Port Unmanaged Gigabit Switch Auto Negotiation RJ45 ports supporting Auto MDI/MDIX WIS SG50 Ethernet switch
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600415827904):
Product Overview
Description
Products Description
WIS’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.
Application
Features
❆ Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
❆ Plug and play, no configuration needed
❆ Supports 802.1p/DSCP QoS and IGMP Snooping functions
❆ Durable metal casing, desktop/wall-mounting options, and a fanless design
❆ IEEE 802.3x flow control provides reliable data transfer
❆ Green Ethernet technology reduces power consumption
Product Paramenters
Model | WIS-SG50 | WIS-SG541 | WIS-SG800 | WIS-SG800 | |||
Ethernet | 5*RJ45 10/100/1000Mbps | 5*RJ45 10/100/1000Mbps | 8*RJ45 10/100/1000Mbps | 24*RJ45 10/100/1000Mbps | |||
Switching Capacity | 10Gbps | 10Gbps | 16Gbps | 48Gbps | |||
Packet Forwarding Rate | 7.4 Mpps | 7.4 Mpps | 11.9Mpps | 35.71Mpps | |||
Packet Buffer | 1M | 1M | 2.5M | 4M | |||
MAC Address Table | 1K | 1K | 4K | 8K | |||
Jumbo Frame | 2Kbytes | 2Kbytes | 2Kbytes | 4Kbytes | |||
Transfer Mode | Store and forward | ||||||
MTBF | 100000 hour | ||||||
Standards and rotocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p | ||||||
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5(Surge) | ||||||
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) | |||||||
Environment | Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing | ||||||
LED Indicators | PWR（Power indicator）、LOOP（Loop alarm）、Link（Network Link） | ||||||
VLAN：Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5; Default：Default mode, all ports communicate with each other; Extend：Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 5 as uplink port； | |||||||
Dimensions | 84*47*25mm | 100*70*26mm | 137*77*25mm | 440*208*45mm | |||
Weight | 0.18kg | 0.2kg | 0.3kg | 1.1kg | |||
Max Power Consumption | 2.3 W (220 V/ 50 Hz) | 2.3 W (220 V/ 50 Hz) | 2.77 W(220V/50Hz) | 13.62W | |||

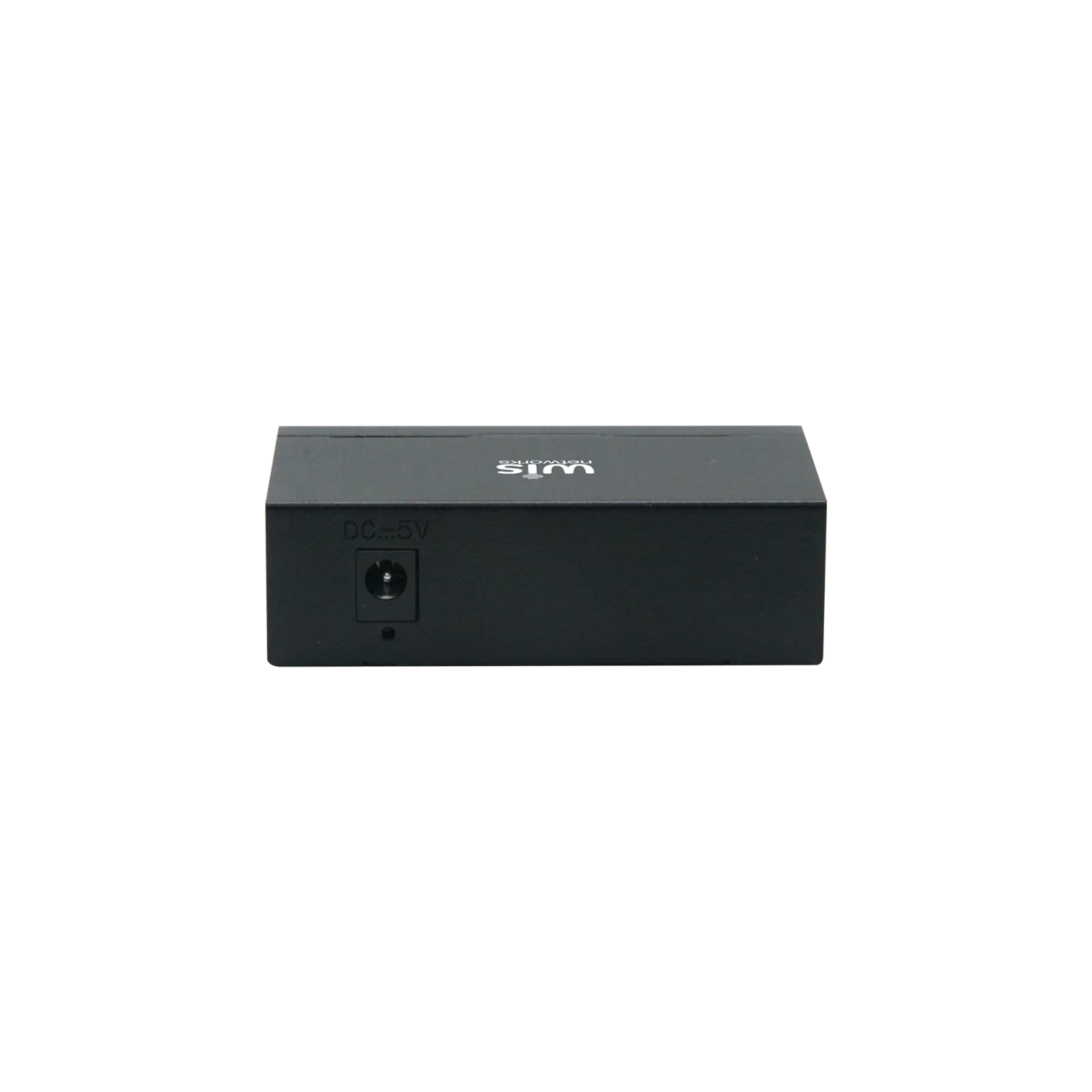

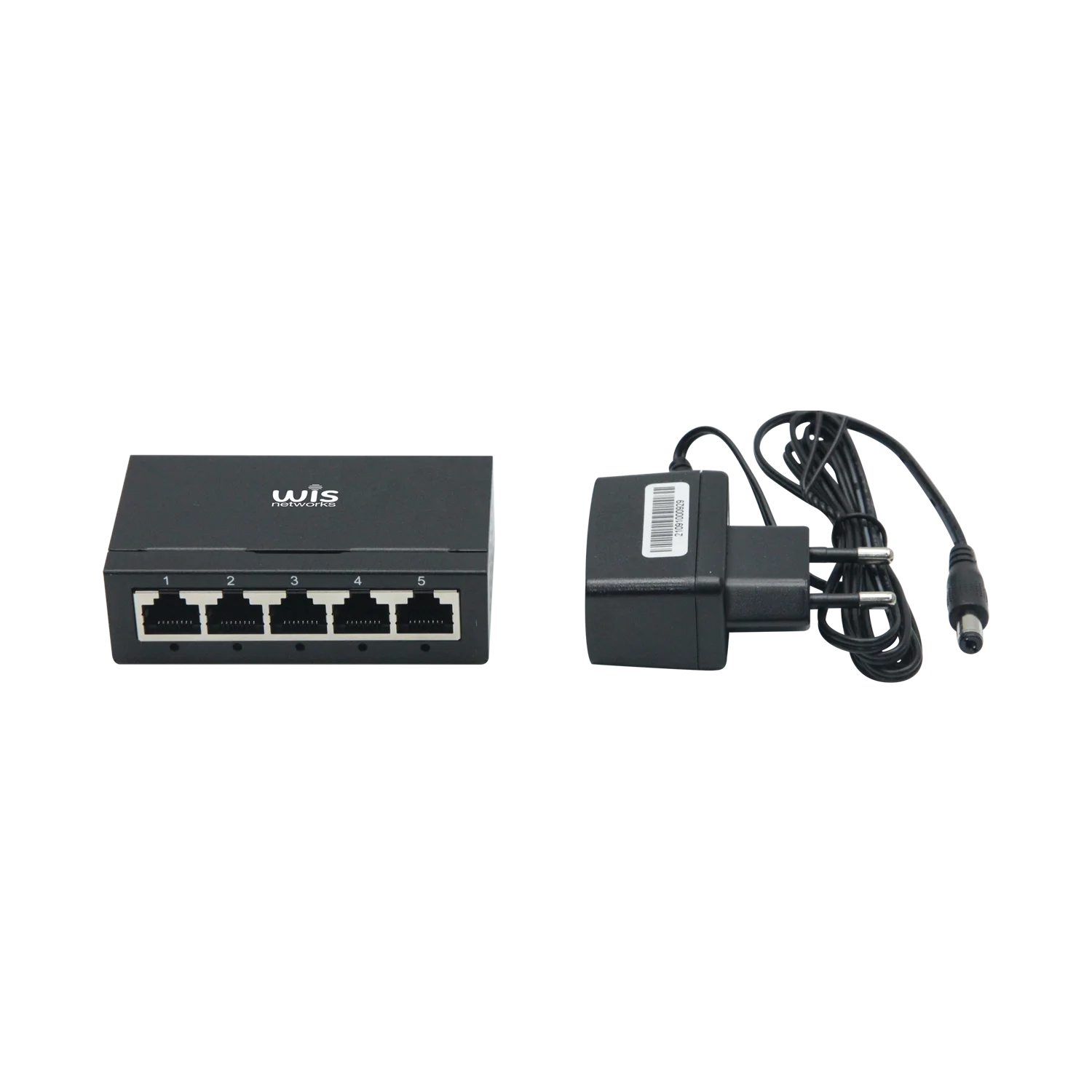

External Power Adapter (Output: 5 V DC / 0.6A) | External Power Adapter (Output: 5 V DC / 0.6A) | External Power Adapter (Output: 5VDC / 0.6A) | 100-240VAC, 50/60Hz | ||||
Security Certificae | CE、FCC、RoHS | ||||||
