waterproof fiber glass wool insulation materials and sound absorb office hospital auditorium ceiling used board
- Category: >>>
- Supplier: Hebei United Energy Tech Co. Ltd.
Share on (1600415852602):
Product Overview
Description
PRODUCT INFORMATION
UET acoustic glass wool ceiling tiles are manufactured from high density resin bonded fiberglass wool with fine texture painted fiberglass tissue facer, Lain tissue backer and sealed and painted edge. Main advantage of these ceiling tiles are excellent sound absorption, dimensionally stable under high temperature and humidity, remarkable thermal insulation property and energy saving material.
AVAILABLE FORMS
Square or Rectangle Shapes Rigid Panel
DEGE FORMS
Square Edges, The edges are facing color painted
MATERIALS
Glass Wool (Fiberglass Wool)
PHYSICAL PROPERTY DATA
| Edge | Ceiling Size | Fire Rating | Code No# | NRC | LR | VOC Emissions | Anti-Mold & Mildew/Sag Resistance | Recycled Content | Ceiling Cost |
| Square Edges | 600X600X15 | Class A | SQC-W 9615 | 0.95 | 0.9 | Low | Perfect | 0.45% | $ |
| 600X1200X15 | Class A | SQC-W 9615L | 0.95 | 0.9 | Low | Perfect | 0.45% | $ | |
| 600X600X20 | Class A | SQC-W 9620 | 1.00 | 0.9 | Low | Perfect | 0.45% | $$ | |
| 600X1200X20 | Class A | SQC-W 9620L | 1.00 | 0.9 | Low | Perfect | 0.45% | $$ | |
| 600X600X25 | Class A | SQC-W 9625 | 1.00 | 0.9 | Low | Perfect | 0.45% | $$$ | |
| 600X1200X25 | Class A | SQC-W 9625L | 1.00 | 0.9 | Low | Perfect | 0.45% | $$$ | |
| 600X600X20 | Class A | SQC-B 9620 | 1.00 | Low | Perfect | 0.45% | $$$ | ||
| 600X1200X20 | Class A | SQC-B 9620L | 1.00 | Low | Perfect | 0.45% | $$$ | ||
| 600X600X25 | Class A | SQC-B 9625 | 1.00 | Low | Perfect | 0.45% | $$$ | ||
| 600X1200X25 | Class A | SQC-B 9625L | 1.00 | Low | Perfect | 0.45% | $$$ |
AVAILABLE FACINGS
Flat white and black painted texture facing.

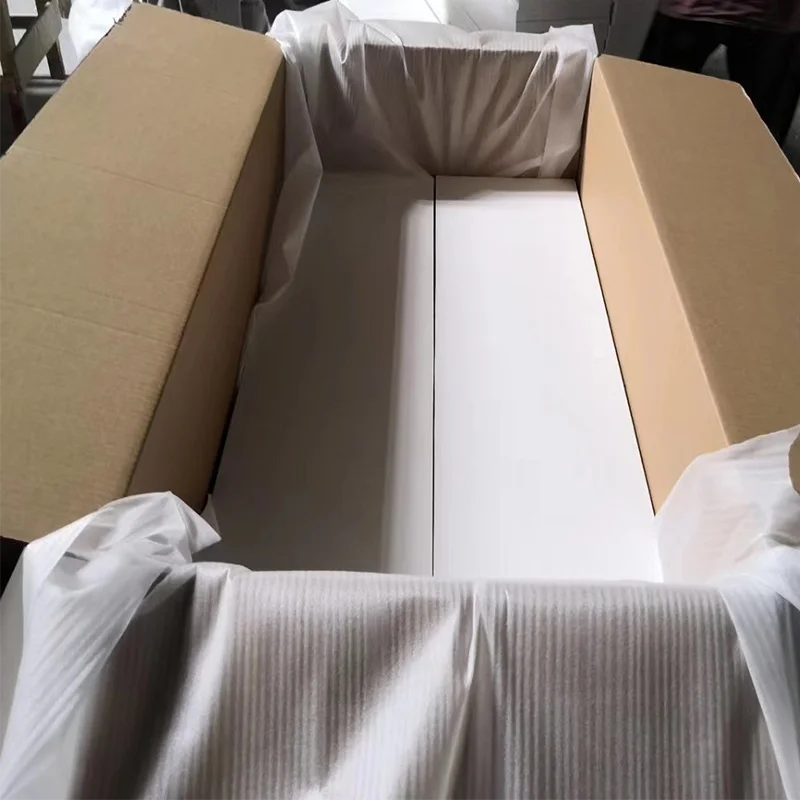

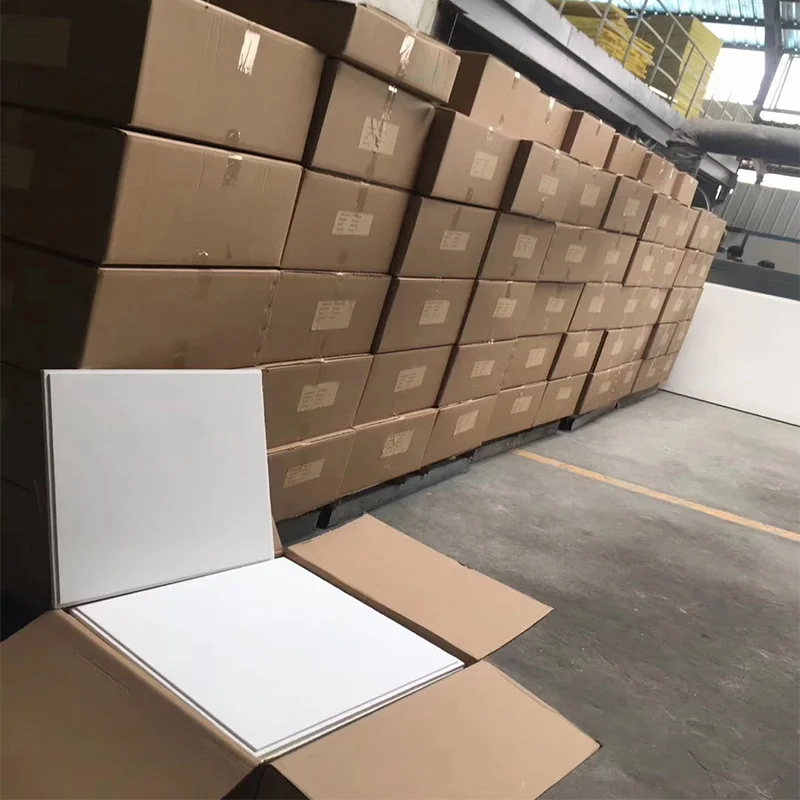

PACKAGING
All glass wool ceiling tiles, wall panels, bafflies and clouds, ares packed by carton boxes.
STORAGE AND TRANSPORT
Store indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
FIRE PERFORMANCE
Class A, STN EN 13501-1: 2007
Flame Spread <25, Smoke Developed <50, According to UL 723, ASTM E84
Flame Spread <25, Smoke Developed <50, According to UL 723, ASTM E84
WARRANTY YEARS
32 years
FEATURES AND BENEFITS
• Provide the best sound absorption (NRC) available to optimize acoustics on your project
• Fiberglass Ceilings are Class A fire-rated
• Resist the growth of mould and mildew
• In unique visuals like shapes and available in a broad range of textures, sizes and colours
• The tiles are manufactured from high density glass wool
• The visible surface is a high-quality batch of painted fiberglass tissue in white color and black color
• Fiberglass Ceilings are Class A fire-rated
• Resist the growth of mould and mildew
• In unique visuals like shapes and available in a broad range of textures, sizes and colours
• The tiles are manufactured from high density glass wool
• The visible surface is a high-quality batch of painted fiberglass tissue in white color and black color
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS

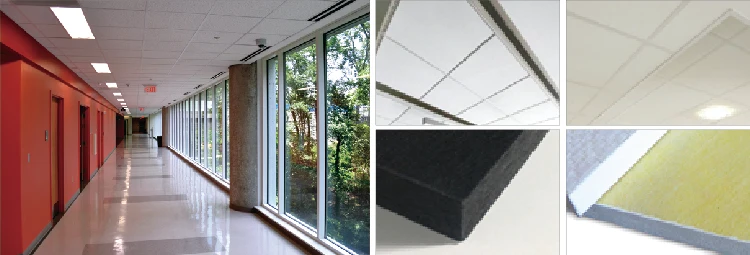

Glass wool ceiling tile is one of the most effective solutions for a soundproof working environment. Perfect for offices, auditoriums, classrooms, restaurants and more commercial environments.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
