For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years
For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years

For Oil Well Sand Pumping Food Slurry Paint Conveying Pneumatic Diaphragm Pump Electric Peristaltic Pump Compressed Air 1 Years

Share on (1600415888087):


Price:$347.00 - $372.00

Quantity:


Product Overview

Description



Specification


flow
0～30m3/h
pressure
0～0.5MPa
power
Compressed air consumption 0.3～1.5 (m 3 /min)
Voltage
Compressed air
structure
Peristaltic pump
Drive method
Compressed air
main material
Aluminum alloy stainless steel Cast iron PTFE
OEM
accept

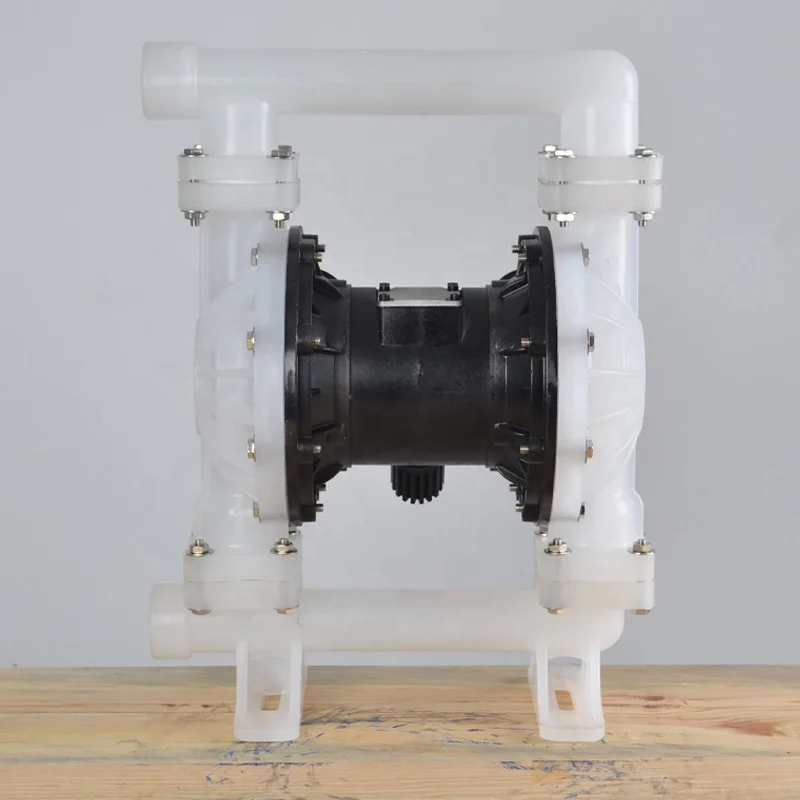

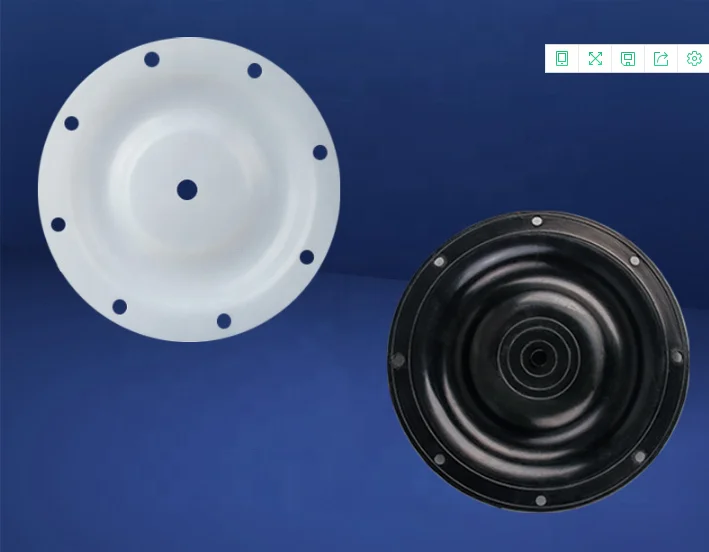

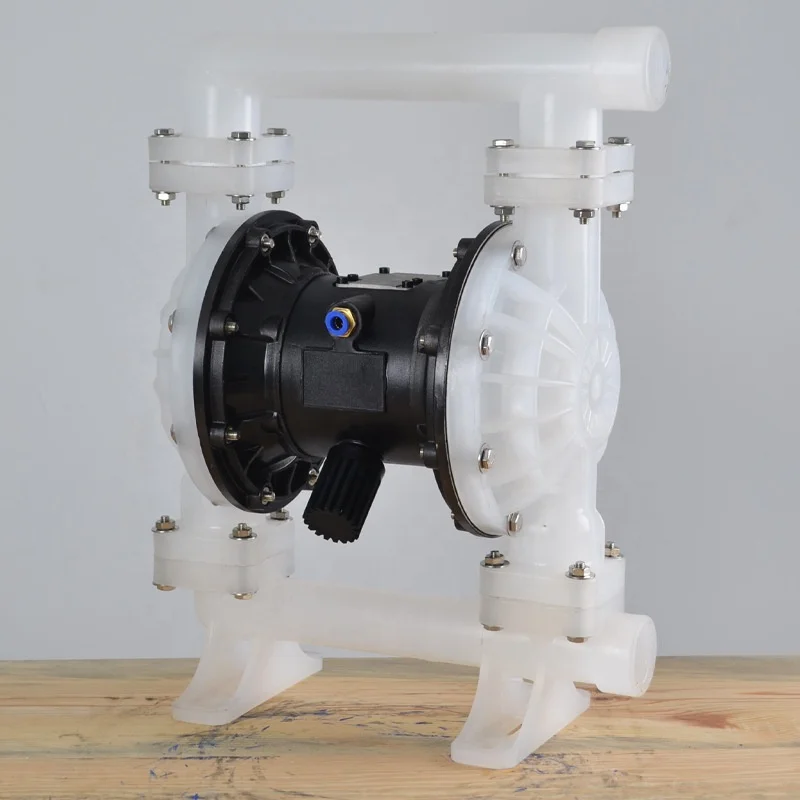

QBY series pneumatic diaphragm pump is a new type of conveying machinery that uses compressed air as the power source and can absorb various corrosive liquids. Feature: No need to irrigate and divert water, it can be immersed in the medium to work, the maximum suction lift is 5m, the maximum lift is 50m, and the outlet pressure is ≥6bar. The flow channel is spacious and has good passing performance, allowing particles up to 10mm in diameter to pass through. When pumping mud and impurities, the pump wears very little. The lift and flow can be adjusted steplessly through the opening of the air valve (the air pressure can be adjusted between 1-7bar). The pump has no rotating parts and no shaft seal. The diaphragm completely separates the pumped medium from the moving parts of the pump and the medium of the workpiece, and the transported medium will not leak out. The pump has simple structure, few wearing parts, simple structure and convenient installation and maintenance. It can transport relatively viscous liquids (viscosities below 10,000 centipoise). The pump does not need to be lubricated with oil, even if it is idling. It also has no effect on the pump, which is the biggest feature of the pump. It is easy to use, reliable in operation and can be started and stopped simply by opening and closing the gas valve. Product Usage: It can be used to convey liquids such as peanut butter, pickles, mashed potatoes, sausages, chocolate, hops, syrup, paints, pigments, glues, adhesives, etc. , Cement grouting, mortar, strong acid, strong alkali, strong corrosive liquid.

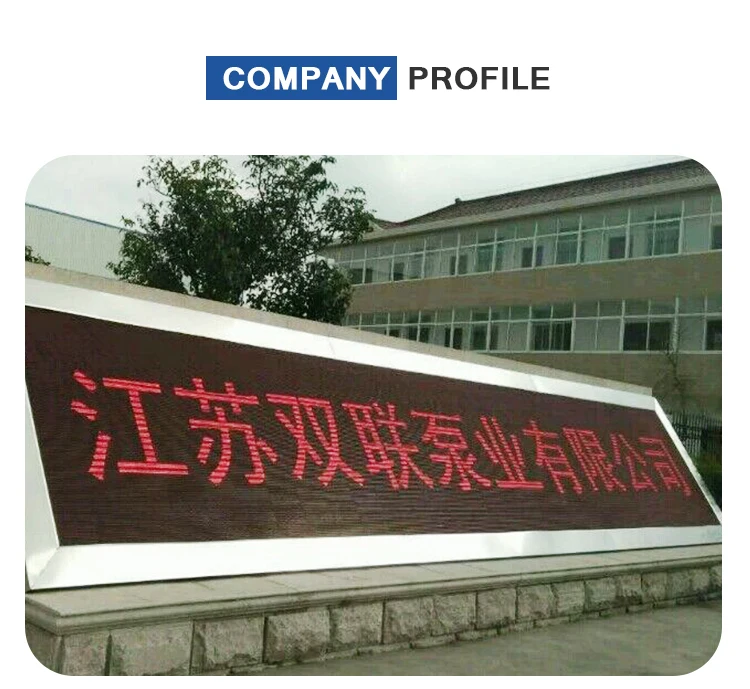

Jiangsu Shuanglian Pump Industry Co., Ltd. is located in Xinqiao Town, Jingjiang, China. It has many years of production history and has strong design, development, machining, and production capabilities. Specializing in the development and manufacture of chemical pumps, submersible pumps, long-axis submersible pumps, slurry submersible pumps and other products. Our production equipment, water pump performance test, and product testing methods are all complete.
The factory has a technical team and a management production team with sophisticated technology, dedication and love to work, dedicated to the development, production and application of products. The main products are: SPP type chemical mixed flow pump, FY type stainless steel submerged pump, HY type submerged pump, LSB type high temperature sulfuric acid submerged pump, LJYA type slurry submerged pump, FYS type fluoroplastic alloy submerged pump, IJ type chemical Centrifugal pump, WFB type self-control self-priming pump, ZXB type stainless steel self-priming pump, UHB type corrosion-resistant and wear-resistant mortar pump, CZ type chemical process pump, ZA, ZAO petrochemical process pump, SLF evaporation circulating pump, ZM, ZML type slag Slurry pumps, YL vertical long shaft pumps, wear-resistant and corrosion-resistant pipe elbows and other products.
The main materials of our factory are: 1Cr18Ni9Ti, JM3, JM4, JM5, JM6, wear-resistant alloys and 304, 305, 316, 316L, 904, 904L, CB7Cu, CD4MCu, HaSt, F46, etc., which are suitable for various working conditions. Transportation of sulfuric acid, hydrofluoric acid, alkali, salt and other media.
With its advanced technology, complete pre-sales, sales, and after-sales services, our products sell well both at home and abroad. They are your ideal choice for selecting conveying equipment in the fields of metallurgy, electric power, petroleum, petrochemical, papermaking, pharmacy, chemical industry, and environmental protection.
Jiangsu Shuanglian Pump Industry Co., Ltd. is willing to cooperate and develop together with all walks of life. We sincerely welcome people from all walks of life and customers at home and abroad to come to our company for inspection and guidance.
