Printed carpet digital cutter coating blanket cutting machine/PTFE coated gasket Cutting equipment gasket cutting machine cnc
- Category: >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600415904247):
Product Overview
Description
Product Description
Printed carpet digital cutter coating blanket cutting machine/PTFE coated gasket Cutting equipment gasket cutting machine cnc

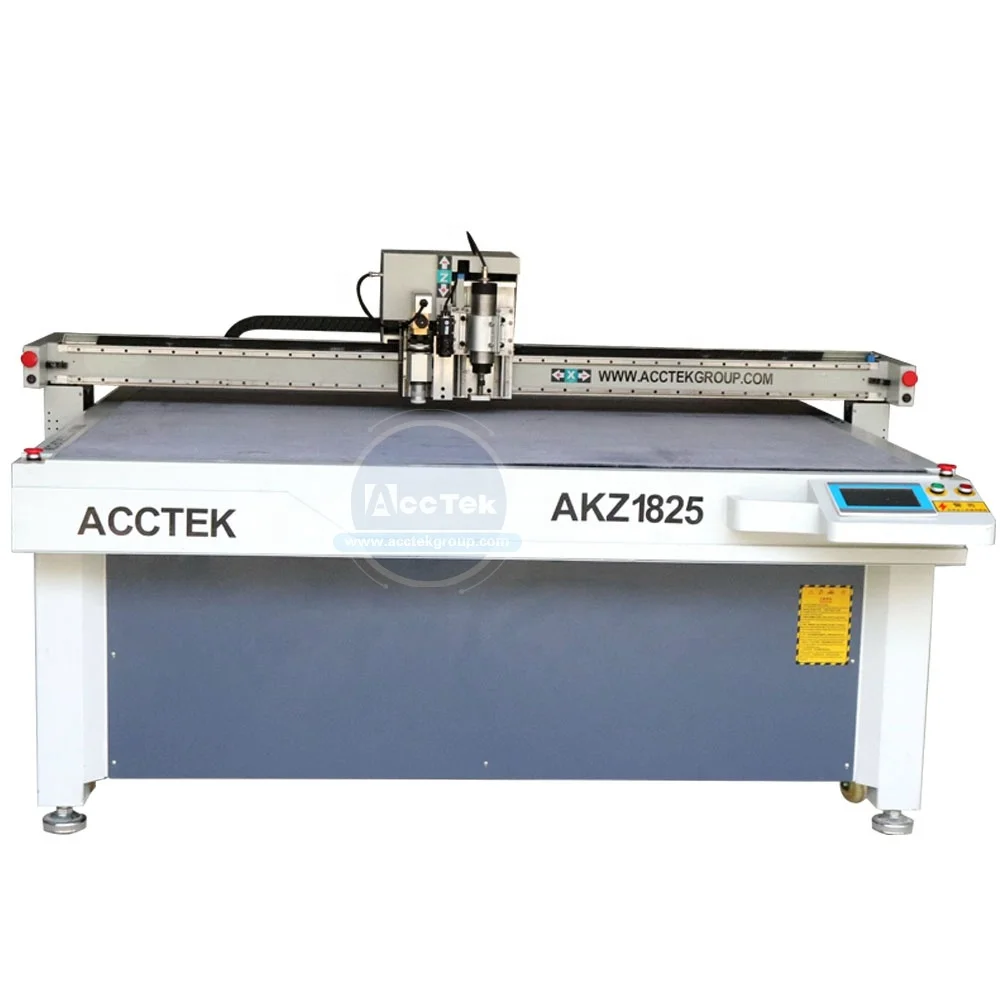

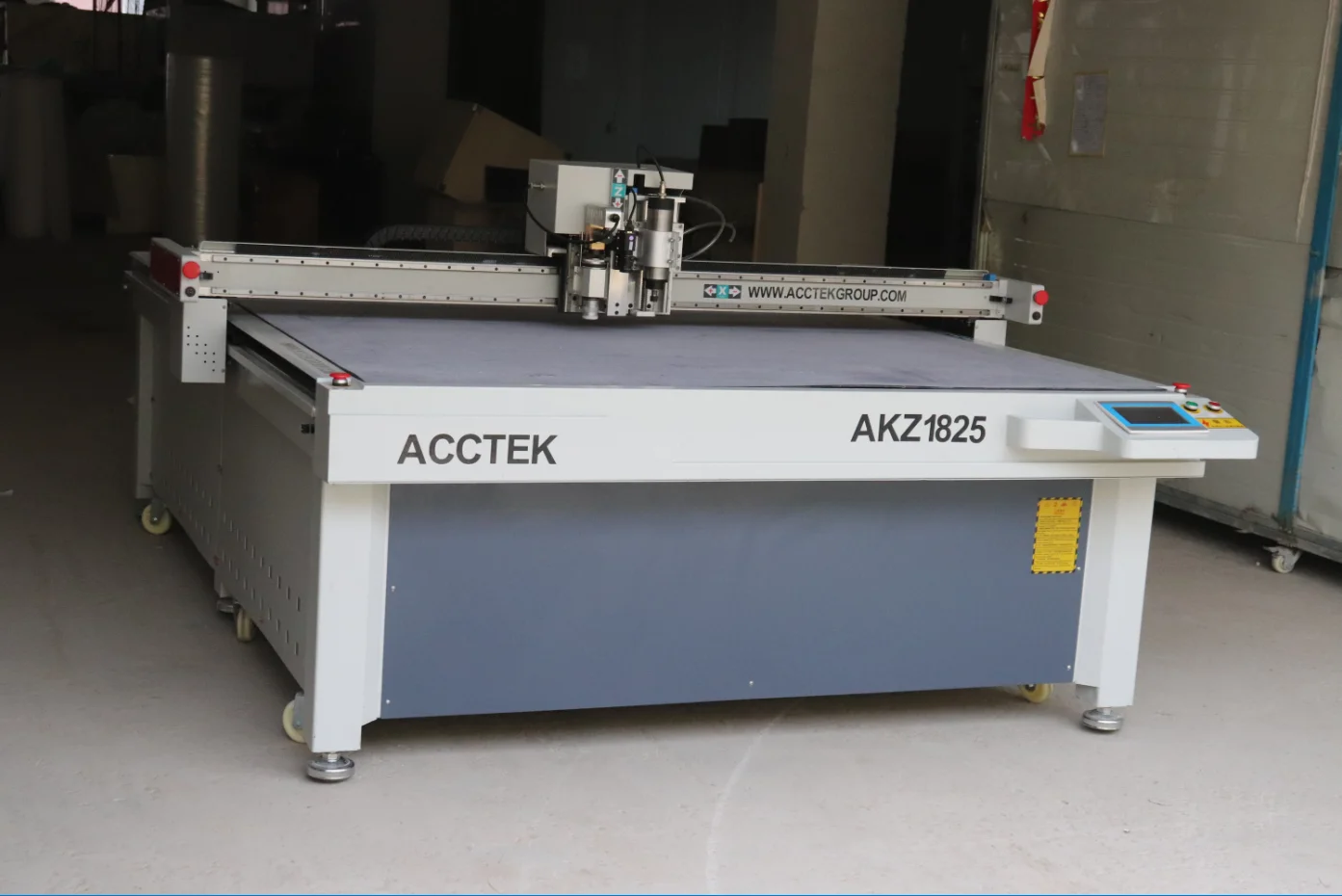

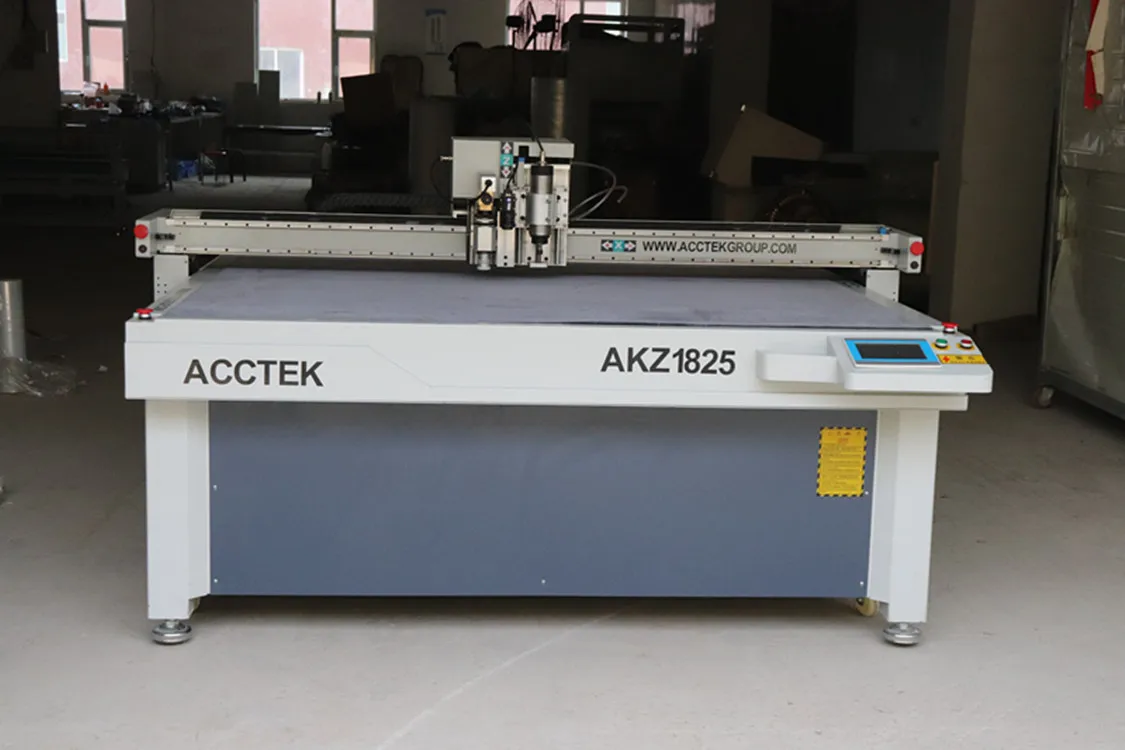

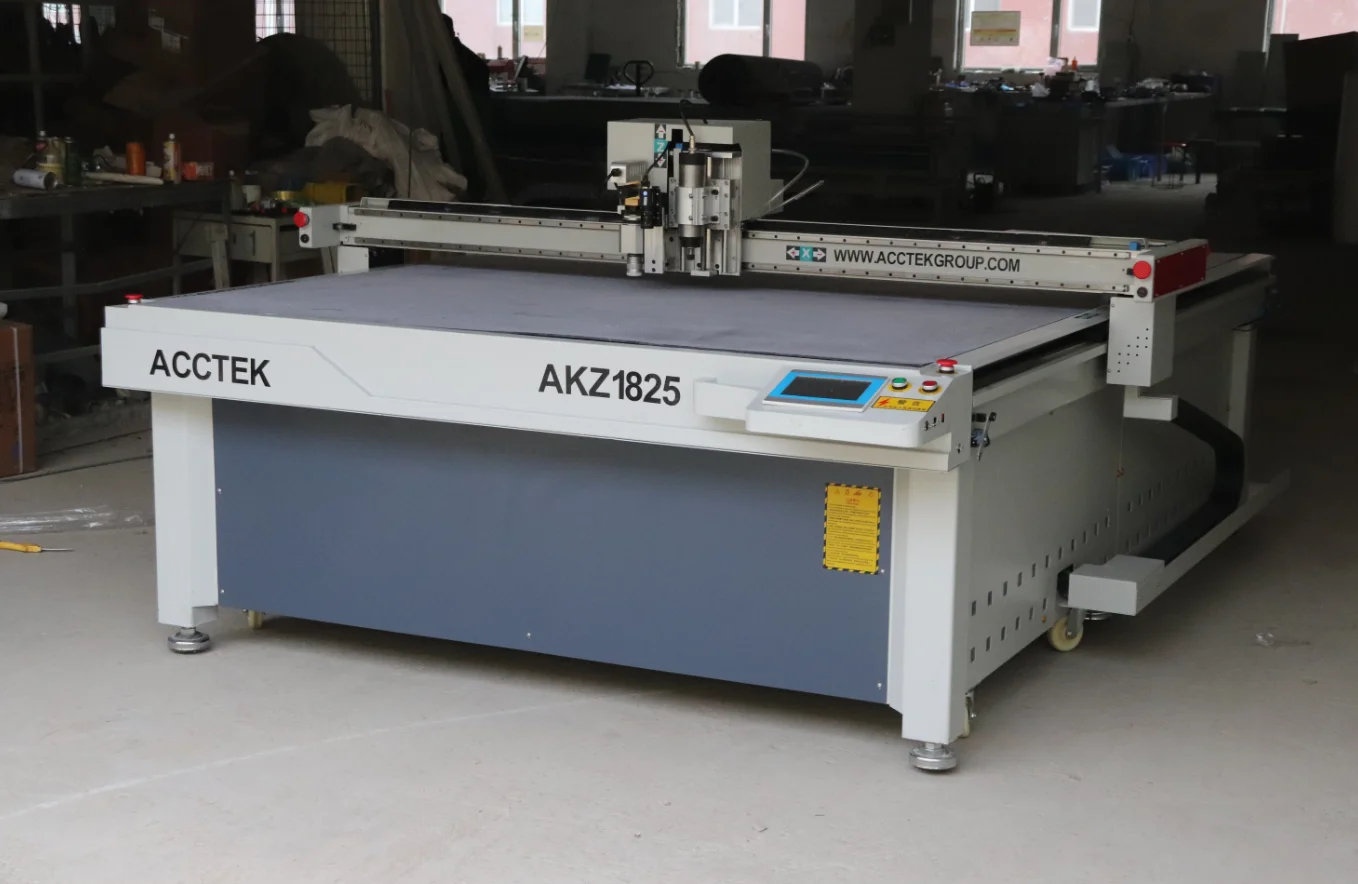

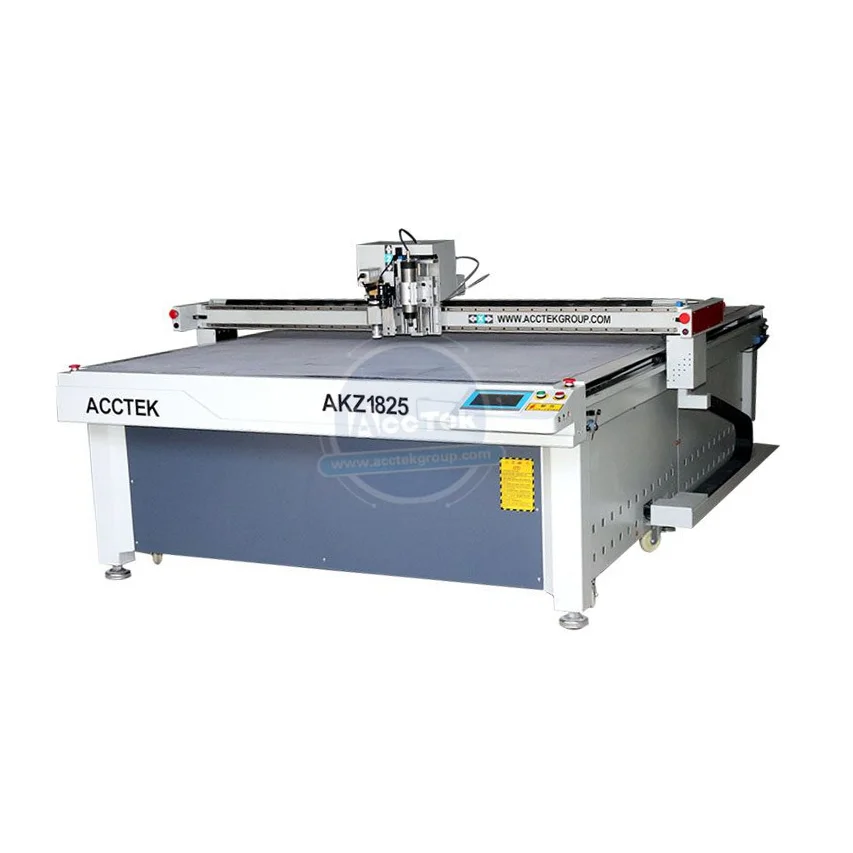

Main features of cnc vibrating knife cutting machine AKZ1825
# Cutting by knife not laser, no air pollution, no burntedge, cutting speed is 5-8 times faster than co2 laser machine.
# Imported PMI square linear guide and servo motor ensure high precison and fast cutting speed.
# High performance is guaranteed with the integrated circuit plate.
# The application of an USD/Ethernet port makes the cutting plotters fast and convenient.
# Easy opeate.This cutting machine was designed easy to install, set-up and operate.
# Special safety sensory device meets the European standard.
# The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
# High performance is guaranteed with the integrated circuit plate.
# The application of an USD/Ethernet port makes the cutting plotters fast and convenient.
# Easy opeate.This cutting machine was designed easy to install, set-up and operate.
# Special safety sensory device meets the European standard.
# The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
Technical parameters
| Model | AKZ1825 |
| Max. Cutting size | 1800*2500mm |
| Power | 11KW |
| Multifunction Tool Head | Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut tool/CCD camera/tangential knief/ drilling tool/projector/etc. |
| Security Device | High sensitive infrared induction |
| Cutting speed | Max. 1200mm/s (can be set up according to different materials) |
| Movement speed | Maximum 1500mm/s |
| Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc. |
| Cutting thickness | Maximum 20mm (set according to different materials and tools) |
| Material fixing method | High power vacuum absorption with felt |
| Repeated positioning accuracy | ±0.05mm |
| Mechanical Precision | Maximum 0.05mm |
| Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails |
| Control system | Chinese Brand RD control system |
| Data transmission method | USB port or Ethernet |
| Suport file | DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc. |
| Operation environment | Temperature 0-40℃, Humidity 20%-80%RH |
| Voltage | 380V/220V/50Hz/60Hz |

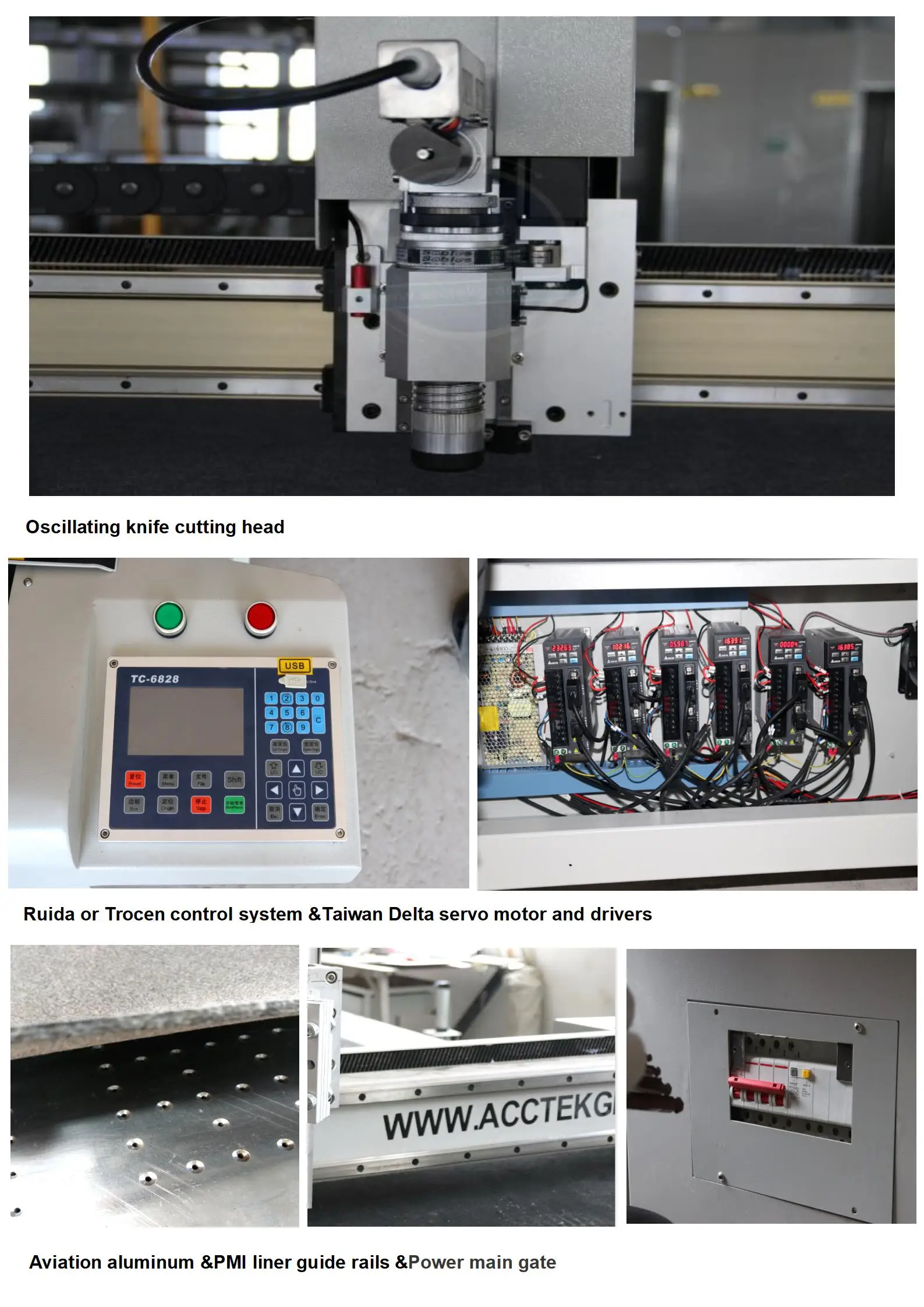

Main parts&Option

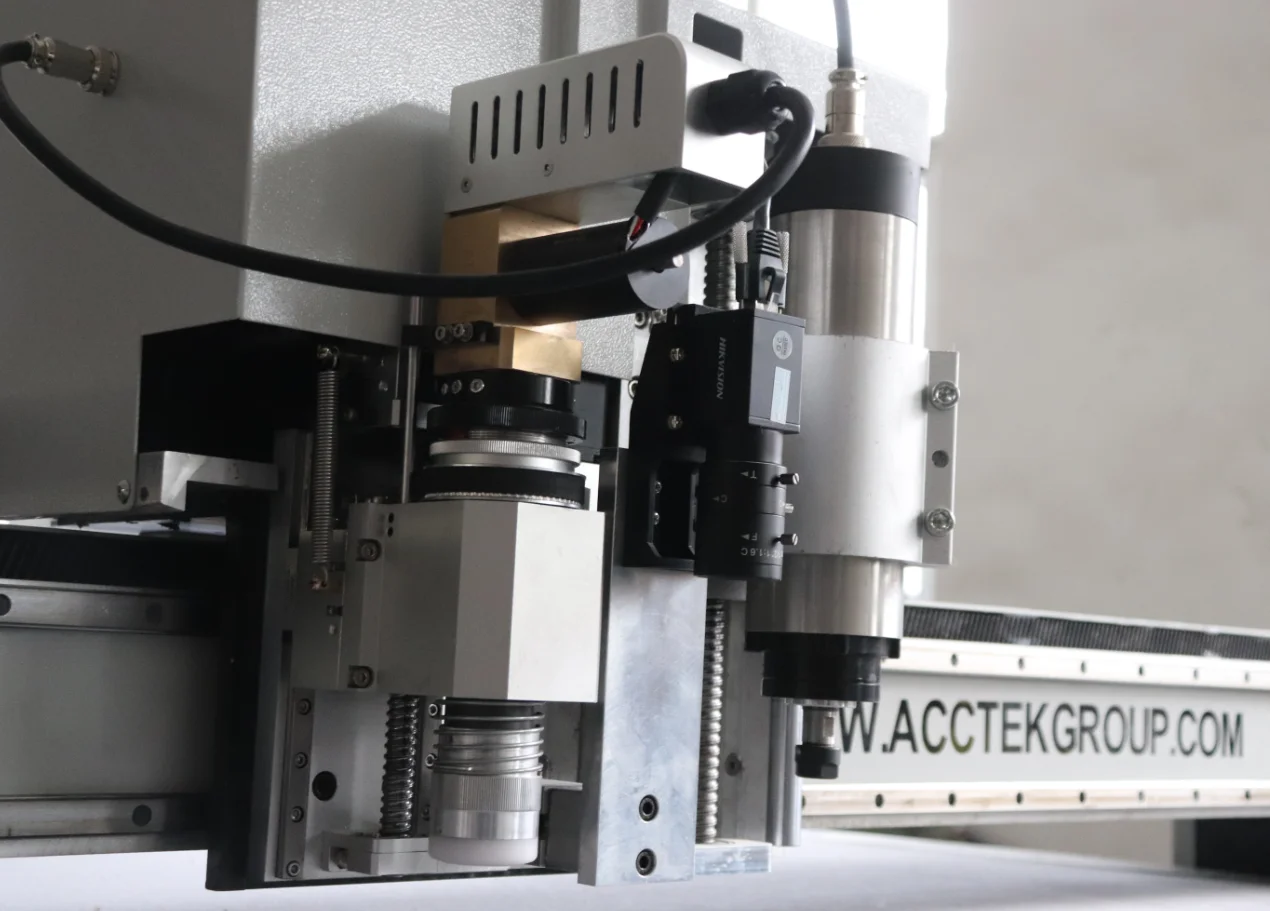

#Cutting head with oscillating knife(straight knife)
#Trocen control system/Brand RDD6584G controller system
#Aviation aluminum vacuum table , Rack and gear transmission system with dust proofing.
#Delta servo motor and drivers
#Aviation aluminum vacuum table , Rack and gear transmission system with dust proofing.
#Delta servo motor and drivers

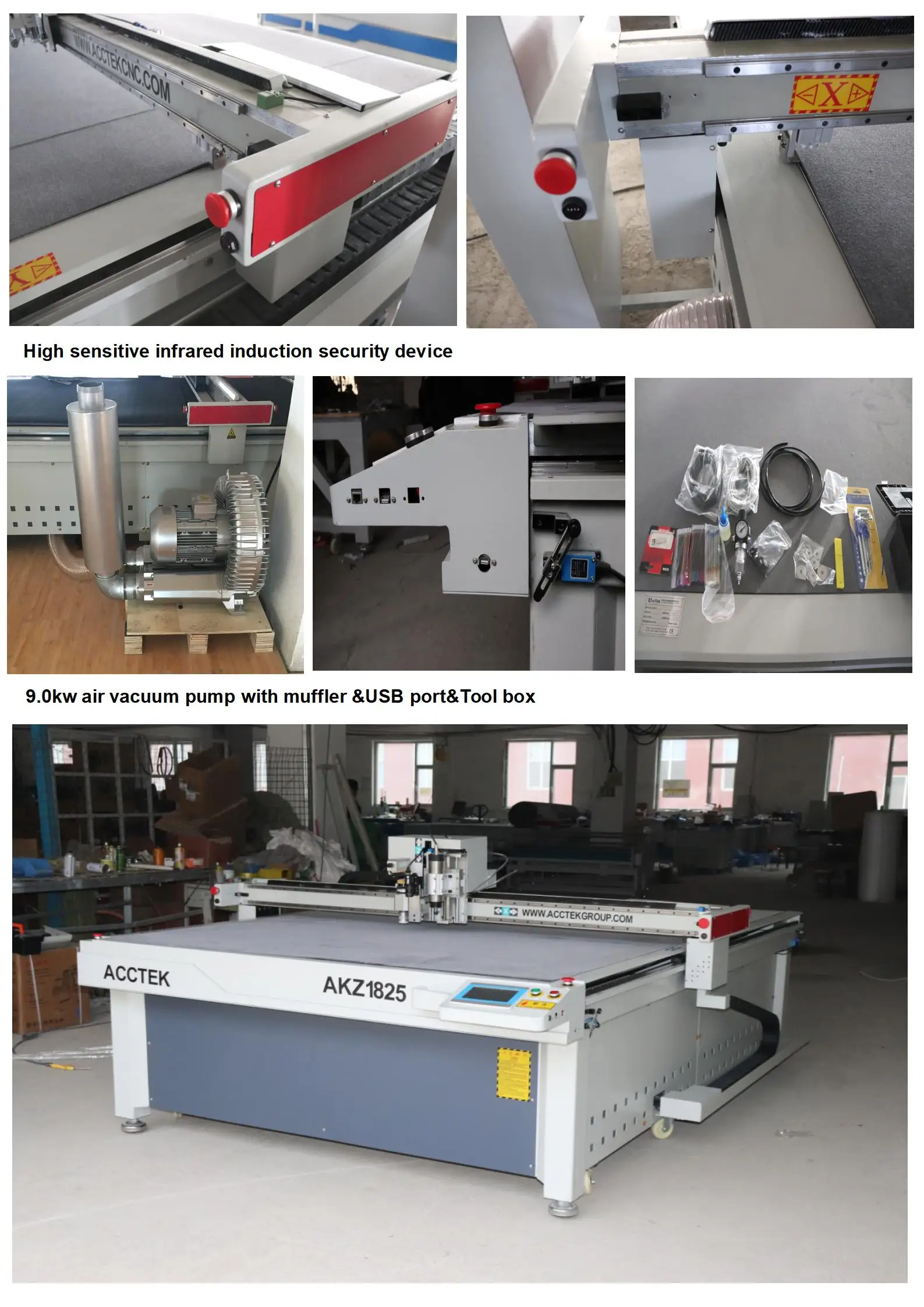

#9.0kw air vacuum pump
#High sensitive infrared induction security device.

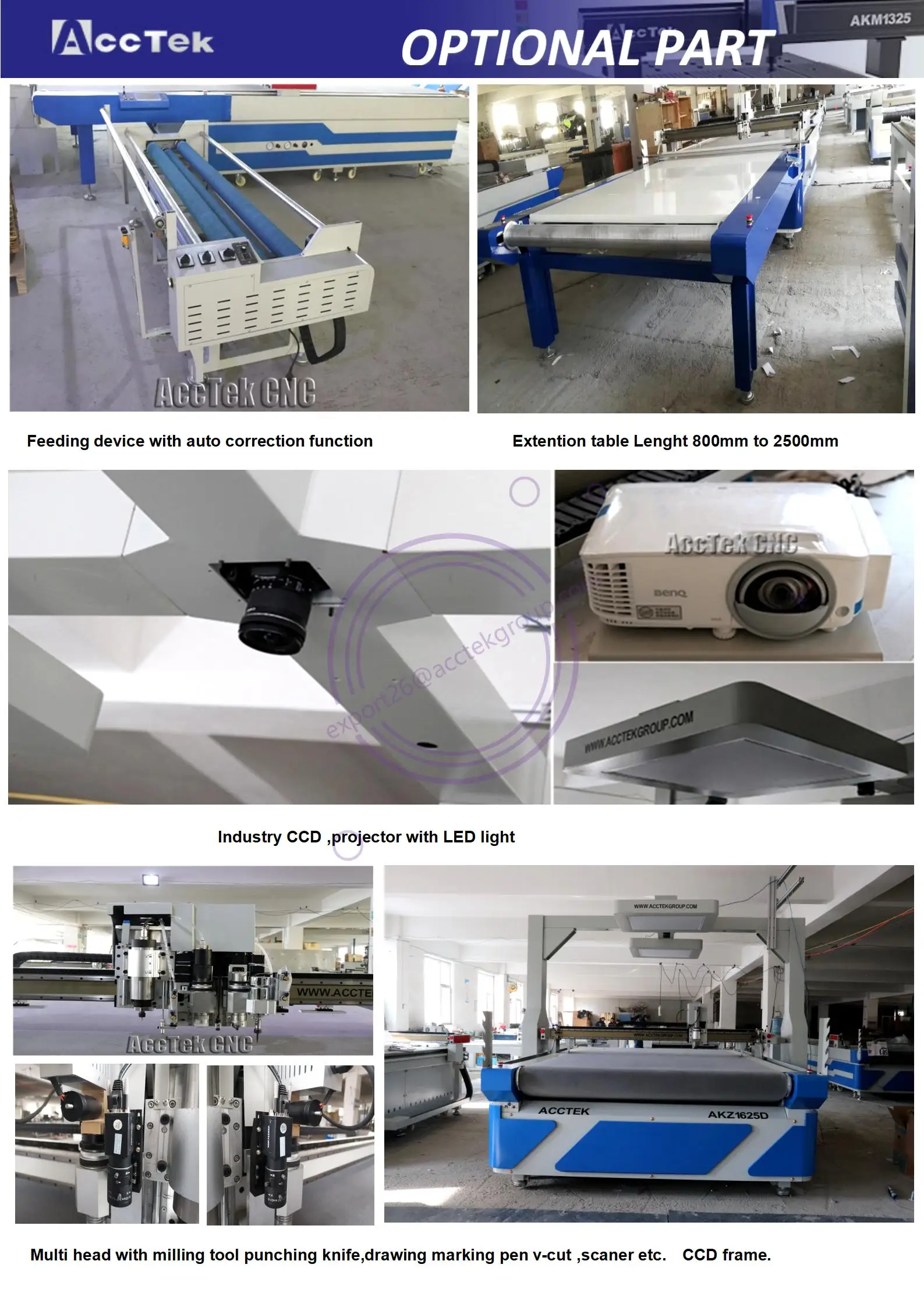

Option:
# Big CCD industry camera
# Projector
#Feeding device with auto correction function
#Extention table
#Automatic Multi heads for different project

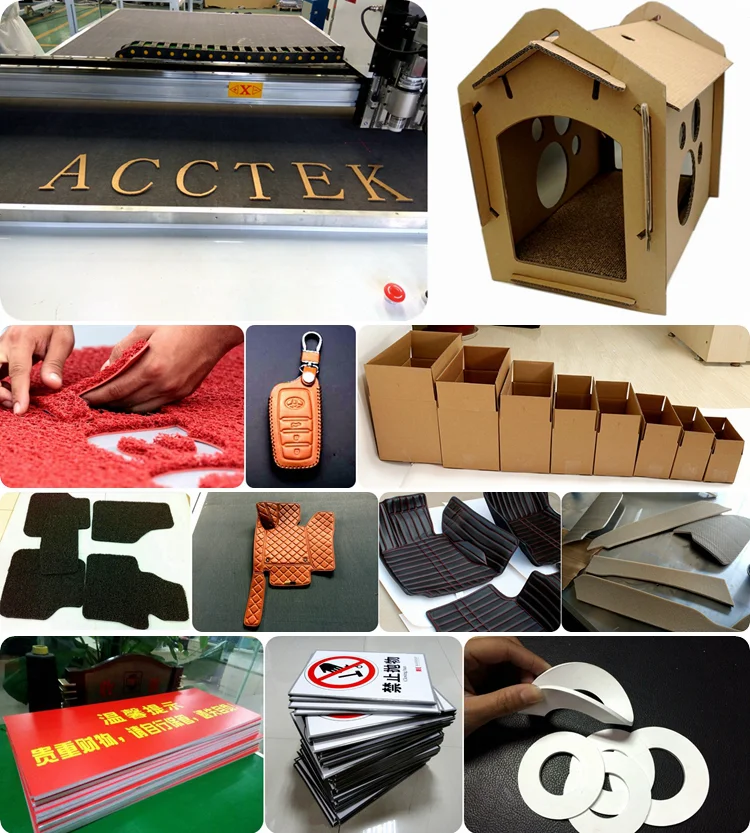

Applications
*Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper,
gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. .
*Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
*Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
*Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
*Positioning: positioning with cross red line positioning system.
*Drawing function with marker pen (optional)
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
*Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
*Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
*Positioning: positioning with cross red line positioning system.
*Drawing function with marker pen (optional)
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
*Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
Our service
After sale service of AccTek& Buyer's feedback
1. 18 months guarantee of the whole machine. 1.5 years for fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
Payment & Delivery
Payment terms: A. T/T: 30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade. B. Paypal: only for parts of machine. C. Western Union/ Moneygram. D. Trade Assurance on Alibaba. For more details, pls click the below photo.
| Package (1). The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.then you pay 70% balance payment,we arrange shipping for you. (2). Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool (3). Fumigation wooden box (4). Whole film packaging machine (5). The package is tandard exporrt plywood box,customized for every size machine.
|
