CW 85S high quality tea Paper Cup Making Machine
- Category: >>>
- Supplier: Pingyang China World Import And Export Co. Ltd.
Share on (1600415954206):
Product Overview
Description
Products Description

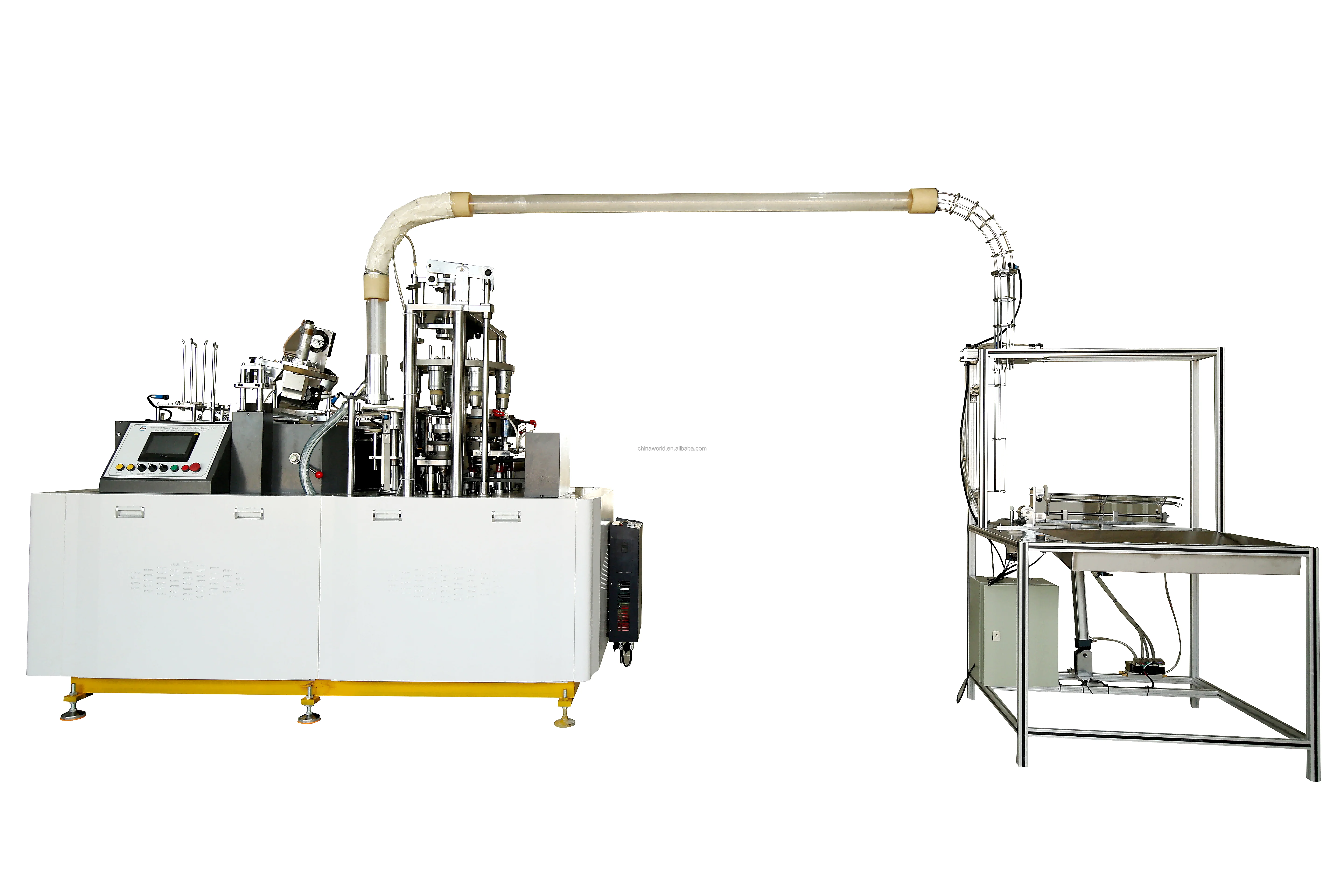

CW-85S Paper Cup Making Machine
CW-85S Single or double PE Coated Open Cam Single Plate Middle Speed Paper Cup Machine is a multi position and medium speed automatic machine. It can produce single coated beverage cups through automatic paper feeding, sealing, oiling, undercutting, heating, knurling, curling and other continuous processes, such as stacking warning, counting, detection, stop, etc.
Details Images

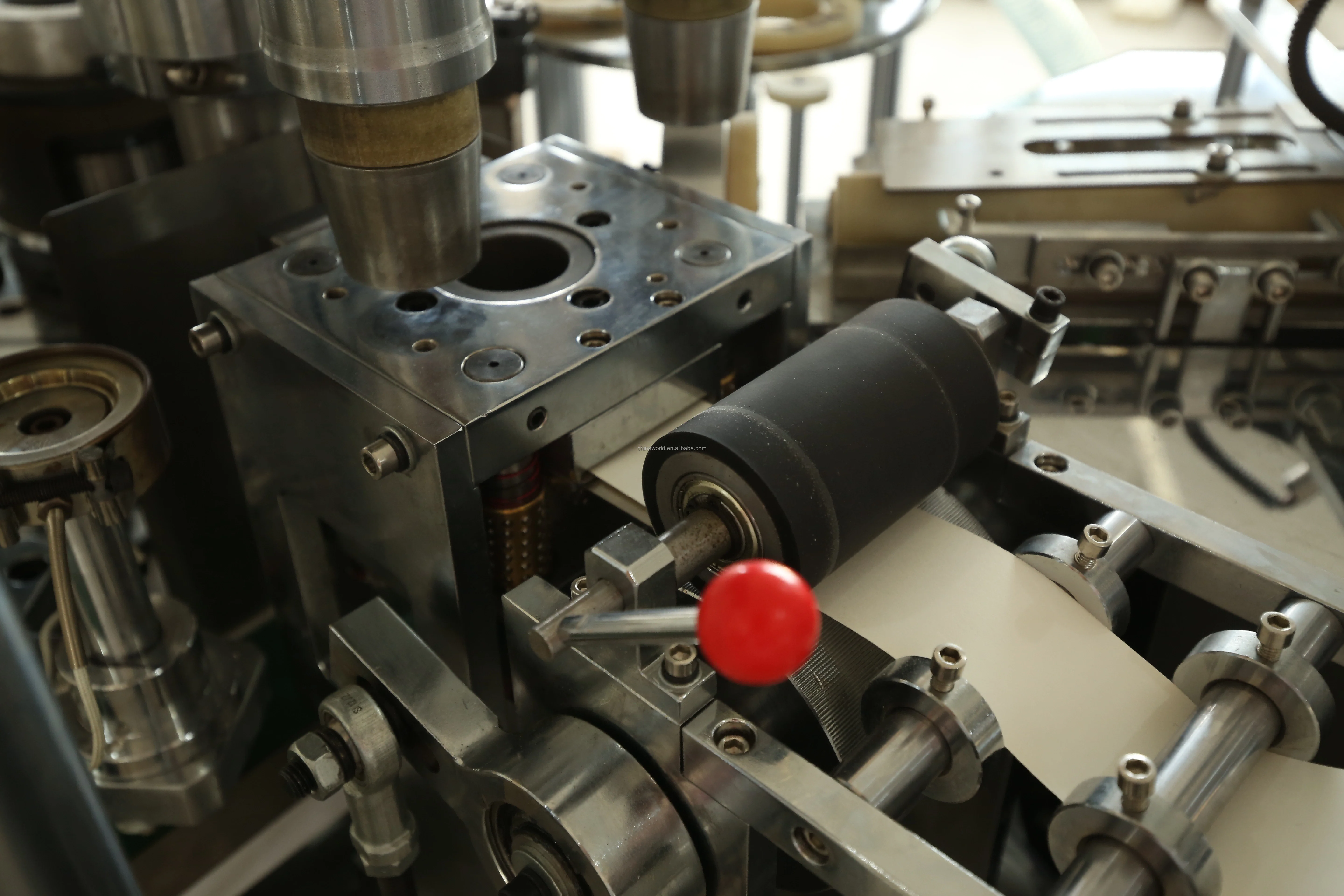

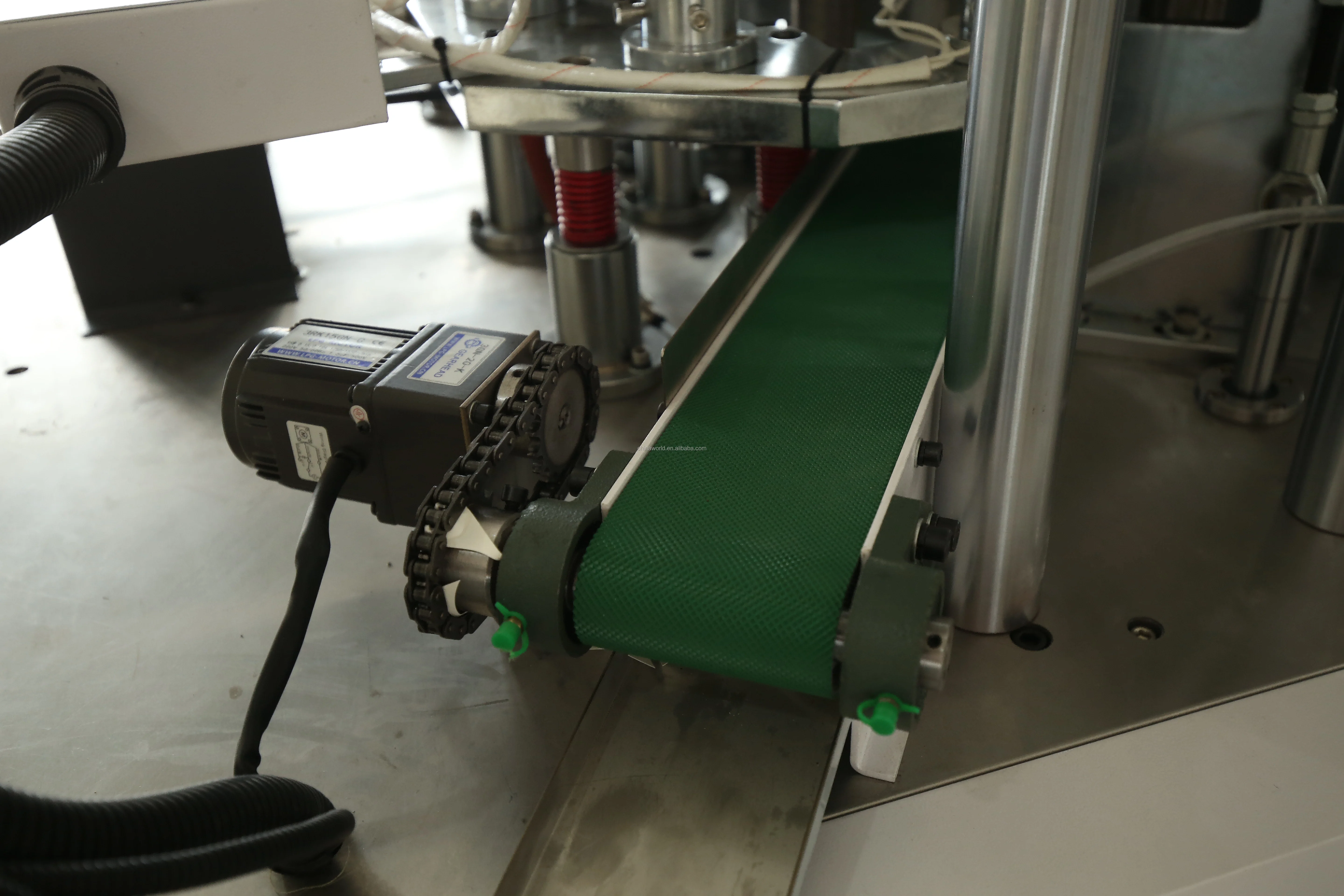

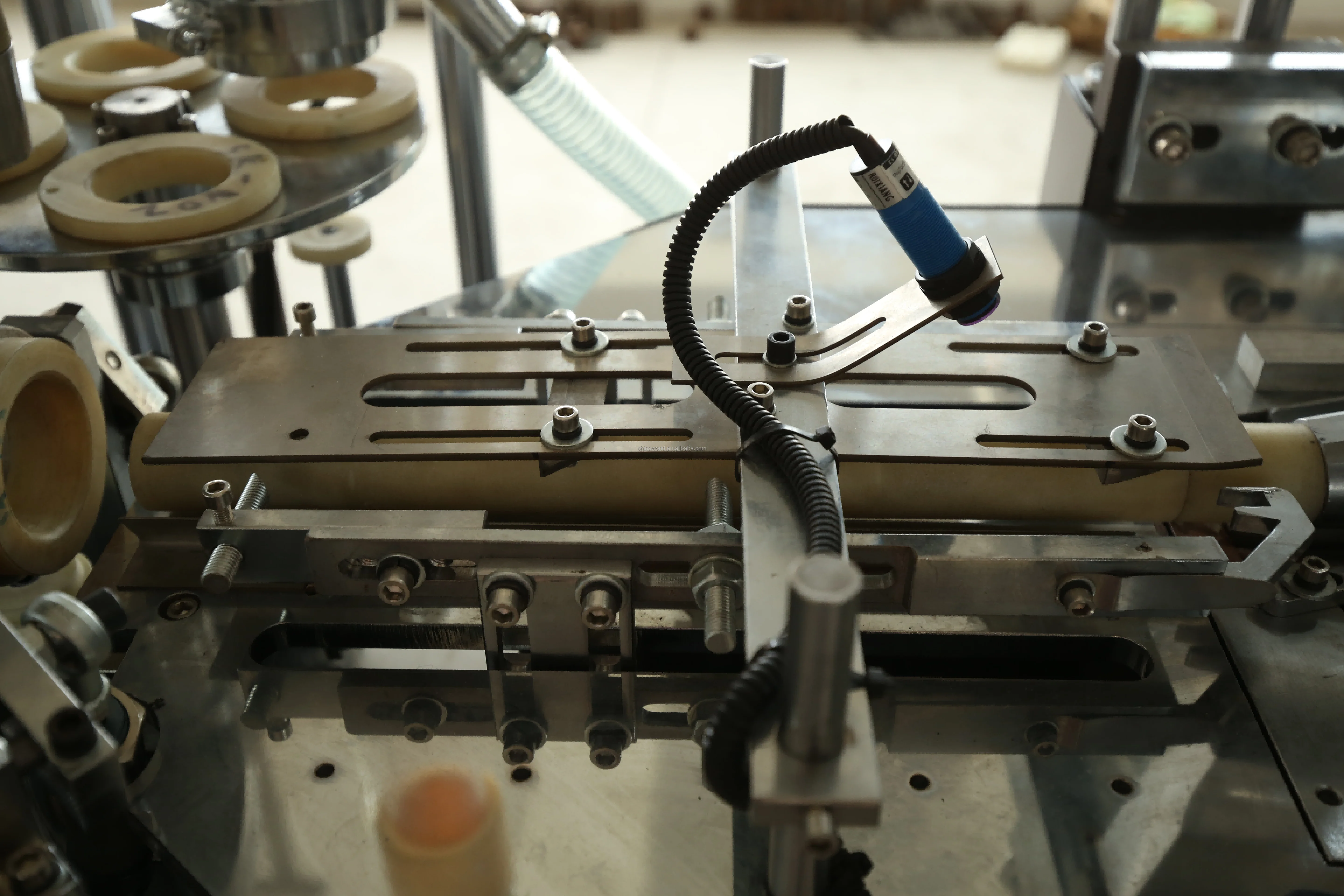

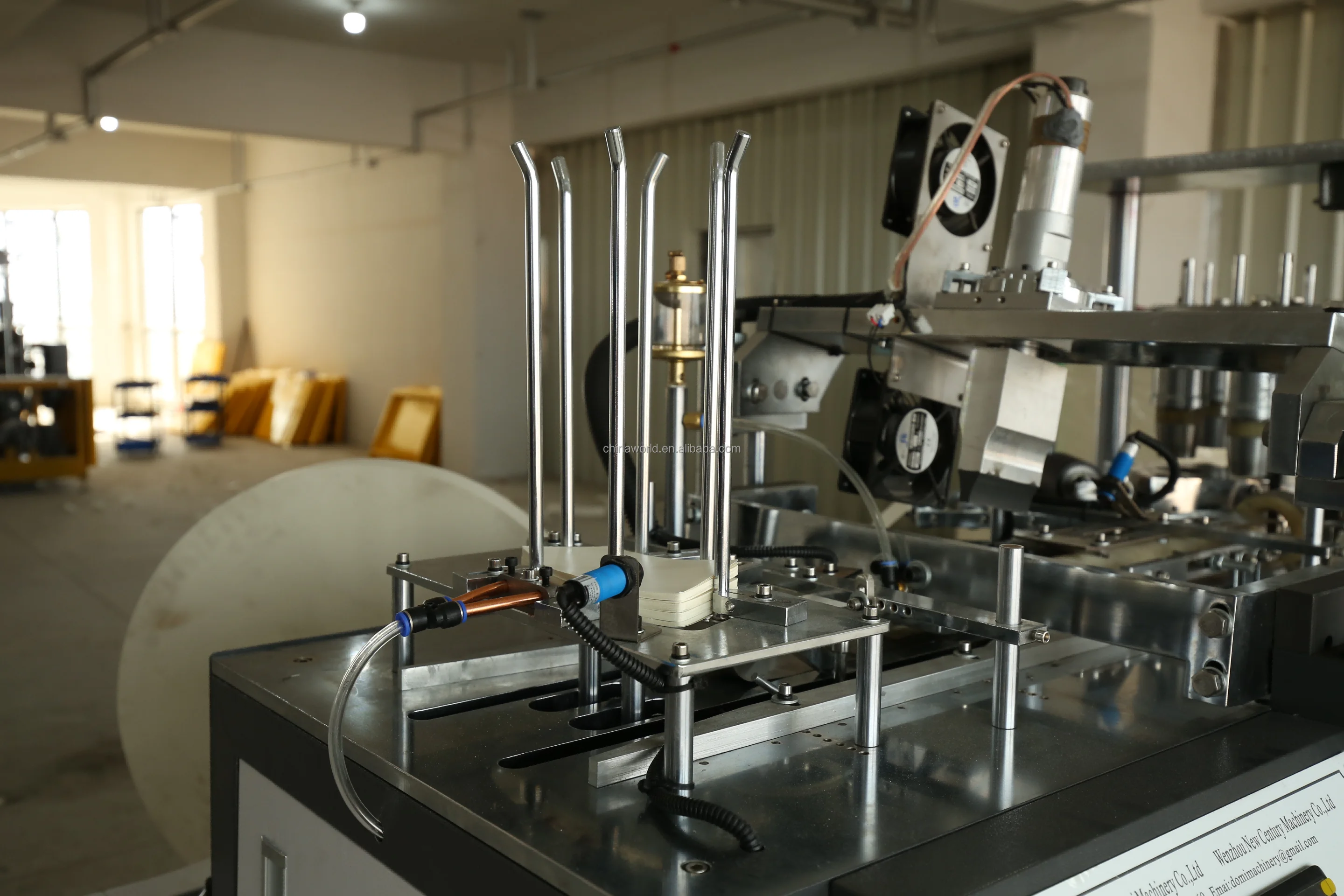

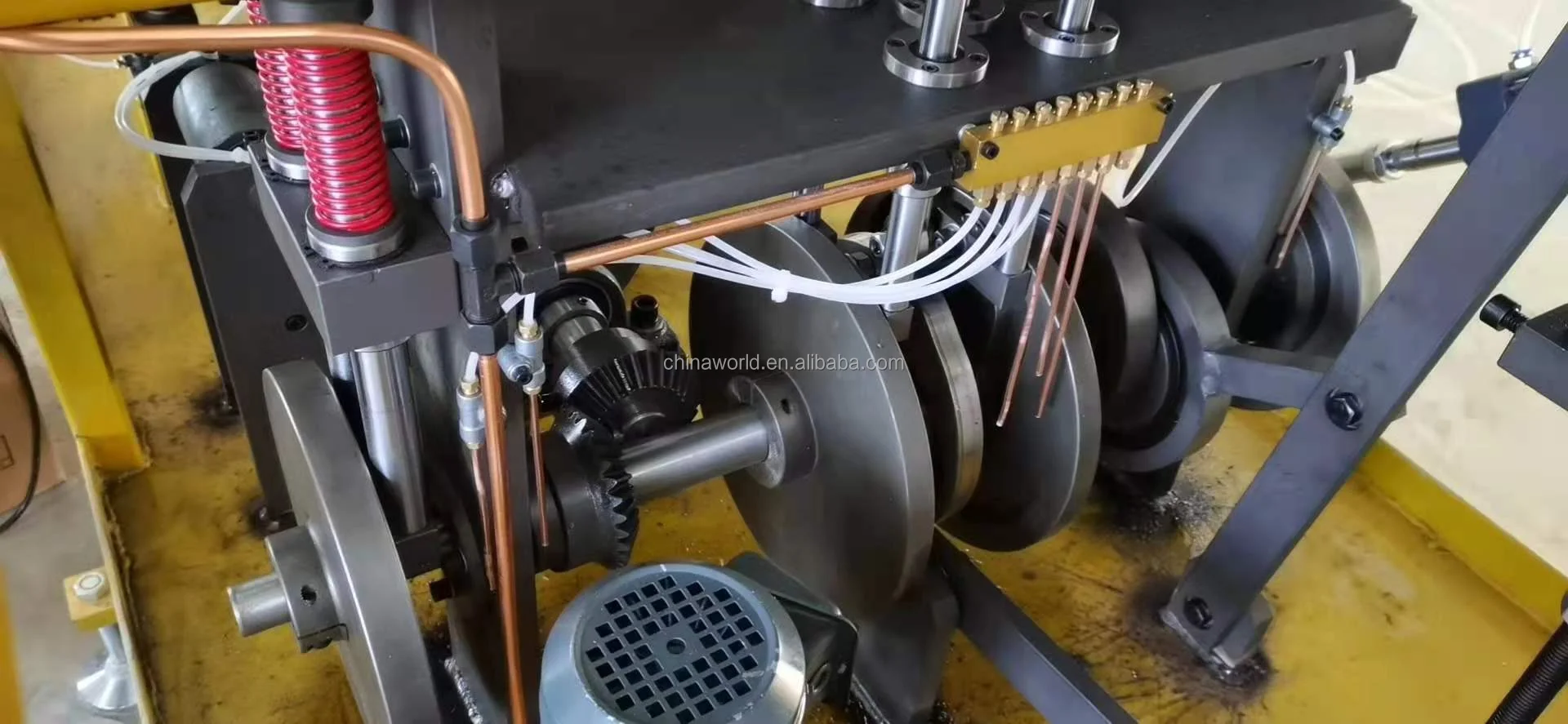

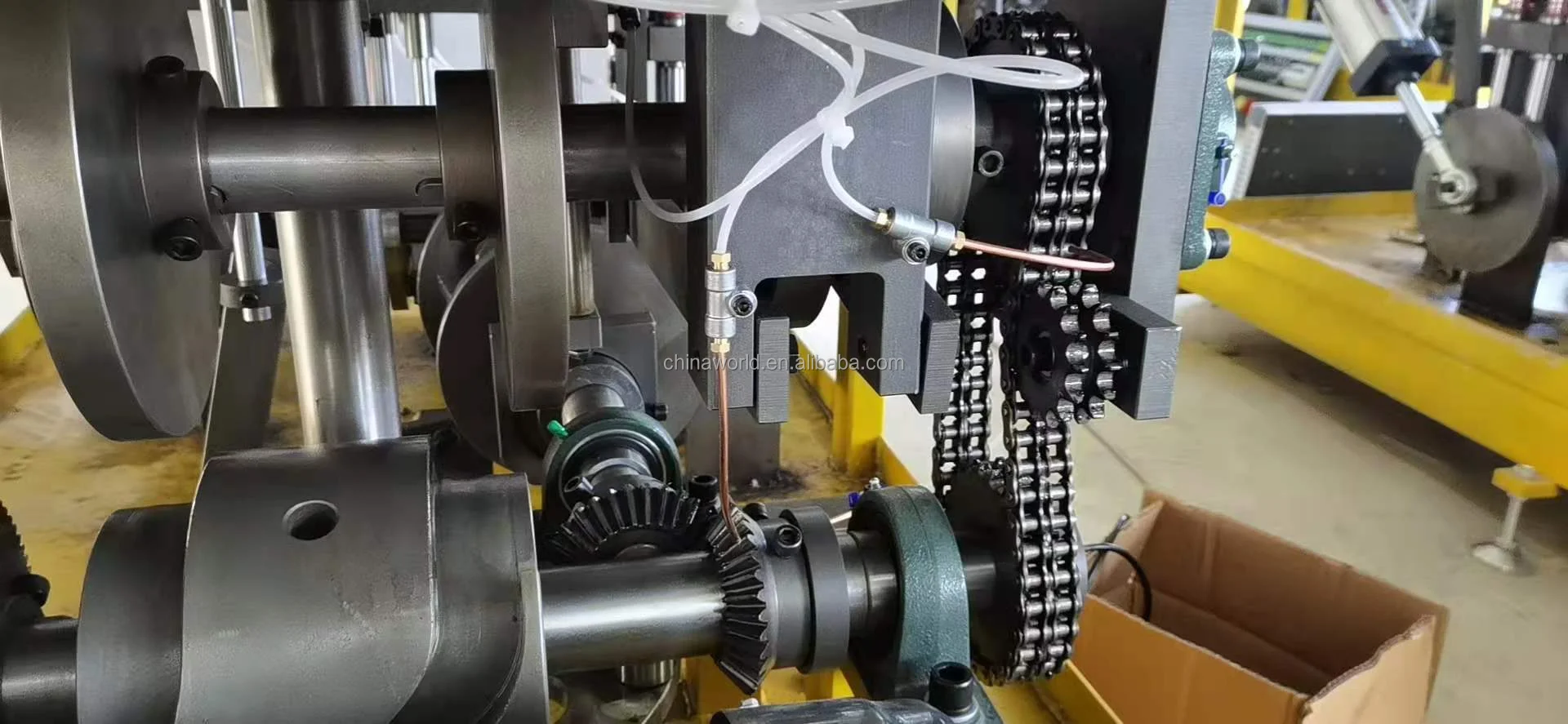

Sample picture
Machine video
Machine parameters
No | Item | Data |
1 | Paper Cup Size | 2-12 |
2 | The cup body Sealing | Hot air heating |
3 | Material requirements | Single PE or double Coated |
4 | Suitable Paper Weight | 140—320 gsm |
5 | Speed | 85-105 pcs/min |
6 | Total Power | 7.5 KW |
7 | Power Source | 50/60 HZ, 380 V/220 V |
8 | Gross Weight | 2200 KG |
9 | Package Size | 2230*1140*1800 mm |
10 | Working Air Source: | Air pressure : 0.4 Mpa; Air Out-put: 0.6 m³/minute |
