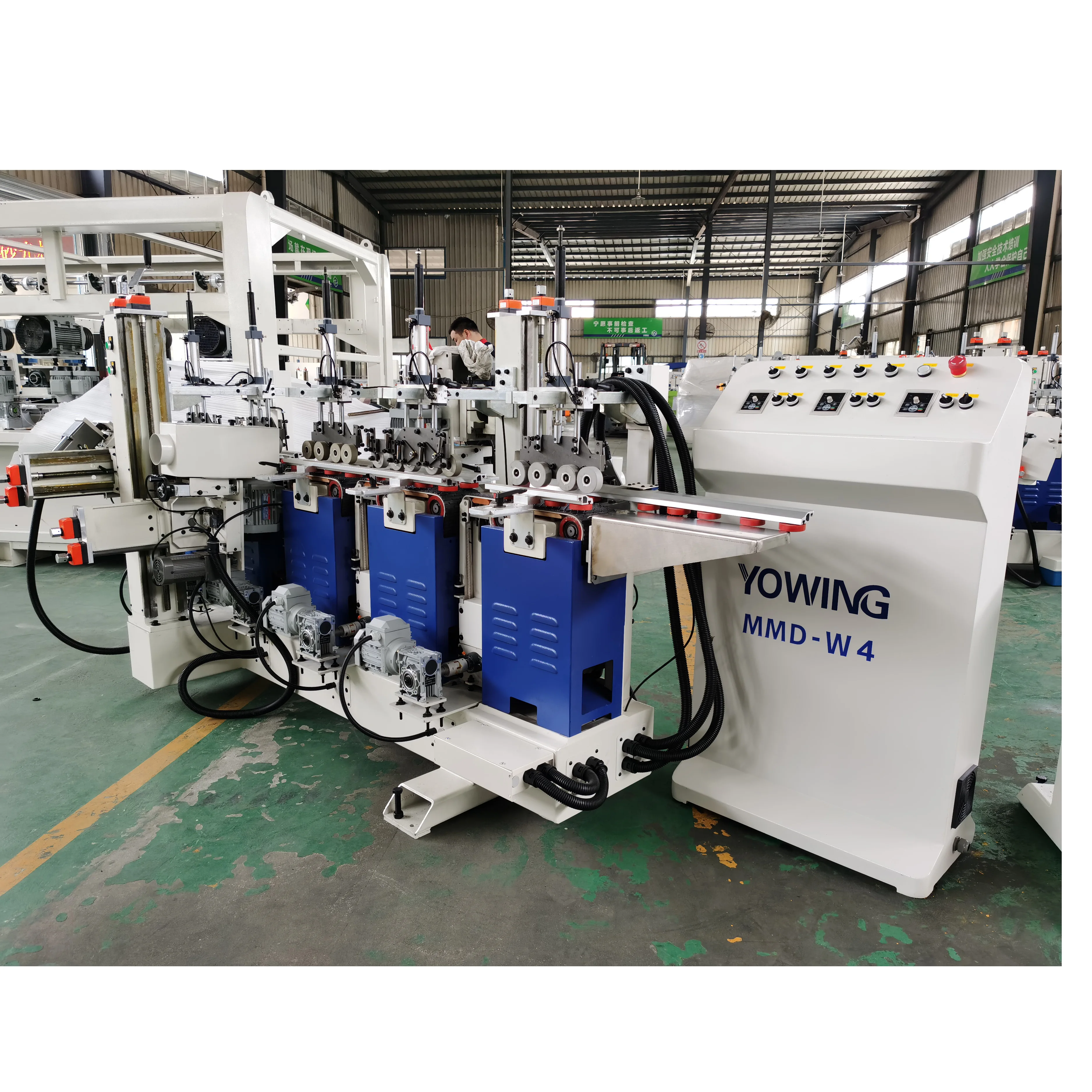

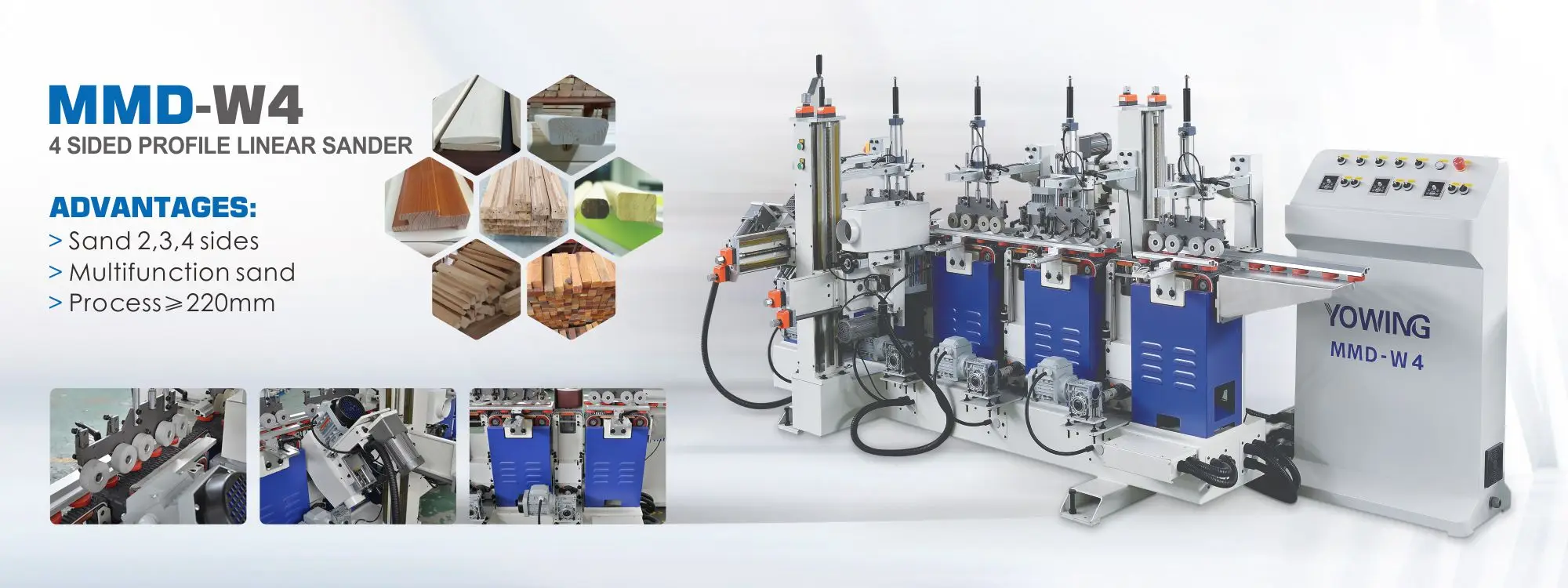

Woodworking Wood Furniture 4 sides linear sander surface polishing belt sanding machine MMD W4
- Category: >>>
- Supplier: Foshan Yowing Machinery Co. Ltd.
Share on (1600415998868):
Product Overview
Description
Specification
Door Frame , Mouldings, Decoration Lines, 1-2-3-4 sides sanding Machine for raw wood, primer wood, lacquer wood, all sanding. Welcome to customize your sanding machines!
Model | MMD-W2 | MMD-W4 | MMD-W6 | MMD-W8 | |||
Sanding heads | 2 pcs | 4 pcs | 6 pcs | 8 pcs | |||
Working width | 20-220mm or customized | ||||||
Working thickness | 100mm maximun | ||||||
Working length | ≧320mm | ||||||
Multifunction sand motor | 1.1kw*2 | 1.1kw*4 | 1.1kw*6 | 1.1kw*8 | |||
Oscillation motor | 0.09kw*2 | 0.09kw*4 | 0.09kw*6 | 0.09kw*8 | |||
Total power | approx 3KW | approx 6.5KW | approx 8.5KW | approx 10KW | |||
Weight | 21200kgs | 1600kgs | 1800kgs | 2000kgs | |||
Product Description

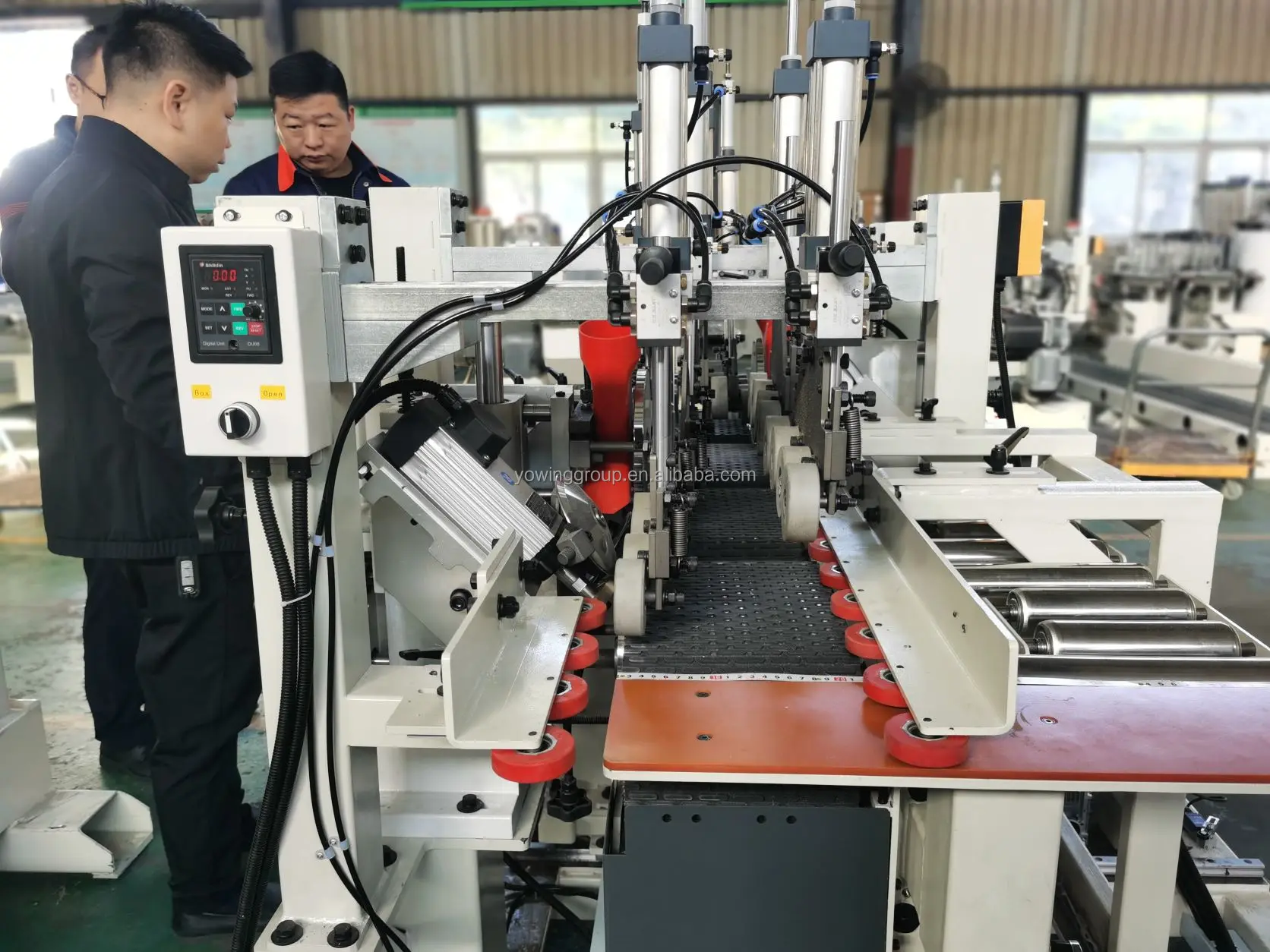

Our Team for Installation and Debugging
Discussing in our team.
RD department team are discusssing!

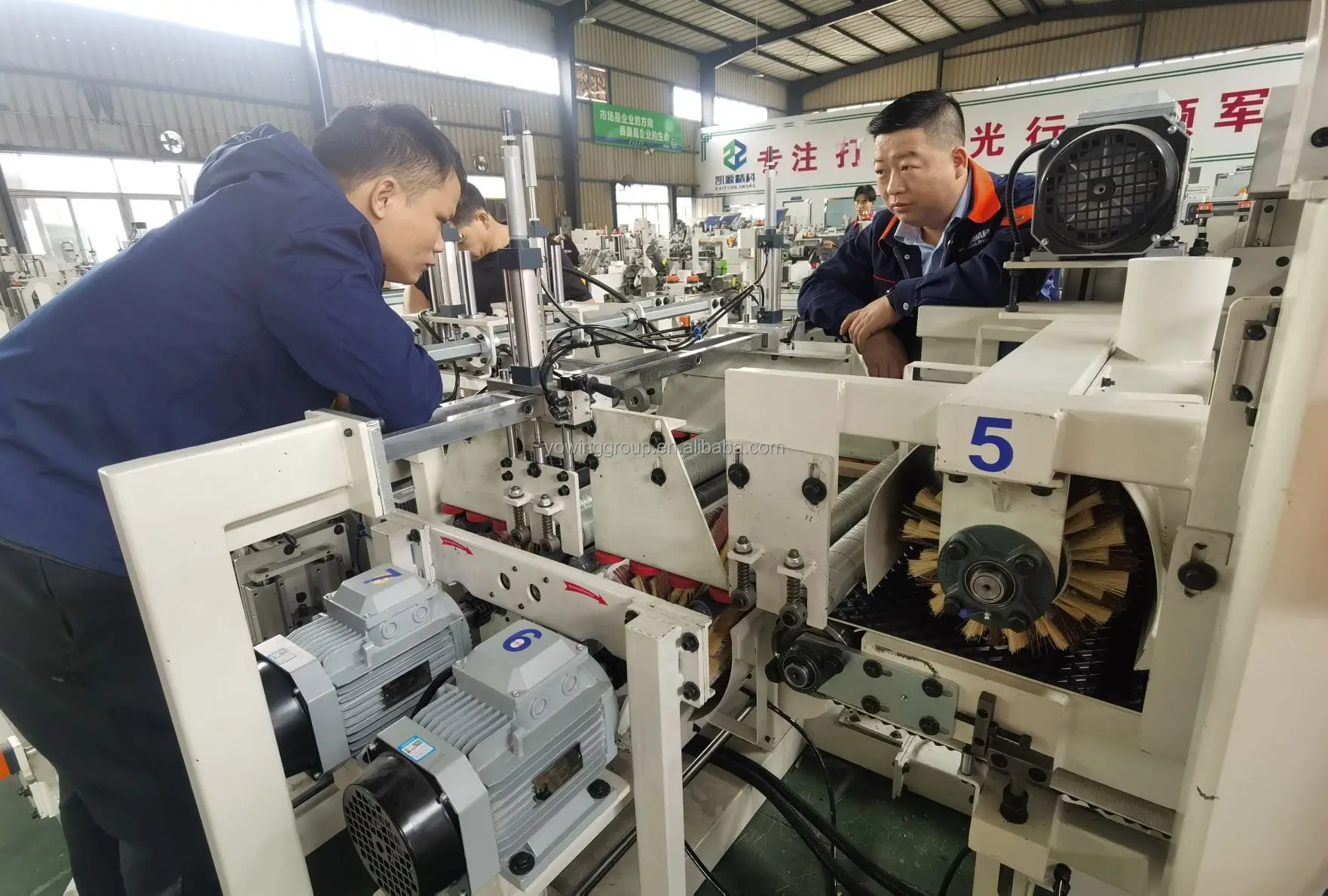

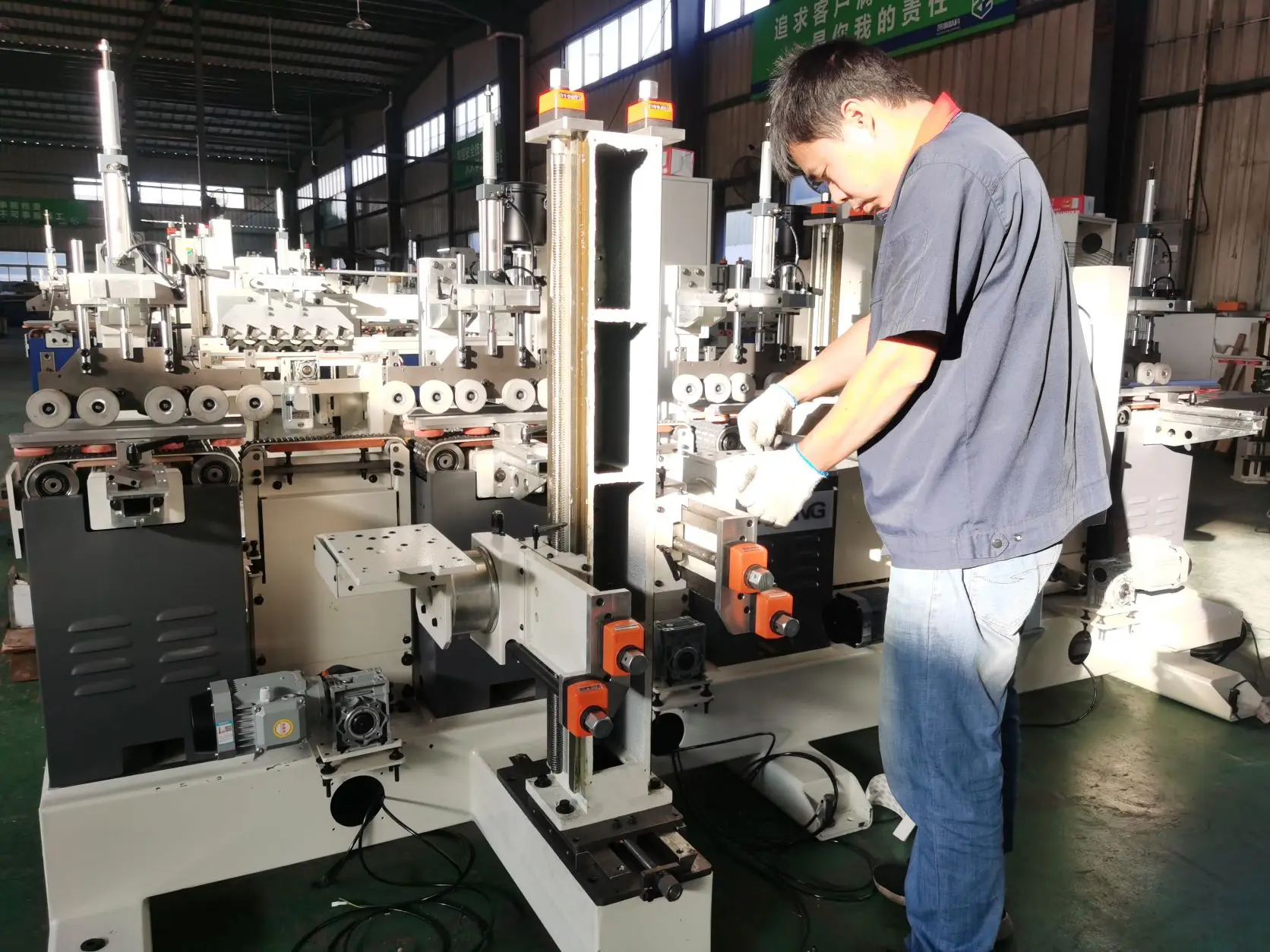

Checking problem closely.
In this photo, the problem is with the press beam moving. Seeing it and then solving it.
Dedicated
Professional and dedicated Workers for installation!

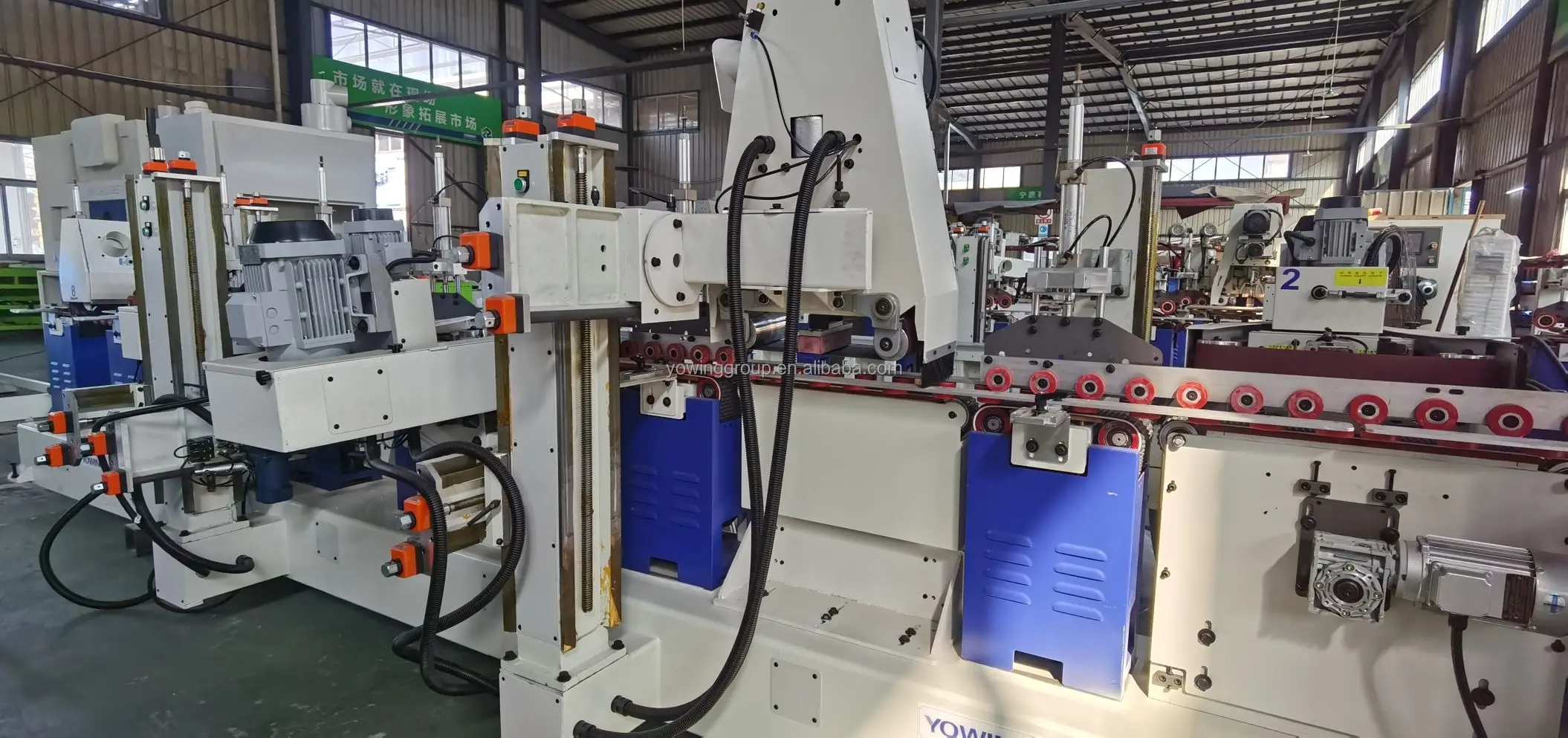

Machine Details

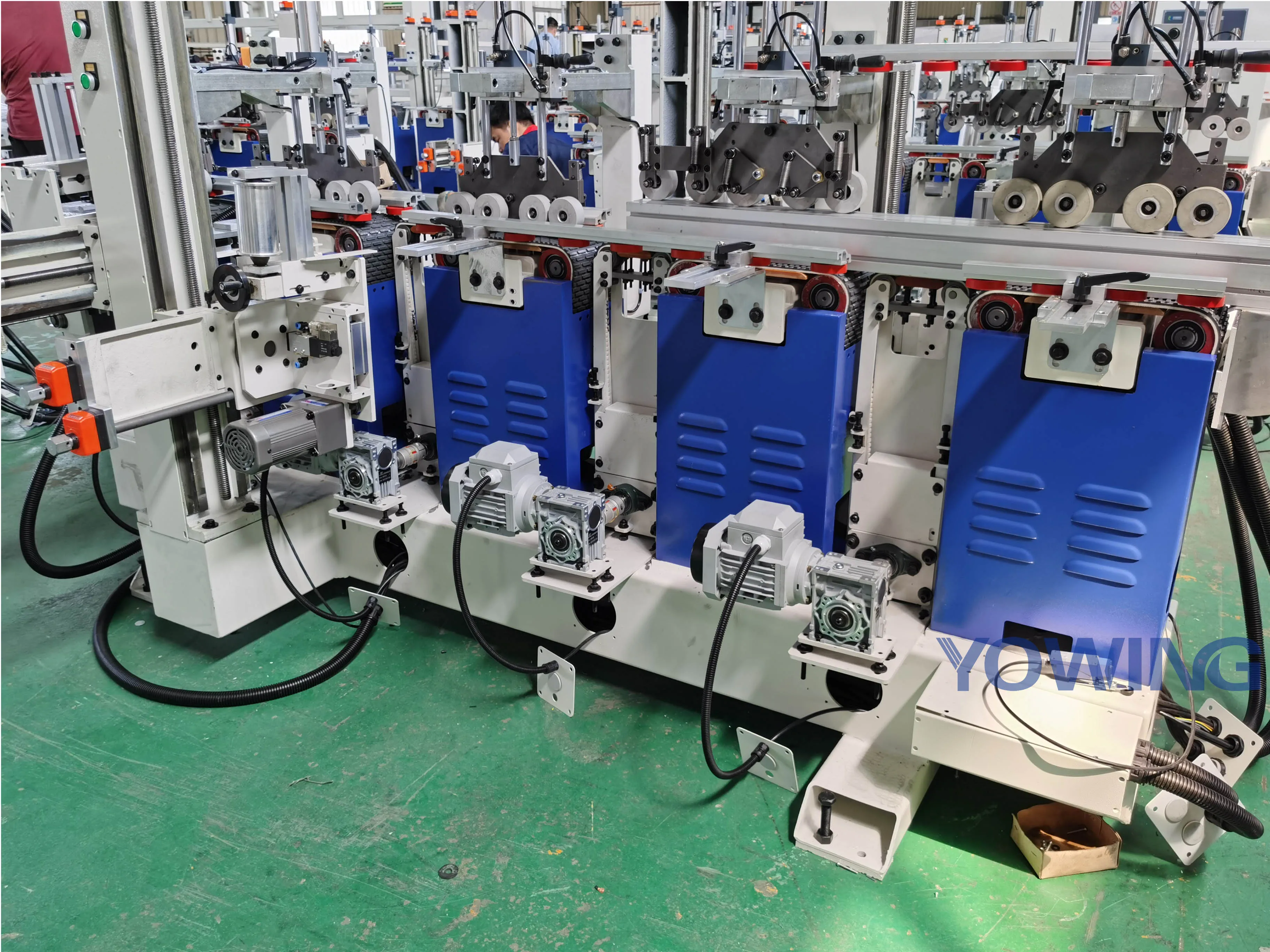

Heavy Duty Machine Base.
Thick steel plate welding for base ,make sure strong and stable for long time uses.

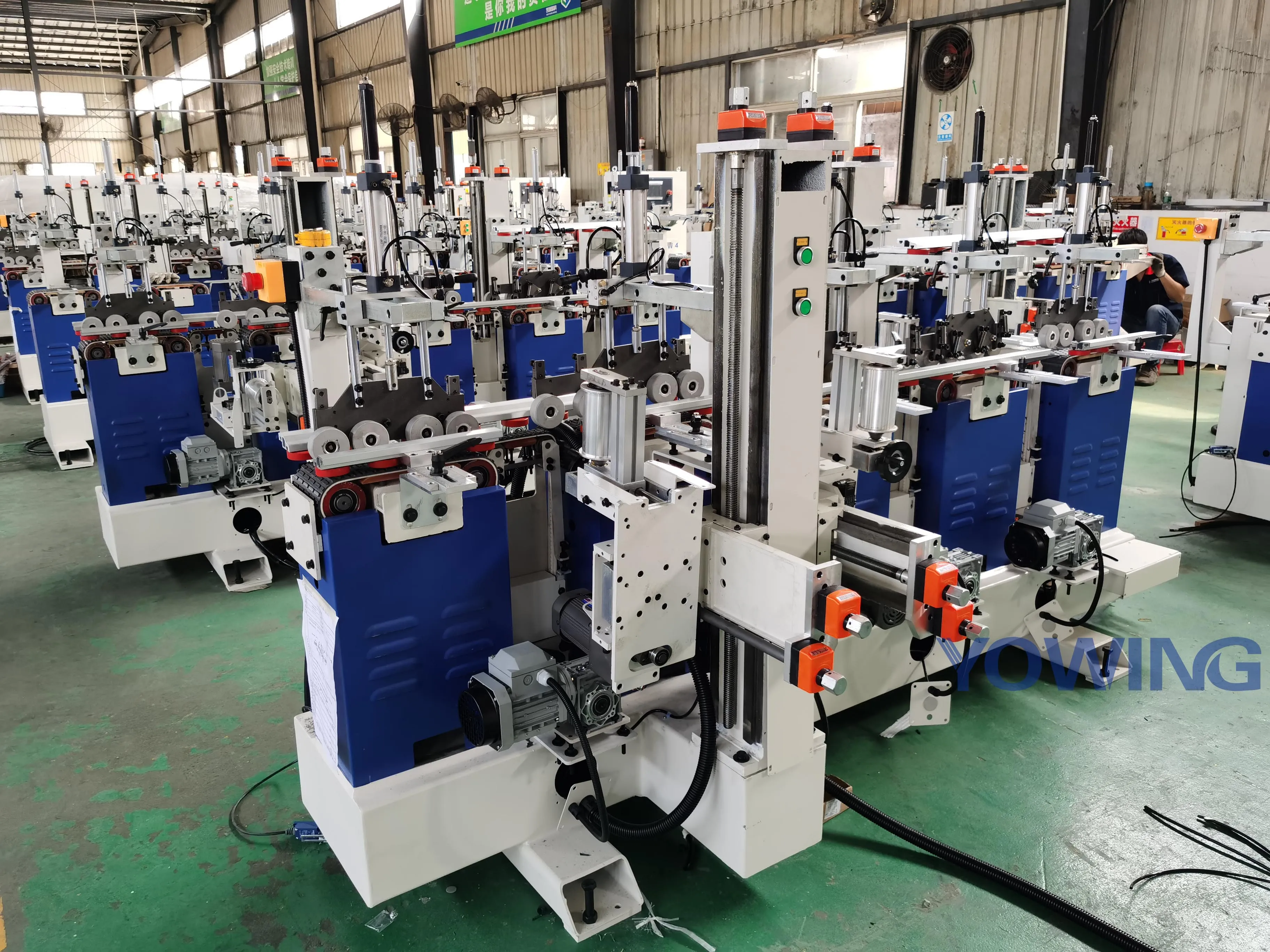

Strong Machine Frame.
Strong and stable for longtime uses.

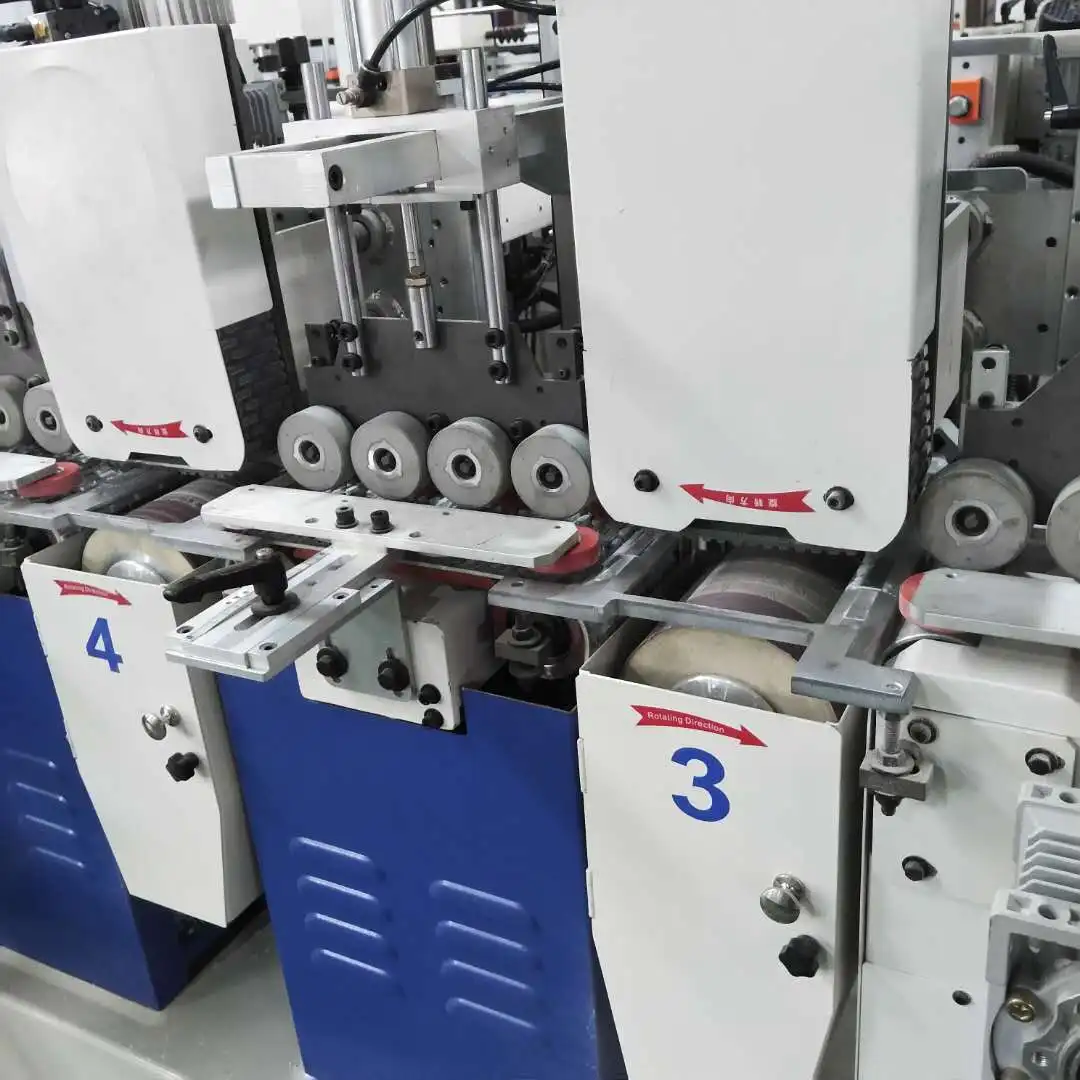

Bottom Sponge Wheel Sand.
Bottom sand is to sand the bottom surface of wood if need.
Top Triangle Sand.
Top Triangle Sand for top surface sanding!

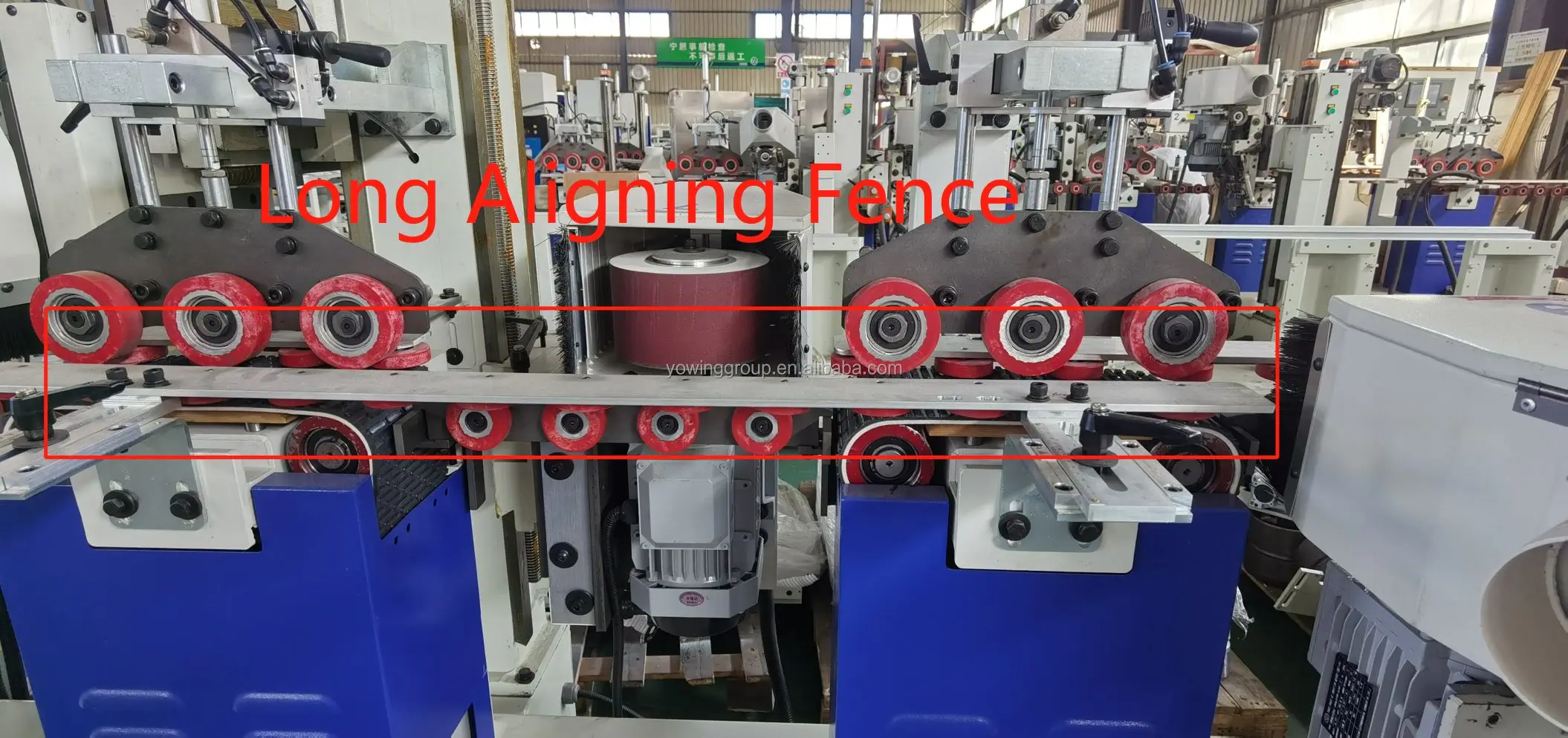

Long Aligning Fence
Long Aligning fence fixed beween two sands,to ensure short wood can pass smooth and sand well.

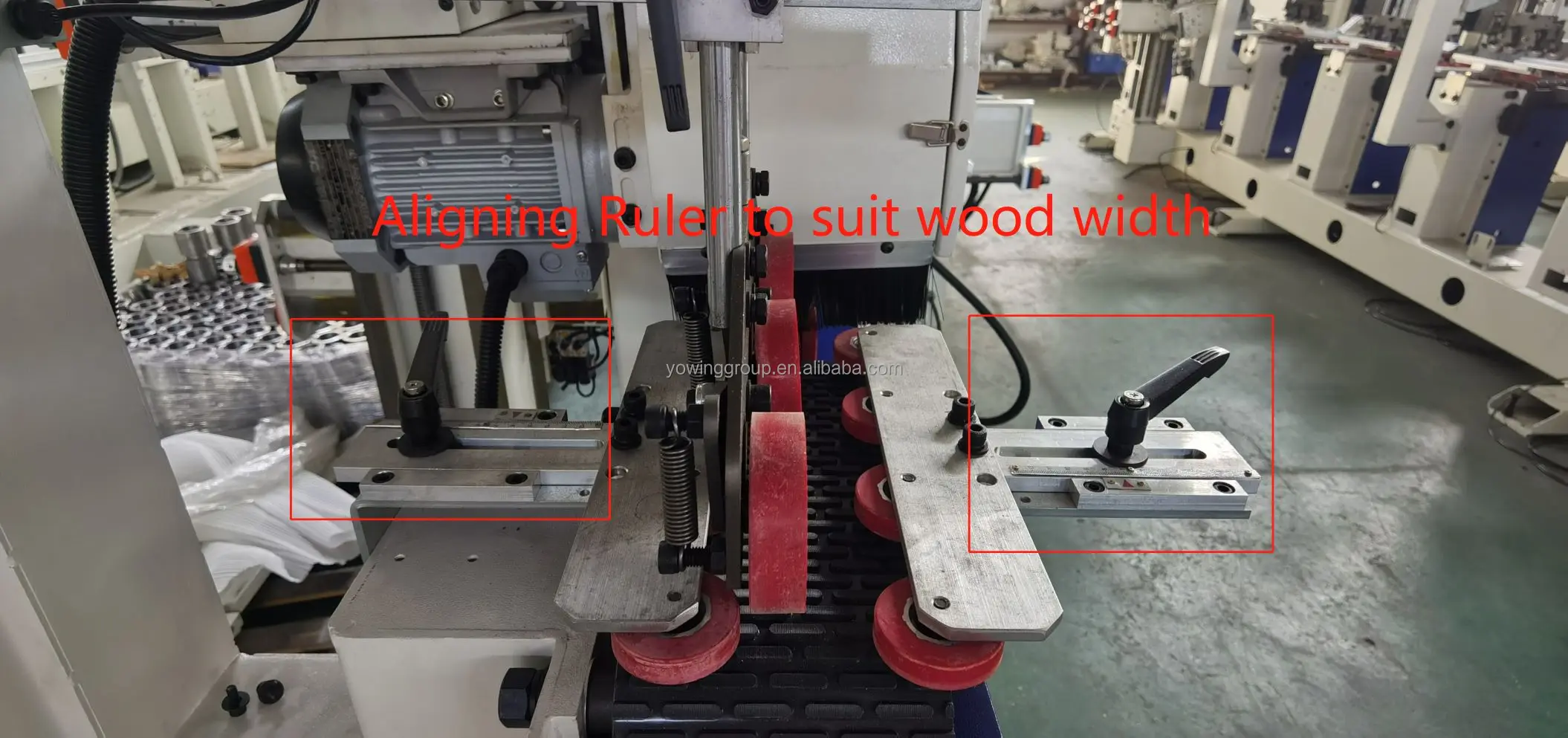

Aligning Ruler for adjust width.
These are aligning fence with rulers to adjust working width to suit different wide wood.

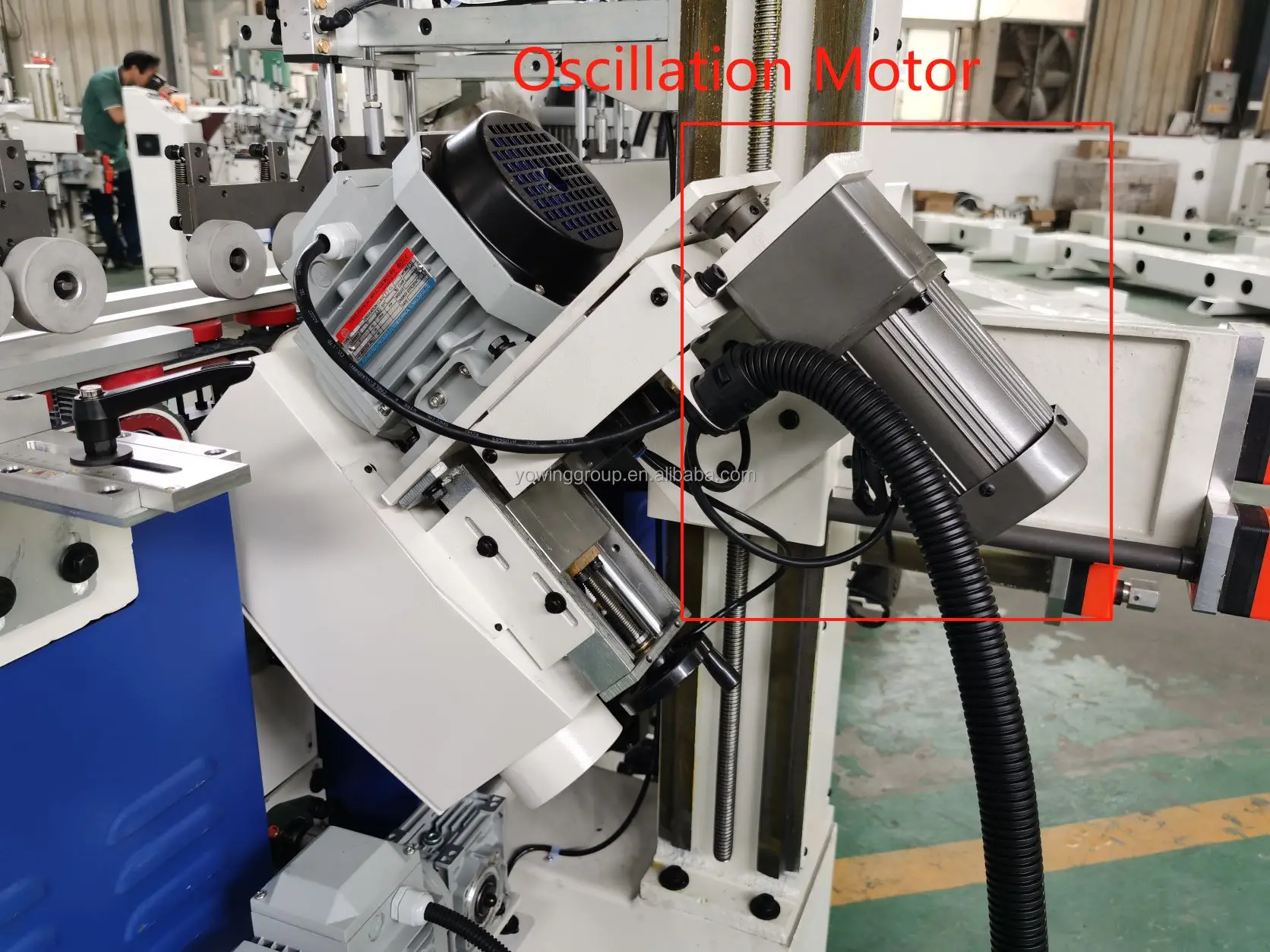

Oscillation Motor for sanding
Sand with oscillation can remove sanding slips , so get better sanding function.
250mm wide or more wider option.
Always welcomed customation!

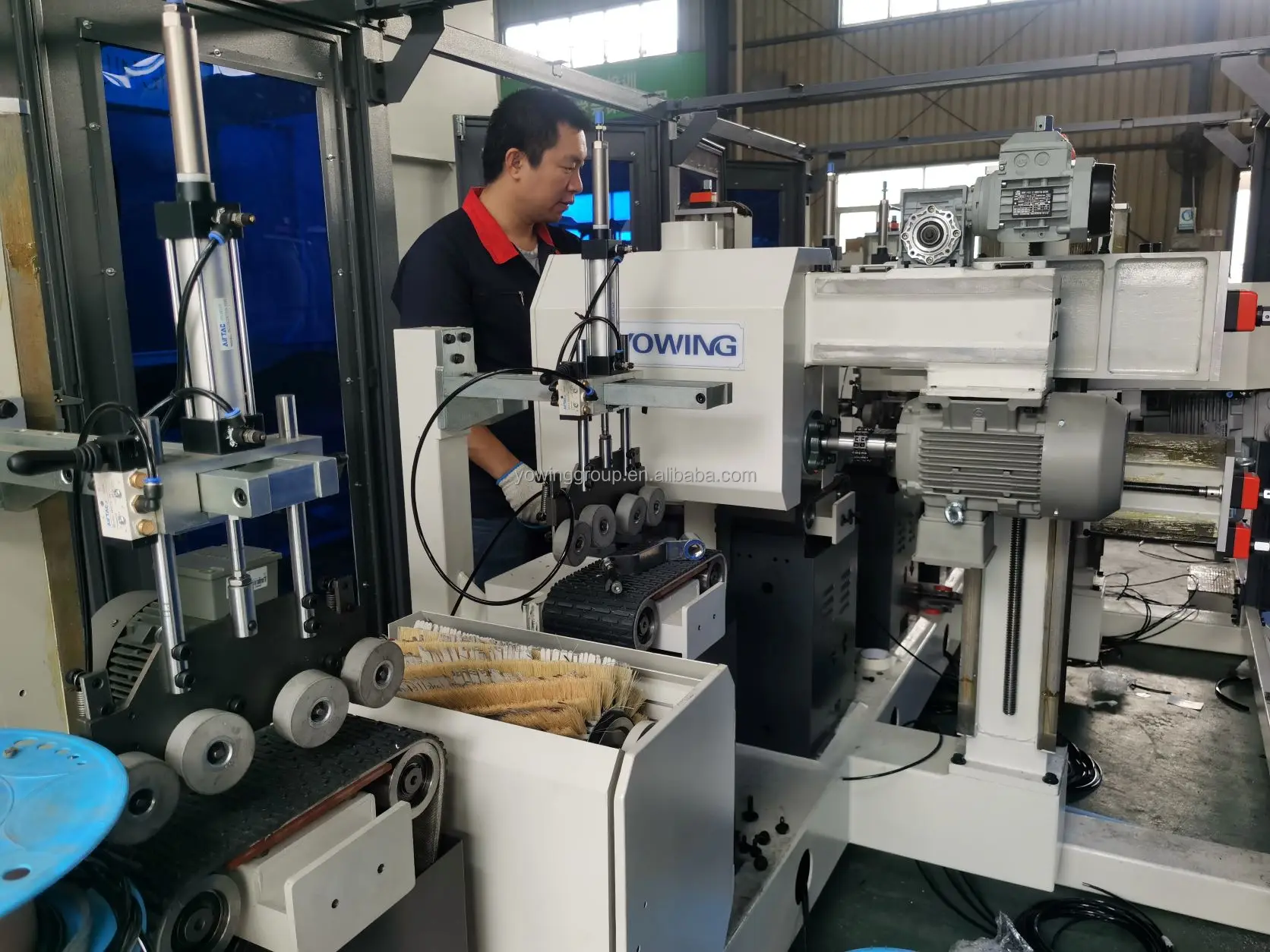

Sanding Heads can be:
Sanding unit.
This machine is with triangle sand and multifunction sand.
Triangle sand is working with press module and sand belt, it is quite hard for rough sanding.
Multifunction sand can be with brush sand, sponge wheel sand, profile sand and also octagonal sand.
Chinese profile sand.
It is used to make profile on it and sand profiles , can sand raw wood and primer wood.Made in China and economicl.
Imported profile sand.
It can be many type of profile wheel, it is durable and easy to make profile on it. Imported and worthy.
Taiwan Sponge wheel.
It is used to sand straight edges , can be working with different grit sanding belt and sand raw wood and primer.
Brush sand.
It is used to polish whole surface for second or final sand.
Octagonal papers
It is with many papers together and can touch grooves very well.
Triangle sand.
We can also help change to Triangle sand if necessary, It is used to roughly sand straight wood.
Related Products

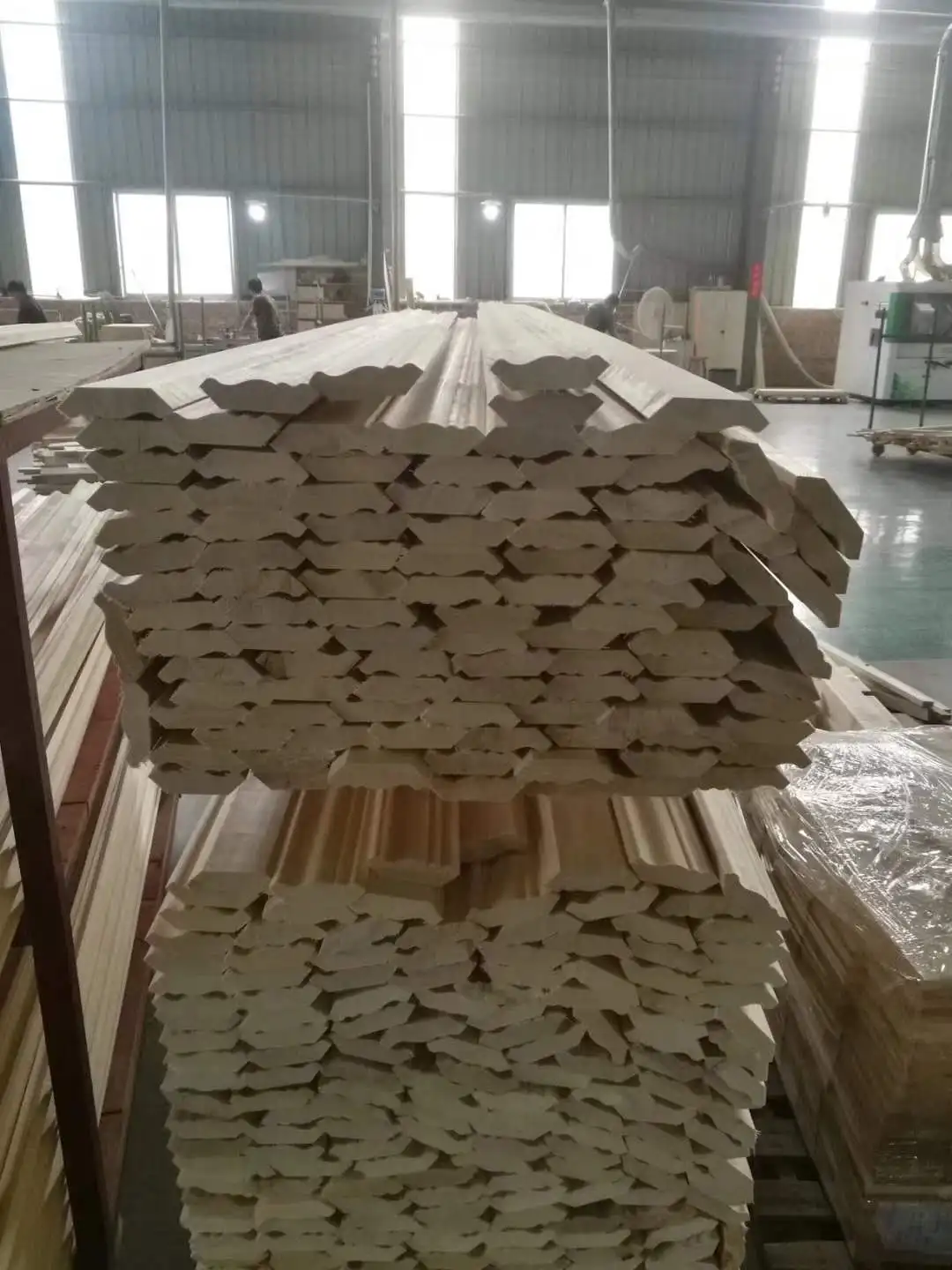

Processing Wood Samples
Processing samples.
Mostly for door frames, mouldings, linear wood with shapes, can be customized for 1-2-3-4 sides.And change different papers for raw wood, lacquer sanding.
