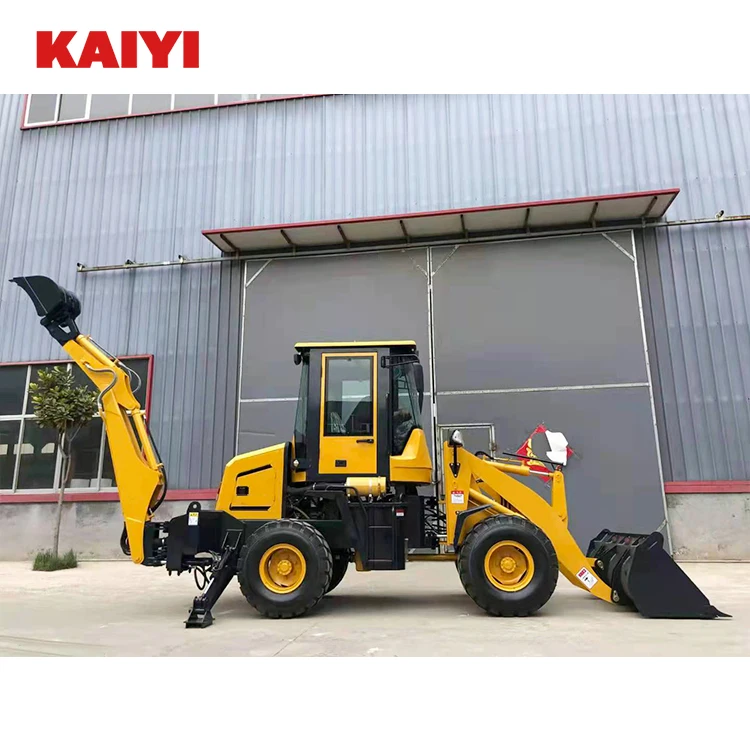

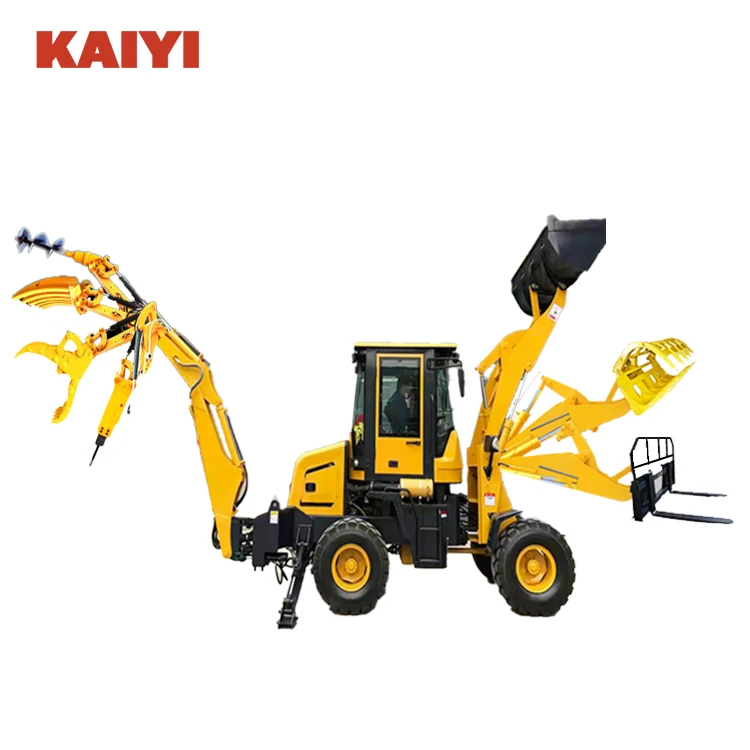

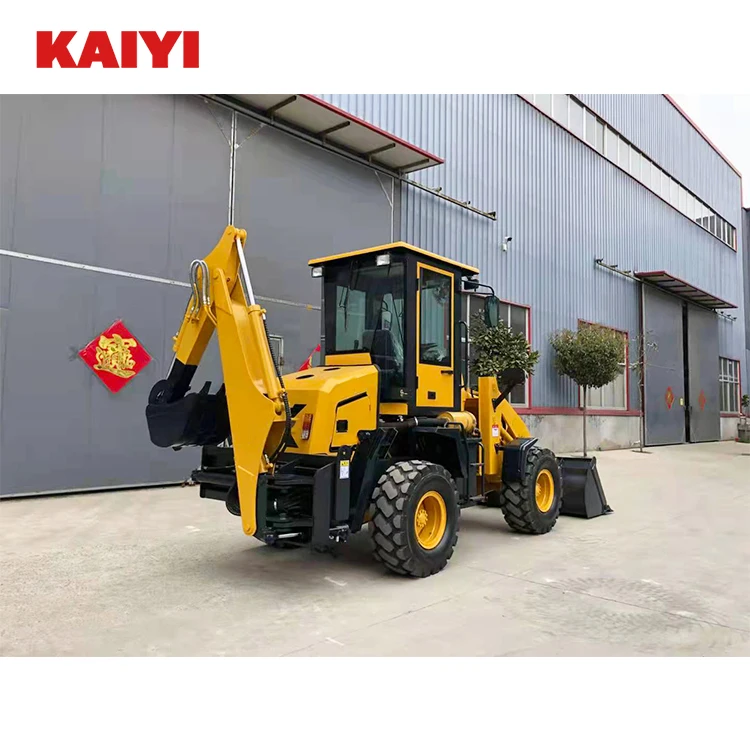

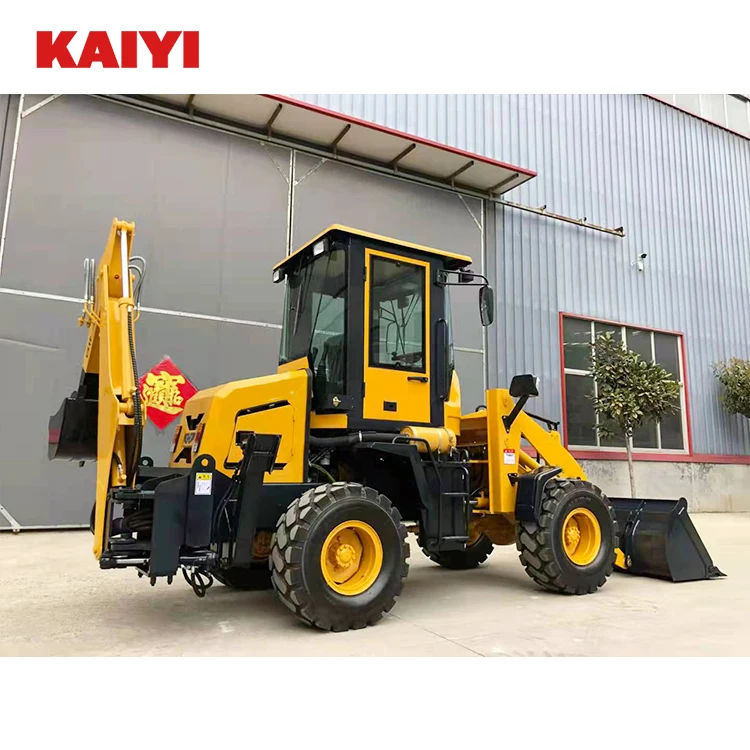

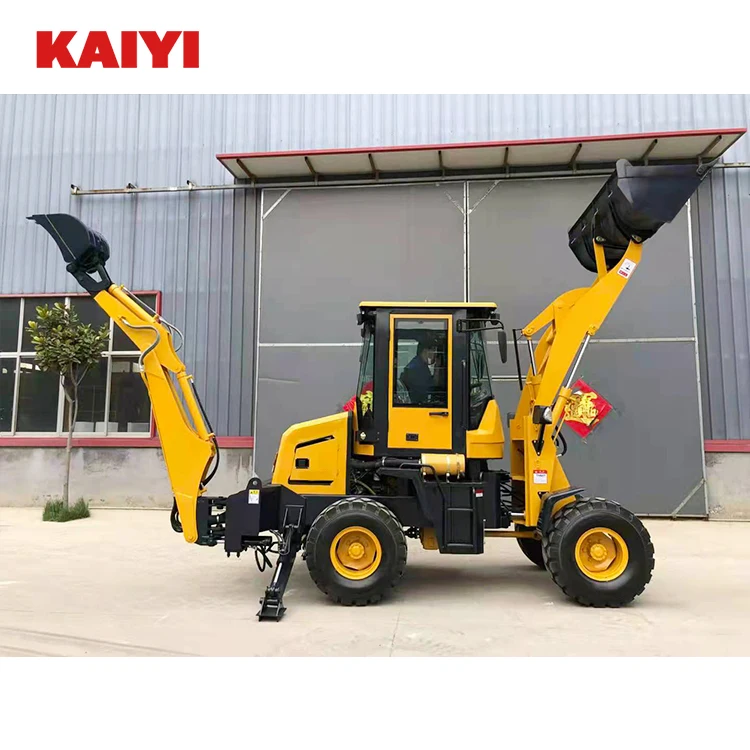

backhoe loader combine digging and loading bagger excavator mini top loader mini dumper mini digger backhoe
- Category: >>>
- Supplier: Shandong Kaiyi Machinery Co. Ltd.
Share on (1600416012172):
Product Overview
Description
Outer Dimension | ||

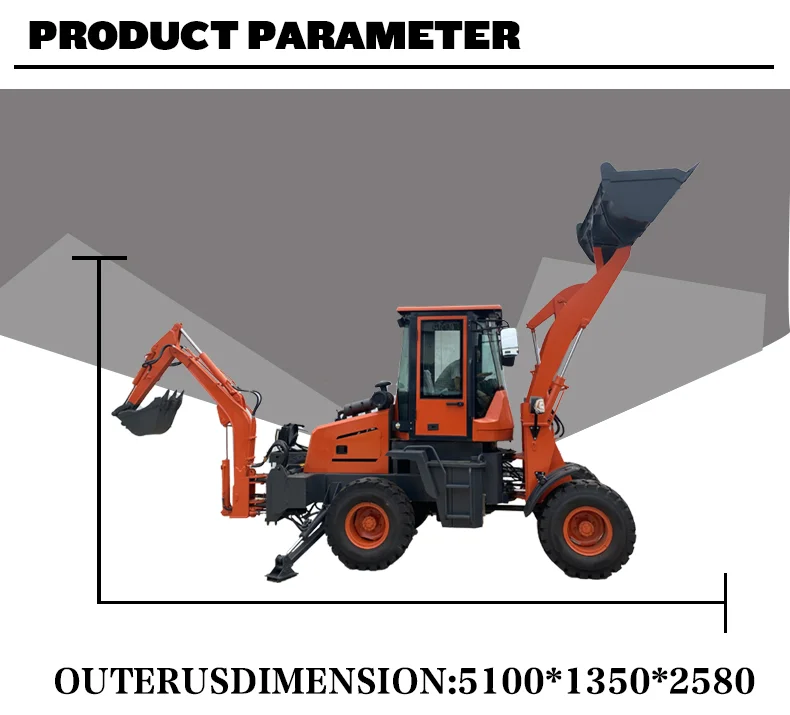

Outerus Dimension | 5100*1350*2580 | |
Track Gauge | 1910mm | |
Wheel track | 1100mm | |
Parameter | ||
System pressure | 16MPa | |
Toatl weight | 2200KG | |
Travel speed | 20(KM/h) | |
Mining parameters | ||
Max digging depth | 1500mm | |
Unloading height | 1500mm | |
Max digging radius | 2000mm | |
scoop width | 350mm | |
Diggind bucket capacity | 0.08m³ | |
Max digging height | 2600mm | |
Max distance | 25KN | |
Rotation angle | 180° | |
Load parameters | ||
Unloading height | 2200mm | |
SCOOP Width | 1300mm | |
Diggind bucket capacity | 0.43 | |
Max lifting height | 3000mm | |
Max lifting force | 28 kn | |
working hours | 12 s | |
Transmission system | |||||
Speed changing box | Hydraulic/Mechanical | ||||
Gears | 2*2 | ||||
steering system | |||||
model | Fluid link steering | ||||
Steeringangle | 33° | ||||
Axle tires | |||||
Axle model | 130 | ||||
Tyre | 825-16 | ||||
Front tyre | 250KPa | ||||
Rear trie | 250KPa | ||||
Crane brake | Drum brake | ||||
Oil volume | |||||
Fuel tank | 20 l | ||||
Hydraulic fluid chamber | 20 l | ||||
Driving type | Four wheel drive | ||||
Variable speed vtrpe | Max variable speed | ||||
Braking distance | 3000mm | ||||
