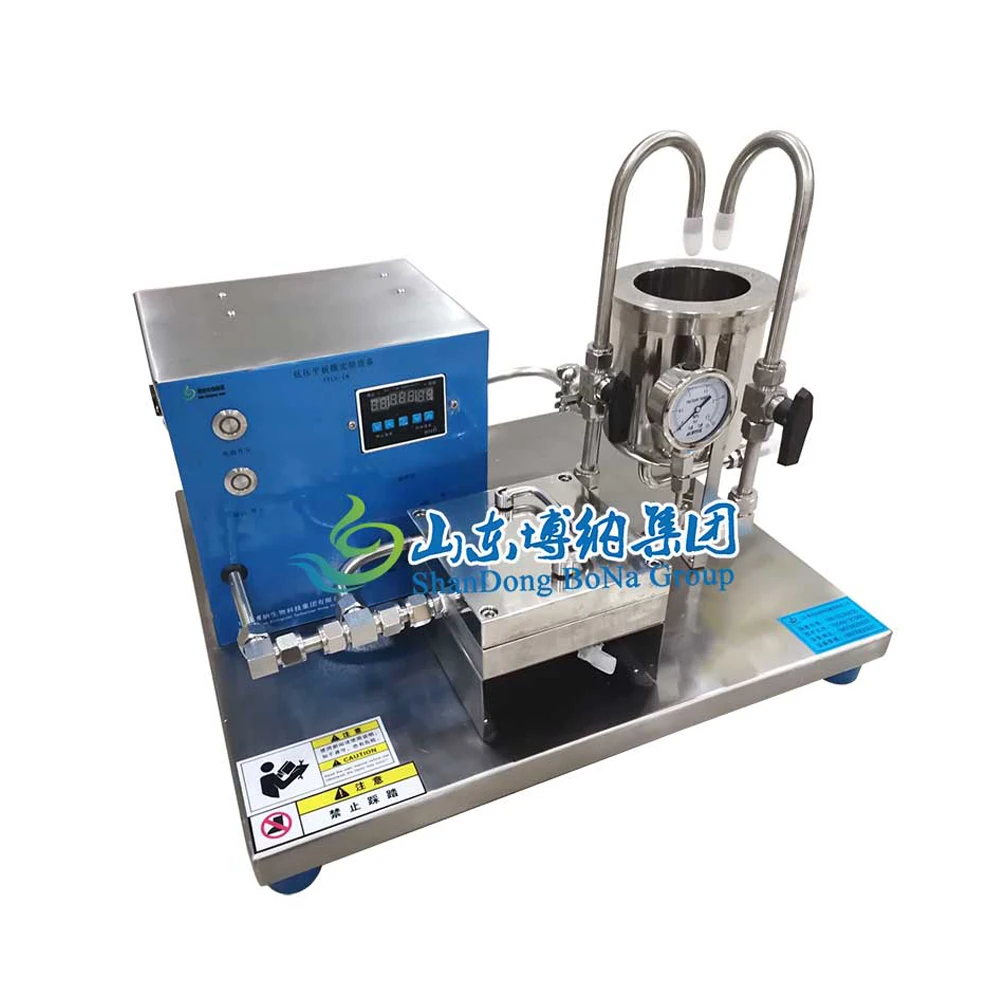

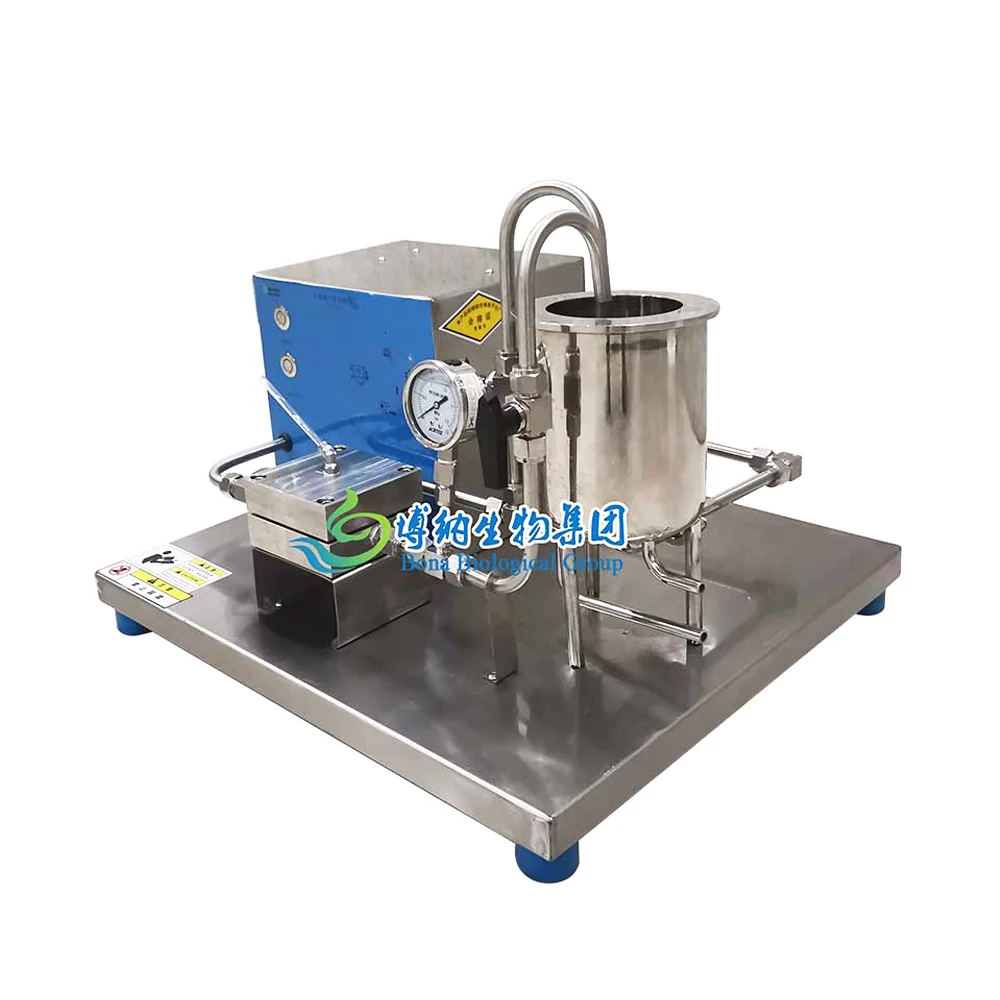

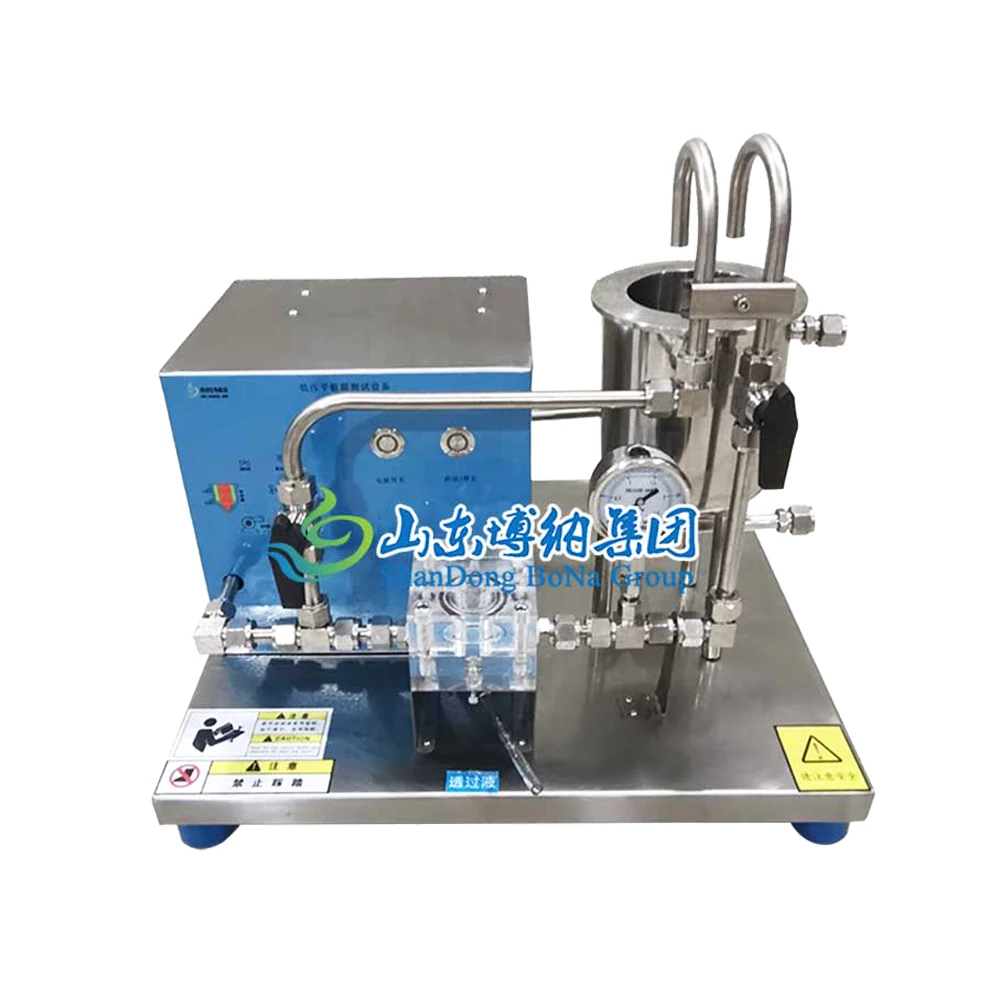

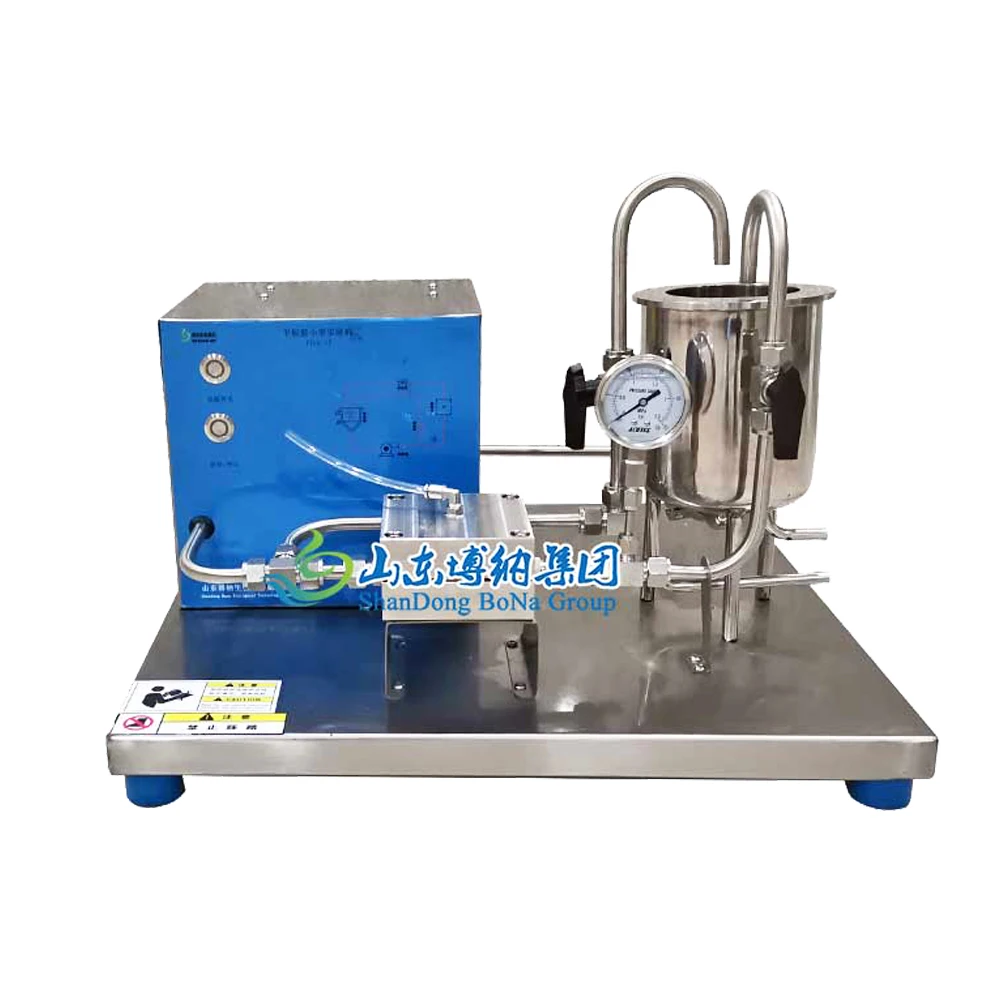

Membrane Filtration Unit Ultrafiltraiton Microfiltration Membrane Filter for Lab

Product Overview

Description

1. Basic information

1	Model	BONA-TYLG-17
2	The range of working temperature	5-55℃
3	Maximum working pressure	1.2MPa
4	Membrane size	Diameter 4.5cm/2*7cm optional
5	Minimum circulation volume	0.05L
6	Acceptable PH Range	1-14
7	Number of membrane pools	1 (customized)

2. Device Configuration:

NO.	Name	Models and specifications	Qty	Remark
1	Feed pump	Flow range:≤300ml/min 100W	1	BONAPUMPSYC
2	Membrane pool	Diameter 4.5cm/2*7cm optional	1	316L Stainless steel
3	Pressure regulating valve	-	1	304 Stainless steel
4	Pressure gauge	-	1	-
5	Electrical instrument	-	-	Aluminum alloy profile
6	Pipeline rack	-	-	SUS316L

3. Equipment manufacturing instructions:

The internal and external surfaces of the pipeline are of high quality, and the entire set of equipment materials do not have any welding points in contact with the pipeline, ensuring the pressure and corrosion resistance of the equipment. The operation is simple, clean and hygienic, safe and reliable.

Design based on fluid dynamics to ensure the tangential flow and turbulence of the membrane pool, and ensure the reliability and stability of the test data.

Microfiltration membranes, ultrafiltration membranes, and nanofiltration membranes can be installed. It is suitable for the filtration experiment of a small amount of material liquid.

4.Suit Membrane pore size

Microfiltration membrane element	0.05um,0.1um,0.2um,0.3um,0.45um
Ultrafiltration membrane element	1000D,2000D,3000D,5000D,8000D,10KD,20KD,30KD, 50KD,70KD,100KD,300KD,500KD,800KD
Nanofiltration membrane element	100D,150D,200D,300D,500D,600D,800D

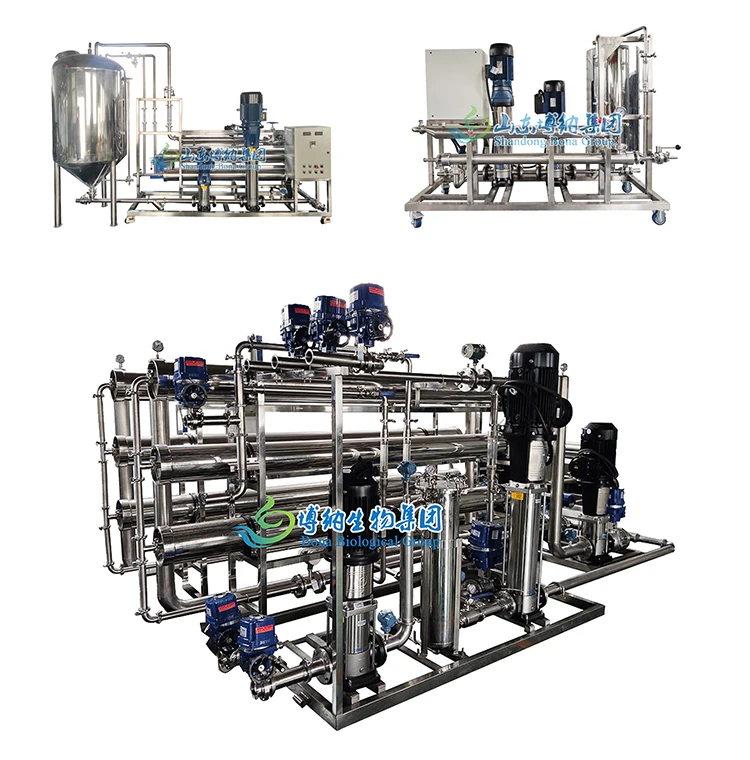

As a TOP proffessional manufacturer and solutions provider with two membrane production factories,

one advanced R&D center, we not only can provide qualified membrane elements/modules, but also

provide high quality Membrane systems from small lab machine to industrial use systems for Industries

as follow:



A.Biochemical and Pharmaceutical Industries

* Bio-product clarification

* Concentration of active principle

* Antibiotics fermentation borth clarification purification

* Purification of Organic acid fermented liquid

* Processing of biomass fermentation broth

* Bio pesticide zymotic fluid processing

* Amino acid fermentation borth clarification purification

* The processing of amino acid fermented liquid

* Enzyme concentration

* Separation and Purification of Amino Acids

* Chinese herbal medicine clarification

* Antibiotics Vitamin Purification

* Organic Acid Purification

* Plant Extraction

* Separation and Purification of Peptides

* Animal polypeptide filtration

* Plant peptide filtration

* The processing of Pharmaceutical excipients

* The processing of Isoamylase

* Desalination and concentration of chemical API

* The processing of natural pigments

* The processing of Silica Sol

   ...

B. Food and beverage Industry

* Separation and concentration of whey protein

* Concentration and Separation of milk dairy products

* Separation of milk protein

* Milk cold sterilization

* Concentration and Purification of tea drinks

* Deep Processing of Tea

* Clarification and Concentration of fruit and vegetable juice

* Clarification of wine

* Treatment of beer

* Clarification of vinegar, soya sauce

* Filtration of edible oil

* Preparation of natural pigments

* Deep Processing of Soybean, Soybean protein production

* Glucose syrup clarification, Glucose Refining

* Gelatin concentration

* Sugar Alcohol Extraction

* Non-Alcohol beer and no alcohol wine filtration

* Processing of Sweetener

* Processing of flavoring and seasoning

* Extraction and filtration of enzyme

* Natural Herb Extract and ect.
