high quality DTH(down the hole) Hammer Bit CIR 65 76 90 100 120 130 150 dth hammer

Our tools are widelyused in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.


DTH Hammer Types coverage: DHD/COP/HD/IR/TD/COPROD/QL/SD/Mission/Numa/Mach etc.
DTH Bit Size range: 2”-24”(76-775mm)

1.High air pressure DTH hammer size from 3" to 12"(76mm-304mm)
2.Shank types including COP, QL,DHD, MISSION,HD,IR, SD,TD, etc.
3.Connect Thread : API 2 3/8" , API 3 1/2 , Reg-6 5/8"Reg etc.

4 Low air pressure DTH hammer includes CR series: CR90, CR110, CR150, etc.

5 Middle air pressure DTH hammer includes CBR series: CBR1, CBR2, CBR3, etc.


Advantages:

1.Out of the throuble of foot valve fracture and expansion and contraction.

2.Lower energy consumption and higher impact frequency.The drilling speed is 15%-30% higher than the one with foot valve.

3.Simple structure, reliable parts, long life, easy and cheap maintenance.
4.Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

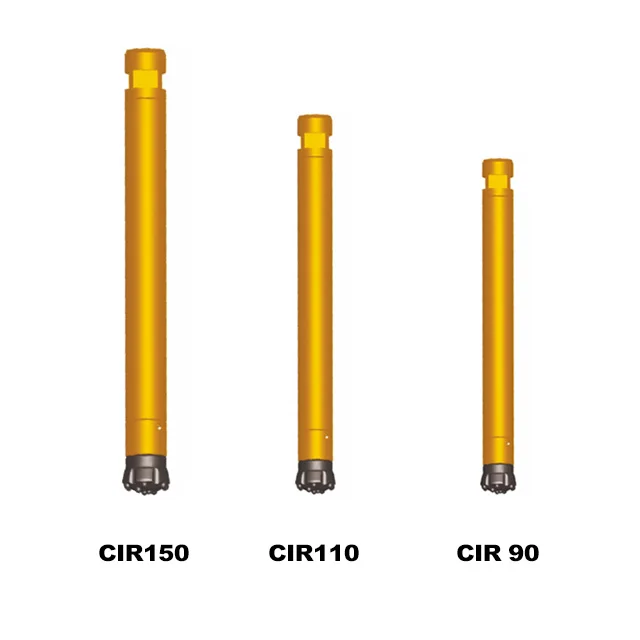

 Low Air Pressure DTH Hammer Technical Data
DTH hammer shank
CIR90
CIR110
CIR150
Bit Diameter
85-110(mm)
110-135(mm)
155-178(mm)
Top Sub Thread
T48x10x2
T48x10x2
T75x10x2.5
Working Pressure
0.5-0.7Mpa
0.5-0.7Mpa
0.5-0.7Mpa
Lenght(without bit)
800mm
839mm
908mm
Weight(without bit)
19(kg)
32(kg)
69(kg)


Product Overview








Application Field




Hot Selling Products

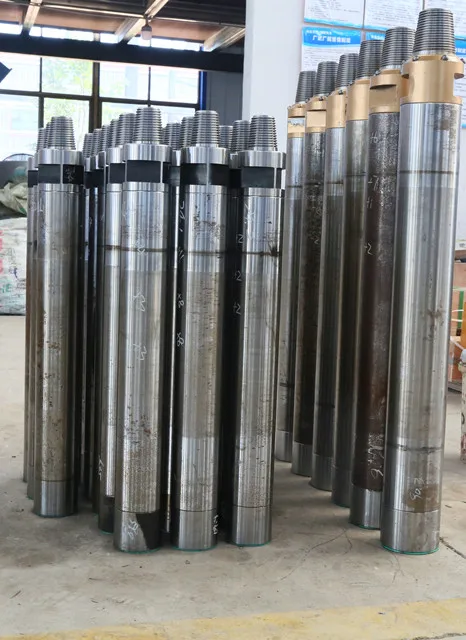

Factory Workshop




Liuyang is a comprehensive company that integrates the design, manufacture, marketing and technical services of rock drilling tools. The products due to stable quality, excellent performance are being sold well all over China and exported to Europe, America, Middle East, Australia,Africa, Southeast Asia and other regions, more than 50 countries.

Liuyang products range covers:
1.Down the hole(DTH) hammer and bit,
2.Drill pipe(drill rod)
3.Casing system
4.Tricone bit,PDC bit,Steel tooth bit
5.Top hammer rock drilling tools(thread button bit, drill rod, shank adapter)
6.Small hole drilling tools(tapered button bit, tapered drill rod, plug hole integral drill rod, integral drill rod),and other
rock drilling tools that are widely used in mining, tunneling, quarrying, water well, anchoring,transportation construction, pilefoundation, and civil engineering projects etc.
