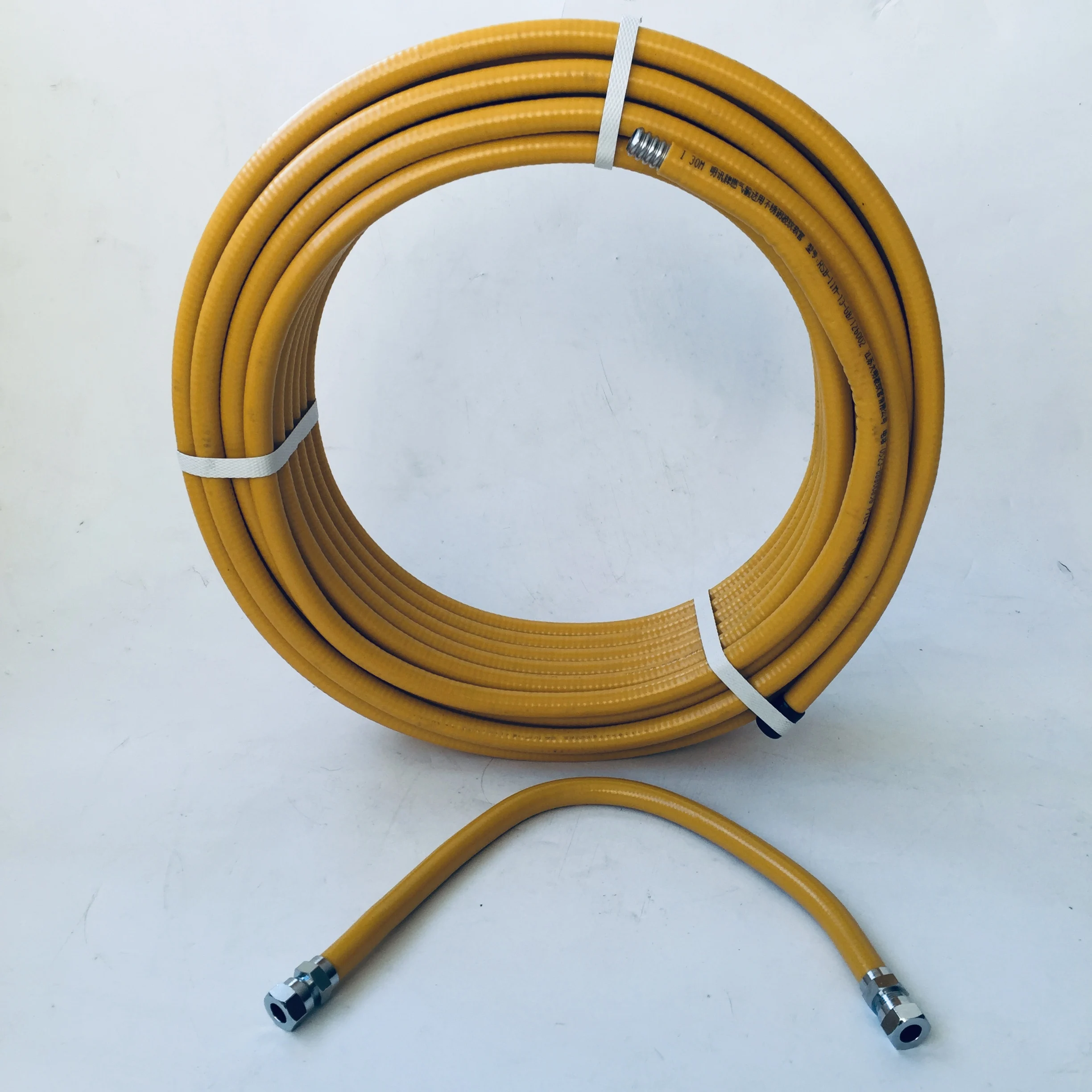

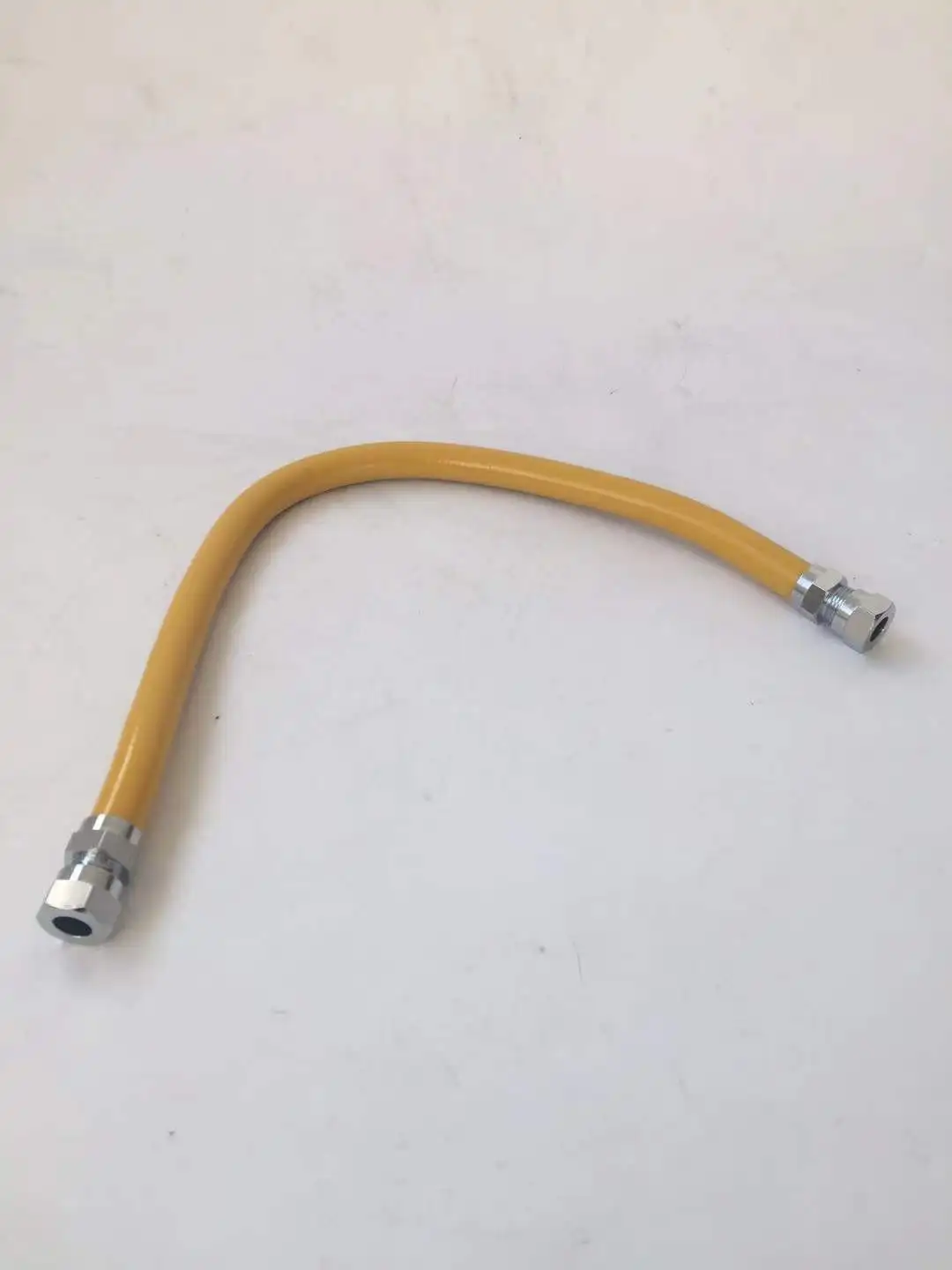

The Thread type connect stainless steel braided tube temperature is from -196 to 700 deg.C, pressure can be 0.6~10Mpa, the material of the flexible metal bellow is made

OF SS304,SS321,SS316 or SS316L as your requirement, we produce stainless steel metal bellow in accordance with the ISO9001:2008 GB/T14525-2010 standard.



Pipe Diameter	DN1/2-32inch
Pipe Material	SS304,316L,etc
Pipe thickness	0.18-2.0mm
Braided mesh material	SS304 etc
Braided mesh layer	single layer or double layers
Max. woking pressure	10Mpa
Working temperature	(-196)~(+700) °c
Connect type	flange,thread,welded.etc
Standard	ANSI,JIS,DIN,GOST,etc
Flange material	stainless steel or carbon steel
Pipe assembly length	according to clients' requirements



Features:



1.To absorb effectively vibration, noise,thermal expansion from pipeline system;

2.To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;

3.Applied to repeated motion in high temperature areas,good anti-fatigue performance;

4.Good flexibility,resistant to high temperature, resistant to corrosion.

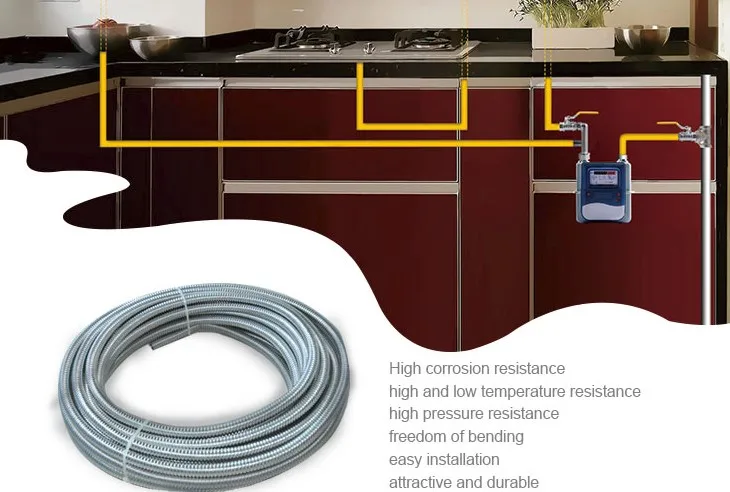

5.Applied in the fields of petroleum,chemical industry,aerospace,metallurgy,electricity, gas,building,mechanical, construction,iron and steel,paper making,fabric,medicine,food and vessels ect.

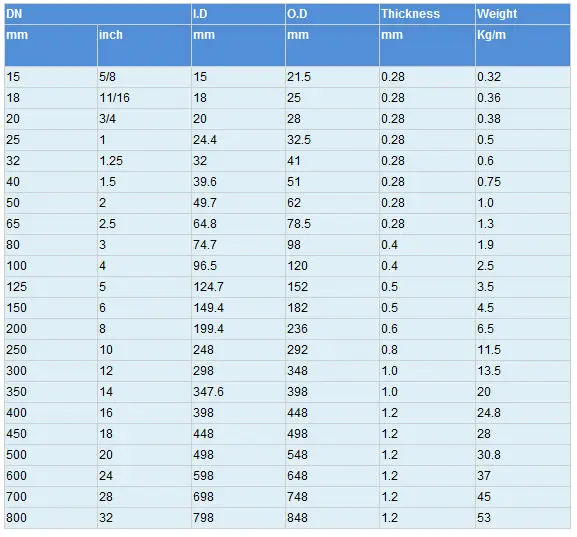

Technique parameter:











Customizable size  is available.

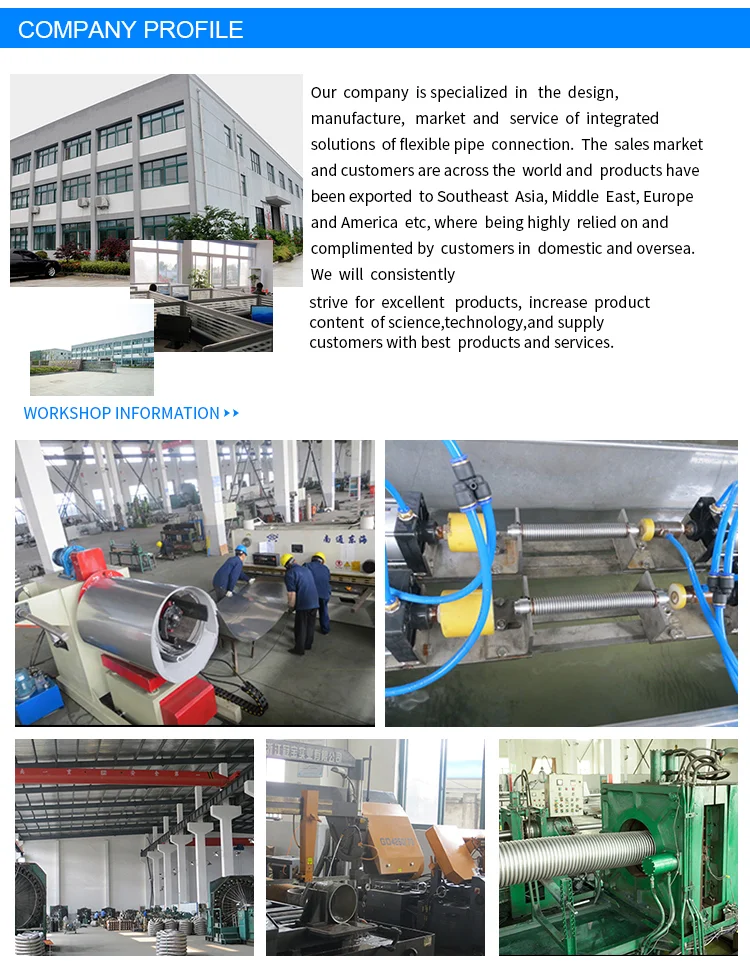

A: We are manufacturer of stainless steel corrugated pipe , bellow expansion joint,metal expansion joint ,flexible metal gas hose,  flange adapter and flange with more than 20-year experience.



Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.



Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.



Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free available in stocks but shipping charges covered by customer.





Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can customized upon your specification data.



Q: Where is your factory ?

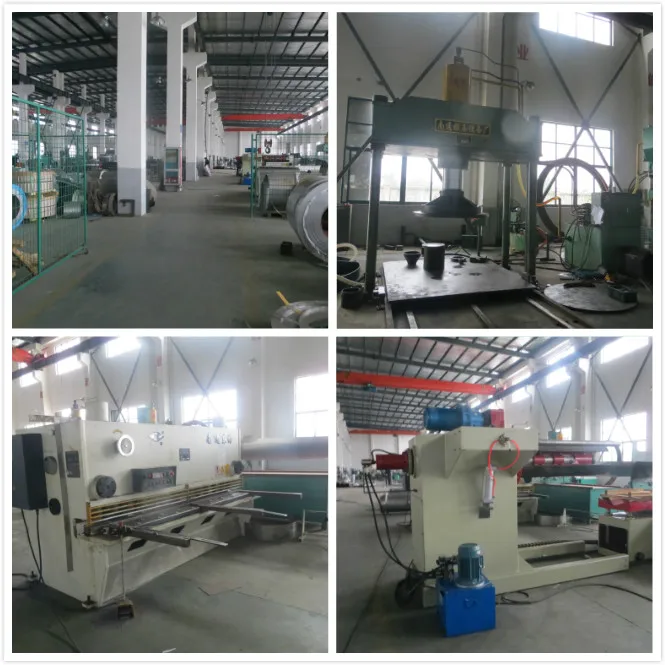

A: We located in taizhou city,Jiangsu province ,China,which is 2 hours by fast Train from shanghai .welcome to visit our factory .
