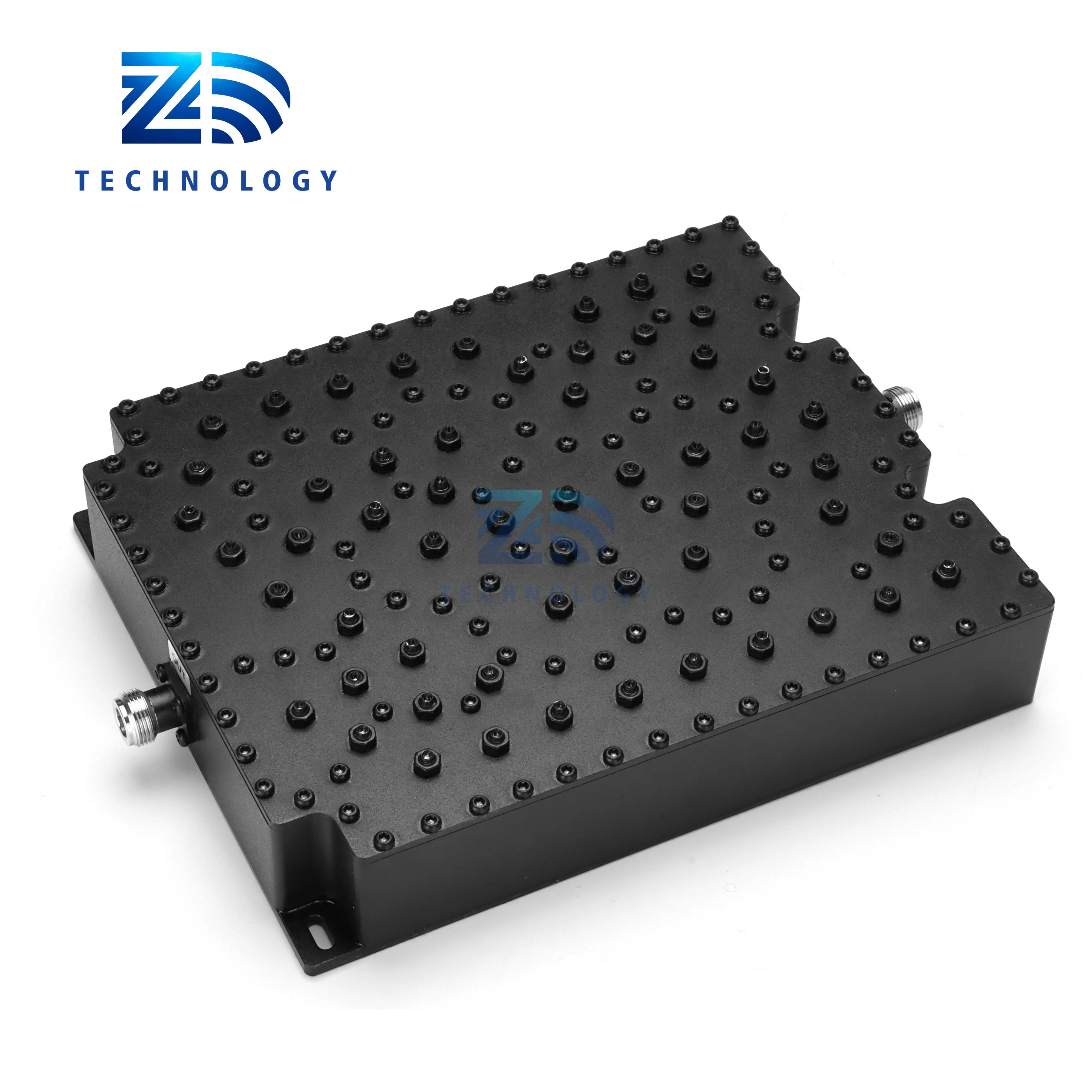

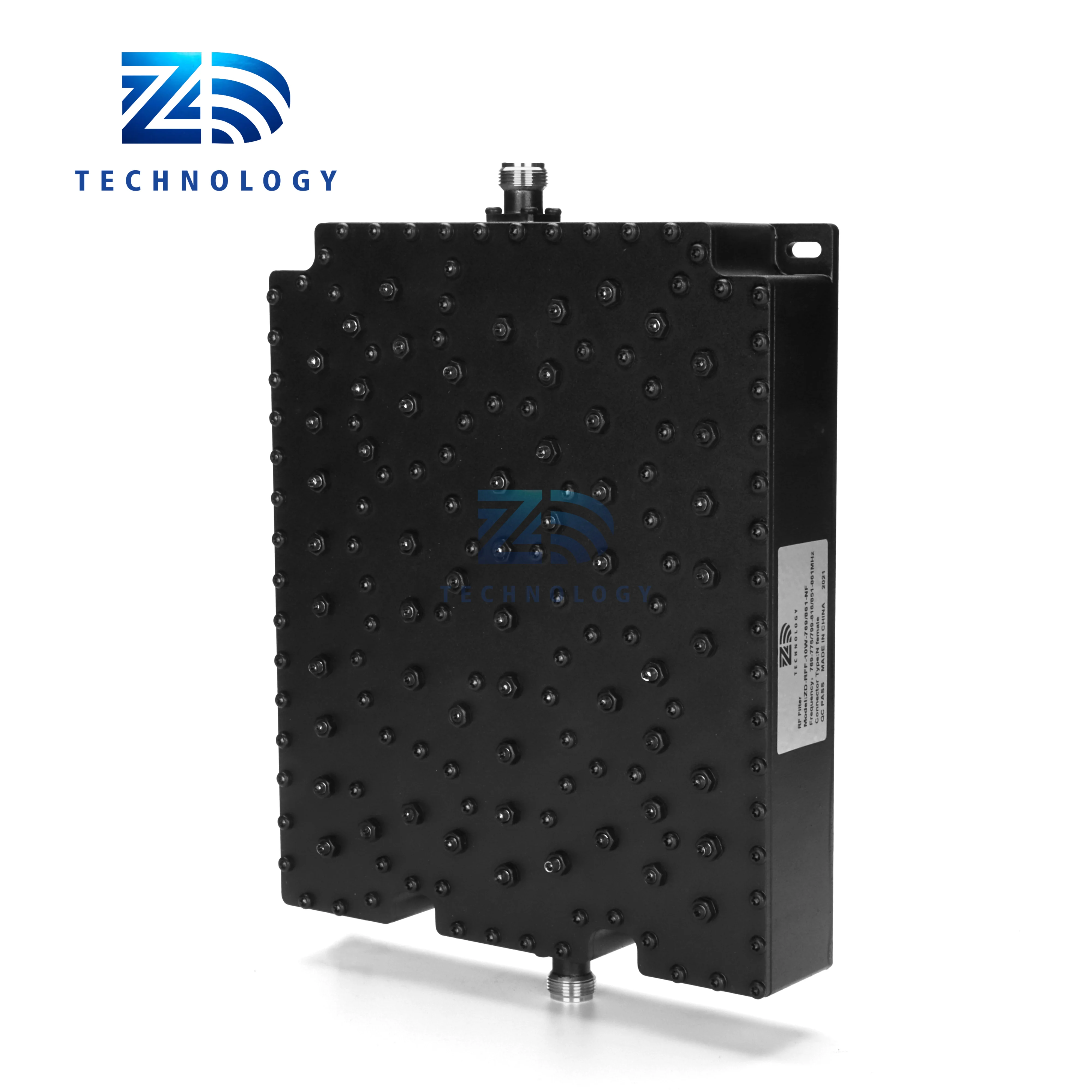

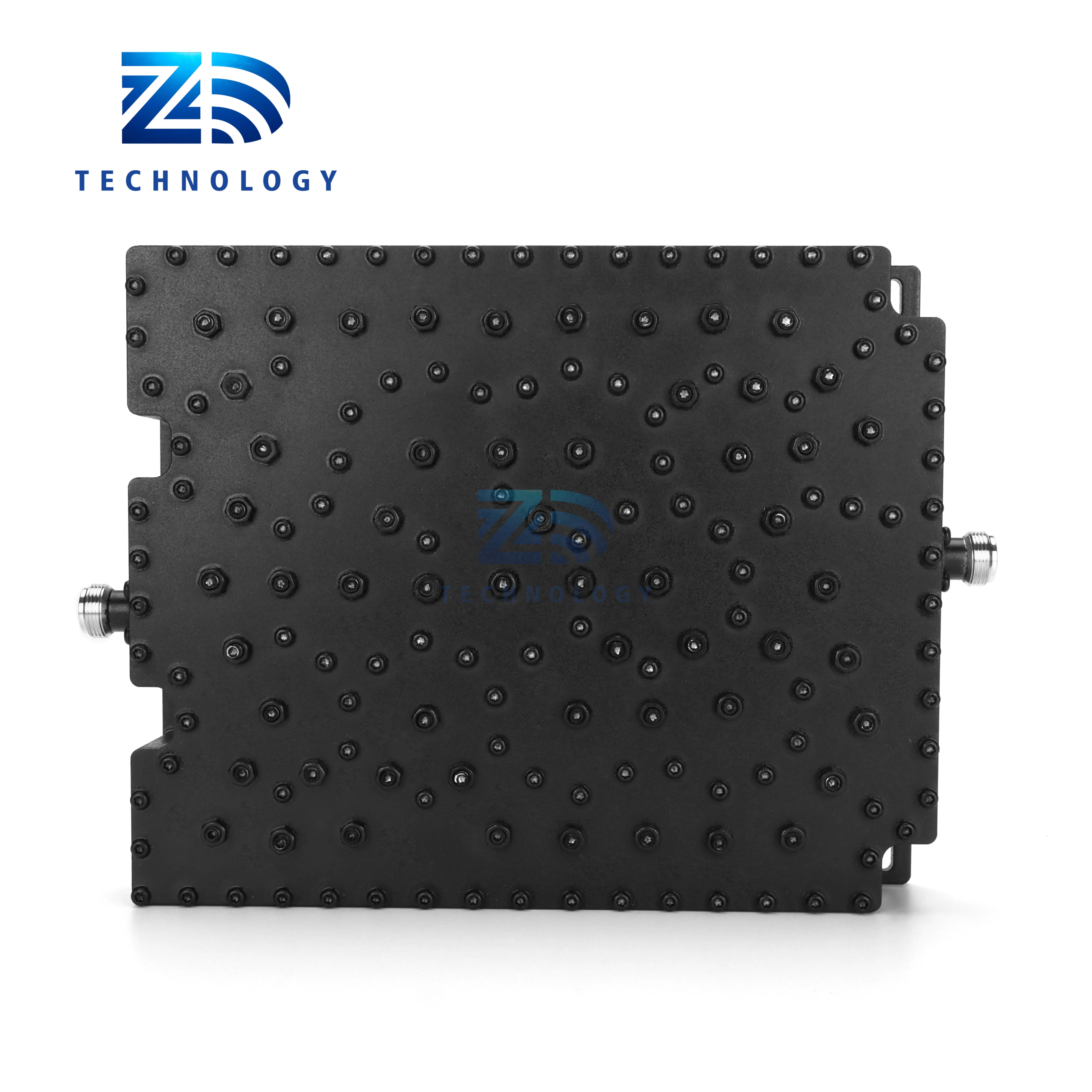

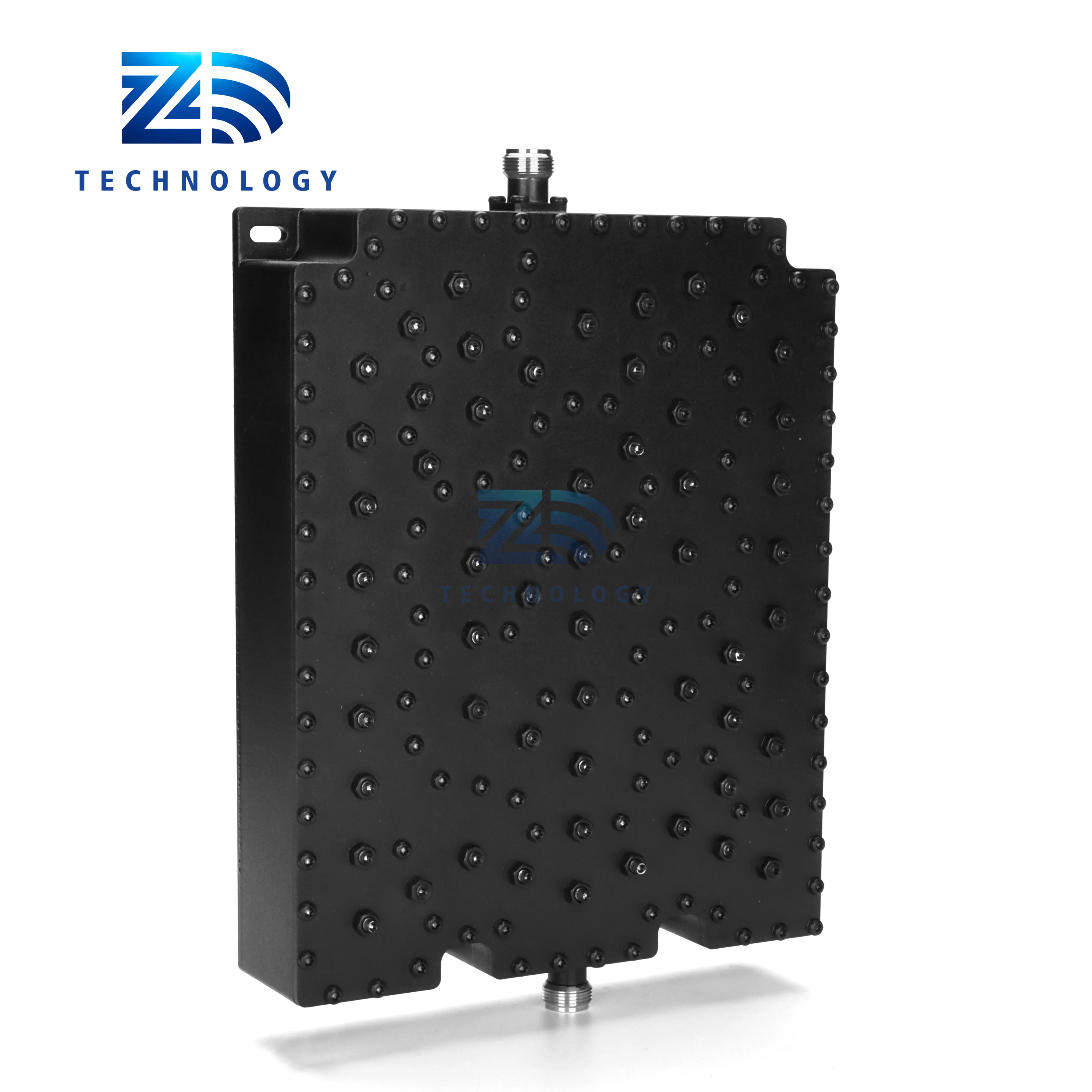

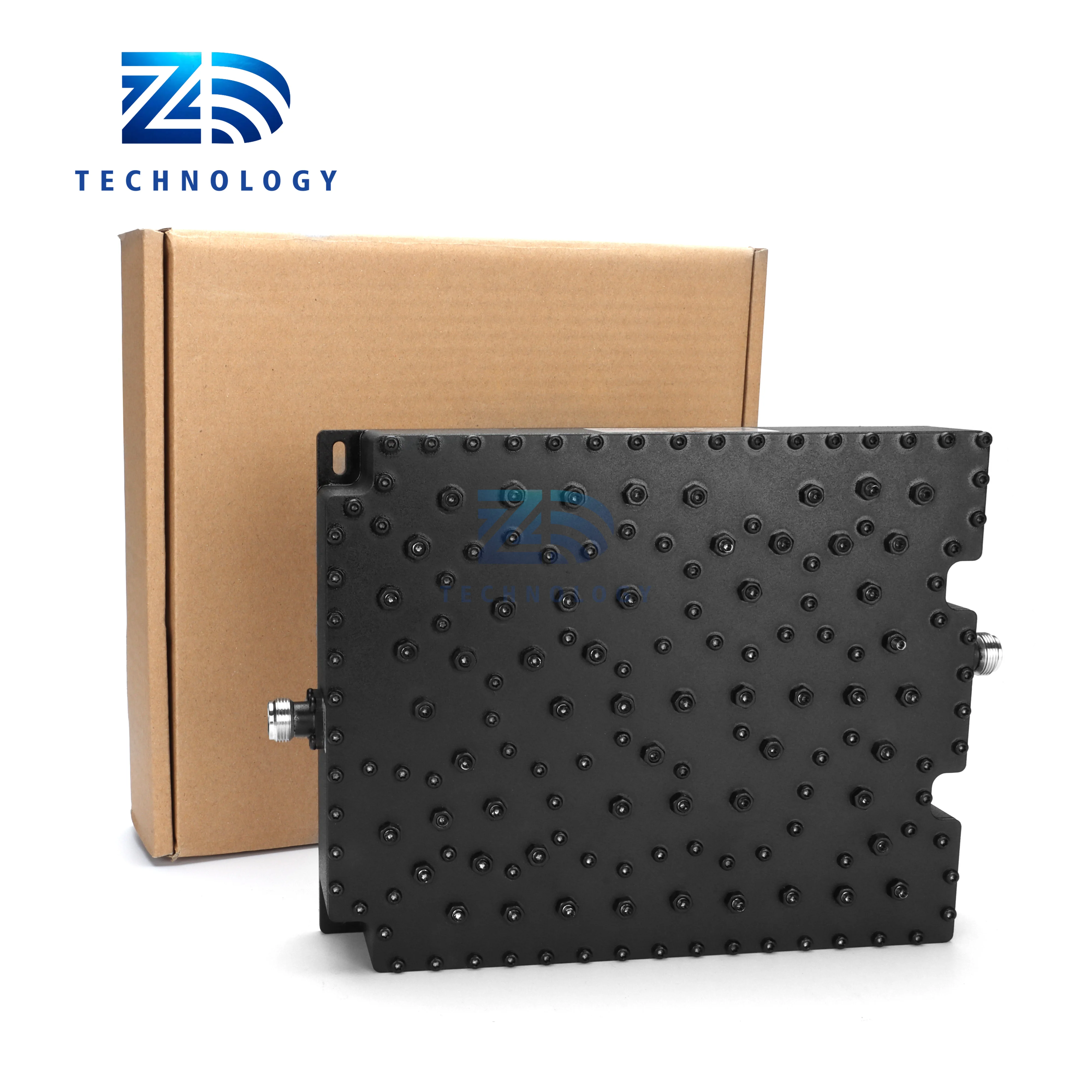

RF Filter 769 775 799 816 851 861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector
RF Filter 769-775 799-816 851-861MHz 10W pass band filter with N Female connector

RF Filter 769 775 799 816 851 861MHz 10W pass band filter with N Female connector

Share on (1600416041746):


Price:$60.00 - $80.00

Quantity:


Product Overview

Description







Name
Filter
FrequencyRange (MHz)
769-775,799-816,851-861
Insertion Loss(dB)
≤4.0dB(5.0 Over Temperature)
Rejection (dB)
>55dB@(0-767)MHz；
>30dB@(777-797)MHz；
>30dB@(818-849)MHz；
>45dB@(863-2200)MHz；
Return Loss(dB)
≥18
Maximum Input (W)
10 W
Operating temperature(℃)
-40℃ to +85℃
Relative humidity(℃)
0 ~ 95 %
Impedance（Ω）
50 Ω
Size（mm）
To be confirmed
Weight(g)
To be confirmed
Connector Type
N-Female
Ingress protection
IP67
Color
Grey/Black
