120W 1920W LED Sport Baseball Field Light Tennis Court Flood Light Cricket Stadium Lights 5 Year Warranty
- Category: Flood Lights >>>
- Supplier: Jiangsu Ofled Optoelectronics Technology Co. Ltd.
Share on (1600416102152):
Product Overview
Description
Product Information

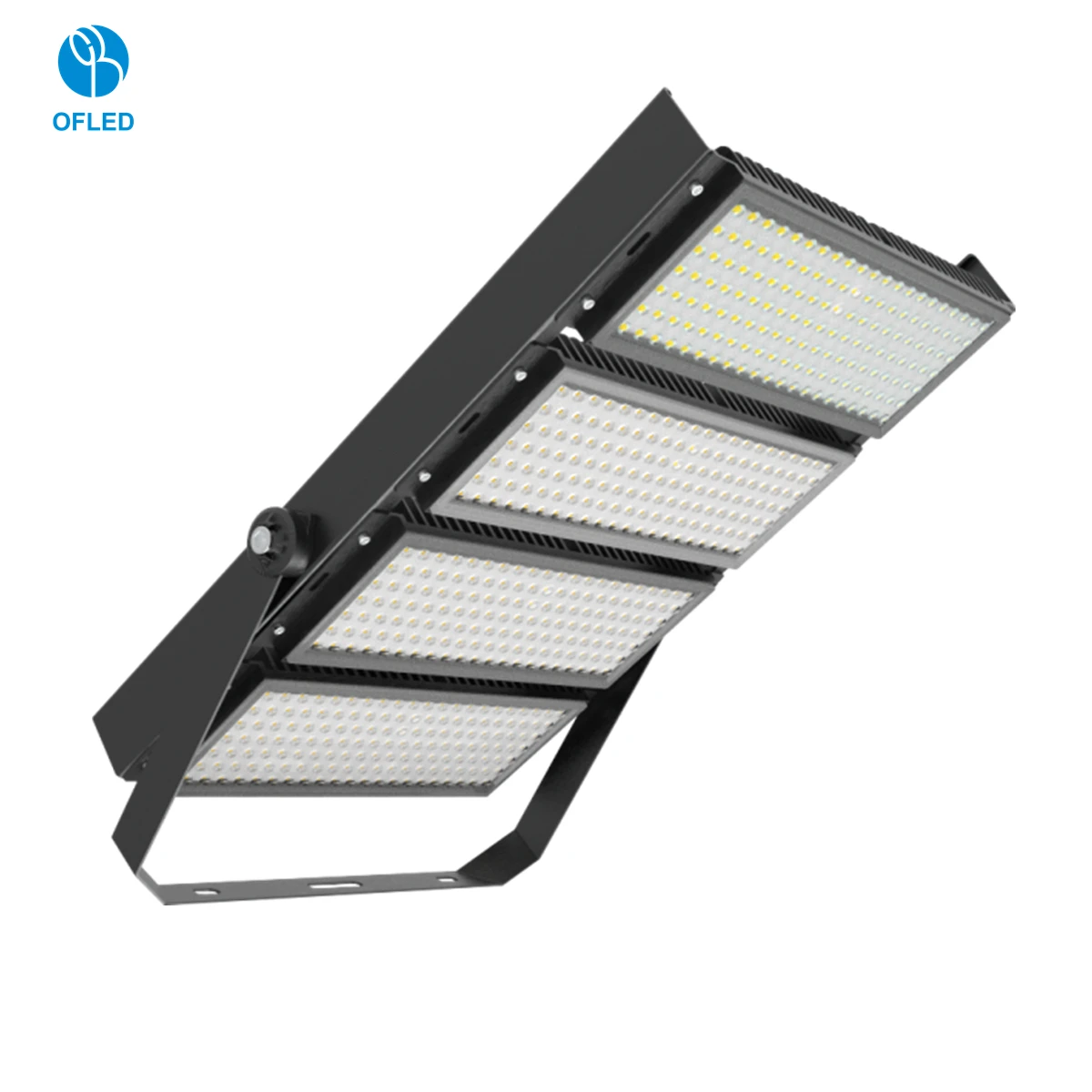

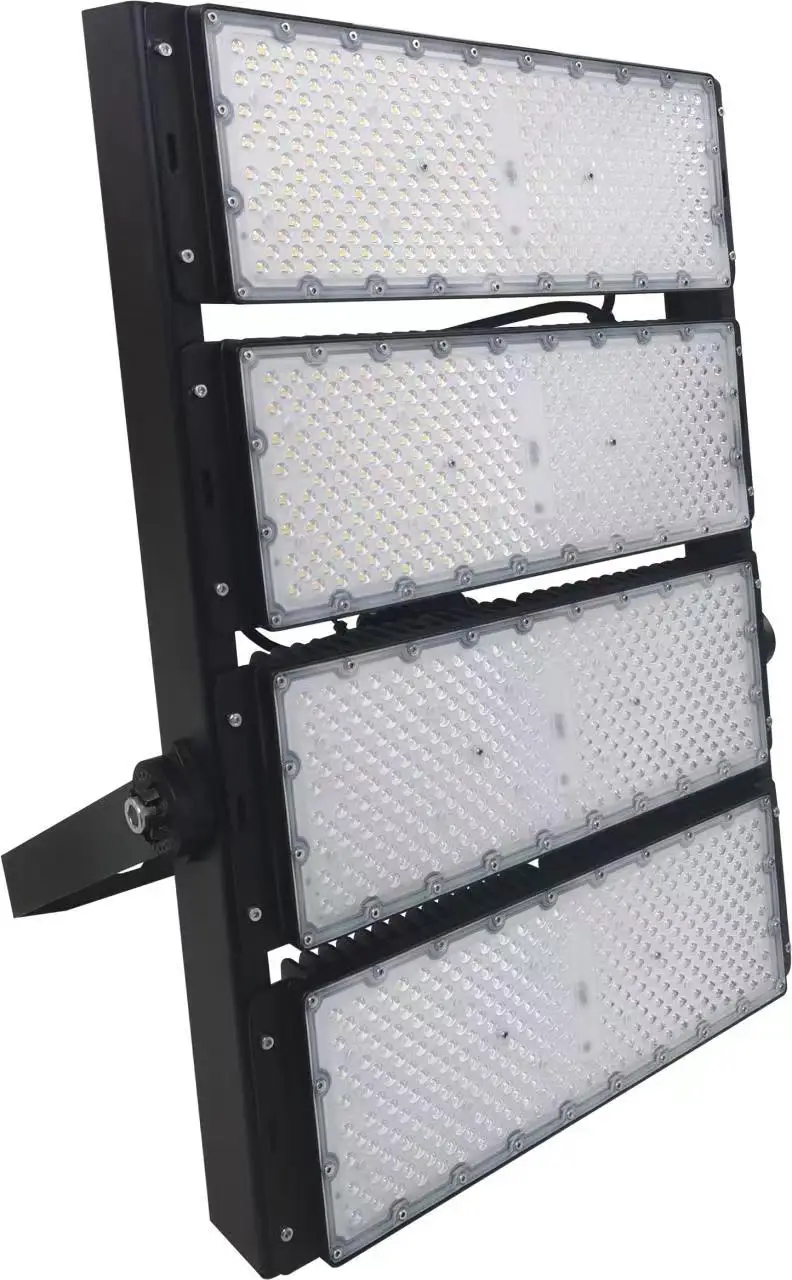

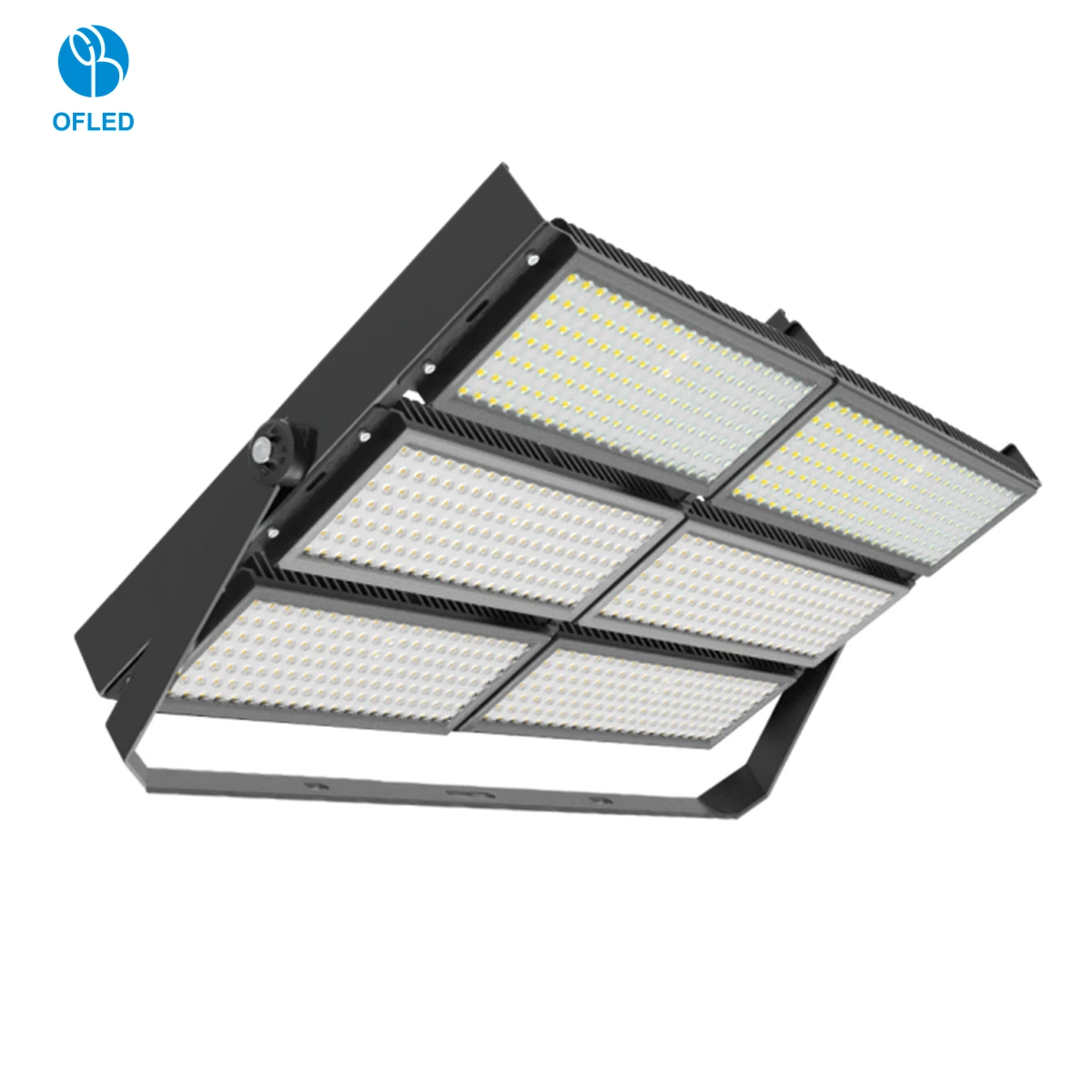

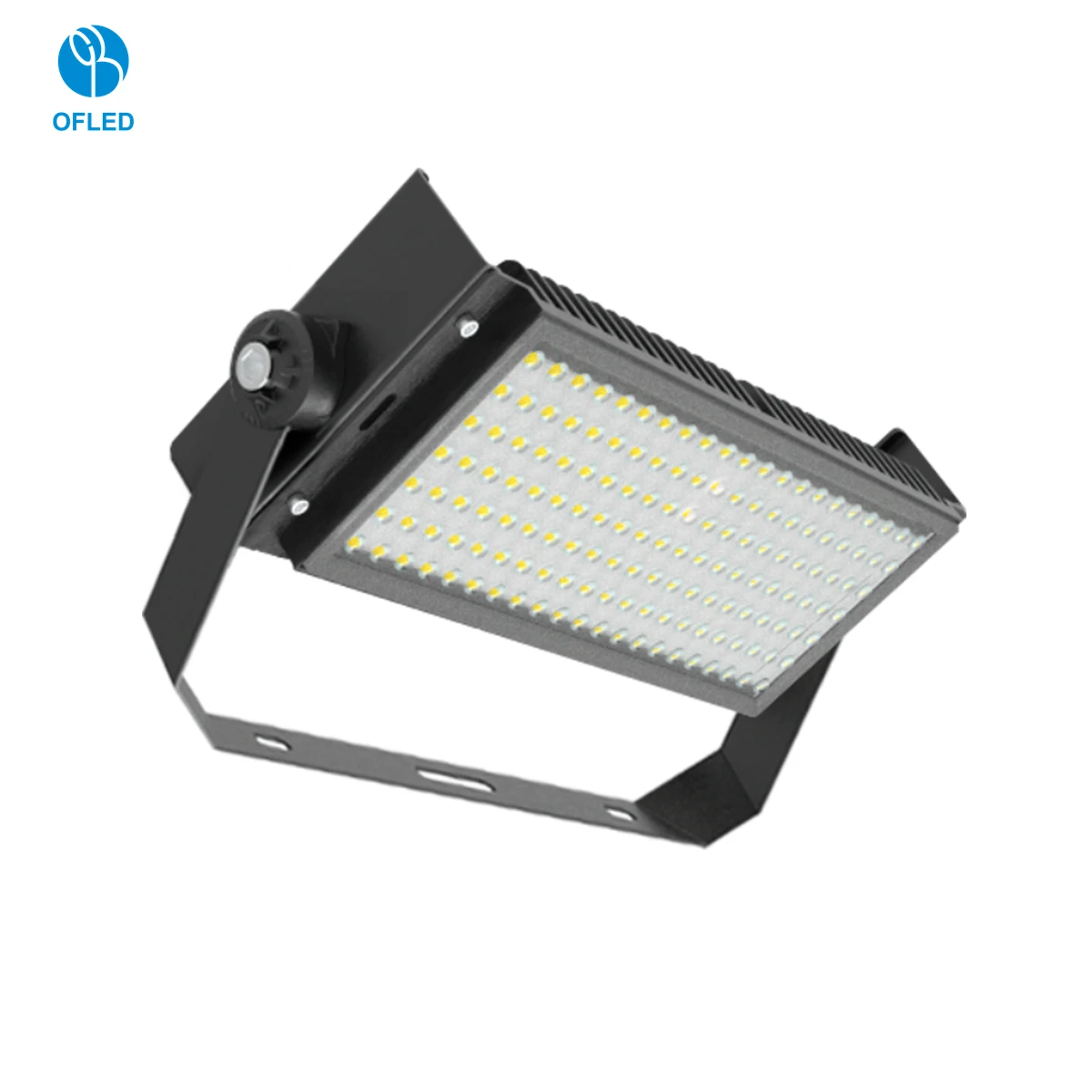

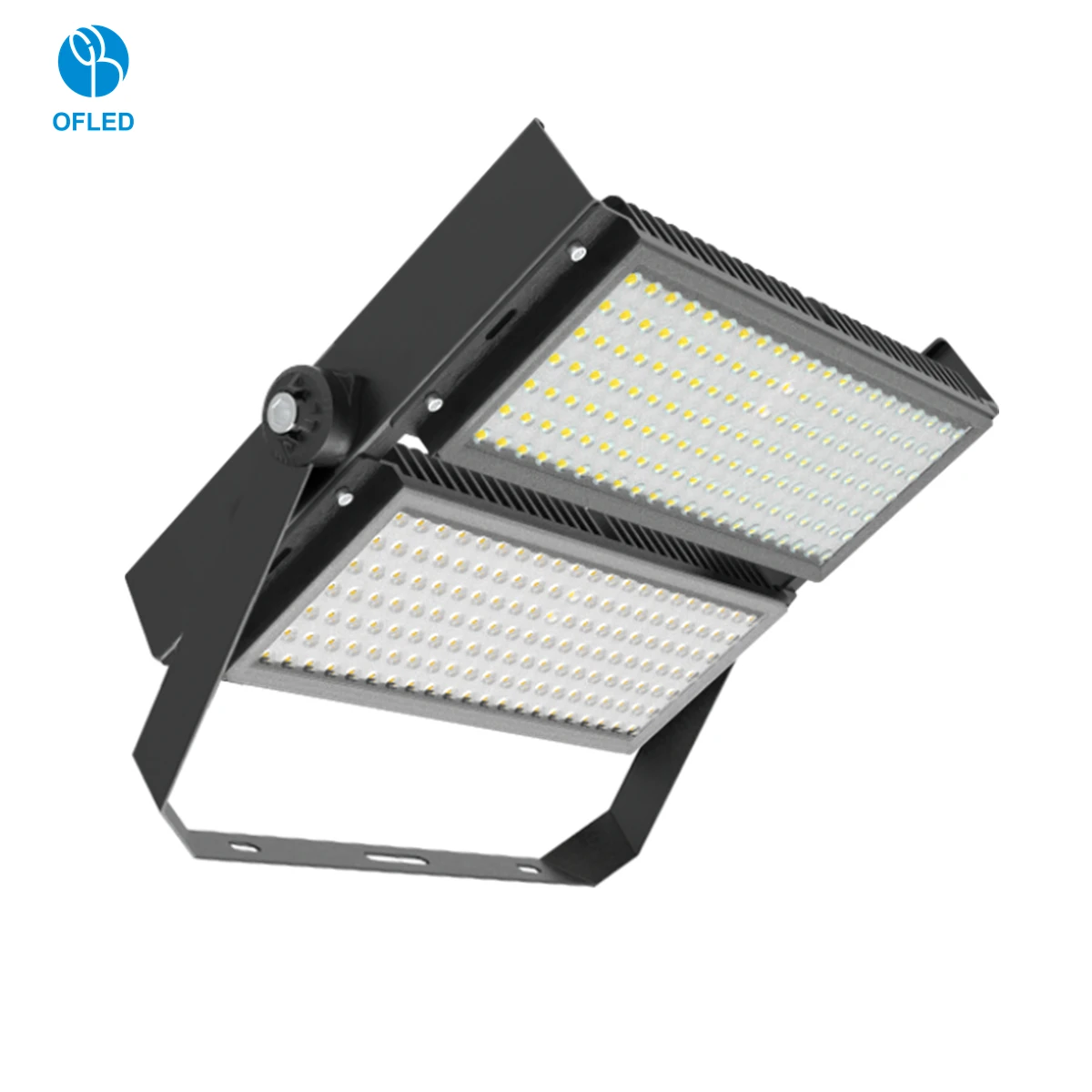

120W - 1920W High Power Tennis Court Flood Light
LED Sport Baseball Field Light Cricket Stadium Lights
Product Features

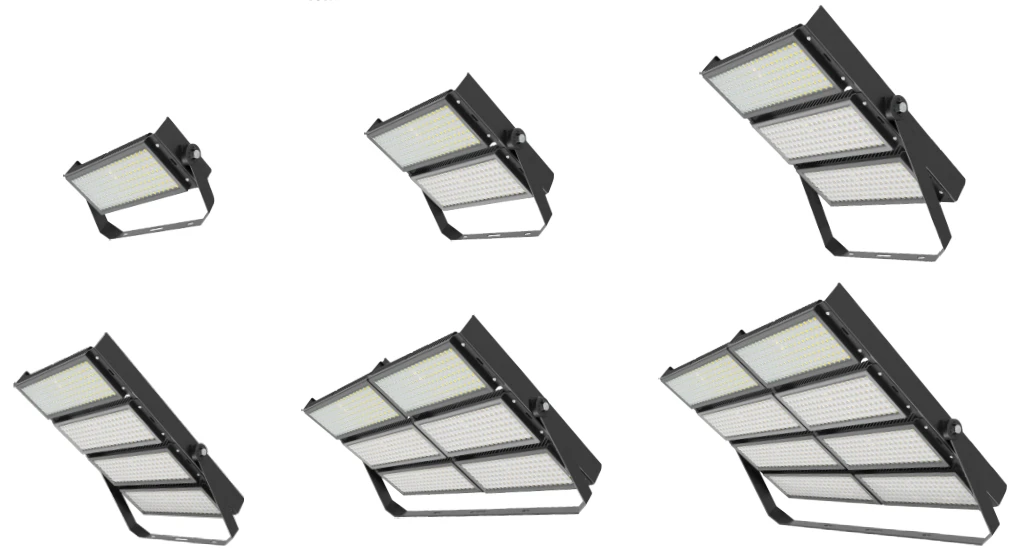

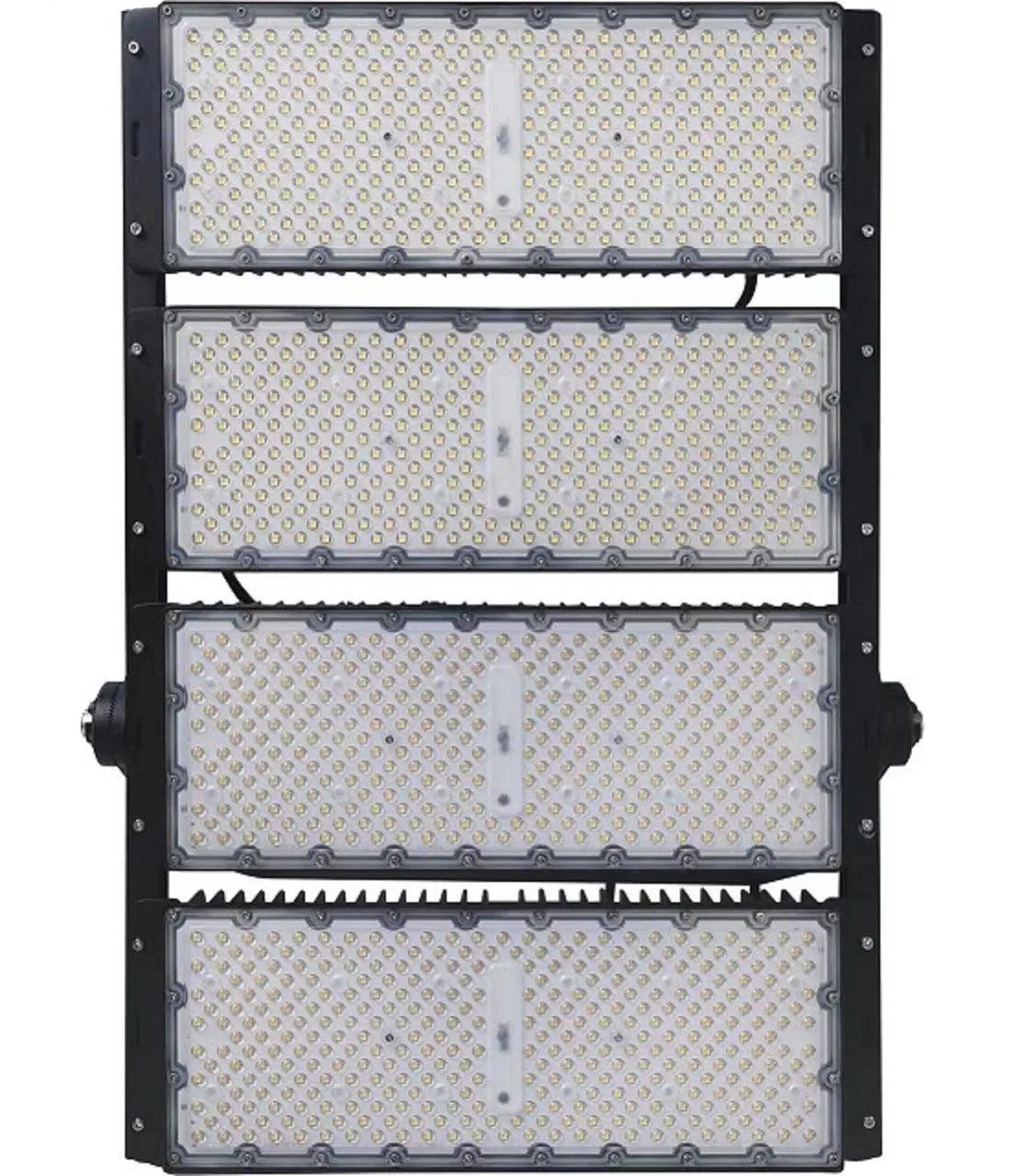

up to 8 modules can be combined into 960watt/ 1600watt/ 1920watt
■ Light Efficacy up to 140lm/W, 150lm/W, 160lm/W
■ Optical lighting distribution: 30°, 60°, 90°
■ Integrated breather valve: balance the internal and external pressure, humidity and temperature
■ Top brand LED chip and driver, ensure the product quality and lifespan
■ Ingress protection IP65 and impact protection IK08
Product Specification | ||||||||||||
Power | 240W | 480W | 720W | 960W | 1440W | 1920W | ||||||

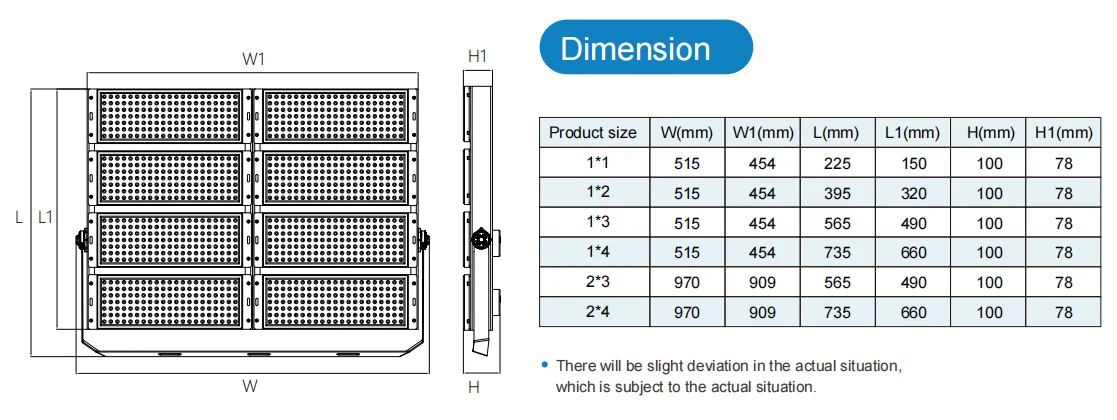

Size (mm) | 515*225*100 | 515*395*100 | 515*565*100 | 515*735*100 | 970*565*100 | 970*735*100 | ||||||
Light Efficacy | 140lm/W | |||||||||||
Power | 200W | 400W | 600W | 800W | 1200W | 1600W | ||||||
Size (mm) | 515*225*100 | 515*395*100 | 515*565*100 | 515*735*100 | 970*565*100 | 970*735*100 | ||||||
Light Efficacy | 150lm/W | |||||||||||
Power | 120W | 240W | 360W | 480W | 720W | 960W | ||||||
Size (mm) | 515*225*100 | 515*395*100 | 515*565*100 | 515*735*100 | 970*565*100 | 970*735*100 | ||||||
Light Efficacy | 160lm/W | |||||||||||
Input Voltage | 100-240/ 277VAC | |||||||||||
CCT | 3000K-6500K | |||||||||||
CRI | >70Ra | |||||||||||
Power Factor | >0.95 | |||||||||||
Beam Angle | 30°, 60°, 90° | |||||||||||
LED Chip | Lumileds | |||||||||||
IP Rating | IP65 | |||||||||||
IK Rating | IK08 | |||||||||||
Operation Temperature | -20°C- +50°C | |||||||||||
Warranty | 5Years | |||||||||||
Lifespan | 50,000Hrs | |||||||||||

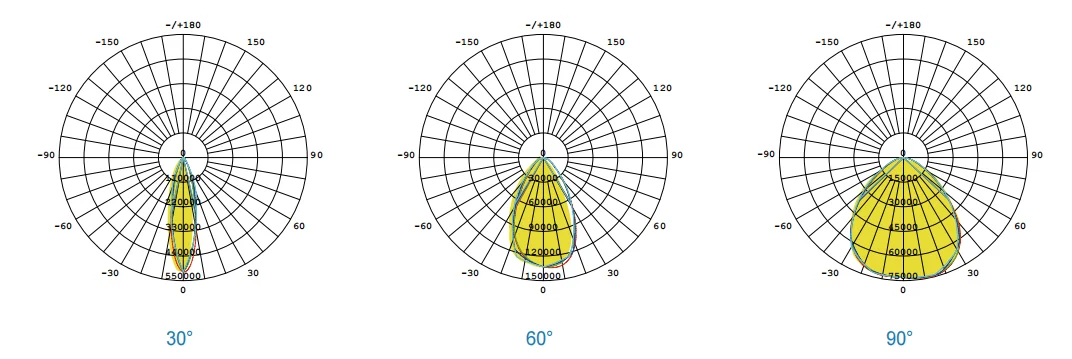

Illuminance distribute curve

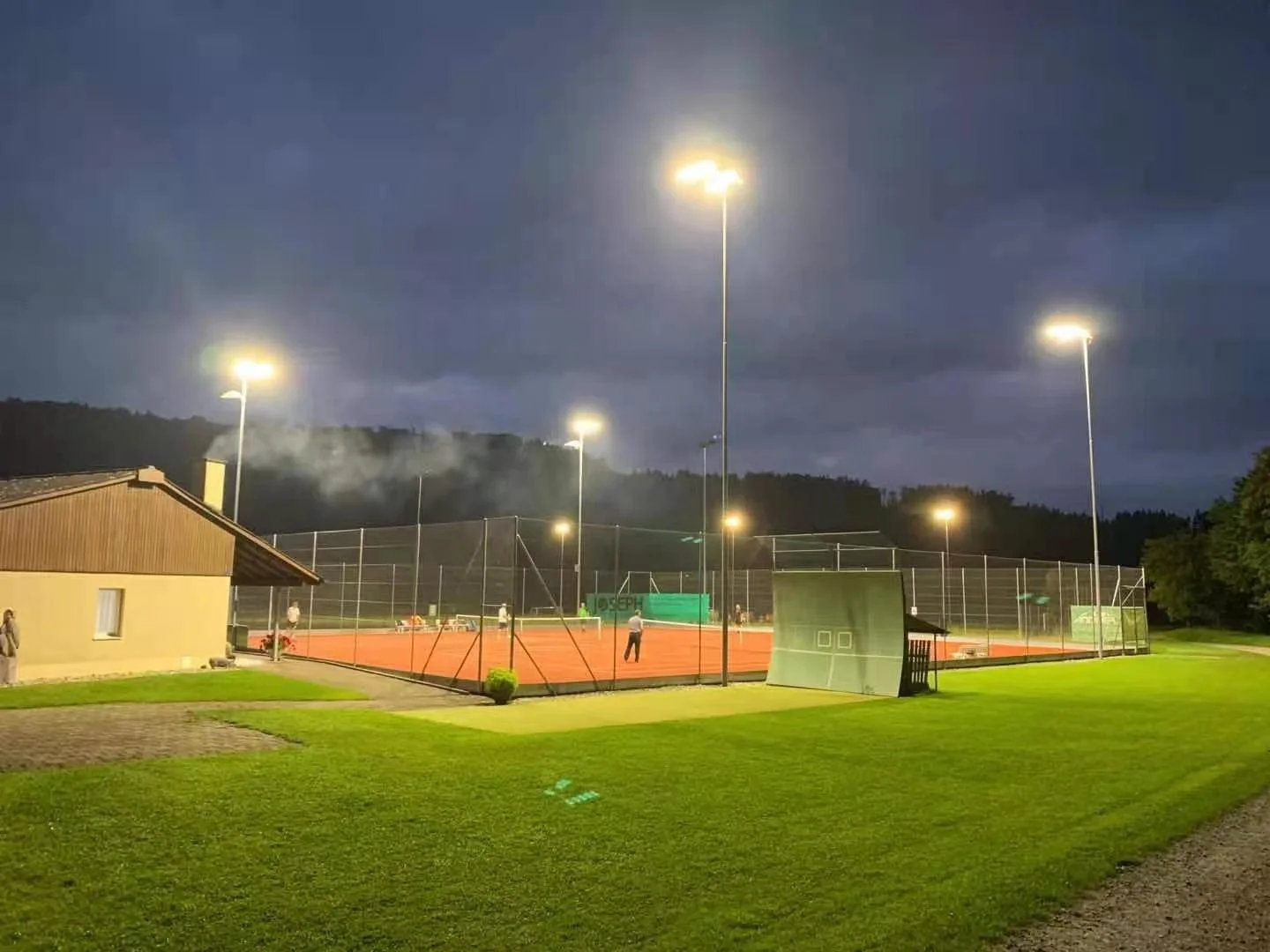

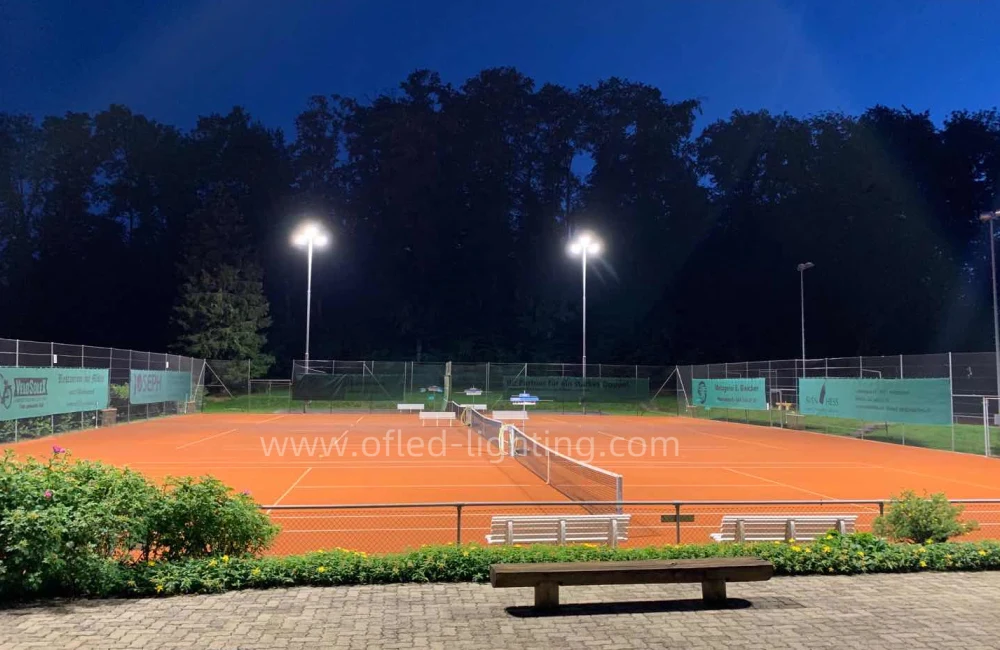

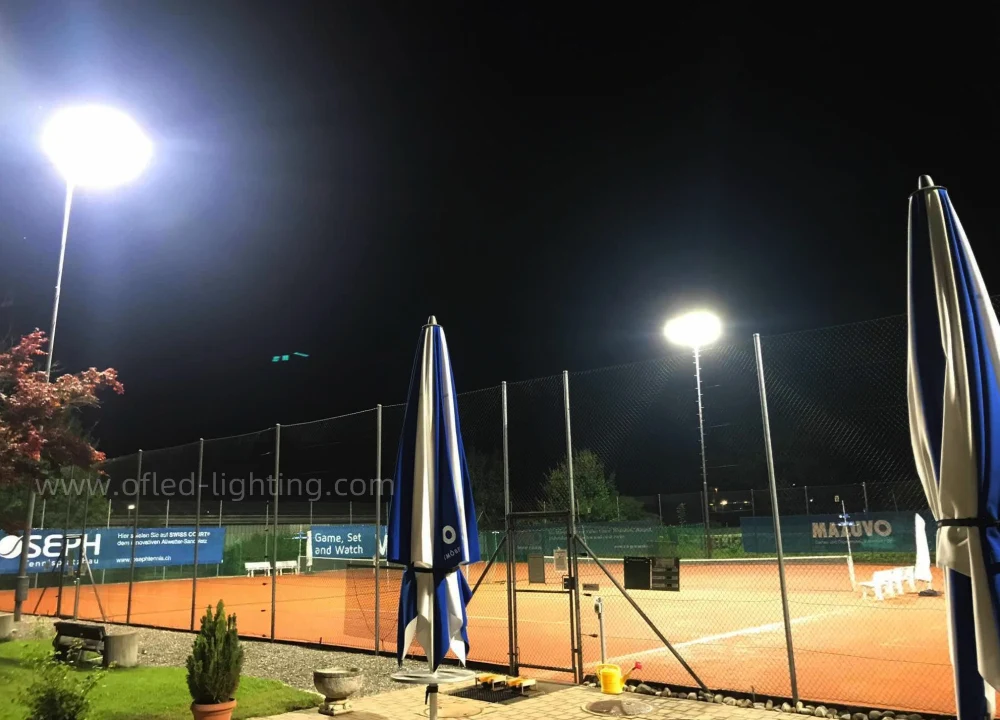

Application
Certifications
Company Information
Jiangsu Ofled Optoelectronics Technology Co., Ltd was founded in Dongtai, Jiangsu in May 2016, which focused on R&D,designing, manufacturing, marketing of high power led lightings.
Adhering to the principle of energy efficient,Ofled Lighting is working constantly to be the pioneer of industrial lighting. Our main products include UFO High Bay Lights, Linear High Bay Lights, Flood Lights, Stadium Lights, Street Lights, Canopy Lights and IP65 Panel Light. The production capacity of OFLED has reached 300,000 pcs per month with products being strictly inspected before each delivery.
All our products conform to TUV、CE、CB、UL/CUL、FCC、ERP、EST/DLC、SAA、C-Tick approval and etc , and applied for four inventions patents and nearly 100 utility models and designs patents in LED thermal design.
The enterprise culture
Integrity, true work, respect for cooperation, innovation and win-win.
Team to introduce
An excellent team creates an excellent team culture, and an excellent team culture produces excellent people.
Security service
Achieve the goal of globalization after-sales guarantee, after-sales without concern, product without defect.
Adhering to the principle of energy efficient,Ofled Lighting is working constantly to be the pioneer of industrial lighting. Our main products include UFO High Bay Lights, Linear High Bay Lights, Flood Lights, Stadium Lights, Street Lights, Canopy Lights and IP65 Panel Light. The production capacity of OFLED has reached 300,000 pcs per month with products being strictly inspected before each delivery.
All our products conform to TUV、CE、CB、UL/CUL、FCC、ERP、EST/DLC、SAA、C-Tick approval and etc , and applied for four inventions patents and nearly 100 utility models and designs patents in LED thermal design.
The enterprise culture
Integrity, true work, respect for cooperation, innovation and win-win.
Team to introduce
An excellent team creates an excellent team culture, and an excellent team culture produces excellent people.
Security service
Achieve the goal of globalization after-sales guarantee, after-sales without concern, product without defect.
Quality Control
1. Material detection
We will purchase the corresponding items according to the order, and we will carefully test each item to
ensure that there are no quality problems before production.
2. Own Plants area and Workshop
We have our SMT, Assembly Line, Die-casting plant, Powder coating workshop, CNC processing center etc.Our professional staff can control the quality easily, to avoid all kinds of quality problems.
3. Every LED lights will aging and quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
ensure that there are no quality problems before production.
2. Own Plants area and Workshop
We have our SMT, Assembly Line, Die-casting plant, Powder coating workshop, CNC processing center etc.Our professional staff can control the quality easily, to avoid all kinds of quality problems.
3. Every LED lights will aging and quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
FAQ
Q1. How is your QC systems?
We have got ISO9001 and ERP Management. All of our products will pass strict QC processes before shipment.
Q2. What about the lead time?
Sample needs 3-7 days, Mass production time needs 20-30 working days.
Q3. What is your shipping way?
By express(FedEX, DHL, UPS, TNT, EMS, etc.), Airline and sea shipping also optional.
Q4. Can we make our own label on the lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q5. Is it OK to print my logo on led light product?
We offer 3 years warranty for led panel lights and 5&7 years warranty for other led lights.
Q6. How to deal with the faulty?
Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are professional outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if your engineer can design yourself , we can provide the IES files for you.
Q8. I have a warehouse/workshop ,what's your suggestion?
Please give me the below information:
1. the area of the warehouse/workshop
2. the installation height
3. the requirement of the illumination
Then our engineer can give you a solution.
