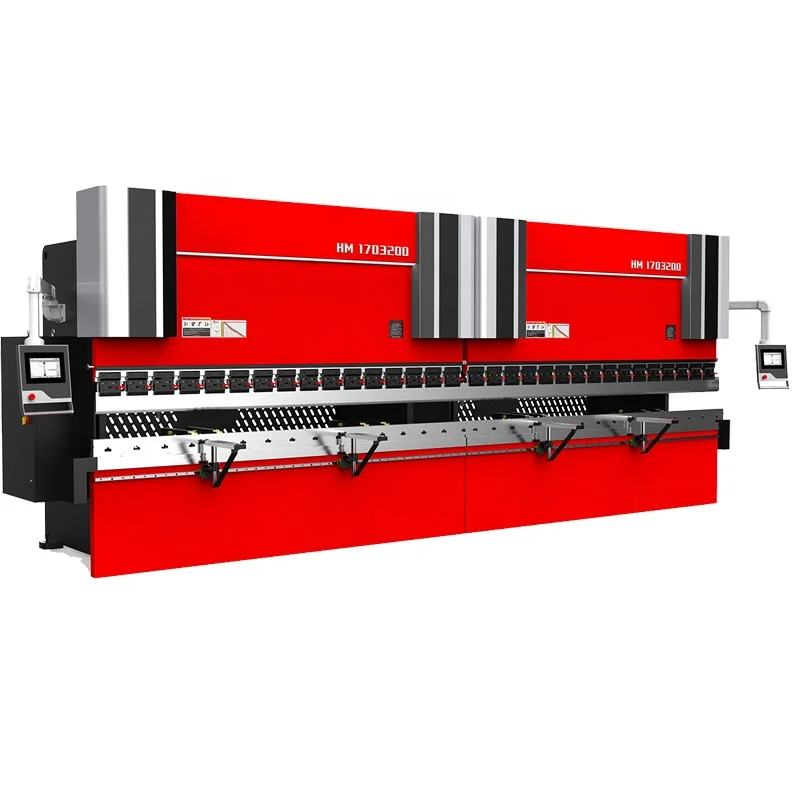

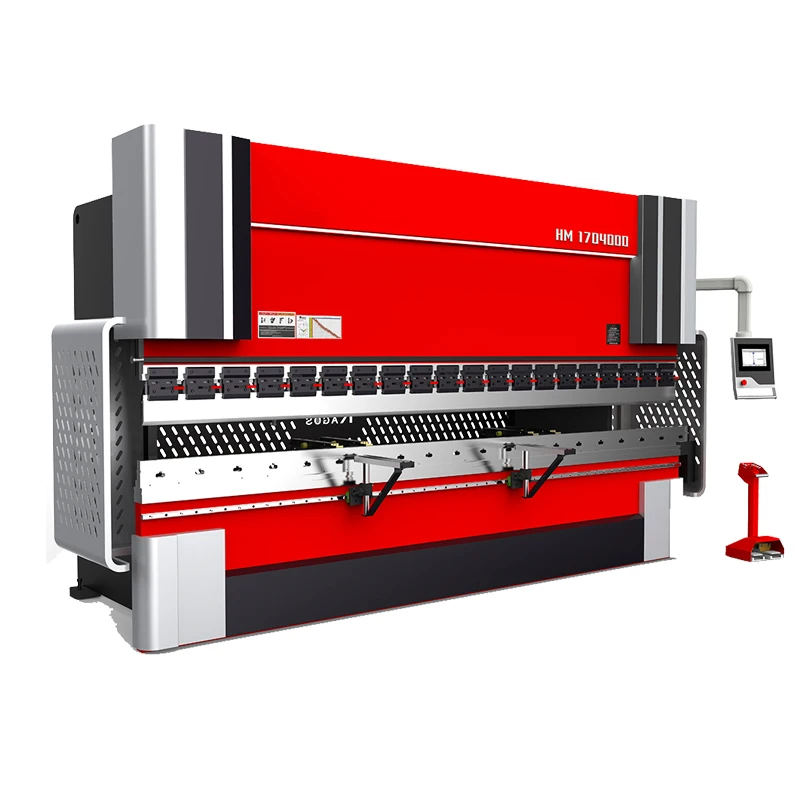

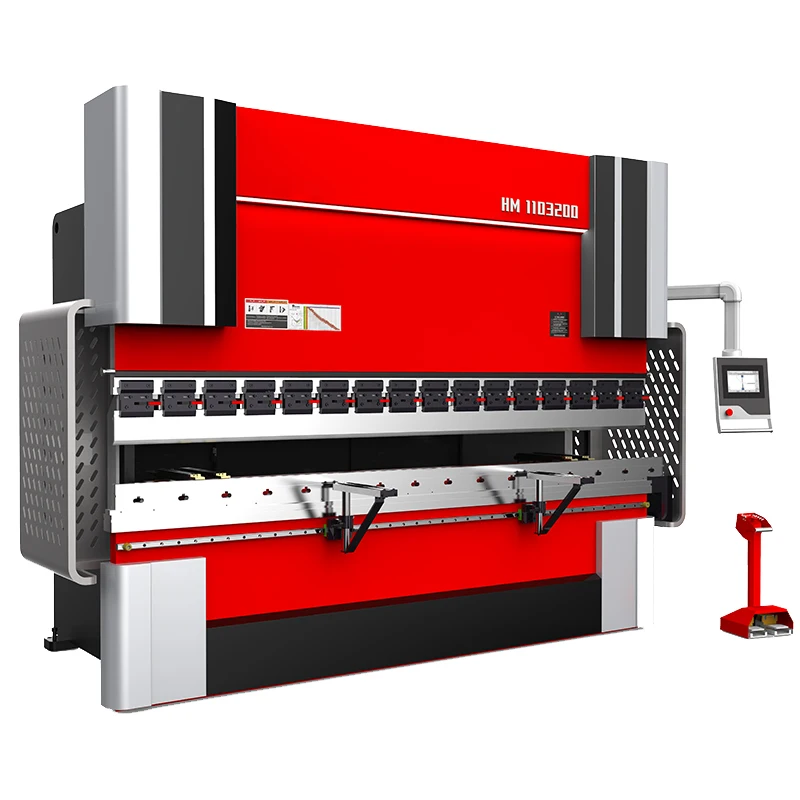

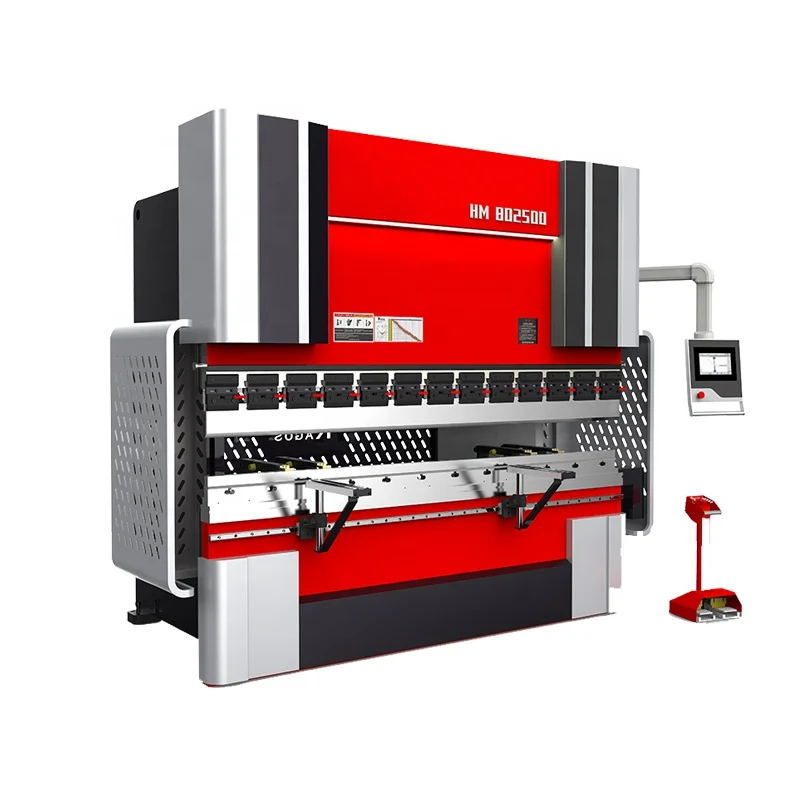

8 axis 500t 400t 320t biggest 6000mm 3d servo cnc electric hydraulic brake press brake machine
- Category: >>>
- Supplier: Shenzhen Hs Laser Technology Co. Ltd.
Share on (1600416125644):
Product Overview
Description
Product Overview
8 axis 500t 400t 320t biggest 6000mm 3d servo cnc electric hydraulic brake press brake machine
PRODUCT SPECIFICATIONS
NO. | Details | Original Manufacturer | Brand Name |
1 | NC system | Holland | DELEM DA-53 series（Matching） |
2 | Switzerland | CYBELEC CT8（Standard） | |
2 | Sealed linear encoder | Turkey | OPKON |
3 | Hydraulic system | German | REXROTH/ ARGOS-HYTOS |
4 | Oil pump | America/Japan | SUNNY/ NACHI |
5 | Ball screw | Taiwan | HIWIN/ PMI |
6 | Straight guide rail | Taiwan | HIWIN/ PMI |
7 | Seal | Japan | Japan NOK |
8 | Air switch | France | Schneider |
9 | Miniature relay | France | Schneider |
10 | Ac contactor | France | Schneider |
11 | Button | France | Schneider |
12 | Electrical components | Japan | Omron |
13 | Socket joint | USA | EATON |
Technical Parameters & Specification with 130 Ton | ||||||
Workbench length | 100 to 6000 | 3200 | mm | |||
Distance between columns | 2700 | mm | ||||
Slider stroke | 200/250 | mm | ||||
Open height | 450/500 | mm | ||||
Throat depth | 400 | mm | ||||
Axis number of NC | Y1、Y2、X、R、V | axes | ||||
Main motor power | 11 | kw | ||||
Speed of slide | Fast down | 180 | mm | |||
Work | 10 | mm | ||||
Return | 160 | mm | ||||
Back gauge X axis | Stroke | 600 | mm | |||
Max speed | 350 | mm/s | ||||
Re-position accuracy | ≤0.05 | mm | ||||
Back gauge R axis | Stroke | 200 | mm | |||
Max speed | 200 | mm/s | ||||
Re-position accuracy | ≤0.05 | mm | ||||
Machine Dimensions | Length | 3800 | mm | |||
Width | 1850 | mm | ||||
Height | 2750 | mm | ||||
Machine weight | / | 9000 | kg | |||
PRODUCT CONFIGURATION

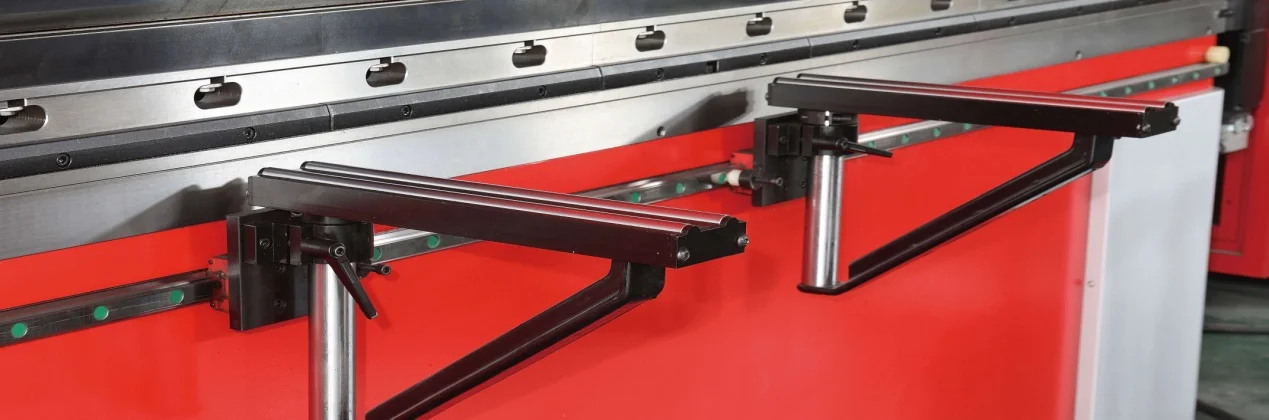

Moving front support frame: It moves along the linear guide rail and can be parked at any position to assist your bending work and make the work comfortable and efficient.

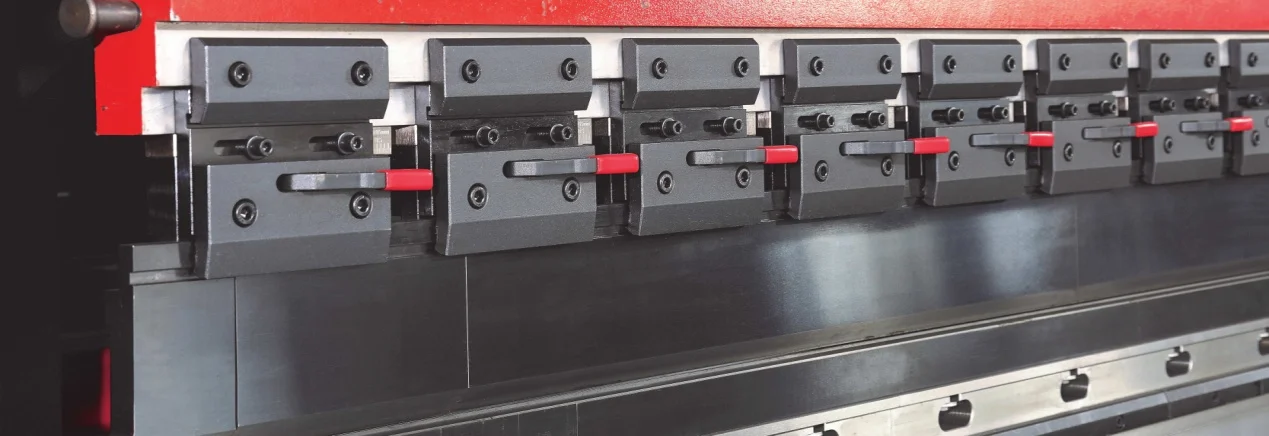

High Precision and fast clamping system: fast and easy to change the tooling, decreasing labour strength and enhance productivity.

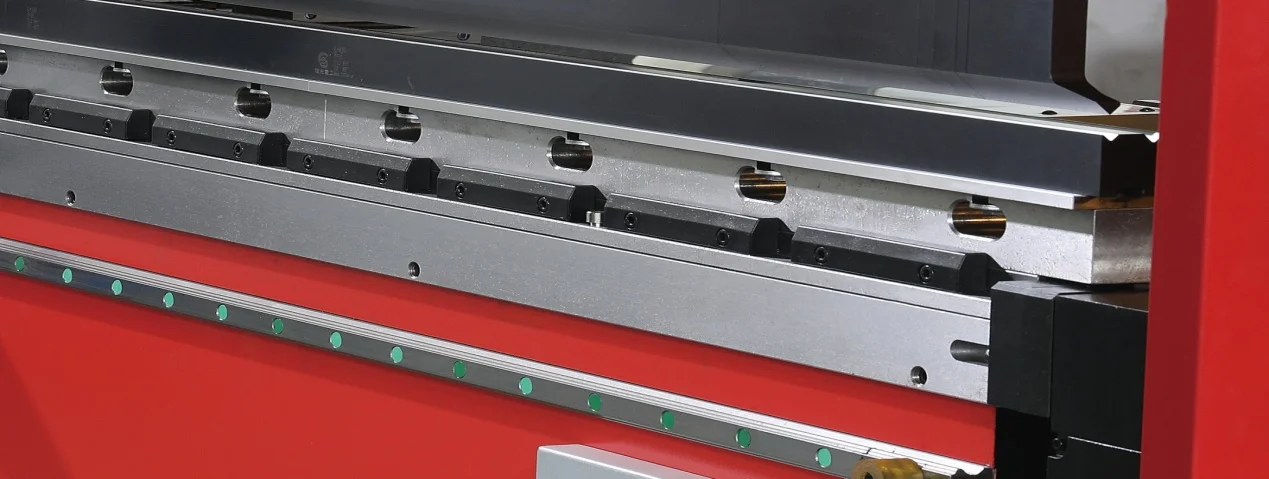

Higher quality press brake tooling:
whole hardened high precision CNC press brake tooling it is durable.
whole hardened high precision CNC press brake tooling it is durable.

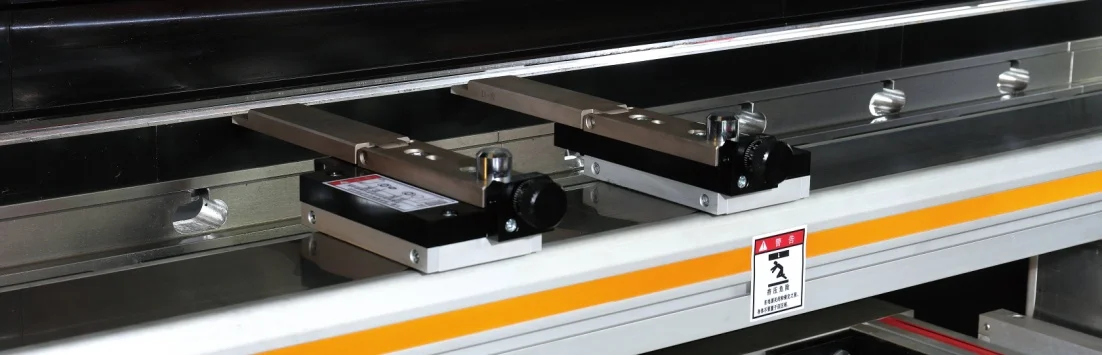

High precision and stable back gauge system（Optional）: New and unique double linear guide constrction,To ensure the good positioning accuracy.Design of multistage stops, to increase the positioning range, above the price in value.

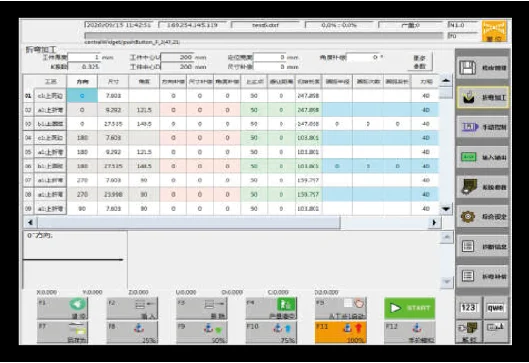

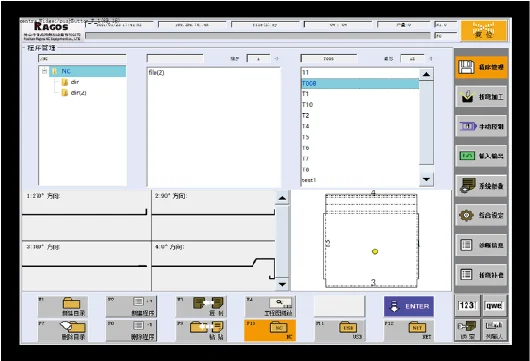

Easy to operate cnc control system can help you save time to improve working efficiency.
Cast machine body (featuring stable structure, small deformation and high precision
Machine tool technology
Vibration aging stress relief
Vibration aging stress relief
To eliminate the internal stress of workpiece, ensure that the machine works for a long time with high precision.
Finished machining
Finished machiningOwned large horizontal gantry milling machines for meeting Ragos precise machining requirements, also ensure
high quality installation base.
Natural agingMachine frames need to be placed naturally for 6 months to release stress from heat treatment, which is to get stable
accuracy and higher rigidity.
high quality installation base.
Natural agingMachine frames need to be placed naturally for 6 months to release stress from heat treatment, which is to get stable
accuracy and higher rigidity.

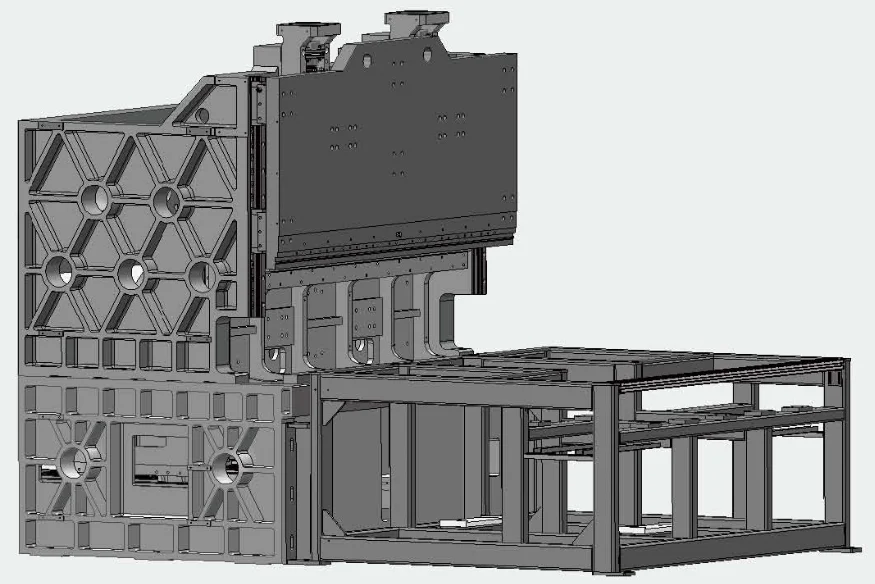

Below is the machine bedding processing

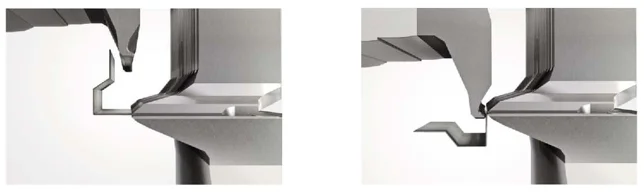

Bend Up

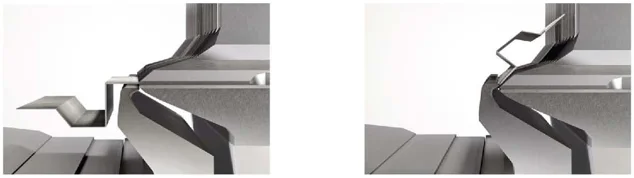

Bend Down

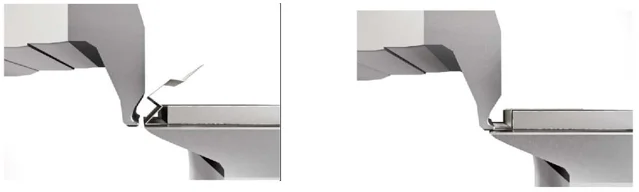

Flattening and bending

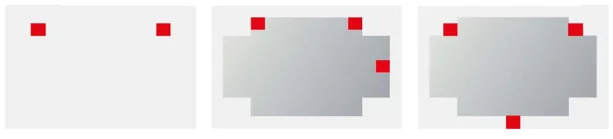

Sheet positioning system
Tail positioning Plate pre-positioning Final positioning

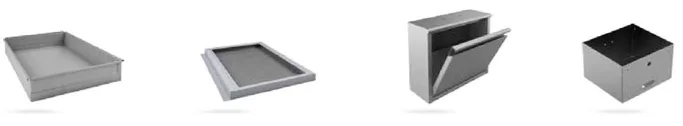

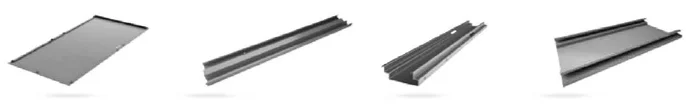

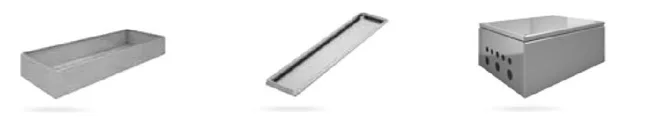

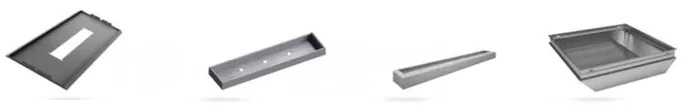

Product samples
