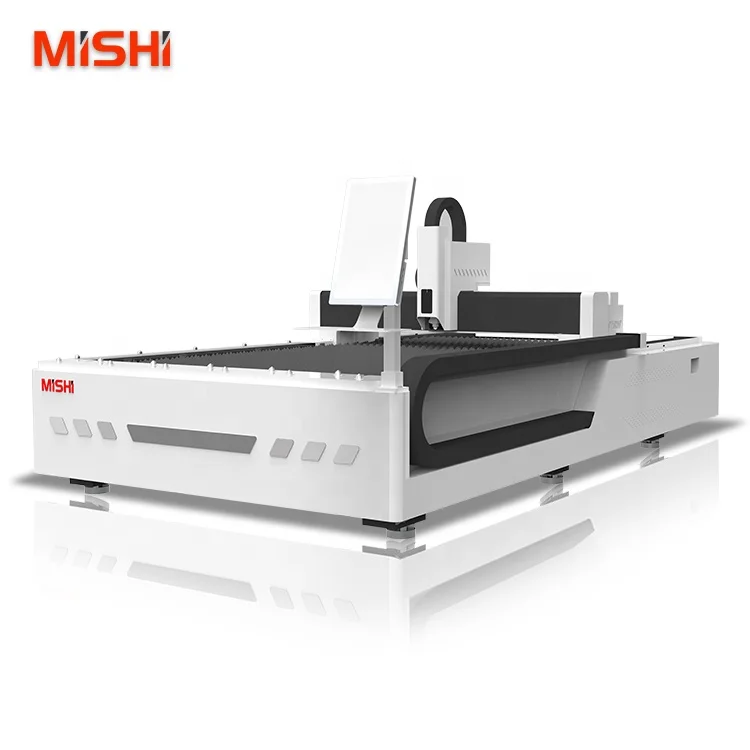

Hanli Cooling System 1kw/2kw/3kw Max/IPG/Raycus Laser Sawtooth Working Table CNC Fiber Laser Cutting Machine
- Category: >>>
- Supplier: Jinan Mingshi Machinery Equipment Co. Ltd.
Share on (1600416144228):
Product Overview
Description
Company Introduction
Jinan Mingshi machinery Equipment Co., Ltd
Our company established in 2010, we have 11 years experience in CNC and Industrial laser equipment inte-grating R&D, design, sales and production.
We have CE and SGS certification, units that value quality and keep promises.
We have CNC router, wood router, fiber/pipe laser cutting machine, plate and tube cutting machine, and industrial laser equipment.
We have CNC router, wood router, fiber/pipe laser cutting machine, plate and tube cutting machine, and industrial laser equipment.
Team
We have profession technical and sale man, participates in more than 50 large-scale industrial exhibitions at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has modern workshop. There are about 100 prod-uction technical personnel an more than 15 research personnel.
Product Show
Advantages of Fiber Laser Cutting Machine
1. Professional laser optical system and imported lenses, stable and reliable;
2. Efficient and stable programming and control system, easy to learn and humanized, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting paths, matching and sav-ing processing time.
3. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped workpieces.
4. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.
5. Imported high-precision servo motors, guide rails, and German-made gear racks, while ensuring proce-ssing efficiency and processing accuracy, greatly improve the stability and reliability of the equipment op-eration.
3. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped workpieces.
4. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.
5. Imported high-precision servo motors, guide rails, and German-made gear racks, while ensuring proce-ssing efficiency and processing accuracy, greatly improve the stability and reliability of the equipment op-eration.
Technical Parameters
Model | F3015 |
Laser Type | Fiber Laser |
Laser Working Medium | Optical Fiber |
Laser Wave Length | 1060-1080nm |
Output Rating | 1000w |
X-axis travel | 1500mm |
Y-axis travel | 3000mm |
Maximal Acceleration | 1.5G |
Plate Effective Cutting Range | 1500*3000mm |
Positioning Accuracy | 0.03mm/m |
Repeat The Positioning Accuracy | ±0.02mm/m |
Maximum Empty Speed | 100m/min |
Power Supply Rating Parameters | 3 Phase Current 380V 50Hz |
Equipment Electrical Power | 11.25kw |
1000W Laser Source | MAX/ Raycus（Option) |

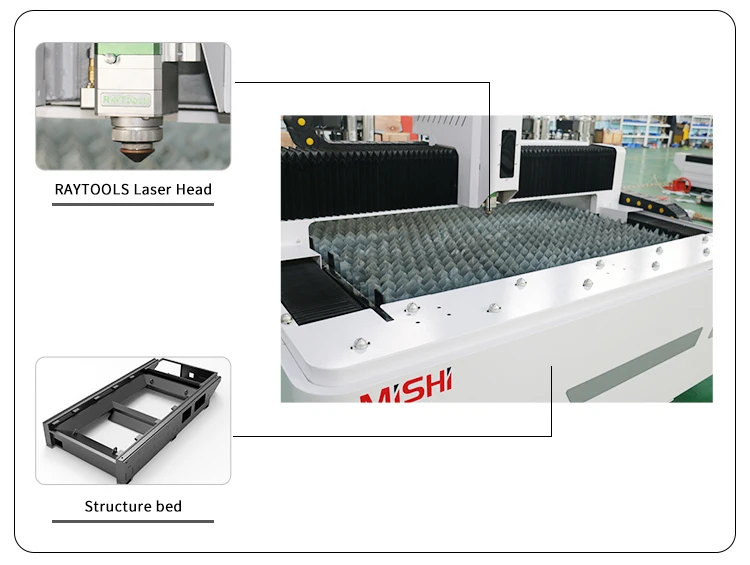

Laser Head | RAYTOOLS |
Table Structure | Time Treatment Pipe Welding / Plate Welding Bed Body |
X\\Y Gear Rack | High-precision Grinding |
Servo Motor | Japan Fuji |
Reducer | Japan SHIMPO |
Water Chiller | Hanli/S&A(Option) |

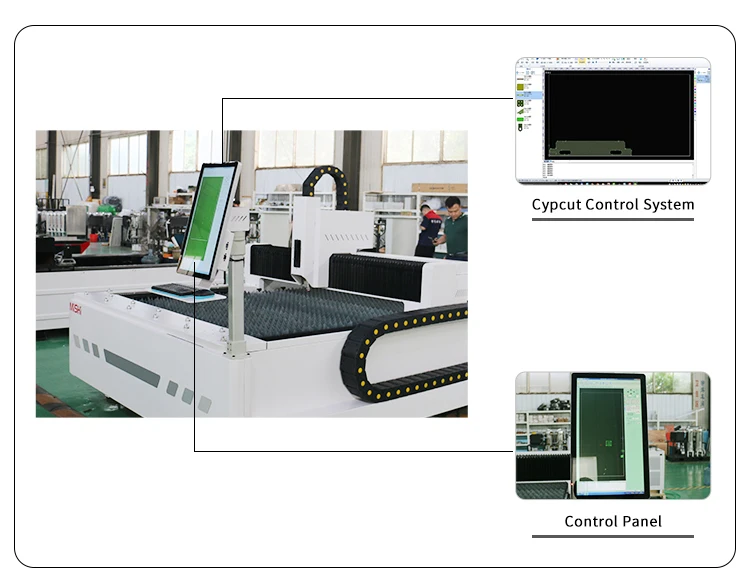

Laser Cutter System | Cypcut Control System |
Application
Application industries
Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, spe-cial automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum ma-chinery manufacturing, food machinery , Diamond tool
welding, gear welding, metal material surface treatment, decorative advertising, laser external process-ing services and other machinery manufacturing and processing industries.
Applicable materials
Applicable materials
Professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel pl-ates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.

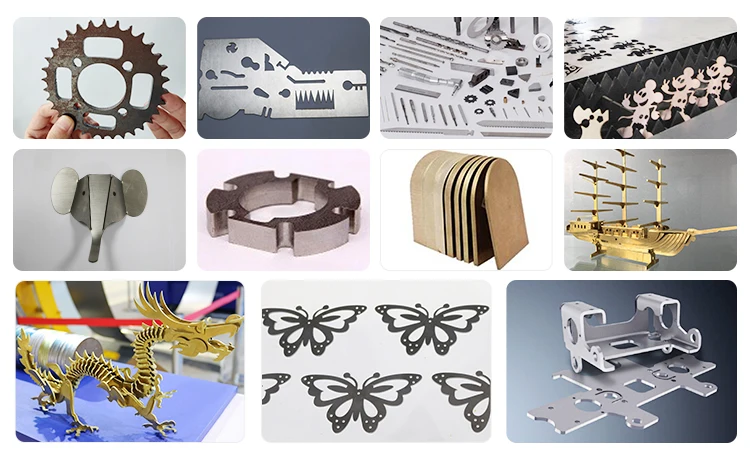

Sample Display
After Sales Services
Mingshi laser team can provide 24/7 online service, free technical support. We have professional Pre-sales and after sales service. Mingshi laser team can provide oversea service all over the wo-rld.
Shipping and Packing
FAQ
1.How long is the warranty period?
We offer 3 years warranty and a year warranty for core components.
2.What about after-sales service?
We offer 24 hours online video call to solve your problems, we also can provide oversea service all over the world.
We offer 3 years warranty and a year warranty for core components.
2.What about after-sales service?
We offer 24 hours online video call to solve your problems, we also can provide oversea service all over the world.
3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock or it is 10-20 days if you place a big order, it is according to quantity.
4.What is your terms of payment ?
We can accept 30% TT In advance ,70% Balance before shipment.
If you have another question, pls feel free to contact us.
Generally it is 3-5 days if the goods are in stock or it is 10-20 days if you place a big order, it is according to quantity.
4.What is your terms of payment ?
We can accept 30% TT In advance ,70% Balance before shipment.
If you have another question, pls feel free to contact us.
