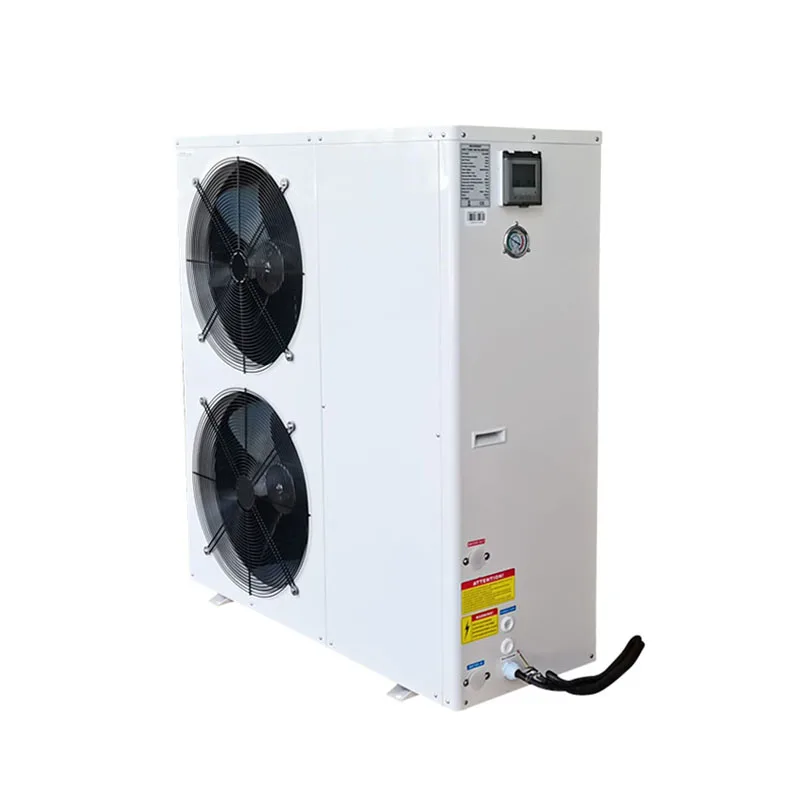

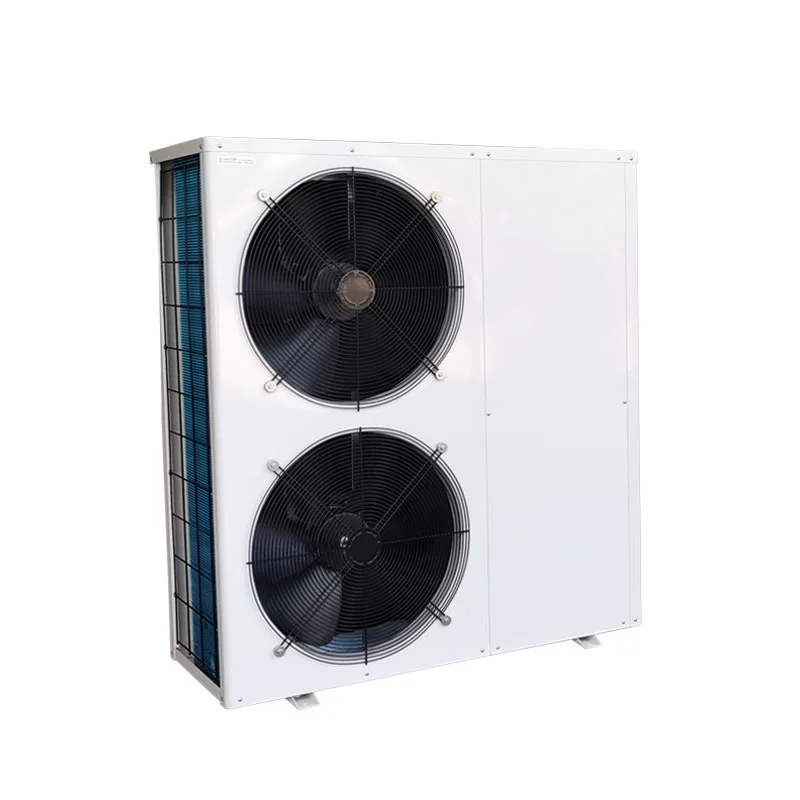

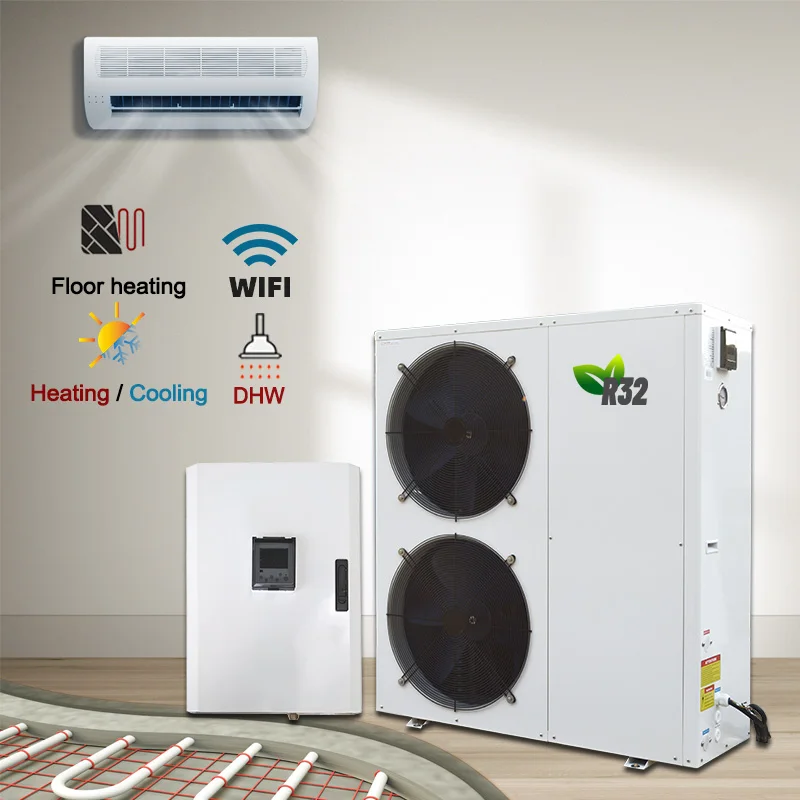

Eco friendly R32 DC Inverter Thermal Heat Pump Split air to Water Heatpump Heater Thermopompe for Home Floor Heating
- Category: >>>
- Supplier: Guangdong Shunde O.S.B. Environmental Technology Co. Ltd.Guangdong Ltd.
Share on (1600416234237):
Product Overview
Description
Product Description
Product description:
1.Keep running at -10 deg c with good COP.
2.White/Black /Grey galvanized steel shell optional.

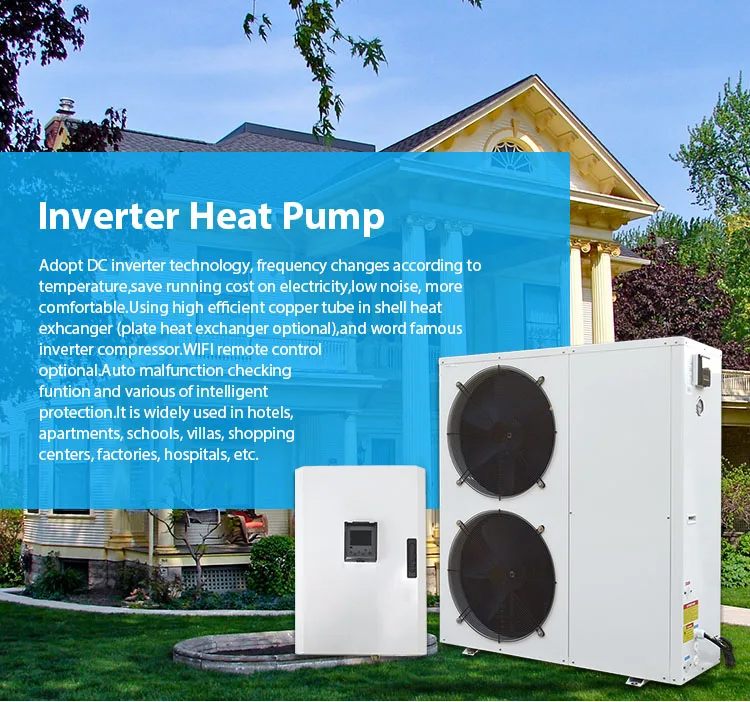

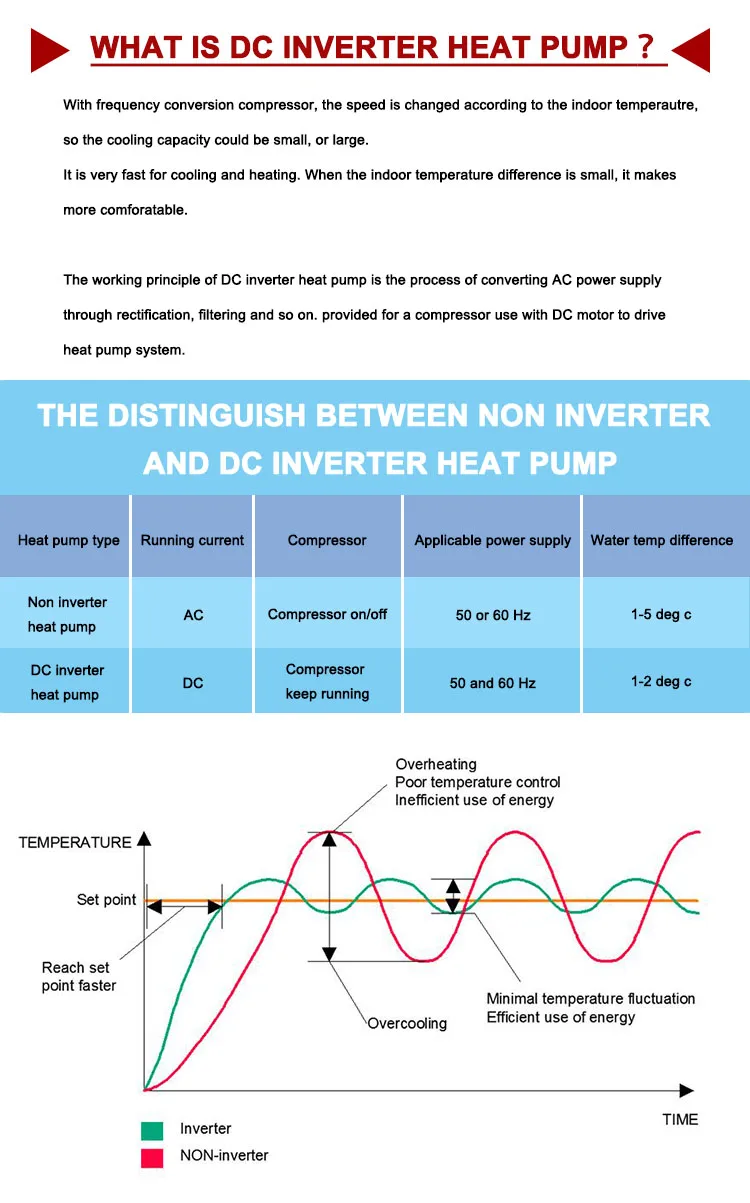

3.Adopt DC inverter technology, frequency changes according to temperature, save running cost on electricity,low noise, more comfortable.

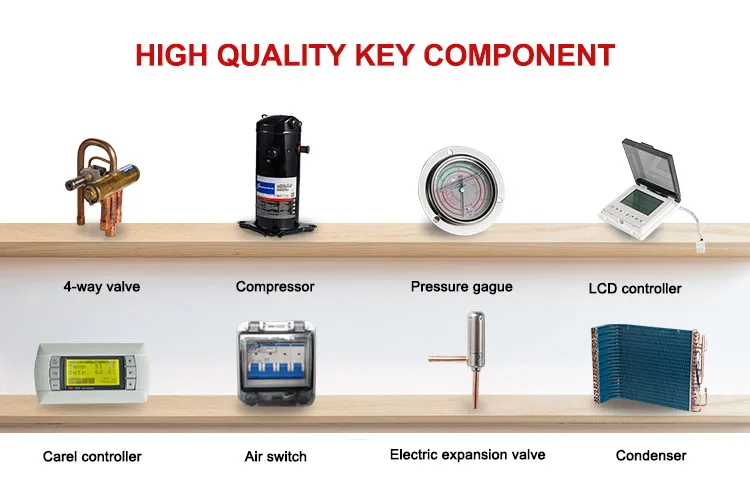

4.Using high efficient copper tube in shell heat exhcanger (plate heat exchanger optional),and world famous inverter compressor.
5.Automatic temperature sensing functions, can be controlled by the thermostat.
6.Auto malfunction checking function and various of intelligent protection.
7.Combine use with remote room temp controller (long distance command).
8.With indoor & outdoor brackets, for easy installation and prevent ice freezing.
9.Applicable to Fan coil heating/cooling, floor heating, domestic hot water heating etc.

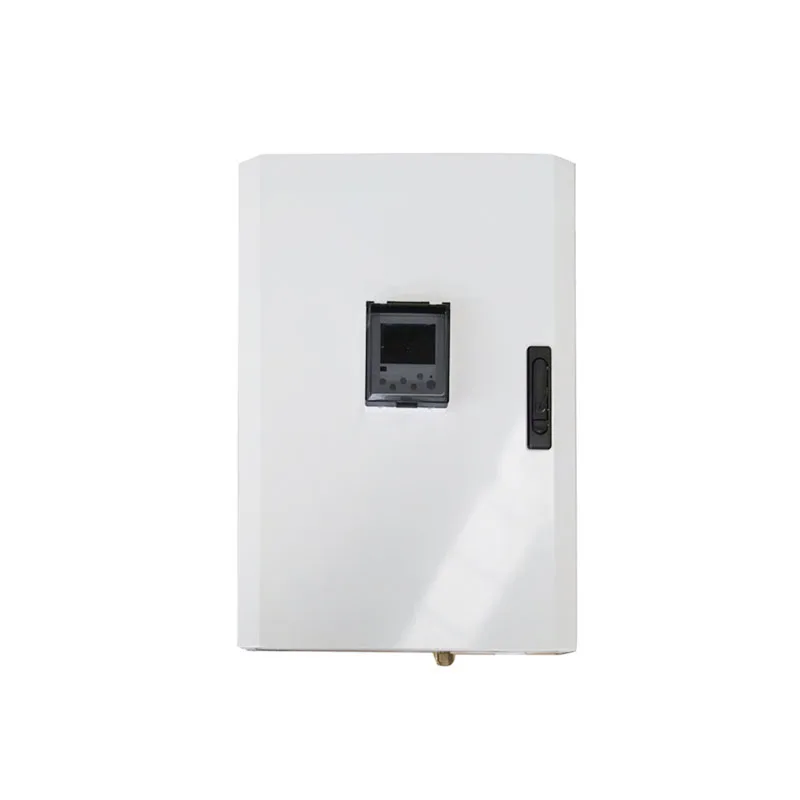

10.Door open design for indoor unit, more user' s friendly.
Technical data
Model |
| BB1IS-090S/P | BB1IS-100S/P |
Rated heating capacity | KW | 5.2~10.5 | 6~12 |
BTU | 20000~35000 | 20000~40000 | |
Rated cooling capacity | KW | 3.6~8.2 | 4.~9 |
BTU | 12000~37000 | 14000~30000 | |
COP /EER |
| 3.3~3.9/2.8~3.6 | 3.3~3.9/2.8~3.6 |
Heating power input | KW | 1.5~3.1 | 1.8~3.3 |
Cooling power input | KW | 1.6~3.25 | 1.9~3.5 |
Power supply | V/Ph/Hz | 220~240/1/50~60 | 220~240/1/50~60 |
Max outlet water temp | ° C | 50 | 50 |
Applicable ambient temp | ° C | -10~35 | -10~35 |
Noise(outdoor unit) | dB(A) | 53 | 53 |
Noise(indoor unit) | dB(A) | 30 | 30 |
Water flow volume | M3/H | 2.1 | 2.1 |
Water connections | Inch | 1'' | 1'' |
water pressure drop | Kpa | 12 | 12 |
Compressor qty | Pc | 2 | 2 |
Container loading qty | 20/40/40HQ | 20/43/43 | 20/43/43 |
