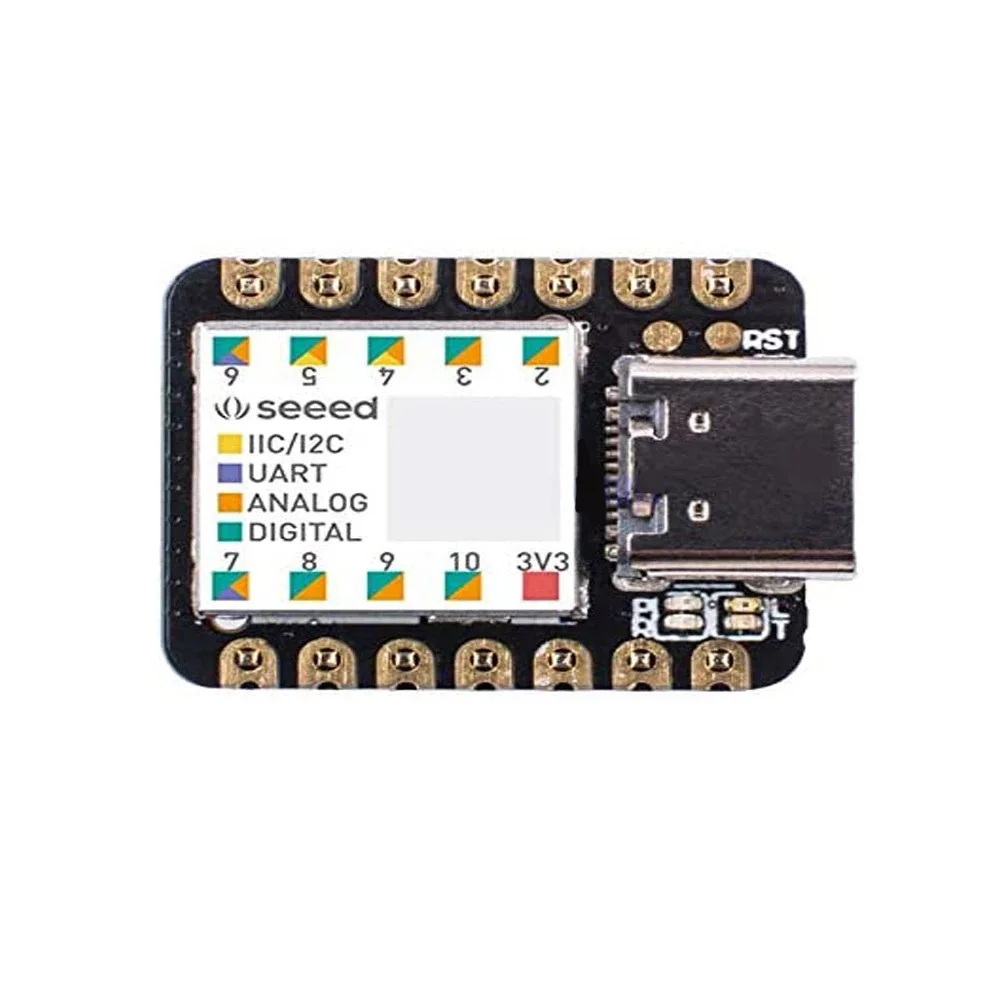

SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano
SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type-C Nano SPI Interface for Arduino Nano

SAMD21G18 SAMD21 48MHZ Cortex M0 32 Bit Microcontroller Development Board Module Type C Nano SPI Interface for Arduino Nano

Share on (1600416432145):


Price:

Quantity:


Product Overview

Description





Specification


item
value
Model Number
SAMD21G18
Type
Microcontroller Development Board Module
Place of Origin
China
Brand Name
LGKJ
Chipset
SAMD21G18
Application
Electronic products
CPU
ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
Storage
256KB Flash,32KB SRAM
Interface
1 I2C interface,1 UART interface, 1 SPI interface
LEDs
1 user LED, 1 power LED, two LEDs for serial port downloading


Product Description

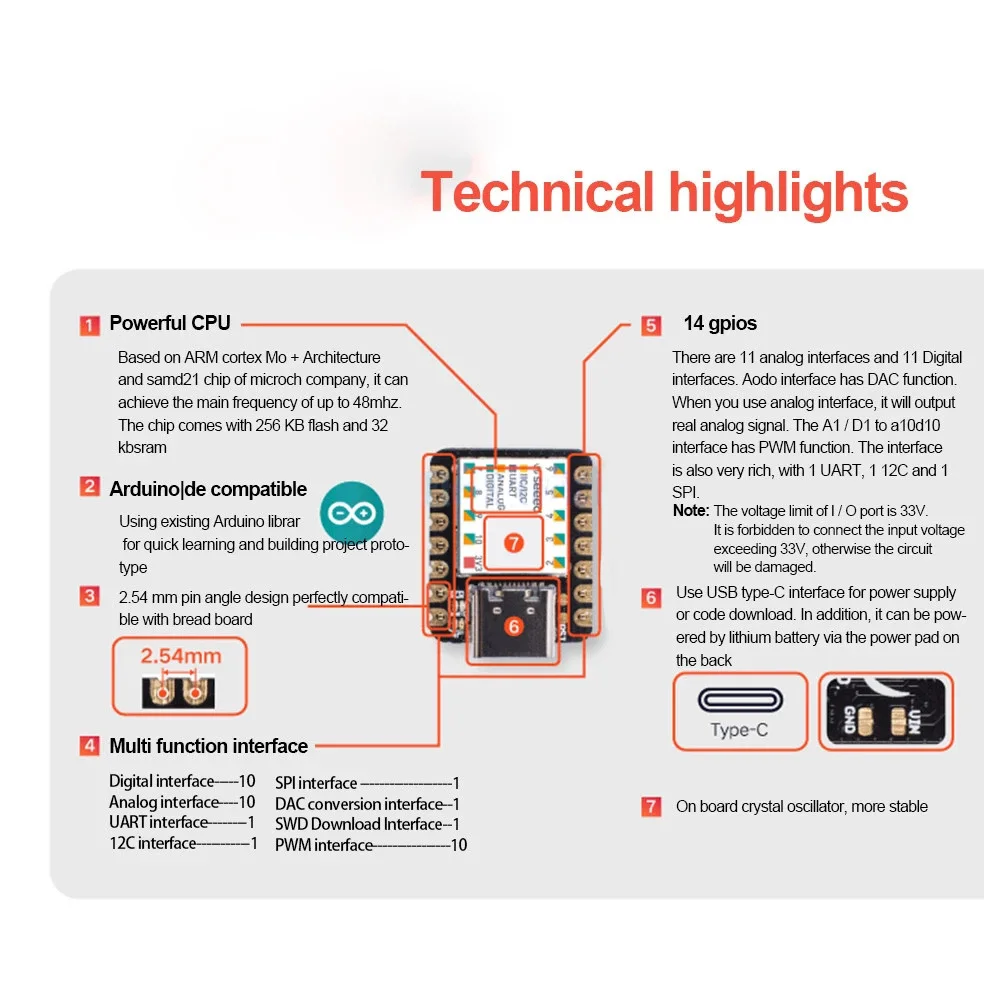

Specification:
CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
Storage: 256KB Flash,32KB SRAM

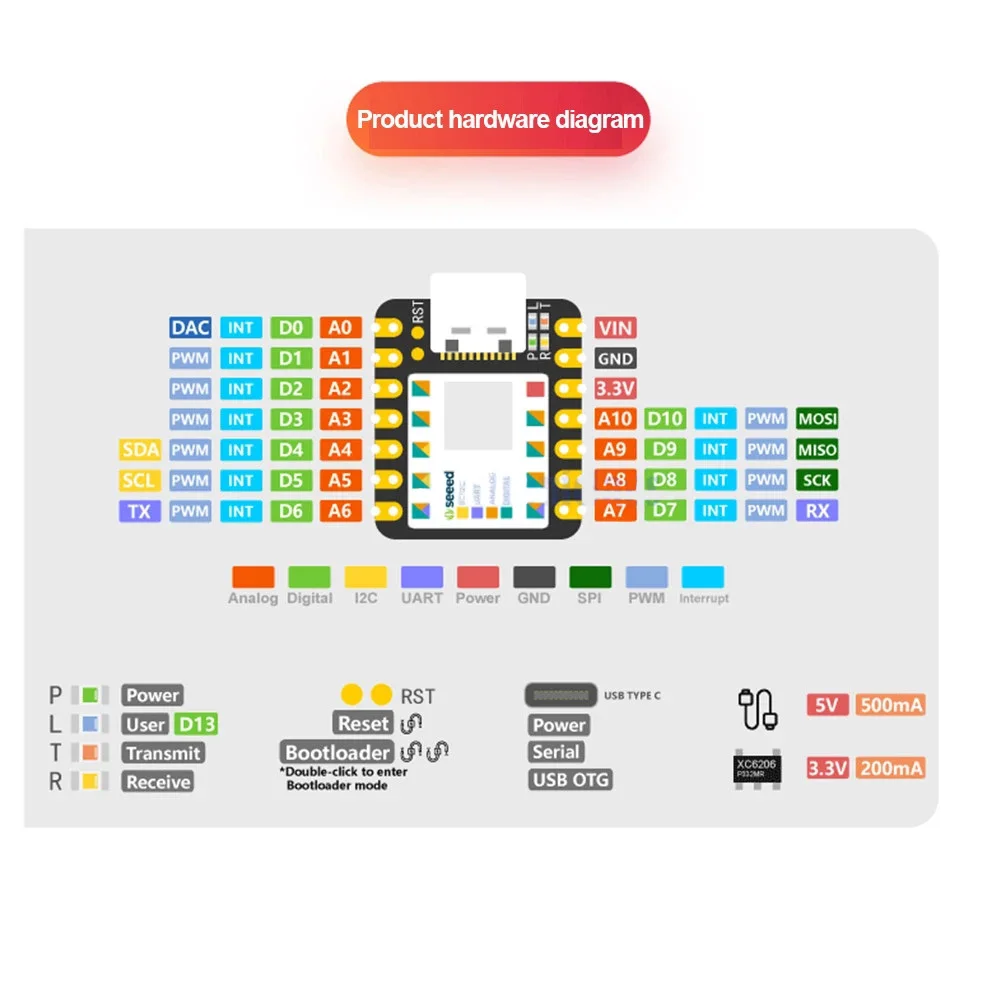

I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
Interface: 1 I2C interface,1 UART interface, 1 SPI interface
Power supply and downloading interface: USB Type-C interface
LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
Reset button: two reset button short connect to reset
Power Pads: For the battery power supply
Software compatibility: Compatible with for Arduino IDE
Projection cover for protecting the circuit
Dimensions: 20x17.5x3.5 mm

Typical Application:
Wearable devices
Rapid prototyping (directly attached to the expanded PCB as a minimal system)
Perfect for all the projects need mini for Arduino
DIY keyboard
USB development (USB to multi-channel TTL/USB host mode, etc.)
A scenario where you need to read multiple mock values The DAC output

Package included:
1 ×Microcontroller Development Board
