Computer Fully Automatic Coils Winder Winding Machine 2% Off

Share on (1600416544201):


Price:$375.00 - $415.00

Quantity:


Product Overview

Description



Product Overview

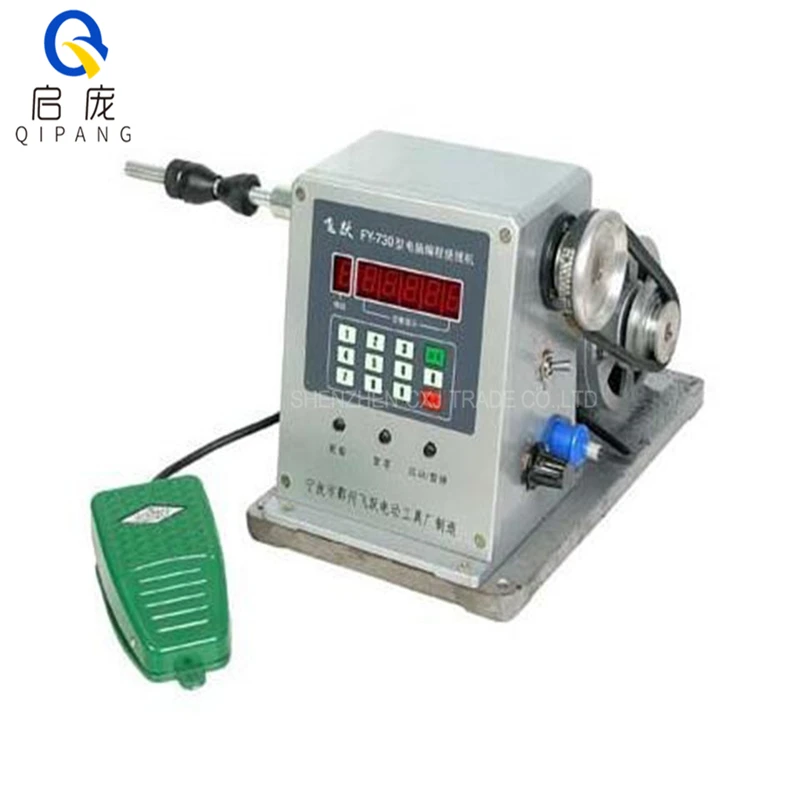

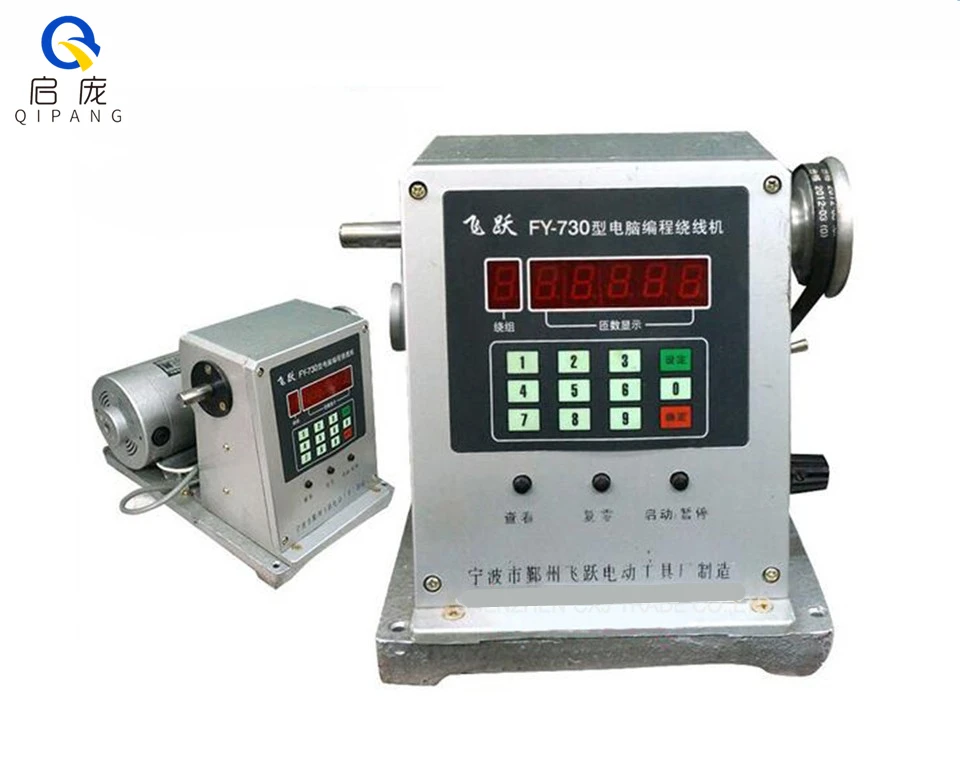

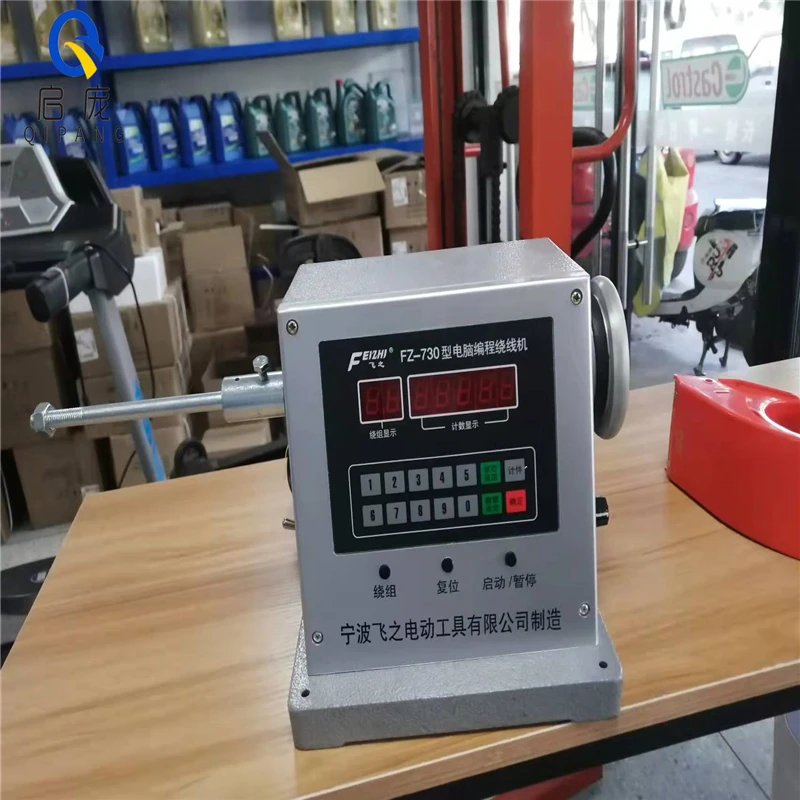

Electric counting winding machine Adjustable type semi-automatic winding Tool Industrial high-speed Winder 0-9999 Count Range


Electric counting winding machine details:

This series of CNC winding machines adopt computer control, manual winding, electronic counting, and automatic shutdown. It can be used to wind various small and medium-sized motor stator coils, transformers, inductance coils, etc. All models of this series can be customized for DC servo motor drive according to user requirements, and its winding diameter can be appropriately increased compared to AC motors, and stepless speed regulation can be achieved. This series of winding machines are all left-out shafts, right-out shafts can also be customized, and the speed can be customized according to user requirements.

technical parameter
Power supply voltage: 220V/50HZ

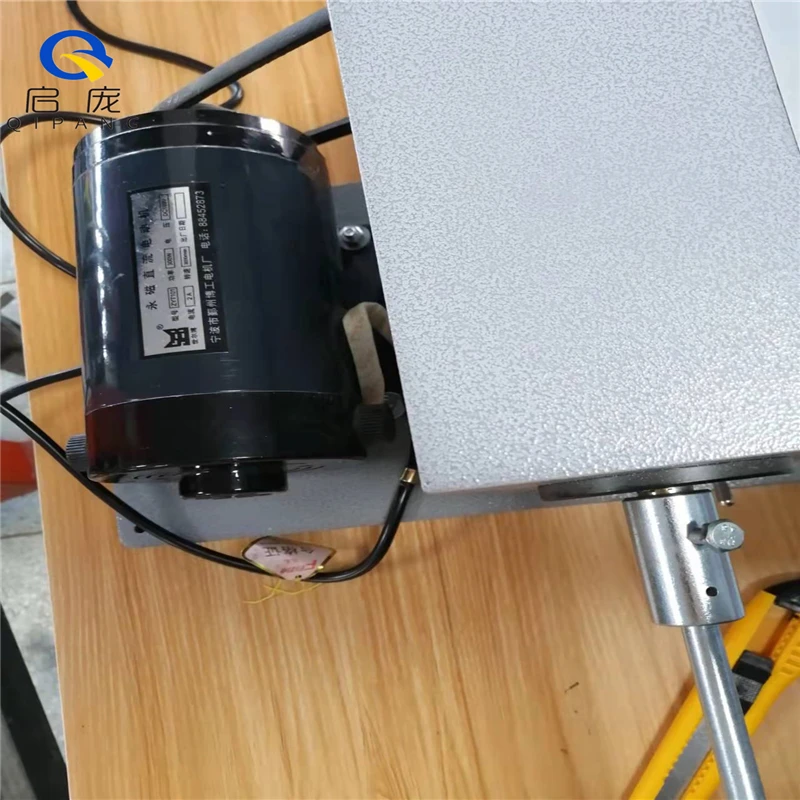

Winding shaft motor: DC motor 300W, 3000 rpm
Large diameter of coils that can be wound: 120mm
Large width of coils that can be wound: 100mm
Winding diameter: 0.1-1mm
Counting range: 0-59999 circles
Winding shaft speed: stepless speed regulation is as high as 2200 rpm
The number of windings can be set: 1-20 groups
Counting resolution: 1 circle











Specification


Maximum diameter of winding coil
120mm
Maximum width of winding coil 120mm
100mm
Count range
0-59999 circles
Winding diameter
0.1-1mm

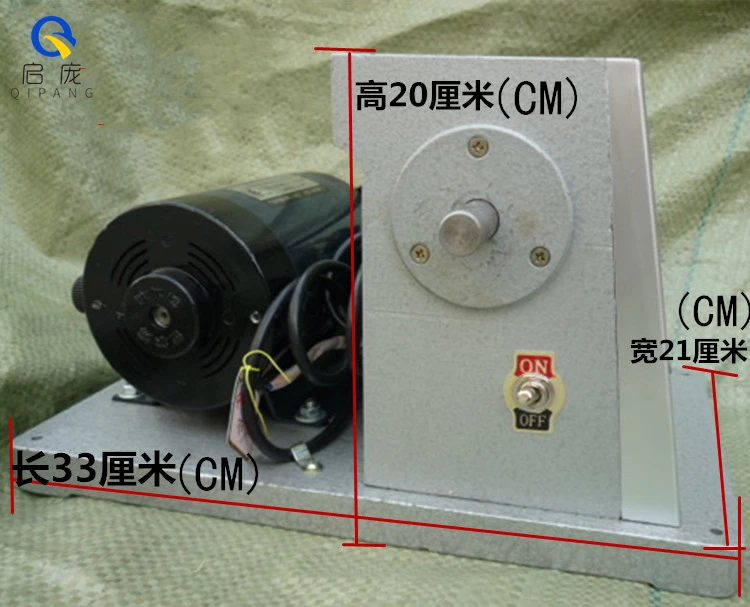

External dimension(length X width X height)
330mm x 210mm x 200mm
Net weight
4 kg
Brand
FEIYZHI


Related Product




Why Choose Us

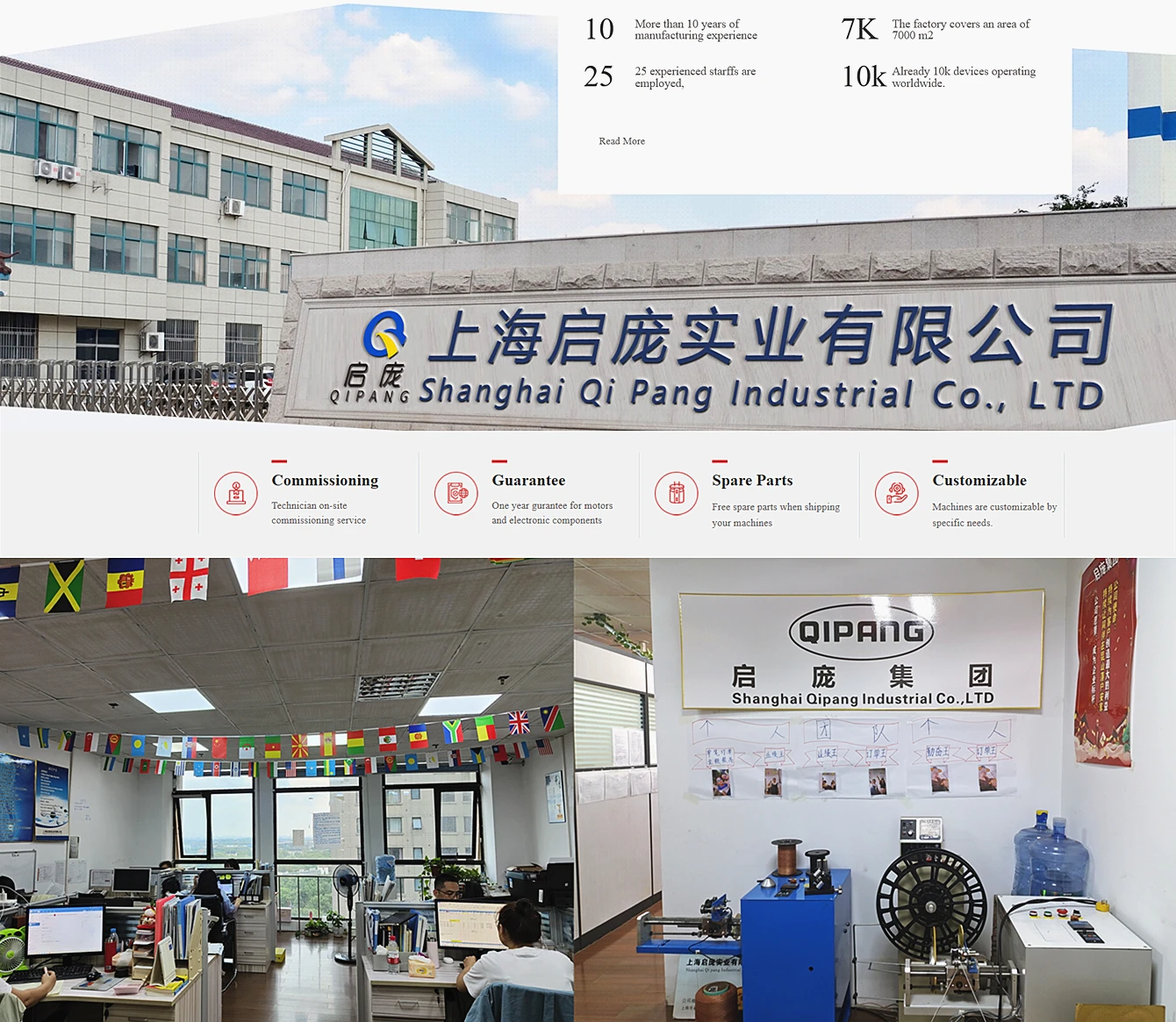

Shanghai Qibang Industrial Co., Ltd. Founded in 2008, with 13 years of experience, is a research and development, production, sales of winding machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.

We believe that quality is survival, so we only provide you the best products. High quality products, in line with international standards, well received by domestic and foreign customers. All staff in our company are professionally trained, so we can recommend the most suitable equipment for you. Every machine has to pass strict inspection before it goes out.

Any questions about the machine will be answered within 24 hours. Welcome to be our new customer!

Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and rebar and tube cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.








Product packaging




FAQ


Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.

Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.

Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
