Лидер продаж, высокоскоростная автоматическая линия по производству цементных бумажных пакетов для низ клапанов
- Category: >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (1600416550149):
Product Overview
Description

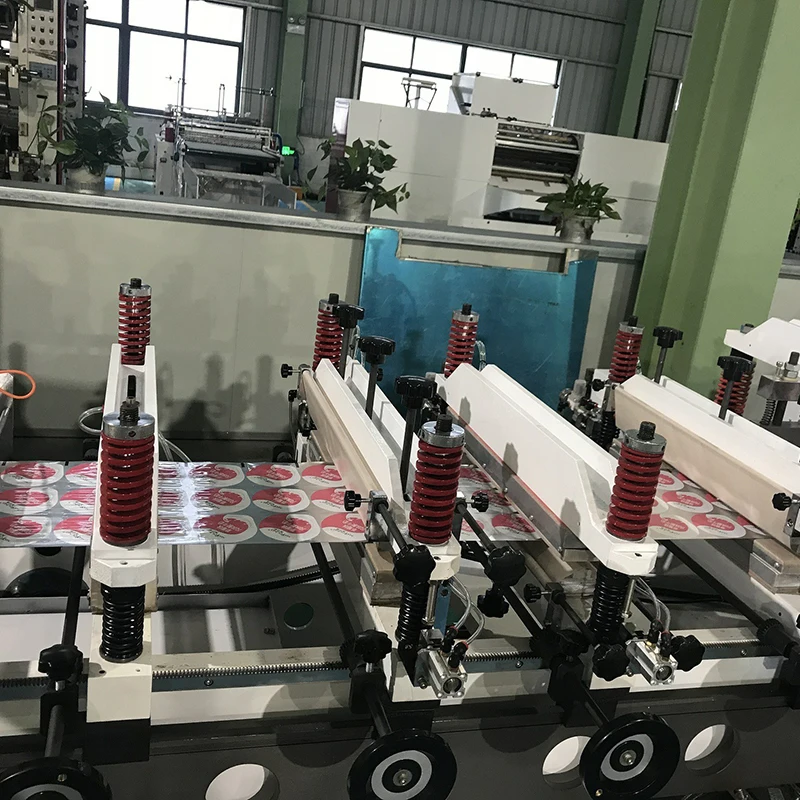

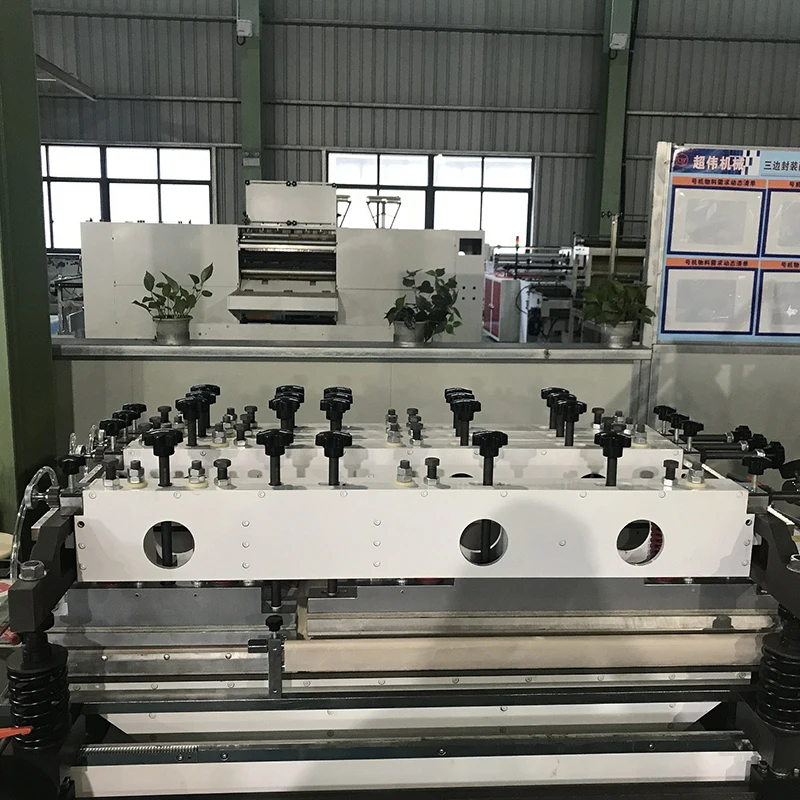

High-speed automatic cement paper bag production line for valve bottom-pasted sacks ,The tuber machine is with light, electricity, gas three-in-one high automatic production technology. The multi-layer bag can-making machine is designed to solve environmental pollution and conform to green environmental protection. It is suitable for 70-140 grams of kraft paper rolls, and the finished products such as automatic forming and middle seam gluing according to the size required by the customer can be output at one time. It has the characteristics like human-computer interface adjustment (Touch screen control), Frequency control, Precision Servo, PLC programming control systems, Automatic counting, Alarming system for security production etc.
Product Category | Paper Cement Packing Bag Making machine |
Voltage | 380V |
Power | 25KW |
Size | 19*2.2*2.1m |
Weight | 14000 KG |
Warranty Period | 1year |
Main Technical Parameters
1).Production capacity :Stable speed--60-100 pcs bag plain end bag tubes / min(the production speed is determined by the bag length and the quality of paper)
2).Finished bag width:380-630mm, free adjustment (Customized in bag size range)
3).Bag side:Straight or folding side (“M” side gusset width size: 0-140mm)
4).Bag length:Free adjusted,PLC servo control the cutting length.Touch screen freely set the length
5).Max layers:4(1-4 layers supported)
6).Total Power:25 KW
7).Machine Dimensions:Length15m×Width2.4 m× Height 2.1m
8).Machine weight:14 ton(around)
9).Operators:1- 2
10) .Power supply condition:380V,50HZ,3P ,4 L,AC
11).Control method:DELTA servo control system
12).Outer layer Material:Kraft Paper (White, brown, yellow, pink etc.)
13).Inner layer Material:Kraft Paper, PE film, Metal Foil Paper
14). Kraft paper gram weight:75-120 gsm
15).Max diameter of paper reel:1200mm
16).Max paper width:1250mm
17).Paper reel inner core diameter:76mm
18). Cutting bags counting:Automatic photoelectric counting
19).In line printer:Flexo Stagger Printer
20). Max Printing colors:6(1-6 colors supported)
Standard configuration:Quantity(set)
Paper roll feeding rack:4
Six color printing unit:1
Central glue unit:1
Tube Shaping unit:1
Host unit(Cutting unit):1
Electric cabinet:2
Features
Fully automatic and high efficient
Automatic Printing
The products are widely used for packing powder materials or particulate materials, such as : Cement /building sacks food sacks,flour sacks milk powder sacks,annimal feed sacks,chemical sacks；package charcoal,flour,feed, animal food chemical, resin, fertilizer, sugar,
food, cement, powder products
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
