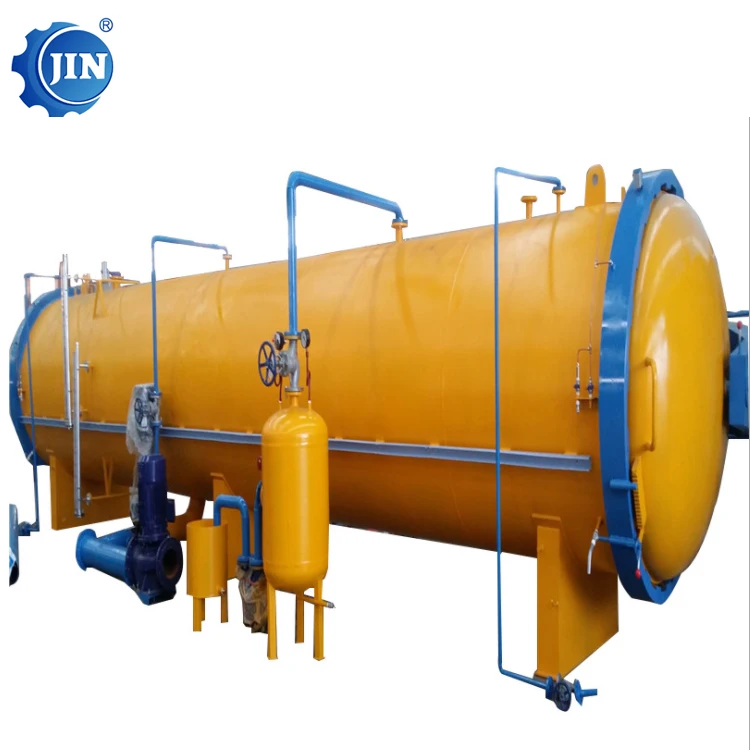

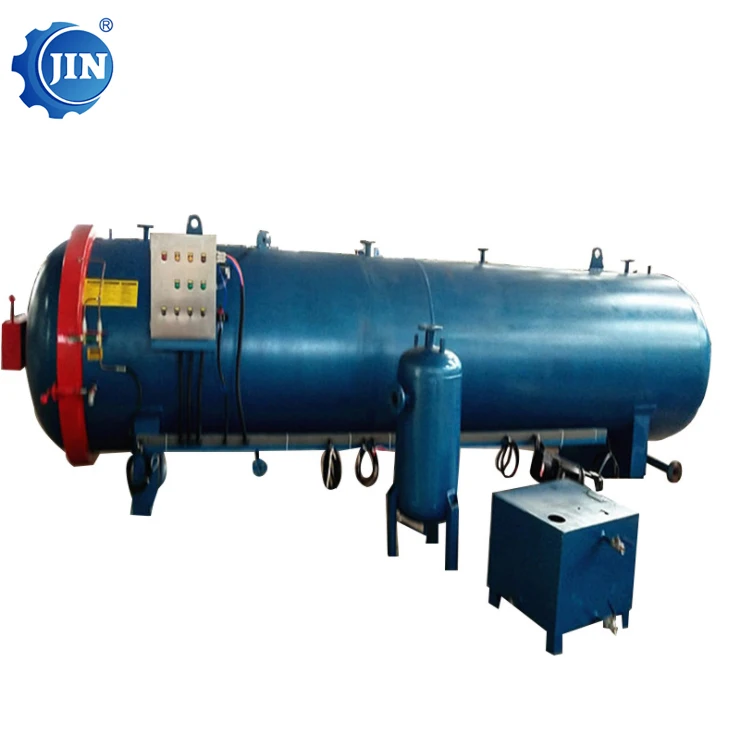

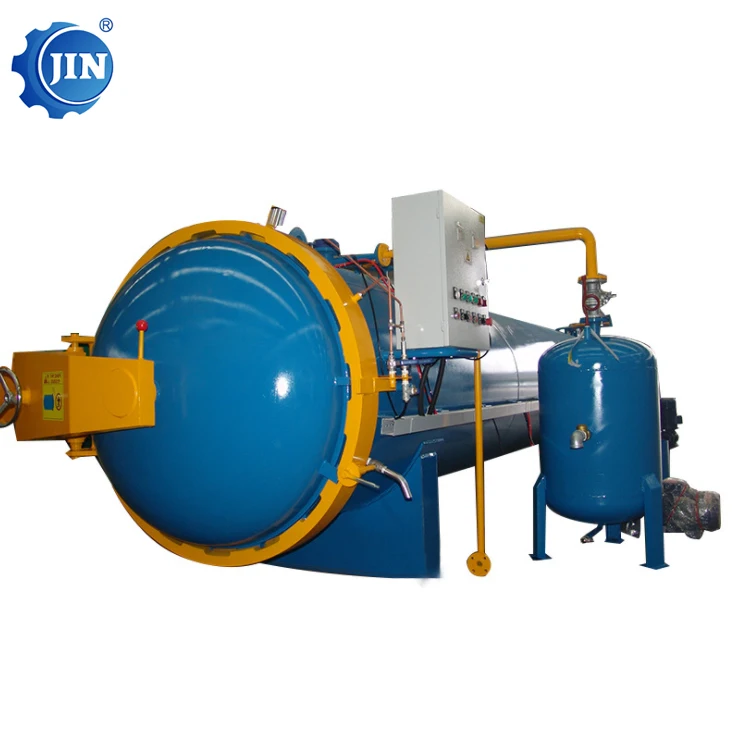

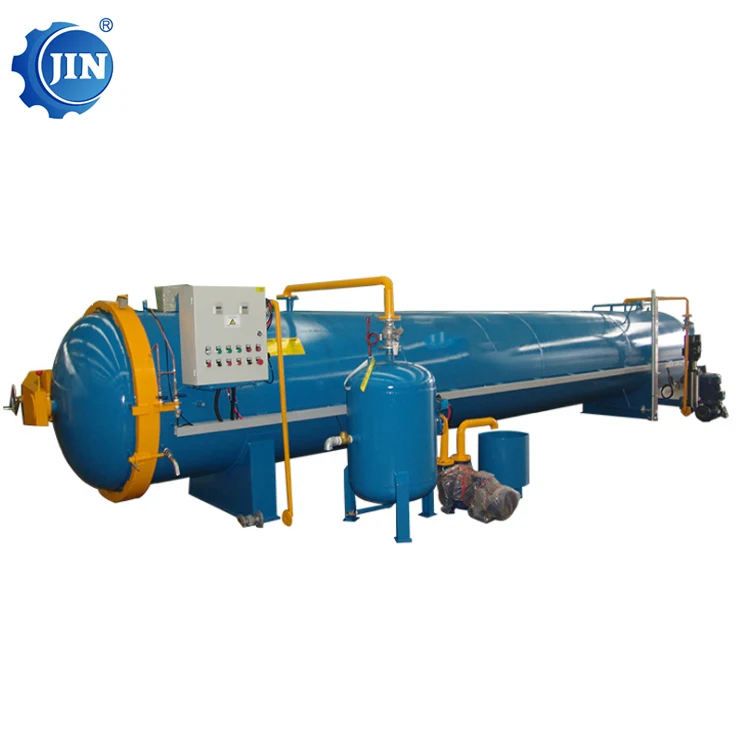

Timber Wood Drying Kiln Thermo Autoclave Pole Vacuum Pressure Treatment Seasoning Chemical Treatment Plant For Sale
- Category: >>>
- Supplier: Quanzhou Jin Cang Sheng Trading Co. Ltd.
Share on (1600417105940):
Product Overview
Description
Product Description
Country of origin: | China |
Power | 2.2KW customized product |
Size | 2.75*1.6*1.06M customized product |
Weight | 200KG customized product |
Material | 304SUS customized product |
Output | customized product |
Type | Cooking, sterilization, vulcanization, pencil equipment, anti-corrosion, carbonization, |
Suitable for | wood |
Color | Customised |
Machine introduction
Principle·Parameter·Technical Description
A series of operations such as vacuum, pressure, and heating are used, and then the corresponding concentration of anti-corrosion, flame-retardant, and dyeing liquids are injected into the wood cells through vacuum, high pressure, and frequency pressure to achieve anti-corrosion, moth-proof, termite-proof, and flame-retardant And dyeing and other effects.
Principle·Parameter·Technical Description
1 Equipment pressure: 01~4.0MPA 2 Vacuum degree: 0~-0.098MPA 3 Design temperature: 0~180 degrees Celsius
4 Working medium: water-soluble anti-corrosion, flame retardant, dyeing agent 5 years output: 5000 cubic meters to 20000 cubic meters
Principle·Parameter·Technical Description
Quick opening method: manual quick opening
2) Sealing method: inflatable silicone seal
Ring, the sealing effect is obviously better than other methods, the service life is more than 1 year
3) Safety interlock mode: ①Pressure automatic safety
Interlock ②Manual safety interlock
Control method: adopt electrical automatic control, PLC computer automatic control, manual control. Additional execution methods: indirect steam heating, guided oil heating, electric heating, direct steam heating 6) Vacuum method: vacuum pump automatically controls the tank
The degree of vacuum.
Pressurization method: the high-pressure pump automatically pressurizes the tank and stops automatically when the pressure reaches the pressure, and automatically pressurizes when the pressure is lower than the pressure.
8
Time mode: When the set working time is reached, the power will be automatically cut off and the alarm will be triggered. AN TAI
Principle·Parameter·Technical Description
A series of operations such as vacuum, pressure, and heating are used, and then the corresponding concentration of anti-corrosion, flame-retardant, and dyeing liquids are injected into the wood cells through vacuum, high pressure, and frequency pressure to achieve anti-corrosion, moth-proof, termite-proof, and flame-retardant And dyeing and other effects.
Principle·Parameter·Technical Description
1 Equipment pressure: 01~4.0MPA 2 Vacuum degree: 0~-0.098MPA 3 Design temperature: 0~180 degrees Celsius
4 Working medium: water-soluble anti-corrosion, flame retardant, dyeing agent 5 years output: 5000 cubic meters to 20000 cubic meters
Principle·Parameter·Technical Description
Quick opening method: manual quick opening
2) Sealing method: inflatable silicone seal
Ring, the sealing effect is obviously better than other methods, the service life is more than 1 year
3) Safety interlock mode: ①Pressure automatic safety
Interlock ②Manual safety interlock
Control method: adopt electrical automatic control, PLC computer automatic control, manual control. Additional execution methods: indirect steam heating, guided oil heating, electric heating, direct steam heating 6) Vacuum method: vacuum pump automatically controls the tank
The degree of vacuum.
Pressurization method: the high-pressure pump automatically pressurizes the tank and stops automatically when the pressure reaches the pressure, and automatically pressurizes when the pressure is lower than the pressure.
8
A series of operations such as vacuum, pressure, and heating are used, and then the corresponding concentration of anti-corrosion, flame-retardant, and dyeing liquids are injected into the wood cells through vacuum, high pressure, and frequency pressure to achieve anti-corrosion, moth-proof, termite-proof, and flame-retardant And dyeing and other effects.
Principle·Parameter·Technical Description
1 Equipment pressure: 01~4.0MPA 2 Vacuum degree: 0~-0.098MPA 3 Design temperature: 0~180 degrees Celsius
4 Working medium: water-soluble anti-corrosion, flame retardant, dyeing agent 5 years output: 5000 cubic meters to 20000 cubic meters
Principle·Parameter·Technical Description
Quick opening method: manual quick opening
2) Sealing method: inflatable silicone seal
Ring, the sealing effect is obviously better than other methods, the service life is more than 1 year
3) Safety interlock mode: ①Pressure automatic safety
Interlock ②Manual safety interlock
Control method: adopt electrical automatic control, PLC computer automatic control, manual control. Additional execution methods: indirect steam heating, guided oil heating, electric heating, direct steam heating 6) Vacuum method: vacuum pump automatically controls the tank
The degree of vacuum.
Pressurization method: the high-pressure pump automatically pressurizes the tank and stops automatically when the pressure reaches the pressure, and automatically pressurizes when the pressure is lower than the pressure.
8
Time mode: When the set working time is reached, the power will be automatically cut off and the alarm will be triggered. AN TAI
Principle·Parameter·Technical Description
A series of operations such as vacuum, pressure, and heating are used, and then the corresponding concentration of anti-corrosion, flame-retardant, and dyeing liquids are injected into the wood cells through vacuum, high pressure, and frequency pressure to achieve anti-corrosion, moth-proof, termite-proof, and flame-retardant And dyeing and other effects.
Principle·Parameter·Technical Description
1 Equipment pressure: 01~4.0MPA 2 Vacuum degree: 0~-0.098MPA 3 Design temperature: 0~180 degrees Celsius
4 Working medium: water-soluble anti-corrosion, flame retardant, dyeing agent 5 years output: 5000 cubic meters to 20000 cubic meters
Principle·Parameter·Technical Description
Quick opening method: manual quick opening
2) Sealing method: inflatable silicone seal
Ring, the sealing effect is obviously better than other methods, the service life is more than 1 year
3) Safety interlock mode: ①Pressure automatic safety
Interlock ②Manual safety interlock
Control method: adopt electrical automatic control, PLC computer automatic control, manual control. Additional execution methods: indirect steam heating, guided oil heating, electric heating, direct steam heating 6) Vacuum method: vacuum pump automatically controls the tank
The degree of vacuum.
Pressurization method: the high-pressure pump automatically pressurizes the tank and stops automatically when the pressure reaches the pressure, and automatically pressurizes when the pressure is lower than the pressure.
8
Company Profile
Jincangsheng Trading Co., Ltd
Jincangsheng Trading Co., Ltd., located in Quanzhou City, is a national leading high-tech enterprise. We focus on the R & D, production, sales and sales of machinery. At the same time, we integrate the supporting and follow-up systems into automatic packaging, packing, packaging and production line docking to form a professional integrated development model. With strong technical support, we also develop other non-standard control automation systems, Vision of S1: integration, win-win and innovation. "To build the first brand in China, we insist on" customers are committed to improving production efficiency and realizing automatic production. Reasonable cost, achieve the "cost" goal, and provide customers with high-quality products and professional services
Customer Photos
Certifications
Packing & Delivery
Customer feedback praise
FAQ
Q1: What is the guarantee of machine if we purchase from you?
A: Usually our guarantee is year from the delivery date .All spare parts are new from original supplier, which can make presise and quality.
Q2: About the machine Voltage or Power of machine?
A: All different voltage, Hz and phase from different countries and locals, please tell us, we can customize suitable motors according to your local.
Q3: All motors like electric motor are good quality?
A: Yes, all electric motors adopts 100% pure copper motor.
Q4: Can you arrange your technicians to install the machine for us?
A: We can arrange the installation by video, email picture... Sure that we can arrange our technicians to help you install it in your country.
Q5: What payment ways do you accept?
A:/T, Western Union, Trade Assurance Order, LIC, D/P, etc.
Q6: What payment ways and Currency do you accept?
A:USD. EUR GBP JPY AUD CAD CHF DKK HKD NOK SEK SGD NZD etc.
Q7: When will you delivery?
A: Usually we can make the delivery within 3-15 working days according to the machine quantity after receive deposit or full payment. We have our own professio transportation team
no matter by Air, Sea, Rail). And all goods we can pay the Insurance for you.
A: Usually our guarantee is year from the delivery date .All spare parts are new from original supplier, which can make presise and quality.
Q2: About the machine Voltage or Power of machine?
A: All different voltage, Hz and phase from different countries and locals, please tell us, we can customize suitable motors according to your local.
Q3: All motors like electric motor are good quality?
A: Yes, all electric motors adopts 100% pure copper motor.
Q4: Can you arrange your technicians to install the machine for us?
A: We can arrange the installation by video, email picture... Sure that we can arrange our technicians to help you install it in your country.
Q5: What payment ways do you accept?
A:/T, Western Union, Trade Assurance Order, LIC, D/P, etc.
Q6: What payment ways and Currency do you accept?
A:USD. EUR GBP JPY AUD CAD CHF DKK HKD NOK SEK SGD NZD etc.
Q7: When will you delivery?
A: Usually we can make the delivery within 3-15 working days according to the machine quantity after receive deposit or full payment. We have our own professio transportation team
no matter by Air, Sea, Rail). And all goods we can pay the Insurance for you.
