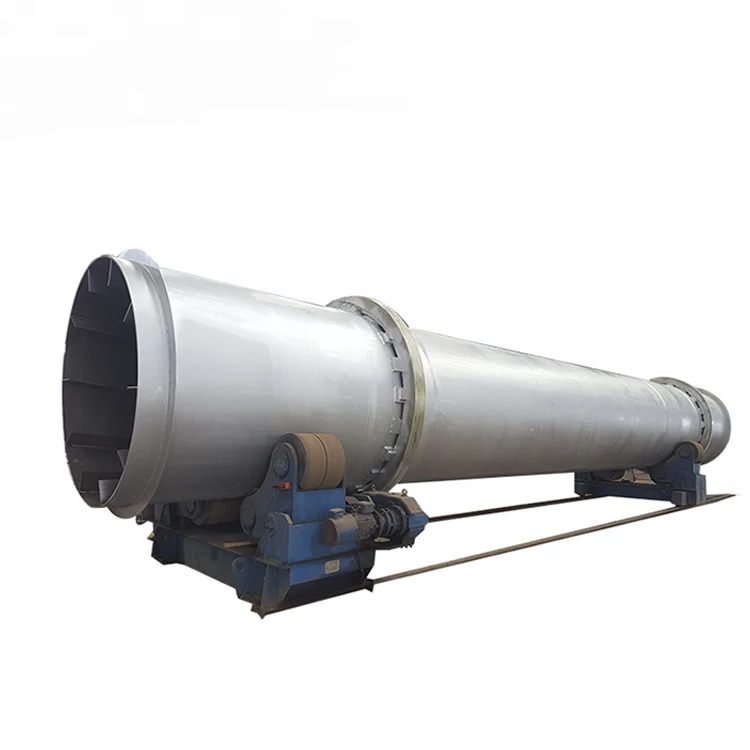

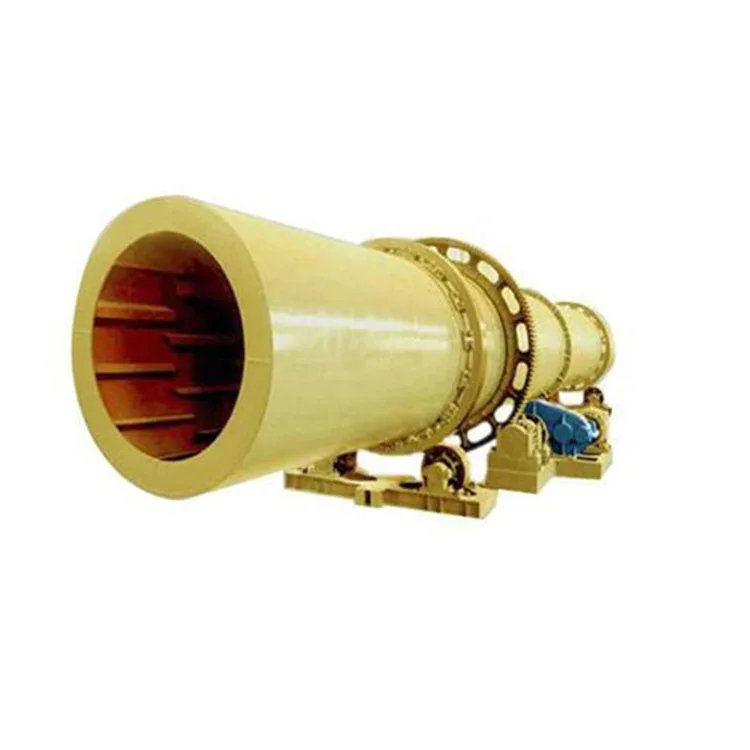

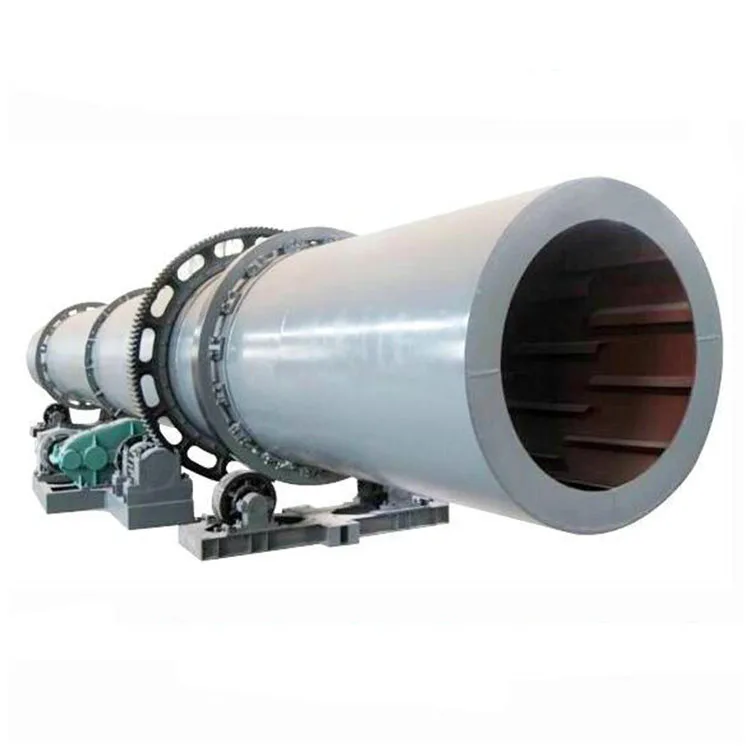

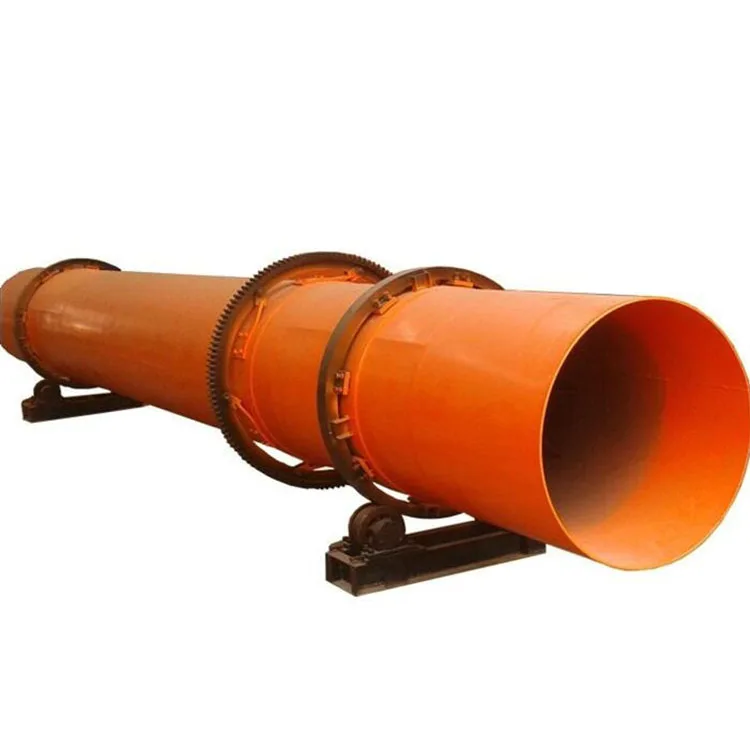

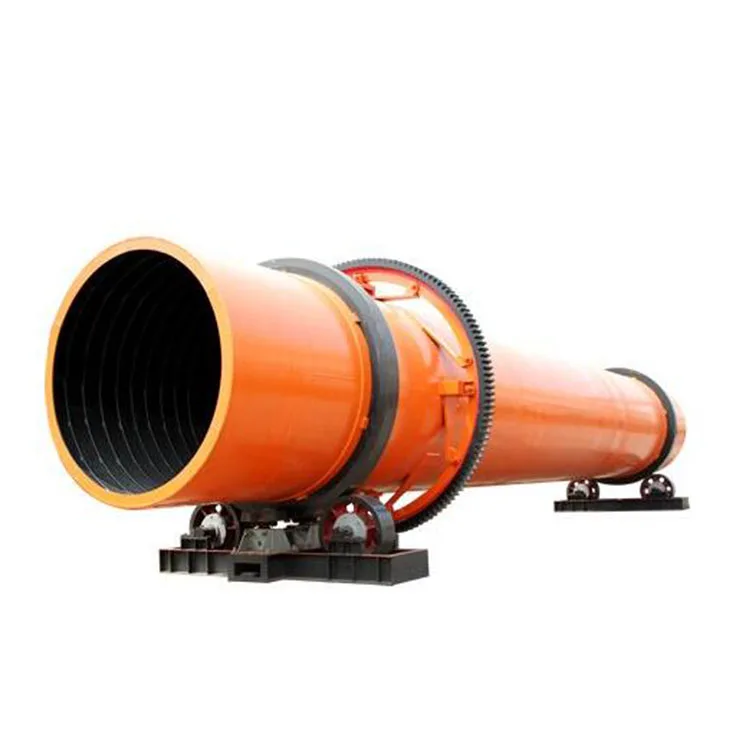

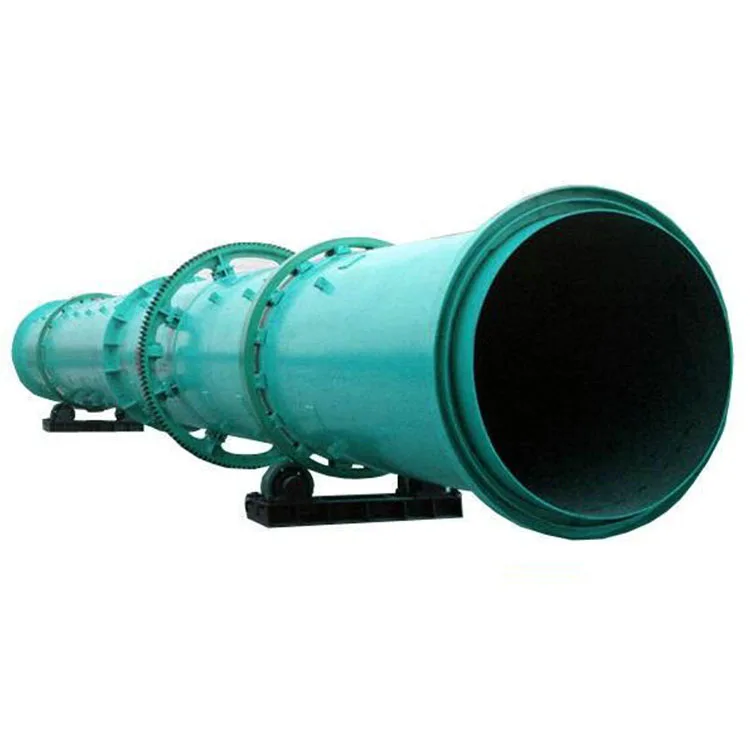

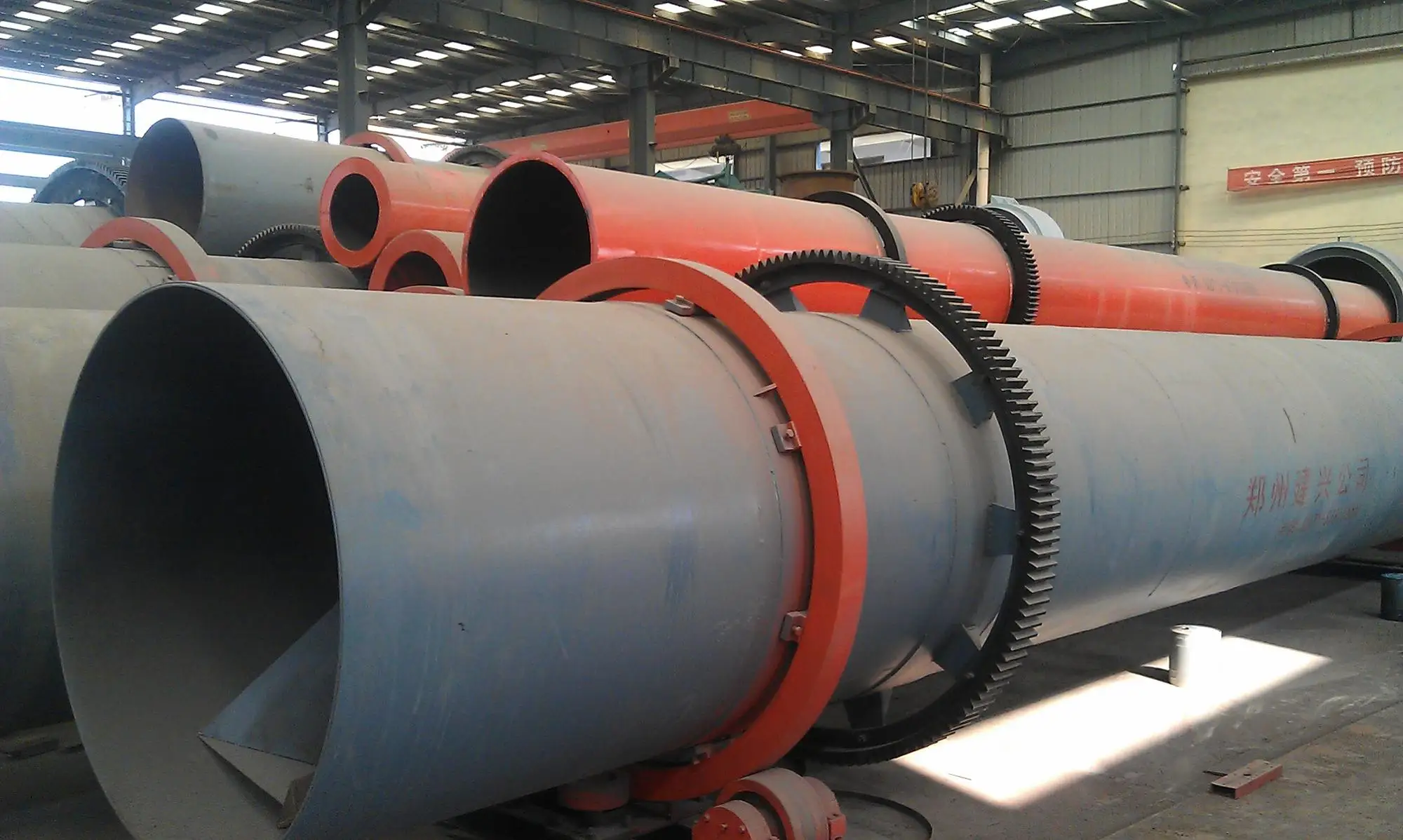

Good Quality Rotary Dryer For Drying Sawdust
Good Quality Rotary Dryer For Drying Sawdust is used for disposing a wide variety of materials. It enjoys features of reliable operation, high operation flexibility, good adaptability, large treatment volume and is widely used to dry materials with humidity or granularity in the industries of metallurgy, building materials, foodstuff, light industries, coal and chemical，etc.




Specification
Shell
Capacity(t/h)
Motor
Reducer
Weight(t/m)
I.D
Slope(°)
Speed
(r/min)
Model
Power
WSH12
1200
2.5
6.5
2.5-3
Y160M-6
7.5
ZQ500
13/12
WSH15
1500
2.5
5.0
4-5
Y180L-6
15
ZQ650
20/14
WSH18
1800
2.5
4.5
6-8
Y200L1-6
18.5
ZQ650
30/18
WSH20
2000
2.5
4.86
7-10
Y200L2-6
22
ZQ650
42/20
WSH22
2200
2.5
3.9
9-11
Y250M-6
37
ZQ750
48/22
WSH24
240
2.5
3.69
14-16
Y280S-6
45
ZQ850
69/24
WSH26
2600
2.5
3.48
16-18
Y280M-6
55
ZQ1000
84/26
WSH28
2800
2.5
2.89
20-22
Y315S-6
785
ZL115
100/28
WSH30
3000
2.5
2.69
22-24
Y315L1-6
110
ZL130
130/28
WSH32
3200
2.5
2.6
24-26
Y315M-4
132
ZSY450
138/25
WSH34
3400
2.5
4.0
26-28
Y315L2-4
200
ZI130
158/25
WSH41
4100
2.5
2.09
40-45
YKK4003-4
315
ZSY630
240/34


Working Principle

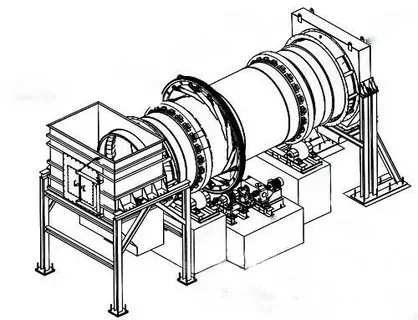

Detailed Images

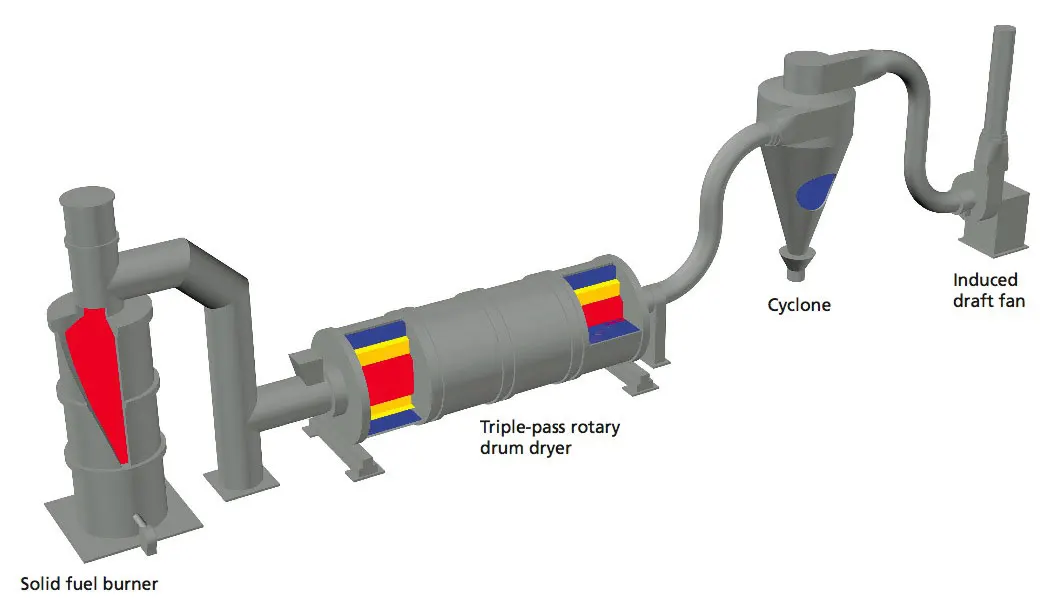

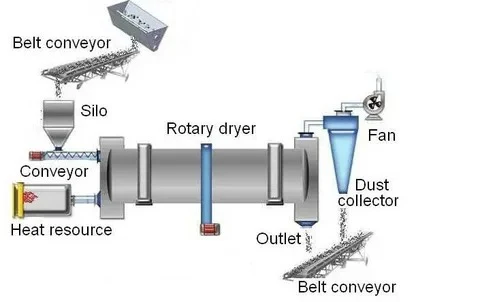

The wet materials are sent into silo by belt conveyor and bucket conveyor, then, the material pass through the feeding tube into the feed end. The gradient of feeding tube must be greater than the natural angle of materials. So that the material can enter into desiccator. The desiccators’ cylinder is an oblique rotating drum. Heat-carrier that enters into the dryer fror, the lower-end can form reflux with the material added from the upper end. With the rotating of cylinder materials are carried to the bottom end by gravity.In the moving process. Wet materials obtain the heat carrier directly and indirectly to be dried. Then the finished materials are sent out by belt conveyor and screw conveyor.





1.Materials are sent to the hopper of rotary
dryer by belt conveyor or bucket elevator


2.Materials enter the barrel installed with
slope to horizontal line from the higher side,and hot air enters the barrel from the lower side,and the materials and hot air mix
together


3.Materials go to the lower side by gravity when the barrel is rotating

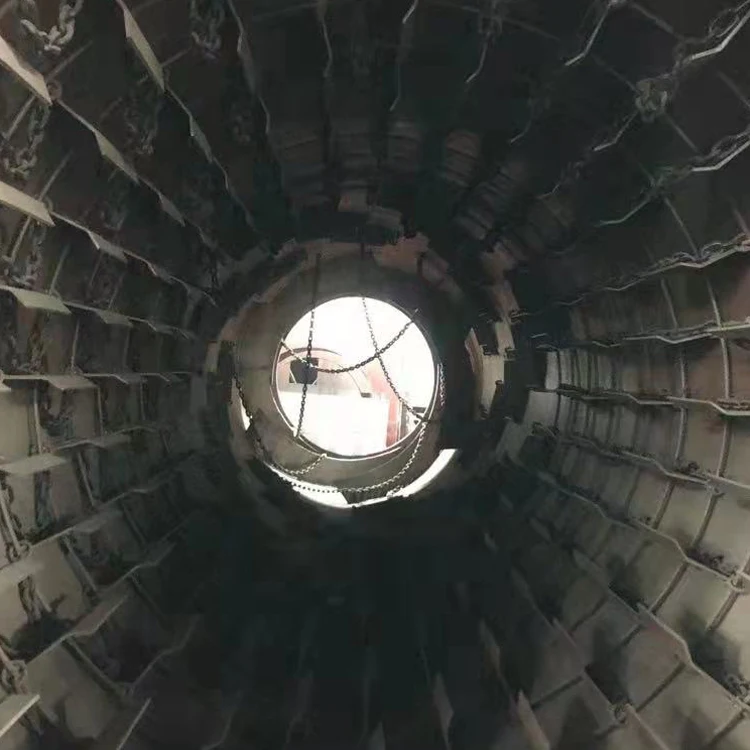

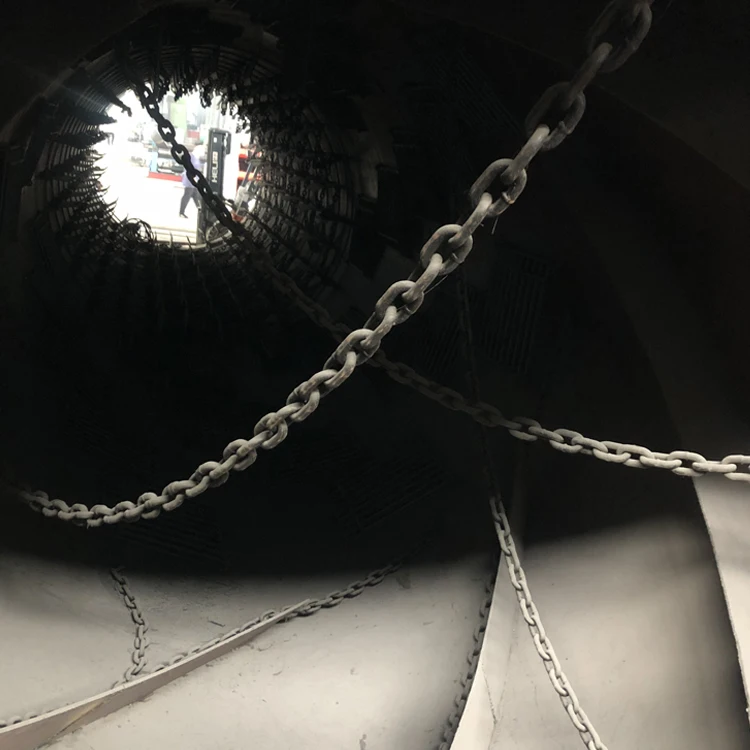

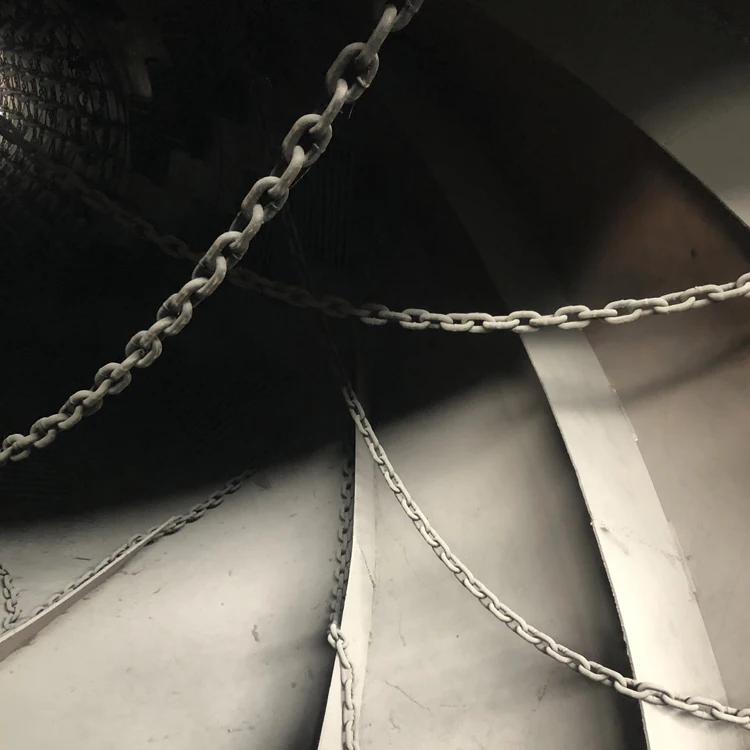

4.Lifters on the inner side of barrel lift
materials up and down in order to make materials and hot air mix completely,which is designed to improve the producing efficiency
of rotary dryer

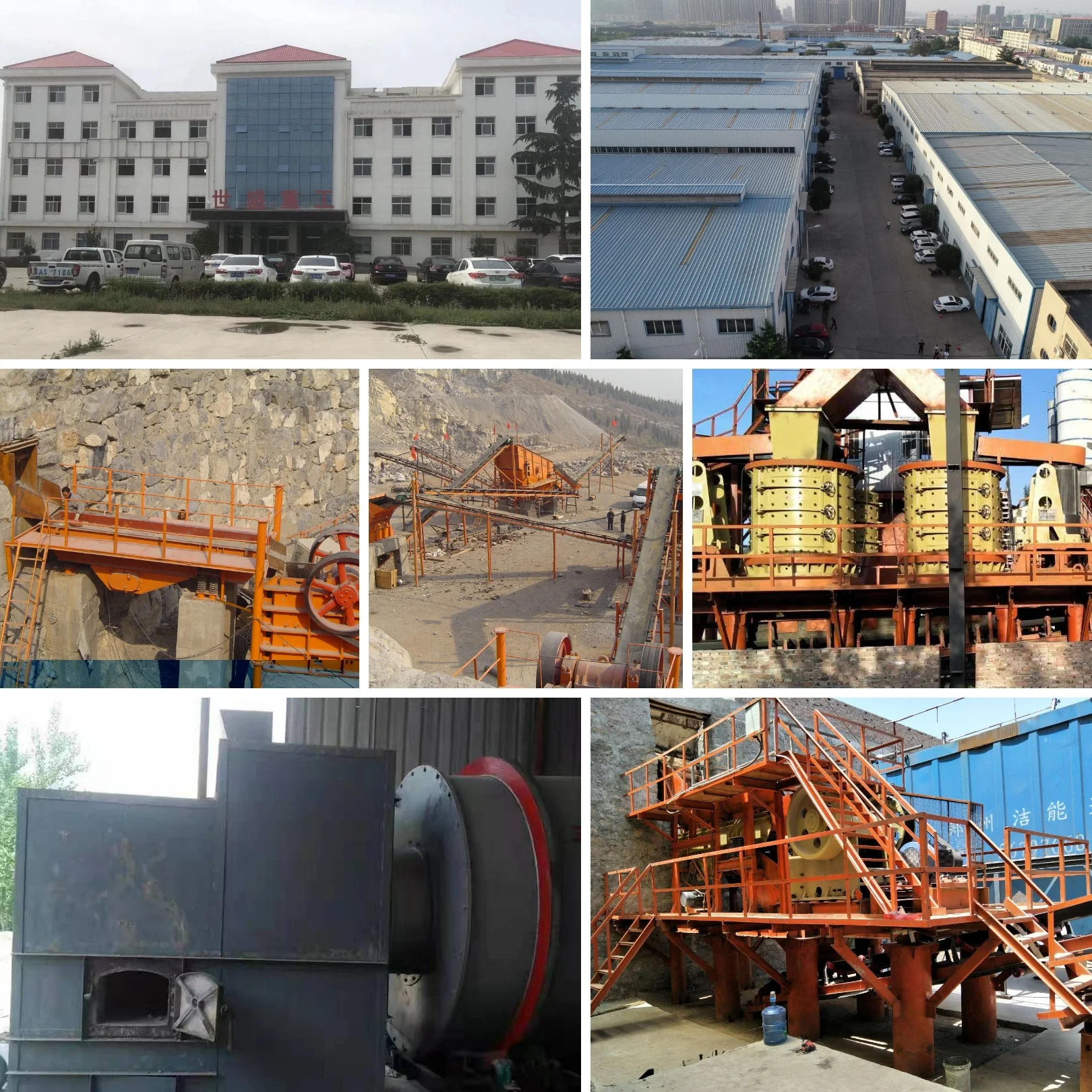

Company Profile
