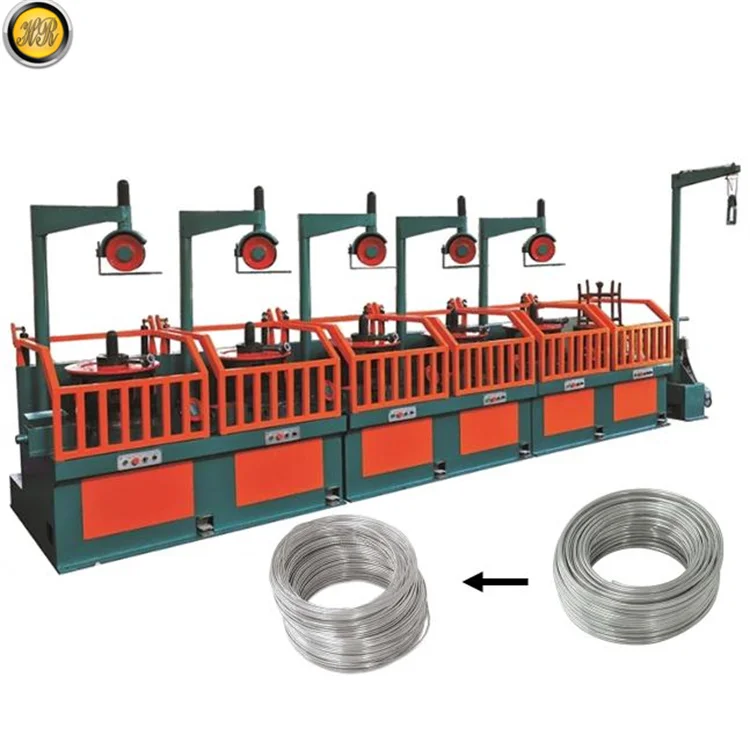

Automatic Fine Steel Wire drawing machine for Steel Wire Wire Drawing Machine Price for Nail Making

Product Overview

Description

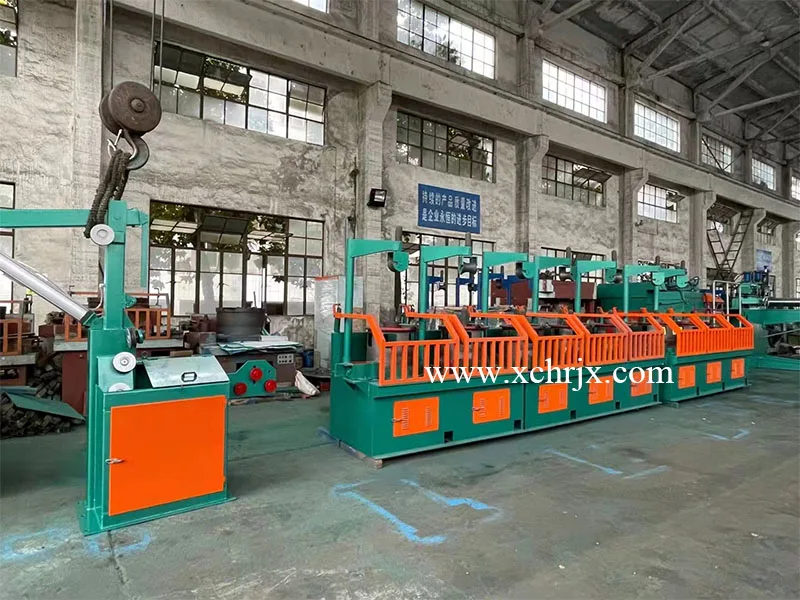

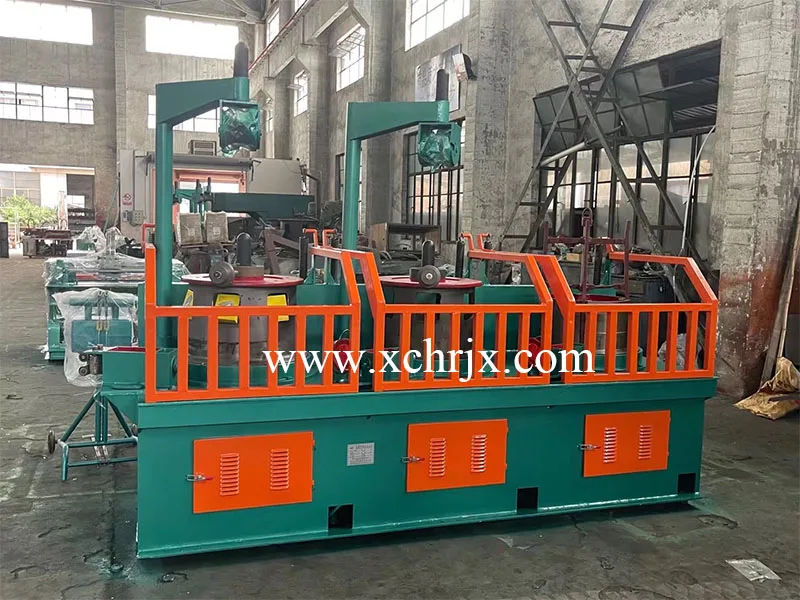

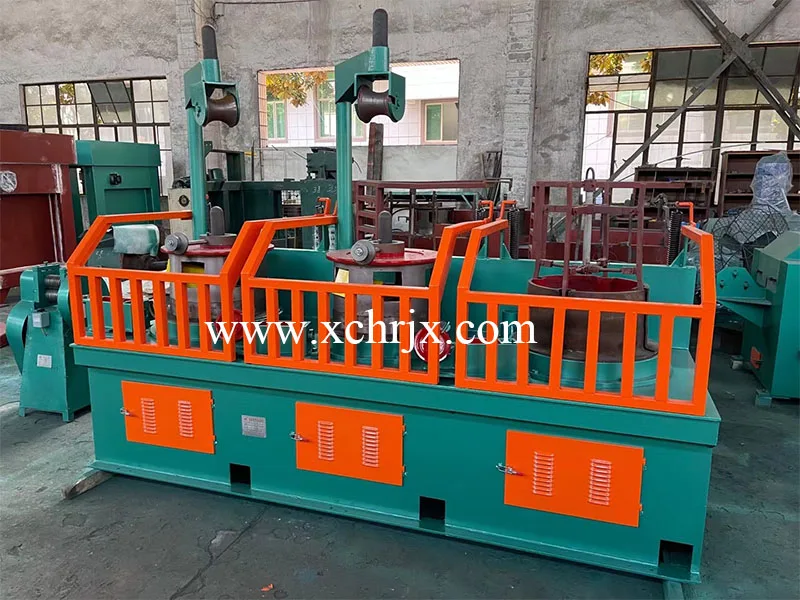

New Type Wire Drawing Machine for Making Nails

High Speed and Low Noise

Contact person: Sally Li

Cell/whatsapp/wechat: 0086 15638769216

Technical parameters:

Machine model	Reel diameter	Max. Inlet diameter	Min. Outlet diameter	Drawing speed	Unit Motor	Machine size
HSP-560	560mm	8-6.5mm	3-2.5mm	300m/min	22-37kw	6600*1700*2550mm
HSP-550	550mm	6.5-5.5mm	2.5-2.2mm	320m/min	15-18.5kw	6600*1550*2350mm
HSP-450	450mm	4-3mm	1.6-1.2mm	360m/min	11-15kw	6000*1500*2350mm
HSP-350	350mm	3-2mm	1.4-0.95mm	400m/min	4-7.5kw	4800*1200*2050mm





Auxiliary machines need for wire drawing machine:

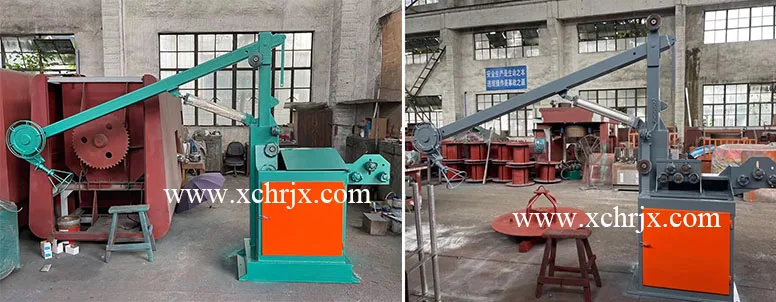

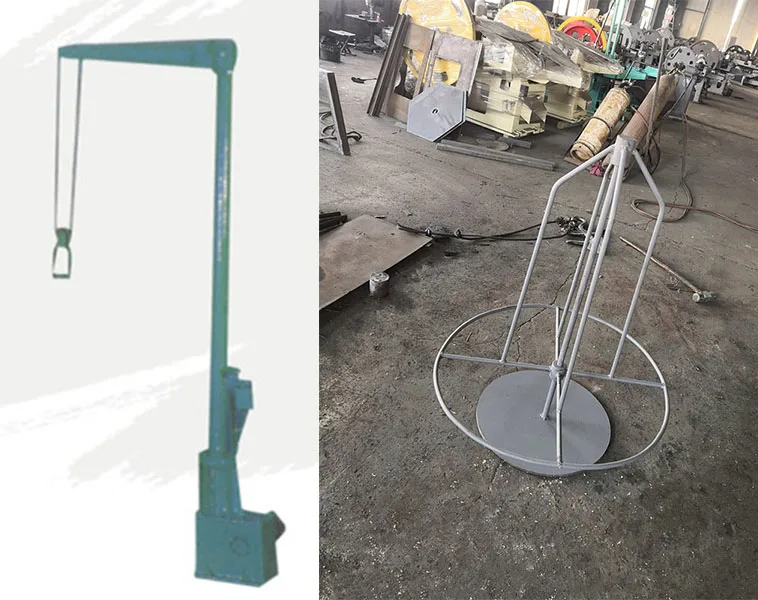

1. Wire pay off stand and Descaling machine:Before drawing wire, need this machine to remove Oxide scale on wire surface.

It has Top-drawing type pay-off rack and enclosed peeling machine. By using this machine, it is more convienent and can save space.

2. Machiens for takeup finished wire: three methods for take up finished wire.

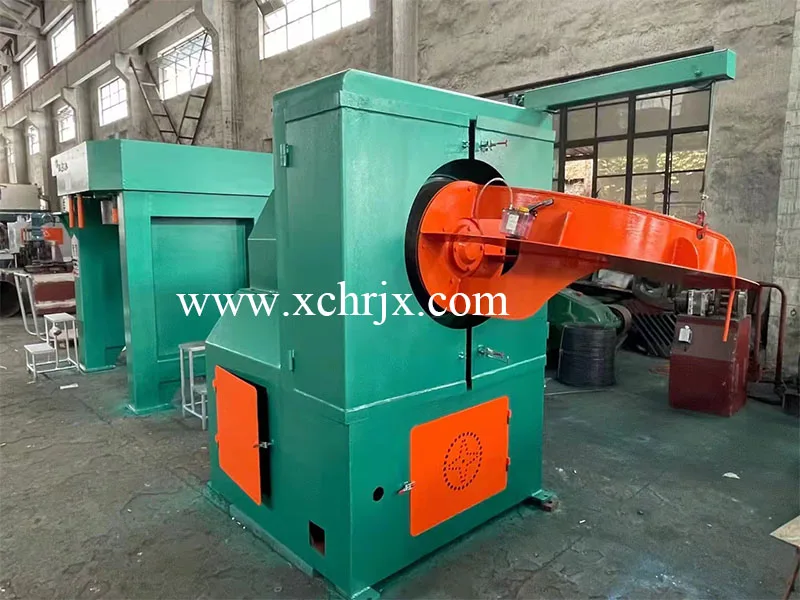

Method one: Automatic Elephant Trunk Type Discharging Machine

This machine is used for the continuous rewinding of the finished wire drawing machine. It is mainly composed of a frame, a reduction mechanism, a motor, a fixed reel, a winding reel, a straightening device, a transmission mechanism, a lead wheel, a motor-driven hydraulic thrower, and electrical appliances. It is composed of variable frequency control system and trolley wire rack.

Take-up diameter	1.6-4mm
Fixed roll diameter	600mm
Take-up tensile strength	no mre than 800mpa
Take-up weight	800-1000kg
Compression rate of fine drawing die	no mre than 12%
Take-up speed	150-300m/min
Matching motor	Y160-6/15kw Y180-6/18.5kw
Dimensions	2917*1470*2100mm
Total Weight	2300kg

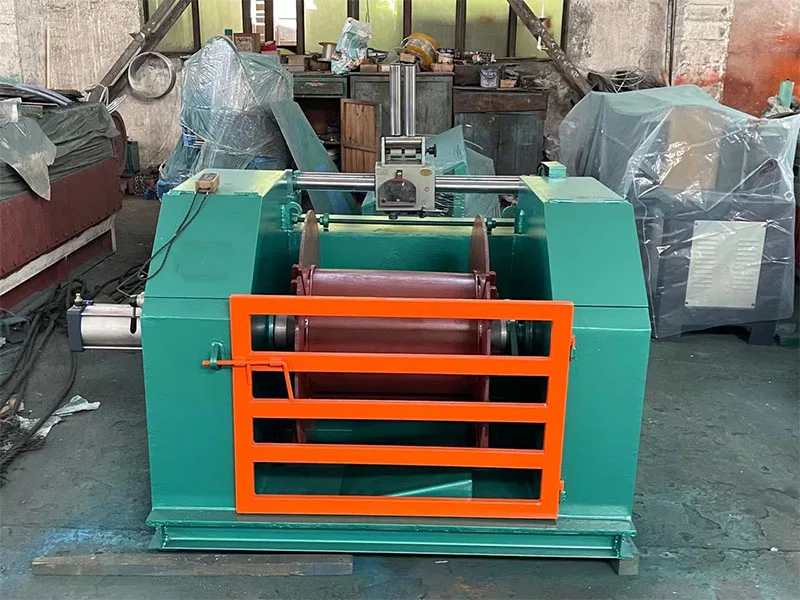

Method two: Spool take up



Method three: use unloading machine to unload finished wire from wire drawing machine, then put finished wire on wire reel for further use.

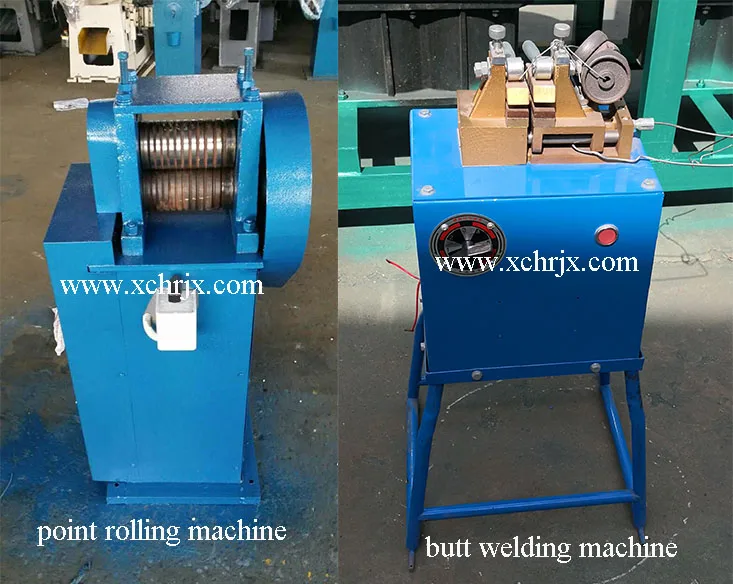

3.Pointing rolling machine: This machine is used to sharpen the head of the wire, then it can enter the wire drawing machine easily.

Model No.	Rolling pointed range	Motor power	Overall size	Weight
Pointing rolling machine	≤8mm	2.2kw	1.2*0.6*1.0m	80kg

Butt welding machine: This machine is used to weld two wires coil together. When one wire coil finish drawing, this machine can connect the next wire coil to continue to be drawn by the wire drawing machine.

Model No.	Butt weld range	Voltage	Weight
Butt welding machine	φ3-φ8mm	380V 50HZ	50kg

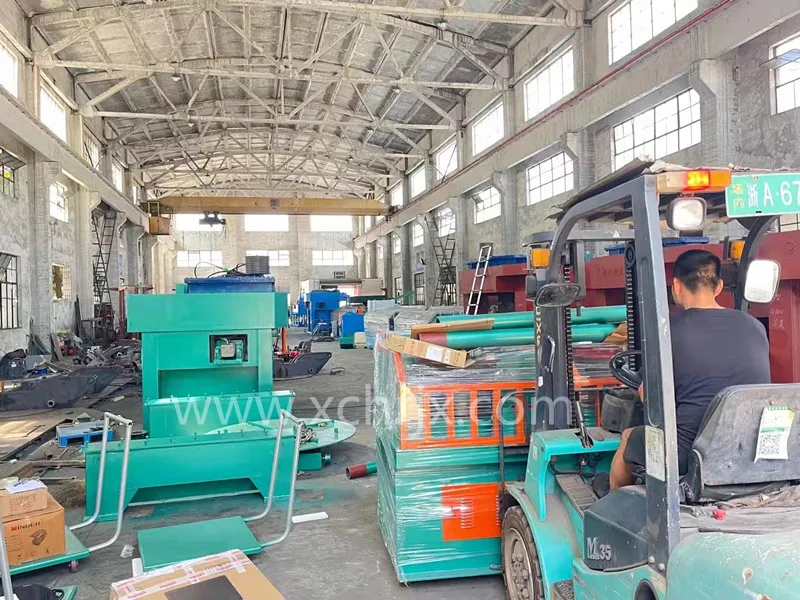

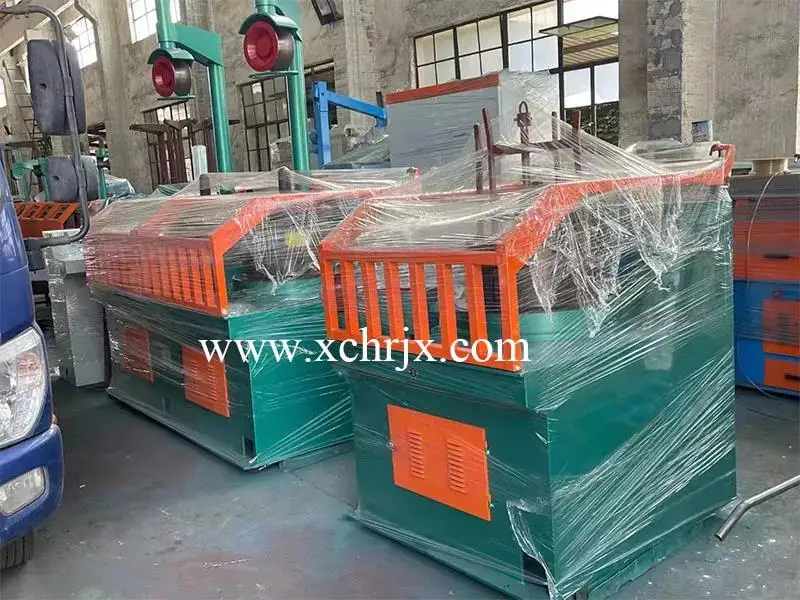

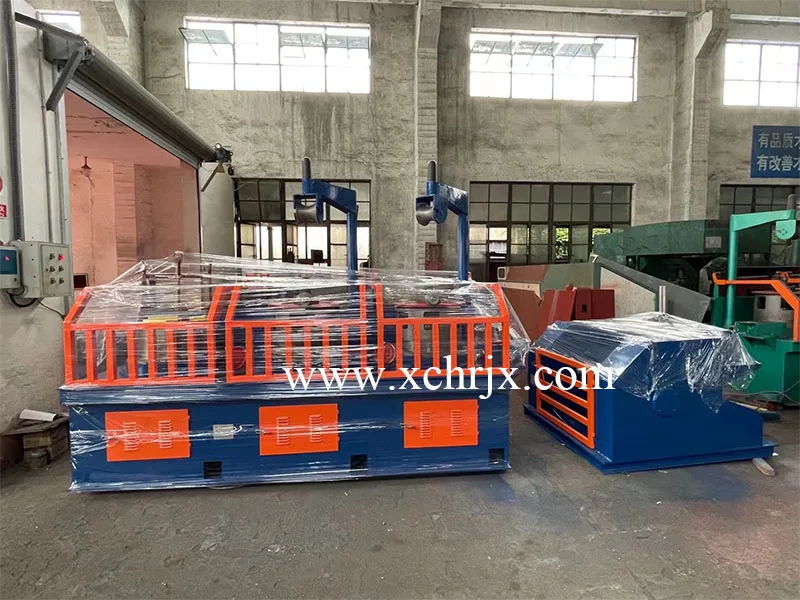

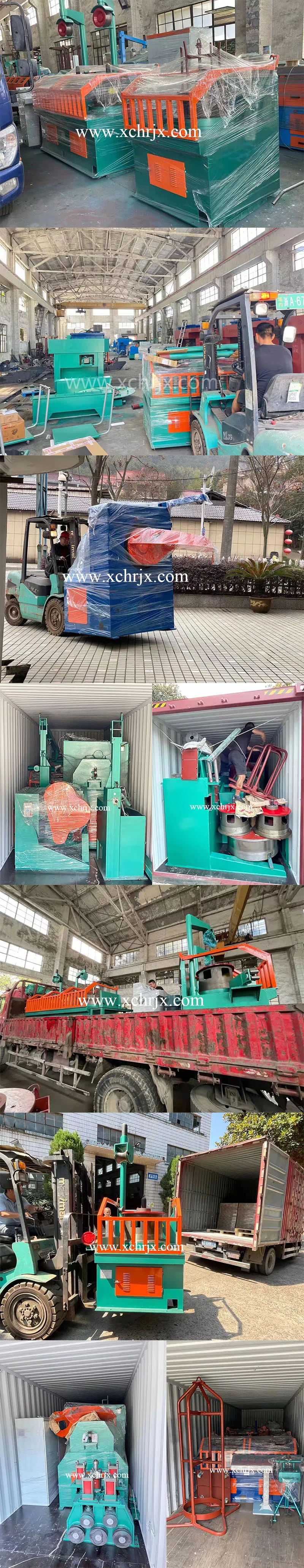

Packaging and shipping
