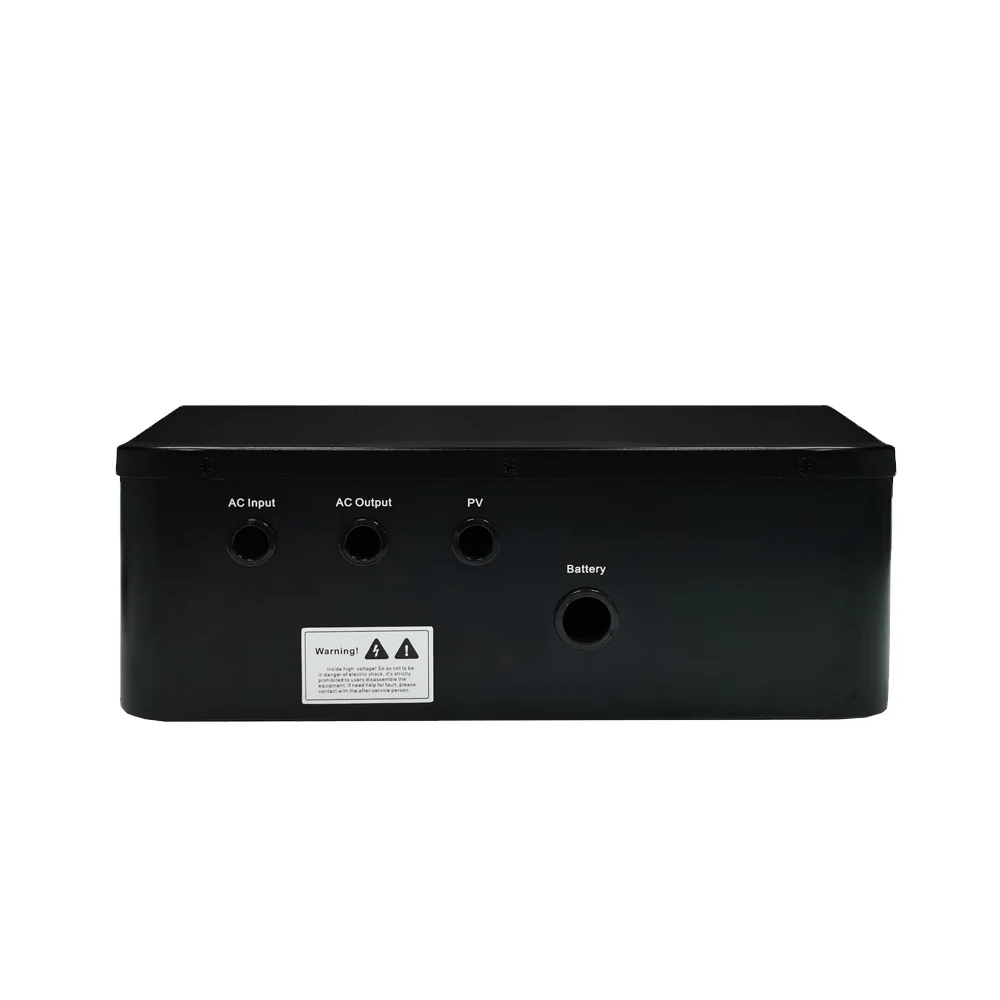

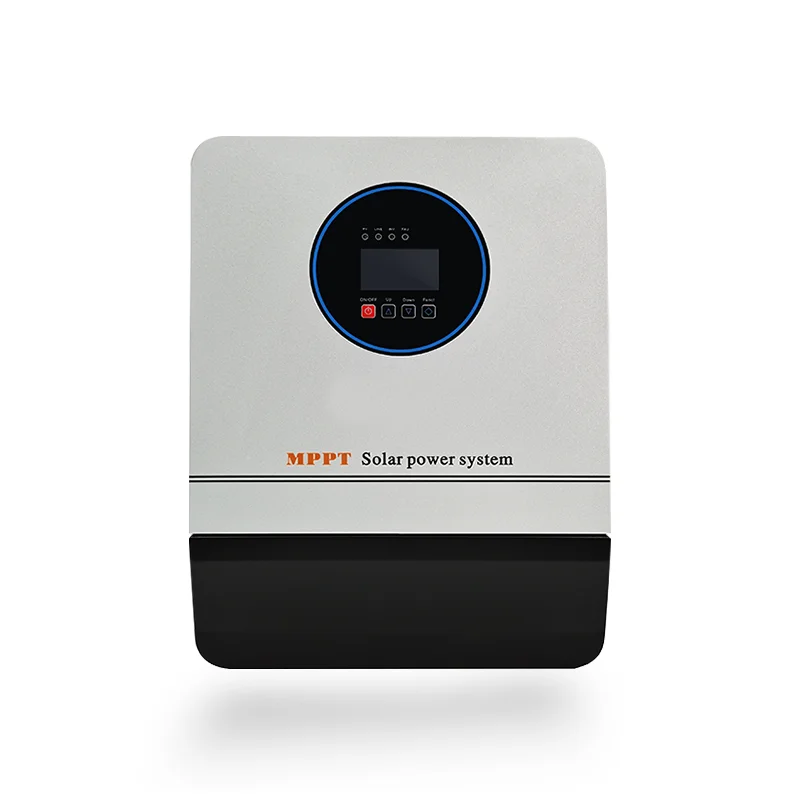

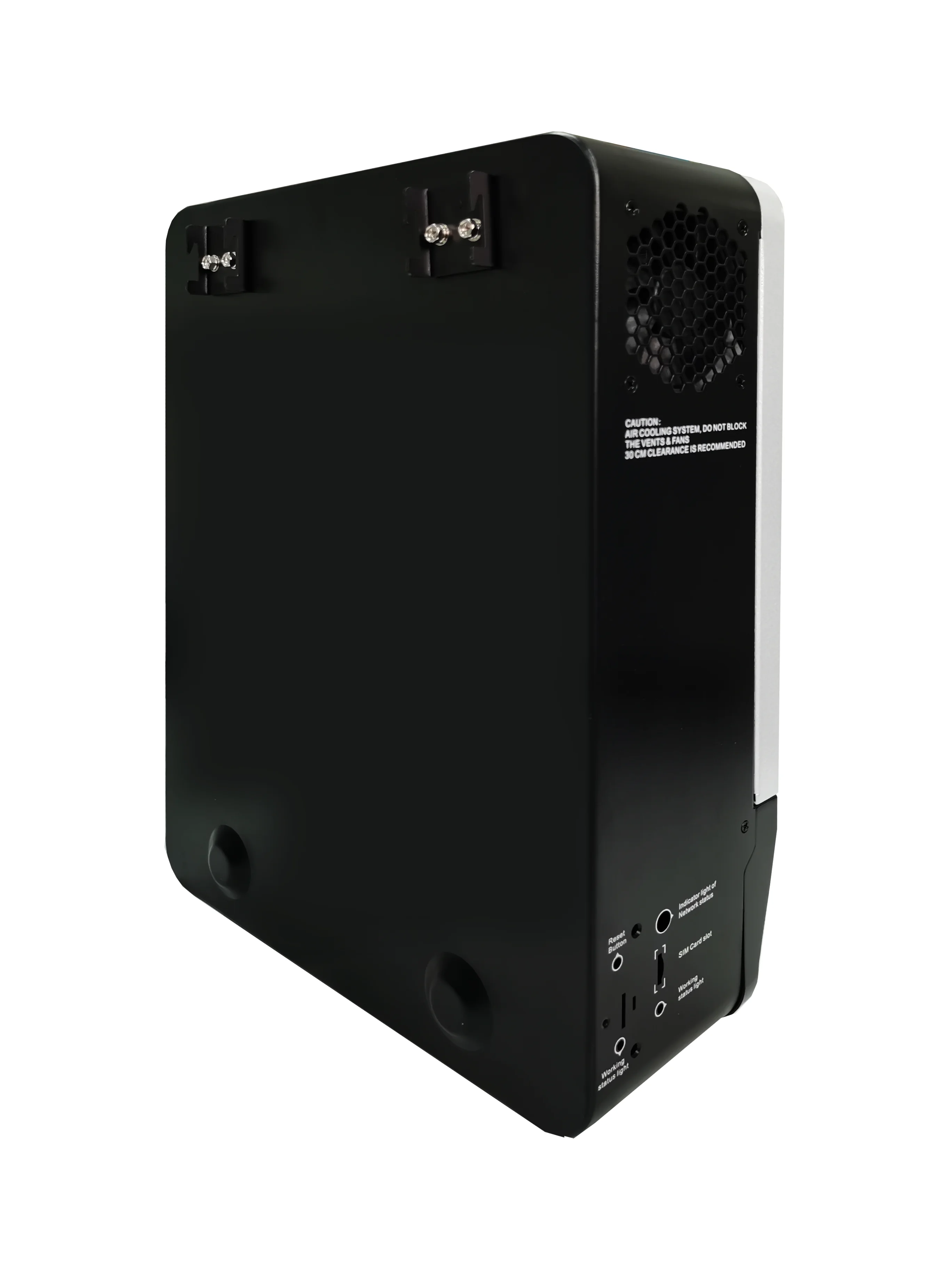

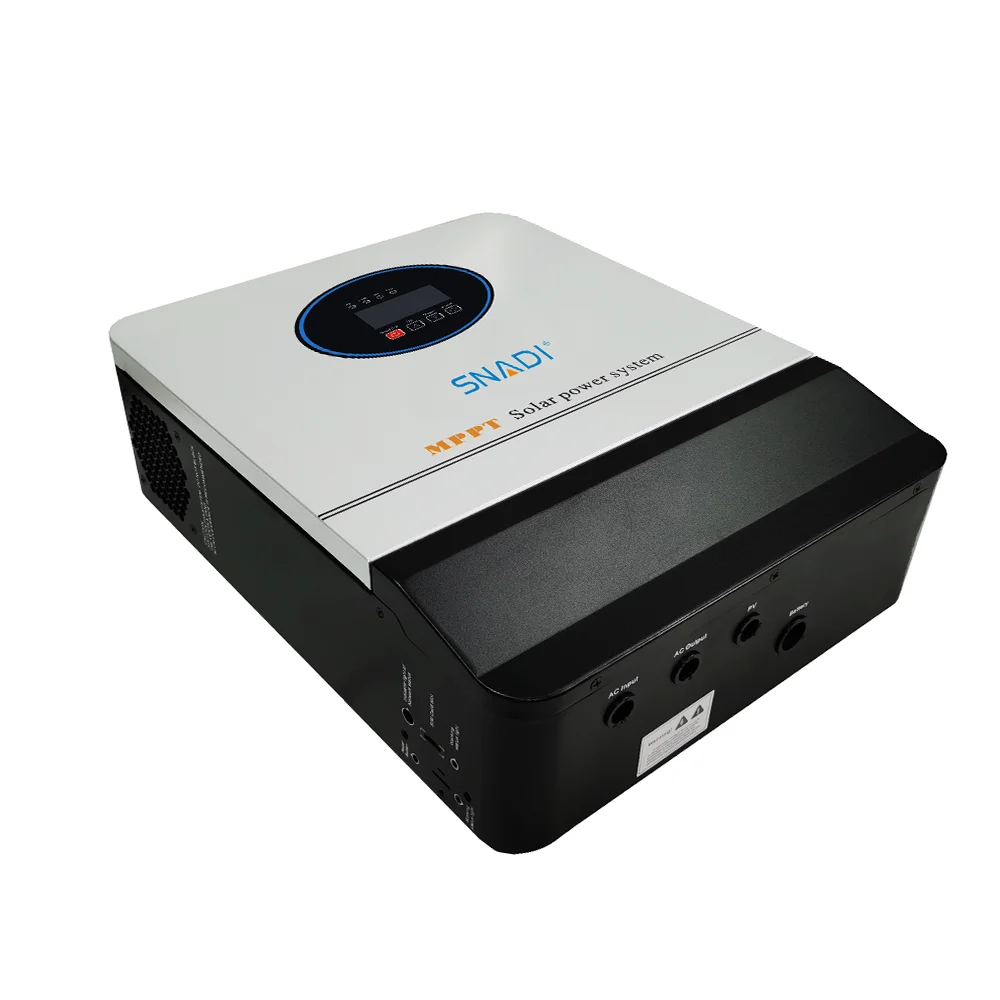

SNADI 48VDC 120VAC 240VAC 4000w 5000w 6000w off grid hybrid split phase solar inverter
- Category: >>>
- Supplier: Foshan SNAT Energy Electrical Technology Co. Ltd.
Share on (1600417159804):
Product Overview
Description
Product Detalis

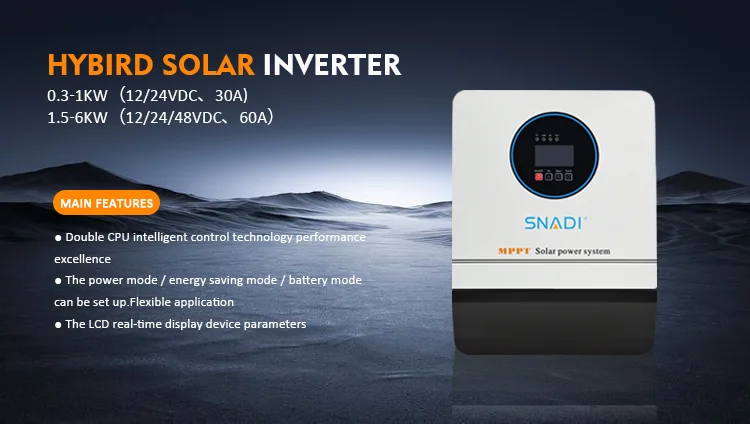

MAIN FEATURES
- Double CPU intelligent control technologyperformance excellence
- The power mode /energy saving mode /battery mode can be set up.Flexible application
- The LCD real-time display device parameters
Product Paramenters
Model:NKM- | 0.3-1KW | 1.5-6KW | ||||||||
300 | 700 | 1500 | 3000 | 5000 | ||||||
500 | 1000 | 2000 | 4000 | 6000 | ||||||
Battery | ||||||||||
Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | ||||||
Charge Current | 10A MAX | 30A MAX | ||||||||

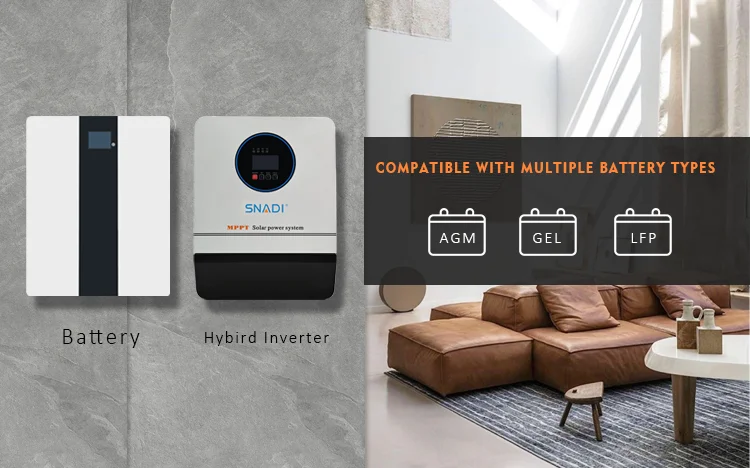

Battery Type | Can be set | |||||||||
Input | ||||||||||
Voltage Range | 73-138VAC/145-275VAC | 85-138VAC/170-275VAC | ||||||||
Frequency | 45-65Hz | |||||||||
Output | ||||||||||
Voltage Range | 110VAC/220VAC; +5%( Inverter mode) | |||||||||
Frequency | 50/60Hz±1%( Inverter mode) | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Change Time | ＜10ms（Typical Load） | |||||||||
Frequency | >85%(80% Resistive load) | |||||||||
Overcharge | 110-120%/30S;>160%/300ms; | |||||||||

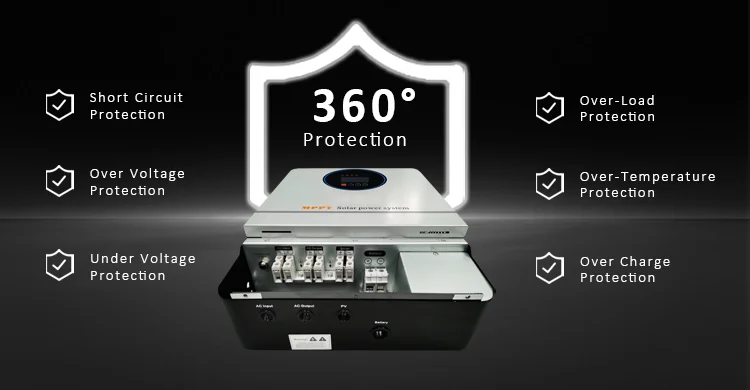

Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protectior | |||||||||
Solar Controller | ||||||||||
MPPT Voltage Range | 12VDC:15V-150VDC;24VDC:30V-150VDC:48VDC:60V ~150VDC | |||||||||
PV Power | 12VDC-30A(400W);24VDC-30A(800W) | 12VDC-60A(800W;24VDC-60A/1600W);48VDC-60A(3200W) | ||||||||
Rated Charge Current | 30A(Max) | 60A(Max) | ||||||||
MPPT Efficiency | ≥99% | |||||||||
Average Charging Voltage(lead acid battery) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||||||
Floating Charge Voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||||||
Operating Ambient Temperature | -15-+50°C | |||||||||
Storage Ambient Temperature | -20-+50℃ | |||||||||
Operating / storage Environment | 0-90% No Condensation | |||||||||
Dimensions: W*D*H(mm) | 420*321*125 | 545*461*170 | ||||||||
Packing size: W*D*H(mm) | 515*380*205 | 645*555*260 | ||||||||
MAIN FEATURES
- The power mode /energy saving mode / battery mode can be set up,Flexible application;
- Smart fan control, safe and reliable;
- The pure sine wave output, can adapt to various types of load:
- Smart fan control, safe and reliable;
- The pure sine wave output, can adapt to various types of load:
- Wide input voltage range,high-precision output automatic voltage function.;
- The LCD real-time display device parameters running status at a glance;
- The output overload, short circuit protection, automatic protection and alarm;
- The intelligent MPPT solar controller, overcharge,overdischarge protection,current limiting chargingmultiple protection;
- Built-in GPRSlWlFl wireless network module, which can control working status remotely through mobile;
- APP or computer ; (optional)
- Built-in GPRSlWlFl wireless network module, which can control working status remotely through mobile;
- APP or computer ; (optional)

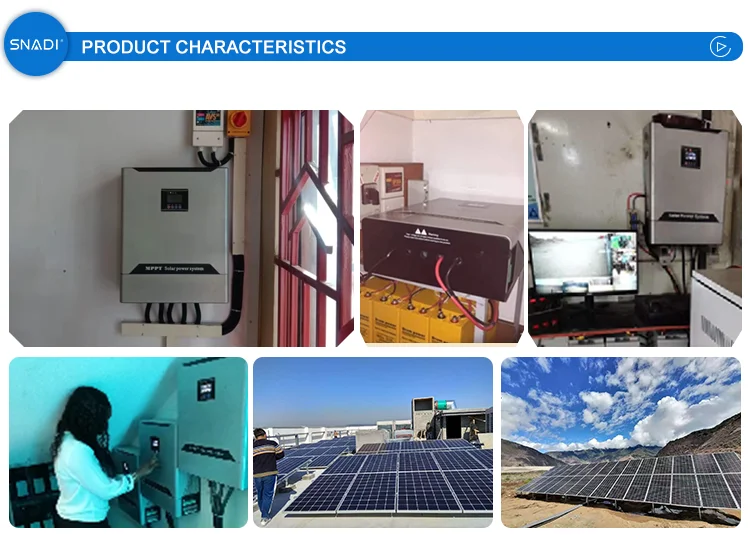

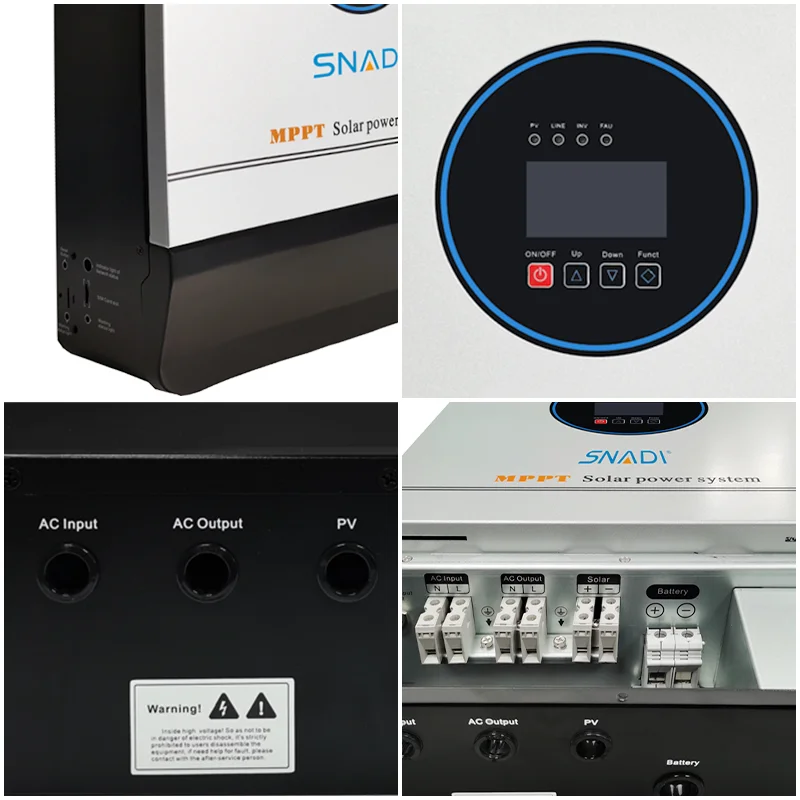

PRODUCT CHARACTERISTICS
FAQ
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
