High frequency cardboard gluing machine fully automatic hard book cover making machine
- Category: >>>
- Supplier: Zhengzhou Sielle Machinery Equipment Co. Ltd.
Share on (1600417217309):
Product Overview
Description
Product Description

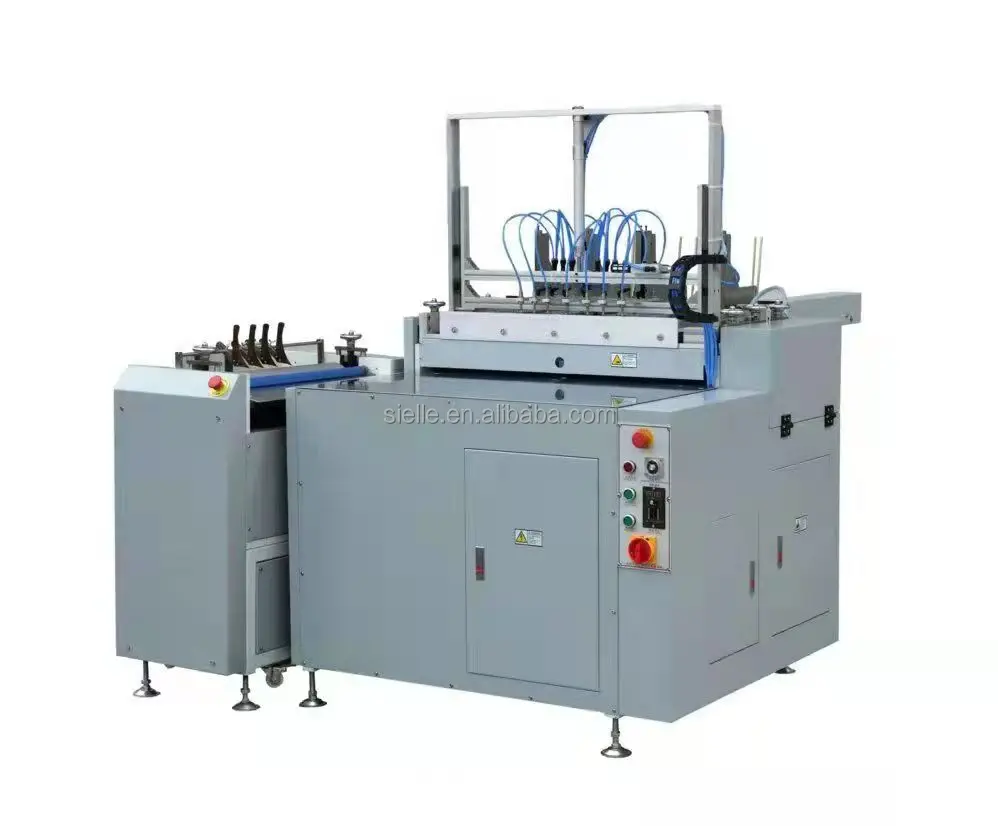

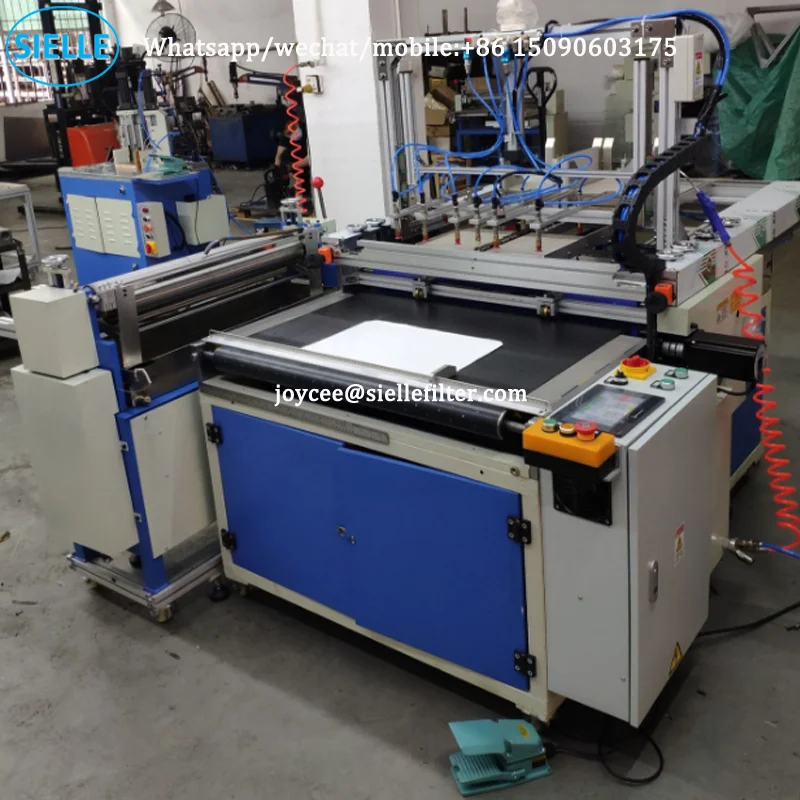

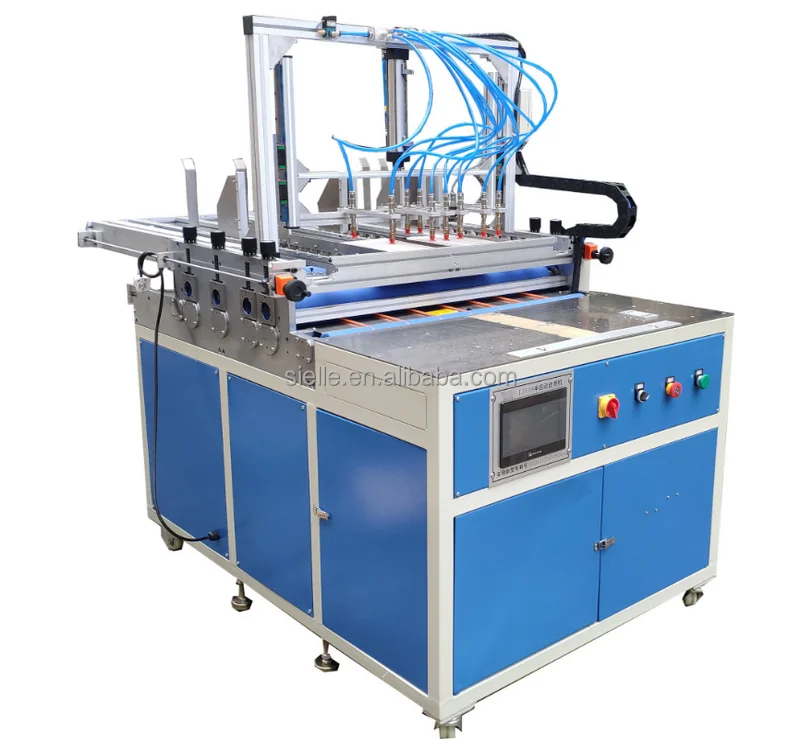

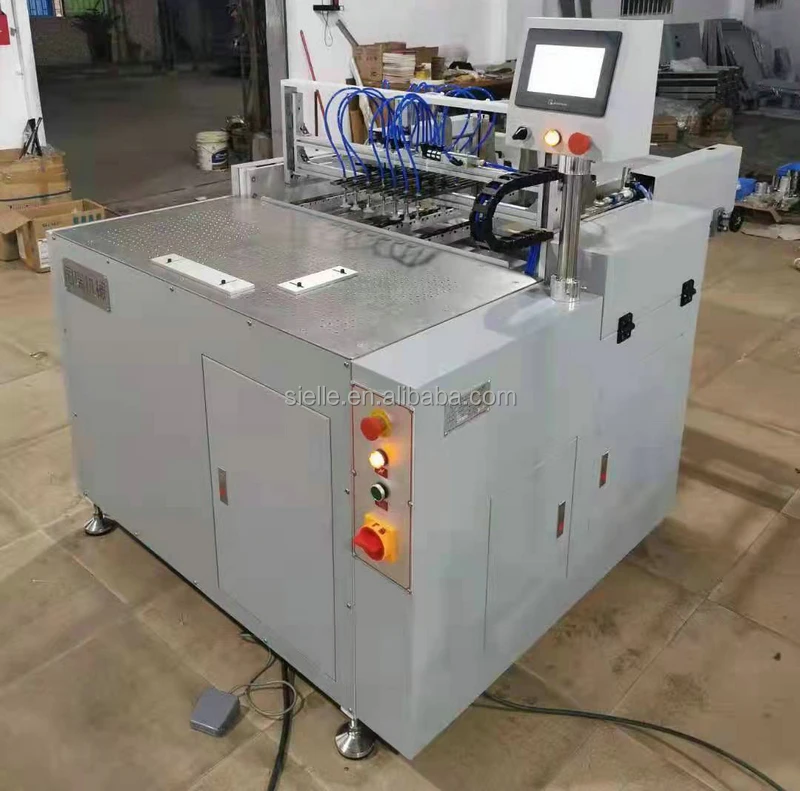

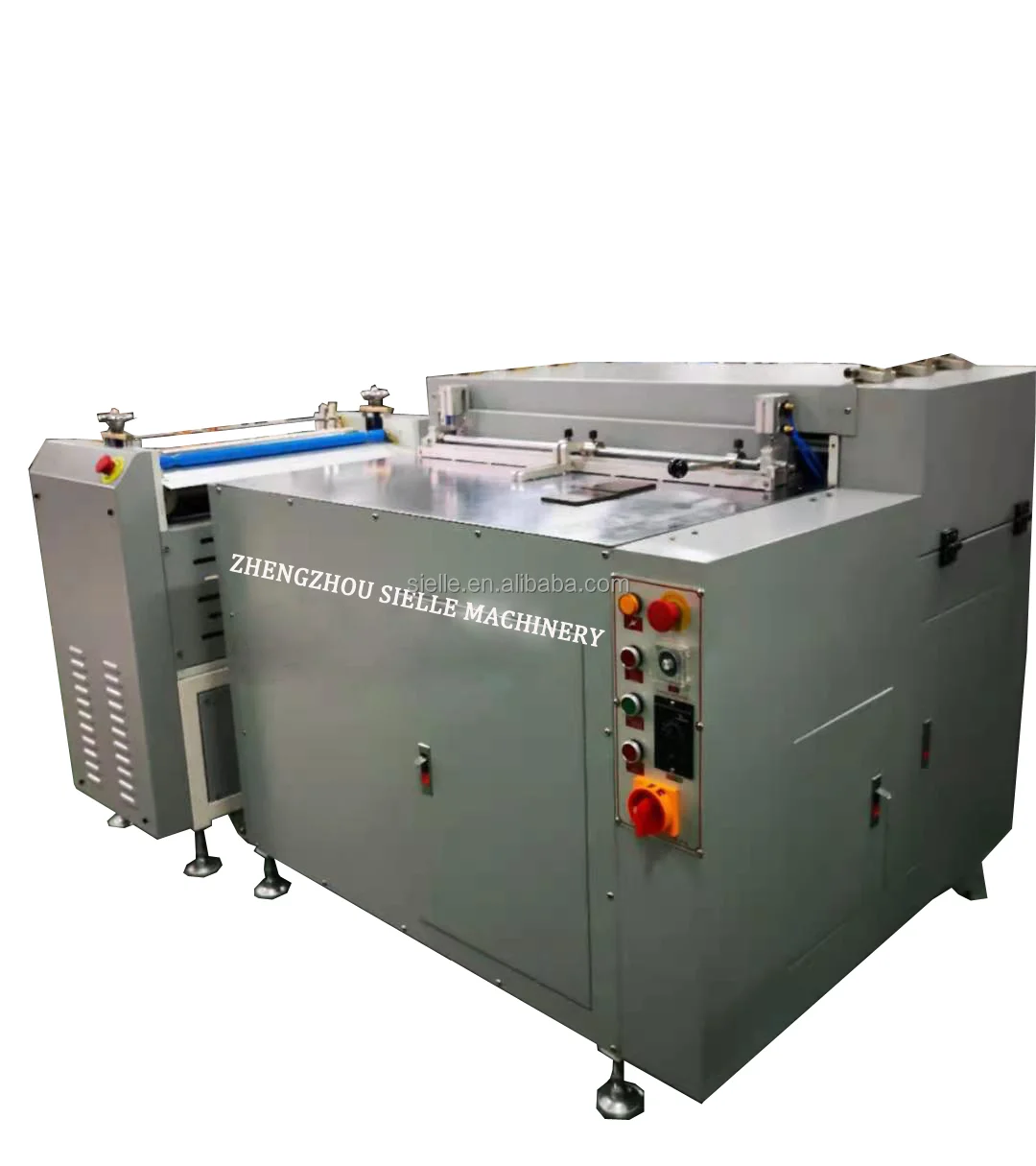

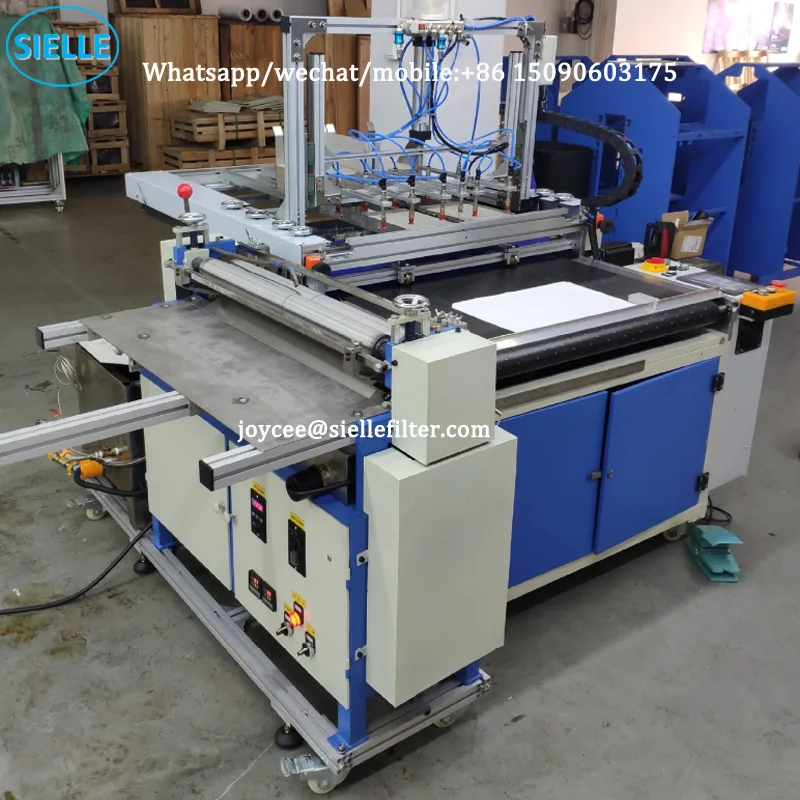

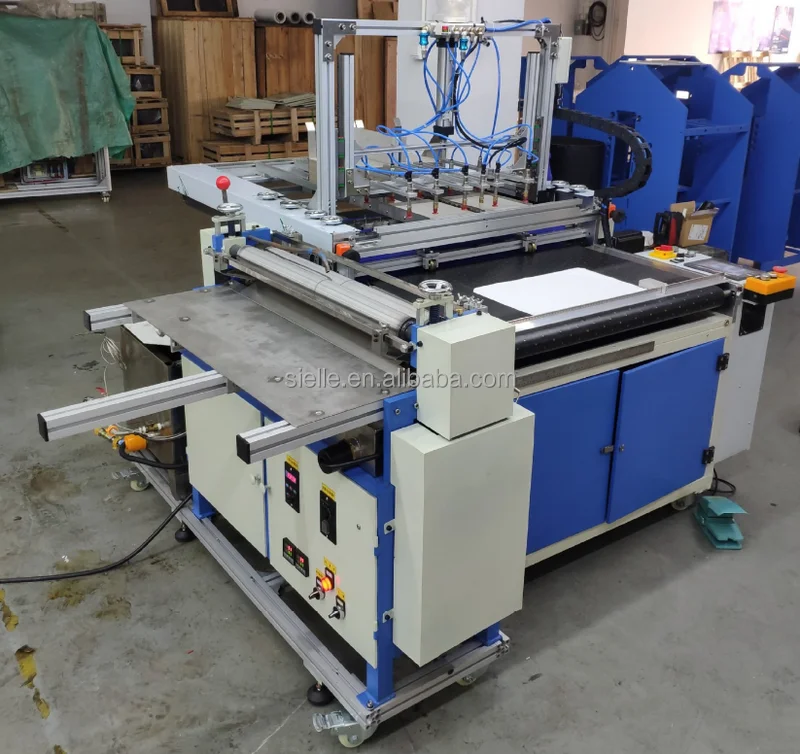

High frequency cardboard gluing machine fully automatic hard book cover making machine
1. This machine adopts Feida automatic paper feeding structure, the whole action is fully pneumatically controlled, and the structure is simple and reasonable.
2. The width adjustment of the stacking platform and the feeding platform adopts the center concentric adjustment, and the operation is simple and error-free.
3. The cardboard feeding table adopts linear guide rail, which is accurate.

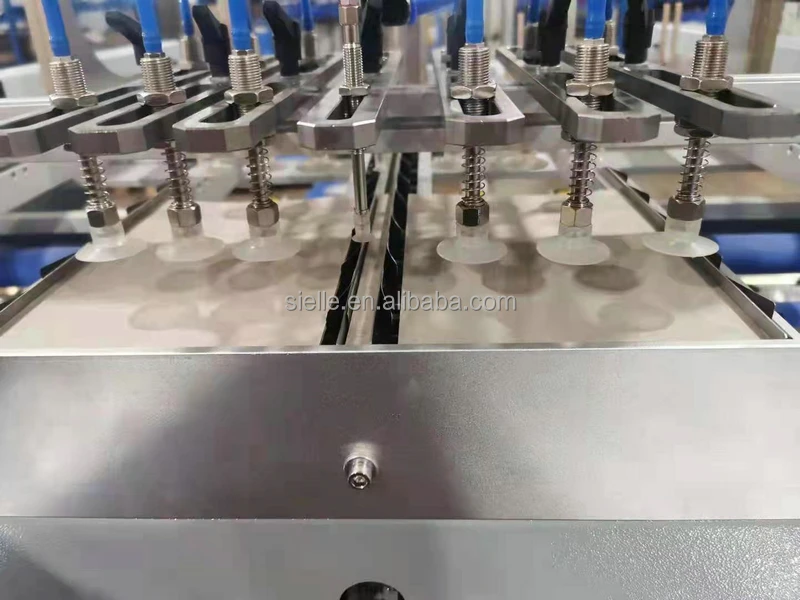

4. The suction table uses a high-power suction fan to make the paper stable and accurate.
5. The paper conveying and positioning system adopts imported high-precision photoelectric control, which makes the positioning of paper and cardboard more accurate and reliable.
6. The rear-mounted automatic four-side dismantling machine adopts a unique automatic crimping and crimping mechanism to ensure the qualified rate of the finished product.
2. The width adjustment of the stacking platform and the feeding platform adopts the center concentric adjustment, and the operation is simple and error-free.
3. The cardboard feeding table adopts linear guide rail, which is accurate.
4. The suction table uses a high-power suction fan to make the paper stable and accurate.
5. The paper conveying and positioning system adopts imported high-precision photoelectric control, which makes the positioning of paper and cardboard more accurate and reliable.
6. The rear-mounted automatic four-side dismantling machine adopts a unique automatic crimping and crimping mechanism to ensure the qualified rate of the finished product.
Product Application High frequency cardboard gluing machine fully automatic hard book cover making machine

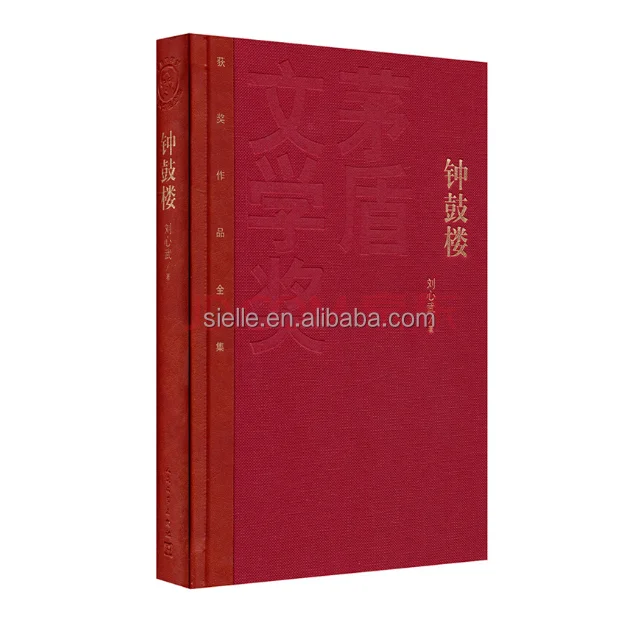

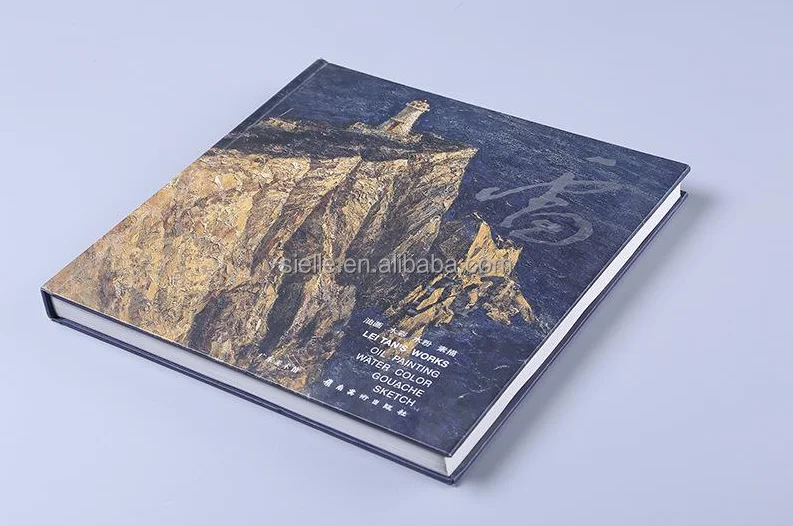

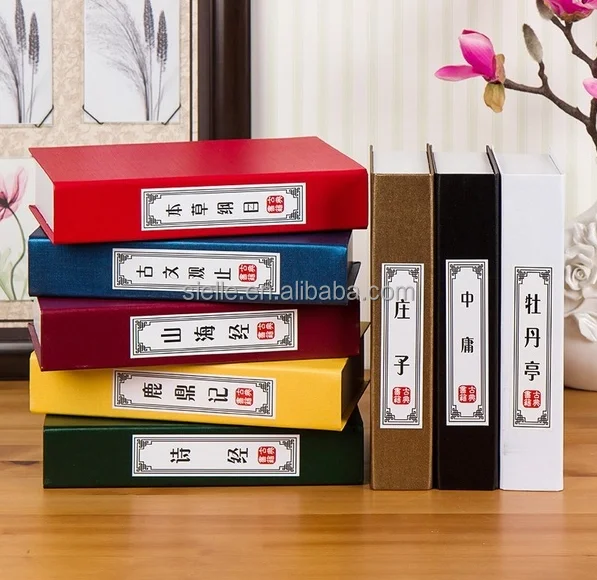

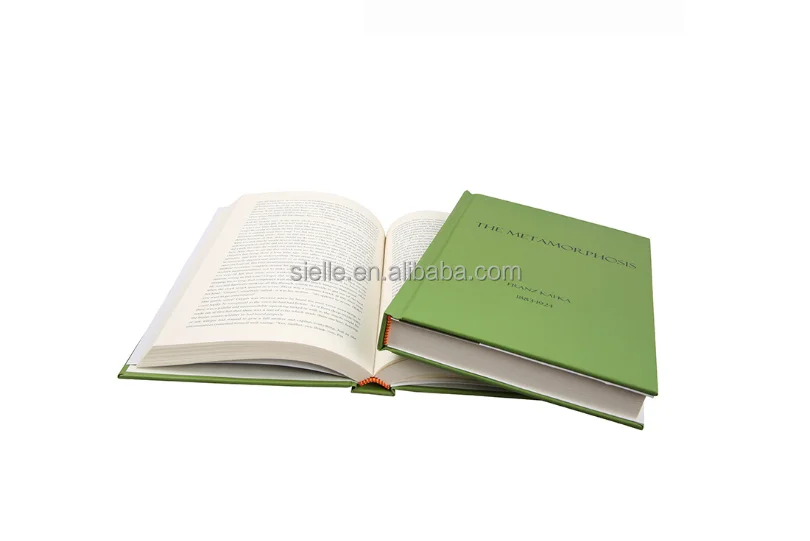

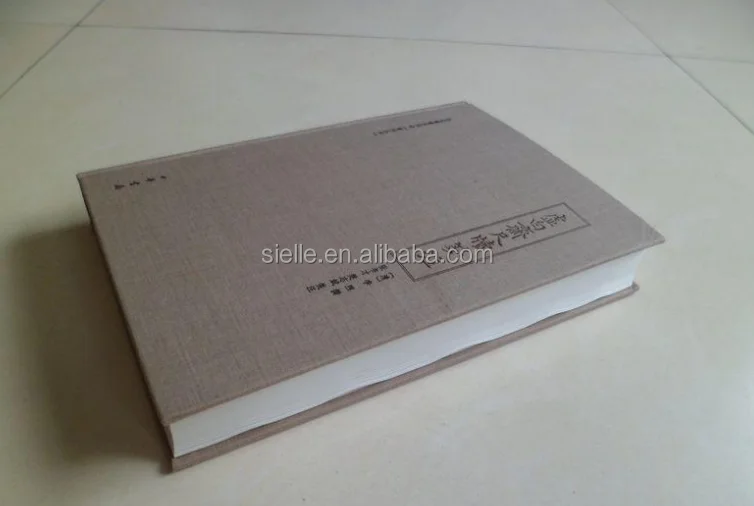

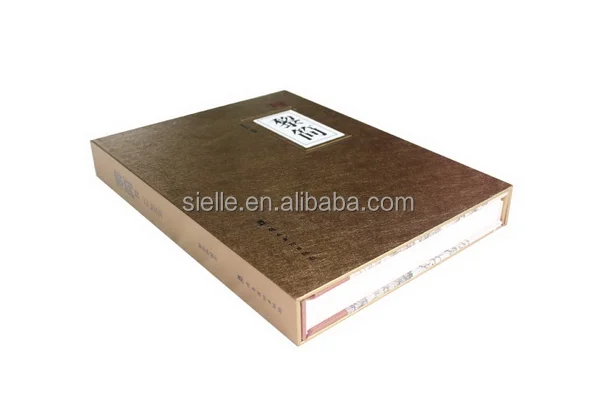

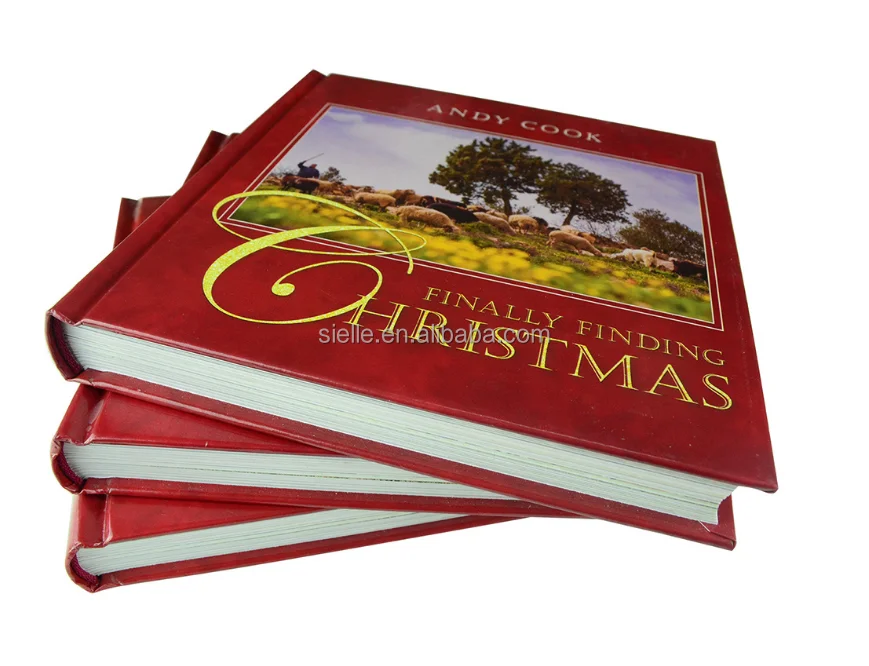

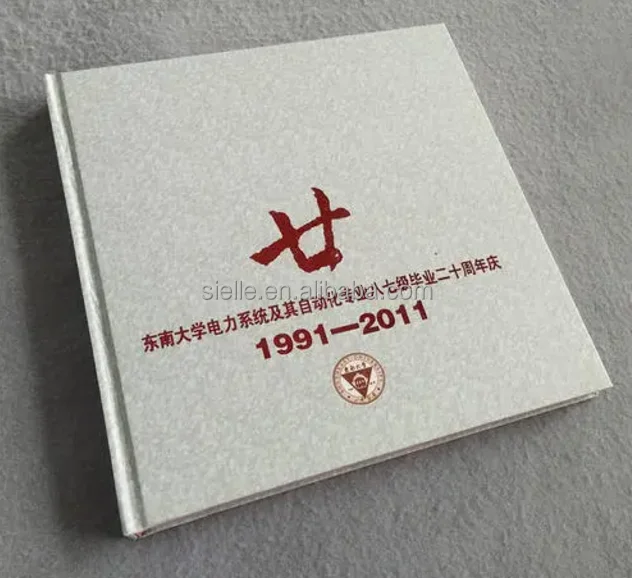

This machine is suitable for wrapping and flattening notebooks, photo albums, folders, certificates, and hardcover book cases. It can be edged on both sides at the same time. It can be completed in two times. It is simple and convenient for one person to operate. It occupies a small space. It is post-printing, especially digital printing. Applicable machines after.

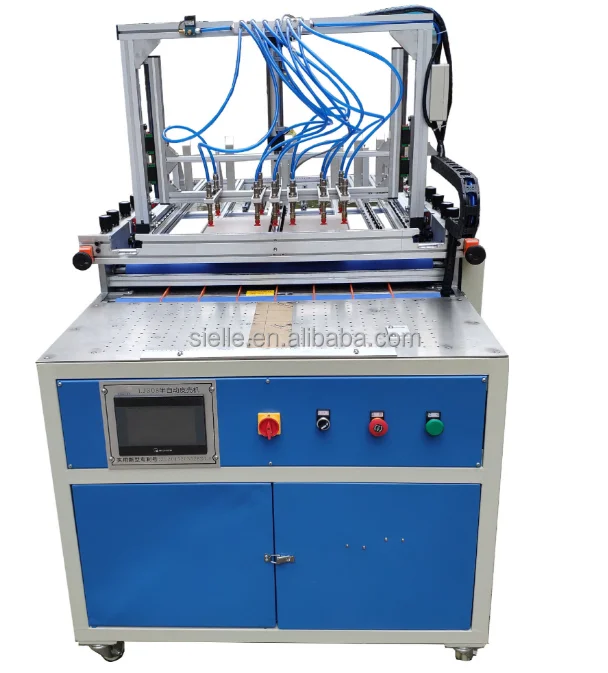

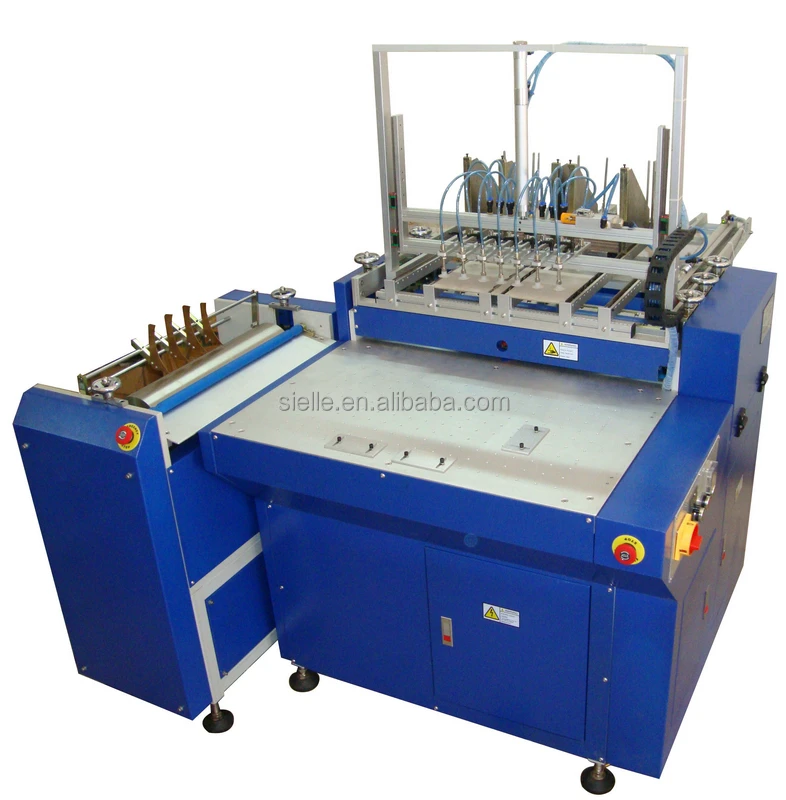

Details Images

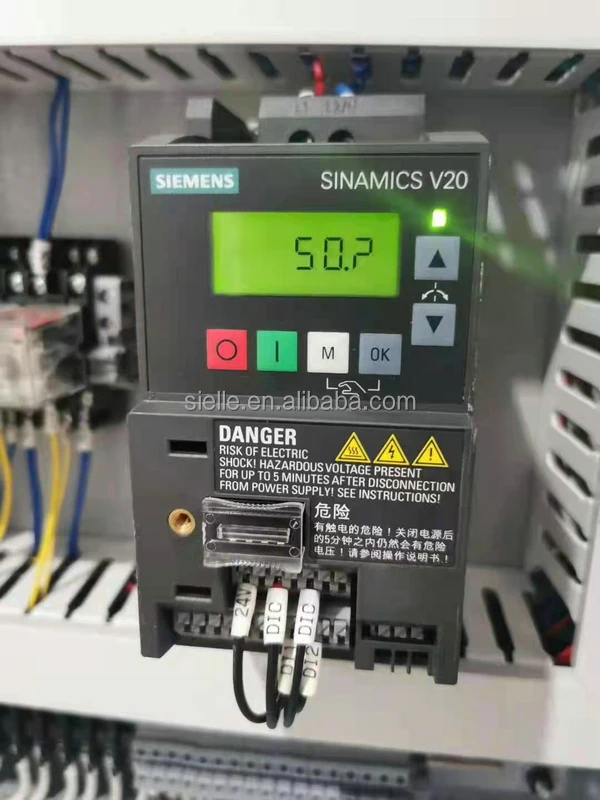

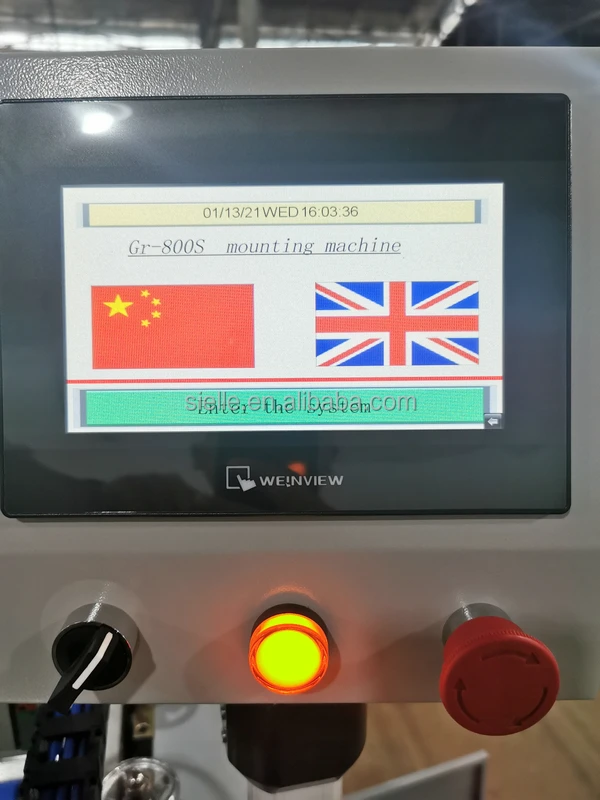

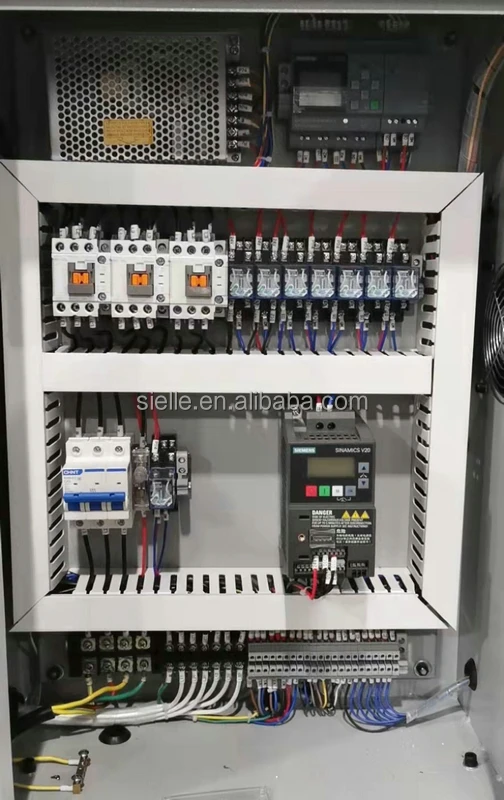

Use PLC operating system for this machine;
Hot melt, white latex can be used

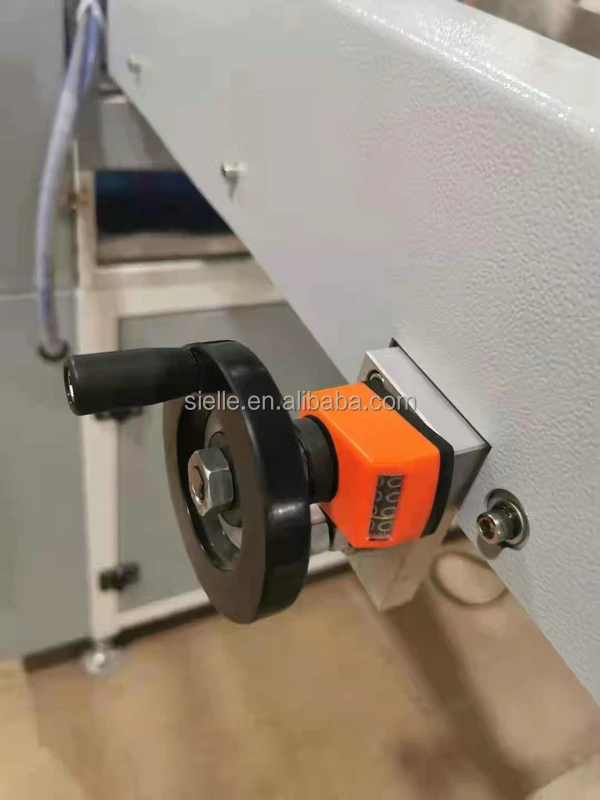

Change the product, adjust the machine fast

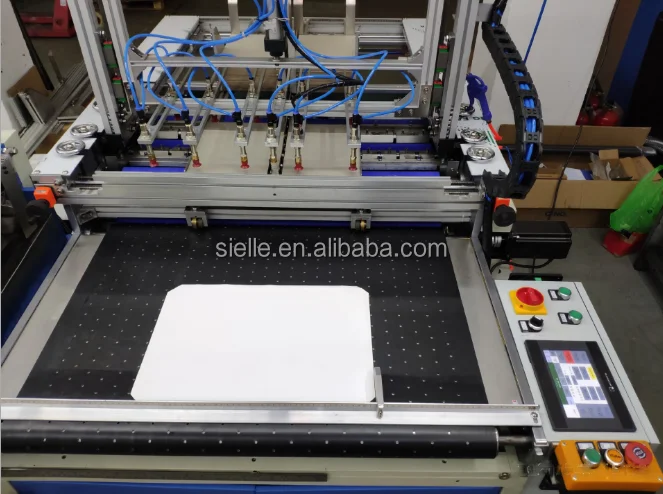

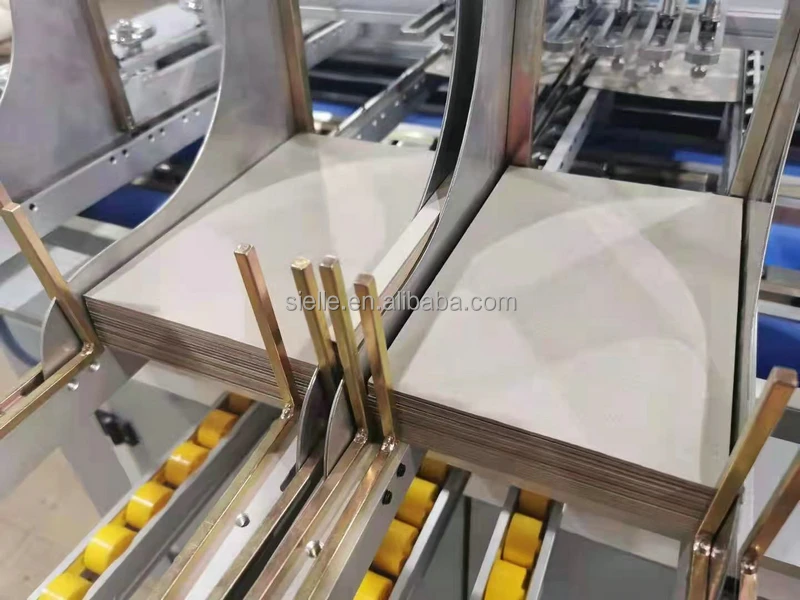

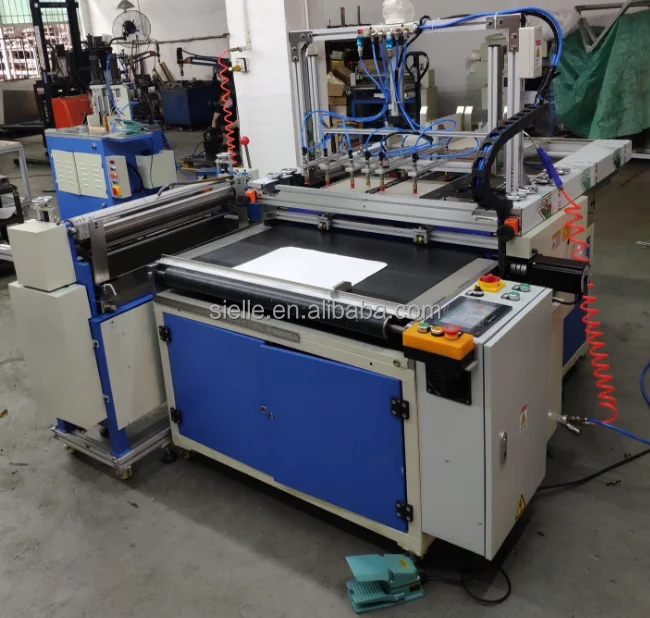

First, after the cover is glued on the hot melt glue machine, drag the cover to the platform to position it; press the start button, the suction nozzle to suck the cardboard and send it to the cover location and put it on the cover, the platform belt automatically feeds the leather case into the machine and folds it side.
Hot melt, white latex can be used
Change the product, adjust the machine fast
First, after the cover is glued on the hot melt glue machine, drag the cover to the platform to position it; press the start button, the suction nozzle to suck the cardboard and send it to the cover location and put it on the cover, the platform belt automatically feeds the leather case into the machine and folds it side.
Model | SIEL-SD800 | SIEL-ZD900 | SIEL-ZD1000 |
Voltage | 380v 50hz/220v 60hz | 380v 50hz | 380v 50hz |
Power | 6.7kw | 6.7kw | 6.7kw |
Work speed | 3-9pcs/minute | 3-20pcs/minute | 3-20pcs/minute |
Product size max | 800*450mm | 750*450mm | 850*450mm |
Product size min | 140*140mm | 140*140mm | 140*140mm |
Size | 1680*1620*1000mm | 1680*1620*1600mm | 1680*1720*1600mm |
Weight | 550kg | 650kg | 750kg |
Order and feedback
About Us

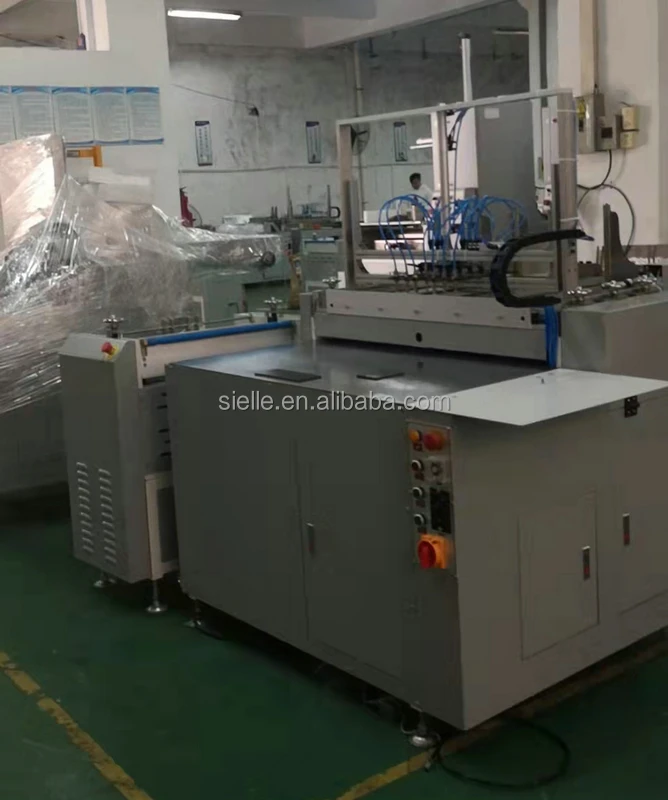

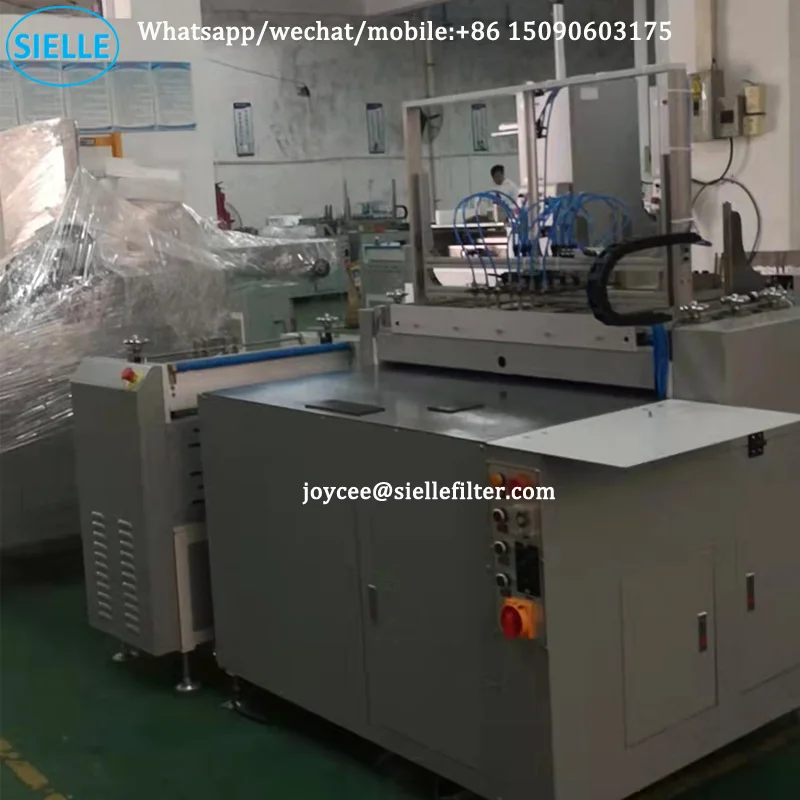

Factory High frequency cardboard gluing machine fully automatic hard book cover making machine
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Egypt, Turkey, Romania,France, England, Germany, Italy, Mexico, Australia, Kenya, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales.
Packing & shipment
Because of long distance transportation and handling, machine will be packed in standard export wooden case to ensure the safety in the process of transportation. So that you can receive a perfect machine!
Certifications
FAQ
1,The payment
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.High frequency cardboard gluing machine fully automatic hard book cover making machine
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.High frequency cardboard gluing machine fully automatic hard book cover making machine
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
Please send us your requirement or contact us directly! We will choose the right model for you.
