Product Overview
Description
Products Description

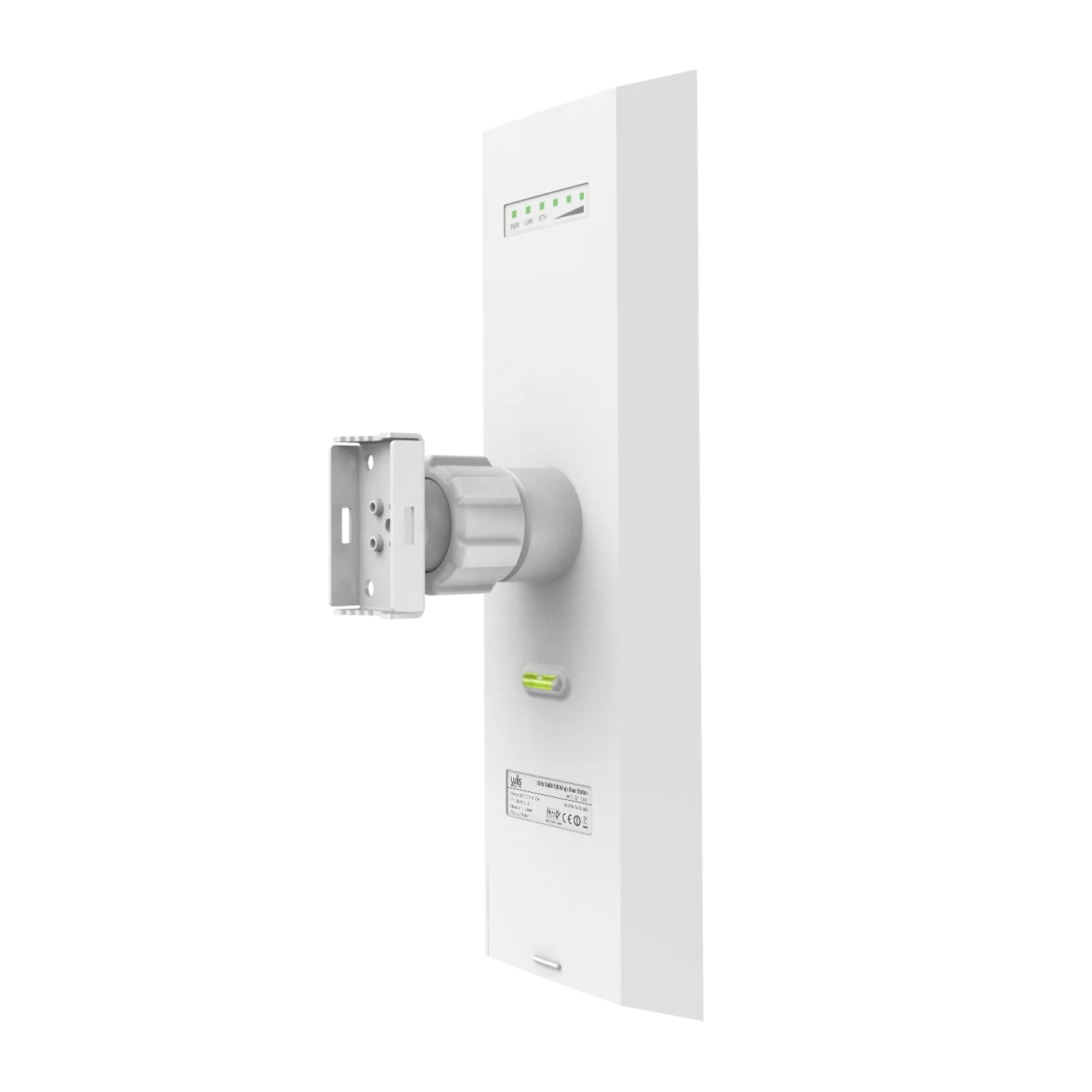

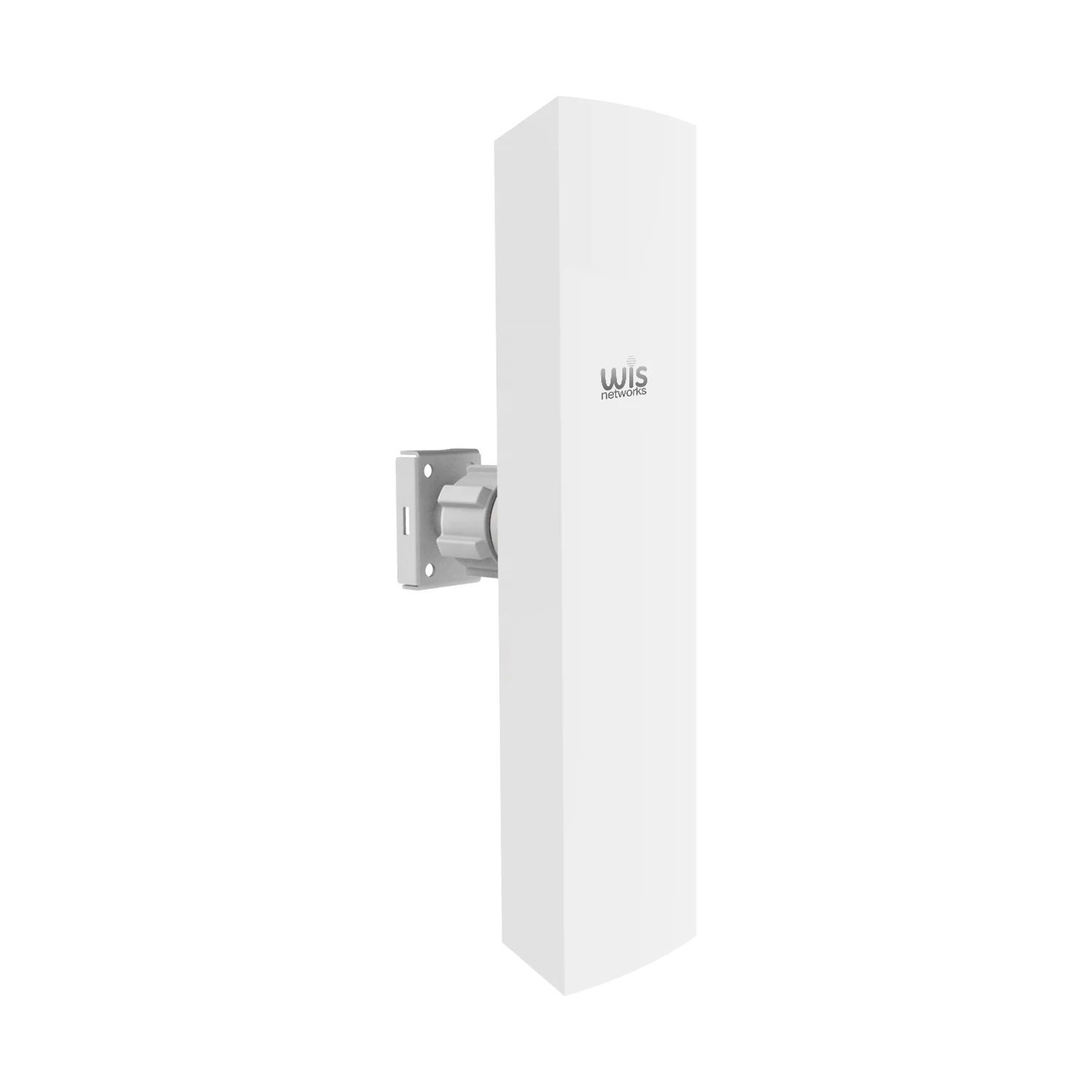

WIS-S516AX is robust outdoor wireless base station featuring 802.11ax technology for high end wireless coverage and point to
multi-point connections. Upgrade to WiFi 6 with speeds up to 1201Mbps brings 50% faster speeds than WiFi 5.
multi-point connections. Upgrade to WiFi 6 with speeds up to 1201Mbps brings 50% faster speeds than WiFi 5.
Features
Superior WiFi 6 Speeds
● 1024 QAM 25% more data encoded at one time
● Long OFDM Symbol 11% faster speed
High performance
● 16dBi high antenna gain
● 26dBm high power
● 1201Mbps Wireless speed
● Gigabit LAN port
Flexibility and Simplicity

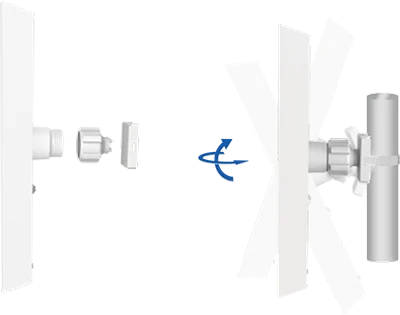

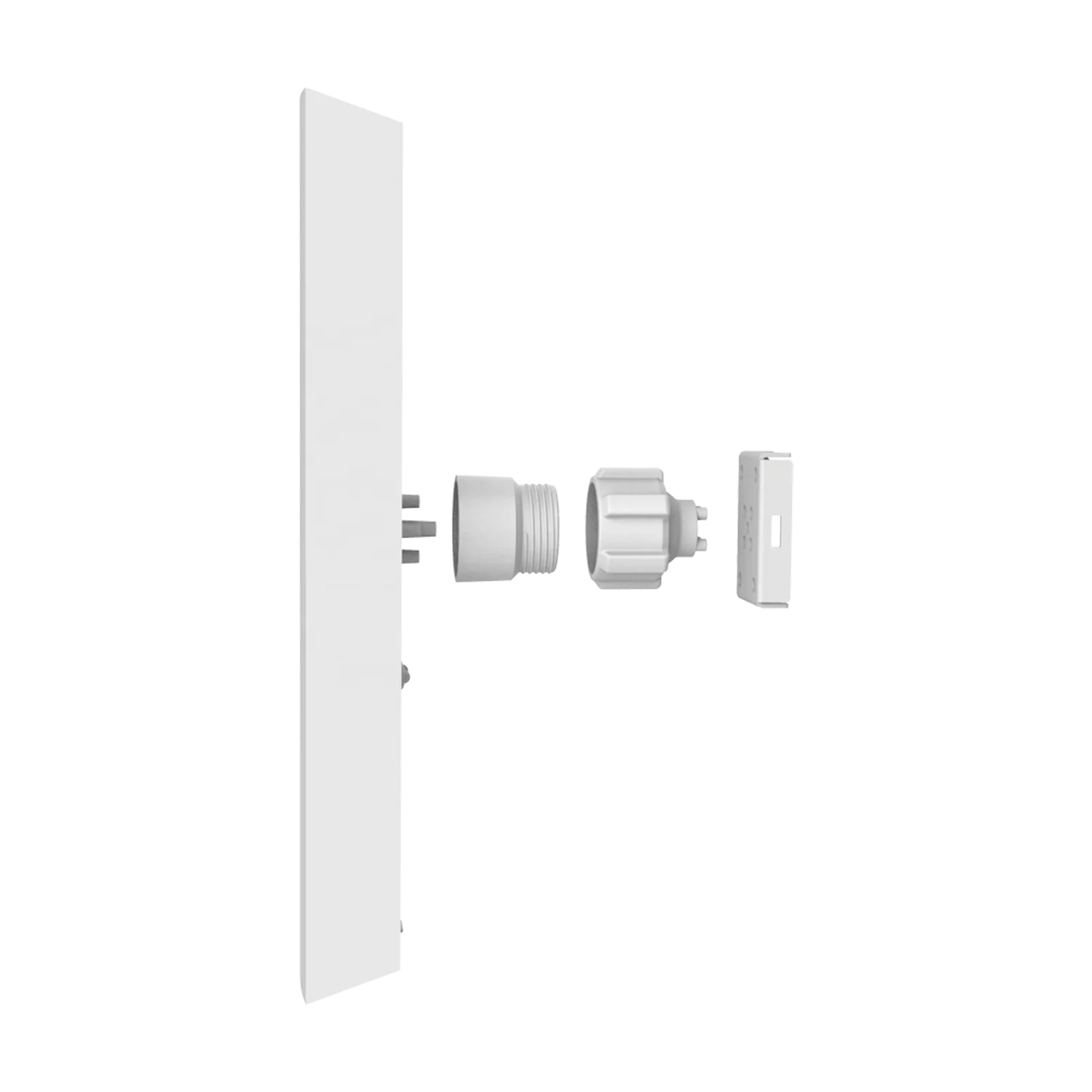

● Ball joint for all directional installation
● User-friendly design as no other tools
● required during installation
● Pole mounting and wall mounting
● User-friendly design as no other tools
● required during installation
● Pole mounting and wall mounting
Signifificant Expense Reduction
- Ultra-gain in a smaller size antenna due to
- greatly improved antenna hardware design
- Compactly designed box reduces the
- transportation and logistics expense
- greatly improved antenna hardware design
- Compactly designed box reduces the
- transportation and logistics expense
Features and Benefits
● Compliant with 802.11ac/n/a, speed up to 867Mbps
● Gigabit LAN port helps get maximum wireless performance
● High output transmission power and receive sensitivity optimized
● 16dBi high gain dual-polarized sector antenna
● All directional and simple installation without other mounting kits or tools
● 24V Passive PoE with remote reset for flexible deployment
● IP65 outdoor weather-proof housing and up to 24kV ESD protection
● Gigabit LAN port helps get maximum wireless performance
● High output transmission power and receive sensitivity optimized
● 16dBi high gain dual-polarized sector antenna
● All directional and simple installation without other mounting kits or tools
● 24V Passive PoE with remote reset for flexible deployment
● IP65 outdoor weather-proof housing and up to 24kV ESD protection

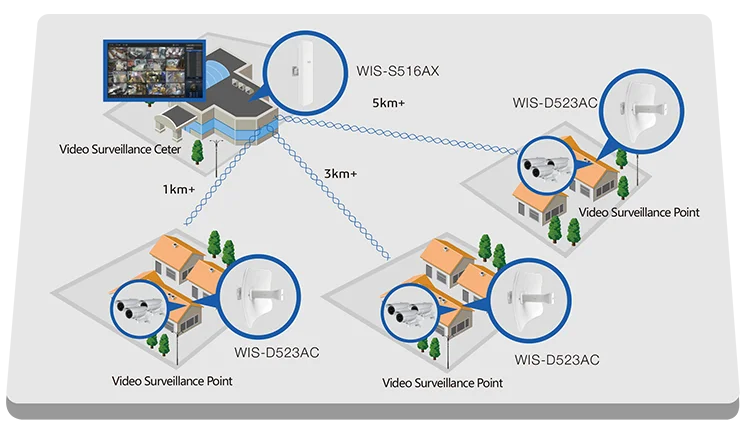

Network Diagram
Product Paramenters
Radio | - 802.11ax/ac/n/a radio (Atheros 1.2GHz) - Speed up to 1201Mbps - Frequency Range: 5.1-5.8GHz - Tx Power 26dBm±2 - Rx Sensitivity 1201Mbps: -67dBm@10% PER 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER | ||||||
Antenna | WIS-S516AX : 16dBi 120 degree dual-polarized sector antenna | ||||||
Physical Parameters | - Dimension: 395*100*90mm - Weight: 0.77kg - Enclosure: Weatherproof ASA - ESD Protection: 16kV - Lightning Protection: 8kV - Working Temp: -20 ~ 70°C - Storage Temp: -40 ~85°C - Working Humidity: 10%~95% non-condensing | ||||||
Power | - 24VDC, 0.75A - Power Consuption: 10W | ||||||
Security | - Integrated Firewall - WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP; | ||||||

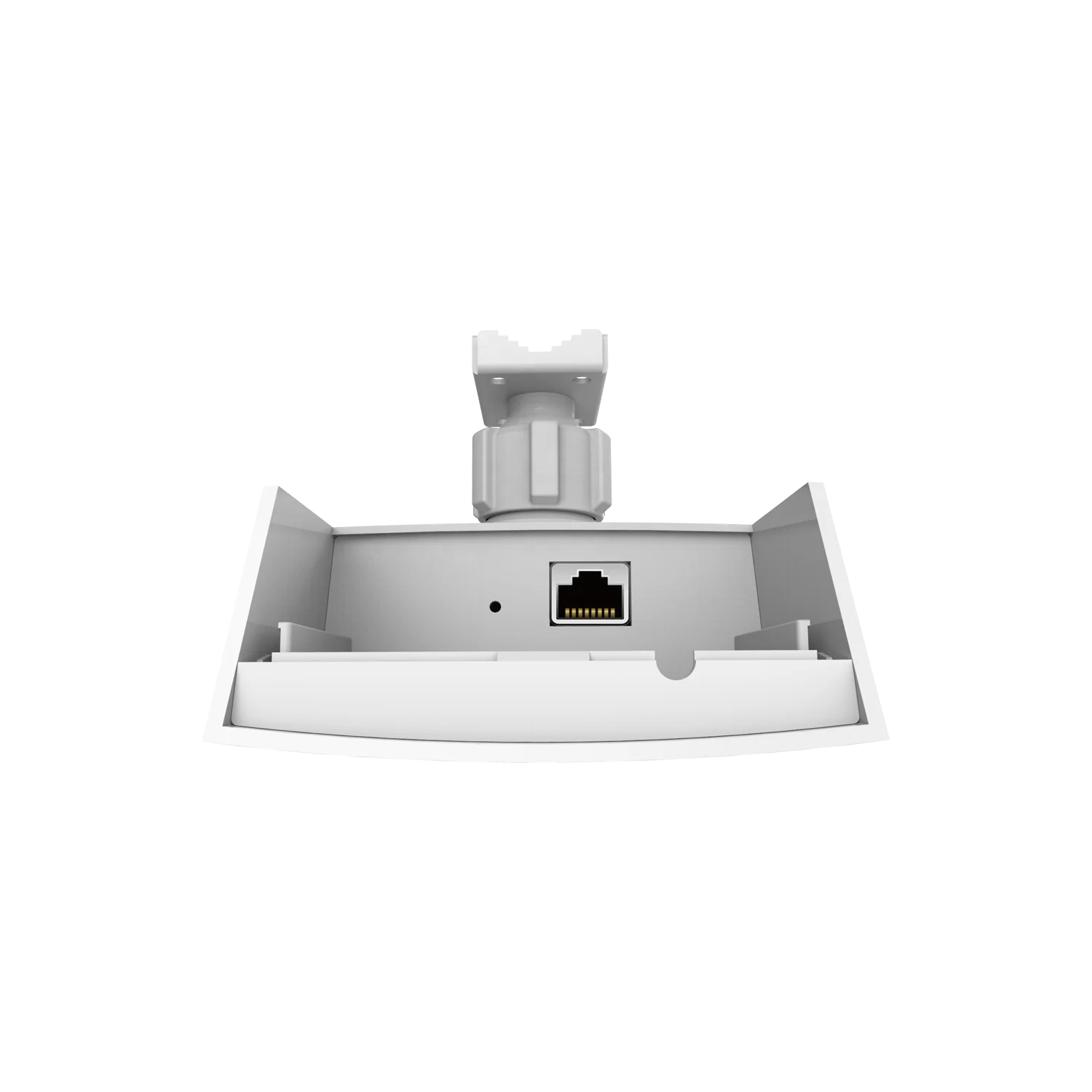

Interfaces | - 1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE) - Reset | ||||||

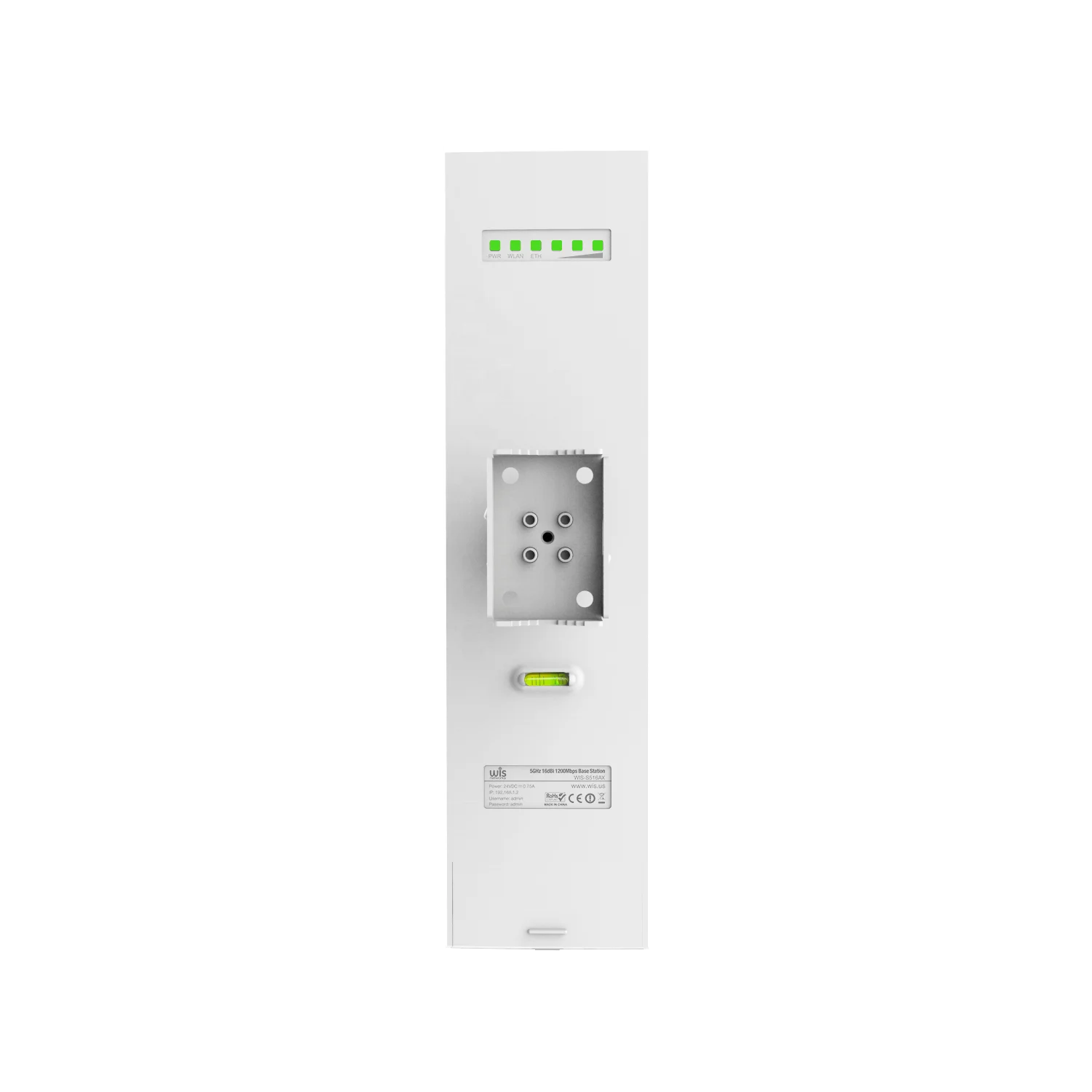

LED | - Power:On/Off - LAN:On/Off/Flashing - WLAN:On/Off/Flashing - RSSI Signal: 1,2,3 | ||||||
Certifification | - CE, RoHS | ||||||
Package content | - WIS-S516AX - Quick Setup Guide - Power Adapter with Passive PoE - Mounting kits | ||||||
Contact us
WIS NETWORKS LIMITED
Add: 3/F, Wong King Industrial Building, No. 2 Tai Yau Street, KL, HongKong
TEL: 00852-51248116
Email: sales@wis.us
www.wis.us
TEL: 00852-51248116
Email: sales@wis.us
www.wis.us
Why Choose Us
1. We are one of the professional antenna manufacturerer who has been in this field for over 14 years.
2. We have many more professional experts than 20 years R&D experiences.
3. 100% quality inspection.
4. Products are sold to more than 100 countries.
5. Products pass Rohs, SGS test and many identifications from big customers.
6. We own many professional equipments.
7. We accept customized design.
8. OEM&ODM service is supplied.
9. We have many technology patents and awards.
2. We have many more professional experts than 20 years R&D experiences.
3. 100% quality inspection.
4. Products are sold to more than 100 countries.
5. Products pass Rohs, SGS test and many identifications from big customers.
6. We own many professional equipments.
7. We accept customized design.
8. OEM&ODM service is supplied.
9. We have many technology patents and awards.
Company Profile
Certifications
Our Services
1. Enterprise Wi-Fi solutions
2. PTP/PTMP Solutions
3. LTE Home
4. Switch
5. Antennas
6. Accessories
3. LTE Home
4. Switch
5. Antennas
6. Accessories
Exhibition
Futurecom
MWC Barcelona
Wispalooza
CommunicAsia
CTIA WIRELESS
Gitex

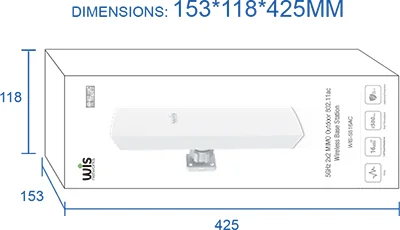

Packaging & Shipping
