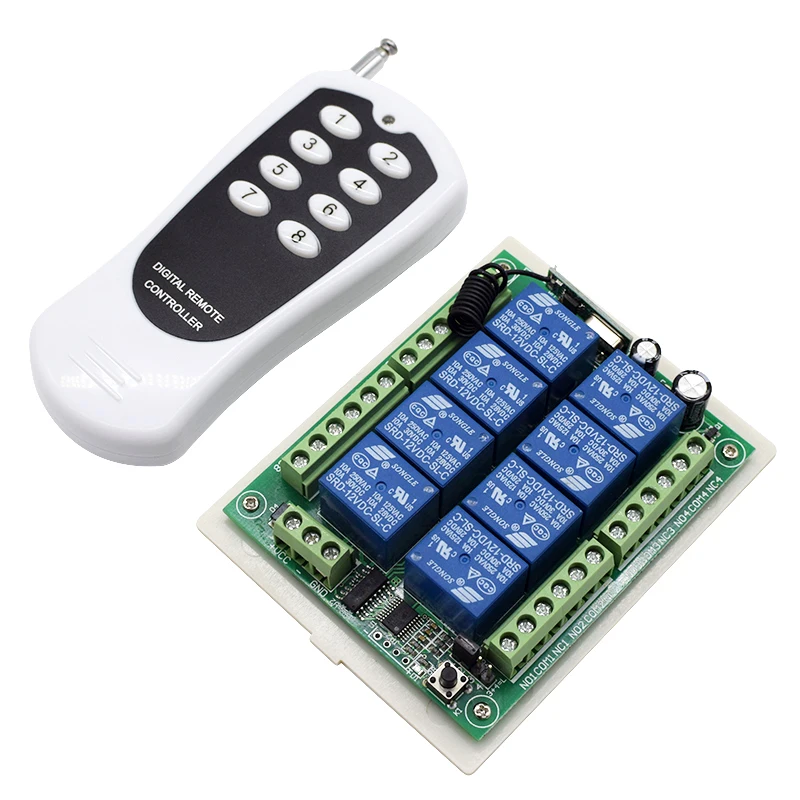

Receiver

Working Voltage: 12V or 24V

Quiescent Current: less than 10mA

Working Current: 30mA (1 Relay)

Working Temperature: -40'C - +80'C

Receiving Sensitivity: more than -105dBm

Working Frequency: 433MHz

Optional Relay: 10A AC250V 10A AC125V 10A DC30V 10A DC28V

Max Load: 10A Relay, Resistive load less than 8A, Inductive load less than 3A

PCB Size: 73mm*82mm*17mm

Case Size: 80*100*28mm

Net weight:189g

Function

1) Momentary/Jog:Press and hold=on, release=off 2)Toggle/Self-lock :Press 1 button=on,press the same button again=off 3)Latched/inter-lock:press 1 button =on,press other button=off

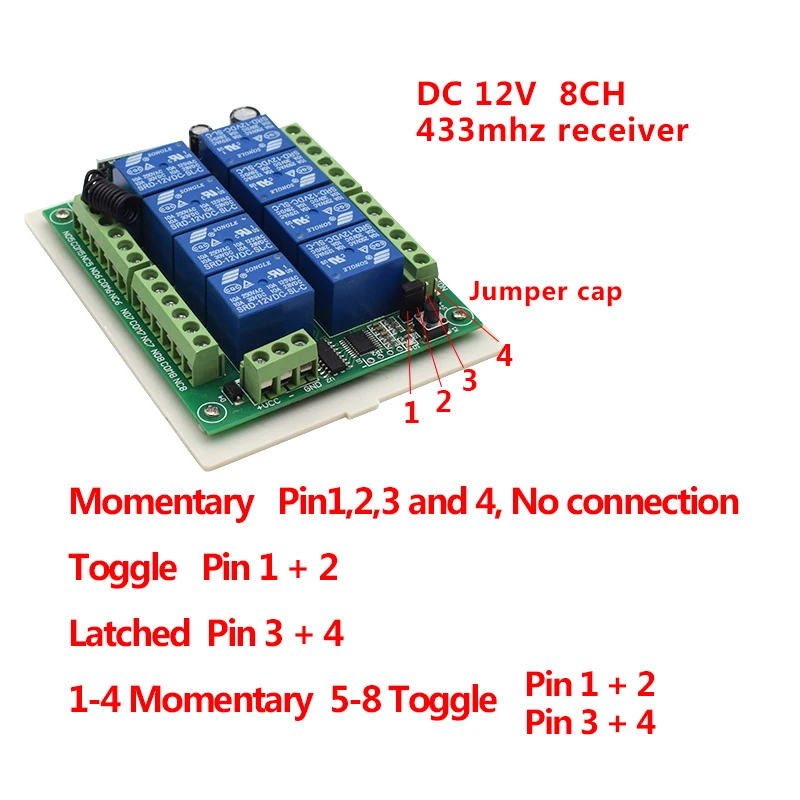

Jumper cap setting method

Momentary Pin1,2,3 and 4, No connection Toggle Pin 1 + 2 Latched Pin 3 + 4 1-4 Momentary 5-8 Toggle Pin 1 + 2,Pin 1 + 2

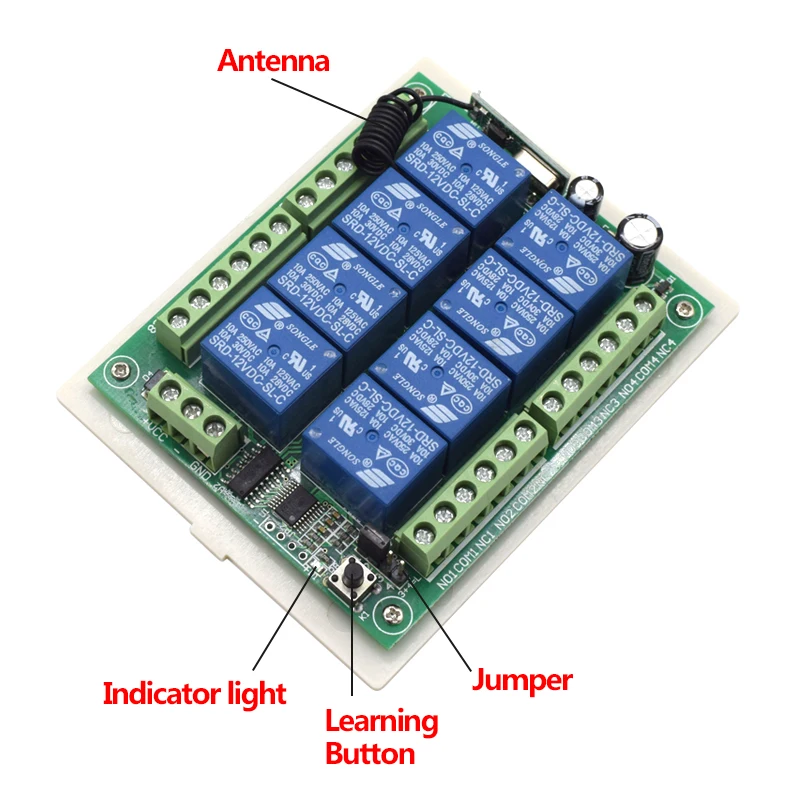

Clear Code and Learn Code

1) Learn Press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully. 2) Clear Press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared.

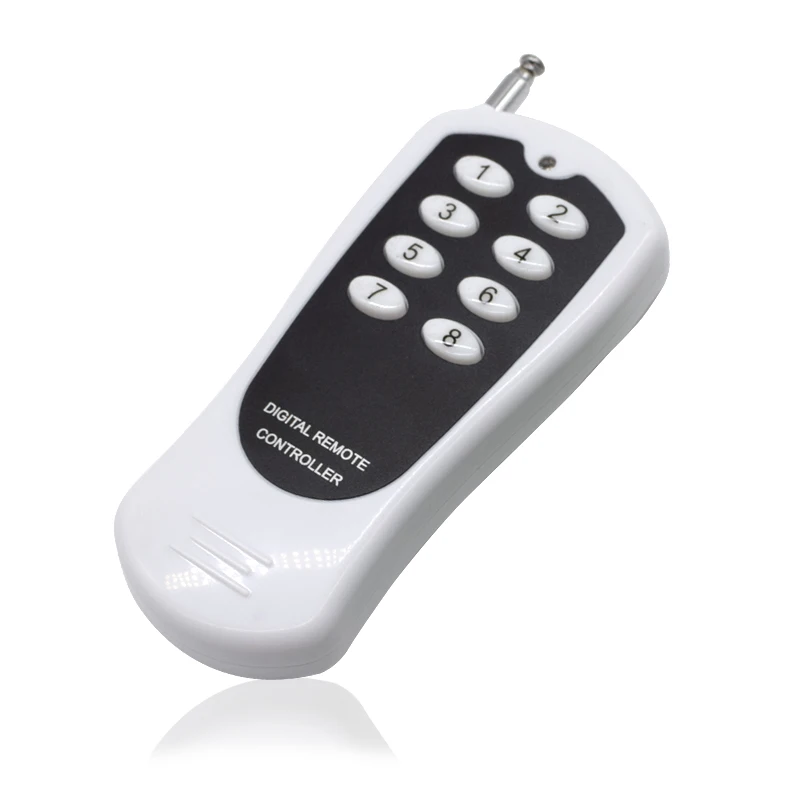

Transmitter

Channel: 8 CH Remote Control

Distance:0-200 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)

Encode: PT2262

Frequency: 433 MHz

Size: 105mm x 49mm x 15mm

Power Supply: 1 X 12V/23A Battery (Without battery)

Package 1 contains

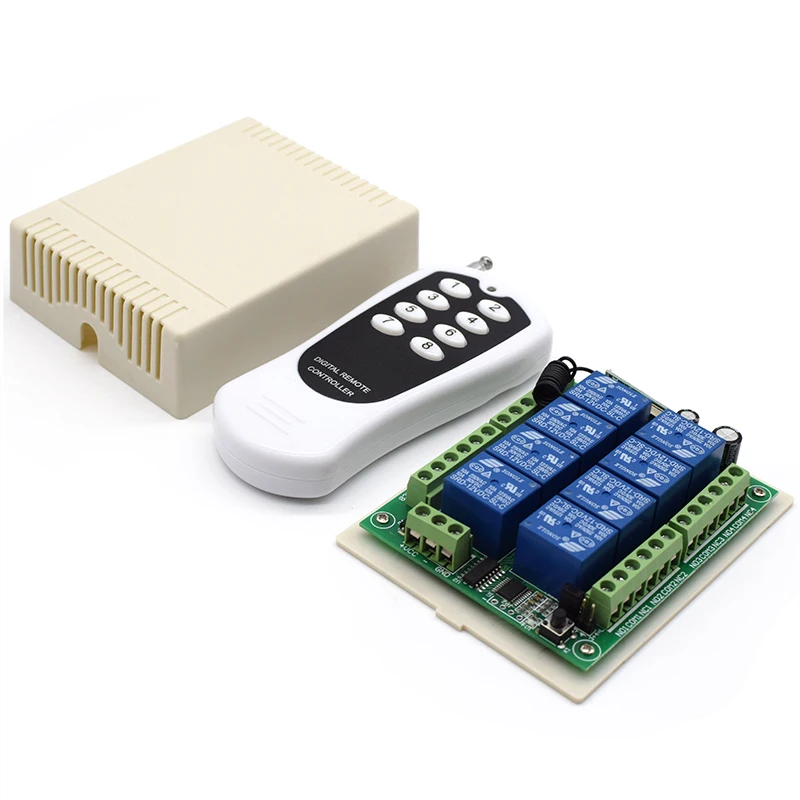

1pcs 12V Receiver + 1pcs Transmitter(Without battery)

Package 2 contains

1pcs 24V Receiver + 1pcs Transmitter(Without battery)
