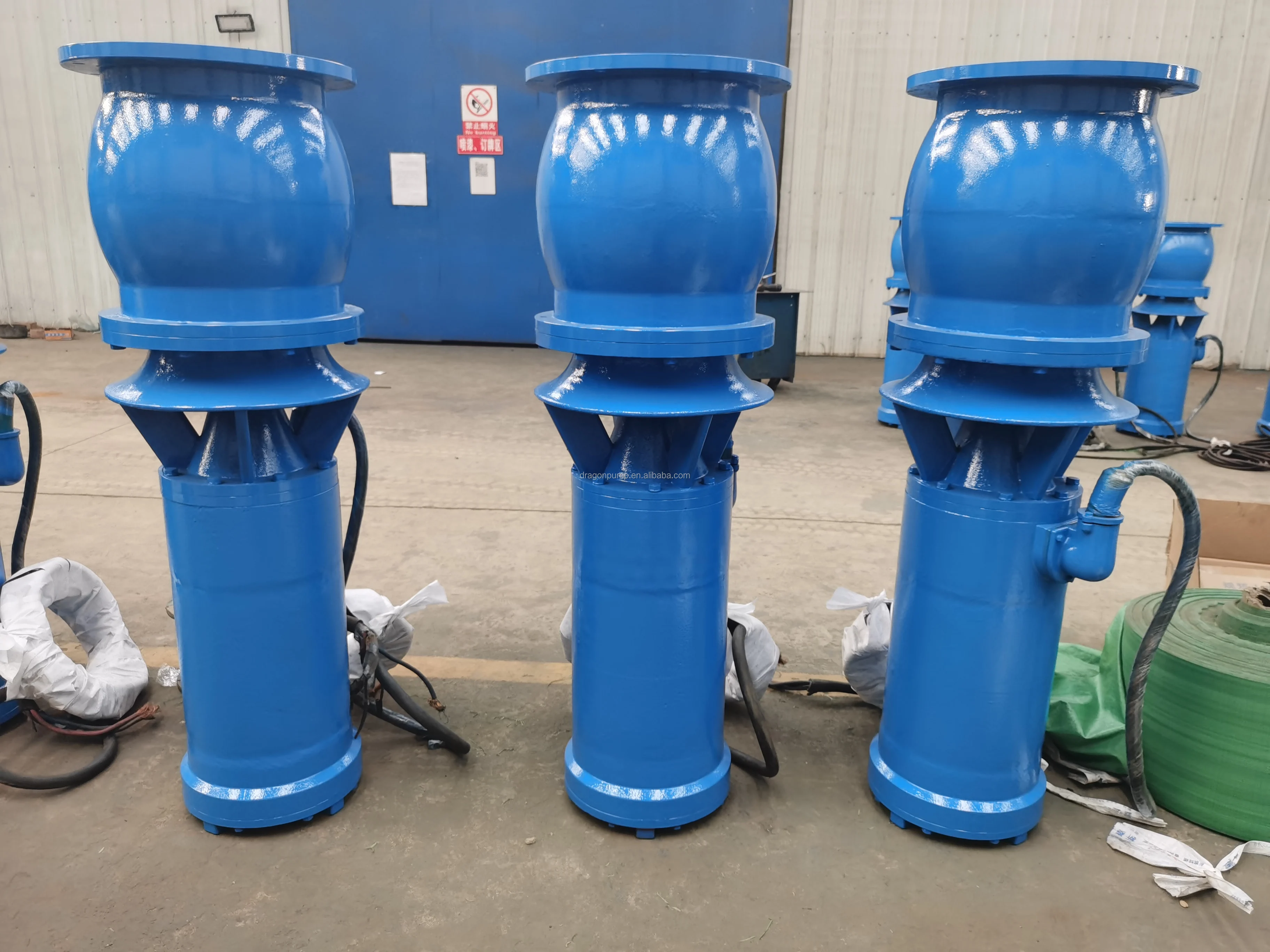

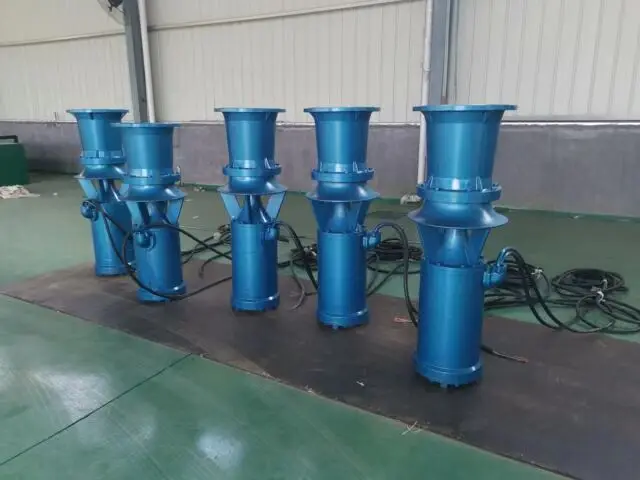

10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond
10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond

10 12 14 inch outlet large flow water propeller pump cast iron 22hp submersible axial flow pump for river fish pond

Share on (1600417356140):


Price:$311.00 - $355.00

Quantity:


Product Overview

Description



Product Overview

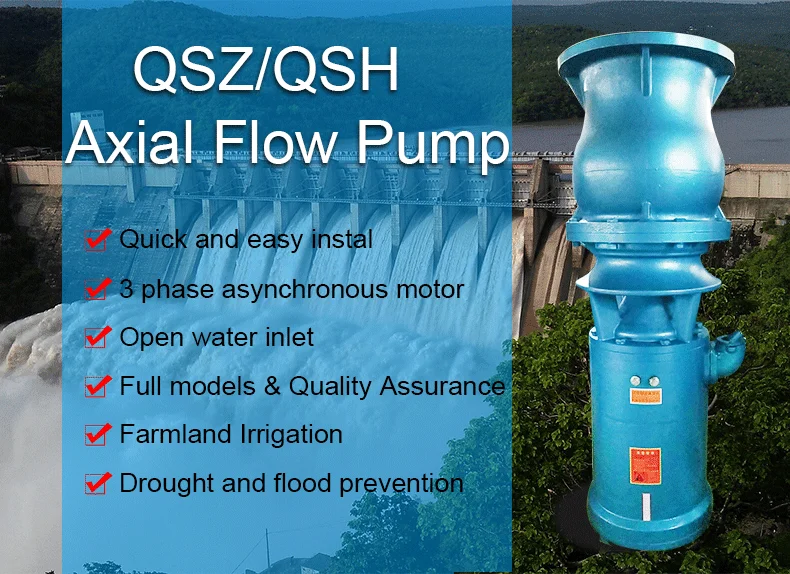

QSZ axial flow and QSH mixed flow submersible pumps are our company's follow-up small and medium-sized machines Scientific research project of technological transformation of electric drainage and irrigation station, self-developed and designed with independent knowledge A novel electromechanical drainage and irrigation equipment with property rights. Pump head 2.8-15m, flow Capacity 250-3600m³/h, power 11-75KW, caliber 200-700mm, row Irrigation area is about 60-300 hectares; mainly used in farmland irrigation and drainage, small and medium-sized Electrical and mechanical drainage and irrigation stations, emergency drought and flood prevention, urban drainage pumping stations, etc.




Advantages of Axial pump
1.The total investment of the pumping station project can be saved by more than 30%.
2. Save more than 40% in construction period.
3. The installation time of the unit is saved by more than 95%.
4.The weight of the unit is reduced by more than 50%.
5. Eliminate investment in flood control walls of pumping stations.
6. Low maintenance cost.
7. No running noise, simple operation, easy to automate operation.
8. The height of the ground construction can save the pump room construction


Product Detalis








Product Parameters




Model
D1
D2
D3
D4
L1
L2
H
N-∅d
Axial Flow Pump
300QSZ-3.4-13
380
435
270
260
1200
532
170
6-∅23
300QSZ-5.4-18.5
380
435
270
295
1300
622
170
6-∅23
350QSZ-5-30
445
485
330
335
1306
535
230
8-∅23
400QSZ-5.4-37
495
535
350
335
1405
615
230
8-∅28
500QSZ-6.3-55
600
640
465
415
1752
712
250
8-∅28
600QSZ-4.2-65
755
705
480
415
1850
712
350
10-∅28
700QSZ-4.2-75
860
810
520
415
2100
760
400
10-∅28
Max-Flow Pump
250QSH-5.5-11
320
370
290
260
1060
450
130
8-∅18
200QSH-8-15
280
315
270
260
1200
475
130
8-∅18
250QSH-8-18.5
320
370
290
295
1125
622
170
8-∅18
250QSH-8-22
320
370
290
335
1360
622
170
8-∅18
300QSH-8-25
380
435
270
335
1200
532
170
8-∅18
250QSH-12-30
320
370
330
335
1200
532
170
8-∅20
250QSH-15-37
320
370
330
335
1327
615
170
8-∅20
350QSH-10-40
445
485
390
335
1505
745
300
8-∅23
250QS-15-45
320
370
390
335
1505
745
300
8-∅18
300QSH-16-55
380
435
390
415
1505
745
300
8-∅23

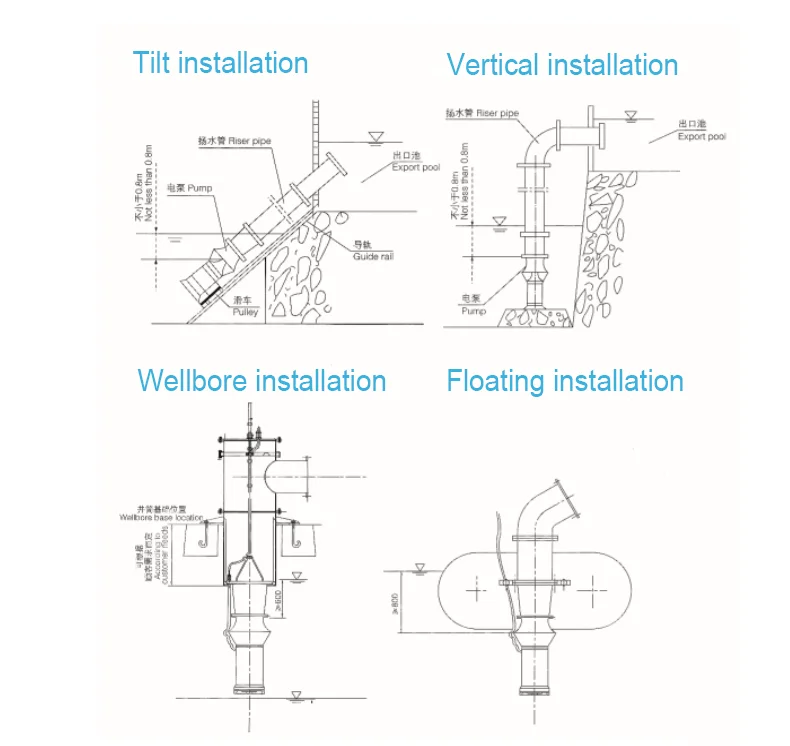

Installation Instructions

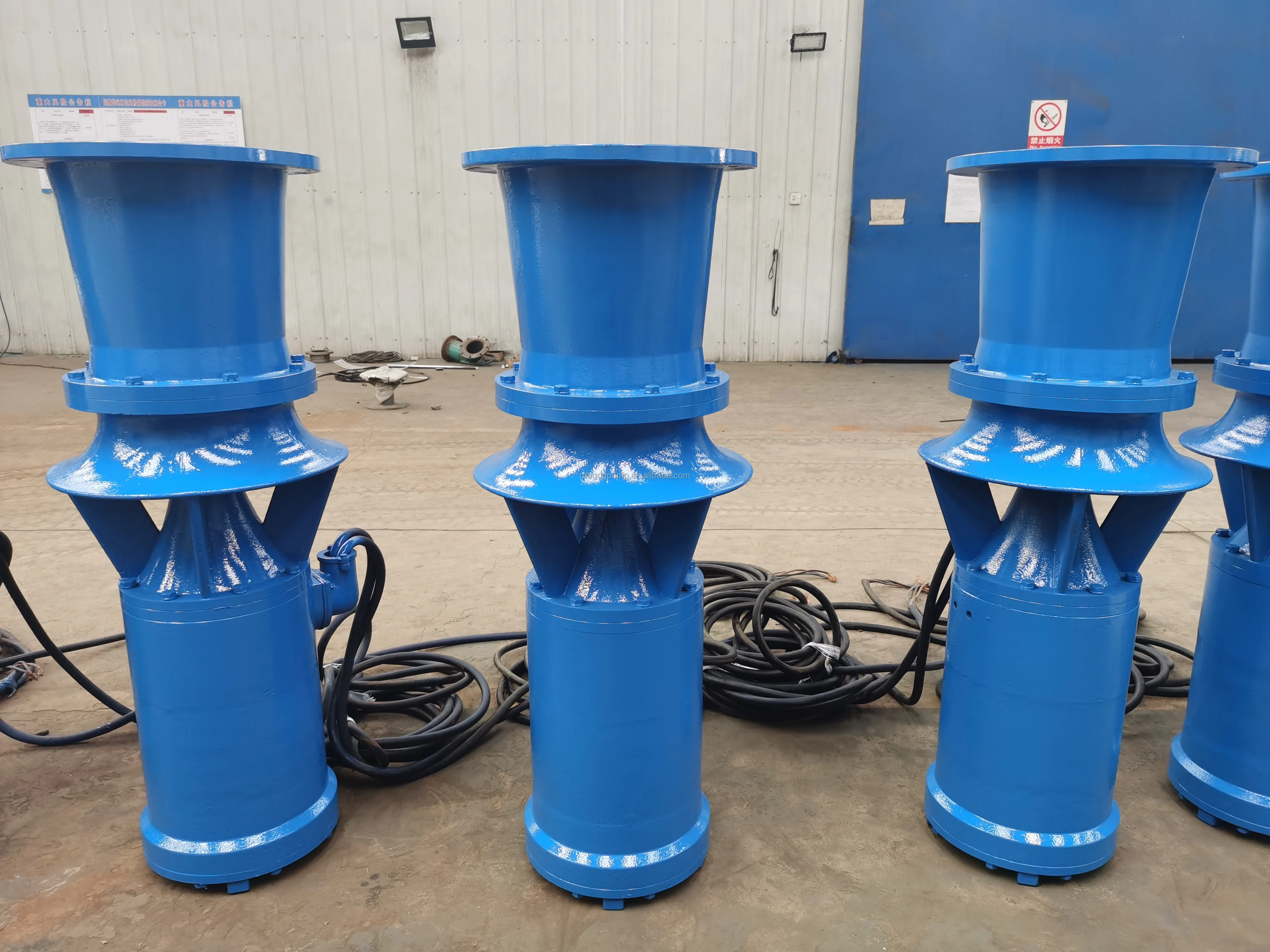

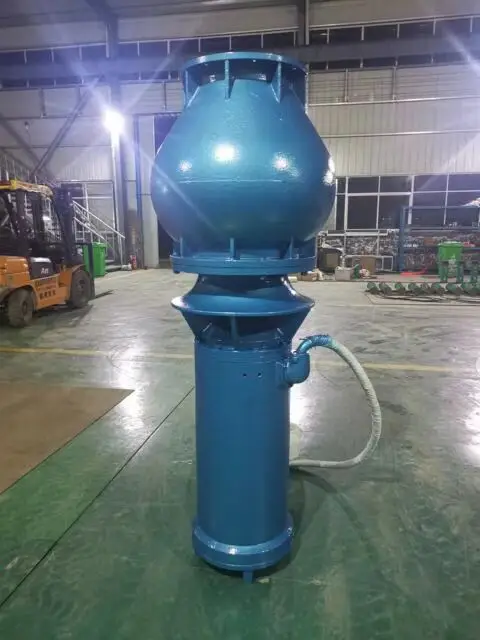

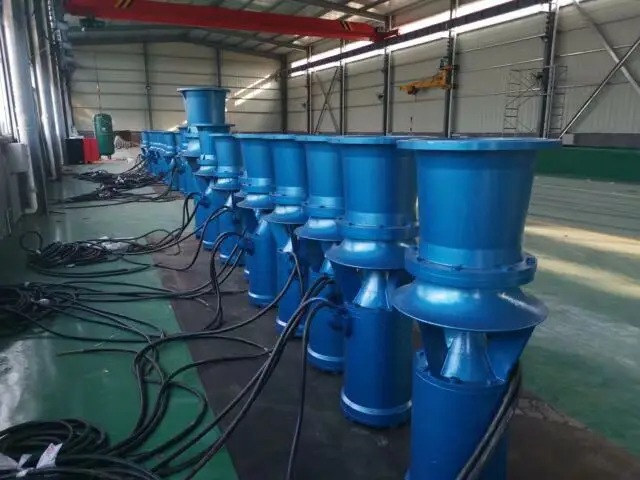

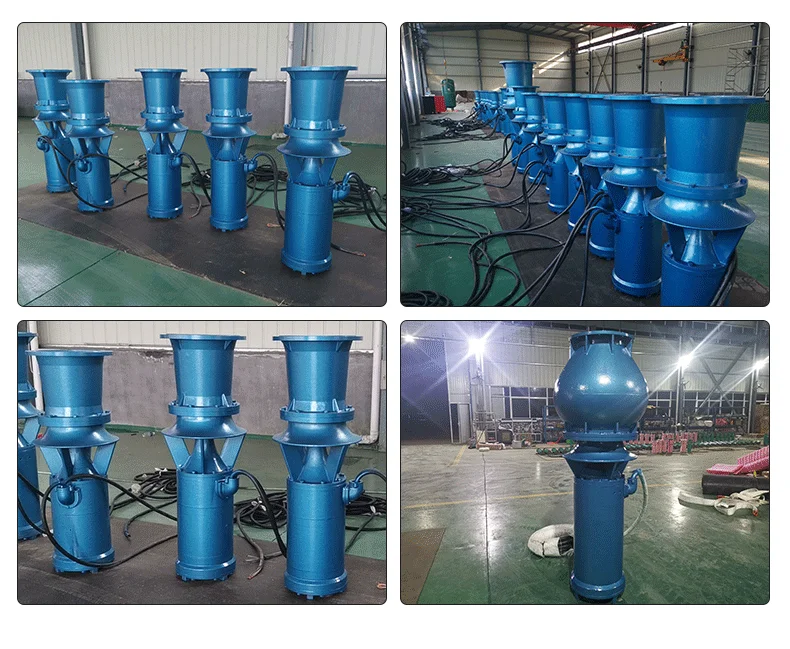

Details Images

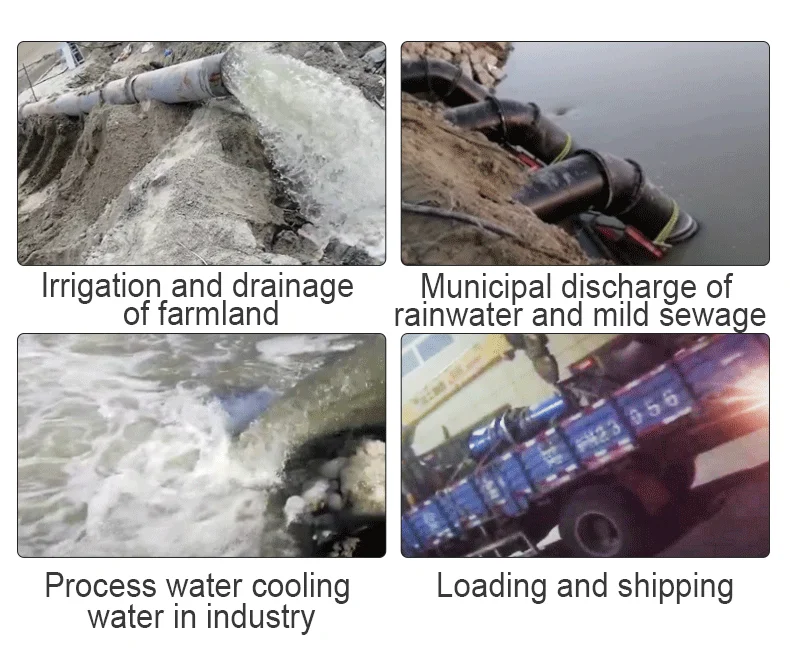

Application and Feedback




Company Profile


FEILI PUMP CO.,LTD was established in 2009. The company mainly produces submersible pumps, slurry pumps, pipeline pumps, solar pumps, fountain pumps, self-priming pumps, etc. We introduced the ISO9001 quality system to strictly control incoming materials quality , have promoted mid-to-high-end products to the global market, gain a lot of International Certification such as CE, CB and obtained multiple patent certificates, while cultivating a group of outstanding technical backbone and skilled workers. Our Company Vision is: The world knows what I do, we hope can change life. Continuously provide high-quality, cost-effective water pumps to all global customers used to solve water and sanitation problems.
