china manufacturer coper wire ccam wire

Product Overview

Description



china manufacturer ccam wire coper wire

(CCAM)

 Copper Clad Aluminum and Magnesium alloy wire is an electrical conductor which has an outer sleeve of copper metallurgically bonded to a solid aluminum alloy core. The combination of these two metals make it uniquely suited to many electrical applications

 The mechanical property of CCAM fine wire can meet the requirement of producing stranded wire, braided wire(on high speed braiding machine).We can produce CCAM wire based on customer’s requirement.

Manufacture Scope:

0.08mm~3.00mm

Application:

Inner conductor of Lan cable

Shielding layer of coaxial cable

Characteristic Comparison

CCAMWIRE/COPPER WIRE/AlUMINUM WIRE



Conductor Characteristic	COPPER WIRE (Annealed)	CCAM IRE (Annealed)	ALUMINUM WIRE (Annealed)
Copper Percent in Volume(%)	100	15	0
Density(g/cm3)	8.89	3.5	2.70
Length Comparison based on same Diameter and same weight	1:1	2.5:1	3.29:1
Resistivity(ohm.mm2/m)	0.01724	0.035	0.02740
Tensile strength(Mpa)	215-265	≥160	68-107
Elongation(%)	≥20	≥10	≥15

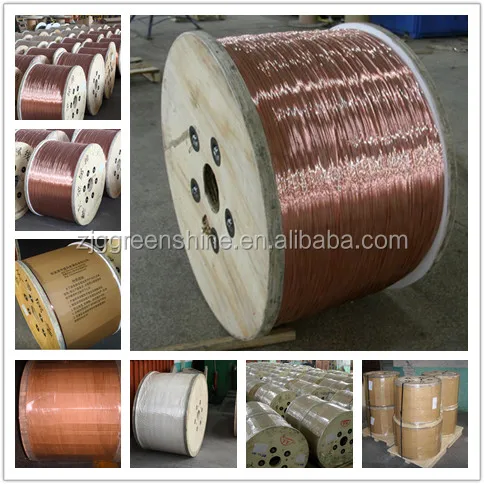

  CCA wire with diameter 1.20mm~5.50mm     Plywood bobbin+Pallet

  CCA wire with diameter 0.12mm~1.20mm       Plastic bobbin+Carton+Pallet

 Qualified Products ; Competitive Price; Customized Products;Fast Delivery time; Quick Customer service

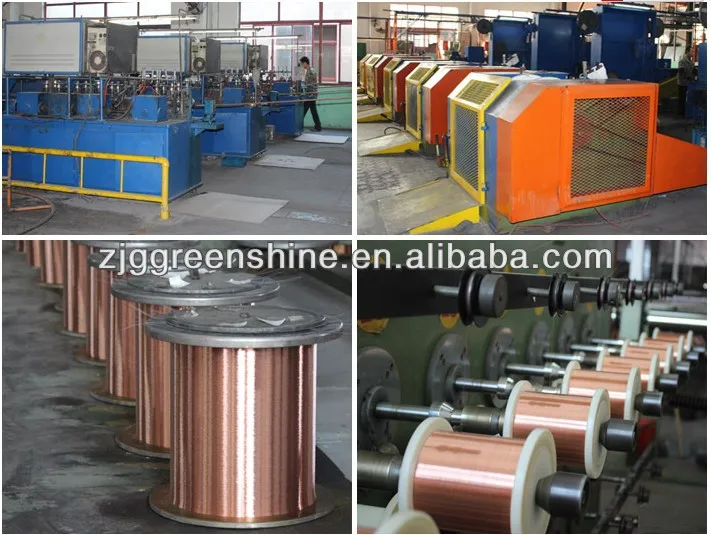

Production Equipment

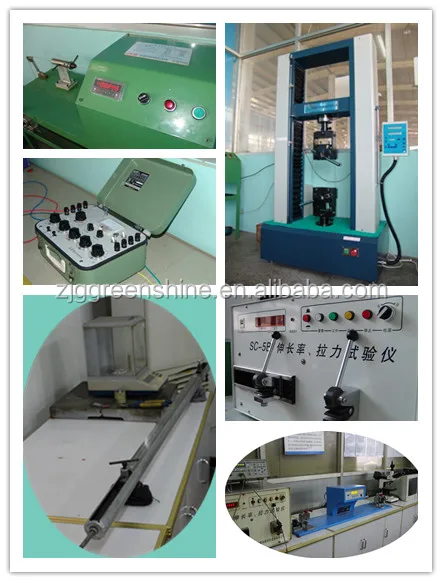

 Testing Equipment

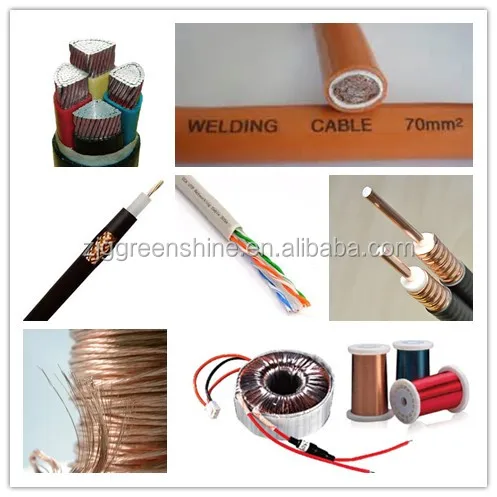

  Application
