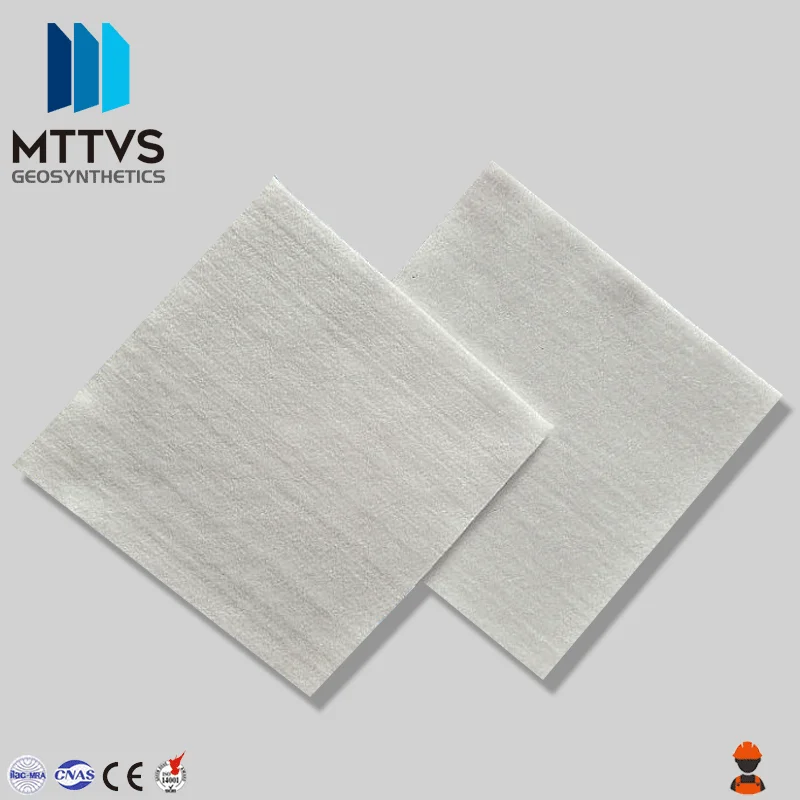

cheapest geotextile philippines road fabric needle price filter filament non woven geotextile fabric

Share on (1600417408294):


Price:$0.38 - $0.52

Quantity:


Product Overview

Description



Products Description&Specification


Filament spunbond needle punched non woven geotextiles





Index Properties
Test Method
Unit
GT150N
GT200N
GT250N
GT300N
GT350N
Color
-
-
White or Black




Ultimate Tensile Strength,MD
ASTM D 4595
kN/m
11
14
17
19
24
Ultimate Tensile Strength,TD
ASTM D 4595
kN/m
10
12
15
17
21
Tensile Elongation
ASTM D 4595
%
45
50
50
50
60
Grab Tensile Strength,MD
ASTM D 4632
N
600
850
1000
1250
1450
Grab Tensile Strength,TD
ASTM D 4632
N
550
700
900
1100
1250
Grab Elongation
ASTM D 4632
%
45
50
50
50
60
Trapezoid Tear Strength,MD
ASTM D 4533
N
300
350
430
490
540
Trapezoid Tear Strength,TD
ASTM D 4533
N
270
330
400
450
510
CBR Puncture Strength
ASTM D 6241
N
1800
2300
2700
3200
3600
Apparent Opening Size O90
ASTM D 4751
mm
0.11
0.11
0.1
0.09
0.09
Water Flow Q100
ASTM D 4491
L/m2/s
235
220
200
185
165
Weight
ASTM D 5261
g/m2
150
200
250
300
350
Thickness
ASTM D 5199
mm
1.8
2.3
2.9
3.2
3.6
Roll Width
-
m
6
Roll Length
-
m
200
150
100
100
100


Index Properties
Test Method
Unit
GT400N
GT450N
GT500N
GT600N
GT800N
Color
-
-
White or Black




Ultimate Tensile Strength,MD
ASTM D 4595
kN/m
27
30
37
41

Ultimate Tensile Strength,TD
ASTM D 4595
kN/m
25
28
34
38

Tensile Elongation
ASTM D 4595
%
60
60
60
60

Grab Tensile Strength,MD
ASTM D 4632
N
1700
1900
2100
2500

Grab Tensile Strength,TD
ASTM D 4632
N
1450
1600
1800
2150

Grab Elongation
ASTM D 4632
%
60
60
60
60

Trapezoid Tear Strength,MD
ASTM D 4533
N
630
710
770
920

Trapezoid Tear Strength,TD
ASTM D 4533
N
610
690
750
900

CBR Puncture Strength
ASTM D 6241
N
4400
4800
5800
6900

Apparent Opening Size O90
ASTM D 4751
mm
0.08
0.08
0.08
0.08

Water Flow Q100
ASTM D 4491
L/m2/s
125
110
90
80

Weight
ASTM D 5261
g/m2
400
450
500
600

Thickness
ASTM D 5199
mm
3.9
4.2
4.4
4.8

Roll Width
-
m
6
Roll Length
-
m
80
80
50
50
50

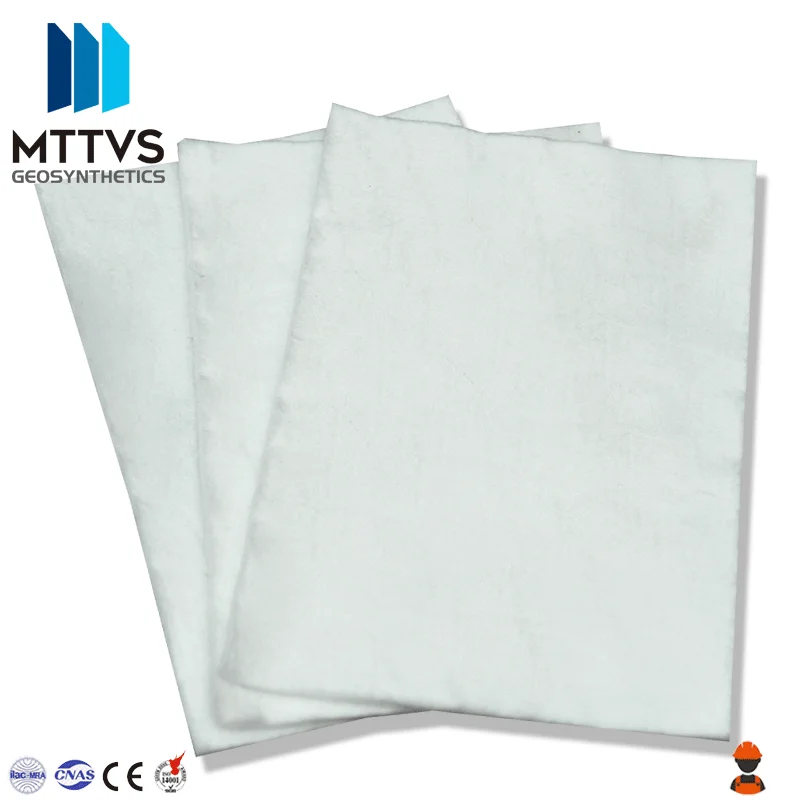

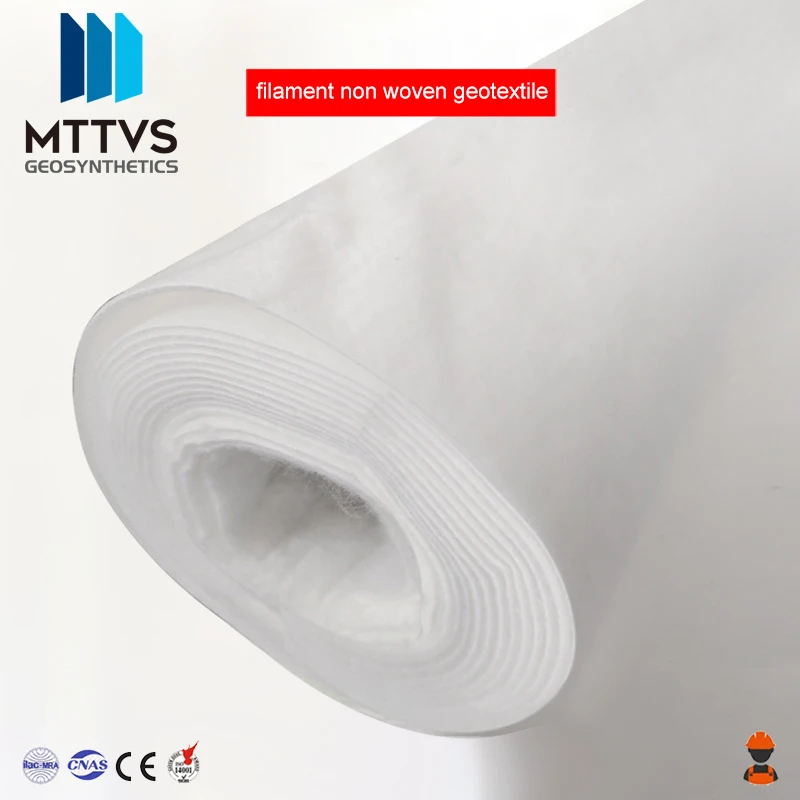

Filament Non woven Geotextile fabric

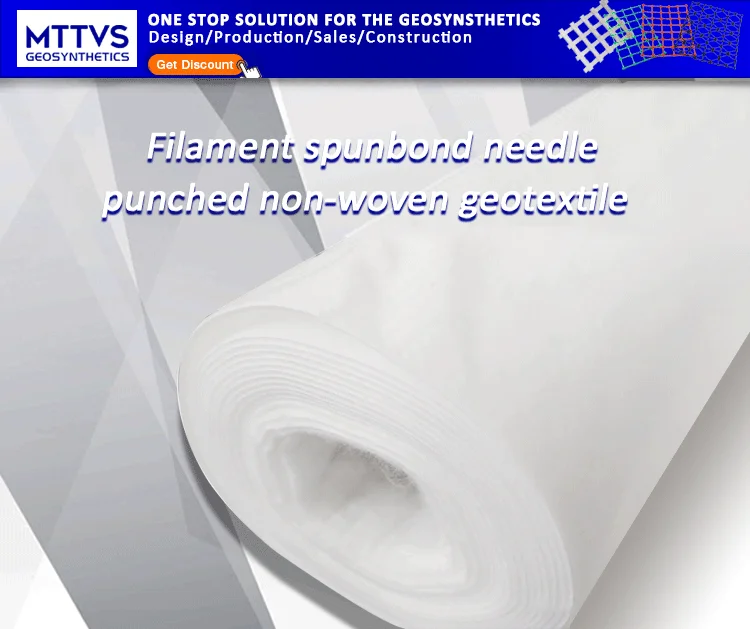

Filament spunbond needle punched non woven geotextile

The MTTVS® Filament spunbond needle punched non-woven geotextile is permeable fabrics.They are manufactured from the extrusion of fibres which are then laid down on a manufacturing “bed” and then needle punched to entangle the fibres such that a dimensionally stable product is formed. Some additional thermal treatment is then applied to further improve the strength of the geotextile. Due to the manufacturing processes and that the geotextile product is highly needle, these non-woven geotextiles are generally best suited for a wide range of geotechnical applications. Geotextiles have had a long history of use in filtration, drainage, separation and protection applications in a range of civil, coastal and environmental engineering structures.

Geotextiles are a relatively inexpensive product, that when designed and installed correctly can replace traditional granular
treatments with significant cost savings, both in aggregate quantities used and traditional labour costs to install such aggregate
systems.

The MTTVS® geotextile product range is quality certified in ISO accredited quality factories to the highest manufacturing
standards for international markets.

MTTVS® accepts all specifications of filament geotextile customization.

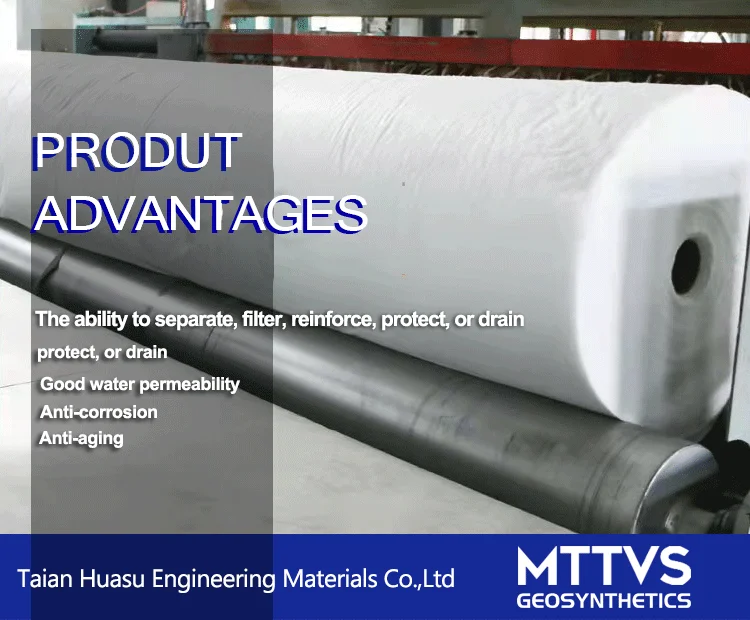

Feature
* Good water permeability
* Anti-corrosion
* Anti-aging
* Wide range of adaptation
* Low creep
* Resistance to external damage


Application
Roads, airfields, railroads, embankments, retaining structures, reservoirs, canals, dams, bank protection, coastal engineering and
construction site silt fences or geotube.
* Drainage
* Filtration
* Protection
* RoadsReinforcement
* Separation
* Used to increase soil stability
* Provide erosion control
* Aid in drainage.

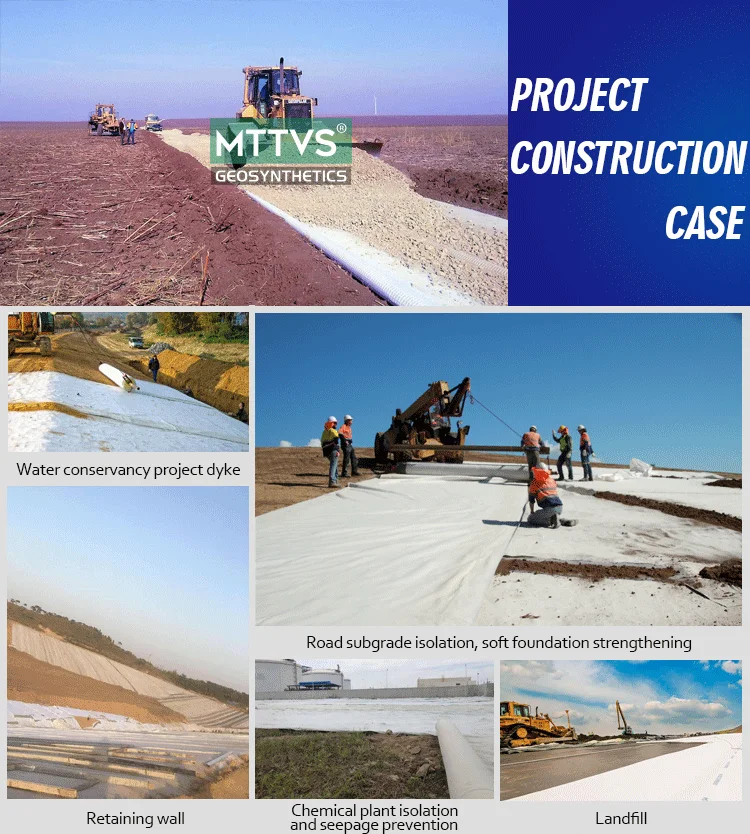

Projet Case




                         SEND INQUIR



Company Profile

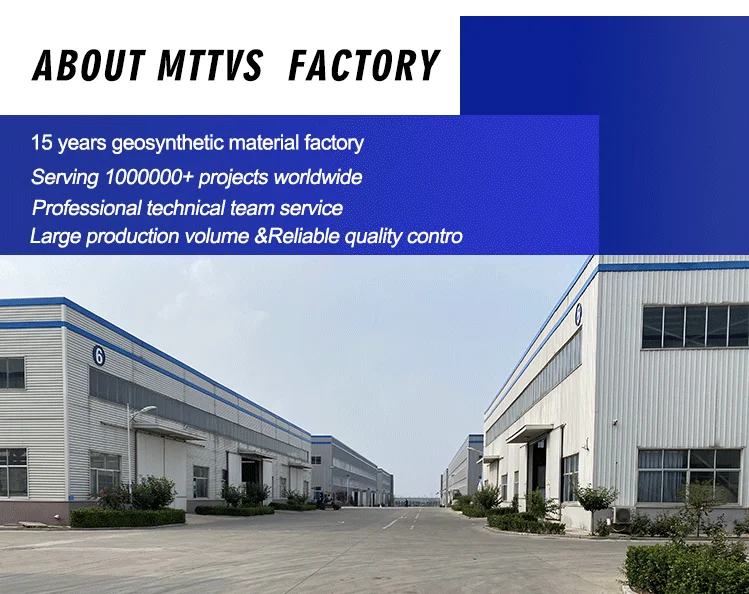

ABOUT MTTVS FACTORY
15+years experience in professional production and export of geosynthetics.
Served 1000000+projects worldwide.
Strong professional technical service team.
Large Production Volume &Reliable Quality Control.

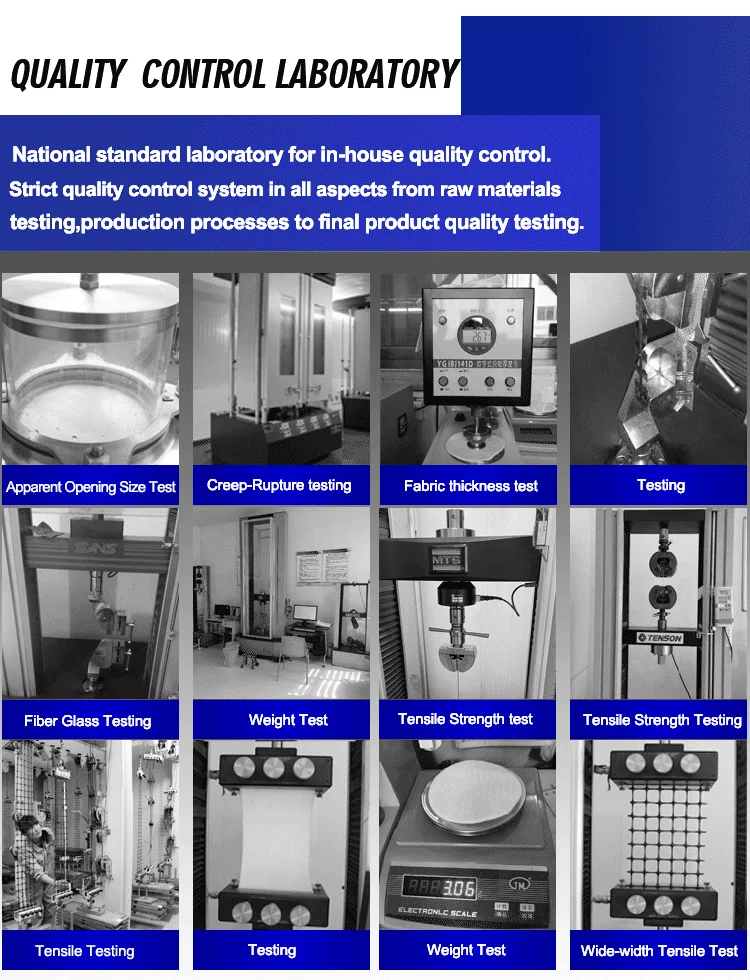

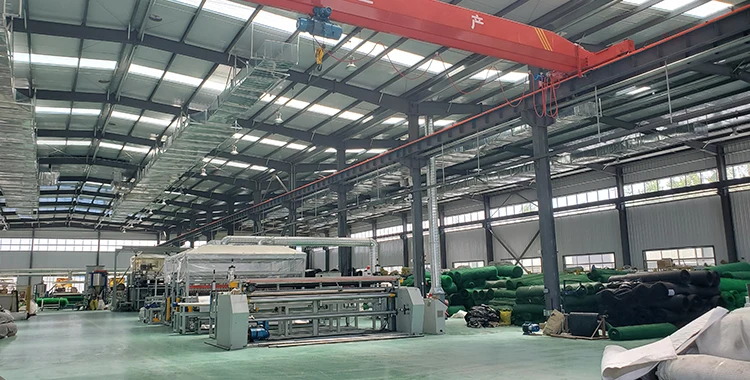

Quality Control


Reliable Quality Control
MTTVS has established a national-standard laboratory for in-house quality control.We built a strict quality control system in all aspects from raw materials testing,production processes to final product quality testing.Our management system is certified by ISO9001.and the products have passed the CE certification .


Certifications

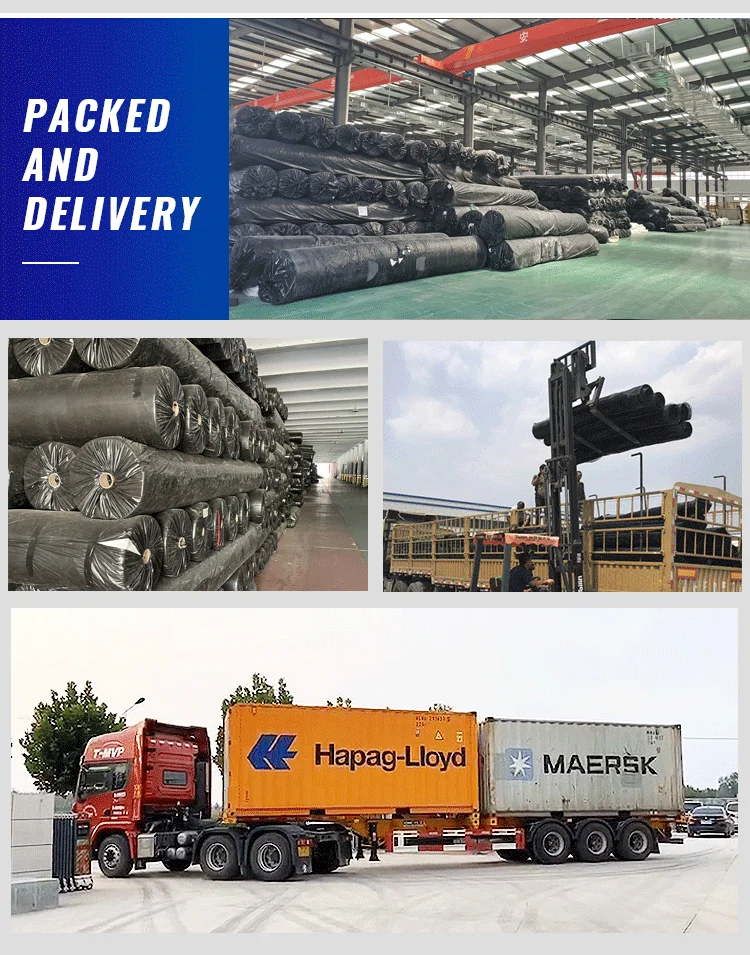

Product packaging
