Hot Selling Seamless Switch 8K 2X3 3X2 3x3 Mulit Inputs 4K HDMI Video Wall Controller
- Category: >>>
- Supplier: Shenzhen Bitvisus Technology Limited
Share on (1600417430615):
Product Overview
Description
Product Description

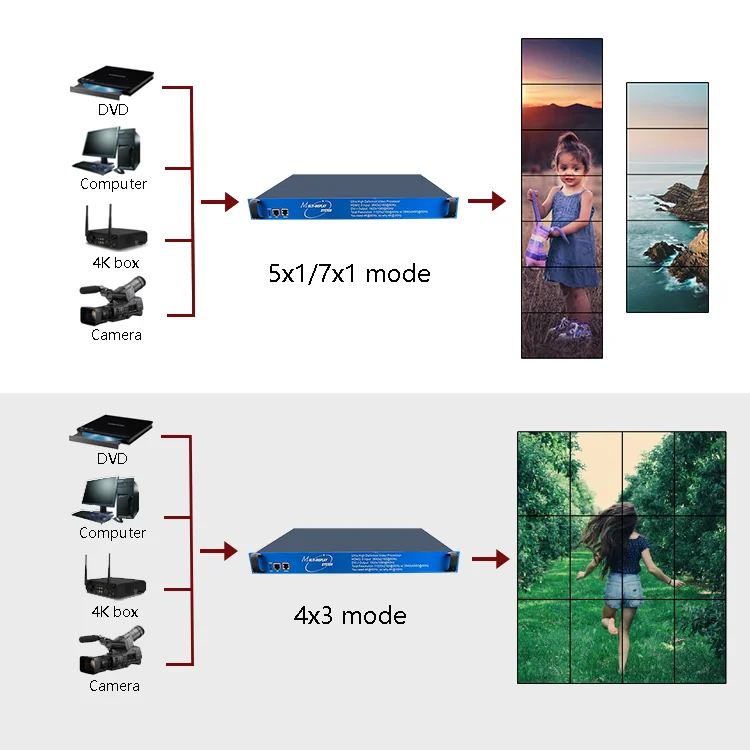

1.The maximum support is 1 in and 12 out, and multiple splicing modes can be arbitrarily combined (such as horizontal screens or
vertical screens or special-shaped splicing), and support massive parallel use.
vertical screens or special-shaped splicing), and support massive parallel use.
2.Ultra-high-definition resolution and supports up to 8Kx2K.
3.Support wired network control.
4.Odd-numbered picture dedicated solution, support odd number picture (5 screens or 7 screens, etc.) perfect point-to-point zero
distortion display mode.
distortion display mode.
5.Supports large-scale parallel use to ensure real-time display requirements for large screens.
Specification
Product name | BIT-VWC-U1-112 |
Input Max. Pixel FPS | 600Mhz |
Output Max. Pixel FPS | 165MHz |
6x2 Max supported resolution | 2560x4320@50Hz |
2x6 Max supported resolution | 7680x1440@50Hz |
4x3 Max supported resolution | 3840x2880@50Hz |
3x4 Max supported resolution | 5120x2160@50Hz |
3x3 Max supported resolution | 5760x3240@30Hz |
4x2 Max supported resolution | 3840x4320@30Hz |
2x4 Max supported resolution | 7680x2160@30Hz |
2x2 Max supported resolution | 3840x2160@60Hz |
Factory default resolution | 3840x2160@60Hz |
Support custom resolution | √ |

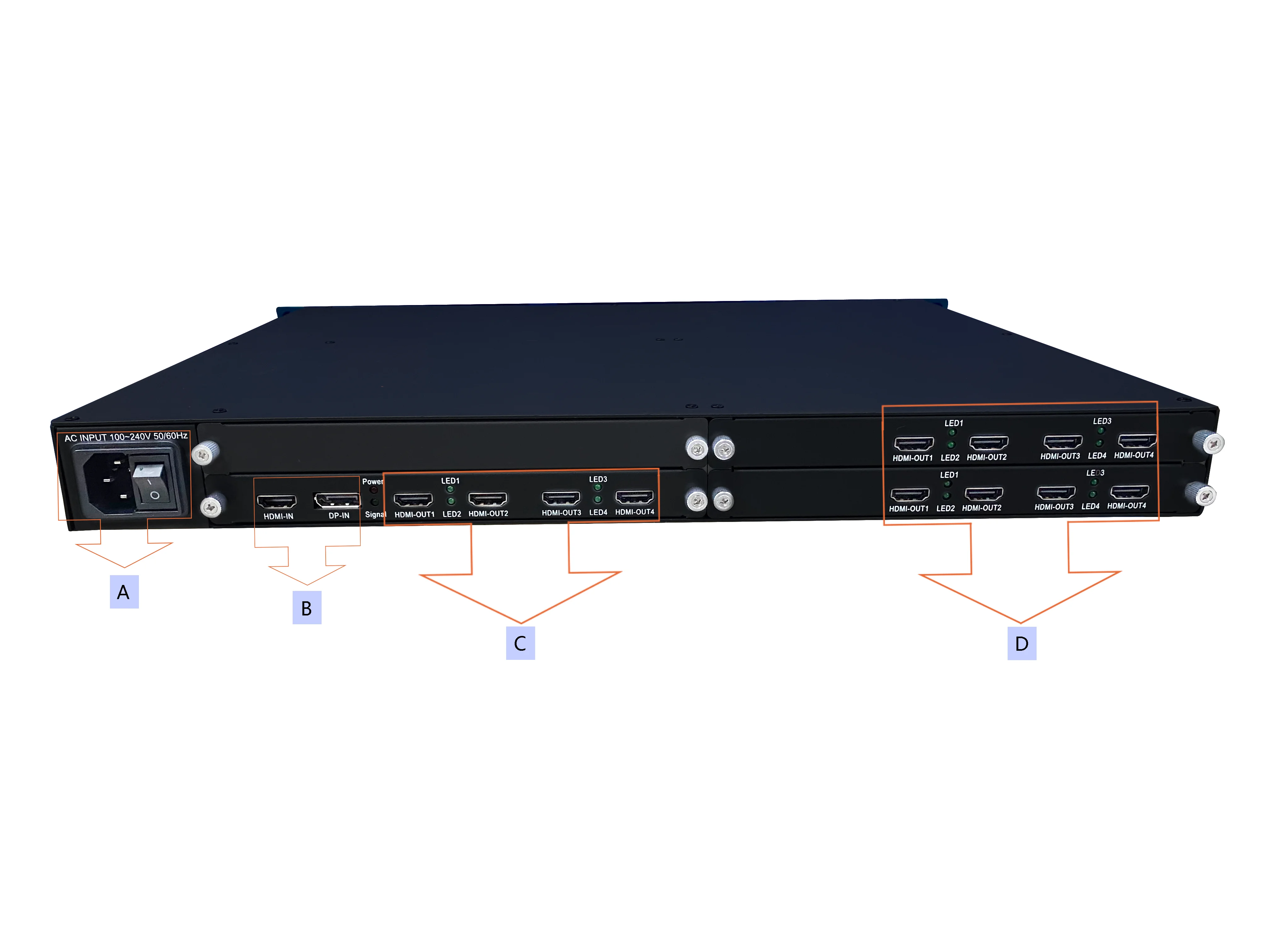

Input interface type | One Display port One HDMI One RJ45 Network port One RJ45 Debug port |
Output interface type | 4 ~ 12 HDMI |
Size | 38.5*cm48.3cm*4.4cm |
Weight | 7kg |
Power supply | 220V@2A AC-DC |
Warranty | One year |
Company Profile
Shenzhen bitvisus Co.,Ltd. is a leading enterprise focusing on the development,production and sales of series products with FPGA image processing technology and high-definition audio and video signal transmission as the core.Our main series products include TV Video Wall Controller,Splicing Processor,Multi Screen Extender,Image Processor,HDMI Matrix Switcher,HDMI Splitter,HDMI Extender,DVI Extender,HDMI Optical Fiber Transmitter,DVI Optical Fiber Transmitter,KVM Extender,etc.They are widely used in projection,splicing,exhibition,touch interaction,advertising media and other fields.Bitvisus has a strong R&D team,with more than 10 experienced engineers working here.Most of the core backbones come from leading companies in the industry such as Huawei,ZTE,Xilinx,etc.With more than 15 years of rich experience in the audio and video industry.Bitvisus provides customers with differentiated products,OEM or ODM services,and helps customers succeed in business.
