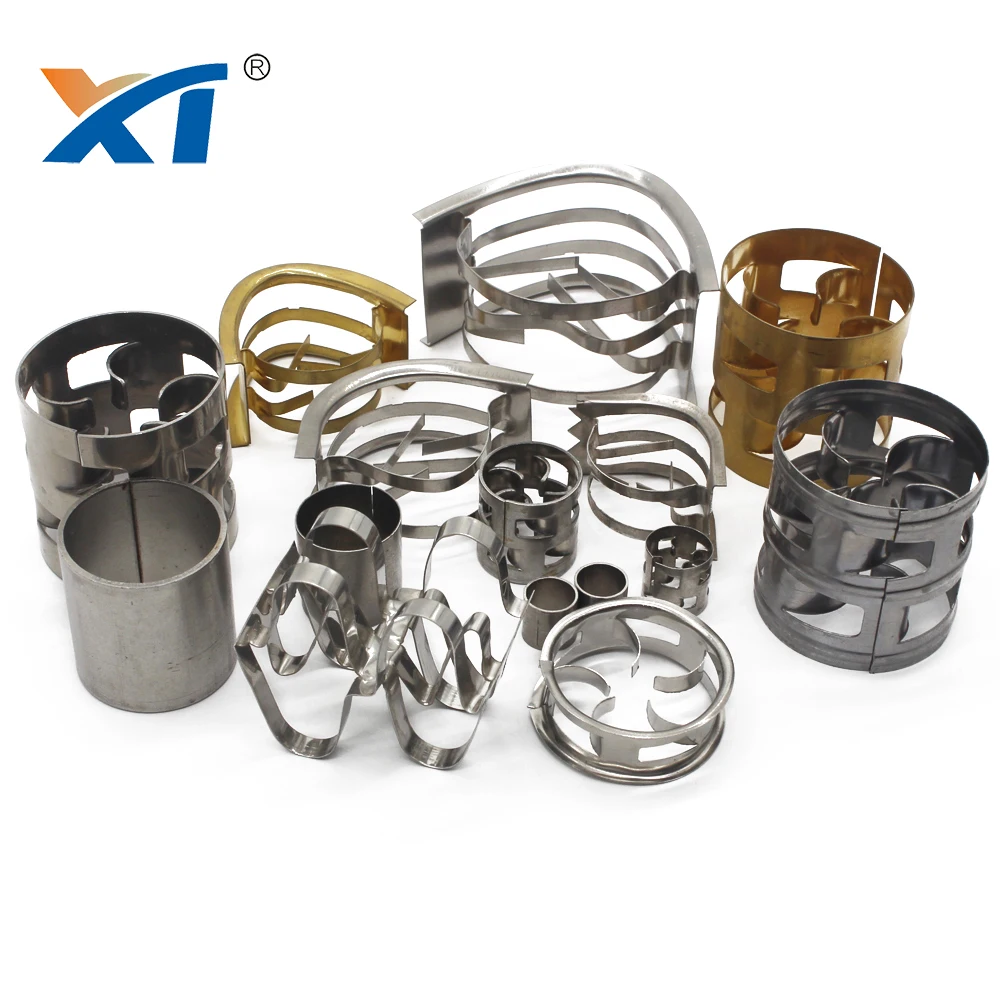

Stainless Steel CMR Metal Cascade Mini Ring for Chemical Tower Packing

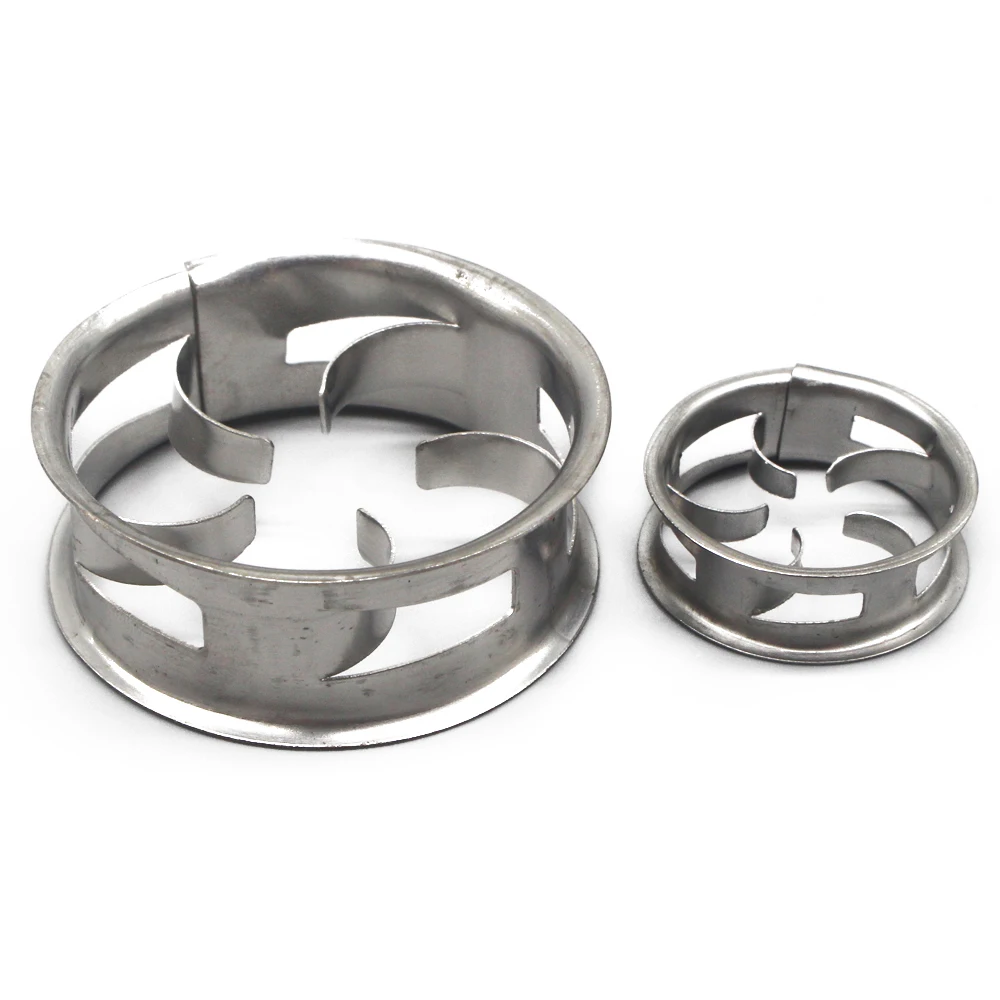

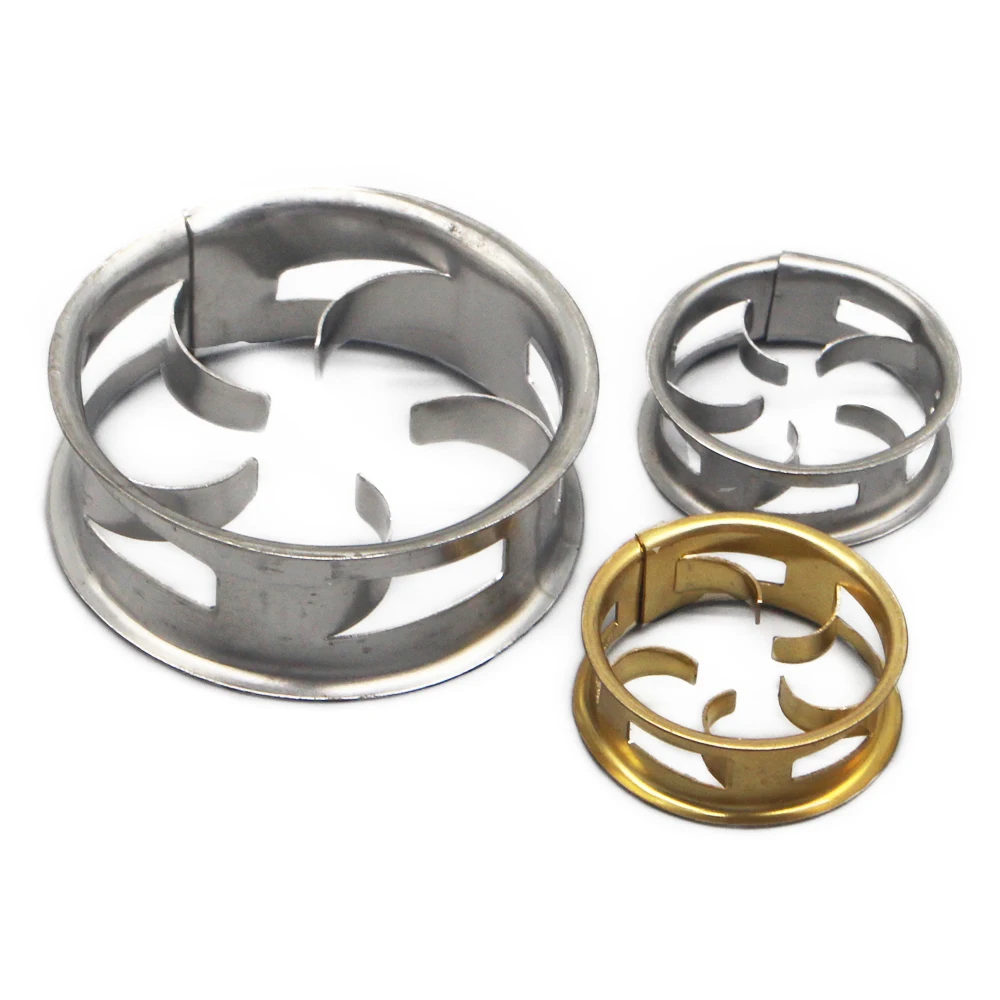

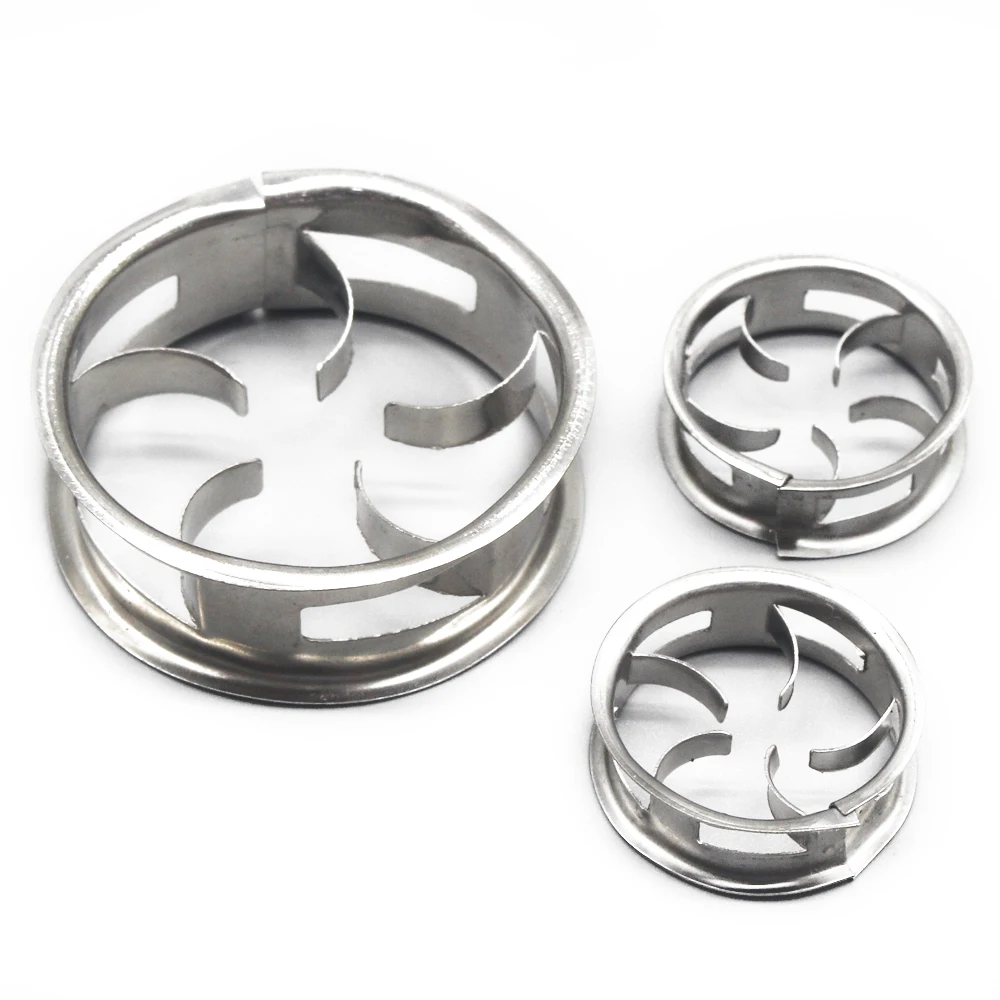

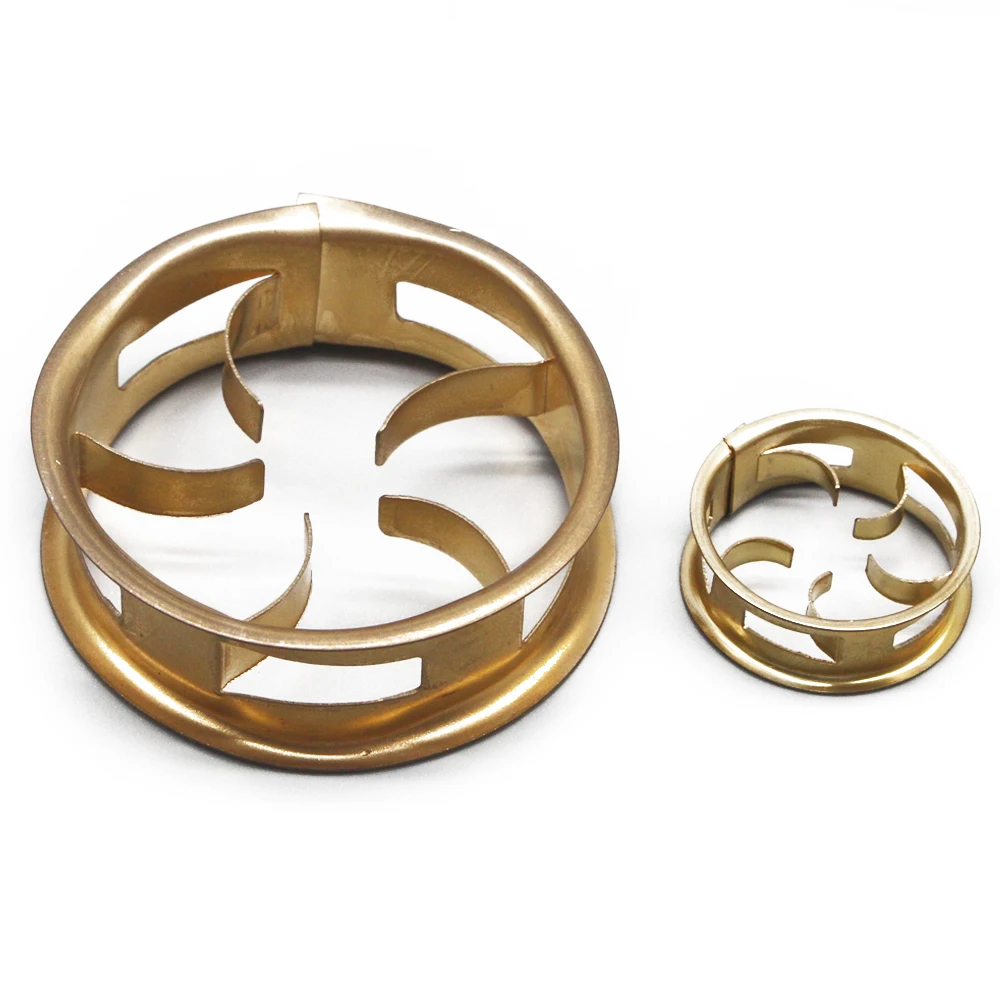

CMR Cascade Mini Ring

Metal Cascade Mini Ring, draws the benefits of Metal Raschig Ring and Metal Pall ring,

the height-diameter ratio is 1:2.

Because of increasing the cone flanging, it can reduce the resistance of gas and

increase gas-liquid contact area.

“Packing-mall” Metal Cascade Mini Ring, has features such as thin wall, heat resistant, high free volume,

high capacity, low resistance, high separation efficiency, reduced pressure drop and so on.

Reduced Pressure drop, because its largest opening predominantly in the direction of

the gas-liquid flow which allows for easy passage.

Increased plant capacity, is the direct result of the result of the reduction in pressure drop.

Higher operational efficiency, because of the preferential orientation which ensures that in most of the ring surface are positioned vertically rather than horizontally, and this is also advantageous for mass transfer. Improved resistance to fouling, because any solids entering the packed bed are more easily flushed through the packing matrix.

Material:

Carbon Steel. SS304, 304L, 410, 316, 316L, etc.

Typical Application:

Be especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems.

Be widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
