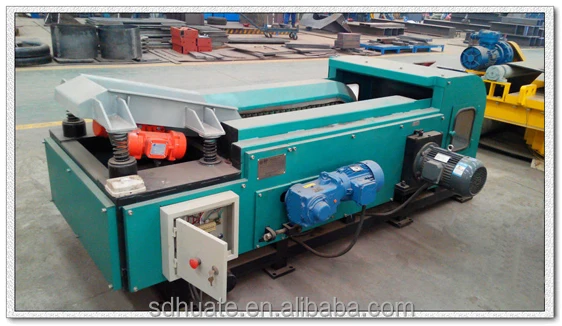

Aluminum and copper sorting machine eddy Current Separator Eccentric Eddy Current Separator Product for recycling metal
- Category: >>>
- Supplier: Shandong Huate Magnet Technology Co. Ltd.
Share on (1600417648615):
Product Overview
Description

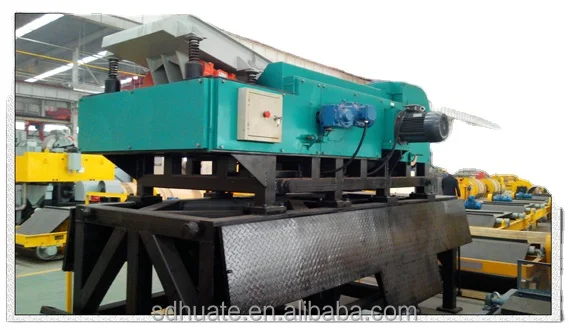

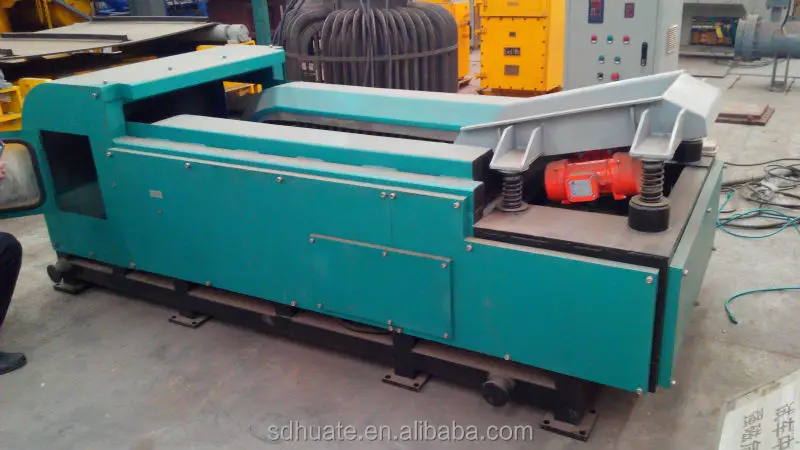

Aluminum and copper sorting machine eddy Current Separator Eccentric Eddy Current Separator for recycling Non-ferrous metal
Applicatiton:
HTECS series eddy current separator, non-ferrous metal separator is mainly used for recycling of non-ferrous metal. Typical material is: wasted copper, aluminum, cable, aluminum stuff, wasted auto spare part ,non-ferrous metal scrap, dross for printing ,broken glass contains non-ferrous .electronic wastes etc.
At present the main application in the following material separation
1. from the city waste recycling aluminum cans
2. Separation aluminum cans and iron
3. The ash from the boiler in the separation of non-ferrous metal
4. From waste car slices sorting aluminum or copper pieces
5. From smelting aluminium recycling aluminum in blast furnace slag
6. In some production line is to separate the iron metal impurity (such as plastic recycling product line)
7. Waste refrigerator processing
8. Electronic waste treatment
Features:
1. with high efficiency ,stable working structure ,light frame.
2. with high adaptability, great processing capacity.
3. It is widely used in environmental-protection area, especially in the non-ferrite recycle field.
4. Convenient operation and run for a long time .
5. the speed of belt and the rotation speed of high frequency magnetic roller are both adjustable.
Main technical parameters :
Model No. | Belt width (mm) | Magnetic field intensity (GS) | Drum diameter (mm) | Drum speed (r/min) | Belt speed (m/s) | Capacity (m³/h) | Drum drive power (kW) | Belt drive power (kW) | Weight (kg) |
HTECS-3 | 300 | ≥3000 | 320 | 50~2880 | 0~2 | 2~3 | 4 | 1.1 | 1100 |
HTECS-4 | 400 | 3~4 | 4 | 1.1 | 1200 | ||||
HTECS-5 | 500 | 4~5 | 4 | 1.1 | 1400 | ||||
HTECS-6 | 600 | 5~6 | 4 | 1.1 | 1500 | ||||
HTECS-6.5 | 650 | 5~7 | 4 | 1.1 | 1700 | ||||
HTECS-7 | 700 | 6~8 | 5.5 | 1.1 | 1900 | ||||

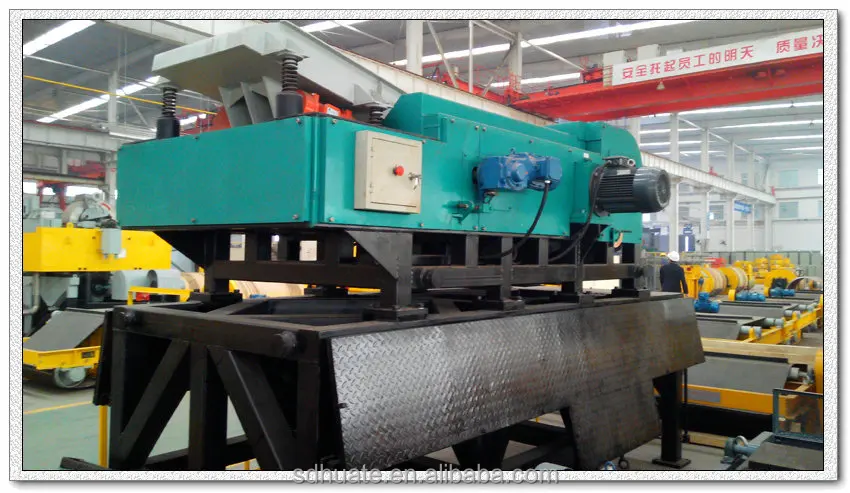

HTECS-7.5 | 750 | 7~9 | 5.5 | 1.1 | 2100 | ||||
HTECS-8 | 800 | 8~10 | 7.5 | 1.1 | 2500 | ||||
HTECS-10 | 1000 | 9~11 | 7.5 | 1.5 | 3100 | ||||
HTECS-12 | 1200 | 10~12 | 11 | 2.2 | 3500 | ||||
HTECS-14 | 1400 | 12~14 | 11 | 2.2 | 3900 | ||||
HTECS-15 | 1500 | 13~15 | 11 | 2.2 | 4300 | ||||
HTECS-20 | 2000 | 17~20 | 15 | 3 | 5200 |
Feed size: 5~120mm
Separation frequency: 0~60Hz
Magnetic Intensity on the drum surface more than :3500GS
Dear customer,
To choose the best appropriate model, we need to know the following information:
- The raw materials ?
- The materials’ size?
- The capacity requirements
- Other special requirements
.

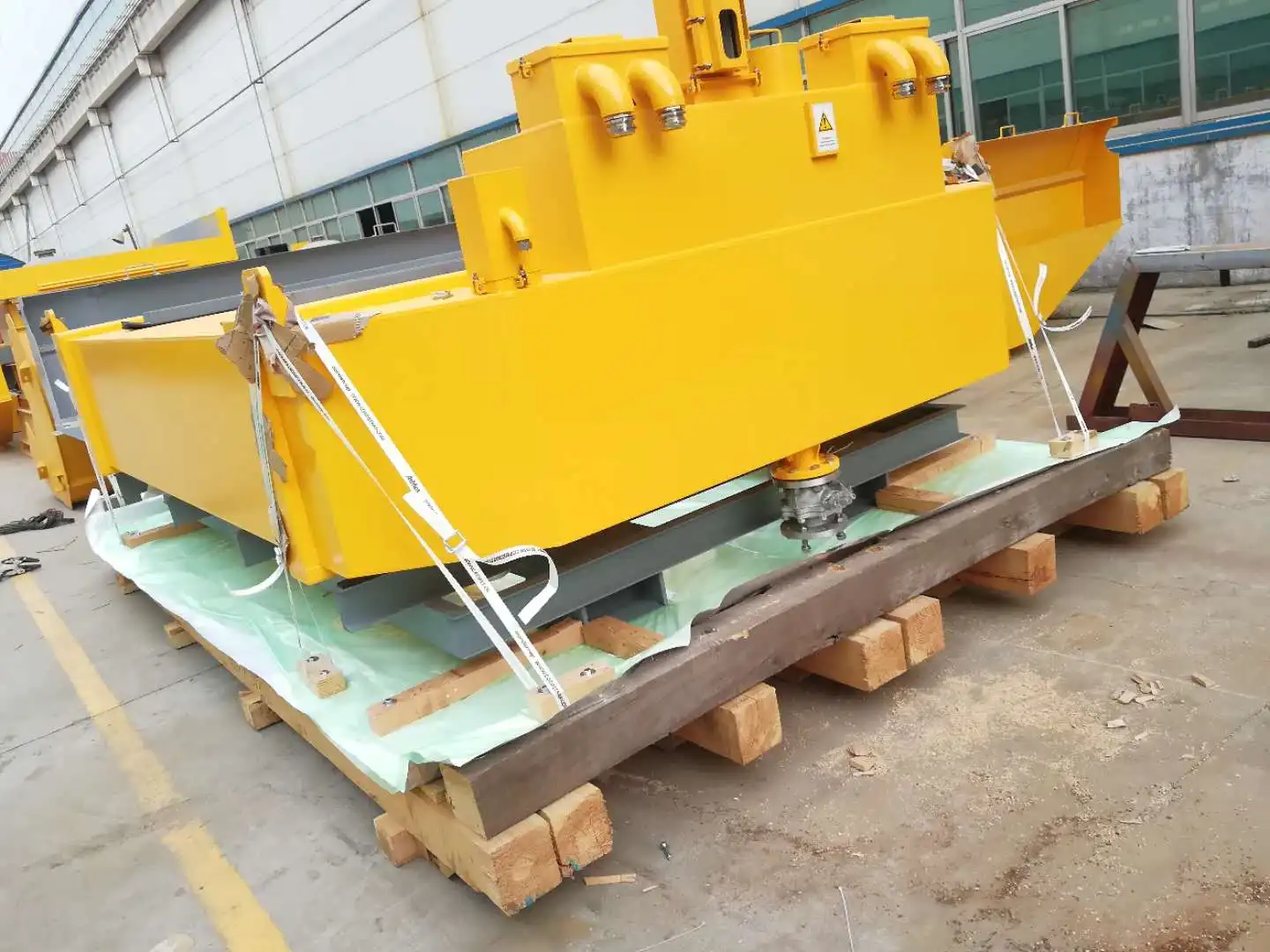

Packaging & Shipping
Company Information
Huate, focusing on R & D, manufacturing and technical services of electric-magnetic separation equipment for 30 years, providing customers with packaged solutions. We are specializing in manufacturing superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mining processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, Italy, Norway, South Africa, Brazil, India, Pakistan and many other countries.
Our Services
FAQ
Q: What are the advantages of our company?
A: Our company has professional equipment and full sets of processing solutions, we will give you the most personalized service.
Q: What the your processing capacity ? Particle size? Material sample
Q: What is your Core Products?
A: Our Main Product is Magnetic Separator ,Mining equipment.
Q: Can you supply OEM?
A: Yes, we can supply OEM and customization, but the MOQ depends on product.
Q: How long is your delivery time?
A: Delivery time depends on order qty. If you need to customize, the time will be calculated separately.
We have a professinal team for mineral separation .once you have any questions, you can directly send messages to us .to visit our company and Factory.
