YTFD0100 High precision tipping bucket rain gauge outdoor weather station rain gauge





Product Detail

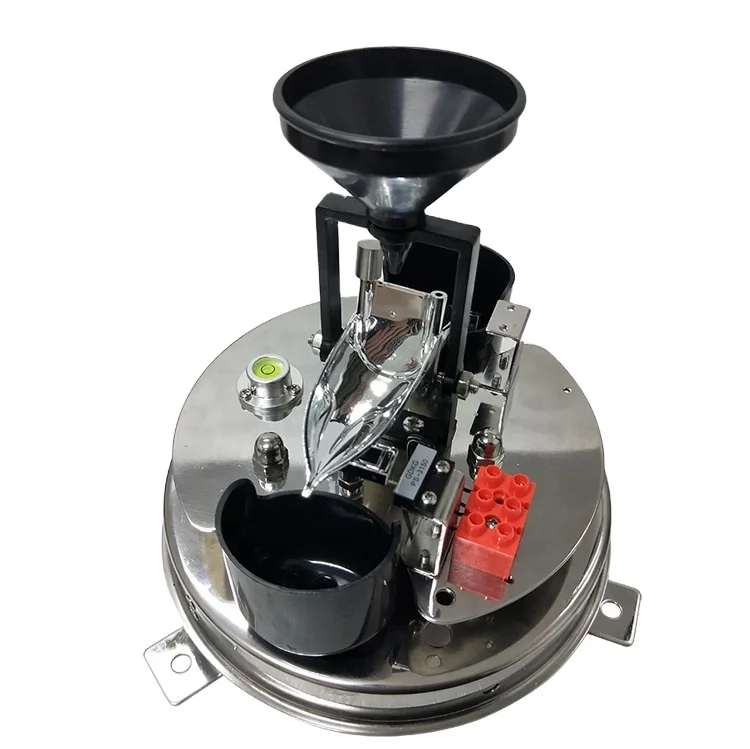

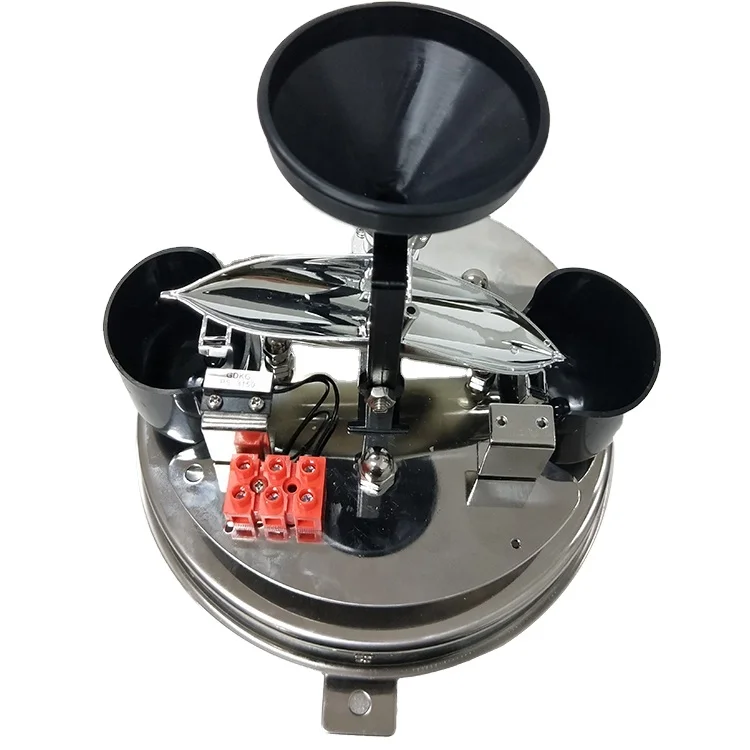

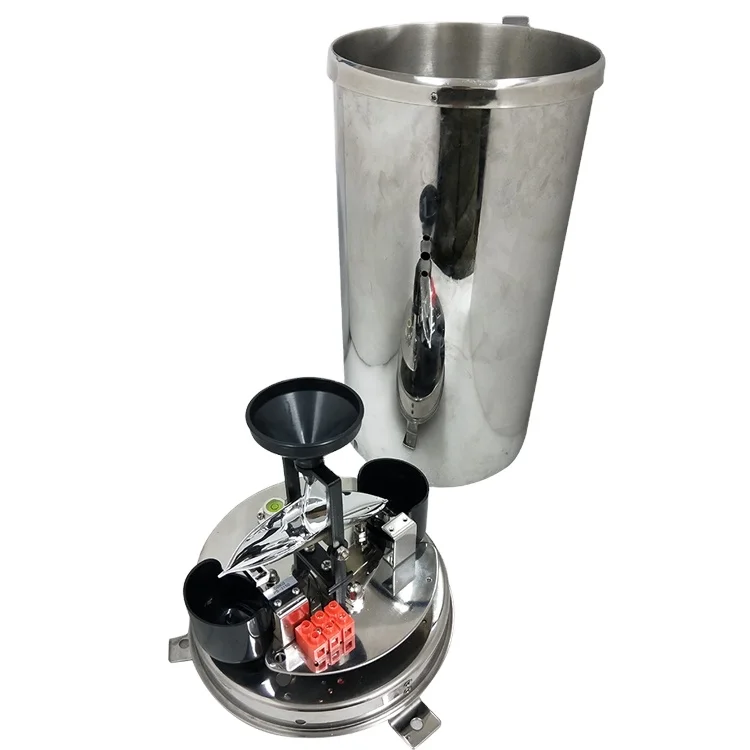

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

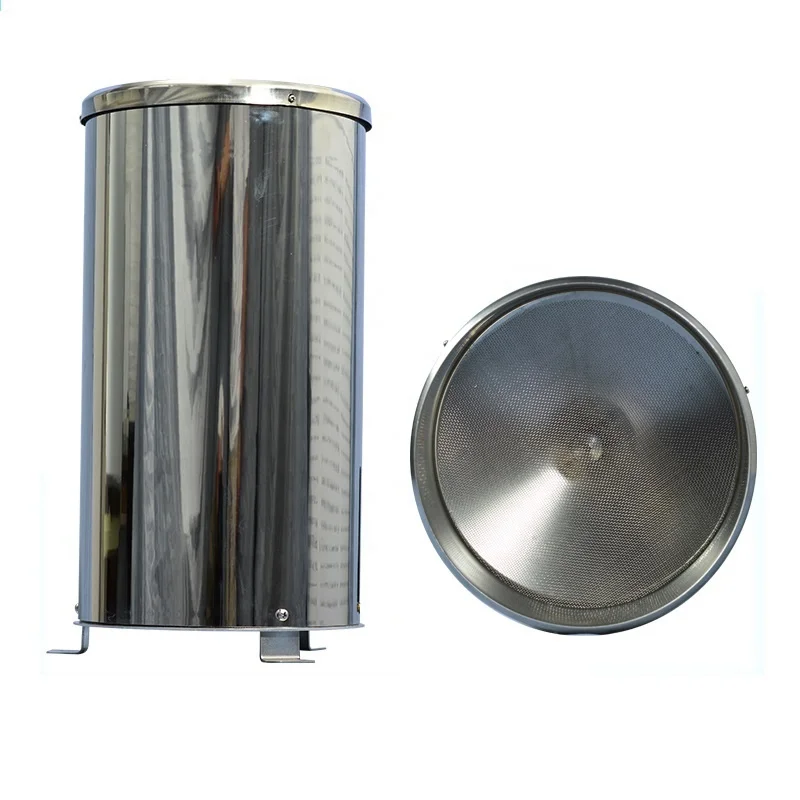

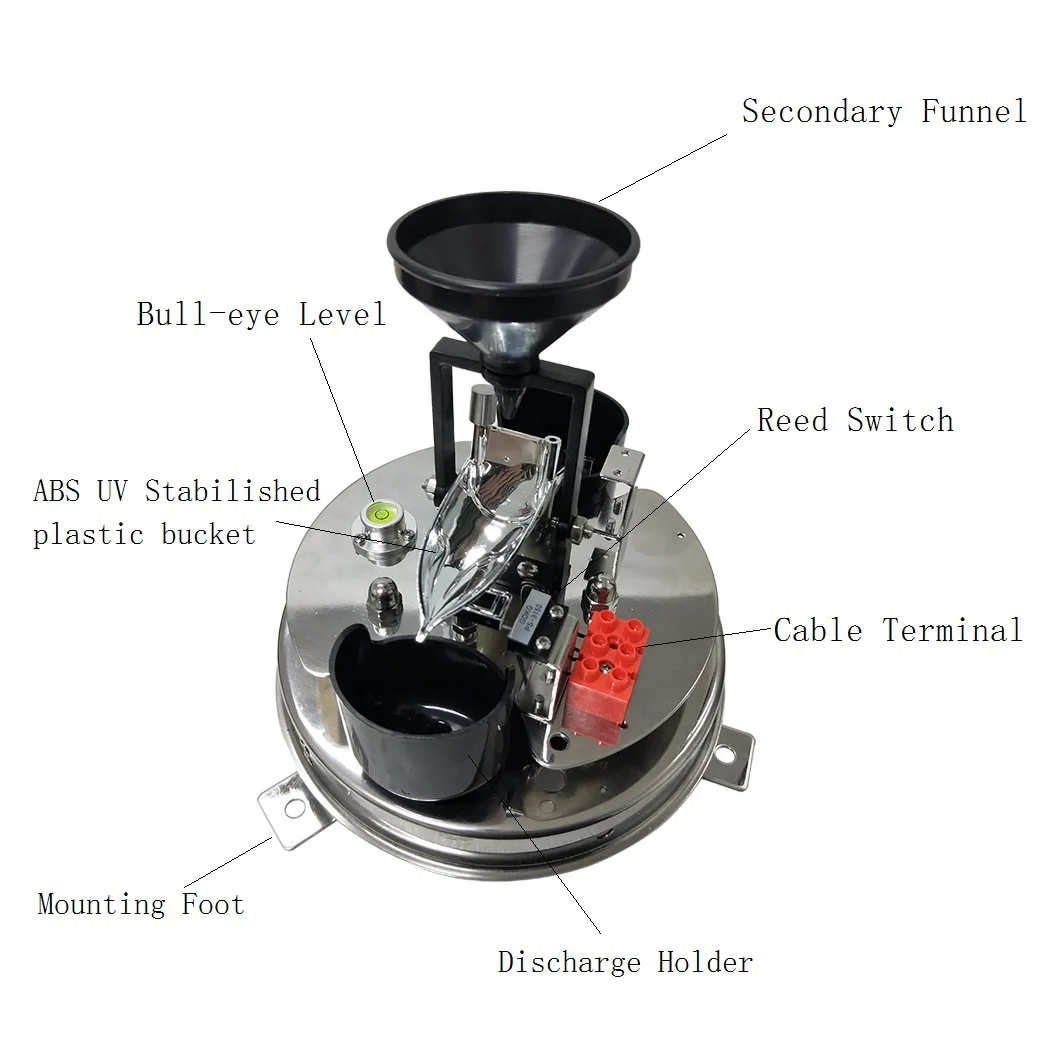

Hce07.jpg       H44a51e.png






Data Sheet






















































































Type


YTFD0100


Material


Stainless Steel ( Body, Base)


Tips


ABS UV Stabilished plastic bucket


Rainfall capacity


≤ 4mm/min


Accuracy


±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min);


Resolution


0.1mm


Collector diameter


200mm ±0.3%


Collector area


314cm²


Height


402.2mm


Acute angle of cutting edge


40~45°


Output


Standard Pulse(Reed switch, 5pulse/mm);
RS485 optional


Power supply


Pulse : MaxDC24V,100mA ;
RS485: DC5V or DC 7-24V



Switch


Rugged Magnetic Proximity


Leveling


Bulls eye level adhered, leveling screw adjust

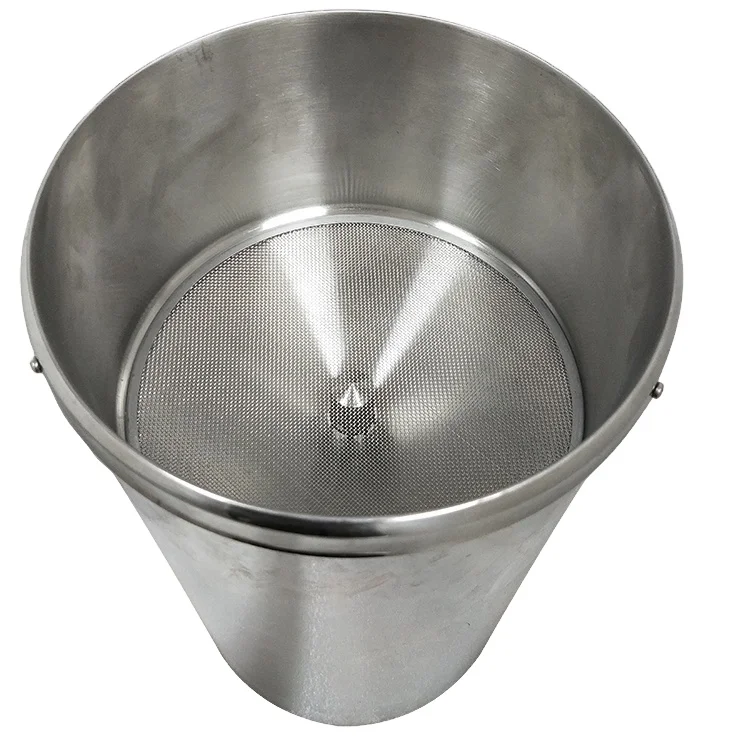

Debris protection filter


Steel stainless Mesh is provided inside the collector


Mounting holes


Three mountings


Discharge control


Straight through flow mechanism


Working temperature


-20~80℃


Working humidity


0%~95%RH

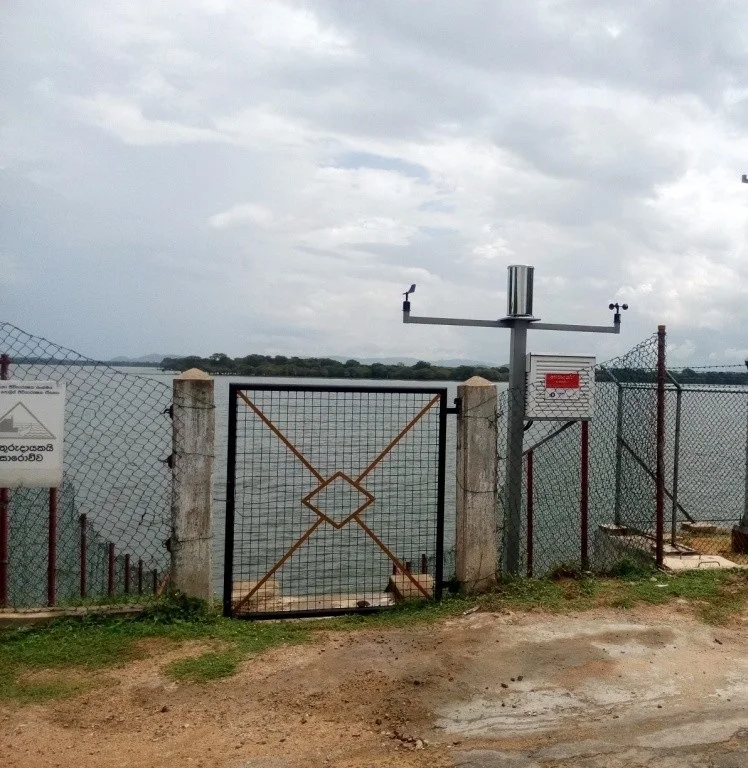

 Application












Application

Application









Hd5740ad0e

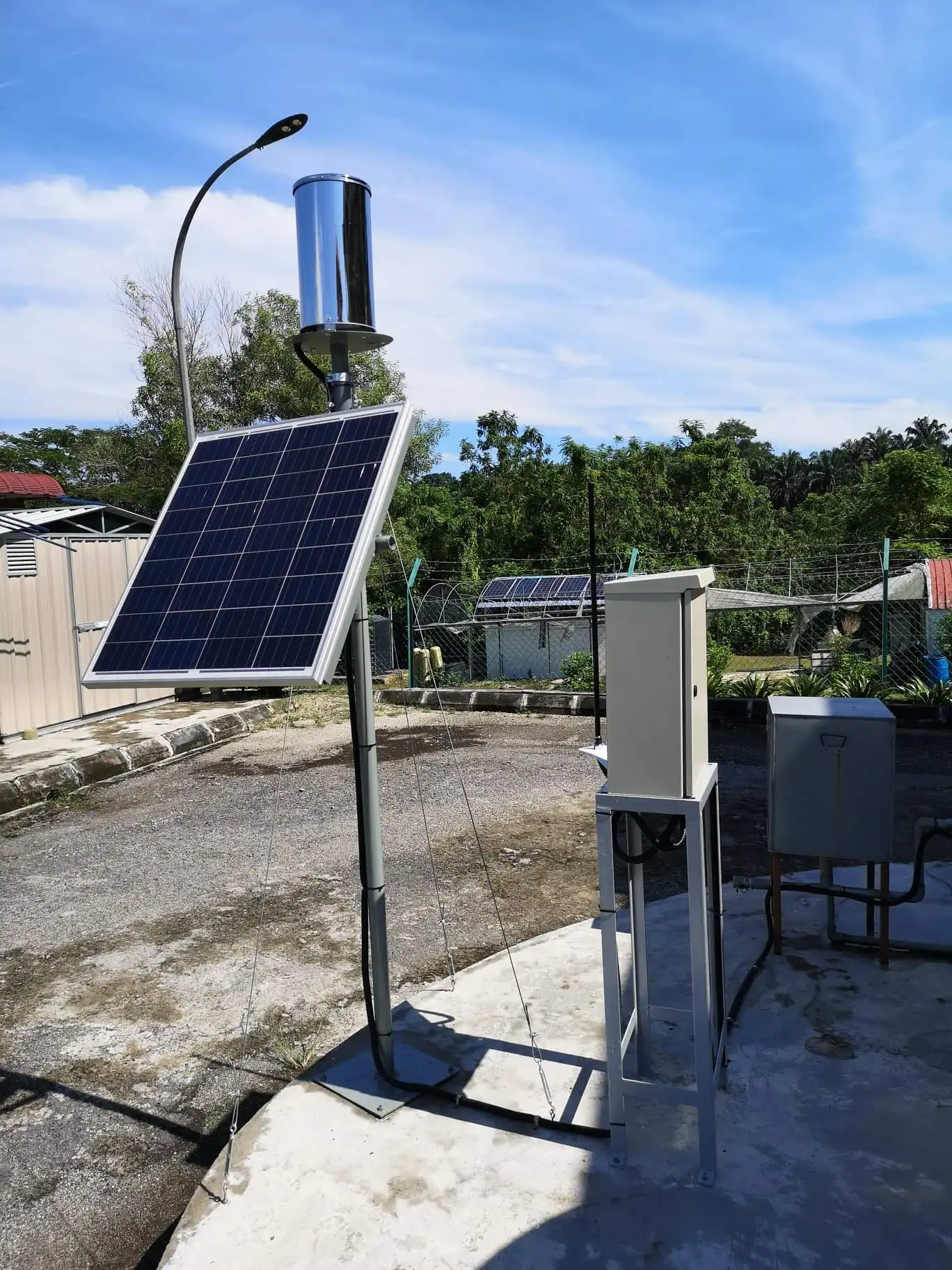

H65634c08

Hd110003
