Product Overview
Description
Products Description&Specification
HDPE TEXTURE GEO PAVERS
Properties | Test method | Units | GC0735 | GC0744 | GC0771 | GC1035 | GC1044 | GC1071 | |||||
Polymer | - | - | HDPE | ||||||||||
Carbon Black content | ASTM D1603 | % | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | |||||
Density | ASTM D1505 | g/cm3 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | |||||
Sheet Thickness before texturing | ASTM D5199 | mm | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |||||
Sheet Thickness after texturing | ASTM D5199 | mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||
Seam Peel Strength | - | N | 1060 | 1060 | 1060 | 1420 | 1420 | 1420 | |||||
Weld Spacing | - | mm | 356 | 445 | 711 | 356 | 445 | 711 | |||||
Cell Depth | - | mm | 75 | 75 | 75 | 100 | 100 | 100 | |||||
DIMENSIONS | - | ||||||||||||
Expanded Cell Size(Width×Length) | - | mm | 259×224 | 320×287 | 508×475 | 259×224 | 320×287 | 508×475 | |||||
Expanded Panel Size(Width×Length) | - | m | 2.56×6.52 | 2.56×8.35 | 2.56×13.72 | 2.56×6.52 | 2.56×8.35 | 2.56×13.72 | |||||
Expanded Panel Area | - | m2 | 16.7±1% | 21.4±1% | 35.12±1% | 16.7±1% | 21.4±1% | 35.12±1% | |||||
Properties | Test method | Units | GC1535 | GC1544 | GC1571 | GC2035 | GC2044 | GC2071 | |||||
Polymer | - | - | HDPE | ||||||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | |||||
Density | ASTM D 1505 | g/cm3 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | |||||
Sheet Thickness before texturing | ASTM D 5199 | mm | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |||||
Sheet Thickness after texturing | ASTM D 5199 | mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||
Seam Peel Strength | - | N | 2130 | 2130 | 2130 | 2840 | 2840 | 2840 | |||||
Weld Spacing | - | mm | 356 | 445 | 711 | 356 | 445 | 711 | |||||
Cell Depth | - | mm | 150 | 150 | 150 | 200 | 200 | 200 | |||||
DIMENSIONS | - | ||||||||||||
Expanded Cell Size(Width×Length) | - | mm | 259×224 | 320×287 | 508×475 | 259×224 | 320×287 | 508×475 | |||||
Expanded Panel Size(Width×Length) | - | m | 2.56×6.52 | 2.56×8.35 | 2.56×13.72 | 2.56×6.52 | 2.56×8.35 | 2.56×13.72 | |||||
Expanded Panel Area | - | m2 | 16.7±1% | 21.4±1% | 35.12±1% | 16.7±1% | 21.4±1% | 35.12±1% | |||||
Can be customized according to customer requirements
Plastic Geocell Ground Grid Paver

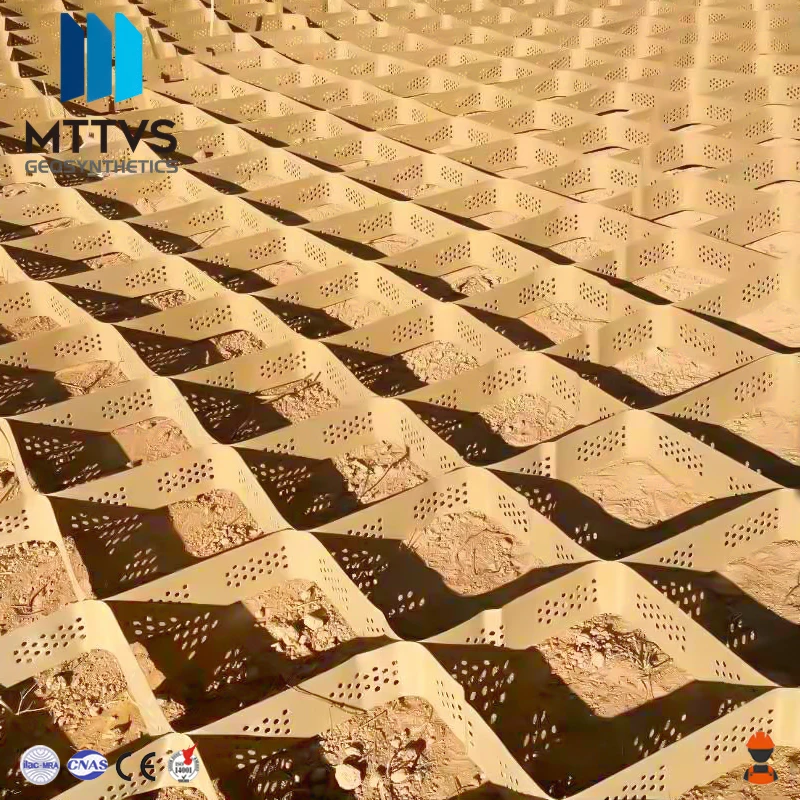

MTTVS Geocell made of PE or PP sheets through High intensity ultrasonic welding to be three-dimensional net structure material.It uses local materials (sand, gravel, mud, rock and soil etc.) as a filler material to be a combination of the steady structurel,achieve a high load carrying capacity.can make roadbed more steady, but also can plant on it, green the slope stability.Geocell mainly divided into smooth surface geocell , textured surface geocell , with holes or not.The Geocell greatly reduces erosion from weather and heavy or repetitive traffic. The perforation pattern through each cell and weld allows water to drain freely without washing out the material. The textured surface provides additional material retention. It is ideal for use in the construction of slopes and embankments prone to eroding, as well as driveways, roads, parking lots, horse paddocks and animal containment areas,trails and much more.
FEATURE
light weight, abrasion resistance, chemical stability, light oxidative aging, acid, suitable for different soil and desert soil
conditions.
Geocell Applying Area
* Be used for firm the roadbed of railroad;
* Be used for firm highway soft foundation handling;
* Be used for dike and retaining wall, which can bear load force;
* Be used to harness the shoal water runway;
* As pipeline and the sewer's propping up structure;
* Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;
* Be used for independent wall, dock and breakwater;
* Be used to harness the desert, beach and riverbed ,river bank
Construction Method
* Unfolding the geogrid (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)
* Fixing it with nail or connecting with the frame of stretcher;
MTTVS Geocell made of PE or PP sheets through High intensity ultrasonic welding to be three-dimensional net structure material.It uses local materials (sand, gravel, mud, rock and soil etc.) as a filler material to be a combination of the steady structurel,achieve a high load carrying capacity.can make roadbed more steady, but also can plant on it, green the slope stability.Geocell mainly divided into smooth surface geocell , textured surface geocell , with holes or not.The Geocell greatly reduces erosion from weather and heavy or repetitive traffic. The perforation pattern through each cell and weld allows water to drain freely without washing out the material. The textured surface provides additional material retention. It is ideal for use in the construction of slopes and embankments prone to eroding, as well as driveways, roads, parking lots, horse paddocks and animal containment areas,trails and much more.
FEATURE
light weight, abrasion resistance, chemical stability, light oxidative aging, acid, suitable for different soil and desert soil
conditions.
Geocell Applying Area
* Be used for firm the roadbed of railroad;
* Be used for firm highway soft foundation handling;
* Be used for dike and retaining wall, which can bear load force;
* Be used to harness the shoal water runway;
* As pipeline and the sewer's propping up structure;
* Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;
* Be used for independent wall, dock and breakwater;
* Be used to harness the desert, beach and riverbed ,river bank
Construction Method
* Unfolding the geogrid (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)
* Fixing it with nail or connecting with the frame of stretcher;

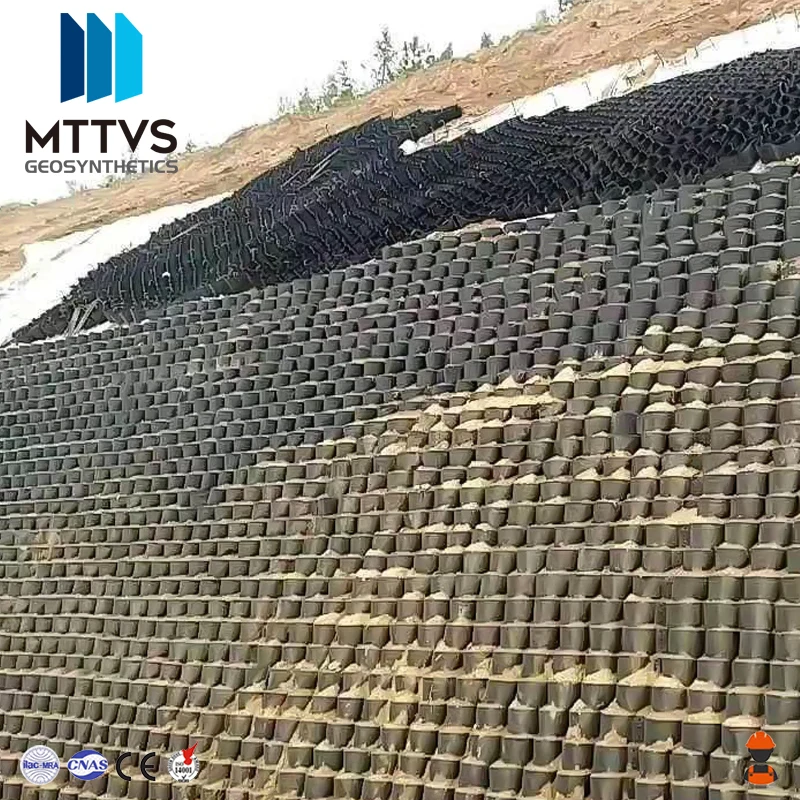

Projet Case
