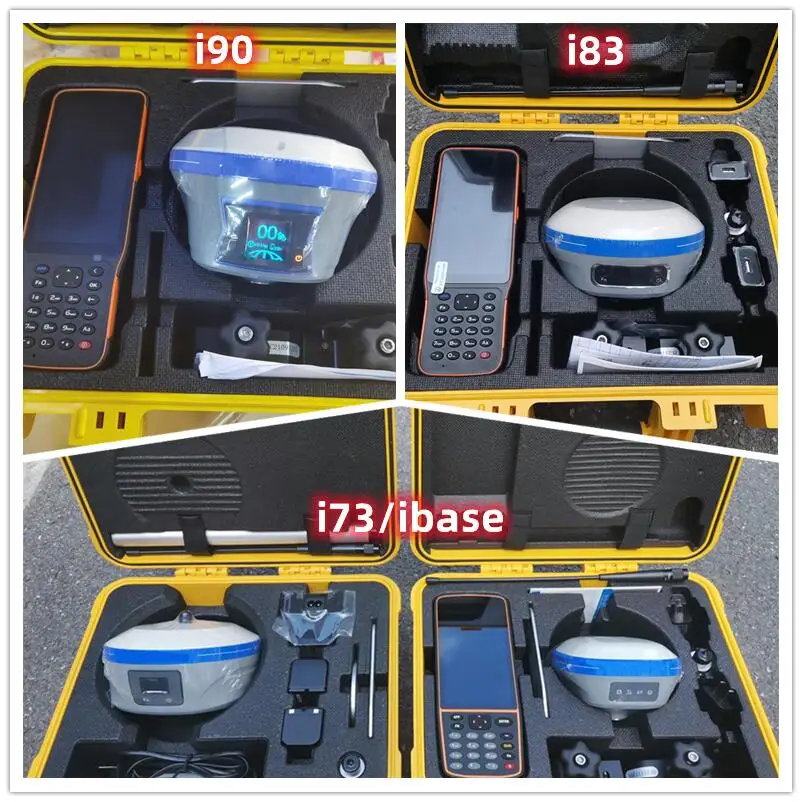

CHC E90 E91 E93 i73 i83 i90 ibase 624 channels 1408 channels GPS RTK GNSS

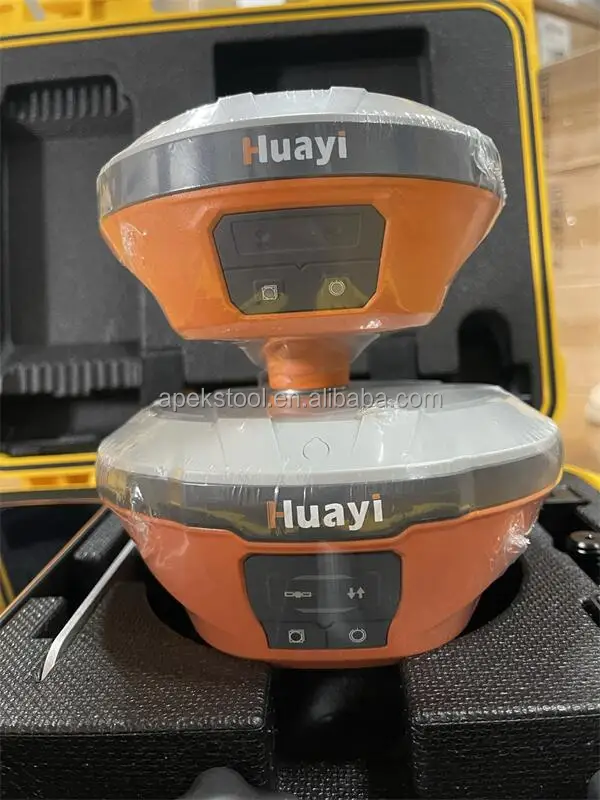

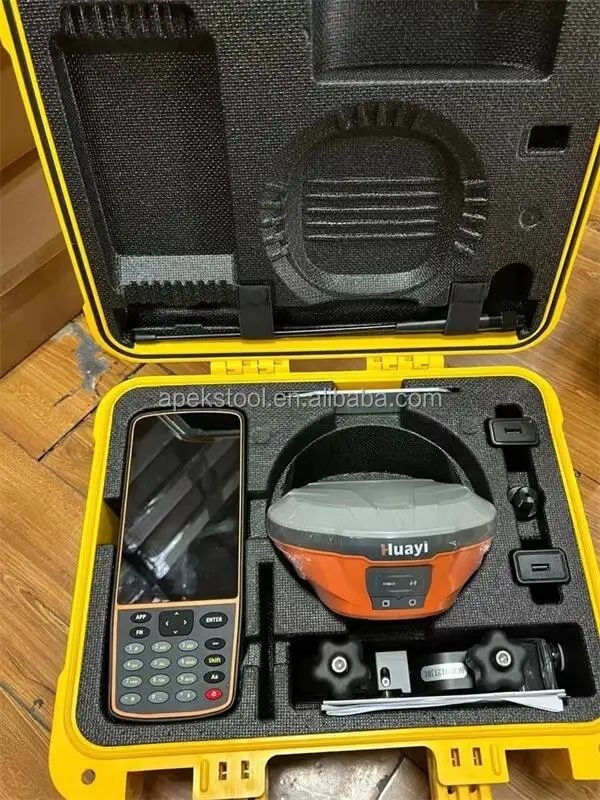

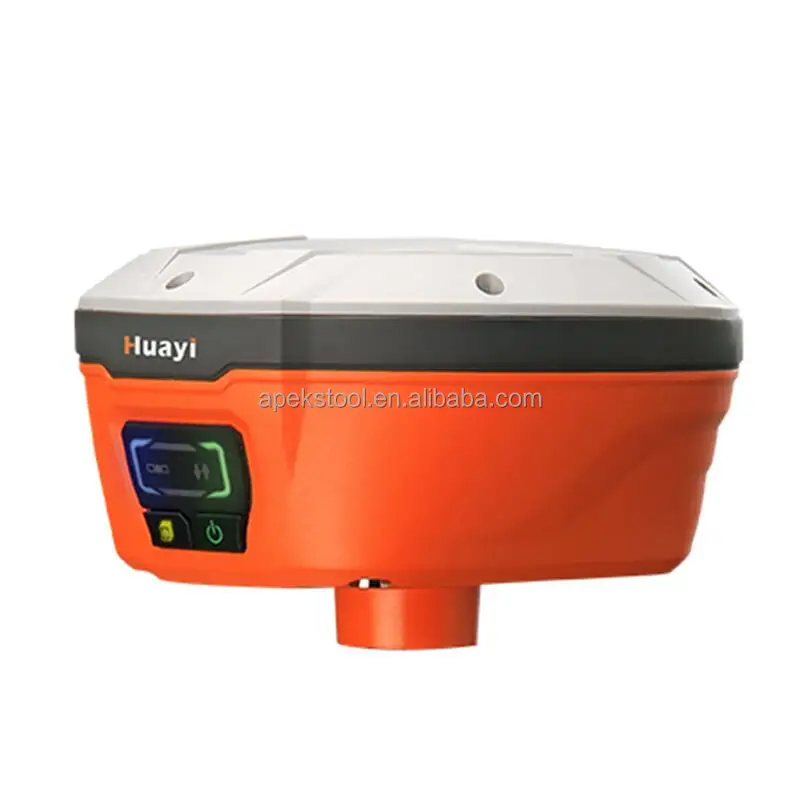

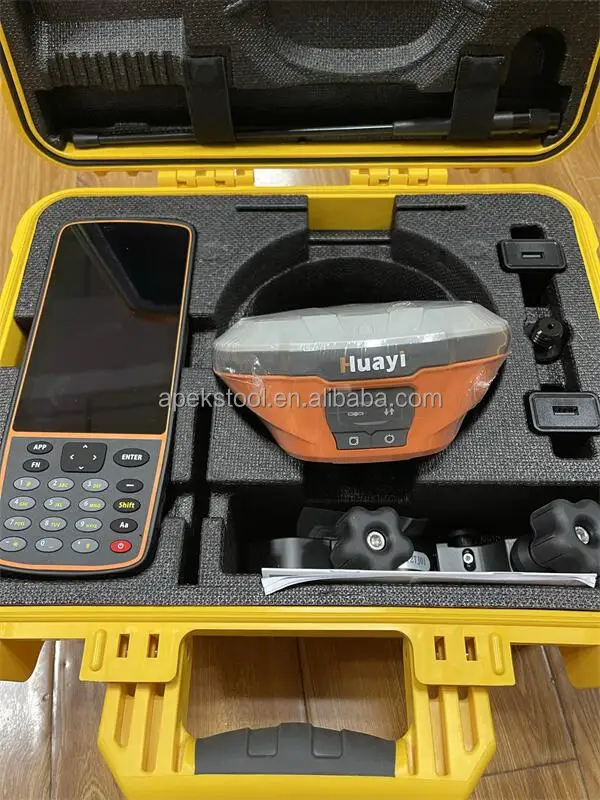

The E91 GNSS receiver integrates positioning and communication technologies in a rugged unit that is designed to provide work flexibility. When RTK networks are unavailable at your job sites, just easily set up one E91 GNSS UHF base and use your E91 GNSS UHF rover to conduct your RTK survey.
GNSS constellation tracking, all-around and fast.
GPS, GLONASS, Galileo, BeiDou and QZSS, 624 signal channels to track them all.
Fast GNSS signal tracking for instant and accurate positioning even in challenging environments.
High and reliable accuracy
Advanced multipath mitigation technology and low elevation tracking technology.
Adaptive anti-interference capability to effectively suppress narrowband and single-tone radio interference.
Users achieve accurate positioning even in complex electromagnetic environments.
Full of functions
As Base or as rover, RTK, PPK and Static.
Via internal or external UHF, 4G network with SIM card either in receiver or in controller.
Through various radio protocols, NTRIP or APIS.
Built-in Wi-Fi modem, can even serve as a hotspot.
GNSS constellation tracking, all-around and fast.
GPS, GLONASS, Galileo, BeiDou and QZSS, 624 signal channels to track them all.
Fast GNSS signal tracking for instant and accurate positioning even in challenging environments.
High and reliable accuracy
Advanced multipath mitigation technology and low elevation tracking technology.
Adaptive anti-interference capability to effectively suppress narrowband and single-tone radio interference.
Users achieve accurate positioning even in complex electromagnetic environments.
Full of functions
As Base or as rover, RTK, PPK and Static.
Via internal or external UHF, 4G network with SIM card either in receiver or in controller.
Through various radio protocols, NTRIP or APIS.
Built-in Wi-Fi modem, can even serve as a hotspot.
Specification
CHC E90 E91 E93 i73 i83 i90 ibase 624 channels 1408 channels GPS RTK GNSS | ||||
Channel | 624 | |||
GPS L1CA/L1P/L1C/L2P/L2C/L5 | ||||
GLONASS G1, G2, G3 | ||||
Galileo E1, E5a, E5b, ALTBOC, E6 | ||||
QZSS L1, L2 L5, | ||||
BeiDou B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC | ||||
SBAS Ll, L5 | ||||
Update rate | 5 Hz, up to 50 Hz | |||
Signal Reacquisition | < 1 sec | |||
Hot Start | < 10 sec | |||
Initialization Reliability | > 99.9% | |||
Memory | 8 GB | |||
Static Accuracy | Horizontal:3mm + 1ppm | |||
Vertical:5 mm + 1 ppm | ||||
Horizontal:8 mm + 1 ppm | ||||
Vertical:15 mm + 1 ppm | ||||
Code Differential | Horizontal:0.4 m | |||
SBAS Accuracy | Horizontal:0.8 m | |||
7-pin | Connect to external power and radio | |||
USB | For charging and data transmission | |||
Cellular | Global 4G | |||
Bluetooth | V4.1 | |||
WIFI | 802.11 ac/n/b/g/n | |||
Update firmware, manage settings and | ||||
status, download data | ||||
CNR input and out put | ||||
RTCM 2.x, RTCM 3.x input and output | ||||
NMEA 0183 output | ||||
HCN, HRC and RINEX 2.11, RINEX 3.02 | ||||
NTRIP Client, NTRIP Caster | ||||
Electronic Bubble | Support | |||
Dimensions | 160*158*96mm , 1.55KG | |||
Shock | Survive a 2 m pole drop on concrete floor 1.2 m free drop | |||
5-pin lemo port | connecting external power supply and external radio | |||
SIM Card | NANO SIM | |||
Cellular | Global 4G | |||
Bluetooth | V2.1+EDR / V4.1 Dual Mode, Class 2 | |||
WIFI | 802.11 ac/n/b/g/n | |||
WebUI | Update firmware, manage settings and | |||
status, download data | ||||
Electronic Bubble | Support | |||
Dustproof&Waterproof | IP67 (Customizable IP68) | |||
Humidity | 95% non-condense | |||
Battery | Rechargeable, built-in Lithium-ion battery,7.2 V - 10200 mAh | |||
Voltage | 9~28 V DC external power input | |||
Working Time | Up to 16 hours | |||
Charge Time | Typically 4 hours | |||
Frequency Range | 410 - 470 MHz | |||
Protocol | CHC, Transparent, TT450 | |||
Emitting Power | 0.5 W / 2 W | |||
Operating Range | 5 km typically | |||
