Modern Automatic STR MDJY71*3RF broken grain seeds gravity separator length grader rice grading machine
- Category: >>>
- Supplier: Rizhao Stream International Co. Ltd.
Share on (1600423527798):
Product Overview
Description
Product Description

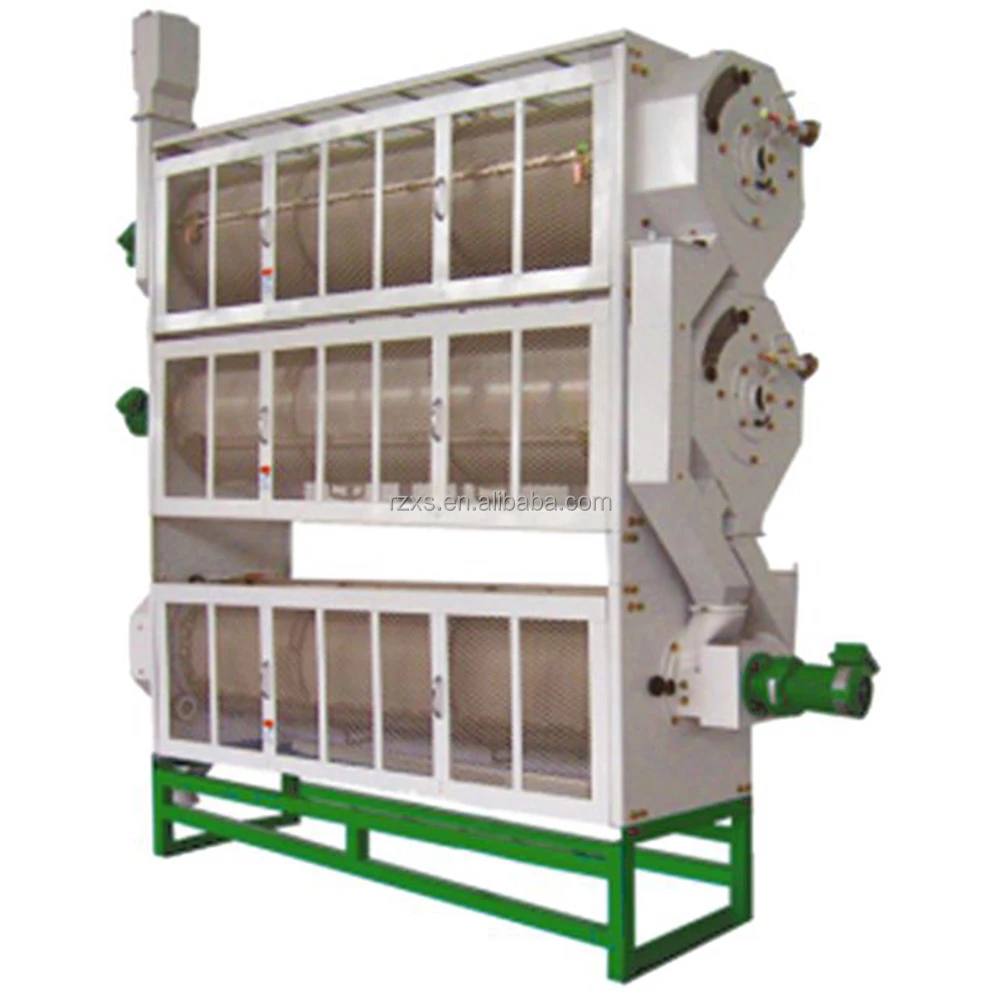

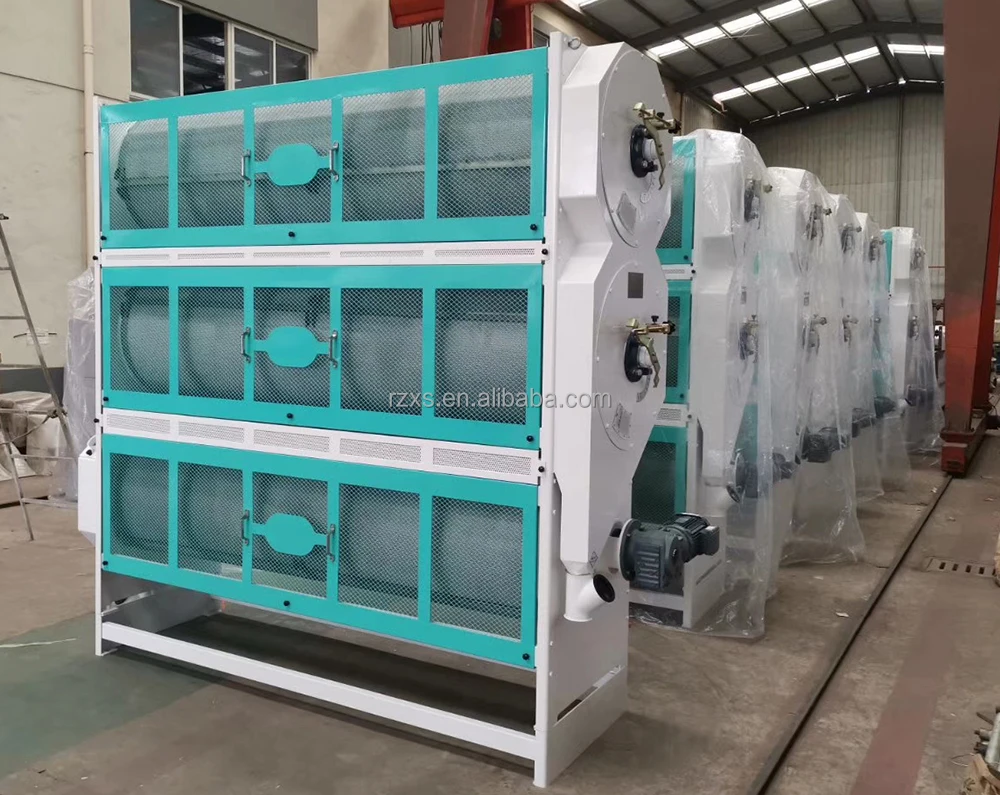

Modern Automatic STR MDJY71*3RF broken grain seeds gravity separator length grader rice grading machine
Rice Length Grader is specially designed to separate one or two kinds of broken or shorter grains from whole grain by length with the indented cylinder.
Broken grains which are longer than half of whole grain are difficult to separate through sieving or thickness/width grader but can be picked out by length grader.
Broken grains which are longer than half of whole grain are difficult to separate through sieving or thickness/width grader but can be picked out by length grader.
Product Features
1.With high degree of precision;It can ensure that no broken rice is in the whole rice and vice versa.
2.The cylinders can be used in parallel or in series according to real requirements.
3. The process can be observe through the inspection window.
4.The sieve tube can be easily replaced and operation is simple.
2.The cylinders can be used in parallel or in series according to real requirements.
3. The process can be observe through the inspection window.
4.The sieve tube can be easily replaced and operation is simple.
Working principle
Take the principle that the whole rice and the broken rice have different lengths to separate the broken rice from the whole rice.
It is assembled with rice grading sieve in flexible technological combinations (either series connection or parallel connection of expansion cylinder) to realize the grading requirements that the whole rice does not contain broken rice.
The grains which are longer in length drop out of the indents before they reach the cat trough. The grains which remain in the indents are thrown into the catch trough.
Take the principle that the whole rice and the broken rice have different lengths to separate the broken rice from the whole rice.
It is assembled with rice grading sieve in flexible technological combinations (either series connection or parallel connection of expansion cylinder) to realize the grading requirements that the whole rice does not contain broken rice.
The grains which are longer in length drop out of the indents before they reach the cat trough. The grains which remain in the indents are thrown into the catch trough.
Details Images
Product Paramenters
Model | MDJY50*2 | MDJY50*3 | MDJY60/60 | MDJY60*2 |
Capacity(t/h) | 1.0-1.5 | 2.0-2.5 | 1.0-2 | 2.0-2.5 |
Power(kw) | 0.75*2 | 0.75*3 | 1.1 | 1.1*2 |
Upper roller size (mm) | 500*1800 | 500*1800 | 600*2000 | 600*2000 |
Lower roller size (mm) | 500*1800 | 500*1800 | / | 600*2000 |
Fragment in | ≤2 | ≤2 | ≤2 | ≤2 |
the whole | ||||
Crude rice in the processed product | ≤5 | ≤5 | ≤5 | ≤5 |
Overall dimension L*W*H (mm) | 2080*720*1650 | 2080*720*2450 | 2770*1000*950 | 2770*1000*1860 |
Model | MDJY60*3 | MDJY71/71 | MDJY71*2 | MDJY71*3 |
Capacity(t/h) | 3.0-3.5 | 1.5-1.8 | 4-4.2 | 4.5-5.5 |
Power(kw) | 1.1*3 | 1.5 | 1.5*2 | 1.5*3 |
Upper roller size(mm) | 600*2000 | 710*2500 | 710*2500 | 710*2500 |
Lower roller size(mm) | 600*2000 | / | 710*2500 | 710*2500 |
Fragment in | ≤2 | ≤2 | ≤2 | ≤2 |
the whole | ||||
Crude rice in the processed product | ≤5 | ≤5 | ≤5 | ≤5 |
Overall dimension L*W*H(mm) | 2770*1000*2760 | 3300*1000*1050 | 3300*1000*2000 | 3300*1000*3040 |
Recommend Products
Recommend Products

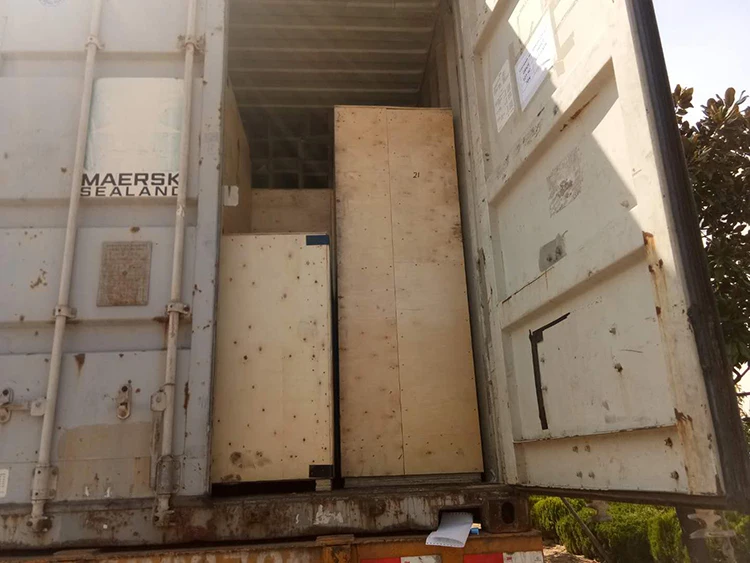

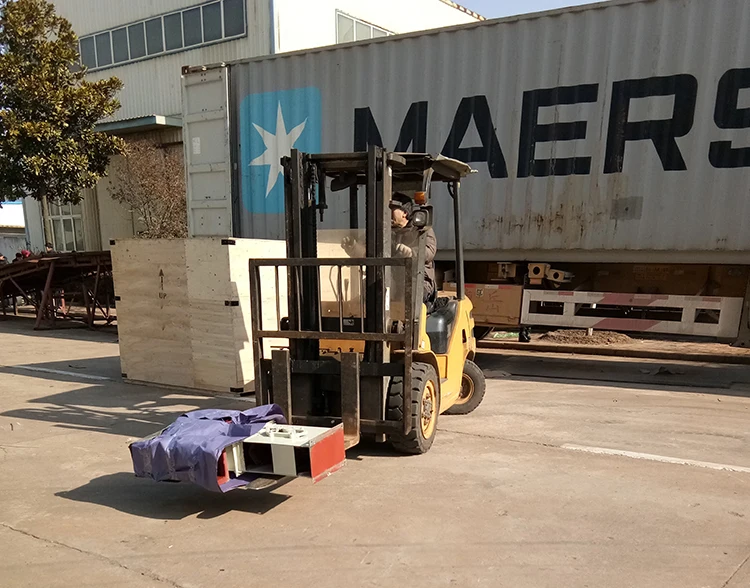

Packing & Delivery
Modern Automatic STR MDJY71*3RF broken grain seeds gravity separator length grader rice grading machine
1,Standard export package or according to clients' requirement;
2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery,and to provide the 14~21 days freezer use.
Company Profile
Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner Machine,Rice Mill,Mini Rice Mill,Rice Grader,Rice Polisher Machine,Rice Packing Machine,Grain Dryer,Grain Silo,Bucket Elevator, Rice/Corn/Grain/Herbs/Cereal Grinder/Flour Mill/Crushing Machine.
STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, millet processing equipment with daily output 20-80 tons, maize processing equipment with daily output 30-80 tons.
Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, millet processing equipment with daily output 20-80 tons, maize processing equipment with daily output 30-80 tons.
Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
Certifications
As the century company,we got many certificates and national attention
Our brand of rice mill is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
