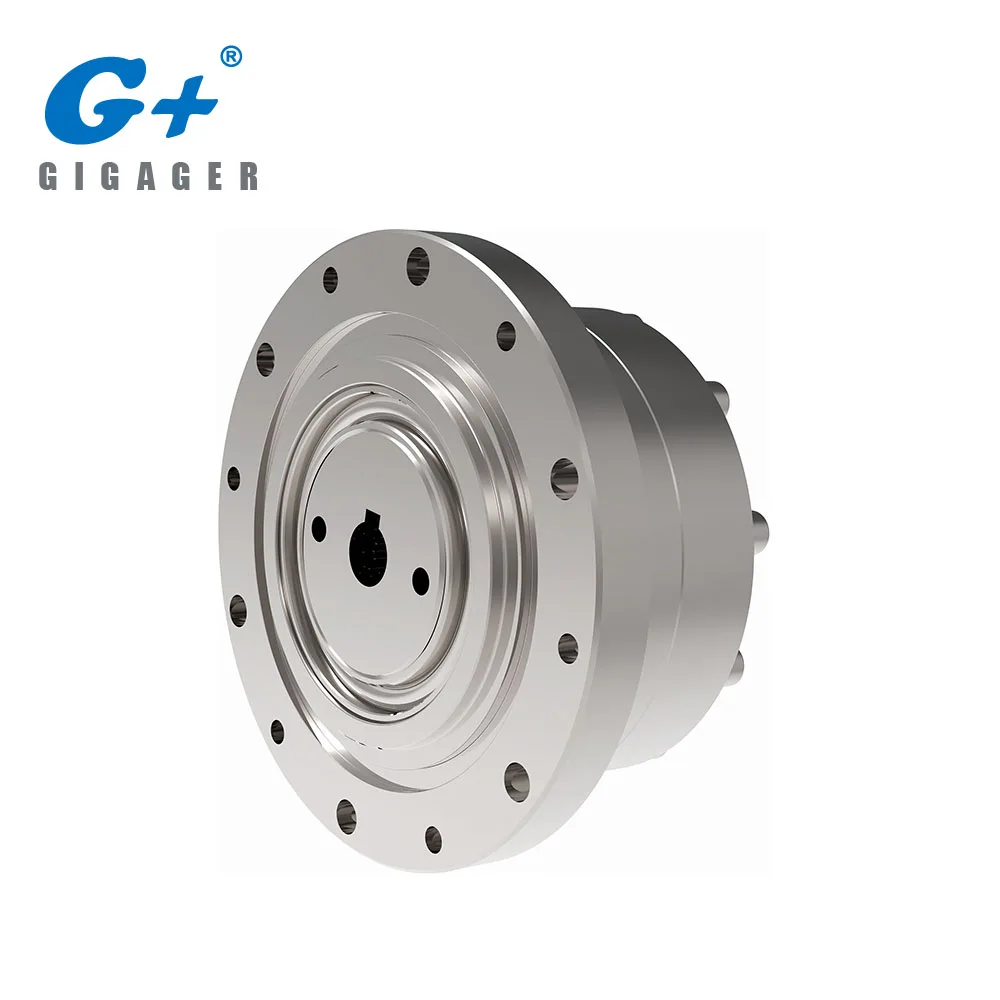

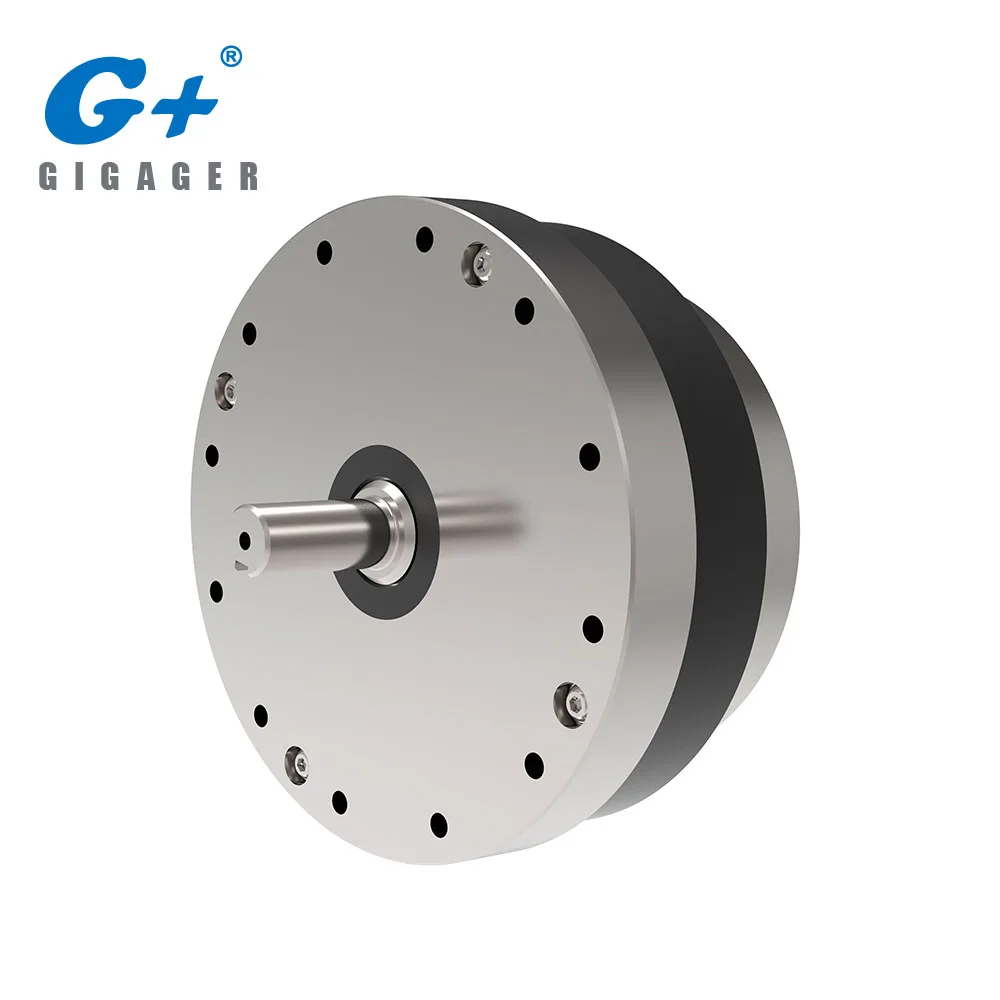

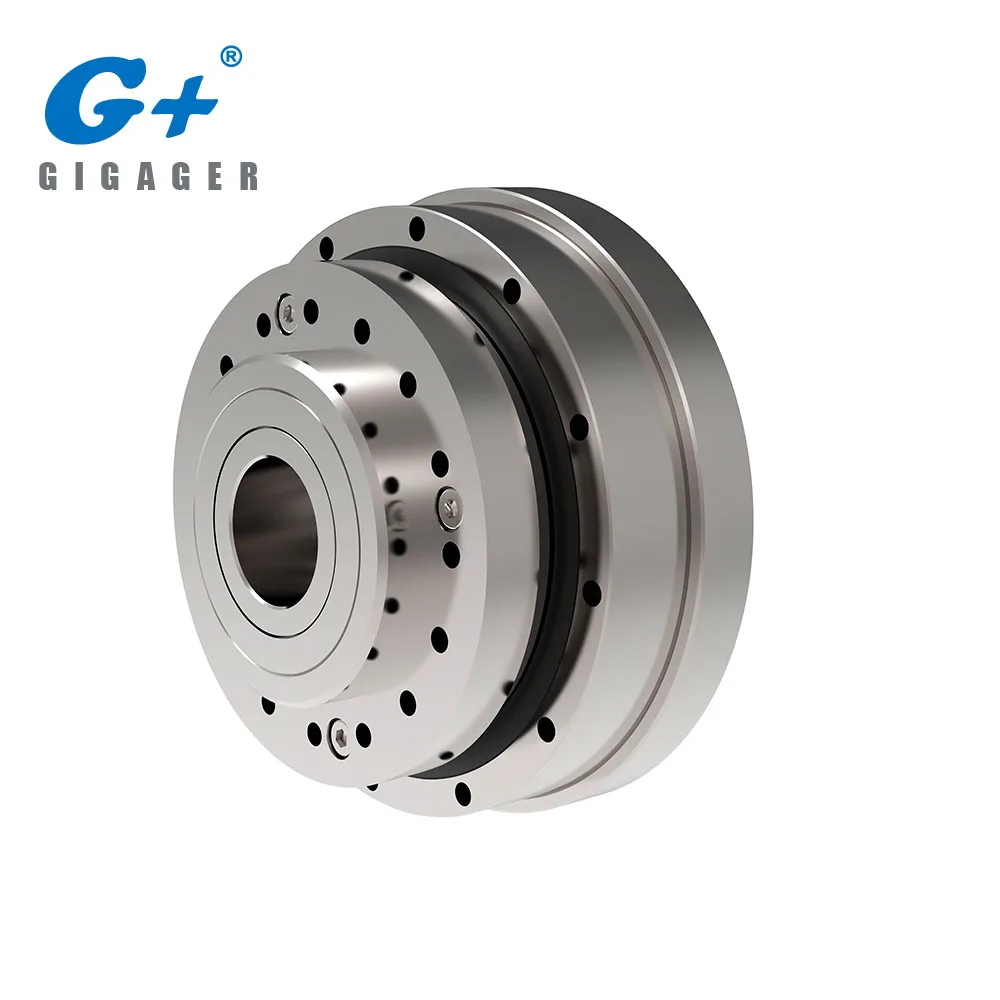

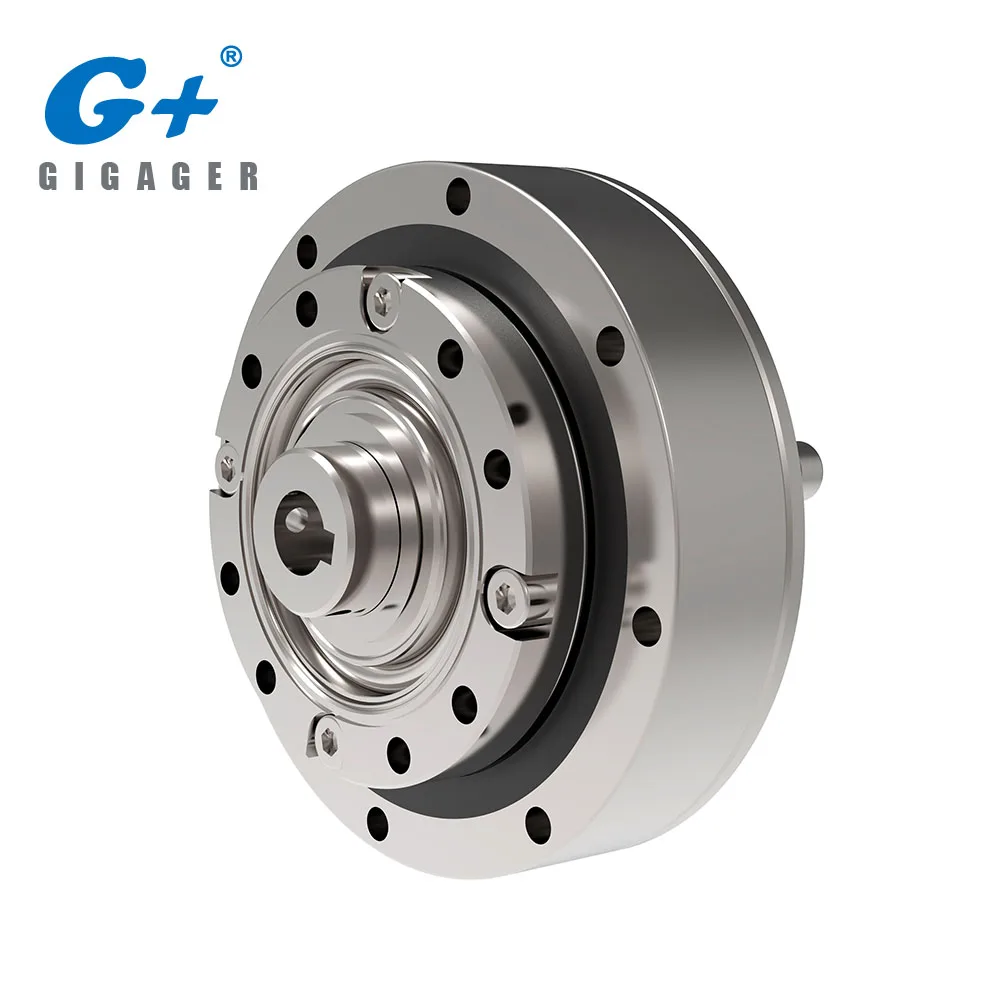

NEMA 24 Harmonic Gear Reducer ACE Strain Wave gear Reducer stepper harmonic Drive
- Category: >>>
- Supplier: Guangdong Saini Intelligent Equipment Technology Co. Ltd.
Share on (1600423564990):
Product Overview
Description
Product Overview
Hollow Type Harmonic Gear Reducer ACE Harmonic Drive for Exoskeleton Lifting
Harmonic gear transmission was invented by the American inventor C. W. Musser in 1955. It is a new type of transmission that utilizes the elastic deformation of the flexible working member into the motion or power transmission. It breaks through the mechanical transmission using rigid members. The mechanism's model uses a flexible member to achieve mechanical transmission, resulting in a range of special features that are difficult to achieve with other transmissions. The deformation process of the intermediate flexible member is basically a symmetrical harmonic. In addition to the former Soviet Union referred to this type of transmission as wave drive or flexible wheel drive, the United States, Britain, Germany, Japan and other countries are called Harmonic Transmission.
System Configuration of SV Harmonic Drive Gearbox

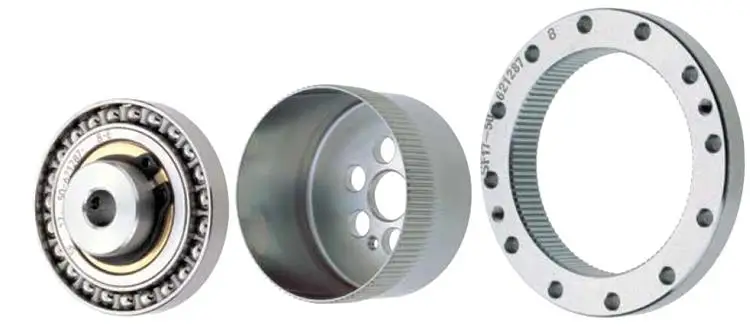

Component of Harmonic Drive Reducer | ||||||||

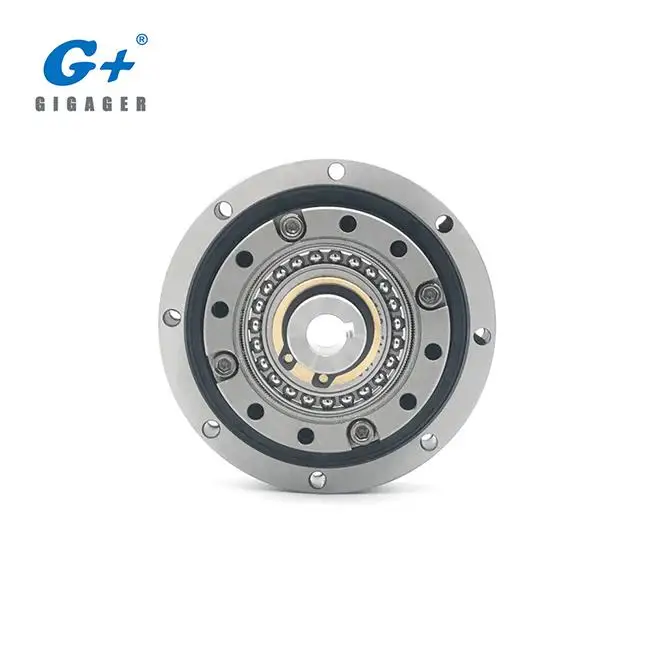

Wave Generator | The Wave Generator is a thin, raced-ball bearing fitted onto an elliptical hub. This serves as a high-efficiency torque converter and is generally mounted onto the input or motor shaft. | |||||||
Flexspline | It is a non-rigid, thin cylindrical cup with external teeth on the open end of the cup. It fits over the Wave Generator and takes on its elliptical shape. The Flexspline is generally used as the output of the gear. | |||||||
Circular Spline | It has two more teeth than the Flexspline and is generally mounted onto a housing. | |||||||

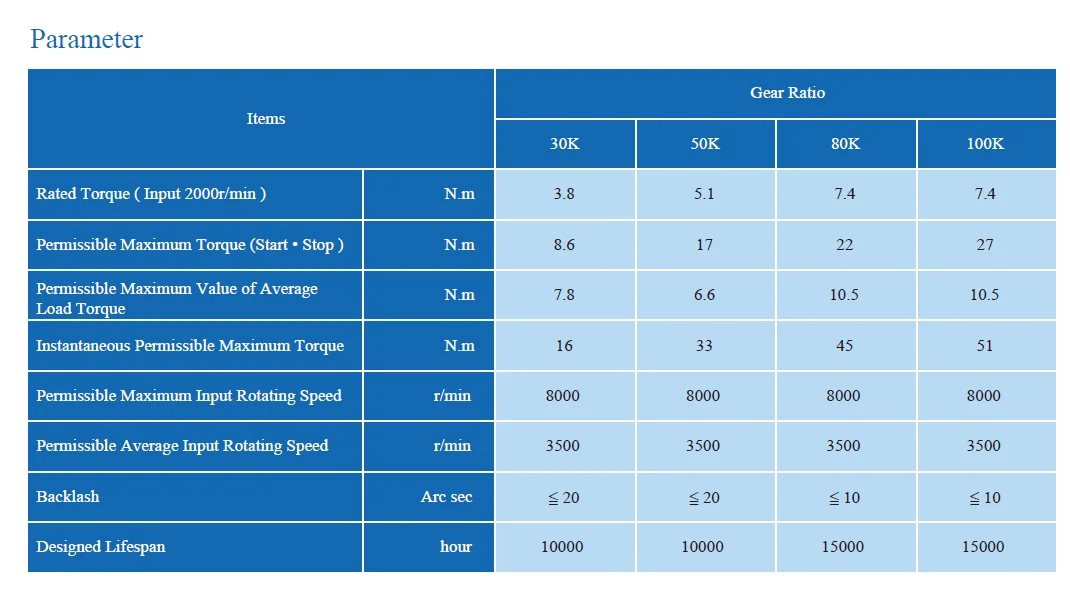

PRODUCT SPECIFICATIONS
What is the Product Features of GIGAGER Harmonic Drive?
High strength of flexspline makes GIGAGER harmonic drive gear long life using.
• High torque capacity makes is GIGAGER harmonic gear drive outstanding.
• Low backlash of harmonic gear meeting the requirement of precision applications.
• High rigidity of GIGAGER harmonic drive mostly satisfied good point to our users.
• High efficiency output makes the users’ robot application operate smoothly.
• The ultra flat design enable GIGAGER harmonic gearbox to meet the user’s space saving requirement for robot joints’ application.
• Hollow shaft designed harmonic drive gearboxes are available for different needs of the users.
• High cost performance makes the perfect alternative harmonic speed reducers for your limited budget
• High torque capacity makes is GIGAGER harmonic gear drive outstanding.
• Low backlash of harmonic gear meeting the requirement of precision applications.
• High rigidity of GIGAGER harmonic drive mostly satisfied good point to our users.
• High efficiency output makes the users’ robot application operate smoothly.
• The ultra flat design enable GIGAGER harmonic gearbox to meet the user’s space saving requirement for robot joints’ application.
• Hollow shaft designed harmonic drive gearboxes are available for different needs of the users.
• High cost performance makes the perfect alternative harmonic speed reducers for your limited budget

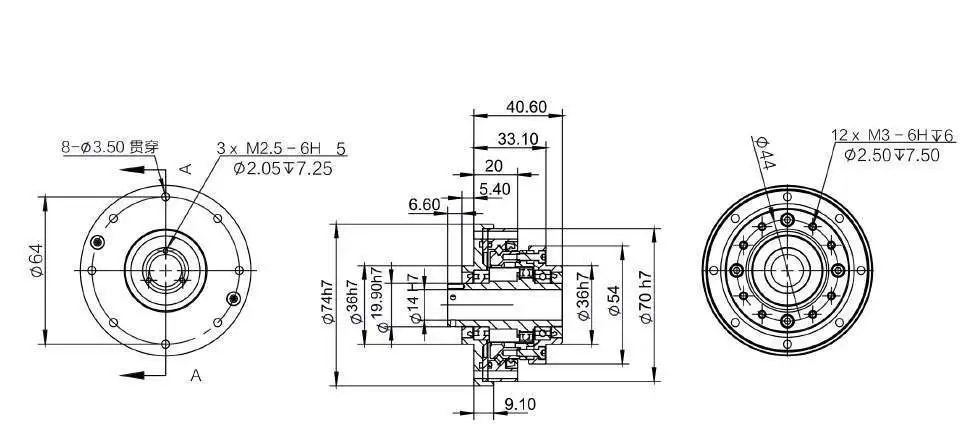

2D Drawing of Harmonic Drive Reducer
How to select the right model for my device?

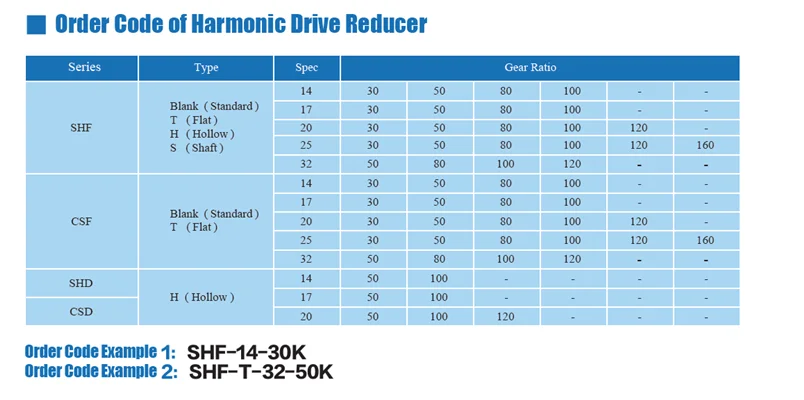

Order Code Of Harmonic Drive Reducer
Application
Company Profile
Guangdong Saini Intelligent Equipment Technology Co., Ltd.
Guangdong Saini Intelligent Equipment Technology Co., Ltd. is a diversified enterprise engaged in the field of mechanical precision transmission, integrated with manufacturing, R&D and trade business.
As an innovator in the precision transmission fields, our goal is to provide users with reliable and high cost performance solutions to meet users' needs. G+ product enjoys a good reputation in the transmission industry which are trusted by well-knownsystem integrators and reputable factories from China and the world.
As an innovator in the precision transmission fields, our goal is to provide users with reliable and high cost performance solutions to meet users' needs. G+ product enjoys a good reputation in the transmission industry which are trusted by well-knownsystem integrators and reputable factories from China and the world.

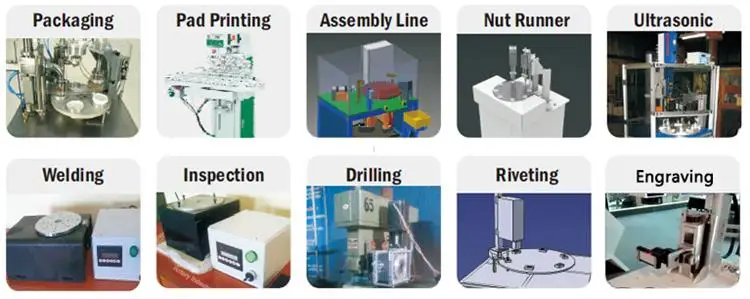

Successful Project
Exhibition
FAQ
Q1. How to choose a reducer which meets our requirement?
A: You can refer to our catalogue to choose the reducer or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Q2. Do you sell the motors?
A: We have stable motors suppliers who have been cooperated with us for a long-time. We can provide motors with high quality.
Q3. Are you a manufactuer or trading company?
A: We are a manufacturer.
Q4. What information shall we give before placing a purchase order?
A: Please tell me Type of the reducer, ratio, input and output type, input flange, mounting position, and motor information etc.
Q5. What are your terms of payment?
A: 100% before delivery. We'll show you the photos of the products and packages before the delivery or you can do inspection
before delivery.
Q6. What are your terms of delivery?
A: EXW, FOB, CIF.
Q7. How about your delivery time?
A: Generally, it will take 5 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q8. Can you produce according to the samples?
A: Yes, we can produce as per your samples or technical drawings. We can build the molds and fixtures.
Q9. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q10. Do you test all your goods before delivery?
A: Yes, 100% inspection before delivery.
Q11: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit; Every time we make a deal we make a friend!
A: You can refer to our catalogue to choose the reducer or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Q2. Do you sell the motors?
A: We have stable motors suppliers who have been cooperated with us for a long-time. We can provide motors with high quality.
Q3. Are you a manufactuer or trading company?
A: We are a manufacturer.
Q4. What information shall we give before placing a purchase order?
A: Please tell me Type of the reducer, ratio, input and output type, input flange, mounting position, and motor information etc.
Q5. What are your terms of payment?
A: 100% before delivery. We'll show you the photos of the products and packages before the delivery or you can do inspection
before delivery.
Q6. What are your terms of delivery?
A: EXW, FOB, CIF.
Q7. How about your delivery time?
A: Generally, it will take 5 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q8. Can you produce according to the samples?
A: Yes, we can produce as per your samples or technical drawings. We can build the molds and fixtures.
Q9. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q10. Do you test all your goods before delivery?
A: Yes, 100% inspection before delivery.
Q11: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit; Every time we make a deal we make a friend!
