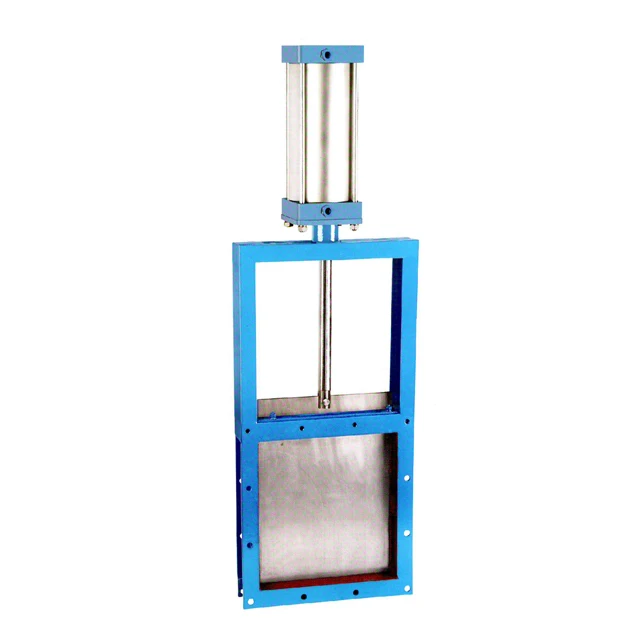

Small Size Rectangular Slide knife gate valve with Pneumatic Cylinder

Name: Small Size Rectangular Slide knife gate valve with Pneumatic Cylinder
SKU: 1600423633662
Availability: InStock

Price:

Quantity:

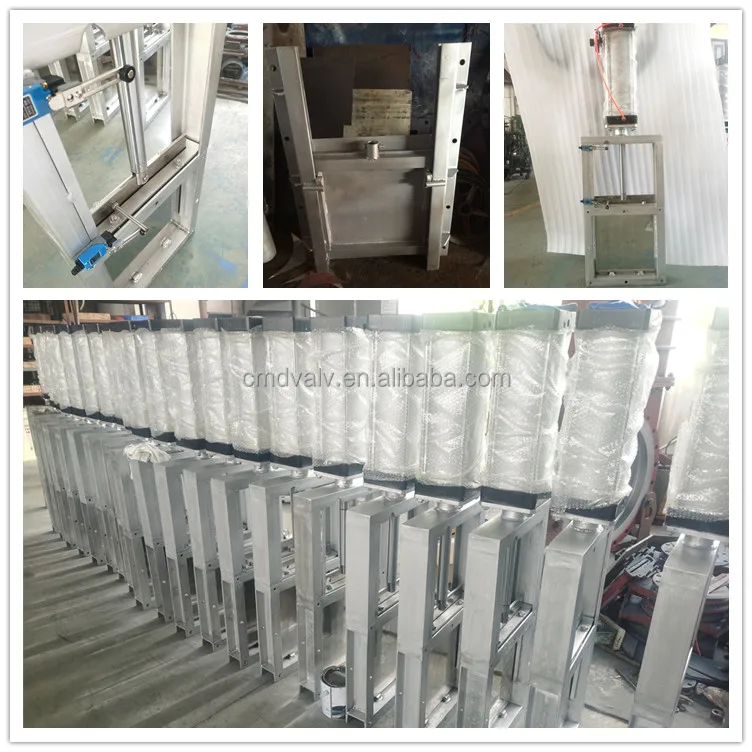

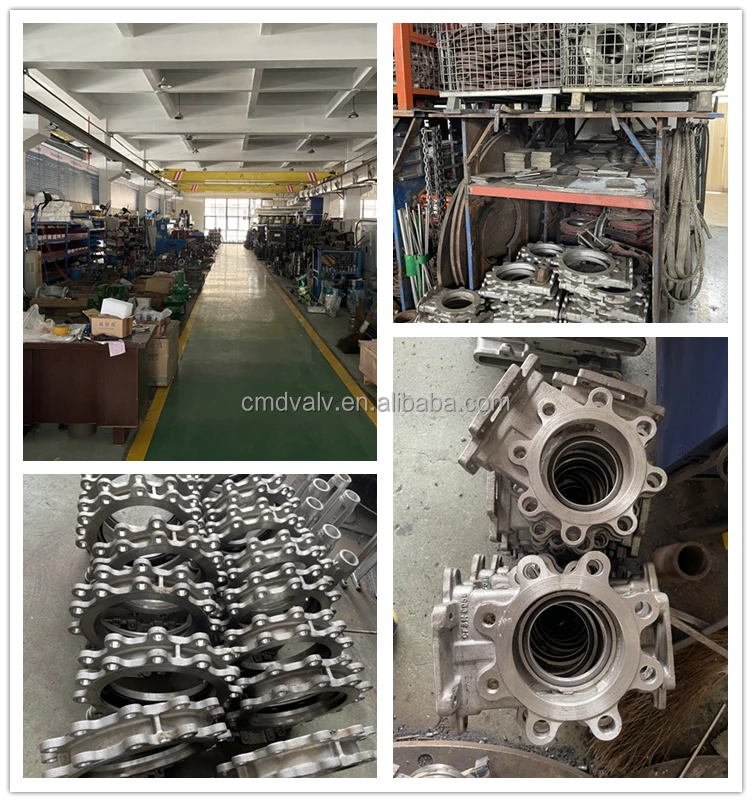

KGV 4.jpg KGV 3.jpg

SPECIFICATIONS FOR SQUARE KNIFE GATE VALVES
Pressure rating and size:	1 kg/cm2
	150X150 to 600X600
	other dimensions on request
	For higher pressure: Casted bodies (on request)
Material:	Body : Carbon steel, AISI 304, AISI 316
	Gate : AISI 304, AISI 316
	Stem : Manual : AISI 430 Pneumatic : ANSI 1045+chrome plated
	Seat : AISI 304, AISI 316
	Support plate : A36+epoxy baked
	Special material on request.
Operated type	Handwheel, Pneumatic,Gear, Hydraulic, Electric,Chain Wheel, Bare shaft,etc.
Structure:	Uni-directional & Bi-directional
Flange connection:	EN1092 PN10 & ANSI B16.5 (class 150) & JIS (10K)
Maximum working temperatures:	Nitril:80°C NBR:110°C EPDM:110°C PTFE:150°C
