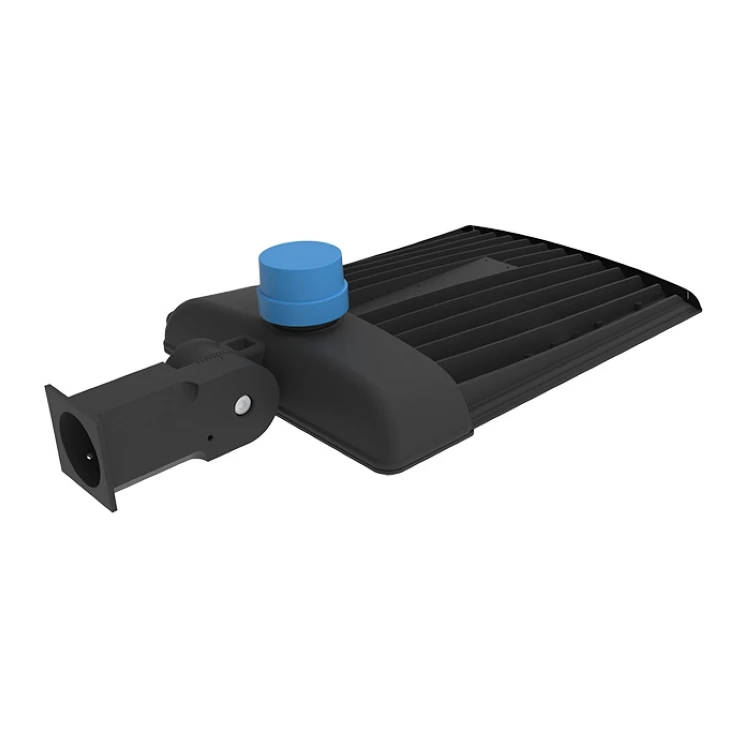

Low light attenuation radiation free 400w 500w 6th GEN Slim LED Area Light high brightness cob 3030 ETL CE price
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600423637944):
Product Overview
Description
Yaorong Led Area Parking Lot Lights Advantages
—————
1.Stable luminescence: Yaorong Technology LED parking lot lights use low voltage drive, stable luminescence, no pollution, no stroboscopic phenomenon of AC power supply, no ultraviolet B band, color rendering index Ra position close to 100, color temperature 5000K, close to the sun color temperature.
2.5-year warranty: Yaorong Technology LED parking lights provide a 5-year warranty. Yaorong will solve the after-sales problems for you the first time, so that you can buy and use with peace of mind.
3.Strong heat dissipation performance: The LED parking lot lamp shell design of Yaorong Technology increases the heat dissipation area. The lamp housing has good heat dissipation characteristics and also guarantees the requirements of the IP protection level, ensuring the continuous effectiveness of the radiator.
4.Fast response speed: The start-up speed of the LED parking lot lights is as low as microseconds, and the normal brightness can be reached after power on. It adopts low-voltage constant current mode to work, adapts to various working environments, avoids accidental damage caused by voltage instability, and avoids potential safety hazards.
5.Constant current drive: Yaorong Technology LED parking lights adopt constant current IC drive technology, which can make the drive circuit still have extremely high conversion efficiency under the premise of maintaining good constant current output characteristics.
6.High efficiency and energy saving: LED parking lot lights can directly convert about 90% of the electric energy into visible light, with high light efficiency, and the power can be as low as one-tenth of traditional electric light sources. Long-term use, energy-saving effects are very considerable.
Yaorong Led Area Parking Lot Lights Certification
—————
Yaorong Led Area Parking Lot Lights Parameters
—————
| 6th GEN Slim LED Area Light | |||
| Model | CRI | Luminous Flux | Power |
| YR-PL322-W050 | ≥70 | 6500LM | 50W |
| YR-PL322-W100 | ≥70 | 10400LM | 100W |
| YR-PL322-W150 | ≥70 | 13000LM | 150W |
| YR-PL322-W200 | ≥70 | 19500LM | 200W |
| YR-PL322-W240 | ≥70 | 26000LM | 240W |
| YR-PL322-W300 | ≥70 | 31200LM | 300W |
| CCT | 30K/40K/50K/60K/70K | ||
| Warranty | 5 years | ||
| Temperature | -40°~45° | ||
| Power Efficiency | ≥0.9 | ||
| Protection level | IP65 | ||
| Beam angle | 90°*140°/120° | ||
| Shell Color | Bronze/Black/Silver/White/Customized Color | ||
| Certification | ETL/DLC/CE/ROHS | ||
Yaorong Led Area Parking Lot Lights Features
—————
Bracket Angel 180° Adjustable
Built-in Photocell Optional
Twist Lock Photocell Sensor
Bi-level Microwave Sensor Optional
DIP switch design, three wattages can be selected
Compatible With Different Mount Brackets
Options For Optic Lens
—————
Type III ,Type IV ,Type V and flood lens optional
Yaorong Led Area Parking Lot Lights Distribution Curve
—————
Yaorong Led Area Parking Lot Lights Distribution Curve
Yaorong Led Area Parking Lot Lights Distribution Curve
Yaorong Led Area Parking Lot Lights Distribution Curve
Yaorong Led Area Parking Lot Lights Distribution Curve
Yaorong Led Area Parking Lot Lights Distribution Curve
Yaorong LORA-IOT Single controller Parameters
—————
| LORA-IOT Single controller | |||
| Name | YR-LR73-12 single controller | Temperature | -40°~85° |
| Power | DC12V | Sensitivity | -135dBm |
| Communication | LR-IOT wireless network communication interface Custom Lora Narrowband Communication Standard | Interface | Support telecommunications, mobile China Unicom Internet of Things cards |
| Switch output | 1 way, contact 12V/16A | Frequency | LTE NB-IOT B3/B5/B8/B26 Support the use of all channels by the three major domestic operators |
| Dimming output | 1 way, 0-10V/PWM | Transmit power | 23dBm |
| Elec Parameter | Voltage, current, power, factor, electric energy | Protection level | IP65 |
| Dimensions | 84*84*97mm | Antenna type | Built-in |
| Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; 4. The self-built base station is convenient and safe and reliable. | ||
Led Area Parking Lot Lights Size Atlas
—————
Led Area Parking Lot Lights Installation Method Atlas
—————
Led Area Parking Lot Lights Packaging information
—————
| Watage | Product Size(mm/in) | Package Size(mm/in) | N.W(Kg/lb) | G.W(Kg/Lbs) | QTY |
| 50W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 100W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 150W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 200W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |
| 240W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |
| 300W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |
Led Area Parking Lot Lights Packaging Atlas
—————
Precautions For The Installation Of Led Area Parking Lot Lights
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
- Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
- Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
- If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.
Yaorong Led Area Parking Lot Lights Case
—————
Yaorong Led Area Parking Lot Lights Case
Yaorong Company Scene
—————

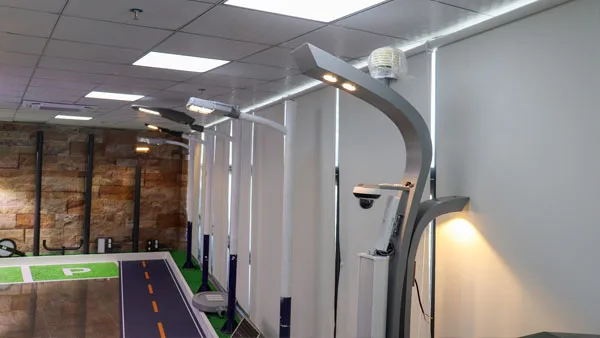

Yaorong Exhibition Hall--LED Street Light
Yaorong Exhibition Hall--LED Post Top Light
Yaorong Factory Scene
—————
Yaorong Research Die Casting Workshop
Yaorong Research Die Casting Workshop
