15 Ton Other winches Dozer Self Rescue Hydraulic Winch
- Category: >>>
- Supplier: Jiangyin Zhongxin Engineering Equipment Co. Ltd.
Share on (1600423695128):
Product Overview
Description
Product Description

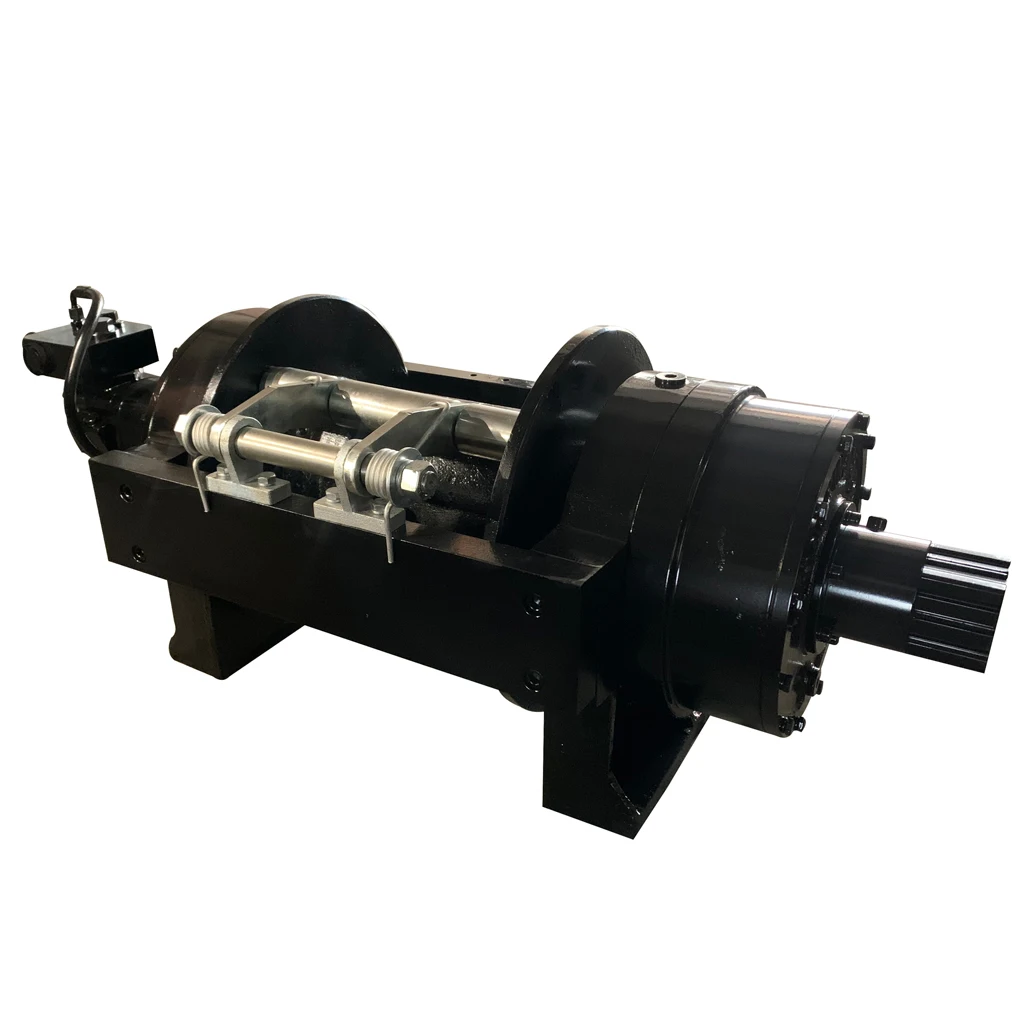

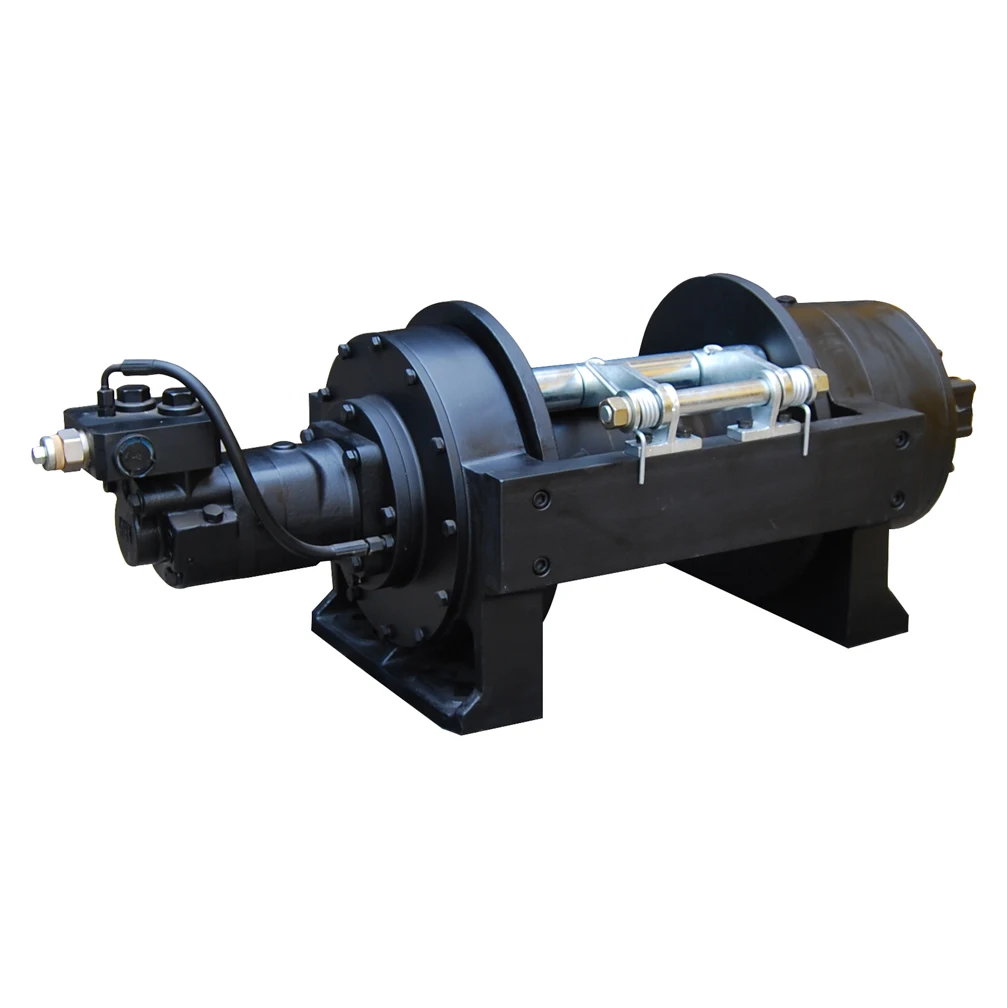

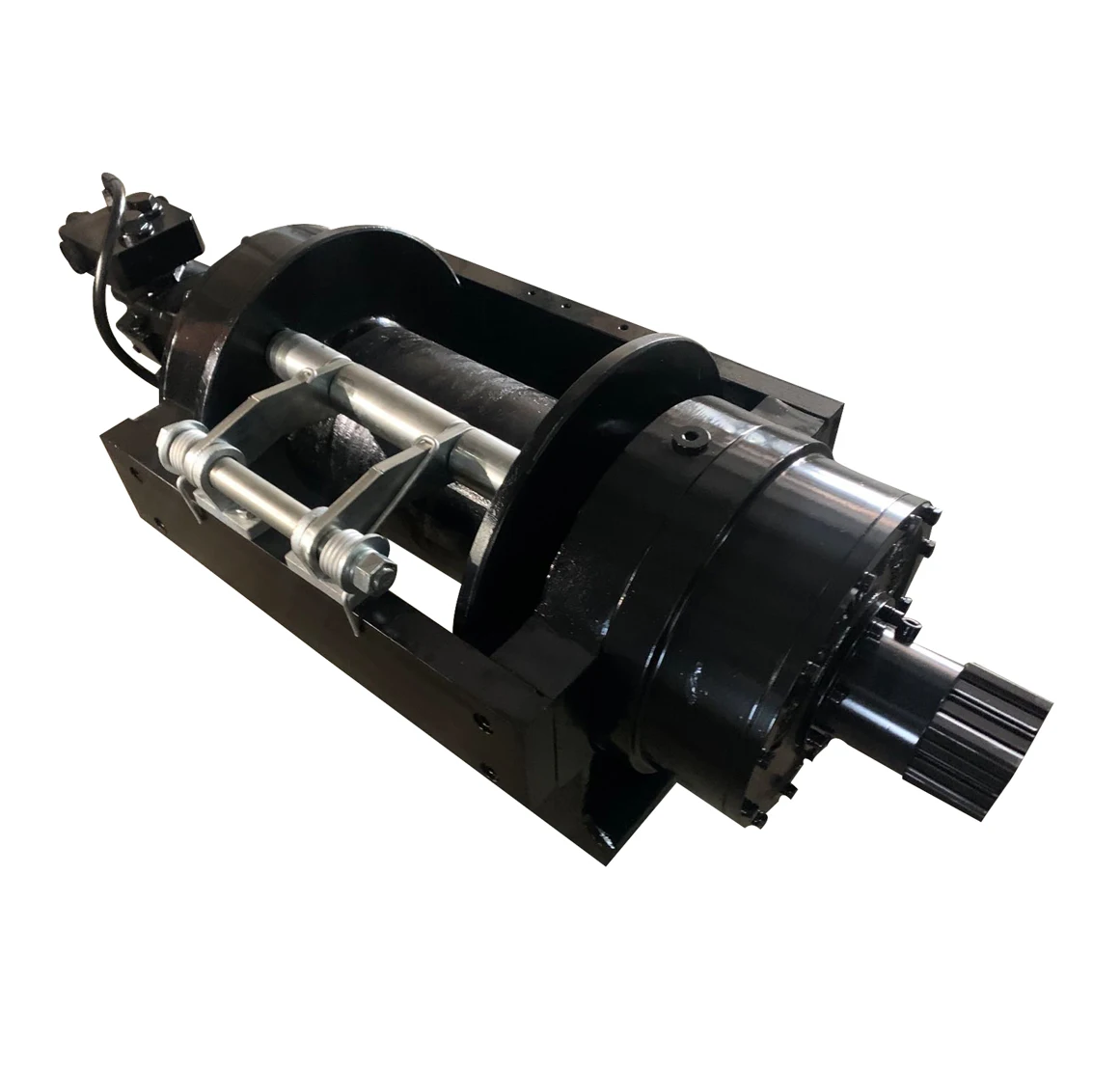

15 Ton Other winches Dozer Self Rescue Hydraulic Winch
It is especially designed for heavy-duty lifting, pulling and towing operations. It is a good choice when an electric winch machine cannot match your operating and performance conditions. Powered by a hydraulic system, this type of winch has more strength thanan electric power winch, thus it is ideal for the most demanding tasks in construction, mining and marine. Our winches can be designed and built into any size and form to meet your application demands.
2. YJP150 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. High efficiently hydraulic motor(brand motor) .
b. Full-float typed planetary gear reducer
c. Multi-disc friction closed brake
d. Small size
e . Free spooling function.
2. YJP150 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. High efficiently hydraulic motor(brand motor) .
b. Full-float typed planetary gear reducer
c. Multi-disc friction closed brake
d. Small size
e . Free spooling function.
Specification
Performance | ||||
Rated line pull (1st layer) | Kgs / lbs | 15000 /35000 | ||
Line speed (1st layer) | m/min | 6 | ||
Response pressure of brake | MPa / Bar | 2.5 / 25 | ||
Oil pressure | MPa / Bar | 16/ 160 | ||
Oil flow | L/min | 110 | ||

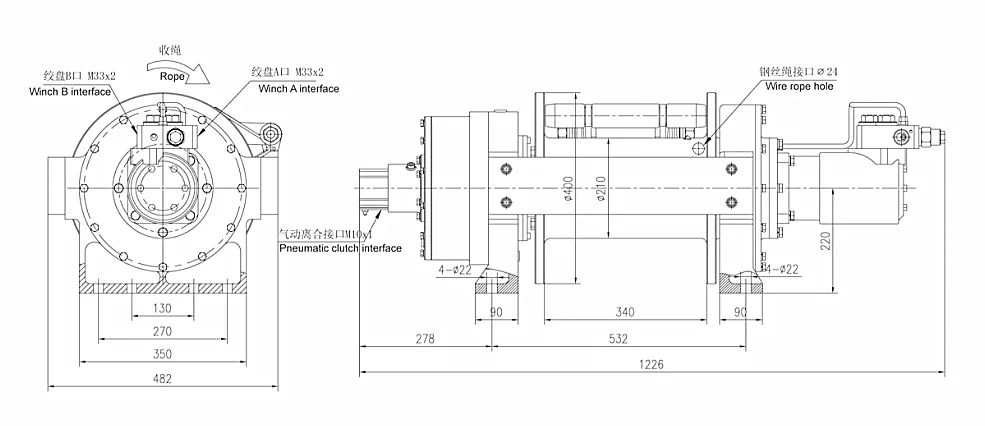

Drum diameter x Bottom diameter x Length（internal） | mm | 400 X 210 X 340 | ||
Drum capacity | m | 55 | ||
Suggested high-intensity wire rope diameter | mm | Φ22 | ||
Net weight | Kg | 285 | ||
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | China |
Jiangsu | |
Brand Name | Zhongxin |
Model Number | YJP150 |
Power Source | Hydraulic |
Application | AUTO |
Capacity | 15 tons |
Packing & Delivery
Standard PLYWOOD CASE for global sea transportation
Company Profile
Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized manufacturer which integrates the research, development, production, marketing and service of hydraulic winches and hydraulic lifting mechanisms. Our products can be widely applied to engineering equipment and shipboard equipment. We strictly implement ISO9001 requirements .
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 1998. We are factory that producing hydraulic winch for more than 23 years.
2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC
3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.
4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
We are based in Jiangsu, China, start from 1998. We are factory that producing hydraulic winch for more than 23 years.
2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC
3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.
4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
