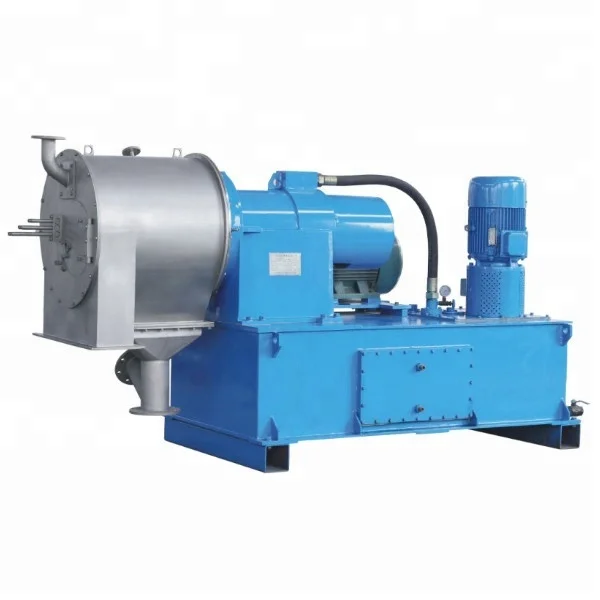

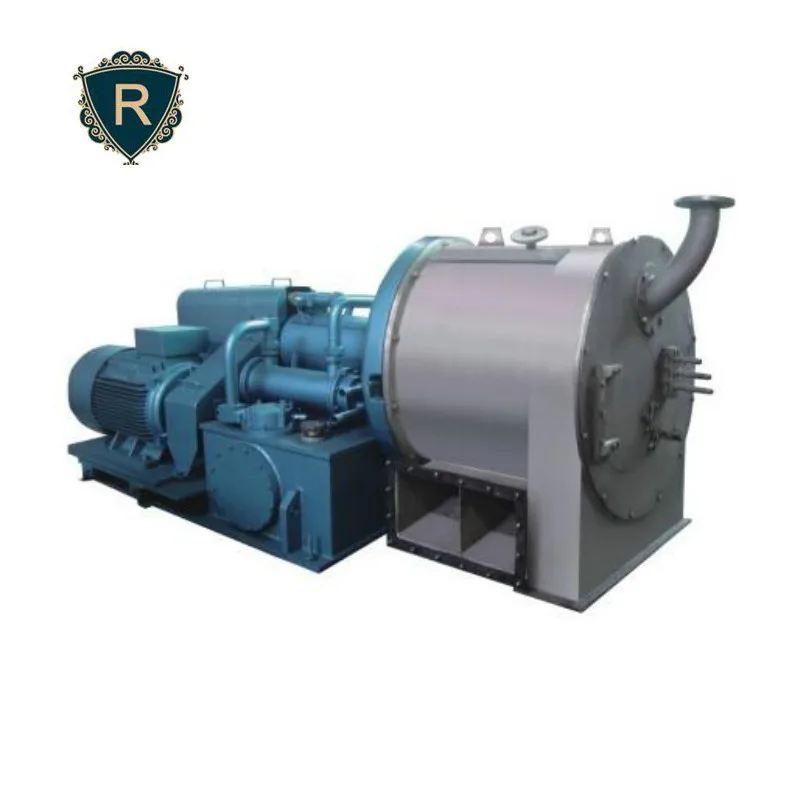

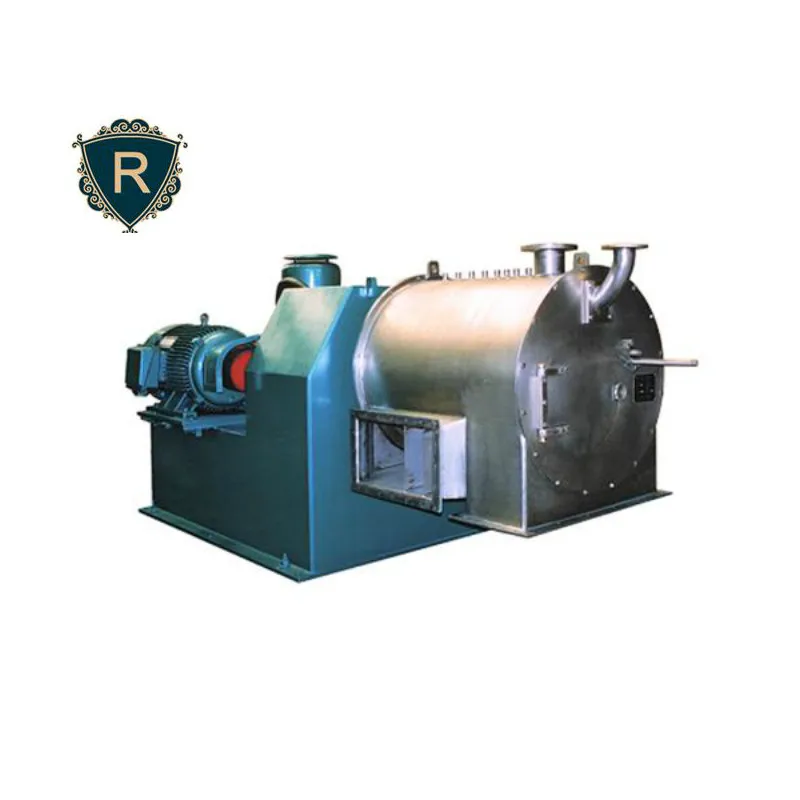

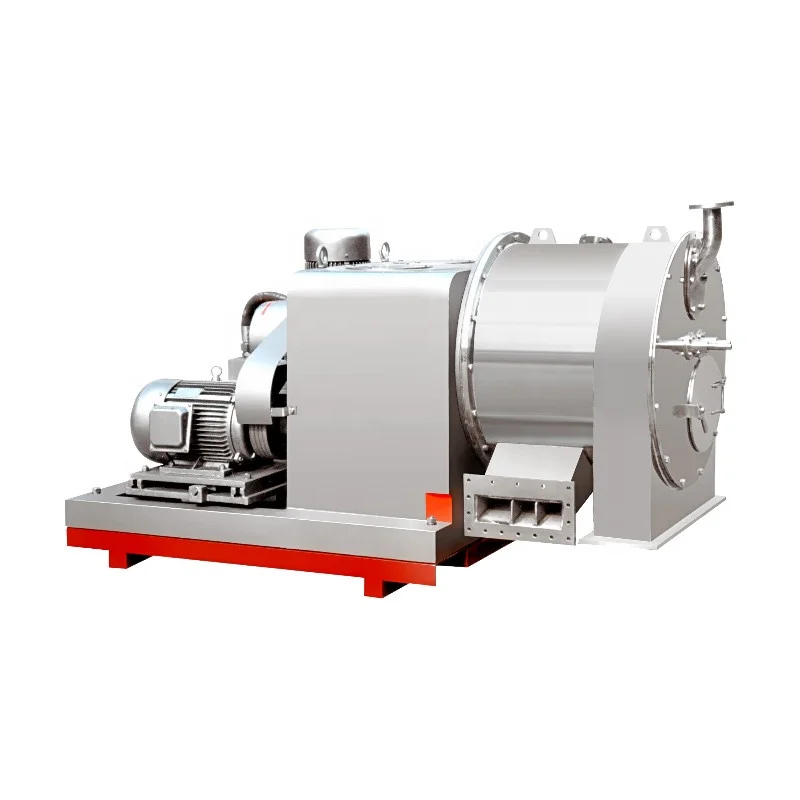

Continuous 500mm Diameter Basket 316L Pusher Type Salt Centrifuge
Continuous automatic industrial pusher centrifuge for salt centrifuge machine,the application of MVR energy-saving technology makes the salt heat source be the repeated use of secondary steam latent heat, improves the thermal economy of steam, achieves the purpose of energy saving and consumption reduction, and saves the operating cost and floor space of the boiler room and circulating water system, saving A large amount of circulating cooling water reduces the emission of waste gas, waste residue and waste water, and belongs to green environmental protection technology and equipment. Resources can be used to reduce costs and improve efficiency.

Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

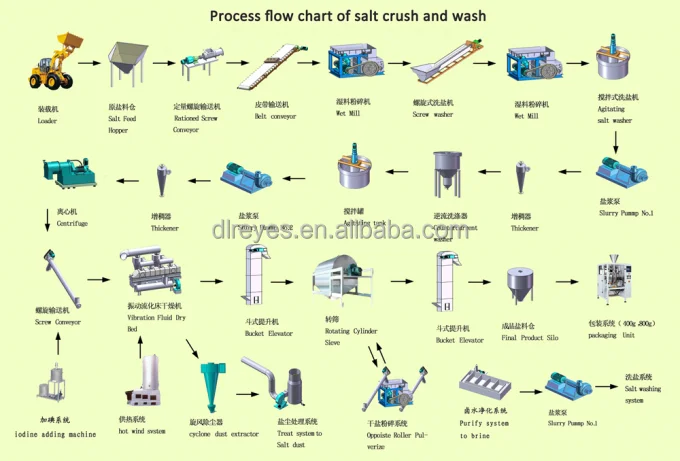

Salt Production Line
·Crushing and Washing
The 'four washings and three crushings' production process represents the highest level of refined salt produced by the Chinese crushing method, of which four washes are:
——One-stage spiral washing
——Secondary spiral washing
——Vertical mixing and washing
- countercurrent washing
Three powder is:
- primary crush
- wet crushing
- dry crushing
Through the reasonable combination of wet pulverization and dry pulverization, various washing methods are matched to each other to ensure that the product salt reaches a high quality.






Specification


International Model
HR400
HR500
HR630
HR850
HR1000
Basket
Diameter (mm)
290/360
438/500
560/630
740/828
920/1000
Length Of Filtering Area (mm)
180/180
180/180
240/240
300/300
310/350
Max Solid Loading Capacity (kg)
25
80
80
160
300
Max. Speed (r/min)
2500
2000
1900
1500
1300
Max.G.Force
1015/1260
981/1120
1132/2174
932/1043
871/946
Length of Stroke (mm)
50
50
50
50
50
Pushing Times
30~80
40-80
40-108
30-108
30-80
Motor
Main Motor
11~18.5KW
37~55 KW
45~75KW
55~90KW
75~132KW
Oil Motor
4~7.5 KW
15~30Kw
22~37kw
37~55 KW
45~75 KW
Working Oil Pressure MPa
2.5
2
8
8
8
Net Weight (kg)
2480
4050
4260
6500
9000
Working Weight (kg)
3000
4500
4800
7000
9800
Elastic Weight (kg)
800
4000
4200
6000
8000
Feeding Capacity t/h
0.5~9
1~20
16~40
12~65
16~75
Solid Water Content After Separation ( Dehydration)
2.5 % ( sea salt )
3 % ( sea salt )
4 % ( sea salt )

4-5 % ( sea salt )


Feature:
Continuous operation with large capacity
Ideal washing effect
Low moisture content of cake
Less solid content loss and crystal broken
Suitable for abrasion filtering cake

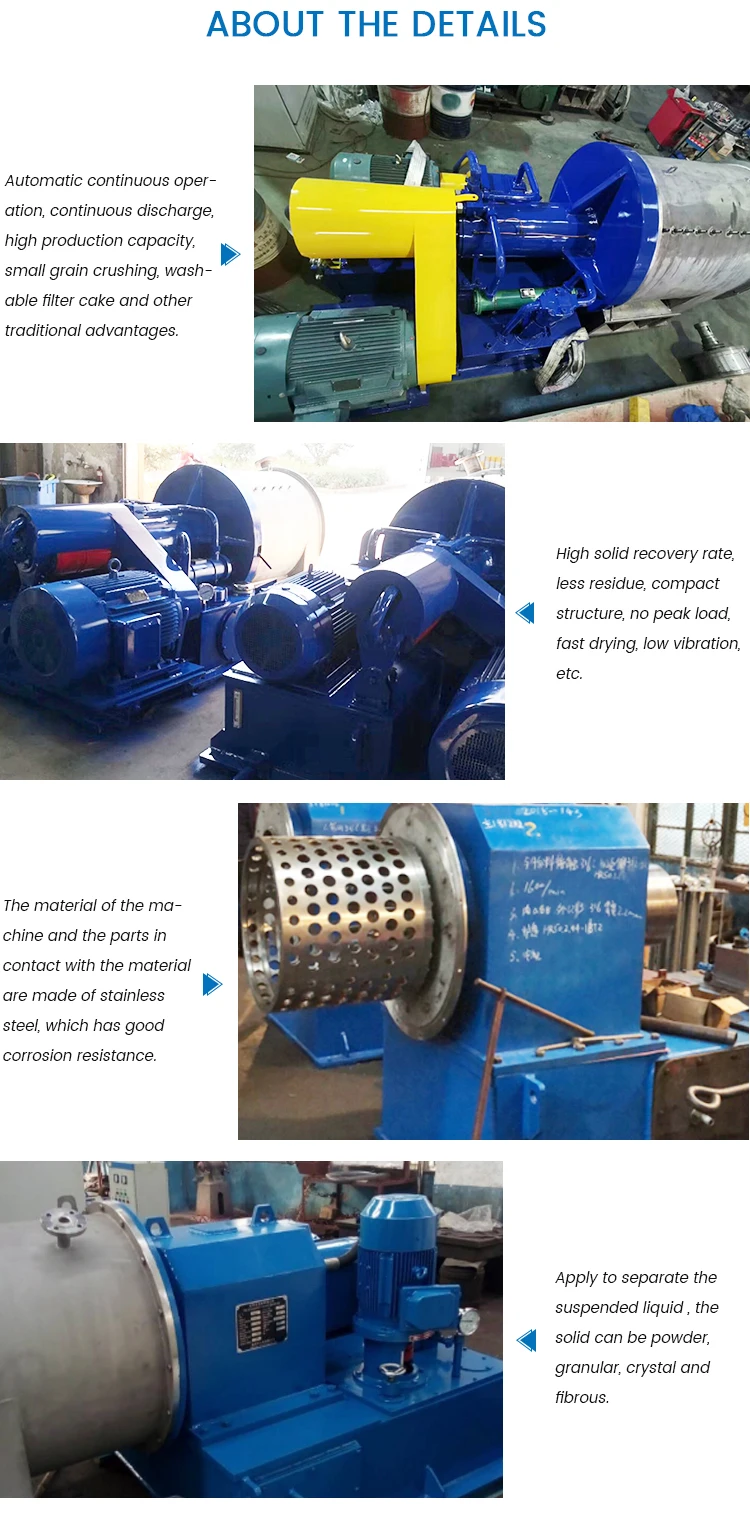

Details








Typical separation
1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, heavy oil and other chemical products.
2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar
3.Pharmaceutical:Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs
4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining
5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc
