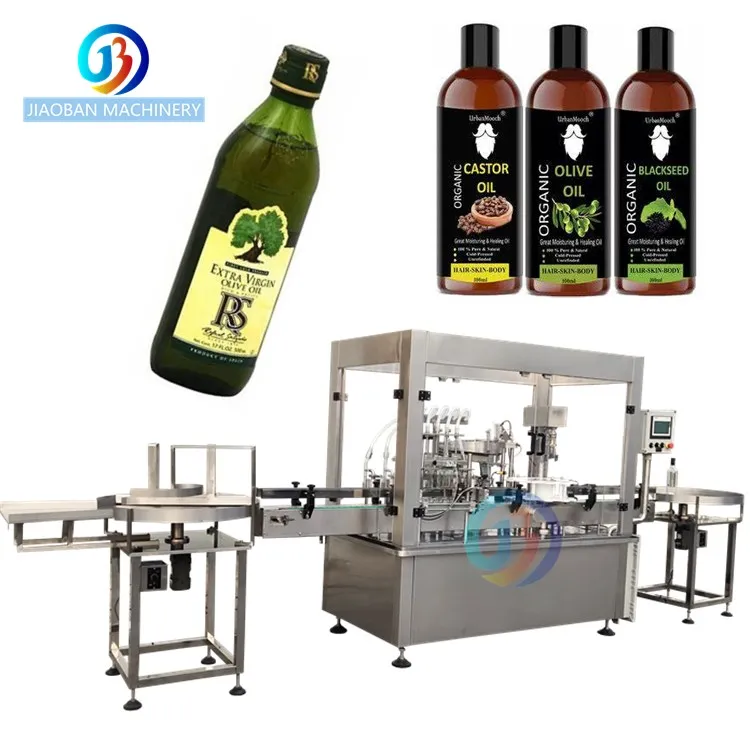

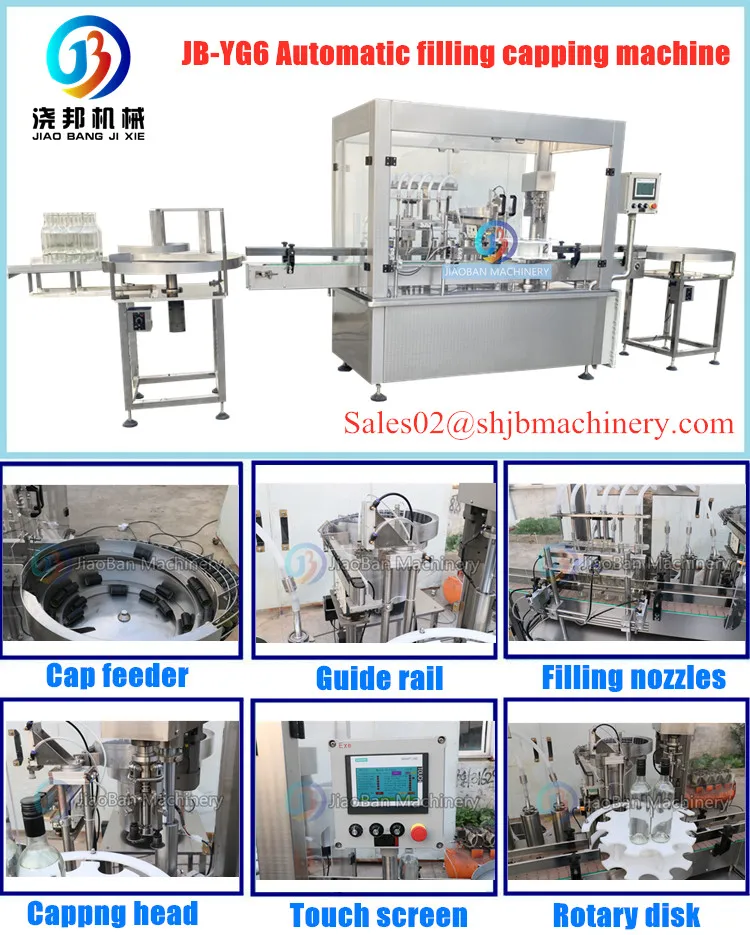

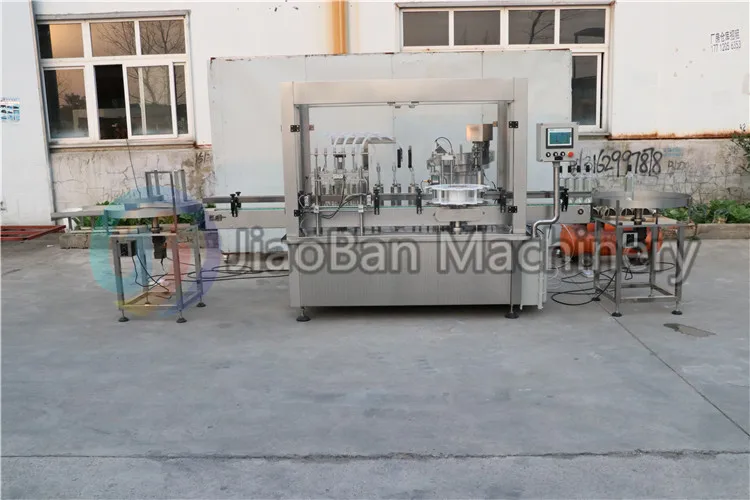

JB-YG6 Automatic Low Price Wine Juice Water Beverage Liquid Sunflower Olive Palm Vegetable Edible Cooking Oil Filling Machine

This machine is mainly used for syrup,beverages,soy sauce,vinegar, cod-liver oil, olive
oil,liquild calcium,wine,liquid fertilizer,essential oil,toner,hair oil,laundry detergent,ink,disinfectant,injection,industrial alcohol and various medical liquid filling and capping.
Function and features:

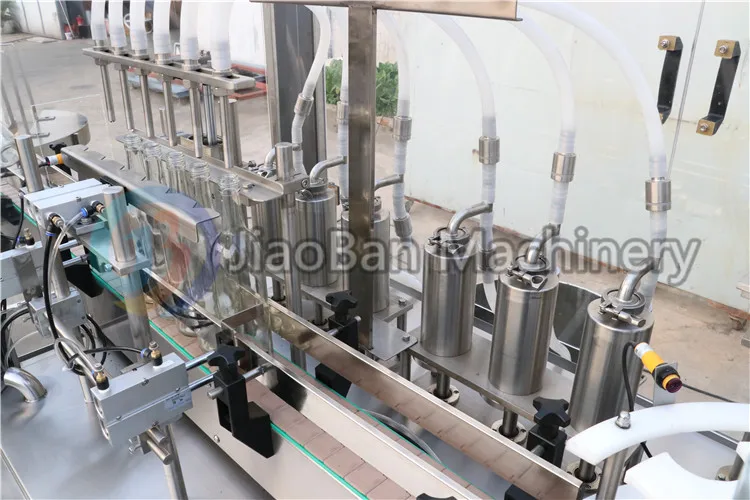

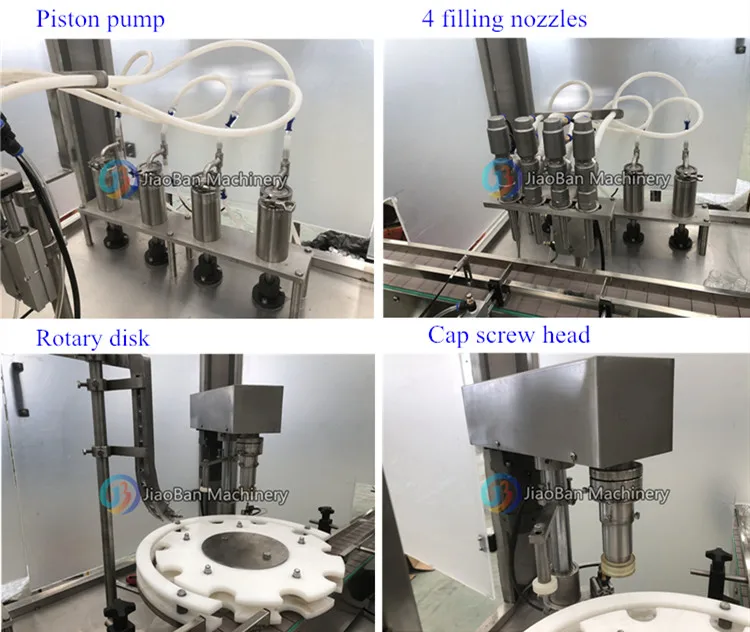

1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high percision.
2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.

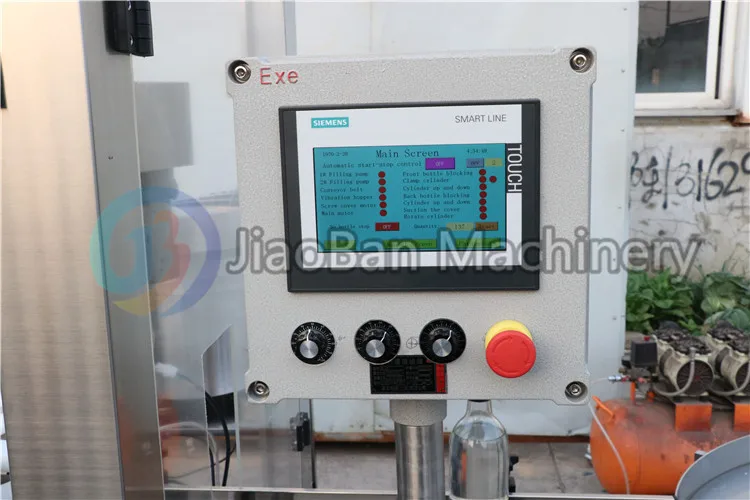

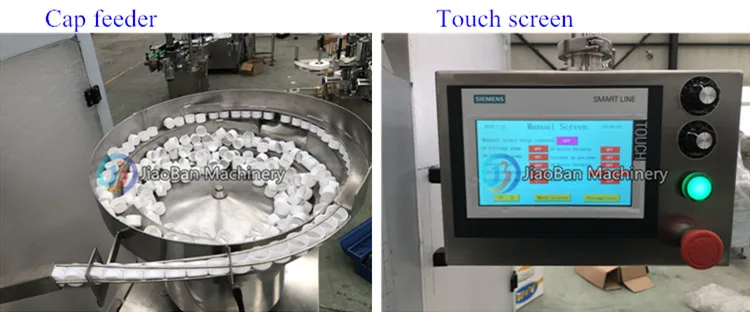

3.PLC control system ,color touch screen display,machine has function of counting automatically.
4.The filling nozzle was equipped with drop-proof device.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively
prevent the generation of bubbles.
6. Machine shell is made of 304 stainless steel,meets GMP standard.
Model | JB-YG6 |
Filling head number | 6(can customerised) |
Filling volume | 50-500ml |
Capacity | 20-60 bottles/min |
Filling accuracy | ≤ ±1% |
Pass rate | ≥ 98% |
Power supply | 1ph 220V, 50/60Hz |
Power | 1.6 KW |
Net weight | 650kg |
Overall dimension | 2400*1500*1900mm |

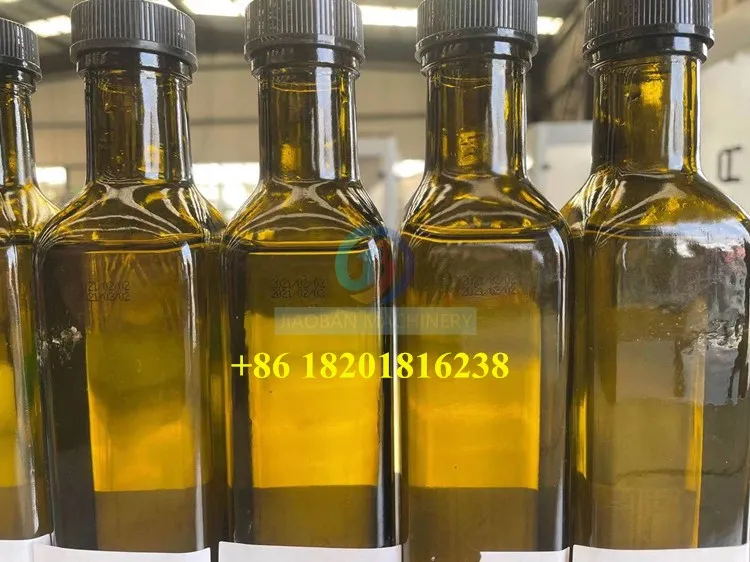

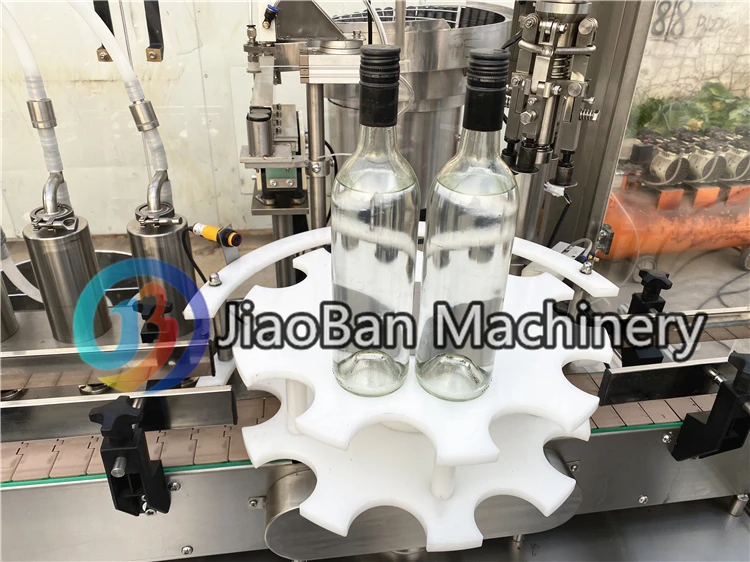

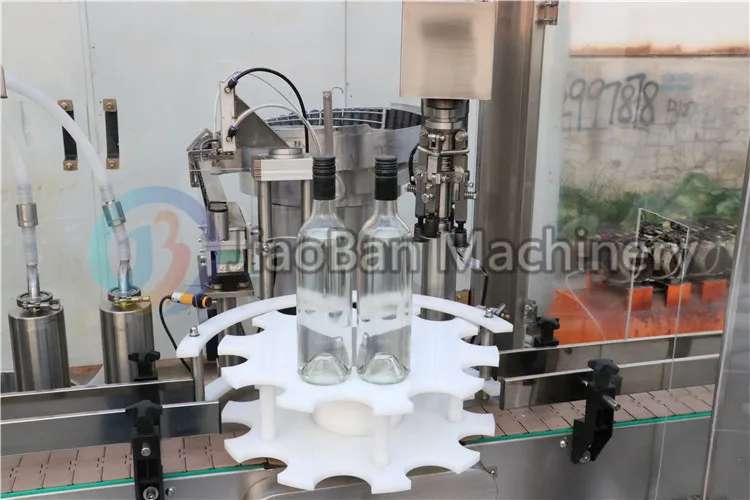

Sample bottles:



4 heads Filling and screw capping machine
