DPB Full Automatic Oil Liquid Blister Packaging Honey Chocolate Sauce Cream Syrup Honey Jelly Cup Food Blister Packing Machine
- Category: >>>
- Supplier: Ruian Antai Pharmaceutical Machinery Co. Ltd.
Share on (1600423743764):
Product Overview
Description
Product Description
Mould:
1,Forming Mould (Upper-Lower)
2,Heat-seal Mould (Upper-Lower)
3,Batch number Mould
4,Cutter Mould
Main Technical Parameters
| Cutting Frequency (Times/min) | 6-25 |
| Max. Forming Area and Depth(mm) | 240×150×26 |
| Stroke (mm) | 40-160 can be manufactured as user's requirements |
| Standard Plate(mm) | 80×57 can be manufactured as user's requirements |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air supply | ≥0.3 m³/min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Hard Pieces(mm) | 0.15-0.5×250 |
| PTP Aluminum Foil(mm) | 0.02-0.035×250 |
| Dialysis Paper(mm) | 50-100g×250 |
| Mould Cooling | tap water or recycling water |
| Overall Dimensions(mm) | 2900×720×1550(L×W×H) |
| Weight (kg) | 1600 |
Description:
This equipment is an automatic packaging equipment integrating machine, electricity and gas. It is a new packaging form that our scientific researchers have transformed the advanced technology of medicine packaging into food industry. Filling materials such as chocolate jam, jam, biscuits, soft (hard) sugar, chocolate beans, lollipop, butter, honey, hawthorn bats, Glutinous rice balls, milk tablets, dipping cups, kinder joys and other liquids with good fluidity, or regular and irregular product blister packaging, the product has exquisite appearance, lightweight packaging materials, easy to carry, one-time use characteristics, and more sense of value.
Features:
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.

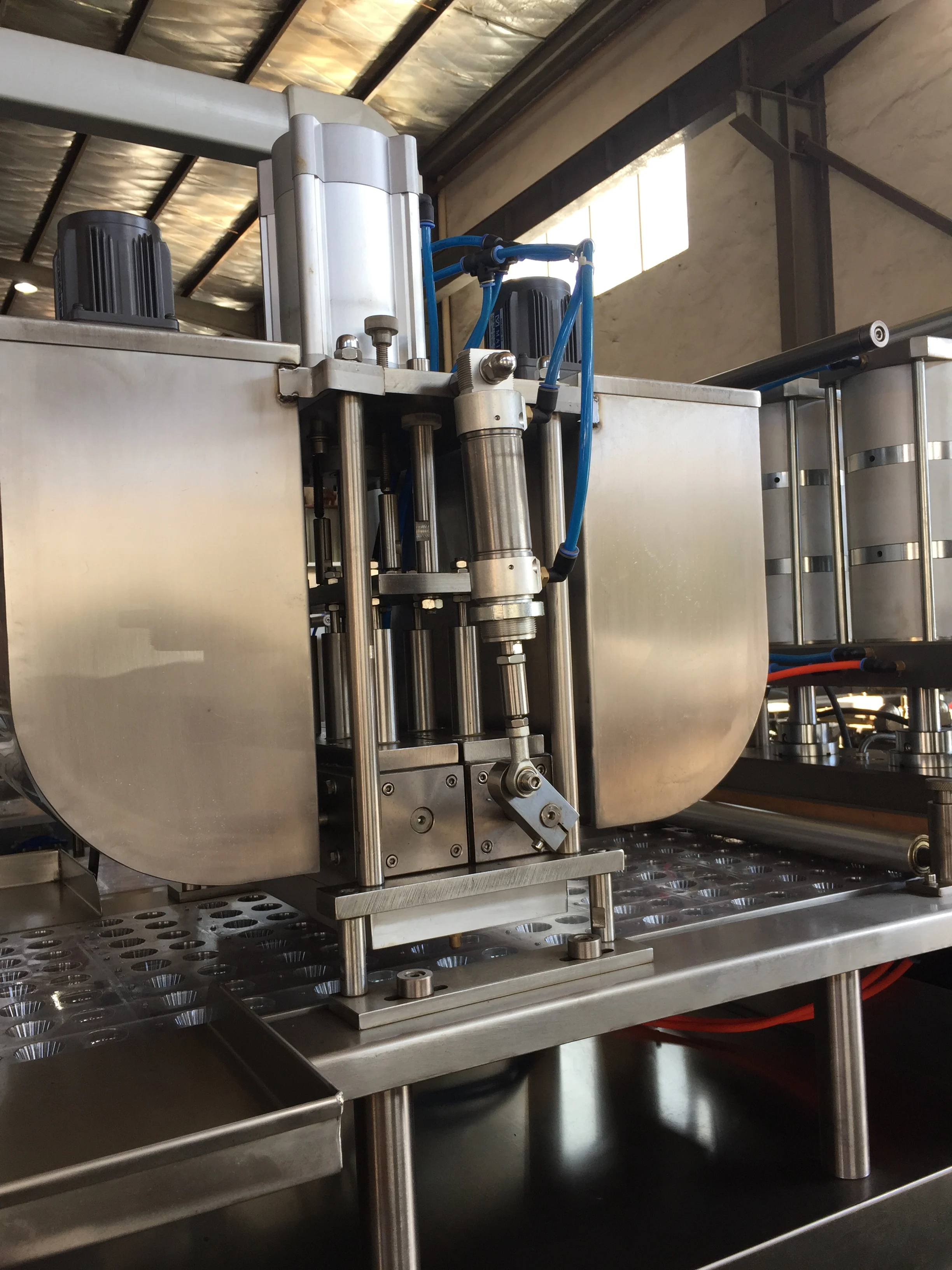

6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
Package Material:
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material
2, Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures:
1. Material transport 2. Preheating 3. Air blow forming 4. filling (manual feeding) 5. heat-sealing 6. perforation and batch number 7. traction 8. punching output 9. waste winding

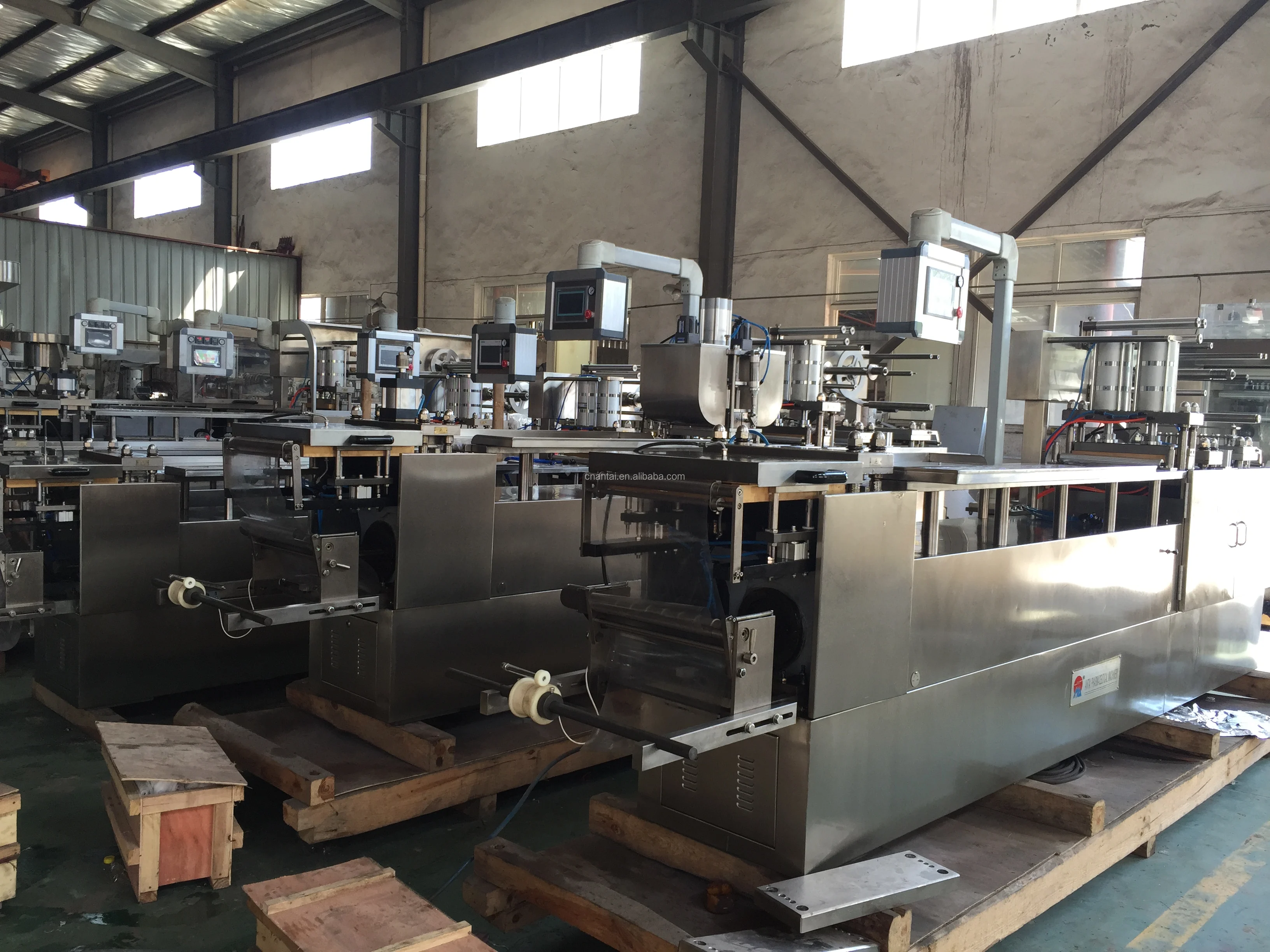

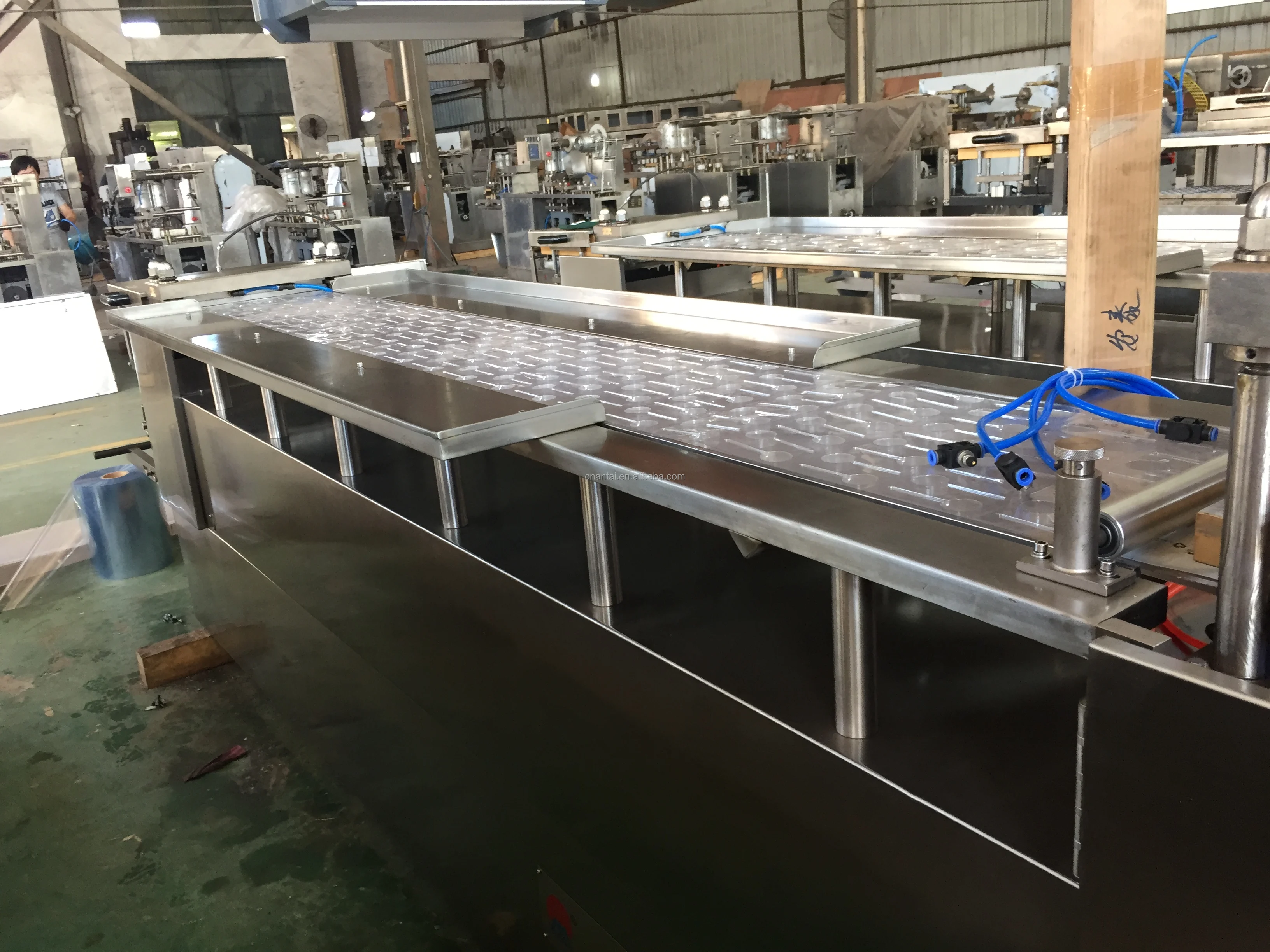

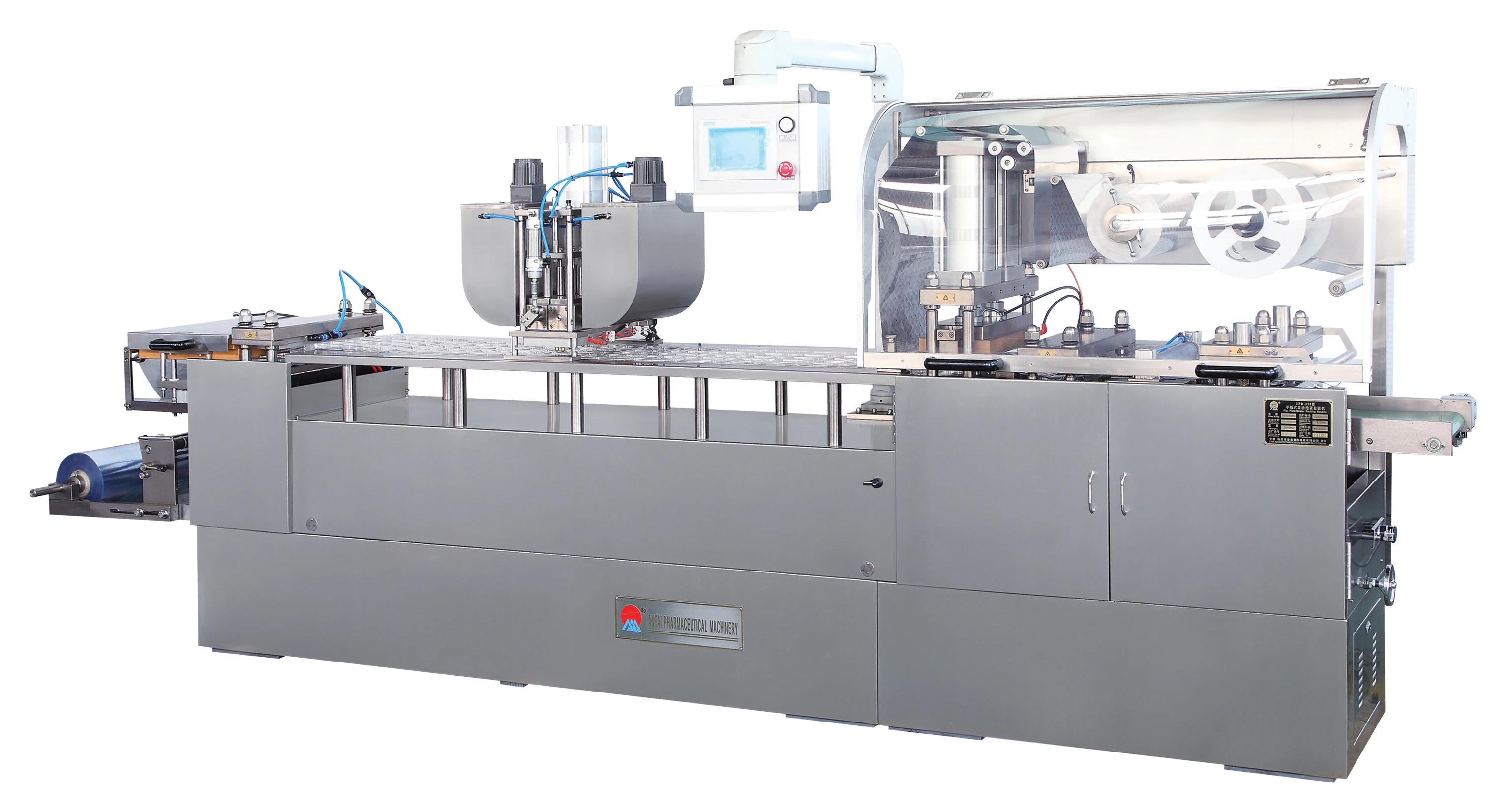

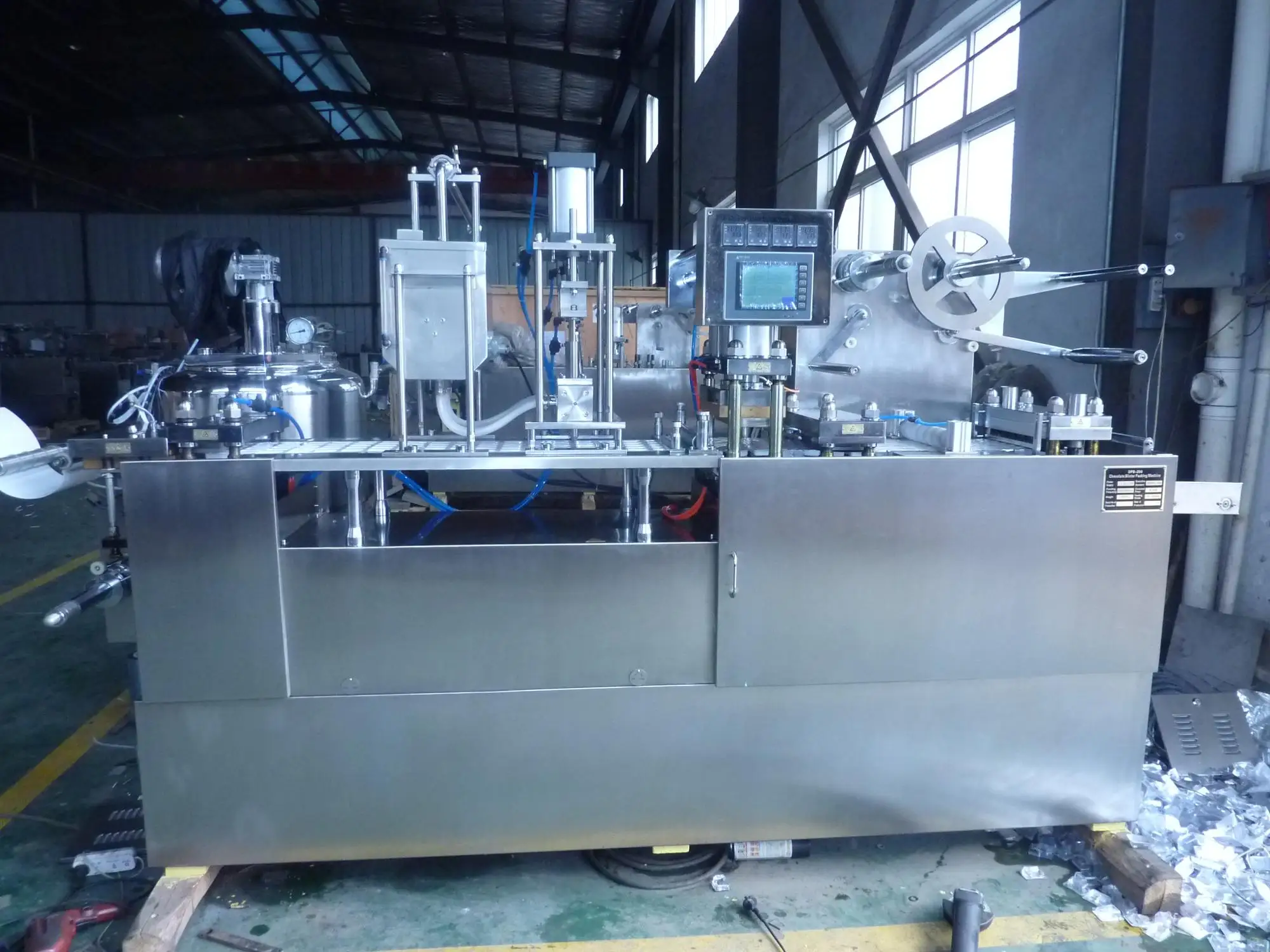

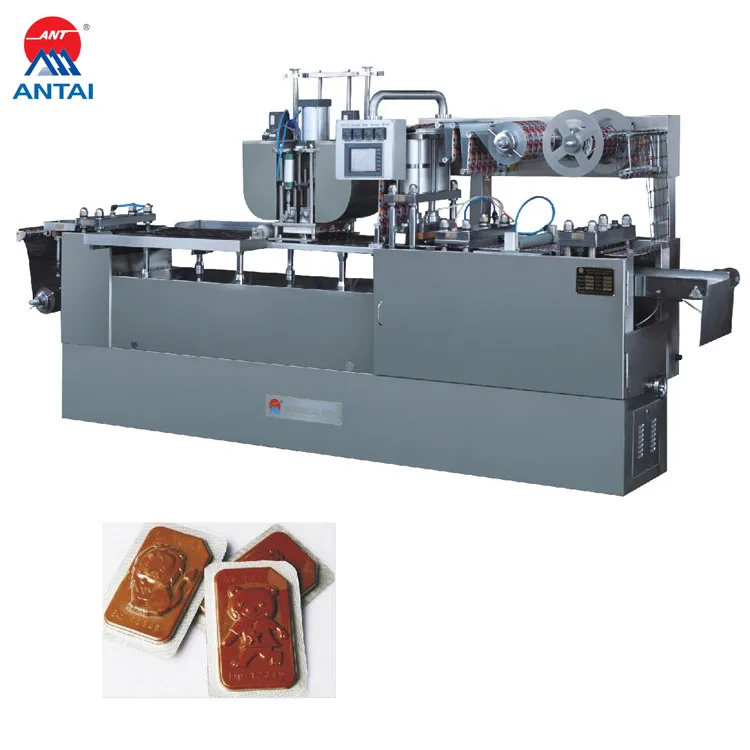

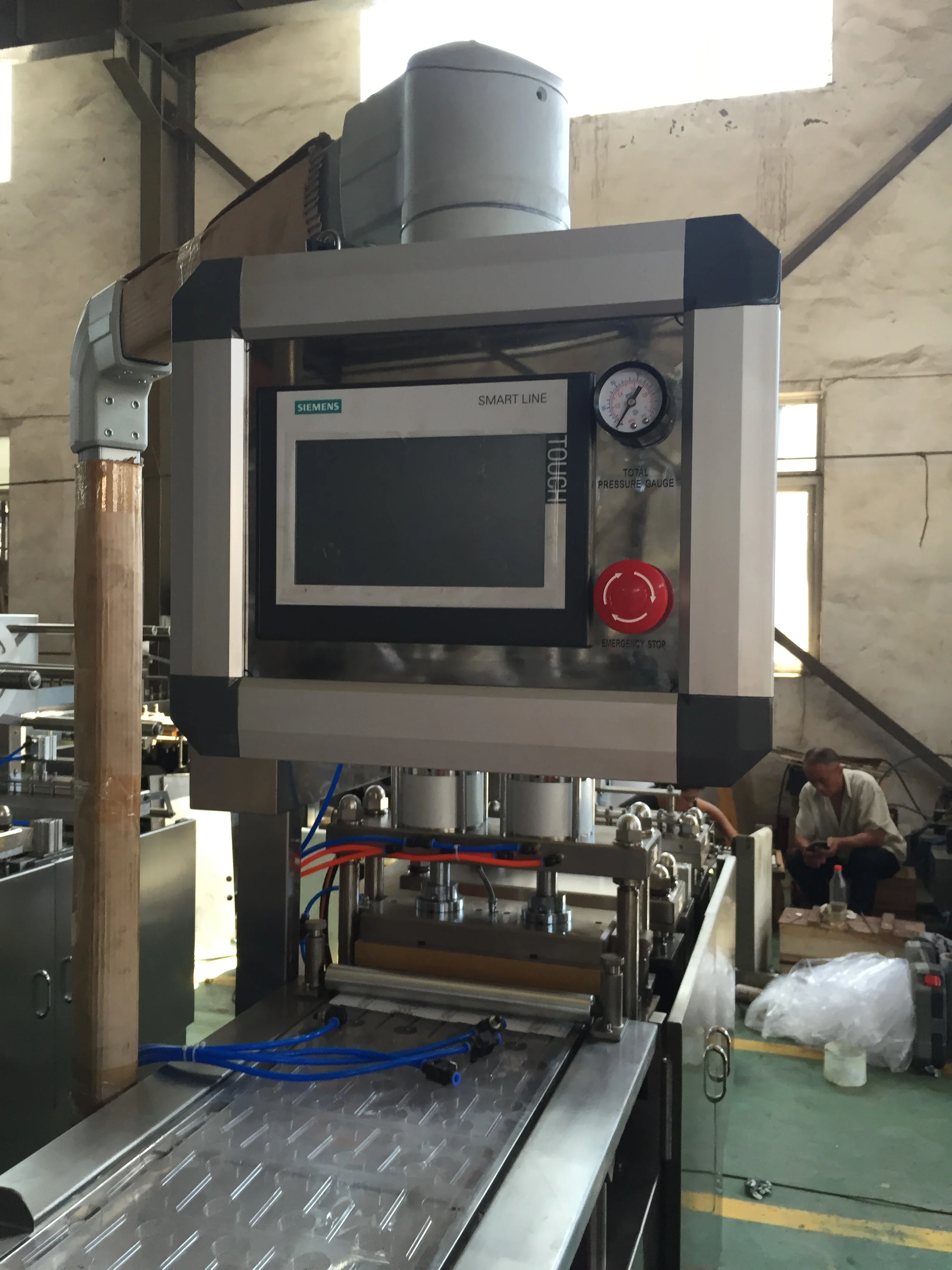

Product Image:

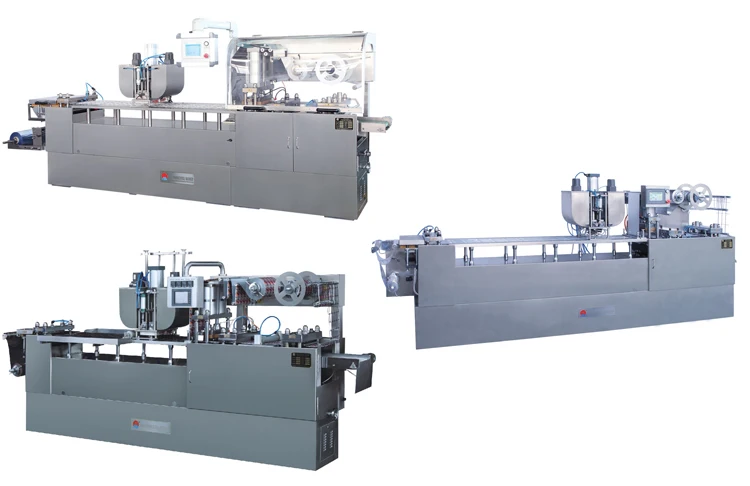

Note: Machine Appearance will be changed as per different dispose! Here are three types for you.

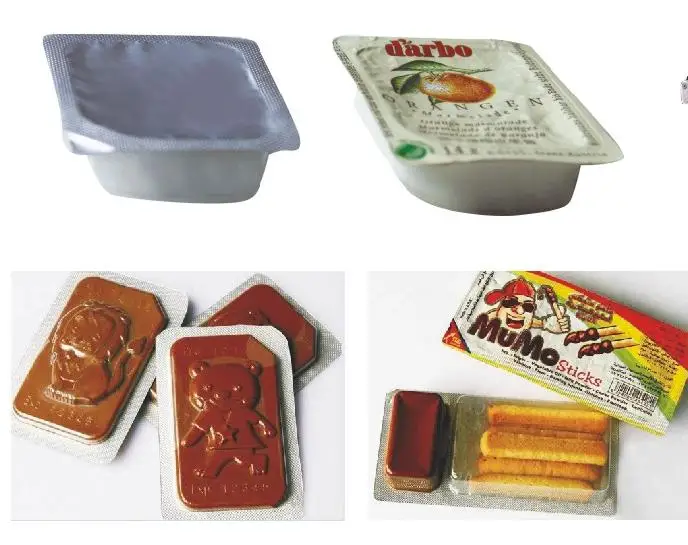

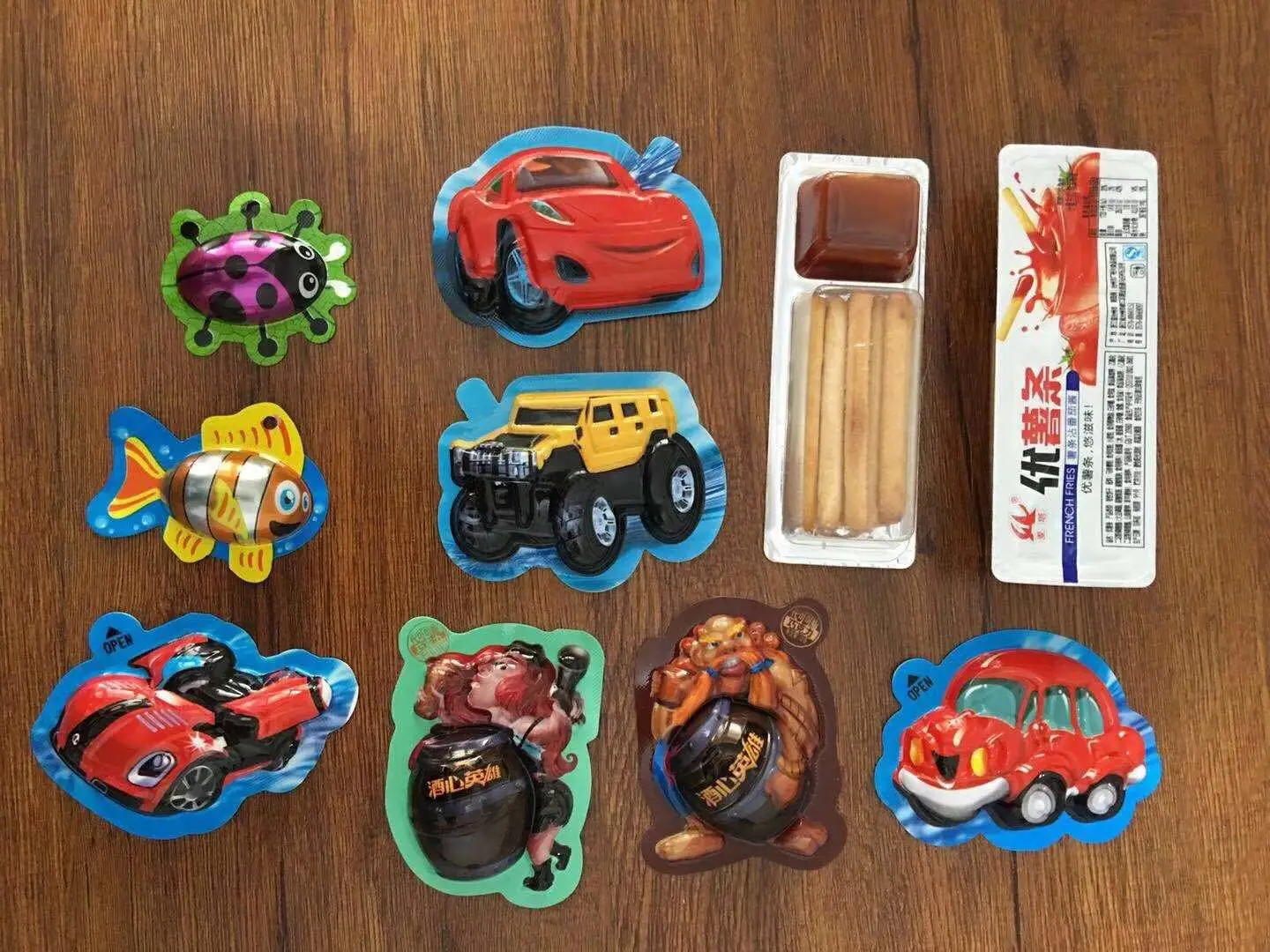

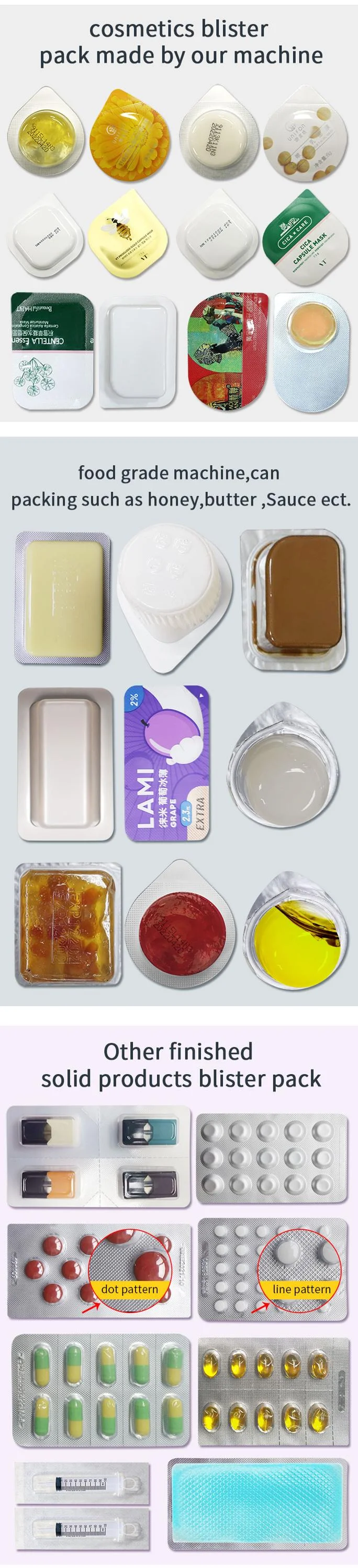

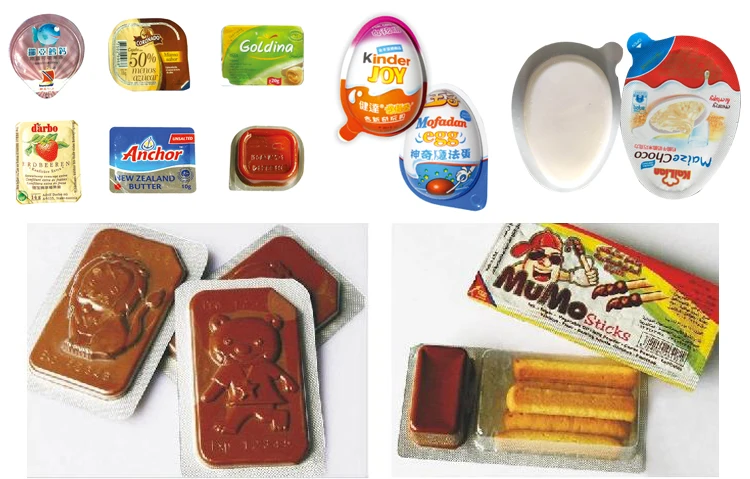

Our machine can be used for food package as below:
More Package Type, Please Contact Me. Send Now
More Products
Company Information
Company Profile
Ruian Antai Pharmaceutical Machinery Co., Ltd. (Antai) is located in the Chinese Packing Machinery City. Equipped with strong technical capabilities and advanced production equipment, we integrated scientific research, manufacture, and sales service. We develop our different series of packing machines by modern techniques. In September 2000, our company became a member of China Association for Pharmaceutical Equipment. Moreover, we manage our company in accordance with ISO9001:2000 and 5S systems. We also provide pharmacy equipment and foodstuff equipment according to GMP requirements and CE authentication. In 2007, we obtained independent foreign trade rights by The People's Republic of China.With the characteristics of multiple functions, steady performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for 10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
Factory Information
Factory Size: 1,000-3,000 square meters
Factory Country/Region: No. 501, 2nd Development Road, Economic Development Zone, Dongshan Street, Rui'an City, Wenzhou City, Zhejiang Province,China
No. of Production Lines: 1
Annual Output Value: US$2.5 Million - US$5 Million
Company Strength
Telephone: 0086-577-58907556
Mobile Phone: 0086-13738752788
Fax: 0086-577-65673189
Packaging & Shipping
FAQ
Q:Are you factory or a trading company.
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works.
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products.
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
