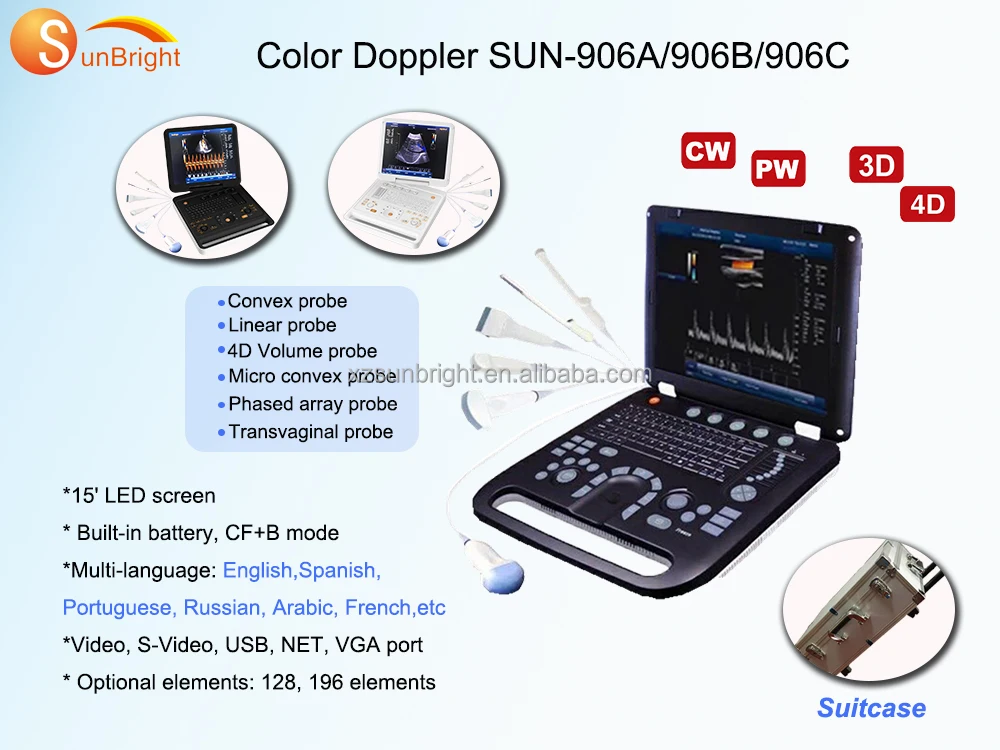

CE 4D one stop whole body diagnosis best image quality color Doppler ultrasound PW CW ultrasound baby
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1600423748745):
Product Overview
Description
Hot Picks
Product Description
CE 4D one stop whole body diagnosis best image quality color Doppler ultrasound PW CW ultrasound baby
Features

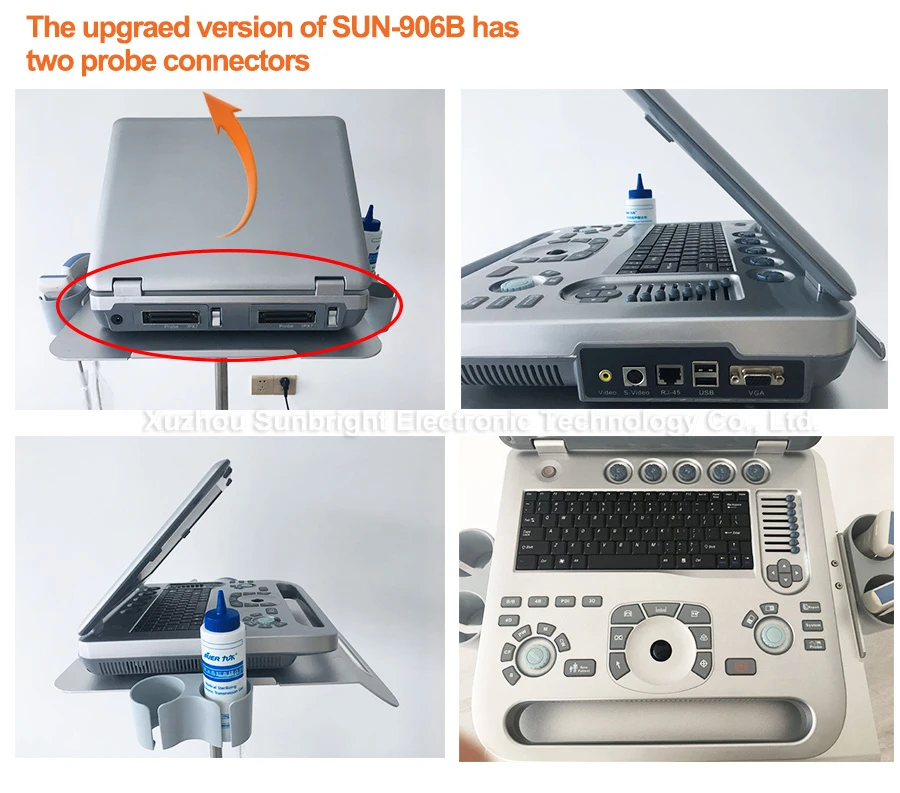

1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics /Musculoskeletal and so on
4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color,Simultaneous 2D/3D/4D Color Compound, PW, CW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
6. Built-in DICOM 3.0 protocol
7. Multi-languages function:English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German,Persian, Thai and so on.
1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics /Musculoskeletal and so on
4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color,Simultaneous 2D/3D/4D Color Compound, PW, CW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
6. Built-in DICOM 3.0 protocol
7. Multi-languages function:English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German,Persian, Thai and so on.
Physical Specifications:
More Specs
Equipment size | 375mm*360mm*75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |
Connectivity/Media/Peripherals
Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 128GB (SSD), 120G/200GB SSD (Optional) |
Printing Area | Image, report, Image+report |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI,etc.. |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Digital technology | Panoramic Imaging Tech All-digital signal processing Tech Multi-beam formation Tech Speckle Reduction Tech Tissue Harmonic Imaging Tech Dynamic Tissue Optimization Tech Duplex & Triplex Synchronous Display Directional Power Doppler Imaging Parameters Preset Tissue Special Image PW Auto Trace Update in line CF+B mode in one screen Complex Model Imaging IMT auto measurements Virtual convex array Trapezoidal imaging |
General Performance: | Digital Broadband | 12288 channels |
Beam-former | Re-programmable | |
Transmit Voltage | Adjustable (15 steps) | |
Beam-former Frequency Range | 1~40 MHz |
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024*768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
DICOM Connectivity
DICOM3.0 Compliant
3D 4D CW Software
Built-in 3D 4D CW software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
DICOM3.0 Compliant
3D 4D CW Software
Built-in 3D 4D CW software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM

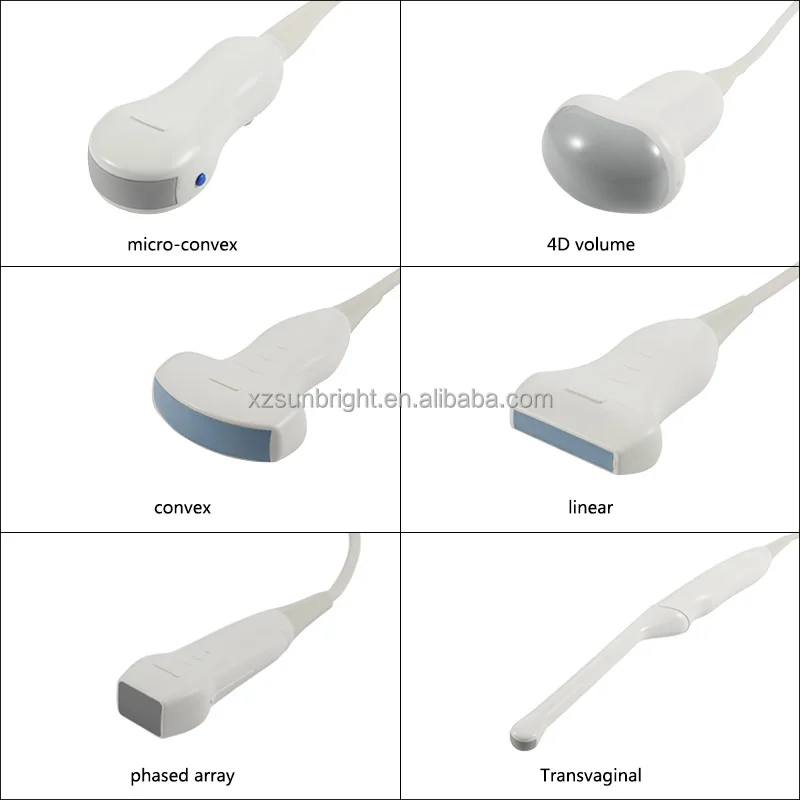

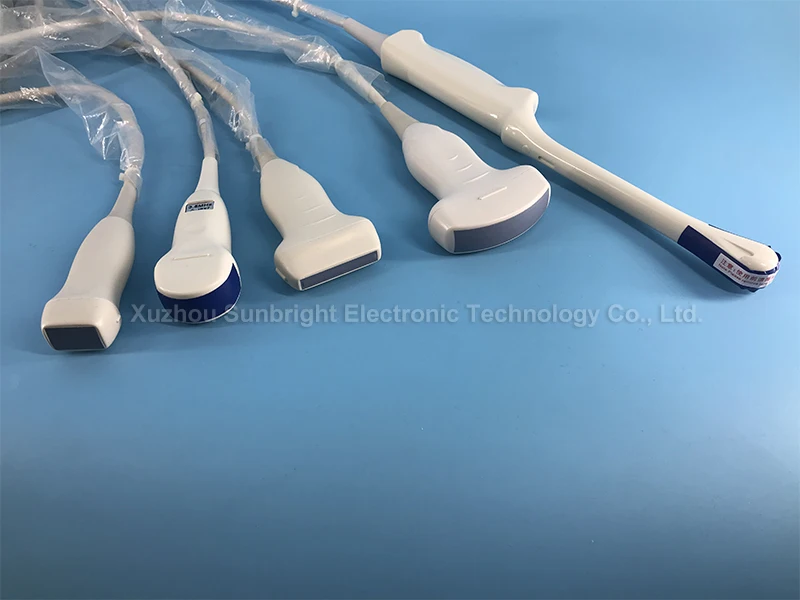

Transducers
Probe | Convex Array Probe | Linear Array Probe | Intra-Cavity Probe | Micro-convex probe |
Frequency | Central 3.5 MHz (2.0MHZ to 10.0MHZ) | Central 7.5 MHz (2.0MHZ to 10.0MHZ) | Central 6.5 MHz (2.0MHZ to 10.0MHZ) | Central 4.0 MHz (2.0MHZ to 10.0MHZ) |
Pitch | 0.516mm | 0.352mm | 0.216 mm | |
Radius | 60mm | N/A | 10mm | |
Elements | 96 | 96 | 96 |
User Interface:
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step

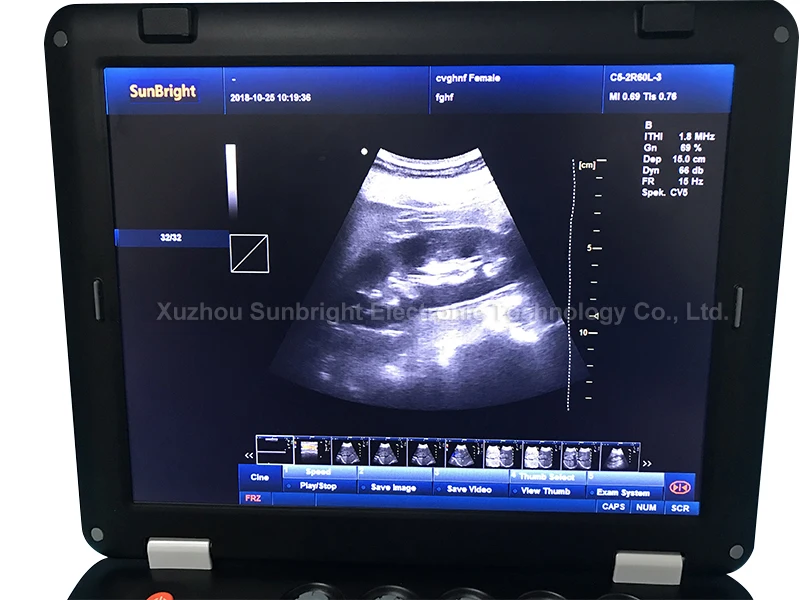

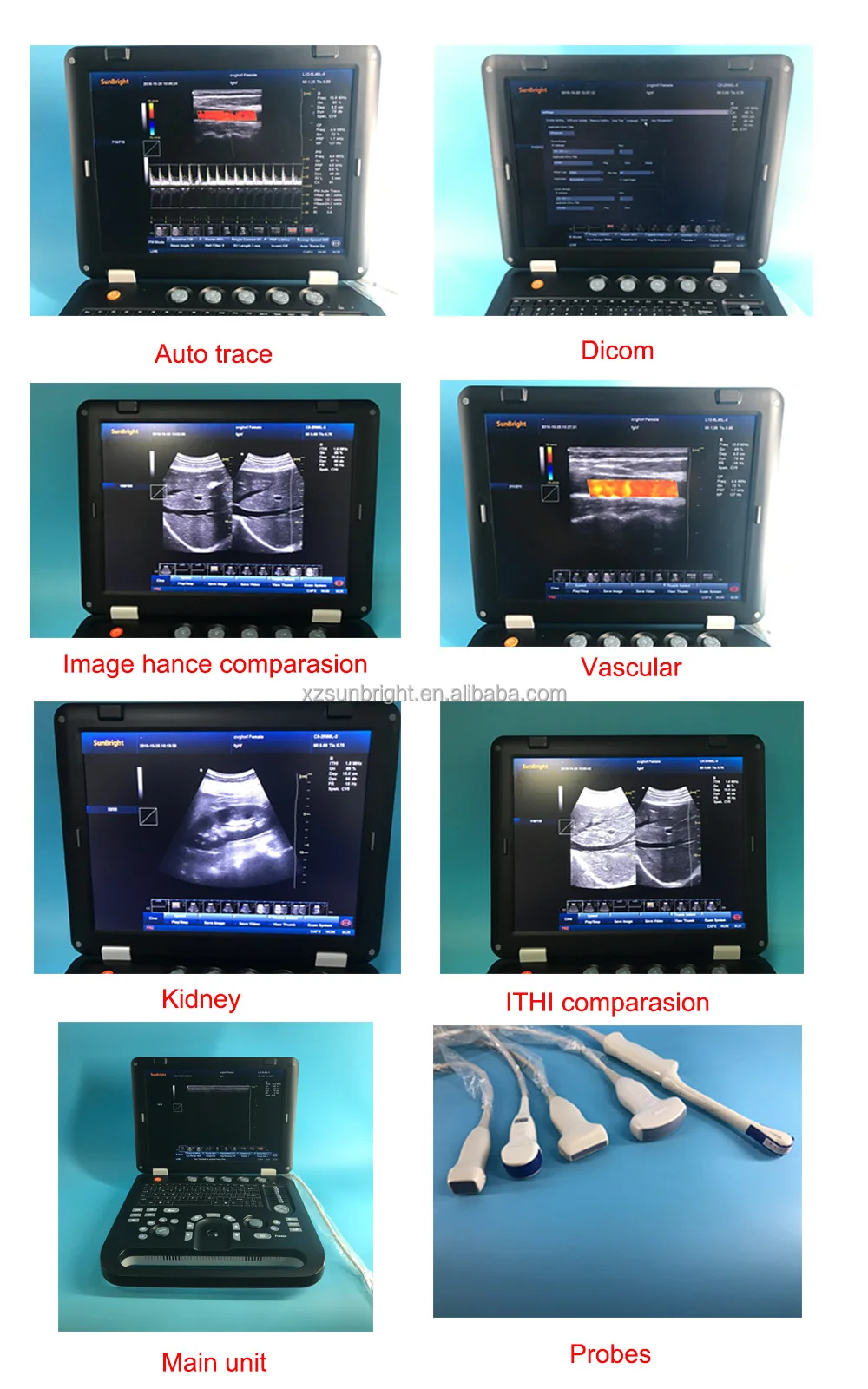

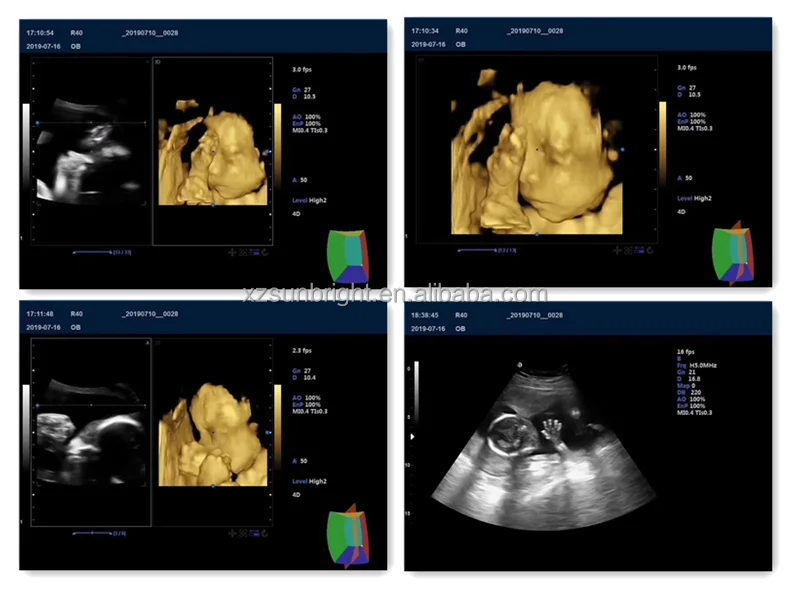

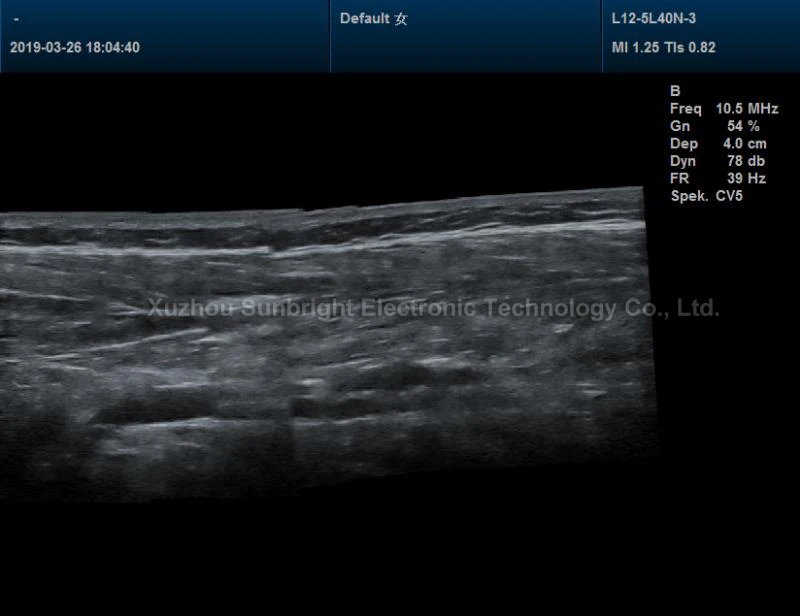

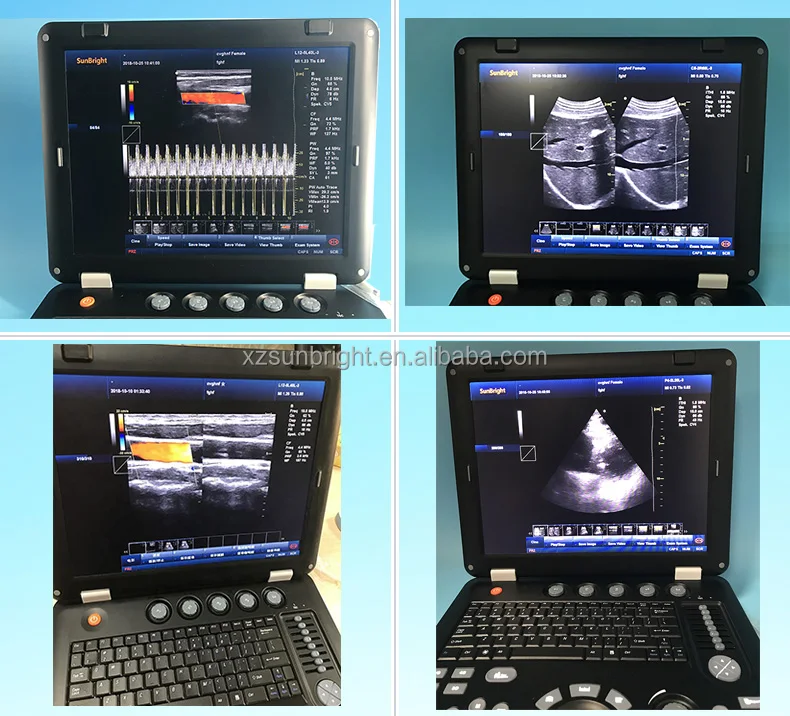

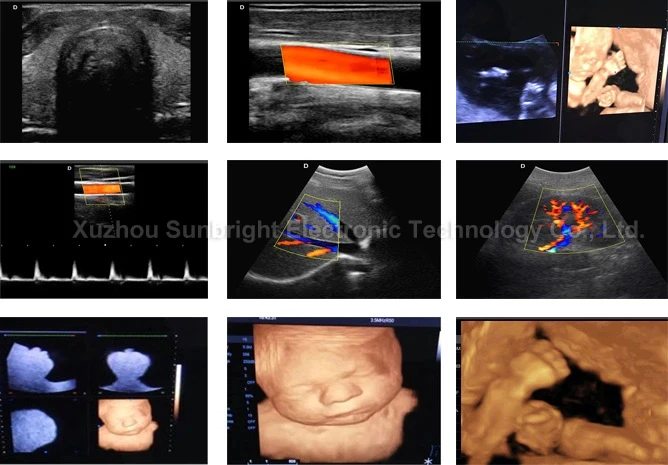

Scanning Images
Standard Congfiguration:

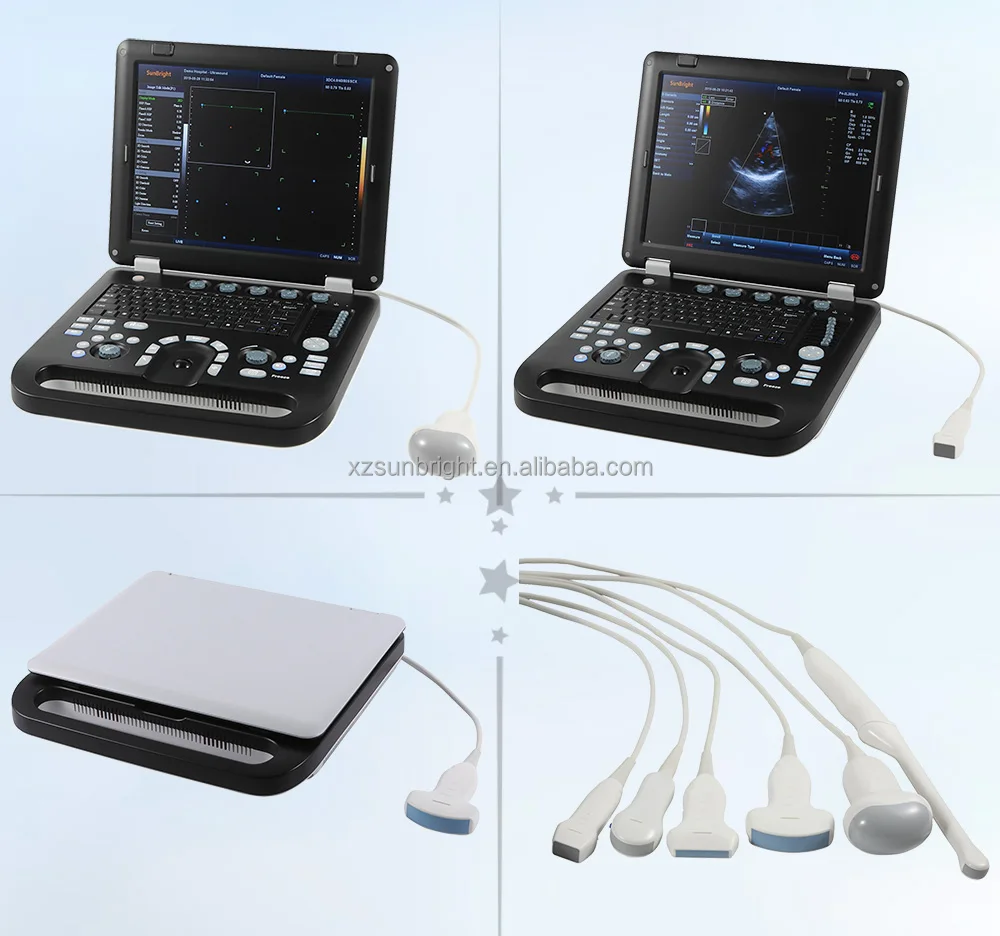

906C color Doppler 3D 4D main unit+one convex probe(192elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One transducer connector
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes

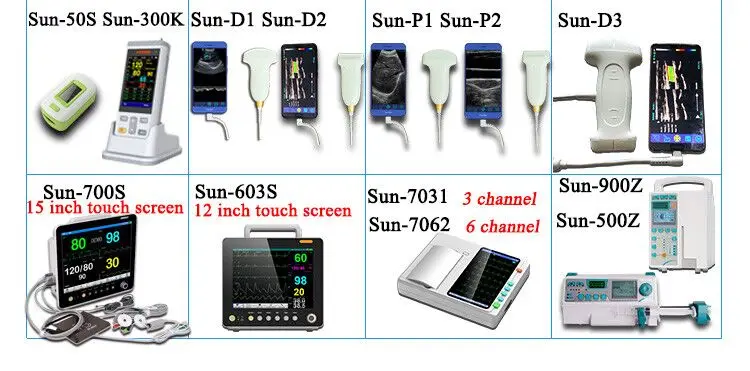

Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
